USER MANUAL Magica Bezzera

Three stylized gray snake silhouettes with no text or symbols

Technical line drawing of an industrial equipment enclosure with pressure gauges and control panel (no text or labels)

Abstract red line drawing of a stylized snake or serpent (no text or symbols)

BEZZERA

MAGICA MITICA

SIMBOLOGIA DI SICUREZZA

SAFETY SYMBOLS

SYMBOLES DE SECURITE

SICHERHEITSSYMBOLIK

Warning! Important safety warnings!

Caution! Important warnings for the correct use of the machine

© 2017 G. BEZZERA S.R.L. - All rights reserved. ORIGINAL INSTRUCTIONS

This publication or any part of it cannot be reproduced, stored in any kind of processor, transmitted, transcribed or translated in any common or software language, in any form or with any means be they electronic, mechanical, magnetic, optical, chemical, manual or other, without the previous written authorisation of G. BEZZERA S.R.L..

Follow the maintenance instructions indicated below to operate the machine correctly.

Safety Rules

Do not use water jets on the machine. Disconnect the machine from the power line by turning the lever of the omnipolar disconnector, of the electric mains, to the "0" rest position, remove the plug and close the water interception valve before carrying out maintenance and/or cleaning operations. If the machine malfunctions, do not attempt to repair it yourself and immediately contact technical support. In case of damage to the power supply cord, turn off the machine immediately, close the water and contact the technical assistance service. Avoid replacing it autonomously. Perform cleaning/maintenance with the machine cold, preferably wearing protective gloves.

Cleaning the Machine

Warnings: For the best results and in compliance with current regulations, change the water in the boiler and pipes at when starting the machine every day.

This advice is for indication purposes only: maintenance and cleaning schedules depend on the use of the machine.

After each use

1) Clean the steam wand.
2) Clean the filter-holder and filters.
Daily
1) Clean the cup rack and the drip tray.
2) Clean the bodywork.
3) Clean the group gasket with the brush supplied.
4) Wash the group as follows: clip the filter holder with the blind filter supplied to the group and start a delivery several times.
5) Immerse the filter-holders and filters in boiling water for a few minutes to any coffee oils and use a cloth or sponge to remove it.

For washing and cleaning, do not use solvents, detergents or abrasive sponges. Only use specific products for coffee machines. Wash the bodywork us-

ing a cloth soaked in water and/or neutral detergent, taking care to dry the surface well before reconnecting the machine to the mains electricity. Use water to wash the cup rack and the drip tray.

To wash the tank after having extracted it, use water and neutral detergents and perform thorough rinsing. Reinsert the tank and the silicon tubes.

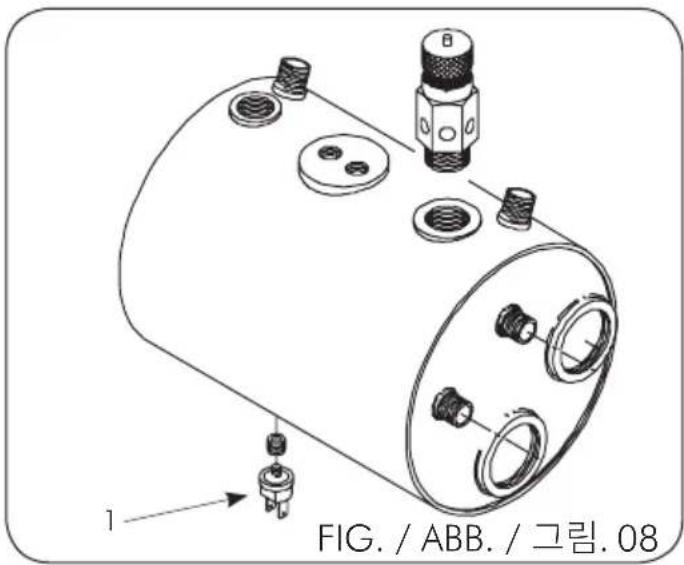

Safety thermostat - Manual resetting

Warning! The operation described below must be only performed by an installation technician authorised by the manufacturer.

During machine operation the overheating of the resistance in the boiler can trig, disconnecting the power, the safety thermostat that prevents the occurrence of more damages to the boiler. To restore normal operation, it is necessary to solve the fault that has caused the intervention of the safety thermostat and then restore the normal condition by pressing the red button (RESET) (Fig. 08).

Correct disposal of the product

(electric and electronic waste)

(Applicable in the countries of the European Union and in those with waste sorting systems)

The label affixed on the product and on the documents indicates that the product must be disposed of with other domestic waste at the end of its life cycle. To avoid any damages to the environment or health caused by improper waste disposal, the user must separate this product from other types of waste and recycle it responsibly to promote the sustainable reuse of material resources.

Domestic users should contact the reseller from whom they purchased the product or the relevant office in their area to obtain all information about waste sorting and recycling of this type of product. Corporate users should contact their supplier to check the terms and conditions of the purchase agreement.

This product must not be disposed of with other industrial waste.

MAINTENANCE

Line drawing of a portable gas stove with control knobs and indicator lights (no text or symbols)

Illustration of a hand holding a speaker grille with a tool, no text or symbols present

G. BEZZERA S.R.L. warranty - Validity terms

The provided products are covered by warranty due to defects of material and/or manufacturing for a period of 12 months from the invoicing date. If the machine is outside the warranty period, it will not be possible to avail of it. Warranty will be granted only after submission of the original purchase document (sale receipt or invoice) attesting the purchase date.

In case of malfunction attributable to manufacturing defects, request the warranty intervention directly to the authorized G. BEZZERA S.R.L. dealer where the machine has been purchased, indicating the malfunction and the serial number indicated in the user manual or on the machine frame.

Goods returns which may reach the authorized dealer without the above serial number will void the warranty, since machine traceability data would not be available.

In case of return, equipment delivery is care of the customer. Handle with care and reposition the machine inside the original packing, to avoid further damage during transport. We remind that, in order to grant the warranty, the goods shall be mandatorily returned in the original packing.

The cost and the risks of machine transport to the dealer shall be borne by the customer.

Each machine is provided with an anti-tampering seal, which makes impossible to open the machine without breaking or damaging the seal. The warranty shall never be granted in case of machine with removed or damaged seal.

Warranty will be granted only after verification by the G. BEZZERA S.R.L. specialized, authorized technician, who will evaluate whether it is possible to repair the machine on site or it is necessary to ship it to the manufacturing plant. Any tampering with the machine by non authorized personnel shall void the warranty.

If the machine is received with defective or manifestly damaged packing, the customer shall promptly notice the distributor. Do not collect the goods and especially do not try to operate the machine.

The warranty explicitly does not include the defects which:

- are attributable to the use of non genuine accessories and spare parts

- are caused by thunderbolts, humidity, fire, improper power supply voltage, as well as any other damage not objectively attributable to the manufacturer.

- are ascribable to tampering with the power supply cable

- are not ascribable to manufacturing faults, but rather to the normal wear of the materials due to the proper use of the equipment (notably, calcification and wear of the parts subject to wear, e.g. seals, grinding disks)

- occur due to wrong use, negligence or carelessness in use or care (e.g. in case of non observance of the user instructions of the equipment)

- are caused by wrong installation, maintenance, or repair by non authorized persons or by damaging during transport.

For further information, or in case of issues not taken into account in the following instructions, refer to the authorized service centres.

Conditions de validité de la garantie G. BEZZERA S.R.L.

5 - USO DELLA MACCHINA

5 - USO DELLA MACCHINA

1.1 General warnings .... 31
1.2 Intended use....31

2 - TRANSPORT

2.1 Packaging 32
2.2 Handling the machine 32
2.3 Storage 32

3 - DESCRIPTION OF MACHINE

3.1 Description of operating cycle 33
3.2 Description of commands (Fig. 01 - Fig. 09) ....33
3.3 Technical data (Fig. 02) 33

4 - MACHINE INSTALLATION

4.1Warnings....34
4.2 Preparation of system for installation....34

4.2.1 Connection to mains electricity 34
4.2.2 Connection to the water mains (R version/TOP-MAINS) 34
4.2.3 Connection to drainage circuit....34

4.3 MITICA Version "TOP" 34

4.3.1 MITICA "TOP-MAINS" Mode 34
4.3.2 MITICA "TOP-TANK" Mode 35
4.3.3 MITICA "TOP" Version - Pump adjusting 35

4.4 Version with digital temperature control PID 35

4.4.1 Heating the machine....35
4.4.2 Boiler temperature adjustment 35
4.4.3 Temperature/pressure conversion table 36

5 - USE OF MACHINE

5.1 Starting the machine and filling the boiler with water 36
5.2 Heating....36
5.3 Preparation of coffee 36
5.4 Steam dispensing (Fig. 06)....36
5.5 Extracting hot water 37
5.6 Turning off the machine 37
5.7 Pressure gauge 37
5.8 Turning the lights on 37

6 - TROUBLESHOOTING

Problem / Troubleshooting / Solution / Advice 38

1 - WARNINGS

1.1 General warnings

• The electric and water systems must be set up by the user, according to the indications in chapter 4 of this "Machine installation" booklet.
• The installer cannot, under any circumstances, modify the existing system set up by the user.
• This instructions booklet represents an integral part of the machine and must be read carefully by the user before using the machine.
• Store the booklet for future consultation.
• The machine is delivered without water inside the boiler to avoid possible damage caused sub-zero temperatures.
• Make sure the electric system is earthed.
• Do not touch the machine with damp and/or wet hands and feet.
• Do not use the machine bare foot.
• Do not connect the power cable to makeshift extension cords and similar.
• Do not disconnect the machine from the mains power by pulling the power cable.
• Do not use the machine if the power cable is rolled up.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are under the supervision of a person who is responsible for their safety or they have been instructed in how to use the appliance.
• Supervise children so that they do not play with the machine.
• To avoid water getting inside the

machine, place the cups on the cup warmer with the hollow side facing the top.

• The machine is not intended for outdoor use.
• The following symbol indicates the danger of burns.
• This appliance can be used by children older than 8 years and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they are under the supervision of a person who is responsible for their safety or they have been instructed in how to use the appliance safely and they have understood the dangers involved. Cleaning and maintenance must not be carried out by children without supervision.
• The replacement of damaged power cord must be performed by qualified personnel.

1.2 Intended use

The MAGICA - MITICA espresso coffee machine is built to make espresso coffee, to produce hot water to make tea, chamomile and other infusions, to produce steam and heat up beverages (milk, hot chocolate, cappuccino, punch, etc.).

This machine was conceived exclusively for the aforesaid uses.

All other uses are deemed improper and, therefore, prohibited by the manufacturer. The manufacturing firm will not be deemed liable for damages caused by the improper use of the espresso coffee maker.

2 - TRANSPORT

2.1 Packaging

The espresso coffee machine MAGICA - MITICA, previously protected with polyurethane foam, is packed in cardboard boxes.

Warnings:

• After removing the machine from the packaging, check that it is intact and all the parts have been supplied.
• The packaging must never be left within reach of children and must be disposed at designated waste facilities.
• If any damage to the machine is detected or if any parts are missing, do not use the machine and immediately notify the local dealer.

2.2 Handling the machine

The espresso coffee machine can be handled with pallet truck or lift truck, or manually.

2.3 Storage

The machine, which has been previously packaged properly, must be stored in a dry place with temperature between +5 °C and +30 °C and relative humidity not higher than 70%.

Do not stack more than four boxes on top of each other.

3 - DESCRIPTION OF MACHINE

3.1 Description of operating cycle

Versions MAGICA S - MITICA S/R/TOP

The water coming from the water mains (VERSION MITICA R - MITICA TOP-MAINS) or from the tank placed on the back of the machine (VERSION MAGICA S - MITICA S - MITICA TOP-TANK), via a pump, passes through an overpressure valve adjusted to 12 bar (1.2 MPa) and allows loading the boiler and the exchanger. The water of the boiler, which is heated by a resistor, heats the water in the heat exchanger, from which, by means of a dip tube, it is sent to the group through a manually controlled valve that allows the passage of the water for the infusion of the coffee.

3.2 Description of commands (Fig. 01 - Fig. 09)

1 General switch
2 Coffee dispensing lever
3 Hot water tap
4 Water loading pipe (R version)
5 Electric power supply cable
6 Group head
7 Filter holder
8 Steam wand
9 Steam knob
10 Water knob
11 Green Light
12 Yellow Light
13 Discharge pipe (R version)
14 Boiler gauge
15 Pump gauge
16 Blind filter
17 2 cup filter
18 1 cup filter
19 PID
20 Light switch

3.3 Technical data (Fig. 02)

The A-weighted sound pressure level of the coffee machine is less than 70dB.

Power supply V~/Hz 220 - 240V~ / 50-60Hz
Resistance V~ 220 - 240 110
Nominal power W 1350 - 1550 1450
Resistance W 1250 - 1450 1350
Boiler lt	2.0
Tank (S)	It	4.0
Width "A"	mm	"MAGICA" 300 - "MITICA" 320
Depth "B" mm	"MAGICA" 425 - "MITICA" 450
Height "C"	mm	"MAGICA" 415 - "MITICA" 400
Net weight kg 22.7 (vibration pump) S - 28.2 (volumetric pump) R
Gross weight (box)	kg	25.2 (vibration pump) S - 30 (volumetric pump) R
Loading fitting (R)		G 3/8"
Diameter drain fitting (R)	mm	10

4 - MACHINE INSTALLATION

4.1 Warnings

Installation must be carried out by qualified personnel, according to the instructions supplied by the manufacturer and in compliance with current laws.

The machine must be positioned and installed in a place where use and maintenance are performed exclusively by qualified personnel. The machine can be used in places set up for staff kitchen areas in shops, offices and other working environments; holiday farm houses; by clients in hotels, motels and other types of accommodation; bed and breakfast settings; etc.

4.2 Preparation of system for installation

Prepare the machine's support on a flat horizontal, even, dry, smooth, sturdy, stable surface positioned at such a height that the cup warming surface is over 150 cm from the ground.

Do not use water jets, or install in places where water jets are used.

To guarantee regular operation, the device must be installed in places where the temperature is between +5 °C and +32 °C and the humidity does not exceed 70%.

If the machine is exposed to temperatures below + 0 °C, proceed as follows:

- ensure that the machine has passed 24 hours in a place where temperature is higher than +15 °C before turning it on.

The machine is powered by electricity and it needs the following to operate:

• connection to mains electricity.
• connection to mains water.
• connection to drainage circuit.

4.2.1 Connection to mains electricity

Warnings:

- The system must be created in compliance with current laws and earthed.

The machine is supplied with an electric power cord fitted with a plug.

4.2.2 Connection to the water mains (R version/TOP-MAINS)

For the connection to the mains, refer to all national laws and regulations.

Make sure that the water supply line is connected to a drinking water network with operating pressure between 0 and 6 bar (0 - 0.6 MPa).

If the water network has pressures above 6 bar (0,6 MPa), install a pressure reducer.

Provide a water shut-off valve upstream of the machine's connection.

The water inlet pipe (Fig. 01; pos. 4) is supplied threaded with G 3/8" threading.

4.2.3 Connection to drainage circuit (R version)

Connect a rubber pipe (Fig. 01; pos. 13) with an internal diameter of 10 mm to the connection, provided on the machine's drain well, to a previously prepared open syphon drain.

4.3 MITICA Version "TOP"

The "TOP" version is available only for the espresso coffee machine MITICA and can be used in TANK or MAINS mode.

The water coming from the tank (TANK mode) or from the water supply line (MAINS mode) is sent in the boiler and the exchanger through a pump, depending on the version.

Warnings:

- The espresso coffee machine MITICA "TOP" version has no exhaust pipe (Fig. 01; pos. 13). Periodically check the discharge tray and empty it of the water contained in it.

- Keep the details needed for the transformation in order to restore, in future, the TANK or MAINS mode.

The transformation from TANK mode to MAINS mode or vice versa involves a variation of pressure detected by the pump pressure gauge (Fig. 01; pos. 15), which is possible to restore by acting on the adjustment fitting (Fig. 12; pos. 1) as described in paragraph 4.3.3 of this manual.

4.3.1 MITICA "TOP-MAINS" Mode

The machine is delivered in TANK mode; to transform it into MAINS mode proceed as follows:

- Make sure that the machine is not connected to the electricity mains and that is cold in all its parts.

• Extract the tank (Fig. 10; pos. 1), position the plug with relevant seals (Fig. 10; pos. 3) screwing it in to the bottom and connect the tank probe bypass cable in the appropriate tab located on the tank support (Fig. 10; pos. 2).
• Remove the plug with its seal (Fig. 11; pos. 2) and replace it with the water loading hose (Fig. 11; pos. 1) supplied paying attention not to damage and/or scratch any part of the machine.

For the connection to the water mains follow paragraph 4.2.2 of this manual.

4.3.2 MITICA "TOP-TANK" Mode

It is possible to restore the TANK mode by returning the machine to the original delivery mode by acting as follows:

• Make sure that the water interception tap is closed, that the machine is not connected to the electricity mains and that is cold in all its parts.
• Remove the water loading pipe (Fig. 11; pos. 1) and replace it with the relevant plug and seal (Fig. 11; pos. 2), taking care not to damage and/or scratch any part of the machine.
• Remove the plug with its seals (Fig. 10; pos. 3), disconnect the tank probe cable bypass from the appropriate tab located on the tank support (Fig.10; pos. 2) and place the tank (Fig. 10; pos. 1) in its original position.

4.3.3 MITICA "TOP" Version - Pump adjusting

After having transformed the machine, it is possible to vary the operating pressure, returning it to 9 bar (0.9 MPa) as calibrated at the factory, by screwing or unscrewing the adjusting fitting placed in the lower part of the machine (Fig. 12; pos. 1).

After carrying out the operations described in sections 5.1 and 5.2 of this manual, proceed as follows:

1 - Insert the filter-holder with a blind filter (Fig. 09; pos. 16) into its slot.
2 - Raise the coffee dispensing lever (Fig. 01; pos. 2) in a horizontal position, take note of the pressure and return the coffee dispensing lever (Fig. 01; pos. 2) in vertical position.
3 - Unscrew the locknut (Fig. 12; pos. 2).
4 - Screw the pump adjustment fitting (Fig. 12; pos. 1) to increase the pressure or unscrew to decrease it, performing no more than one

complete turn at a time.

Repeat steps 2 and 4 until returning the pressure exerted by the pump during dispensing to 9 bar (0.9 MPA) or in any case between 8 and 10 bar (0.8 and 1.0 MPa).

5 - Tighten the lock nut (Fig. 12; pos. 2).

Warning:

• Do not remove the filter holder with blind filter when the machine is operating with lever lifted in START position (Fig. 05).
• Do not adjust the pump pressure above 10.5 bar (1.05 MPa).

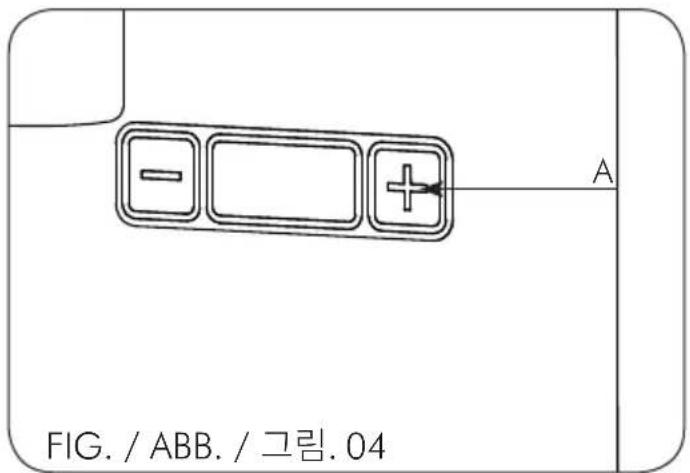

4.4 Version with digital temperature control PID

The coffee machine with temperature control has a digital temperature regulator which can adjust the temperature from 80 °C to 100 °C. This adjustment allows the boiler pressure to be changed from a minimum of 0.5 bar to a maximum of 1.7 bar.

Never raise the boiler temperature above 100 °C. The subsequent increase in pressure could trigger the safety valve.

4.4.1 Heating the machine

Press the mains switch (Fig. 1; pos.1) to power the machine; the temperature control display (Fig. 4; pos. A) will display "OFF", i.e. the boiler heating element is off.

To start heating the boiler, press the key (Fig.4-A; pos B). The boiler temperature detected will be displayed. A dot in the lower right corner of the display shows that the heating element is on. (Fig 4-A; pos C).

4.4.2 Boiler temperature adjustment

Adjusting the boiler temperature is a personal factor which depends on a number of variables, such as external temperature, humidity, coffee quality, etc. and is set in the factory to an average temperature of 90 °C.

When the key (Fig 4-A; pos A) is pressed, the display shows PrG. When the key (Fig.4-A; pos B) is pressed, the display shows the factory setting for the boiler temperature, 90 °C 1 bar. You can now change the temperature setting with the keys (Fig 4-A; pos A/B).

The temperature check, 3 seconds after pressing the last key, stores any changes and displays the boiler temperature again.

4.4.3 Temperature/pressure conversion table

Warnings:

The machine allows you to choose which unit of measurement of temperature is displayed:

°C (degrees Centigrade).

°F (degrees Fahrenheit).

To set a value press the key (Fig. 4-A; pos. A) the display will show PRG; press the key again (Fig. 4-A; pos. A) the display will show UoM; press the key (Fig. 4-A; pos. B) to change the unit of measurement of temperature using the keys (Fig. 4-A; pos. A/B).

°C°F	80176	85185	90194	95203	100212
bar 0.	5 0.7 1.	0 1.3 1.	7

5 - USE OF MACHINE

5.1 Starting the machine and filling the boiler with water

Open the water interception tap (R Version). Introduce the water into the tank (S Version) (Fig. 03).

Warnings:

- Use ideal hardness drinking water, in French degrees approximately 15 °F; never use hot water.

Insert the plug into the electrical socket.

Switch the main switch (Fig. 01; pos. 1) on the position 1. It automatically load the water in the boiler.

If the lights remain off after the loading the water, turn the machine off and on again until the lights are on.

5.2 Heating

To make sure the machine has reached the correct heat balance between pressure and temperature, when the boiler pressure gauge (Fig. 01; pos. 14) will indicate a pressure between 1 and 1.2 bar (0.1 - 0.12 MPa), open the steam valve (Fig. 01; pos. 9) and release the steam into the drip basin 2 or 3 times.

The yellow light (Fig. 01; pos. 12), when on indicates the regular operation of the machine, if off indicates insufficient water level in the tank (S version), in boiler (R version).

Warning:

- A safety device will interrupt the operation of the motor pump after 120 seconds if the minimum level of water in the boiler is not reached. The machine will report this alarm by switching off the yellow light.

5.3 Preparation of coffee

1) Remove the filter holder (Fig. 01; pos. 7) from the group head.

2) Load the filter-holder with ground coffee, press the coffee taking care not to get the edge of the filter-holder dirty.

3) Insert the filter-holder in the group head.

Start running without the filter-holder for about 2/3 seconds MAX (GROUP FLUSH).

4) Raise the lever (Fig. 05) in horizontal position in order to obtain the delivery of the coffee.

5) To stop the delivery, when achieving the desired dose, return the lever in vertical position to allow the discharge of the group and the drying of the coffee pod.

Warning:

- Do not remove the filter holder, loaded with coffee, when the machine is operating.

- Do not directly touch the metal part of the filter-holder: risk of burns.

- The standard doses for the filters are 10 grams for one dose and 20 grams for two doses.

5.4 Steam dispensing (Fig. 06)

1) To prevent the liquid from being sucked back into the boiler, discharge the steam by turning the knob (Fig. 01; pos. 9).

2) Insert the steam nozzle (Fig.01, pos.8) into the container of the liquid to be heated.

3) Press and hold the steam tap knob (Fig. 01; pos. 9), lifting the lever the tap will remain open (Fig. 06). The amount of steam dispensed depends on how far the tap is opened: the further the tap is opened, the greater the amount of steam dispensed.

4) Once the steam has been dispensed, release the knob, remove the liquid container and immediately clean the steam nozzle with residues of the heated liquid with a damp cloth.
5) Drain the steam (approximately 2/3 seconds) by turning the tap knob (fig.01, pos. 9) to clean the inside of the steam wand as well.

Warning:

Do not touch the steam wand directly because it is hot.

5.5 Extracting hot water

1) Place the container under the hot water tap (Fig. 01; pos. 3).
2) Press and hold the water tap knob (Fig. 01; pos. 10) to get the required amount of water.
3) Once the water has been dispensed, release the knob.

Warning:

Do not touch directly the water spout because it is warm.

5.6 Turning off the machine

1) Turn the switch (Fig. 01; pos. 1) into the "0" position and check that the light turns off (Fig. 01; pos. 11).
2) Close the water shut-off tap (R Version).

5.7 Pressure gauge

The machine is equipped with dual gauge through which it is possible to check the following pressures:

Boiler pressure gauge (Fig. 01; pos. 14)

scale 0\~3 bar (0\~0,3 MPa)

Indicates the normal working pressure of the boiler.

Pump pressure gauge (Fig. 01; pos. 15)

scale 0\~15 bar (0\~1.5 MPa)

The pressure gauge indicates the maximum pump pressure during operation. When the pump is not operating the gauge indicates the pressure of the water supply mains (R version) or "0" (S version).

5.8 Turning the lights on (where included)

The espresso coffee machine has a front and rear lighting device. To turn the lights on, press the switch (Fig. 01; pos. 20) located under the base.

6 - TROUBLESHOOTING

Problem Troubleshooting/Solution Advice

No steam output from the wand	The tip of the steam wand is clogged; unclog it with needle. This problem is caused by the way the tip is put into the milk.	Clean the steam tip after each use.
Leaks from filter holder Possible causes:1 - The group head gasket is worn or encrusted.2 - The filter holder is incorrectly inserted in the group.		Clean it using the brush supplied.Should the problem occur again, call a specialised technician
Difficulty in inserting the filter holder on the group head	The problem can be caused by an excessive dose of coffee in the filter holder.	Decrease the quantity of coffee in the filter holder. (The standard doses x filters are 10 g per dose.)
Incorrect position of the filter holder once inserted in the group	Once inserted on the group, the handle of the filter holder has shifted to the right. The group head gasket is worn.	Call a specialised technician to replace the group head gasket.
The flow of coffee is scarce	The coffee is dispensed drop by drop, the output time is too long and the quality of it is not good, the cream is dark.Possible causes:1 - The coffee is ground too finely.2 - The coffee has been pressed too firmly in the filter holder.3 - The dose in the filter holder is excessive.4 - The group shower head is clogged.5 - The filter holder filter basket is clogged.6 - The pressure delivered by the pump is low (< 9 bar - 0.9 MPa), or is not working.	In cases 1-2-3, the problem can be solved by adjusting the grinding and/or dosing.In cases 4-6, contact a technician.In case 5, clean or replace the filter.

Problem Troubleshooting/Solution Advice

The flow of coffee is excessive	The coffee is dispensed too quickly and the cream is lighter than usual.Possible causes:1 - The coffee is ground too coarsely.2 - The coffee in the filter holder has not been pressed firmly enough.3 - The dose in the filter holder is too small.4 - The pressure delivered by the pump is too high (>10 bar - 1 MPa).	In cases 1-2-3, adjust the grinding and/or dosing of coffee.In case 4, contact a technician.
The coffee dispensed is too cold	Possible causes:1 - The filter holders are cold.2 - The coffee is ground too finely.3 - The machine water circuit is dirty (lime-scale).4 - The boiler pressure is lower than 0.8 bar (0.08 MPa).	In the 1st case, keep the filter holder inserted on the group.In the 2nd case, adjust the coffee grinding.In cases 3-4, call a specialised technician.
The coffee dispensed is warm	The coffee dispensed is warm even if the pressure is normal, between 1 and 1.2 bar (0.1 – 0.12 MPa). In this case, the pressure detected is false.	Call a specialised technician to check the bleed valve. Meanwhile, to use the machine, open the steam tap (Fig. 01; pos. 9); the boiler's pressure will drop to zero, thus activating the resistor and increasing the temperature. Perform this operation daily when turning on the machine.
The coffee dispensed is too hot	Possible causes:1 - The boiler pressure is higher than 1.3 bar (0.13 MPa).2 - The machine is covered by something that prevents it from cooling.3 - The machine was installed in a position that does not allow air circulation.	In the 1st case, call a specialised technician.In the cases 2-3, reset the machine cooling conditions.
Coffee deposits on the bottom of the cup	Possible causes:1 - the coffee is ground too finely.2 - the filter holder is dirty inside or the filter is damaged.3 - The grinding discs are worn.4 - High pump pressure (> 10bar - MPa).	Case 1 can be solved by adjusting the grinder correctly.In case 2, clean the filter holder or replace the filter.In cases 3-4, contact a technician.

SOMMAIRE

1 - AVERTISSEMENTS

Abstract red line drawing of a stylized snake or serpent (no text or symbols)

BEZZERA

Dal 1901

G. BEZZERA S.R.L.

MACCHINE PER CAFFE' ESPRESSO

Via Luigi Bezzera,1

20088 Rosate - Milano - Italy

Tel. ++39 02 90848102 r.a. - Telefax ++39 02 90870287

Web: www.bezzera.com

e-mail: [e-mail]
