USER MANUAL YSTSW305 YAMAHA

UNPACKING After unpacking, check that the following item is contained.

CAUTION: Read this before operating your unit.

To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.
- Install this unit in a cool, dry, clean place - away from windows, heat sources, sources of excessive vibration, dust, moisture and cold. Avoid sources of humming (transformers, motors). To prevent fire or electrical shock, do not expose this unit to rain or water.
- Never open the cabinet. If something drops into the set, contact your dealer.
To reduce the risk or fire or electric shock, do not expose this unit to rain or moisture.
- Do not use force on switches, controls or connection wires. When moving the unit, first disconnect the power plug and the wires connected to other equipments. Never pull the wires themselves.
- When not planning to use this unit for a long period (ie., vacation, etc.), disconnect the AC power plug from the wall outlet.
- To prevent lightning damage, disconnect the AC power plug when there is an electric storm.
- Since this unit has a built-in power amplifier, heat will radiate from the rear panel. Place the unit apart from the walls, allowing enough spaces above, behind and on both sides of the unit to prevent fire or damage. Furthermore, do not position with the rear panel facing down on the floor or other surfaces.

Be sure to allow spaces of at least 20~cm above, behind and on both sides of the unit.

• Do not cover the rear panel of this unit with a newspaper, a tablecloth, a curtain, etc. in order not to obstruct heat radiation. If the temperature inside the unit rises, it may cause fire, damage to the unit and/or personal injury.
• Do not place small metallic objects on this unit. Otherwise, the object may fall, possibly causing an injury.
  -Do not place the following objects on this unit:

Glass, china, etc.

If glass etc. falls by vibrations and breaks, it may cause personal injury.

A burning candle etc.

If the candle falls by vibrations, it may cause fire and personal injury.

A vessel with water in it

If the vessel falls by vibrations and water spills, it may cause damage to the unit, and/or you may get an electric shock.

• Do not place this unit where foreign objects such as water drips might fall. It might cause a fire, damage to this unit, and/or personal injury.
• Never open the cabinet. It might cause an electric shock since this unit uses a high voltage. It might also cause personal injury and/or damage to this unit.

• When using a humidifier, be sure to avoid condensation inside this unit by allowing enough spaces around this unit or avoiding excess humidification. Condensation might cause a fire, damage to this unit, and/or electric shock.
  Super-bass frequencies reproduced by this unit may cause a turntable to generate a howling sound. In such a case, move this unit away from the turntable.
  This unit may be damaged if certain sounds are continuously outputted at high volume level. For example, if 20Hz - 50Hz sine waves from a test disc, bass sounds from electronic instruments, etc. are continuously outputted, or when the stylus of a turntable touches the surface of a disc, reduce the volume level to prevent this unit from being damaged.

• If you hear distorted noise (i.e., unnatural, intermittent "rapping" or "hammering" sounds) coming from this unit, reduce the volume level. Extremely loud playing of a movie soundtrack's low frequency, bass-heavy sounds or similarly loud popular music passages can damage this speaker system.
  Vibration generated by super-bass frequencies may distort images on a TV. In such a case, move this unit away from the TV set

• Do not attempt to clean this unit with chemical solvents as this might damage the finish. Use a clean, dry cloth.

• Be sure to read the "TROUBLESHOOTING" section regarding common operating errors before concluding that the unit is faulty.

• Secure placement or installation is the owner's responsibility.

YAMAHA shall not be liable for any accident caused by improper placement or installation of speakers.

VOLTAGE SELECTOR

China and General models only) The voltage selector switch on the rear panel of this unit must be set for your local main voltage BEFORE plugging this unit into the AC main supply.

Voltages are 110/120/220/240 V AC, 50/60 Hz.

For U.K. customers

If the socket outlets in the home are not suitable for the plug supplied with this appliance, it should be cut off and an appropriate 3 pin plug fitted. For details, refer to the instructions described below. Note: The plug severed from the mains lead must be destroyed, as a plug with bared flexible cord is hazardous if engaged in a live socket outlet.

SPECIAL INSTRUCTIONS FOR U.K. MODEL

IMPORTANT:

THE WIRES IN MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

Blue: NEUTRAL

Brown: LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. Making sure that neither core is connected to the earth terminal of the three pin plug.

Standby mode

When this unit is turned off by pressing the STANDBY/ON button on the front panel, this unit consumes a small amount of power. This state is called the standby mode. This unit's power supply is completely cut off from the AC line only when the POWER switch on the rear panel is set in the OFF position or the AC power cable is disconnected.

This unit features a magnetically shielded design, but there is still a chance that placing it too close to a TV set might impair picture color. Should this happen, move this unit away from the TV set.

CONTENTS

UNPACKING . Inside of Front Cover

CAUTION 1

FEATURES 2

PLACEMENT 3

CONNECTIONS 4

Connecting to line output (pin jack) terminals of the amplifier 4

Connecting to speaker output terminals of the amplifier 6

CONTROLS AND THEIR FUNCTIONS ... 8

AUTOMATIC POWER-SWITCHING FUNCTION 9

ADJUSTING THE SUBWOOFER BEFORE USE 10

Frequency characteristics. 11

ADVANCEDYAMAHAACTIVE SERVOTECHNOLOGY 12

TROUBLESHOOTING 13

SPECIFICATIONS 14

FEATURES

• This subwoofer system employs Advanced YAMAHA Active Servo Technology which YAMAHA has developed for reproducing higher quality super-bass sound. (Refer to page 12 for details on Advanced YAMAHA Active Servo Technology.) This super-bass sound adds a more realistic, theater-in-the-home effect to your stereo system.

• This subwoofer can be easily added to your existing audio system by connecting to either the speaker terminals or the line output (pin jack) terminals of the amplifier.

• For the effective use of this unit, this unit's superbass sound should be matched to the sounds of your main speakers. You can create the best sound quality for various listening conditions by using the HIGH CUT control and the PHASE switch.

• The Automatic power-switching function saves you the trouble of pressing the STANDBY/ON button to turn the power on or turn it to the STANDBY mode.
• You can select bass effect suitable for the source by using the B.A.S.S. button.

A

B

C

subwoofer,

: main speaker)

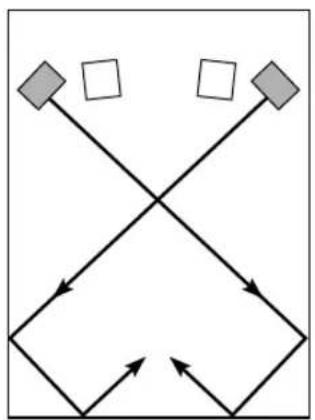

One subwoofer will have a good effect on your audio system, however, the use of two subwoofoers is recommended to obtain more effect.

If using one subwoofer, it is recommended to place it on the outside of either the right or the left main speaker. (See fig. A.) If using two subwoofoers, it is recommended to place them on the outside of each main speaker. (See fig. B.) The placement shown in fig. C is also possible, however, if the subwoofer system is placed directly facing the wall, the bass effect may die because the sound from it and the sound reflected by the wall may cancel out each other. To prevent this from happening, face the subwoofer system at an angle as in fig. A or B.

Note

There may be a case that you cannot obtain enough superbass sounds from the subwoofer when listening in the center of the room. This is because "standing waves" have been developed between two parallel walls and they cancel the bass sounds.

In such a case, face the subwoofer obliquely to the wall. It also may be necessary to break up the parallel surfaces by placing bookshelves etc. along the walls.

Use the nonskid pads

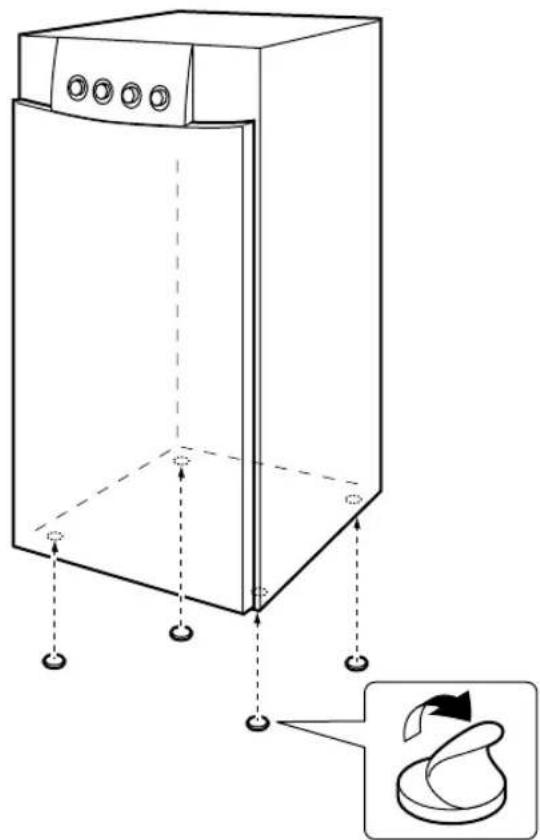

Put the provided nonskid pads at the four corners on the bottom of the subwoofer to prevent the subwoofer from moving by vibrations etc.

CONNECTIONS

Caution: Plug in the subwoofer and other audio/video components after all connections are completed.

• All connections must be correct, that is to say L (left) to L, R (right) to R, "+" to "+" and "-" to "-" Also refer to the owner's manual for each of your components.
• Basically, connect the subwoofer to the line output (pin jack) terminal(s) of the amplifier. (Refer to pages 4 and 5 for details.) If your amplifier does not have any line output terminal, connect the subwoofer to the speaker output terminals of the amplifier. (Refer to pages 6 and 7 for details.)

Connecting to line output (pin jack) terminals of the amplifier

Connect the main speakers to the speaker output terminals of the amplifier.

• To connect with a YAMAHA DSP amplifier (or AV receiver), connect the SUBWOOFER (or LOW PASS etc.) terminal on the rear of the DSP amplifier (or AV receiver) to the C/MONO INPUT2 terminal of the subwoofer.

• When connecting the subwoofer to the SPLIT SUBWOOFER terminals on the rear of the DSP amplifier, be sure to connect the L/MONO INPUT2 terminal to the "L" side and the R INPUT2 terminal to the "R" side of the SPLIT SUBWOOFER terminals.

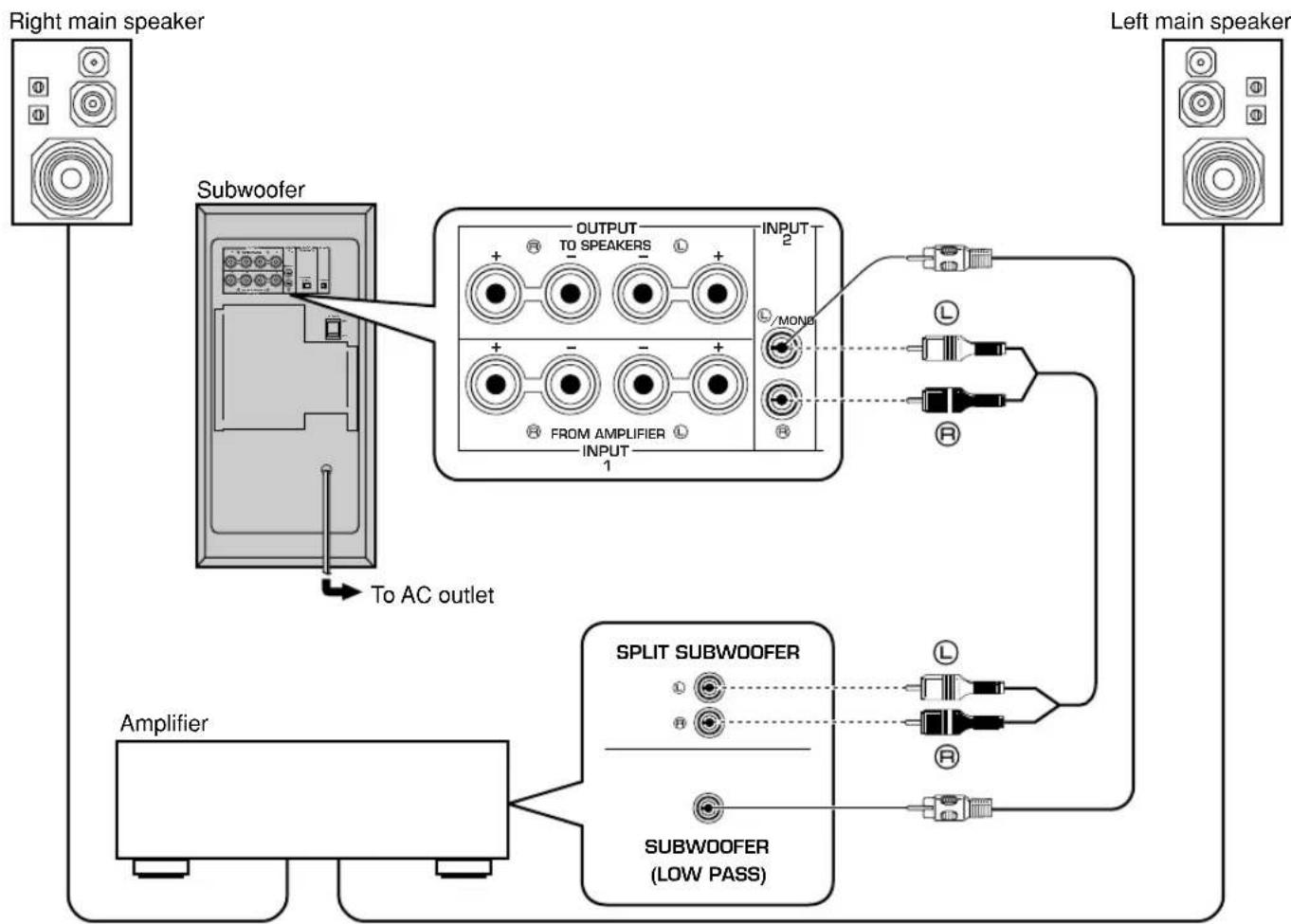

Using one subwoofer

*Illustration shows YST-SW205.

Using two subwoofoers

*Illustration shows YST-SW205.

Notes

• Some amplifiers have line output terminals labeled PRE OUT. When you connect the subwoofer to the PRE OUT terminals of the amplifier, make sure that the amplifier has at least two sets of PRE OUT terminals. If the amplifier has only one set of PRE OUT terminals, do not connect the subwoofer to the PRE OUT terminals. Instead, connect the subwoofer to the speaker output terminals of the amplifier. (Refer to pages 6 and 7.)

• When connecting to a monaural line output terminal of the amplifier, connect the L/MONO INPUT2 terminal.

Connecting to speaker output terminals of the amplifier

Using one subwoofer

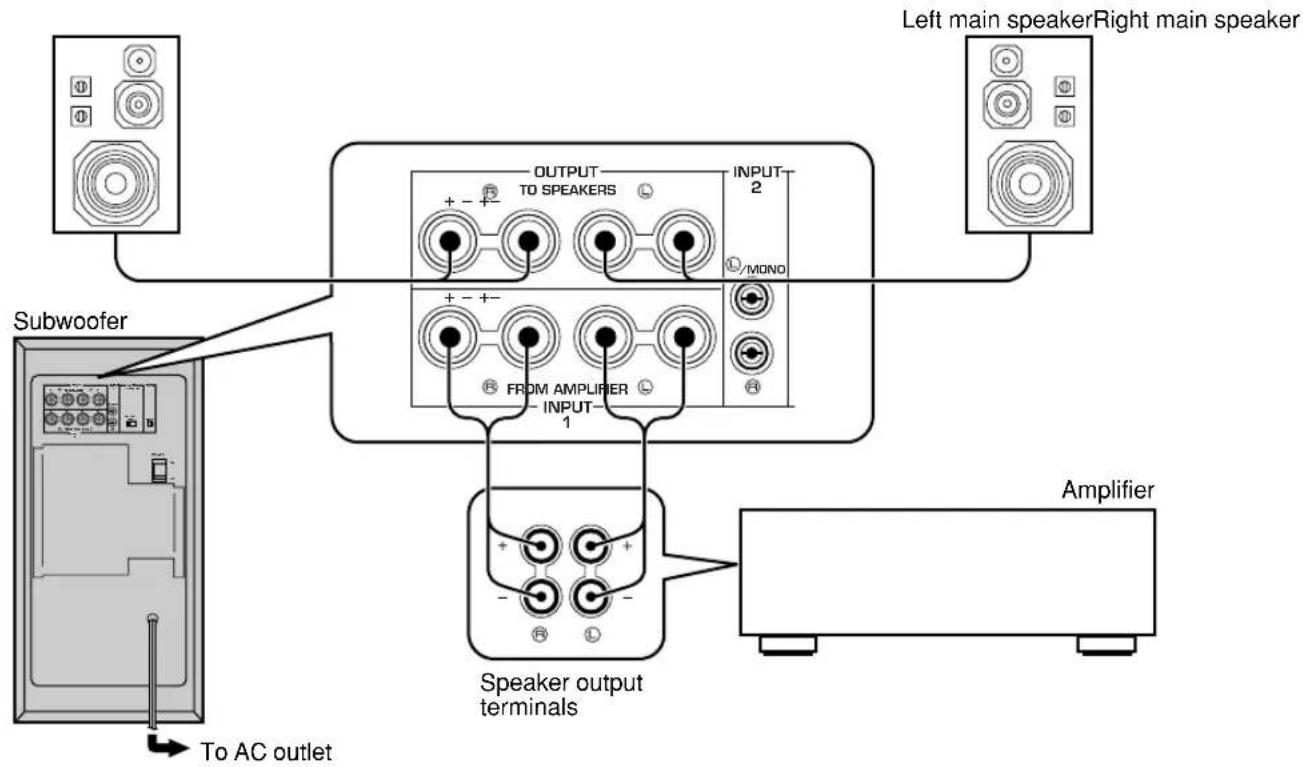

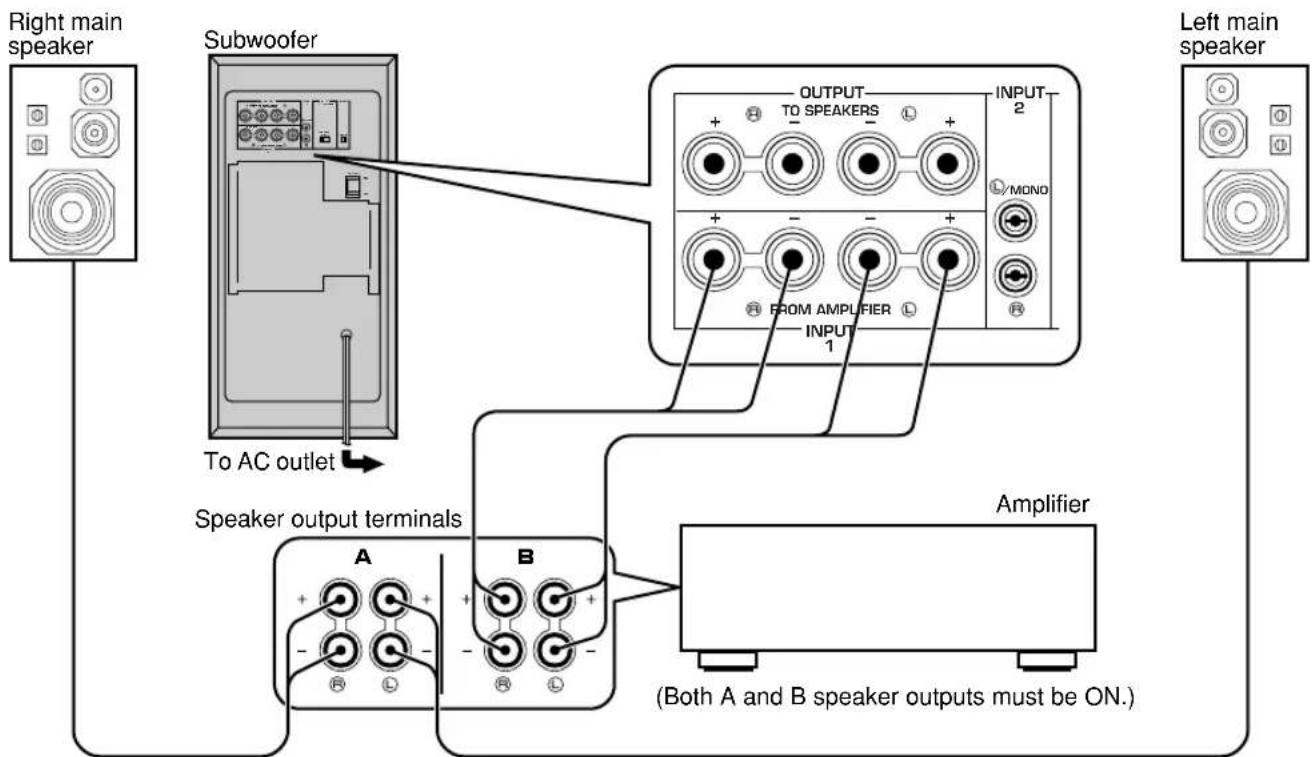

If your amplifier has only one set of main speaker output terminals

Connect the speaker output terminals of the amplifier to the INPUT1 terminals of the subwoofer, and connect the OUTPUT terminals of the subwoofer to the main speakers.

If your amplifier has two sets of speaker output terminals

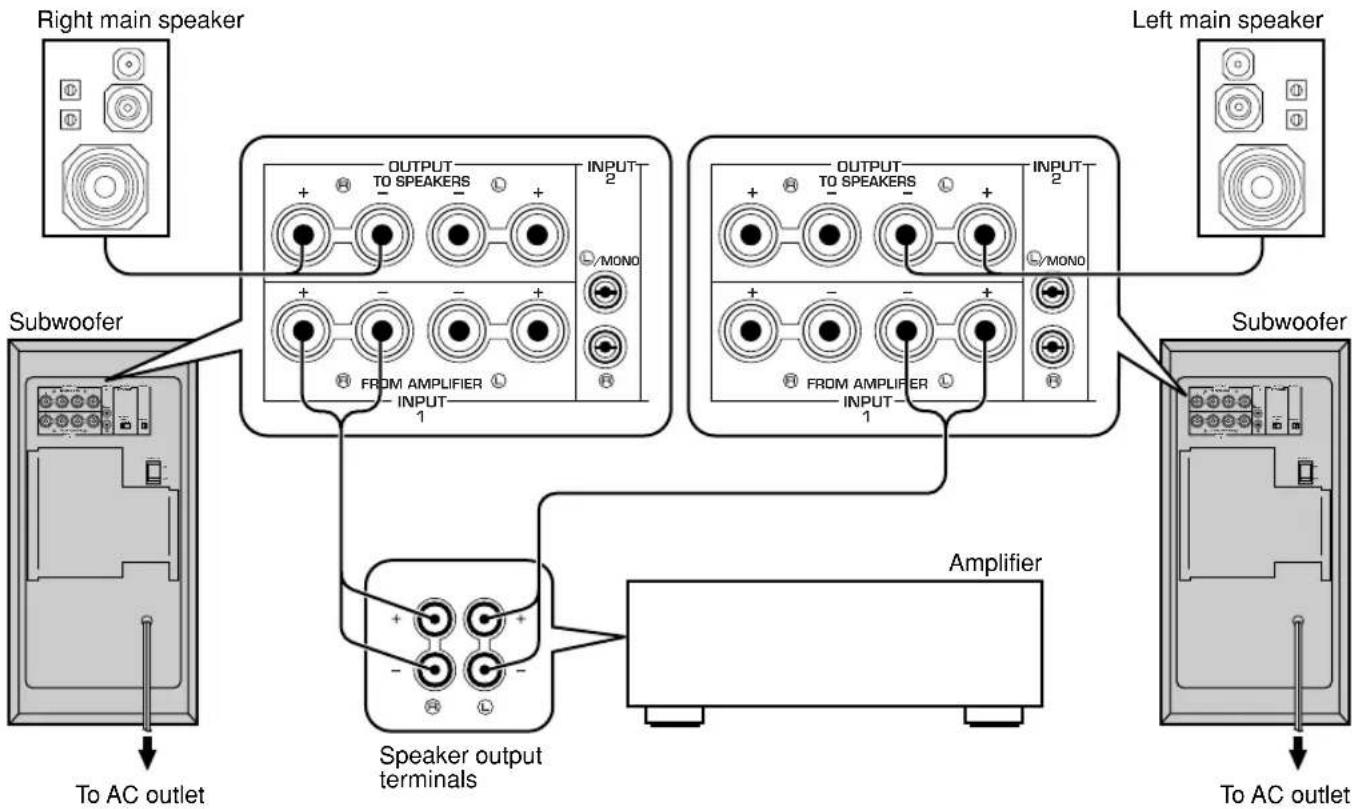

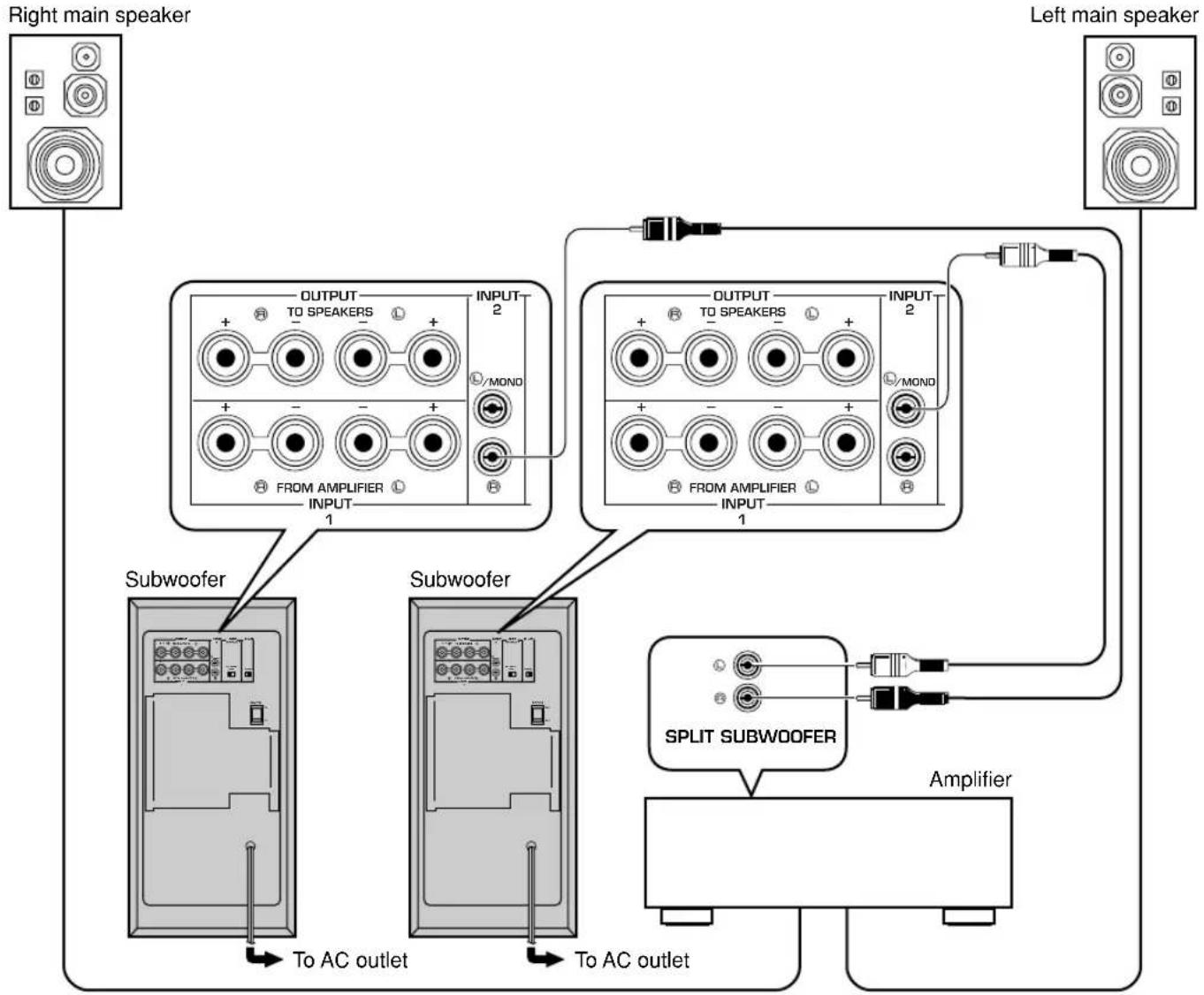

Using two subwoofoers

Connect the speaker output terminals of the amplifier to the INPUT1 terminals of the subwoofer, and connect the OUTPUT terminals of the subwoofer to the main speakers.

*Illustration shows YST-SW205.

Connecting to the INPUT1/OUTPUT terminals of the subwoofer

For connections, keep the speaker cables as short as possible. Do not bundle or roll up the excess part of the cables. If the connections are faulty, no sound will be heard from the subwoofer or the speakers, or both of them. Make sure that the + and - polarity markings of the speaker cables are observed and set correctly. If these cables are reversed, the sound will be unnatural and lack bass.

How to Connect:

Red: positive (+) Black: negative (-)

①Loosen the knob.
② Insert the bare wire. [Remove the insulation coating at the extremity of each speaker cable by twisting the coating off.]
③ Tighten the knob and secure the wire.

Caution

Do not let the bare speaker wires touch each other as this could damage the subwoofer or the amplifier, or both of them.

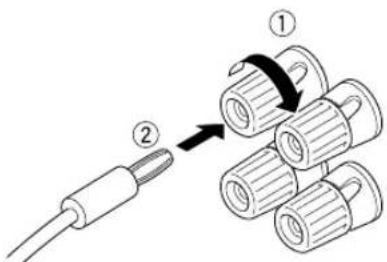

Banana Plug connections are also possible.

① Tighten the terminal knob.
② Simply insert the Banana Plug connector into the terminal.

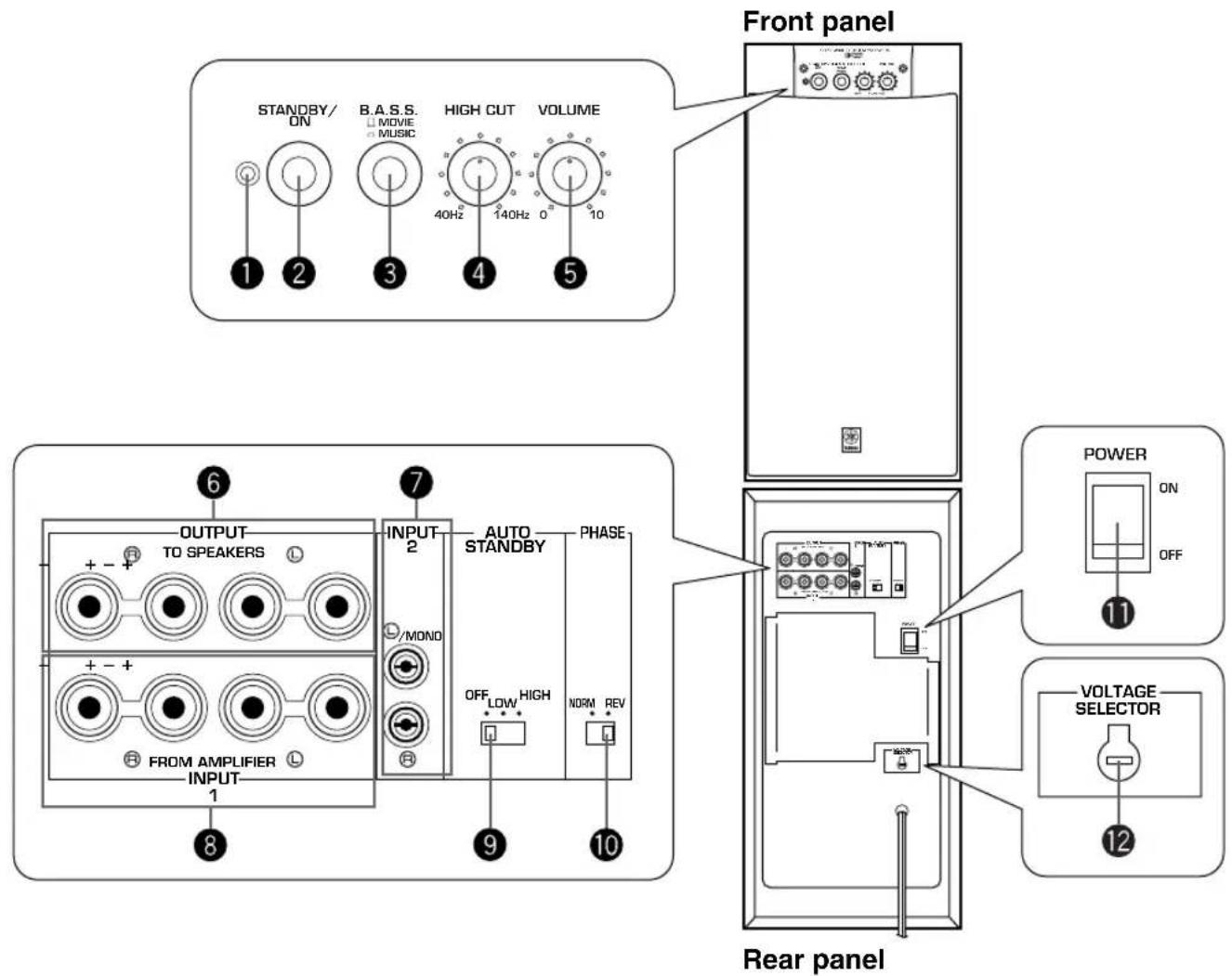

CONTROLS AND THEIR FUNCTIONS

*Illustration shows YST-SW205.

Power indicator

Lights up in green while the subwoofer is turned on.

STANDBY/ON button

Press this button to turn on the power. (The power indicator lights up in green.)

Press again to set the subwoofer in the standby mode. (The power indicator does not light.)

• This button can be used only when the POWER (1) switch is set in the ON position.

Standby mode

The subwoofer is still using a small amount of power in this mode.

B.A.S.S. (Bass Action Selector System) button

When this button is pressed in to the MUSIC position, the bass sound in audio software is well reproduced.

By pressing the button again so that it pops out at the MOVIE position, the bass sound in video software is well reproduced.

MOVIE MUSIC

4 HIGH CUT control

Adjusts the high frequency cut off point.

Frequencies higher than the frequency selected by this control are all cut off (and no output).

• One graduation of this control represents 10 Hz.

HIGH CUT

VOLUME control

Adjusts the volume level. Turn the control clockwise to increase the volume, and counterclockwise to decrease the volume.

OUTPUT (TO SPEAKERS) terminals

Can be used for connecting to the main speakers. Signals from the INPUT1 terminals (8) are sent to these terminals. (Refer to "CONNECTIONS" for details.)

INPUT2 terminals

Used to input line level signals from the amplifier. (Refer to "CONNECTIONS" for details.)

8INPUT1 (FROM AMPLIFIER) terminals

Used to connect the subwoofer with the speaker terminals of the amplifier. (Refer to "CONNECTIONS" for details.)

9 AUTO STANDBY (HIGH/LOW/OFF) switch

This switch is originally set to the OFF position. By setting this switch to the HIGH or LOW position, the subwoofer's automatic power-switching function operates as described below. If you do not need this function, leave this switch in the OFF position.

• Make sure to change the setting of this switch only when the subwoofer is in the standby mode. (The power indicator does not light.)

10PHASE switch

Normally this switch is to be set to the REV (reverse) position. However, according to your speaker systems or the listening condition, there may be a case when better sound quality is obtained by setting this switch to the NORM (normal) position. Select the better position by monitoring the sound.

1 POWER switch

Normally, set this switch to the ON position to use the subwoofer. In this state, you can turn on the subwoofer or turn the subwoofer into the standby mode by pressing the STANDBY/ON (2) button. Set this switch to the OFF position to completely cut off the subwoofer's power supply from the AC line.

12VOLTAGE SELECTOR switch

(China and General models only)

If the preset setting of the switch is incorrect, set the switch to the proper voltage (110V, 120V, 220V or 240V) of your area.

Consult your dealer if you are unsure of the correct setting.

WARNING

Be sure to unplug the subwoofer before setting the VOLTAGE SELECTOR switch correctly.

AUTOMATIC POWER-SWITCHING FUNCTION

If the source being played is stopped and the input signal is cut off for 7 to 8 minutes, the subwoofer automatically switches to the standby mode. (When the subwoofer switches to the standby mode by the automatic power-switching function, the power indicator lights up in red.) When you play a source again, the power of the subwoofer turns on automatically by sensing audio signals input to the subwoofer.

This function operates by sensing a certain level of low frequency input signal. Usually set the AUTO STANDBY switch to the LOW position. However, if the power is not switched to ON or STANDBY smoothly, set the switch to the HIGH position. In the HIGH position, the power will turn on even with a low level of input signal. But please be aware that the subwoofer may not switch to the standby mode when there is an extremely low input signal.

• The power might turn on unexpectedly by sensing noise from other appliances. If that occurs, set the AUTO STANDBY switch to the OFF position and use the STANDBY/ON button to switch the power between ON and STANDBY manually.
• This function detects the low-frequency components below 200 Hz of the input signals (i.e., the explosion in the action movie, the sound of the bass guitar or the bass drum, etc.).
• The minutes required to switch the subwoofer to the standby mode might change by sensing noise from other appliances.

This function is available only when the power of the subwoofer is on (by pressing the STANDBY/ON button).

ADJUSTING THE SUBWOOFER BEFORE USE

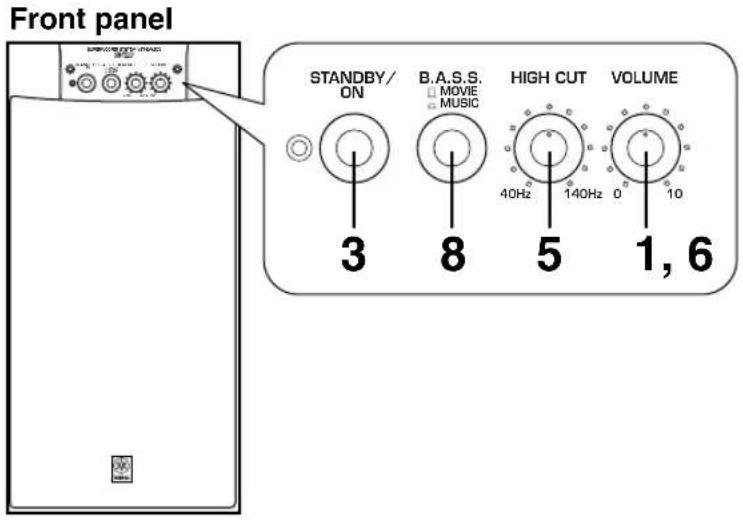

Before using the subwoofer, adjust the subwoofer to obtain the optimum volume and tone balance between the subwoofer and the main speakers by following the procedures described below.

*Illustration shows YST-SW205.

1 Set the VOLUME control to minimum (0).
2 Turn on the power of all the other components.
3 Make sure that the POWER switch is set to the ON position, then press the STANDBY/ON button to turn on the subwoofer.

• The power indicator lights up in green.

4 Play a source containing low-frequency components and adjust the amplifier's volume control to the desired listening level.
5 Adjust the HIGH CUT control to the position where the desired response can be obtained.

Normally, set the control to the main speaker's rated minimum reproducible frequency*.

• The main speaker's rated minimum reproducible frequency can be looked up in the speakers' catalog or owner's manual.

6 Increase the volume gradually to adjust the volume balance between the subwoofer and the main speakers.

Normally, set the control to the level where you can obtain a little more bass effect than when this unit is not used. If the desired response cannot be obtained, adjust the HIGH CUT control and the VOLUME control again.

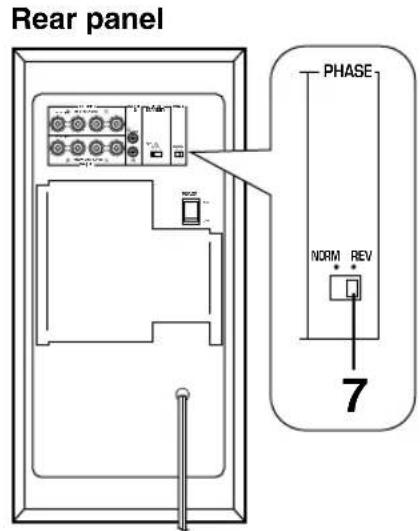

7 Set the PHASE switch to the position which gives you the better bass sound.

Normally, set the switch to the REV (reverse) position. If the desired response cannot be obtained, set the switch to the NORM (normal) position.

8 Select "MOVIE" or "MUSIC" according to the played source.

MOVIE: When a movie type source is played, the low-frequency effects are enhanced to allow the listener enjoy more powerful sound. (The sound will be thicker and deeper.)

MUSIC: When an ordinary music source is played, the excessive low-frequency components are cut off to make the sound clearer. (The sound will be lighter and reproduces the melody line more clearly.)

• Once the volume balance between the subwoofer and the main speakers is adjusted, you can adjust the volume of your whole sound system by using the amplifier's volume control.

However, if you change the main speakers to others, you must make this adjustment again.

• For adjusting the VOLUME control, the HIGH CUT control and the PHASE switch, refer to "Frequency characteristics" on the next page.

Frequency characteristics

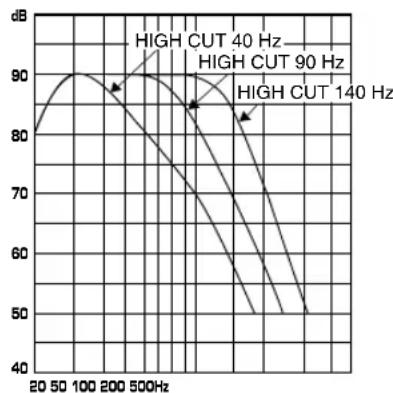

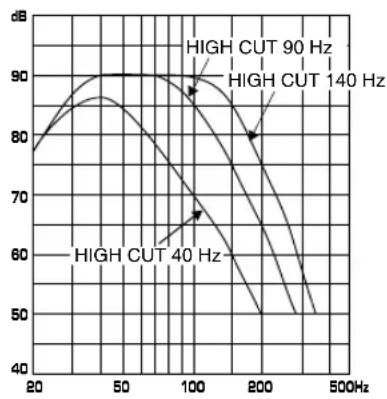

This subwoofer's frequency characteristics

YST-SW305

YST-SW205

The figures below show the optimum adjustment of each control and the frequency characteristics when this subwoofer is combined with a typical main speaker system.

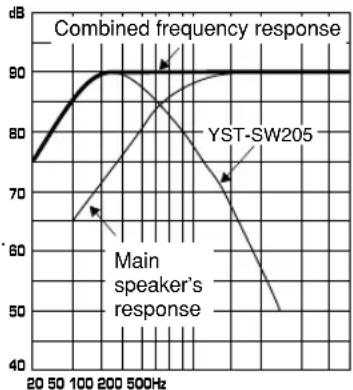

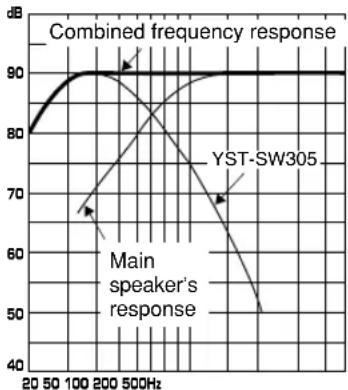

EX.1 When combined with a 4" or 5" (10 cm or 13 cm) acoustic suspension, 2 way system main speakers

YST-SW305

HIGH CUT
VOLUME
40Hz 140Hz 100

• One graduation of this control represents 10 Hz.

PHASE-Set to the REV (reverse) position.

YST-SW205

HIGH CUT
VOLUME

• One graduation of this control represents 10

PHASE-Set to the REV (reverse) position

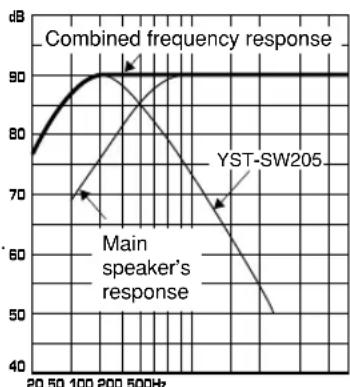

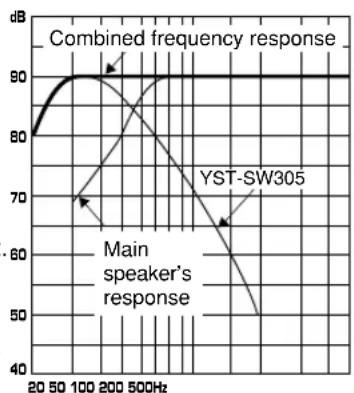

EX.2 When combined with an 8" or 10" (20 cm or 25 cm) acoustic suspension, 2 way system main speakers

YST-SW305

HIGH CUT
VOLUME
40Hz 140Hz 100

• One graduation of this control represents 10 Hz.

PHASE-Set to the REV (reverse) position.

YST-SW205

HIGH CUT
VOLUME

40Hz 140Hz 100

• One graduation of this control represents 10 Hz.

PHASE-Set to the REV (reverse) position.

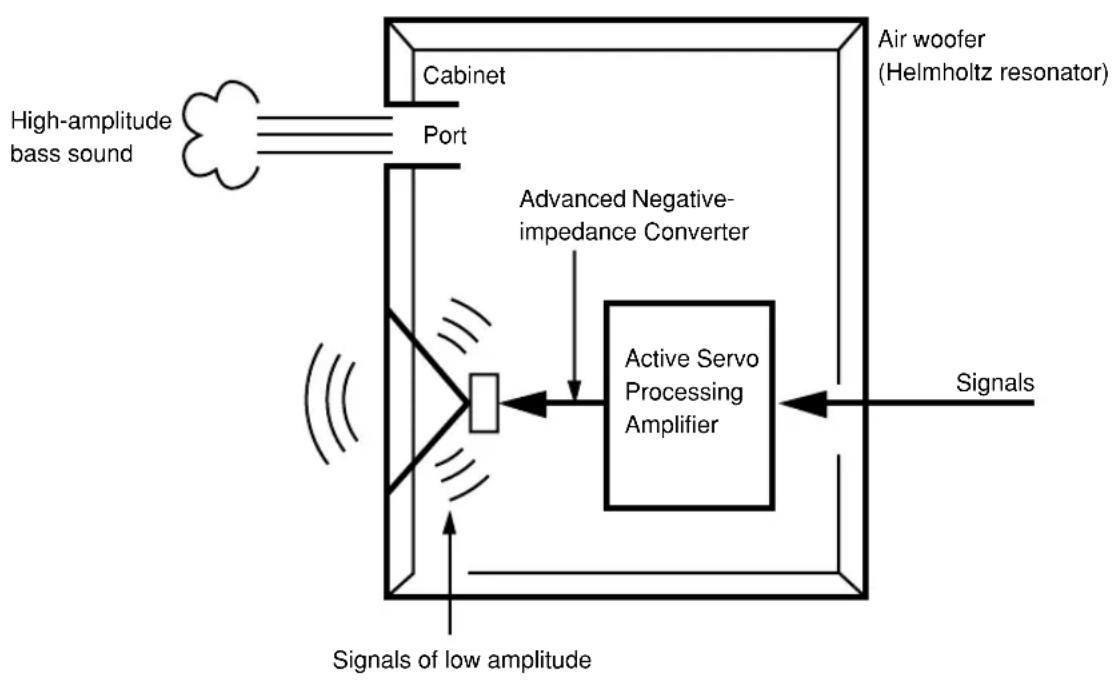

The theory of Yamaha Active Servo Technology has been based upon two major factors, the Helmholtz resonator and negative-impedance drive. Active Servo Processing speakers reproduce the bass frequencies through an "air woofer", which is a port or opening in the speaker's cabinet. This opening is used instead of, and performs the functions of, a woofer in a conventionally designed speaker system. Thus, signals of low amplitude within the cabinet can, according to the Helmholtz resonance theory, be outputted from this opening as waves of great amplitude if the size of the opening and the volume of the cabinet are in the correct proportion to satisfy a certain ratio. In order to accomplish this, moreover, the amplitudes within the cabinet must be both precise and of sufficient power because these amplitudes must overcome the "load" presented by the air that exists within the cabinet.

Thus it is this problem that is resolved through the employment of a new design in which the amplifier supplies special signals. If the electrical resistance of the voice coil could be reduced to zero, the movement of the speaker unit would become linear with respect to signal voltage. To accomplish this, a special negative-impedance output-drive amplifier for subtracting output impedance of the amplifier is used.

By employing negative-impedance drive circuits, the amplifier is able to generate precise, low-amplitude, low-frequency waves with superior damping characteristics. These waves are then radiated from the cabinet opening as high-amplitude signals. The system can, therefore, by employing the negative-impedance output drive amplifier and a speaker cabinet with the Helmholtz resonator, reproduce an extremely wide range of frequencies with amazing sound quality and less distortion. The features described above, then, are combined to be the fundamental structure of the conventional Yamaha Active Servo Technology.

Our new Active Servo Technology — Advanced Yamaha Active Servo Technology — adopted Advanced Negative Impedance Converter (ANIC) circuits, which allows the conventional negative impedance converter to dynamically vary in order to select an optimum value for speaker impedance variation. With this new ANIC circuits, Advanced Yamaha Active Servo Technology can provide more stable performance and improved sound pressure compared with the conventional Yamaha Active Servo Technology, resulting in more natural and dynamic bass reproduction.

Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instructions given below do not help, disconnect the power cable and contact your authorized YAMAHA dealer or service center.

Problem	Cause	What to Do
Power is not supplied even though the STANDBY/ON button is set to the ON position.	The power cable is not plugged in, or the POWER switch is set to the OFF position.	Plug the power cable into an AC outlet and/or set the POWER switch to the ON position.
No sound.	The VOLUME control is set to 0.	Turn the VOLUME control to the right.
	Speaker cables are not connected securely.	Connect them securely.
Sound level is too low.	Speaker cables are not connected correctly.	Connect them correctly, that is L (left) to L, R (right) to R, “+” to “+” and “-” to “-”.
	Setting of the PHASE switch is not proper.	Set the switch to the other position.
	A source sound with few bass frequencies is played.	Play a source sound with bass frequencies. Set the HIGH CUT control to a higher position.
	It is influenced by standing waves.	Reposition the subwoofer or break up the parallel surface by placing bookshelves etc. along the walls.
The subwoofer does not turn on automatically.	The POWER switch is set to the OFF position.	Set the POWER switch to the ON position.
	The STANDBY/ON button is set to OFF.	Set the STANDBY/ON button to ON.
	The AUTO STANDBY switch is set to the OFF position.	Set the AUTO STANDBY switch to the “HIGH” or “LOW” position.
	The level of input signal is too low.	Set the AUTO STANDBY switch to the “HIGH” position.
The subwoofer turns into the standby mode unexpectedly.	The level of input signal is too low.	Set the AUTO STANDBY switch to the “HIGH” position.
The subwoofer turns on unexpectedly.	There is an influence of noise generated from external appliances etc.	Move the subwoofer farther away from such appliances and/or reposition the connected speaker cables. Otherwise, set the AUTO STANDBY switch to the “OFF” position.

Type Advanced Yamaha Active Servo Technology

Driver

YST-SW305 20 cm (8") cone woofer,

Magnetic shielding type x2

YST-SW205 20 cm (8") cone woofer,

Magnetic shielding type

Amplifier Output

YST-SW305 200W/5Ω

YST-SW205 150W/5Ω

Frequency Response

YST-SW305 20 Hz to 160 Hz

YST-SW205 23 Hz to 170 Hz

Power Supply

USA and Canada models AC 120V,60 Hz

U.K. and Europe models AC 230V, 50 Hz

Australia model. AC 240V, 50 Hz

China and General models

AC 110/120/220/240V, 50/60 Hz

Power Consumption

YST-SW305 80W

YST-SW205 70W

(In the standby mode: 0.8W)

Dimensions (W× H× D)

YST-SW305 235 mm x 585 mm x 445 mm

(9-5/16"×23"×17-1/2")

YST-SW205 235 mm x 485 mm x 402 mm

(9-5/16"×19-1/8"×15-13/16")

Weight

YST-SW305 21 kg (46 lbs. 5 oz.)

YST-SW205 15 kg (33 lbs. 1 oz.)

Accessories . Nonskid pad x 4

• Please note that all specifications are subject to change without notice.

Type Advanced Yamaha Active Servo Technology

Pilote

Dimensions (L x H x P)

YST-SW305 235 mm x 585 mm x 445 mm

YST-SW205 235 mm x 485 mm x 402 mm

Poids

YST-SW305 21 kg

YST-SW205 15 kg

JUSTERING AV
SUBWOOFERHÖGTALAREN INNAN
DEN ANVÄNDS 10

Frekvenskaraktäristika. 11

ADVANCEDYAMAHAACTIVE SERVOTECHNOLOGY 12

FELSÖKNING 13

TEKNISKA DATA 14

EGENSKAPER

JUSTERING AV SUBWOOFERHÖGTALAREN INNAN DEN ANVÄNDS

Dimensioni (L x A x P)

YST-SW305 235 mm x 585 mm x 445 mm
YST-SW205 235 mm x 485 mm x 402 mm

Peso

YST-SW305 21 kg
YST-SW205 15 kg

Type Advanced Yamaha Active Servo Technology

Driver

YST-SW305 20 cm konus-woofer,

YST-SW205 20 cm konus-woofer,
