USER MANUAL Voxtel D80 twin AEG

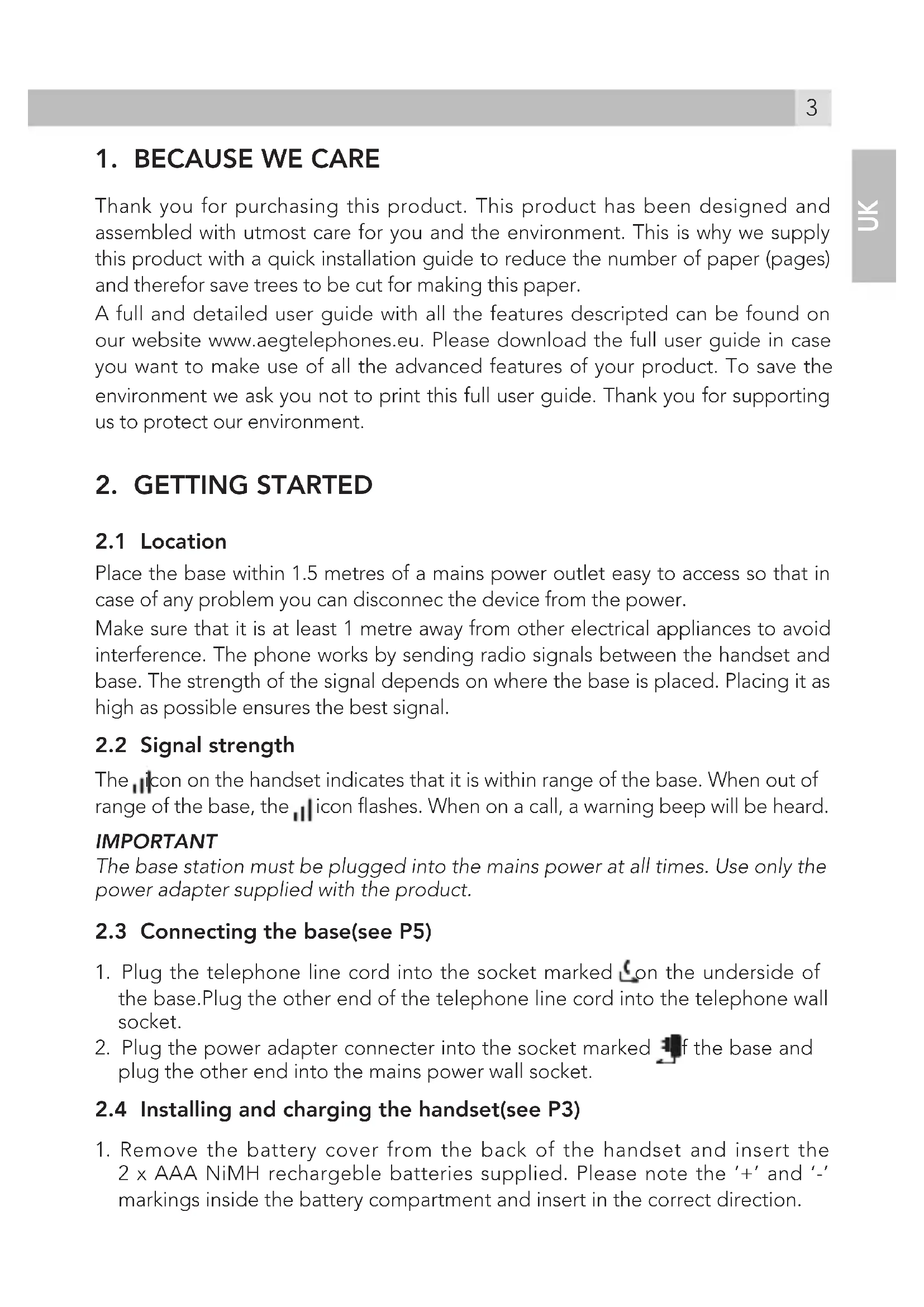

Thank you for purchasing this product. This product has been designed and assembled with utmost care for you and the environment. This is why we supply this product with a quick installation guide to reduce the number of paper (pages) and therefor save trees to be cut for making this paper. A full and detailed user guide with all the features descripted can be found on our website www.aegtelephones.eu. Please download the full user guide in case you want to make use of all the advanced features of your product. To save the environment we ask you not to print this full user guide. Thank you for supporting us to protect our environment.

Place the base within 1.5 metres of a mains power outlet easy to access so that in case of any problem you can disconnec the device from the power. Make sure that it is at least 1 metre away from other electrical appliances to avoid interference. The phone works by sending radio signals between the handset and base. The strength of the signal depends on where the base is placed. Placing it as high as possible ensures the best signal.

The icon on the handset indicates that it is within range of the base. When out of range of the base, the icon flashes. When on a call, a warning beep will be heard. IMPORTANT The base station must be plugged into the mains power at all times. Use only the power adapter supplied with the product.

2.3 Connecting the base(see P5)

1. Plug the telephone line cord into the socket marked on the underside of

the base.Plug the other end of the telephone line cord into the telephone wall socket.

2. Plug the power adapter connecter into the socket marked of the base and

plug the other end into the mains power wall socket.

2.4 Installing and charging the handset(see P3)

1. Remove the battery cover from the back of the handset and insert the

2 x AAA NiMH rechargeble batteries supplied. Please note the ‘+’ and ‘-’ markings inside the battery compartment and insert in the correct direction.4

2. Slide the battery cover back into place.

3. When charging the batteries for the first time, place the handset on the base

to charge for at least 24 hours continuously.

4. When the handset is fully charged, icon will appear steadily on the display.

Note: Press and hold Menu to switch the idle screen between handset name and number and the time and handset number.

2.5 Set display language

and / to select “PERSONAL SET”.

and / to select “LANGUAGE”.

and / to select the desired language.

When subscribed to Caller ID, the date and time is set automatically for all handsets when the first call is received. If there is no Caller ID, the date and time can be set manually. Set the date and time manually

3. Enter the date using the keypad (e.g. 12--08--14 for 12th of August 2014) and

/ to choose AM or PM and press

C During a call, press to increase earpiece volume. When the phone is ringing, press to increase the handset ringer volume. Press to scroll through the menu options, redial list, call list and phonebook entries.

Menu key : Press to open the Menu. Press to select menu options and to confirm a displayed option. During a call, press to turn mute on/off. E Press to make and answer a call.

Press and hold to lock or unlock the keypad.

To generate a FLASH signal used with PABX or some network services.

In standby mode, press to open the phonebook menu. In editing mode, press to delete characters and digits. Go back to the previous menu level.

Press to end a call. When viewing the redial / call list / phonebook or when in the menu, press to exit and return to standby. Press and hold for 3 seconds to switch the handset on / off.

During a call, press to decrease earpiece volume. When the phone is ringing, press to decrease the handset ringer volume. Press to scroll through the menu options, redial list, call list and phonebook entries. In standby mode, press to open the call list.

Press and hold to enter a pause (P) when pre-dialling or storing numbers.

Used to make internal calls and transfer calls to other handsets registered to the base.

Signal strenght icon Eco mode is ON Eco + is ON (zero emission) Handset ringer is off Indicates a missed call Steady on when making an outgoing call Flashes to indicate an incoming or internal call Indicates an incoming call when viewing the calls list Indicates an outgoing call when viewing the calls list Menu is open Keypad is locked Alarm is set Indicates new voicemail message(s) received Phonebook is opened More text Battery is fully charged Battery is partially charged Battery is running low Flashed when battery is almost empty76

3.3 Overview of the base(see P4)

Paging key : Press to find misplaced handsets registered to the base. Long press to start registration of handsets to the base.

3.4 Navigating the menus

The phone has an easy to use menu system. When the handset is switched on and in standby:1. Press to open the main menu.2. Then use / buttons to scroll through the available options.3. Press

to select an option.To return to the previous menu level, press . To exit the menu and return to standby, press Note: If no buttons are pressed for 30 seconds, the handset returns to standby automatically.

4.1 Switch the handset on/off

Press and hold to switch the handset on or off.

4.2.1. Make a call1. Press

2. When there is a the dial tone, dial the number.Note: The handset will automatically time the duration of all external calls. The call timer will display after 10 seconds. When the call ends, the total duration of the talk time flashes for 3 seconds.4.2.2. Preparatory dialling1. Dial the number first. If a mistake is made press to delete the last digit.2. Press to dial.4.2.3. End a callPress , or place the handset on the base or charger.4.2.4. Receive a callWhen an external call is received, the phone rings and icon flashes on the display.98

1. Press to answer the call or lift the handset from the base or charger to

answer the call. Note: To answer calls by pressing even when the handset is lifted, switch Auto answer off.

4.3 Adjust the earpiece volume

During a call, press / to increase or decrease the volume.

The last 10 dialled numbers are stored in the redial list. View or dial an entry

to open the Redial list.

/ to the required entry.

to dial the displayed entry or press to return to standby. Note: If you have Caller ID and the caller’s number exactly matches an entry stored in the phonebook, the name is displayed.

4.5 Lock/unlock the keypad

The keypad can be locked so that it cannot be operated accidentally while carrying it around. Note: When the keypad is locked an incoming call can still be answered and the handset will operate as normal. When the call ends, the keypad lock comes on again.

. KEYS LOCKED and icon is displayed.

again to unlock the keypad.

The handset can be muted so that a conversation can be held without the caller hearing.

1. During a call, press

. The display shows « MUTE ON » and the caller cannot hear. Press again to resume the call.

If more than one handset is registered to the base, internal calls can be made between two handsets.

1. If only 2 handsets are registered to the base, press

and the other handset rings automatically.

2. If more than 2 handset are registered to the base press

and scroll to the handset number and press to call this handset.98

4.7.2. Receive an internal callWhen an internal call is received, icon flashes and the handset number that is calling is displayed. Press to answer the call.4.7.3. Transfer a callTo transfer an external call to another handset registered to the base.During an external call:1. If only 2 handsets are registered to the base, press and the other handset rings automatically.2. If more than 2 handset are registered to the base press and scroll to the handset that is to be called and press 3. When the other handset answers, press to complete the transfer.Note: If there is no answer from the other handset press to return to the external caller. The external call resumes automatically after 60 seconds if there is no answer.

4.8 Paging/Find handset

Page can be used to locate a missing handset. .1. Press on the underside of the base. All handsets registered to the base will ring.2. To stop the ringing, press on the base again or press any button on the handset.

The phonebook can store up to 50 names and numbers. Names can be up to 12 characters long and numbers up to 24 digits.

5.1 Store a name and number

When subscribed to Caller ID, to display the name of the caller instead of the number, save the full telephone number including the area code to the phonebook. To prevent unnecessary duplicated entries, the same name can be stored only once.1. Press . The display shows « PHONEBOOK ».2. Press

the entry is saved.6. Press to return to standby.10

5.1.1. Entering names

Use the keypad letters to enter names, e.g. to store TOM: Press 8 once to enter T. Press 6 three times to enter O. Press 6 once to enter M.

Press to delete the last character or digit. Press / to move between characters/digits. Press 1 to insert a space.

5.2 View or dial an entry

1. Press . to open phonebook.

/ to the required entry.

Enter the first letter of the name to search alphabetically. The first name that starts with this letter or the nearest letter in the alphabet will be displayed. Scroll

to the required entry.

3. Press to dial or to return to standby.

Note: When the name is displayed, to switch between the name and number press

5.3 Edit a name and number

3. Scroll / to the entry that needs to be edited or search alphabetically and

. The existing name is displayed.

to delete the name if required, then enter the new name and press

. The existing number is displayed.

to delete the number if required, then enter the new number and press

to return to standby.

/ to the entry that you want to delete or search alphabetically and press

to confirm or to cancel.1110

MPORTANTTo use Caller ID, first subscribe to the service from the telephone provider. A subscription fee may be payable. To ensure that the caller’s name is displayed, make sure the full telephone number, including the area code is stored in the phonebook. If the caller’s number is stored in the phonebook, the name assigned to it will be displayed.If the number is unavailable, « UNKNOWN » will be displayed. If the call is from an international number, « INTERNATION. » will be displayed.

If subscribed to Caller ID, the caller’s number will be displayed (provided it is not withheld) prior to answering the call. The display can show the first 12 digits or characters of the phone numbers and name.If the caller’s name and number are stored in the phonebook and a number match is found, the caller’s name will be displayed instead.

The Call list stores details of the last 40 received calls, including the phone number and date and time of the call. The Call list also displays if there are unanswered calls. The caller’s details are stored in the Call list whether or not the call has been answered. When the list is full and a new call is received, the oldest entry will be deleted automatically.6.2.1. View the Call list1. Press to open the Call list. If there are no calls in the list, the display shows « LIST EMPTY ».2. Scroll / to the required entry.3. Press

4. The display shows the date and time of the call.6.2.2. Dial a number in the Call list1. Press to open the Call list.2. Scroll / to the required entry.3. Press to dial the displayed entry.6.2.3. Delete an entry1. Press to open the Call list.2. Scroll / to the required entry12

to confirm or to cancel.

to confirm or to return to the previous menu.Note: When the phone is ringing, adjust the ringer volume by pressing

to confirm or to return to the previous menu.7.2 Auto answerThe phone is set to answer calls by lifting the handset off the base or charger. This feature can be switched off so that calls can only be answered by pressing

to confirm or to return to the previous menu.

By operating the phone in Eco mode the power emissions level can be reduced. When the Eco mode is set to ON, the base transmission power will be reduced. This feature is set to OFF by default.1. Press , scroll to « ADVANCED SET » and press

to confirm or to return to the previous menu.Note: When ECO mode is set to ON, the handset range will be reduced.

8.2 Zero Emission (Eco +)

When Zero emission is activated and the unit has been idle for 1 minute the transmitted power between the handset and the base will stop. An incoming call or pressing any key on handset will activate the unit and it will revert back to the normal mode. This feature is set to OFF by default.1. Press , scroll to « ADVANCED SET » and press

to confirm or to return to the previous menu.

8.3 Restore default settings

The phone can be restored to its default (original) settings. All the handsets that are registered to the base will be retained and not deleted.IMPORTANTResetting the phone to its default settings will delete all entries in the Call list. Current handset and base settings will also be reset. Entries stored in the phonebook are retained.1. Press , scroll to « ADVANCED SET » and press

to return to the previous menu. The phone will restart automatically.14

9. GENERAL INFORMATION

IMPORTANT This equipment is not designed to make emergency telephone call when the power fails. Alternative arrangements should be made for access to emergency services. This product is intended for connection to analogue public telephone networks or a private switchboard. (pabx) Safety and Electromagnetic information

• Use only the power supply supplied with this product. Using an unauthorised power supply will invalidate the guarantee and may damage the telephone.

• Use only the approved rechargeable batteries supplied.

• Do not open the handset (except to replace the handset batteries) or the base. This could cause exposure to high voltages or other risks.

• Radio signal transmitted between the handset and base may cause interference to hearing aids.

• The product may interfere with other electrical equipment, e.g. TV and radio sets, clock/alarms and computers if placed them too close. It is recommended that the product is placed at least one metre away from such appliances to minimize any risk of interference.

• All batteries can cause property damage and/or bodily injury such as burns if a conductive material such as jewellery, keys, or beaded chains touch the exposed terminals. The conductive material may complete an electrical circuit (short circuit) and become quite hot. Exercise care in handling any charged battery, particularly when placing it inside a pocket, purse, or other container with metal objects.

• Never dispose of batteries in a fire. There is a serious risk of explosion and/or the release of highly toxic chemicals. Environmental

• Do not expose to direct sunlight.

• The handset may become warm when the batteries are being charged or during prolonged periods of use. This is normal. However, we recommend that to avoid damage, do not place the product on antique/veneered wood.

• Do not place the product on carpets or other surfaces which generate fibres, or place it in locations preventing the free flow of air over its surfaces.

• Do not submerge any part of the product in water and do not use it in damp or humid conditions, such as bathrooms.

• Do not expose the product to fire, explosives or other hazardous conditions.1514

• There is a slight chance that the phone could be damaged by an electrical storm. We recommend that it is unpluged from the power and telephone line cord during an electrical storm.

10. GUARANTEE AND SERVICE

The phone is guaranteed for 24 months from the date of purchase shown on your sales receipt. This guarantee does not cover any faults or defects caused by accidents, misuse, fair wear and tear, neglect, faults on the telephone line, lightning, tampering with the equipment, or any attempt at adjustment or repair other than through approved agents. Please keep your sales (till) receipt this is your proof of guarantee.

While the unit is under Guarantee

• Disconnect the base unit from the telephone line and the mains electricity supply.

• Pack up all parts of your phone system, using the original package.

• Return the unit to the shop where you bought it, making sure you take your sales receipt.

• Remember to include the power adapter.

After the Guarantee has expired If the unit is no longer under Guarantee, contact us via www.aegtelephones.eu This product works with rechargeable batteries only. If you put nonrechargeable batteries in the handset and place it on the base, the handset will be damaged and this in NOT covered under the warranty conditions.

1.88 to 1.9 GHz (bandwidth = 20 MHz)

Operating range Up to 300m outdoors; Up to 50m indoors Operating time Standby: 200 hours, Talking: 10 hours Battery charge time:24 hours1716 Temperature range Operating 0° C to 40° C, Storage -20° C to 60° C Electrical power Base/Charger : MN-A002-A080 input 100-240VAC 50/60Hz 200mA, output 7.5VDC 300mA Battery Information SANIK-SN-AAA30H, Type Ni-MH(Rechargeable battery) Voltage Rating 300mAh, 2 X 1.2V AAA Size KAIFENG-KF-AAA300H, Type Ni-MH(Rechargeable battery) Voltage Rating 300mAh, 2 X 1.2V AAA Size

This product is in compliance with the essential requirements and other relevant provisions of the R&TTE directive 1999/5/EC. The Declaration of conformity can be found on: www.aegtelephones.eu

13. DISPOSAL OF THE DEVICE (ENVIRONMENT)

At the end of the product lifecycle, you should not throw this product into the normal household garbage but bring the product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user guide and/or box indicate this. Some of the product materials can be re-used if you bring them to a recycling point. By reusing some parts or raw materials from used products you make an important contribution to the protection of the environment. Please contact your local authorities in case you need more information on the collection points in your area. Batteries must be removed before disposing of the device. Dispose of the batteries in an environmental manner according to your country regulations.1716 ENDE

.© 2014 Binatone Electronics International Limited All rights reserved Subject to availability. Rights of modification reserved. AEG is a registered trademark used under license from AB Electrolux (publ) www.aegtelephones.eu
