USER MANUAL THOR 15 AEG

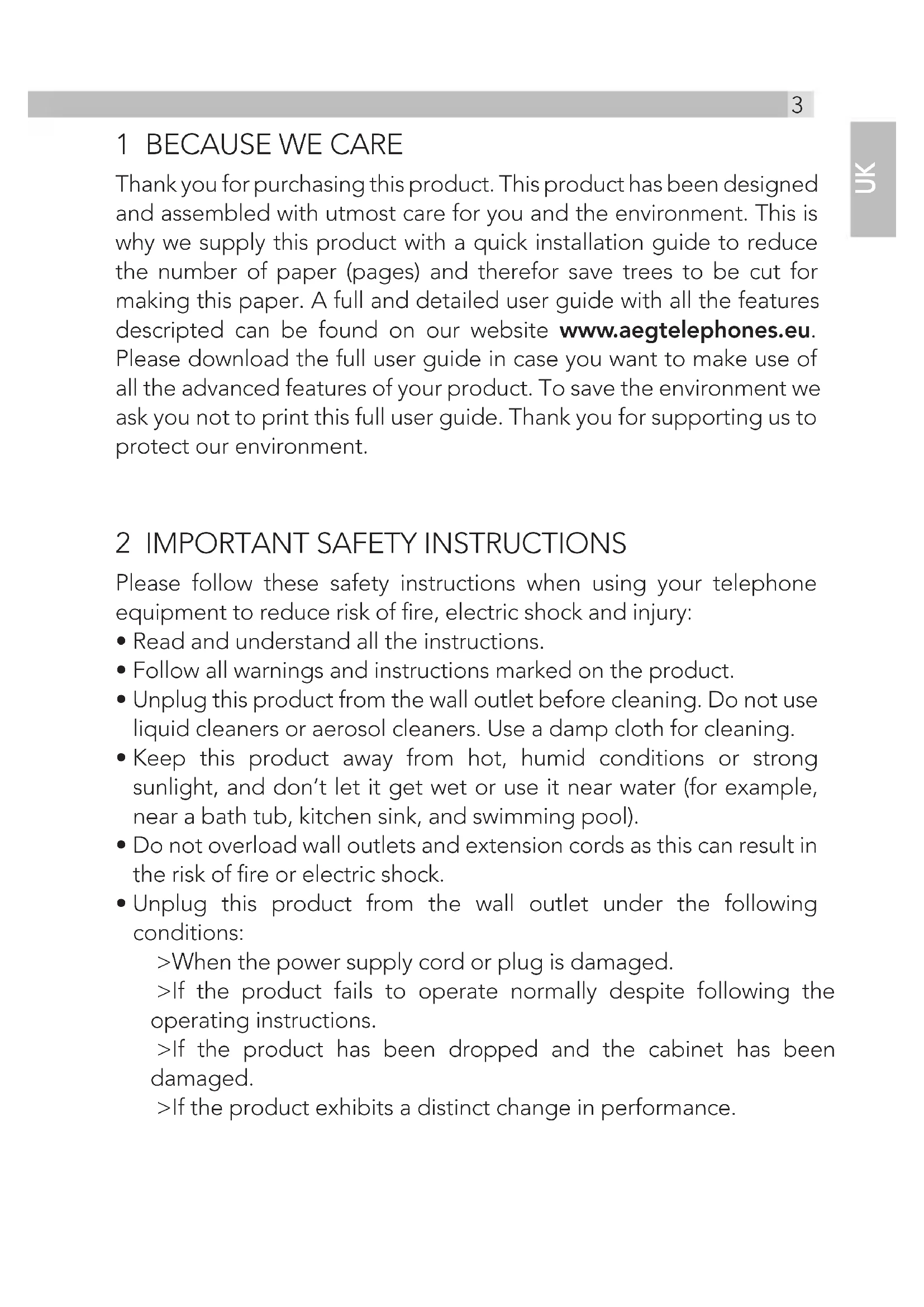

Thank you for purchasing this product. This product has been designed and assembled with utmost care for you and the environment. This is why we supply this product with a quick installation guide to reduce the number of paper (pages) and therefor save trees to be cut for making this paper. A full and detailed user guide with all the features described can be found on our website www.aegtelephones.eu. Please download the full user guide in case you want to make use of all the advanced features of your product. To save the environment we ask you not to print this full user guide. Thank you for supporting us to protect our environment.

2 IMPORTANT SAFETY INSTRUCTIONS

Please follow these safety instructions when using your telephone equipment to reduce risk of fire, electric shock and injury:

• Read and understand all the instructions.
• Follow all warnings and instructions marked on the product.
• Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
• Keep this product away from hot, humid conditions or strong sunlight, and don't let it get wet or use it near water (for example, near a bath tub, kitchen sink, and swimming pool).
• Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock.
• Unplug this product from the wall outlet under the following conditions:

When the power supply cord or plug is damaged.
If the product fails to operate normally despite following the operating instructions.
If the product has been dropped and the cabinet has been damaged.
If the product exhibits a distinct change in performance.

• NEVER use your phone outdoors during a thunderstorm. Unplug the base from the telephone line and the mains socket when there are storms in your area. Damage caused by lightning is not covered by the guarantee.
• Do not use the telephone to report a gas leak in the vicinity of the leak.
• Use only the supplied NiMH (Nickel Metal Hydride) batteries that came with your phone or an authorized replacement recommended by the manufacturer. There is a risk of explosion if you replace the battery with an incorrect battery type. The use of other battery types or non-rechargeable batteries/primary cells can be dangerous. They may cause interference and/or damage to the unit or surroundings. The manufacturer will not be held liable for damage arising from such non-compliance.
• Do not use third party charging pods. Damage may be caused to the batteries.
• Please ensure that the batteries are inserted in the correct polarity. Dispose of batteries safely. Do not burn, immerse them in water, disassemble, or puncture the batteries.

3 INTENDED USE

This telephone is intended to be connected to a public analogue telephone network or to an analogue extension of a compatible PBX system.

4 INSTALLING YOUR PHONE

4.1 Connecting the Base Station (See P5)

• Plug the mains power cable and telephone line cord into the base station.
• Plug the power adapter into a 100 - 240Vac, 50 - 60Hz mains power socket and the telephone line cord into a telephone line socket.

Warning: Always use the cables provided in the box. Use only the supplied adaptor. Using other power adapter may damage the unit.

Note: Place the base unit within easy reach of the mains power socket. Never try to lengthen the mains power cable. The base station needs mains power for normal operation and the cordless handsets will not work without it.

4.2 Installing and Charging the Rechargeable Batteries(see P3)

• Insert the 2 supplied batteries into the battery compartment, observing the correct polarity (see markings inside battery compartment).

Warning: Use only the supplied NiMH rechargeable batteries.

• Place the back cover over the back of the handset and press down until it clicks into place.
• Place the handset on the base and charge for 15 hours before using the handset for the first time.

The handset will give a double beep when it is properly placed on the base and the battery charging indicator on the base lights up to indicate charging.

Note:

The handset may become warm when the batteries are being charged or during prolonged periods of use. This is normal and does not indicate a fault.

CAUTION

Risk of explosion if the battery is replaced by an incorrect type. Dispos of used batteries according to the instructions.

5 SET THE HANDSET LANGUAGE

• Press ☐/OK and / to select HS SETTINGS.
• Press ☐/OK and / to select LANGUAGE.
• Press OK and / to select the desired language.
• Press国/OK to confirm.

6 GET TO KNOW YOUR PHONE

6.1 Handset Overview(see P1)

1	☐/OK	·In idle mode: Press to access the main menu. ·In sub-menu mode: Press to confirm the selection. ·During a call: Press to access Intercom/Phonebook/Redial List/ Call List.
2	☐/☑/INT	·In idle mode: Press to initiate an intercom call. ·In main menu mode: Press to go back to the idle screen. ·In sub-menu mode: Press to go back to the previous option, or press and hold to go back to the idle screen. ·In editing / pre-dial mode: Press to delete a character / digit, or press and hold to delete all the characters / digits. ·During a call: Press to mute / unmute the microphone.
3	▲	·In idle mode: Press to access the call list. ·In menus and lists: Press to move up the options. During a call: Press to increase the volume. ·During ringing: Press to increase the handset ringer volume.
4	○	·In idle mode: Press to access the radial list. ·In menus and lists: Press to move down the options. ·During a call: Press to decrease the volume. ·During ringing: Press to decrease the handset ringer volume.
5	□	·In idle mode / predialling mode / Redial list / Call List / Phonebook List: Press to make a call. ·During ringing: Press to answer a call. ·During a call: Press to turn on / off the speakerphone.
6	◎	• During a call: Press to end a call and go back to the idle screen. • In menu / editing mode: Press to go back to the previous menu, or press and hold to go back to the idle screen. • In idle mode: Press and hold to power on/off the handset.
7	ALPHA-NUMERIC KEYPAD, *, #	• Press to insert a digit / character / * / # • * key in idle mode: Press and hold to enable or disable the keypad lock. • # key in idle mode: Press and hold to turn on / off the handset ringer. • # key in predialling / number editing Press and hold to insert a pause. • * key in Call List mode: Press to view more digits of the caller's number if applicable.
8	R	• During a call press to send a Recall signal (also called Flash) for network services.
9		• Microphone
10		• Speaker
11	◎	• Call blocker

6.2 Base Station Overview(see P4)

12	●●	In idle mode: Press to find/page all registered cordless handsets. Press the button again, or press (▲,○) or (▲/▲NT cordless handset, to turn off the page signal. Press and hold to enter registration mode.
13	○	ANS ON/OFF - Press to turn the answering machine on or off.
14	▲/■	PLAY/STOP - Press to start or stop message playback.
15	×	DELETE - Press to delete the playing message. When the phone is not in use, press and hold to delete all previously reviewed messages.

6.3 Handset LCD Display Icons and Symbols(see P2)

The LCD display gives you information on the current status of the telephone.

	Displays when the handset is registered and within range of the base station, with more blocks indicating a stronger signal.
	Indicates the handset is on a call. Flashes when there is an incoming call.
	Indicates the handset ringer is switched off.
	Indicates an alarm is set. Flashes when the alarm is sounding.
	Indicates the keypad is locked.
	Indicates the battery is fully charged. Battery segments cycle during charging.
	Indicates the battery needs charging. Flashes when low battery power level is detected. (Note: the handset backlight will not turn on when the battery is low.)
	Indicates a new TAM message is playing or a new call is being viewed in the calls list.
	Indicates the speakerphone is turned on.
	Indicates you have a new voicemail message. (This is a caller display service and is not usually available from UK network providers.)
	Indicates the answering machine (TAM) is turned on. Flashes if there is a new TAM message.
	Indicates when any block mode is turned on.

6.4 Text and Digit Entry

In editing mode, a cursor is displayed to indicate the current text entry position. It is positioned at the right of the last character entered.

Writing Tips:

Once a character is selected, the cursor will move to the next position after a short pause.

You can move the cursor within the text by / to amend the text entry.

• Press INT to delete the last character.
• Press and hold to delete the entire text string.

7 USE YOUR PHONE

7.1 Make a Call

7.1.1 Preparatory Dialing

• Enter the phone number, maximum 24 digits. If you make a mistake, press INT to delete the last digit.
• Press to dial the number.

7.1.2 Direct Dialing

• Press to take the line.
• Enter the phone number to dial.

7.1.3 Call from the Phonebook

• Press ☐/OK then / to select PHONEBOOK. Press ☐/OK to show ALL CONTACTS.
• Press ☐/OK again to access phonebook.

NOTE

The first phonebook entry will be displayed. If there is no entry in the phonebook, it will show EMPTY.

• Press / to select the desired phonebook entry.
• Press to dial the number.

7.1.4 Call from the Call List

• In idle, press to access the call list and press / to select.
  OR
• Press ☐/OK then / to select CALL LIST.

7.1.5 Call from the Redial List

• Press to access the radial list and press / to select the desired radial number.
• Press to dial out to the selected redial number.

7.2 Answer a Call

If the handset is not on the charging cradle:

When the phone rings, press C_ to answer a call.

If the handset is on the base or charger and if AUTO ANSWER is set to ON:

When the phone rings, pick up the handset to answer a call.

If you wish to switch AUTO ANSWER Off, see Set the Auto Answer. The default setting is ON.

7.3 Adjust Earpiece and Speakerphone Volume

There are 5 levels (VOLUME 1 to VOLUME 5) to choose from for each of earpiece and speakerphone volume.

During a call:

Press / to select from VOLUME 1 to VOLUME 5. The current setting is shown. When you end the call, the setting will remain at the last selected level.

7.4 Mute a Call

You can mute the microphone so that you can talk to someone nearby without letting the caller hear you during a call.

During a call:

• Press INT to mute the microphone and MUTED will display on the LCD. Your caller cannot hear you.
• Press INT again to unmute the microphone.

7.5 End a Call

During a call connection, press to end the call.

OR

Put the handset on the base or charger to end the call.

7.6 Turn the Keypad Lock ON/OFF

• In idle, press and hold to turn on the keypad lock. The * icon is displayed on the LCD.
  To unlock the keypad, press and hold

7.7 Find the Handset (PAGING)

Paging is a useful way for finding lost handset(s).

• Press on the base station. All the registered and available handsets will produce the paging tone and PAGING is displayed on the LCD.
• Press ( / ) / any handset or on the base station again to stop paging.

NOTE

If there is an incoming call during paging, the phone will ring with the incoming call instead of paging.

7.8 Make an Internal Call

This feature is only applicable when there are at least two registered handsets. It allows you to make internal calls, transfer external calls from one handset to another handset and make conference calls. If the called handset is not answered within 60 seconds, the called handset will stop ringing and the calling handset will return to standby mode.

7.8.1 Call Another Handset

• In idle mode, press INT and the screen displays all registered handsets except the calling handset.
• Enter the desired handset number to intercom with.
• The called handset rings and press on the called handset to establish the internal call.

NOTES

If only one handset is registered to the base station, press INT and it will display NOT POSSIBLE.
- If only two handsets are registered to the base station, 12 will connect to another handset immediately.

7.8.2 Transfer an External Call to Another Handset

During an external call:

Press M and to select INTERCOM.
- Press IV and to select the desired handset to intercom with.
- The external call is put on hold automatically and the called handset rings.
- Press on the called handset to establish an internal call.
- Press On the calling handset or put the calling handset on the charging cradle to end the current call with the external party.
- The external call is transferred to the called handset.

8 PHONEBOOK

Your phone can store up to 100 phonebook entries with names and numbers. Each phonebook entry can have a maximum of 24 digits for the phone number and 12 characters for the name. You can also select different melodies for your phonebook entries. The entries are store alphabetically.

8.1 Store a Number Entry in the Phonebook

• Press M and . to select PHONEBOOK. Press M again to show All CONTACTS.
• Press M again to access phonebook.

NOTE

The first entry in the phonebook will be displayed. If there is no entry stored in the phonebook, it will show EMPTY.

• Press to select ADD.
  Press and enter the name.

• Press M and enter the number.

• Press ☒/OK and / to select the desired melody.

• Press ☐/OK to save.

8.1.1 Entering Names

Use the keypad letters to enter names, e.g. to store Tom:

Press 8 Tuv once to enter T.

Press 6300 three times to enter o .

Press 6 once to enter m.

8.2 Delete a Phonebook Entry

• Press ☒/OK and △/▽ to select PHONEBOOK. Press ☒/OK against to show ALL CONTACTS.
• Press ☐/OK again to access phonebook.
• Press / to select the desired phonebook entry.
• Press ☒/OK and / to select DELETE.
• Press ☐/OK to confirm.

8.3 Add a Phonebook Entry to VIP list

• Press OK and / to select PHONEBOOK, then OK to show ALL CONTACTS. Press OK again to access the phonebook.
• Press / to select the desired phonebook entry.
• Press 目/OK and △/▽ to select ADD TO VIP.
• Press国/OK to add the entry to the VIP list. A next to the name indicates it is now a VIP entry.

9 PHONE SETTINGS

Your phone comes with a selection of settings that you can change to personalize your phone the way you like it to work.

9.1 Date and Time Settings

9.1.1 Set the Time, Date, and Year

• Press ☒/OK and △/▽ to select HS SETTINGS.
• Press ☐/OK and △/▽ to select DATE & TIME.

• Press ☒/OK and △/▽ to select SET TIME.

• Press OK then enter the time information according to 12 HR or 24 HR format. The time will be in the format you set.

• Press ☐/OK then enter the year information. The last two digits of the year will flash for year input.
• Press OK then enter the date information according to DD-MM-YY or MM-DD-YY format. The date will be in the format you set.
• Press ☐/OK to confirm.

9.2 Handset Settings

9.2.1 Alarm

You can use this phone to set an alarm clock. When an alarm is set, displays on the LCD. When the alarm time is reached, the and "ALARM ON" flash on the screen. The handset also rings for 45 seconds.

• Press ☐/OK and / to select HS SETTINGS.
• Press ☐/OK and / to select ALARM.
• Press ☒/OK and / to select ON or OFF.
• Press ☐/OK to confirm.

9.3 Register a Handset

Your handset is pre-registered to the base station. Up to five handsets can be registered to a single base station.

If for some reason, the handset is not registered to the base station, REGISTER will be displayed on the handset screen, register your handset following the process below.

• Press and hold on the base station for about five seconds, the base station is entered into registration mode.
• Press ☒/OK and △/▽ to select REGISTRATION.
• Press ☐/OK and you are requested to enter the 4-digit system PIN.
• Enter the 4-digit system PIN and press OK to confirm.

NOTE

If the handset registration is successful, the handset will automatically be allocated the next available handset number. This handset number is shown in the handset display in standby mode.

10 CALLER DISPLAY (NETWORK DEPENDENT)

10.1 Call List

This feature is available if you have subscribed to the Caller Line Identification service from your telephone company. Your phone can store up to 50 received calls with date/time information in the Call List. The number will be shown on the LCD when the phone is ringing. If the number matches with one of the entries in your Private Phonebook, the caller's name stored in the private phonebook will be displayed with the number. The handset will ring with melody associated with that phonebook entry.

The call list information might not be available for every incoming call. The callers might intentionally block their names and / or telephone numbers.

Call log display screen messages

WITHHIELD The caller is blocking the telephone number. OUT OF AREA This caller's number is unavailable.

When the list is full, and a new call is received, the oldest entry will be deleted automatically.

10.2 View the Call List

Review the caller log history to find out who called, to easily return a call, or to save the caller's name and number into your phonebook. EMPTY appears if there are no records in the call list.

• Press to access the call list. OR
• Press 目/OK and / to select CALL LIST. Press 目/OK.
• Press / to select the desired entry.

11CALL BLOCKER

If you have subscribed to Caller ID service, you can use the call blocker feature to block certain calls automatically by adding numbers into the Black List (see 11.2). You can also choose to block all calls or allow only calls from numbers in the VIP list. Each handset can store up to a total

of 100 entries shared between the phonebook (including the VIP list) and the black list.

Calls can also be blocked by the following Call Types: Withheld, Unavailable, International and Payphone. (See 11.5)

When a call is blocked, the telephone will not ring. If the answering machine is turned on, the blocked call will be answered by the answering machine.

11.1 Choose the Block Mode

• To activate the number call blocker feature, you must first choose the block mode. You can choose to block all calls, allow only VIP entries, or only block blacklist entries. Press OK and / to show CALL BLOCKER.
• Press ☐/OK and / to show SETTINGS.
• Press ☐/OK to show BLOCK MODE.
• Press OK and / to select OFF, BLOCK ALL, ALLOW VIP, or BLOCK BLIST.
• Press ☒/OK to confirm.
• If OFF is selected, the set up is complete and all calls will be received normally.

If BLOCK ALL, ALLOW VIP or BLOCK BLIST are selected, it will show ALWAYS ON.

• Press OK if you want the selected block mode to be on all the time, or press / to show TIMED, and then press OK and set the TIME ON and TIME OFF for the period you want the blocking to be active.

11.2 Add a Number to the Black List

• Press ☐/OK and / to show CALL BLOCKER.
• Press OK to show BLACK LIST.
• Press OK twice to show ADD.
• Press ☐/OK and then enter a Name, then ☐/OK and enter the Number.
• Press OK to store the number to the black list.

Note: Each Black List entry reduces the capacity of the Phonebook store.

Note: If the phonebook is full, LIST FULL appears after selecting ADD, and you will have to delete an entry from the phonebook or blacklist before you can store another blacklist entry.

11.3 View a Black List Entry

• Press ☐/OK and / to show CALL BLOCKER.
• Press 目/OK to show BLACK LIST.
• Press ☒/OK and / to select the desired black list entry.
• Press ☐/OK and △/▽ to show VIEW.
• Press OK to review the number and name of the selected Black List entry. If the number is more than 12 digits, press × to see the other digits.

11.4 Delete All Black List Entries

• Press ☐/OK and / to show CALL BLOCKER.
• Press 目/OK to show BLACK LIST.
• Press OK twice and then / to show DELETE ALL.
• Press ☐/OK to display CONFIRM?.
• Press OK to confirm. All Black List entries will be deleted and the display will show EMPTY.

11.5 Block Calls by Call Type

You can choose to block different types of incoming calls that normally do not have a caller ID number by setting the respective call type to ON.

Each Call Type (Withheld, International, Unavailable and Payphone) can be blocked independently of the others.

• Press ☐/OK and / to show CALL BLOCKER.
• Press ☒/OK and / to show SETTINGS.
• Press ☐/OK and / to show CALL TYPE.
• Press ☐/OK and / to select WITHHIELD, INTERNAT'L, UNAVAILABLE, or PAYPHONE.
• Press 目/OK and / to select ON or OFF.
• Press ☐/OK to confirm the setting for that type.
• To set for other call types, repeat from step 4.

12 ANSWERING MACHINE (TAM)

Your phone system includes a telephone answering machine (TAM) that records unanswered calls when it is switched on. The answering system can store up to 59 messages within the maximum recording time of about 15 minutes. As well as recording incoming messages, you can record memos for other users of your phone. If the answering machine memory is full, the handset will display TAM FULL alternately with the handset name, and you will have to delete messages before more new ones can be recorded.

When the TAM is full, it will only play your Answer Only outgoing message and not allow the caller to leave a message.

12.1 Switching TAM On/Off

You can turn the answering machine on or off using the handset. When the answering machine is set to ON, the base TAM indicator will be on and the handset will display the TAM icon. Calls will be answered after the set answer delay and if it is set to Answer and Record mode, the caller can then leave you a message. When the answering system is set to OFF, calls will be answered after 14 rings and the answer only message will be played to your callers. They will not be able to leave you a message.

• In idle mode, press ☒/OK and △/▽ to show ANS. MACHINE.
• Press ☐/OK and / to show TAM ON/OFF.
• Press ☐/OK and / to choose ON or OFF.
• Press 国/OK to confirm the setting.

12.2 Play messages on TAM

When new messages are recorded, the TAM indicator on the base and TAM icon on the handset both flash.

If you have new messages, they are played first, and then saved as old messages, until they are deleted. Old messages are played again after all new messages are played completely.

• In idle mode, press ☒/OK and △/▽ to show ANS. MACHINE.
• Press 国/OK to show MSG PLAYBACK.

• Press 国/OK to start playing any messages through its loudspeaker.

• Note: The display shows the time and date that the message was recorded, and a × symbol at the top of the screen if it is a new message.

• For options during playback: Press / to increase or decrease the playback volume Press OK and / for the options:

STOP to stop the playback. FORWARD to skip on to the next message. PREVIOUS to repeat the current message playing. DELETE to delete the current message playing.

Alternatively, press the following digit keys:

5 to stop the playback.
6 to skip on to the next message.
4 to repeat the current message playing.
4.4 to skip back to the previous message.
2 to delete the current message playing.

NOTE:

You cannot delete new messages, so you will have to play them before trying to delete.

12.3 Answering Machine Settings

12.3.1 Set the Answer mode

You can select ANS & REC, the default mode, if you want to allow callers to leave a message, or ANSWER ONLY mode if you don't want callers to leave a message on the answering machine.

• In idle mode, press ☑/OK and / to show ANS. MACHINE.
• Press ☐/OK and / to show TAM SETTINGS.
• Press ☐/OK to show ANSWER MODE.
• Press ☐/OK and / to select ANS & REC or ANSWER ONLY.
• Press OK to confirm the setting.

12.3.2 Record your Outgoing Message (OGM)

You can record your own OGM for ANS & REC mode or ANSWER ONLY mode. When you record your own OGM, it will be used when the answering machine answers the call. If your personal OGM is deleted, the pre-set OGM will be restored automatically.

• In idle mode, press ☒/OK and / to show ANS. MACHINE.

• Press ☐/OK and / to show TAM SETTINGS.

• Press ☒/OK and △/▽ to show OGM SETTINGS.
• Press ☐/OK and / to select ANS & REC or ANSWER ONLY.
• Press ☐/OK and / to show RECORD PRESS.
• Press OK to start recording your personal OGM and RECORDING is displayed on the screen.
• Press OK to stop and save your personal OGM, which will then playback automatically.

Alternatively, press INT to return to the previous screen without saving the personal OGM, and restoring the pre-set OGM automatically.

13 TECHNICAL DETAILS

STANDARD DECT
FREQUENCY RANGE 1.88 TO 1.9 GHZ (BANDWIDTH = 20 MHZ)
CHANNEL BANDWIDTH	1.728 MHZ
OPERATING RANGE UP TO 300M OUTDOORS; UP TO 50M INDOORS
OPERATING TIME STANDBY: 100 HOURS, TALKING: 10 HOURS BATTERY CHARGE TIME:15 HOURS
TEMPERATURE RANGE OPERATING 0 °C TO 40°C, STORAGE -20°C TO 60°C
ELECTRICAL POWER BASE UNIT:
	VT04EUK06045 / VT04EEU06045 INPUT 100-240VAC 50/60HZ 150MA, OUTPUT 6VDC 450MA TENPAO:S003IB0600045/S003IV0600045 INPUT 100-240VAC 50/60HZ 150MA, OUTPUT 6VDC 450MA RJ-AS060450B001 / RJ-AS060450E002 INPUT 100-240VAC 50/60HZ 150MA, OUTPUT 6VDC 450MA BATTERY INFORMATION TYPE NI-MH (RECHARGEABLE BATTERY) 400MAH, 2 X 1.2V AAA

14 CLEANING AND CARE

Do not clean any part of your unit with benzene, thinners or other solvent chemicals as this may cause permanent damage which is not covered by the Guarantee.

When necessary, clean it with a damp cloth.

Keep your phone system away from hot, humid conditions or strong sunlight, and don't let it get wet.

15 GUARANTEE AND SERVICE

The unit is guaranteed for 24 months from the date of purchase shown on your sales receipt. This guarantee does not cover any faults or defects caused by accidents, misuse, fair wear and tear, neglect, faults on the telephone line, lightning, tampering with the equipment, or any attempt at adjustment or repair other than through approved agents.

Please keep your sales (till) receipt this is your proof of guarantee.

15.1 While the unit is under Guarantee

• Disconnect the base unit from the telephone line and the mains electricity supply.
• Pack up all parts of your device, using the original package.
• Return the unit to the shop where you bought it, making sure you take your sales receipt.
• Remember to include the mains adapter.

15.2 After the Guarantee has expired

If the unit is no longer under Guarantee, contact us via www. aegtelephones.eu

This product works with rechargeable batteries only. If you put nonrechargeable batteries in the handset and place it on the base, the handset will be damaged and this in NOT covered under the warranty conditions.

16 CE DECLARATION

CE

This product is in compliance with the essential requirements and other relevant provisions of the R&TTE directive 1999/5/EC.

The Declaration of conformity can be found on:

www.aegtelephones.eu

17 DISPOSAL OF THE DEVICE

(ENVIRONMENT)

At the end of the product lifecycle, you should not throw this product into the normal household garbage but bring the product to a collection point for the recycling of electrical and electronic equipments. The symbol on the product, user guide and/or box indicate this. Some of the product materials can be re-used if you bring them to a recycling point. By reusing some parts or raw materials from used products you make an important contribution to the protection of the environment. Please contact your local authorities in case you need more information on the collection points in your area.

Batteries must be removed before disposing

of the device. Dispos of the batteries in an

environmental manner according to your country regulations.

15 GARANTIA E MANUTENCAO

© 2017 Binatone Electronics International Limited

All rights reserved
Subject to availability. Rights of modification reserved.
AEG is a registered trademark used under license from AB Electrolux (publ)

www.aegtelephones.eu
