Ladina KE 1601 - Kitchen scales ADE - Free user manual and instructions

Product type	Kitchen scale
Brand	ADE
Model	Ladina KE 1601
Dimensions (approx.)	310 × 265 × 25 mm
Weight	Approx. 1.2 kg
Power supply	4 LR6 (AA) 1.5 V batteries (included)
Maximum weighing capacity	15 kg
Graduation	1 g
Accuracy	± 1%
Functions	Simple weighing, addition weighing (TARE), Auto-Hold function
Units of measurement	g, oz, lb
Display	Digital screen
Automatic shut-off	After approx. 60 seconds of inactivity
Cleaning	Wipe with a soft, slightly damp cloth
Safety	Do not immerse, protect from shocks, keep out of reach of children (risk of battery ingestion)
Warranty	3 years (material or manufacturing defects)

Frequently Asked Questions - Ladina KE 1601 ADE

How to change the batteries of the Ladina KE 1601 scale?

Open the battery compartment under the scale, remove the used batteries, insert 4 new LR6 (AA) 1.5 V batteries respecting polarity (+/-), then close the cover.

What does 'LO' display on the screen mean?

The 'LO' display indicates that the batteries are depleted. You must replace them with new batteries (LR6/AA).

How to use the tare function (addition weighing)?

Place an empty container on the scale, press the TARE button to zero the display, then add ingredients. The displayed weight corresponds only to the added ingredient.

What to do if the scale displays 'EEEE'?

The 'EEEE' display means that the maximum capacity of 15 kg has been exceeded. Immediately remove excess weight to avoid damaging the scale.

How to clean the kitchen scale?

Wipe the scale with a soft, slightly damp cloth. Do not use harsh detergents and never immerse the scale in water.

How to reset the scale if it displays incorrect values?

Remove the batteries from the compartment, wait a few seconds, then reinsert them respecting polarity. Turn on the scale, it will be reset.

What is the Auto-Hold function?

The Auto-Hold function keeps the weight displayed on the screen for about 30 seconds after removing the weighed object, making it easier to read. To activate it, hold down the MODE button until 'H-ON' appears.

How to turn off the scale manually?

Hold down the TARE button until the display turns off. The scale also turns off automatically after 60 seconds of inactivity.

Can I use the scale on an inclined surface?

No, for accurate results, always place the scale on a hard, flat, dry surface. Avoid soft or unstable surfaces.

What is the warranty of the ADE Ladina KE 1601 scale?

The scale has a 3-year warranty against material and manufacturing defects from the date of purchase. To activate it, keep the proof of purchase and contact your dealer.

USER MANUAL Ladina KE 1601 ADE

22089 Hamburg, Germany

You have chosen to purchase a high-quality product from the brand ADE, which combines intelligent functions with an exceptional design. These kitchen scales are a practical companion for kitchen and household. The many years of experience of the brand ADE ensures a high technical standard and proven quality. We hope you are happy with your scales and wish you success when weighing!

Your ADE Team

General Information

About this manual

This operating manual describes how to safely use and care for your products. Keep this operating manual in a safe place in case you would like to refer to it later. If you pass this item on to someone else, pass on this manual as well.

Failure to observe the recommendations in this operating manual can lead to injuries or damage to your product.

Explanation of symbols

This symbol, combined with the word DANGER, warns against serious injury.

This symbol, combined with the word WARNING, warns against moderate and mild injuries.

This symbol, combined with the word NOTE, warns against material damage.

This symbol signifies additional information and general advice.

Table of Contents

General Information 12
Intended Use 14
Safety 14
At a glance (scope of delivery) 16
Scope of delivery. 16
Inserting/changing batteries. 17
Operation 17
Weighing. 17
TARE Function 18
Auto-hold function 18
Switching off the scales. 18
Resetting the scales. 18
Cleaning. 19
Fault/Remedy. 19
Technical Data 20
Declaration of Conformity 20
Guarantee 20
Disposal 21

The scales are designed for weighing food and objects in the home in the quantities that are usual in that context. The maximum load capacity of 15kg must not be exceeded.

The scales are unsuitable for commercial use, e.g. in bakeries, restaurants, etc.

Safety

• These scales can be used by children 8 years of age and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge, if they are supervised or have been instructed in the safe use of the scales and understand the dangers that may arise.
• Children must not play with the scales.
• Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised.
• Batteries, when swallowed, can be life-threatening. You should therefore keep the batteries and scales out of reach of small children. If a battery is swallowed, medical assistance must be sought immediately.

DANGER for children

• Keep children away from packaging material. Risk of choking if swallowed. Also, beware that children do not pull the packaging material over their heads.

RISK of fire/burning and/or explosion

• There is a risk of explosion if batteries are replaced incorrectly. Replace the battery using only the same or an equivalent type of battery. Pay attention to the "Technical Data".
• Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited. Otherwise there is an increased risk of explosion and of leakage; furthermore, gases may escape.
• Avoid contact with skin, eyes, and mucosa. If you come into contact with battery acid, flush the affected site immediately with plenty of clean water and see a doctor promptly.

BEWARE of material damage.

• Do not submerge the scales in water or other liquids.

• Place the scales on a stable, even surface.

• Do not overload the scales. Pay attention to the "Technical Data". Place objects on the scales exclusively for the purpose of weighing.

• Protect the scales from sharp jolts and vibrations.

• Remove the batteries from the scales if they have been used up or if you are not going to use the scales for a long time. You will thus avoid damage that may result from the leakage of battery acid.

• When inserting and changing batteries, pay attention to the correct polarity (+/-) .

• Do not subject the batteries to extreme conditions by, for example, storing them on heaters or under direct sunlight. Increased risk of leakage!

• Clean the battery and device contacts, as needed, before inserting the battery.

• Only insert batteries of the same type; do not use different types or used and new batteries with each other.
• Do not make any modifications to the scales. Only allow repairs to be carried out at a specialist workshop. Repairs carried out incorrectly can considerably endanger the user.
• Do not place the scales in the vicinity of devices that emit electromagnetic radiation, such as mobile phones, wireless devices, and the like. This can lead to incorrect display indicators or malfunctions.
• Do not place any objects on the scales when you are – for example – storing them in a cupboard. The sensitive measuring electronics in the scales could be damaged by heavy objects.
• There are feet on the underside of the scales. Since surfaces are made from various materials and are treated with diverse care products, the possibility cannot be completely excluded that some of these substances contain ingredients that attack and soften the feet of the device. If necessary, place an anti-slip underlay beneath the scales.

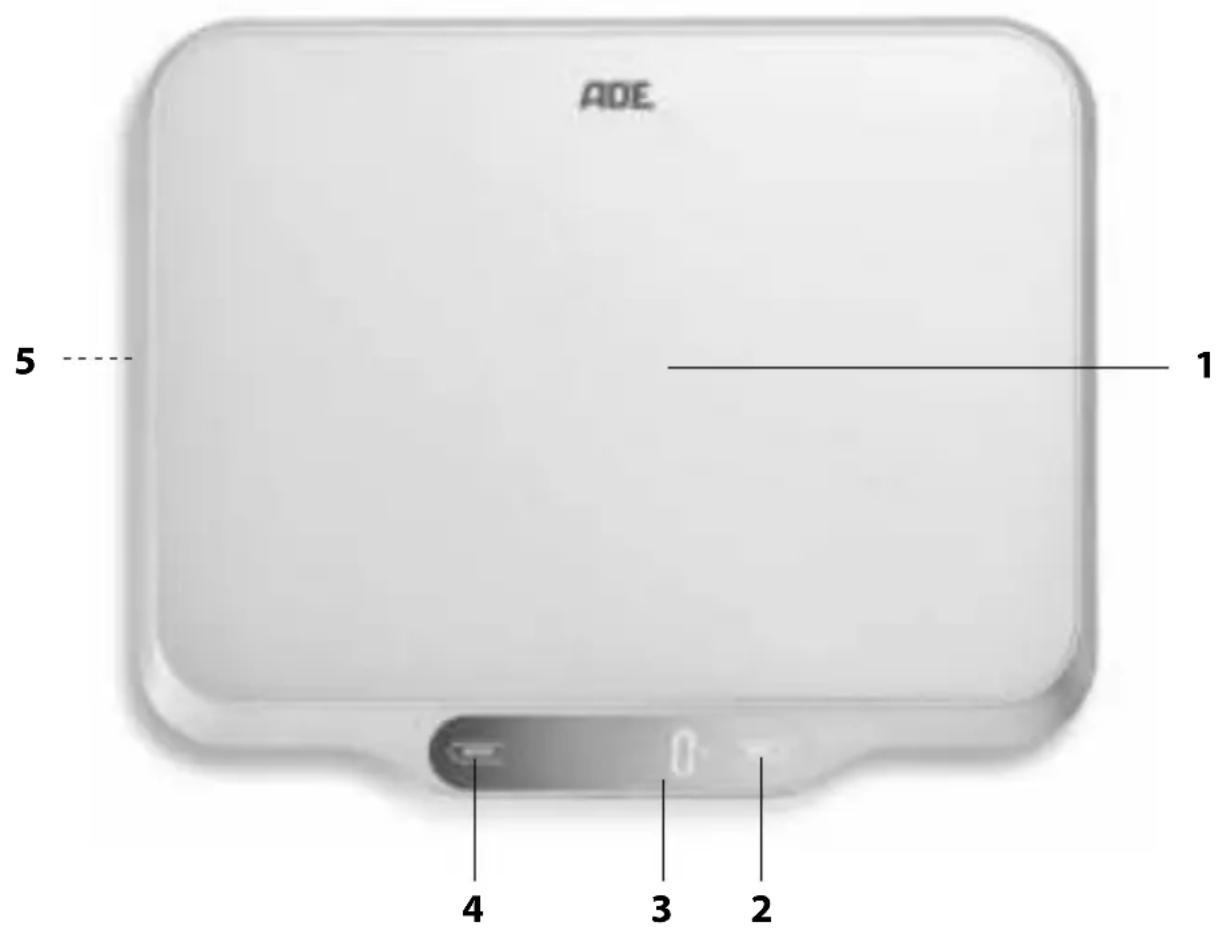

1 Weighing surface
2 TARE: For switching the scales on and off as well as setting values to zero (tare function)
3 Display
4 MODE: For selecting the measuring unit as well as switching the auto-hold function on and off
5 Battery compartment (underside)

Scope of delivery

• Kitchen scales
• Battery type LR6 (AA), 1,5 V= (4x)
• Operating Manual

In order to use the scales, you will need 4 batteries of type LR6 (AA), 1.5V (included). The battery compartment is located on the underside of the device.

1. Slide the battery compartment cover in the direction indicated by the embossed arrow until it stops, then remove it.
2. Insert the batteries as shown on the base of the battery compartment. Pay attention to the correct polarity (+/-) .

Pay attention to the correct polarity (+ / - )

1. Put the battery compartment cover back in place and slide it towards the middle of the scales until it stops.

Notes on changing the battery:

• A change of batteries becomes necessary when "LO" appears on the display, or when nothing at all is displayed.
• Only use the type of battery that is specified in the "Technical Data".
• Always change all batteries at the same time.
• Dispose of batteries in an environmentally appropriate way (see "Disposal")

Operation

Weighing

1. Place the scales on an even, firm, and dry surface. Carefully position the scales in order to avoid hard impacts to the sensors/feet and therefore to avoid damage.
2. Switch the scales on by briefly tapping on TARE. "HELLO" will be shown on the display.
3. Choose the desired unit of measurement by repeatedly touching MODE. You can choose between "g" (grams), "oz" (ounces) and "lboz" (pounds). Pay attention to the indicator on the display.
4. If you want to weigh something in a container, now place the container without anything in it onto the weighing surface. Otherwise, proceed as described in point 6.
5. Press TARE.

Depending on the chosen measuring unit, "0 g", "0.00 oz" or "0: 00 lboz" will be shown on the display.

1. Put the substance to be weighed in the container or place it on the weighing surface. The measured weight is shown on the display.
2. Read off the measured weight and remove the item or substance from the container or the weighing surface.

TARE Function

This function is practical, for example, when baking, if you would like to add another ingredient to the ingredients already on the scales.

1. Press TARE in order to set the scales back to "0".
2. Add the new substance. The weight of the added substance is shown on the display.
3. Repeat the process whenever you want to add more ingredients. The process can be repeated as often as needed until the capacity limit (15 kg) is reached.

Auto-hold function

After activating the auto-hold function, the measured weight will still be shown after removing the item/substance weighed.

1. Switch the scales on by briefly tapping on TARE.
2. Press and hold the MODE key until "H-ON" is shown on the display.
3. Place the item/substance to be weighed on the scales.

As soon as a beep tone sounds, the weighing process has concluded. You can remove the item/substance from the scales.

• The measured weight will then be displayed for approx. 30 seconds more.
• If you tap TARE, the indicator is immediately set to "0".

In order to switch the auto-hold function off again, press and hold MODE until "H-OFF" is shown on the display.

Switching off the scales

• Hold down TARE until the indicator on the display goes out.

The scales automatically switch off if they are not used for approx. 60 seconds.

Resetting the scales

Reset the scales to factory settings if unusual or obviously incorrect values are shown on the display.

1. Remove the batteries from the battery compartment and wait a moment.
2. Re-insert the batteries. Pay attention to the correct polarity of the batteries (+/-) .

After switching the scales on, you can start weighing as usual.

NOTE on material damage

• Do not immerse the scales in water or other liquids.
• Do not under any circumstances use harsh, scraping, or abrasive cleaning agents or the like to clean the scales. If you do, the surface could be scratched.

The scales should be cleaned immediately after use, especially if they have come into contact with fat or oil, spices, vinegar, and other strongly spiced and/or coloured foodstuffs.

• Wipe down the scales as needed using a lightly dampened, soft cloth. Avoid contact with citric acid.

Fault/Remedy

Fault Possible Cause
No function	·Are the batteries empty or have they been inserted incorrectly?
The scales appear to be displaying false weighing results	·Are the scales standing on a firm, even surface? ·Is a device that can cause electromagnetic disturbances located in the vicinity of the scales? ·Remove the batteries from the scales and wait a moment. Re-insert the batteries.
“IEEE” is shown on the display.	·The maximum capacity of the scales (15 kg) has been exceeded.
“LO” is shown on the display.	·The batteries are empty (see “Inserting/ changing batteries”).

Model: Kitchen Scales KE 1601 "Ladina"

Battery:

Rated current: < 25mA

Measuring range: max. 15 kg

Variance: 1% + / -

Indicator division: 1 g

Weight: approx. 1,2 kg

Dimensions of scales: approx. 310 × 265 × 25 mm

Distributor (no service address): Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

Our products are constantly being developed and improved.

For this reason, design and technical modifications are possible at any time.

Declaration of Conformity

These scales have been manufactured in accordance with the harmonised European standards.

It conforms to the provisions of the EC directives cited below:

• EMC Directive 2004/108/EC regarding electromagnetic compatibility
  RoHS Directive 2011/65/EU in the currently valid versions.

This declaration loses its validity if modifications are made to the product without our approval.

Hamburg, January 2016

Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

Guarantee

The company Waagen-Schmitt GmbH guarantees for 3 years from the purchase date the cost-free rectification of defects on the basis of material or fabrication errors through repair or exchange.

In the event of a guarantee claim, please return the product with the proof of purchase (stipulating the reason for claim) to your dealer.

Disposing of the packaging

Dispose of the packaging with similar materials. Put cardboard with waste paper, films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste.

At the end of its life, the product must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Hand in the old device at a collection point for electronic waste or at a recycling depot.

For more information, contact your local waste disposal firm or your local administrative body.

Recyclable and disposable batteries do not belong in household waste.

All batteries must be handed in at a collection point in your community, suburb, or at the retailer. Such batteries can thus be disposed of in an environmentally friendly way.

Batteries that contain harmful substances are labelled as follows: Cd for cadmium, Pb for lead.
