Product type	Integrated kitchen scale and cutting board
Brand	ADE
Model	Claire KE 2102
Scale dimensions	280 x 210 x 35 mm
Scale weight	Approx. 970 g
Maximum capacity	5 kg
Accuracy	1 g
Measurement error	1 % +-
Power supply	1 CR2032 battery, 3 V
Main functions	Zero setting, tare function, unit selection (g/oz), automatic shut-off after 1 minute
Care and cleaning	Wipe with a slightly damp soft cloth. Do not immerse. Do not use corrosive or abrasive detergents.
Safety	Do not overload (max 5 kg). Protect from shock. Keep out of reach of children. Replace batteries with the same type.
Spare parts	CR2032 battery
Warranty	2 years
Board material	Bamboo
Measurement units	Grams (g) and ounces (oz)
Measurement increments	1 g steps
Power consumption	Nominal current <= 100 mA

Frequently Asked Questions - Claire KE 2102 ADE

How to change the battery of the Claire KE 2102 scale?

Open the battery compartment on the bottom by pushing the locking tab. Remove the old battery, insert a new CR2032 battery respecting polarity (+ up), then close the cover.

What does the display <b>Lo</b> mean on the screen?

The Lo display indicates that the battery is low. Replace it with a new CR2032 battery.

How to use the tare function?

Place an empty container on the scale, press ON/ZERO to zero the scale (the screen shows 0). Then add the ingredient to be weighed. If the total weight exceeds 250 g, the screen shows TARE. You can repeat the operation up to 5 kg.

What is the maximum capacity of the scale?

The maximum capacity is 5 kg (11 lb). Do not exceed this limit to avoid damage.

How to clean the scale and cutting board?

Wipe the scale with a slightly damp soft cloth. Clean the cutting board similarly. Never immerse the scale in water and avoid corrosive products.

What to do if the screen shows <b>EEEE</b>?

The EEEE display means the maximum capacity of 5 kg has been exceeded. Remove the load immediately.

How to reset the scale to zero if it shows a negative value?

Press the ON/ZERO button to reset the scale to zero. This cancels any residual tare value.

Does the scale turn off automatically?

Yes, the scale turns off automatically after about one minute of inactivity to save battery.

What measurement units are available?

You can choose between grams (g) and ounces (oz) by pressing the UNIT button.

How to reset the scale in case of malfunction?

Remove the battery from the compartment, wait a few seconds, then reinsert it respecting polarity. The scale will return to its factory settings.

USER MANUAL Claire KE 2102 ADE

White plastic electronic device with a flat top and side panel, showing internal structure (no text or symbols visible)

Bedienungsanleitung

KE 2102

Operating instructions | Instrucciones de operación | Mode d'emploi Istruzioni per l'uso | Instrukcja obsługi | Инструкция

Icon of a person using a laptop inside a circle (no text or symbols)

22143 Hamburg, Germany

You have chosen to purchase a high-quality ADE brand product, which combines intelligent functions with an exceptional design. This kitchen scale is a practical companion for kitchen and household. The wealth of experience of the ADE brand ensures a high technical standard and proven quality.

We wish you much pleasure with your scale and good luck!

Your ADE Team

General information

About this operating manual

This operating manual describes how to operate and maintain your product safely. Keep this operating manual in a safe place for future reference. If you pass this product on to someone else, pass on this operating manual as well.

Failure to observe this operating manual may result in injuries or damage to your product.

Explanation of symbols

This symbol combined with the word DANGER warns of serious injuries.

This symbol combined with the word WARNING warns of moderate and mild injuries.

This symbol combined with the word NOTE warns of material damage.

This symbol indicates additional information and general notes.

Table of Contents

General information 12

Scope of delivery 13

Safety 14

Intended use 15

Overview 16

Start-up 17

Removing iso-strips 17

Inserting/changing the battery 17

Operation....17

Weighing....18

Resetting the scale to zero 18

Using the tare function (TARE)....18

Switching off the scale 19

Resetting the scale....19

Cleaning....19

Fault/Remedy....20

Technical data....20

Declaration of conformity 21

Warranty 21

Disposal....21

Scope of delivery

• Chopping board with kitchen scale
• 3 V CR2032 battery type
• Operating Manual

Bamboo is a sensitive natural material that changes over time, so slight cracks may appear in the surface with time.

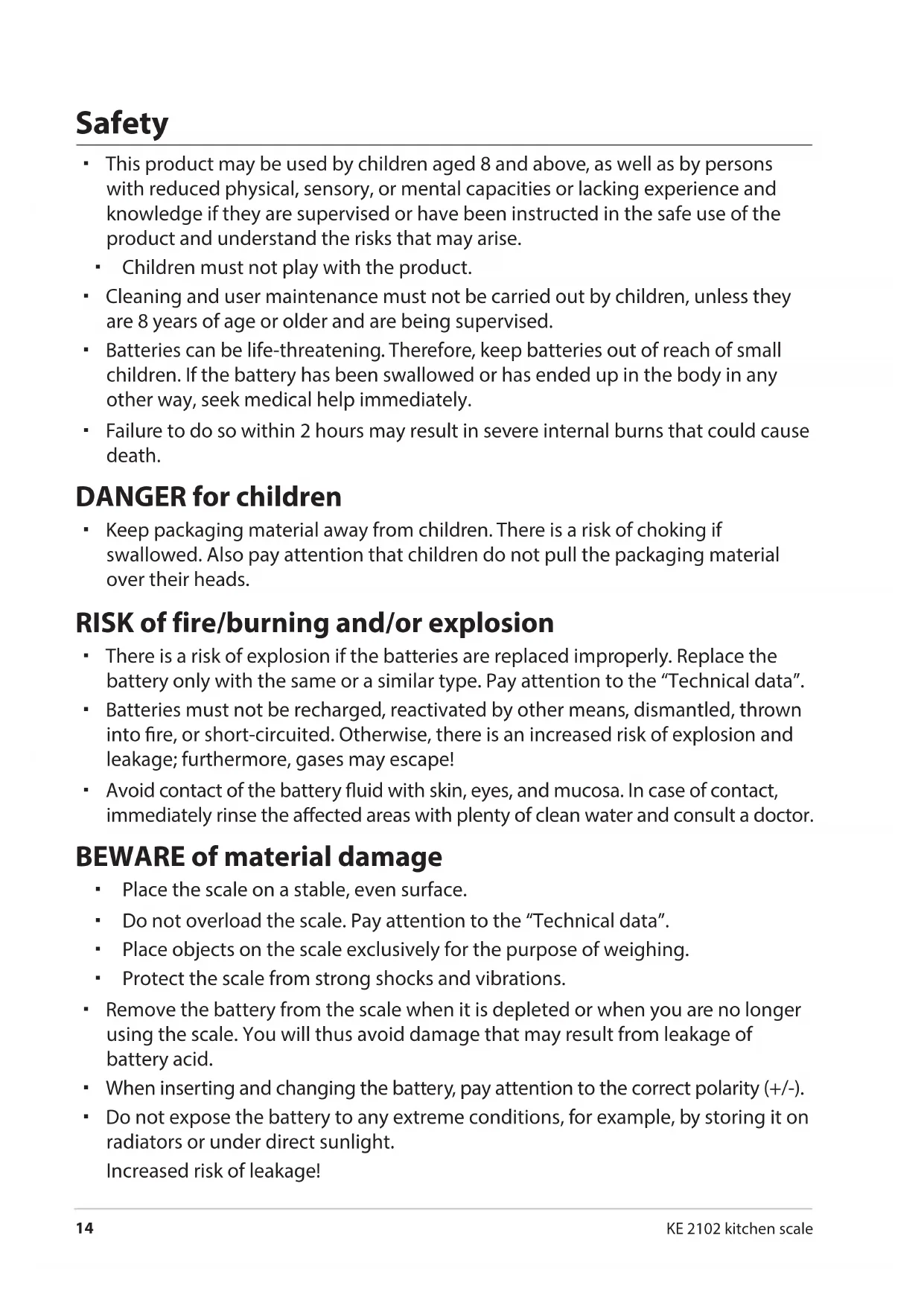

Safety

• This product may be used by children aged 8 and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge if they are supervised or have been instructed in the safe use of the product and understand the risks that may arise.
• Children must not play with the product.
• Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised.
• Batteries can be life-threatening. Therefore, keep batteries out of reach of small children. If the battery has been swallowed or has ended up in the body in any other way, seek medical help immediately.
• Failure to do so within 2 hours may result in severe internal burns that could cause death.

DANGER for children

- Keep packaging material away from children. There is a risk of choking if swallowed. Also pay attention that children do not pull the packaging material over their heads.

RISK of fire/burning and/or explosion

- There is a risk of explosion if the batteries are replaced improperly. Replace the battery only with the same or a similar type. Pay attention to the "Technical data".

- Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited. Otherwise, there is an increased risk of explosion and leakage; furthermore, gases may escape!

- Avoid contact of the battery fluid with skin, eyes, and mucosa. In case of contact, immediately rinse the affected areas with plenty of clean water and consult a doctor.

BEWARE of material damage

- Place the scale on a stable, even surface.

- Do not overload the scale. Pay attention to the "Technical data".

- Place objects on the scale exclusively for the purpose of weighing.

- Protect the scale from strong shocks and vibrations.

- Remove the battery from the scale when it is depleted or when you are no longer using the scale. You will thus avoid damage that may result from leakage of battery acid.

- When inserting and changing the battery, pay attention to the correct polarity (+/-).

- Do not expose the battery to any extreme conditions, for example, by storing it on radiators or under direct sunlight.

Increased risk of leakage!

• Clean the battery and device contacts, as needed, before inserting the battery.
• Do not make any modifications to the product. Only allow repairs to be carried out by a specialist workshop. Repairs carried out improperly can considerably endanger the user.
• Do not place the scale in the vicinity of devices that emit electromagnetic radiation such as mobile phones, radio equipment, etc. This may result in incorrect display indications or malfunctions.
• Do not place any objects on the scale if you are, for example, storing it in a cupboard. The sensitive measuring electronics in the scale could be damaged by heavy objects.
• There are feet on the underside of the scale. Since surfaces are made from various materials and are treated with diverse care products, it cannot be completely excluded that some of these substances contain ingredients that attack and soften the feet of the device. If necessary, place a non-slip pad under the scale.
• Take care when carrying: The scale is merely inserted into the chopping board and has no carrying lock or any similar mechanism. Pick up the chopping board in such a way as to ensure the inserted scale cannot slip out. Otherwise it could be damaged or broken if dropped.
• Due to its design, the chopping board does not lie fully flat on surfaces. Avoid using too much force, for example, when cutting very hard or tough food.

Intended use

The scale is designed for weighing food and objects at home in the quantities that are usual in that context. The maximum load capacity of 5 kg must not be exceeded.

Scales and chopping boards are not intended for commercial use, e.g. in bakeries, restaurants etc.

1 Weighing surface
2 ON/ZERO: Switch the scales on and off, set the values to zero (tare function)
3 Display
4 UNIT: Choosing the unit of measurement
5 Battery compartment (underside)

Removing iso-strips

The battery is already inserted upon delivery and fitted with an iso-strip to prevent it from discharging ahead of time. In order to start up the scale, you must remove the iso-strip. The battery compartment is located on the underside of the device.

1. Open the battery compartment by pushing the locking tab towards the battery compartment cover and then remove this cover.
2. Pull out the iso-strip.
3. Replace the battery compartment cover.

The locking tab must snap audibly into place.

Inserting/changing the battery

For use, you need a 3 V CR2032 battery.

1. Open the battery compartment by pushing the locking tab towards the battery compartment cover and then remove this cover.
2. Remove the old battery.
3. Push the battery against the spring contacts under the square retaining tabs and then press it in. The battery should fit into the opposite retaining tabs so that it is firmly secured inside the compartment.

Pay attention to the correct polarity (+/-). The plus pole (+) must point upwards.

1. Replace the battery compartment cover.

The locking tab must snap audibly into place.

• The batteries need to be changed when "Lo" or nothing is shown on the display.
• Only use the type of battery that is specified in the "Technical data".
• Dispose of old batteries in an environmentally appropriate way (see "Disposal").

Operation

NOTE on material damage

- Only cut on the chopping board, not on the scale's weighing surface. This could damage the sensitive electronics as well as its surface.

The scale must be fully pulled out of the chopping board for use.

Weighing

1. Place the scale on an even, firm and dry surface.
   Carefully position the scale in order to avoid hard shocks to the sensors/feet and therefore any damage.
2. Press ON/ZERO to turn on the scale.
   Wait until "0" appears on the display.
3. Select the desired measurement unit by tapping UNIT.
   You can choose between "g" (grammes) or "oz" (ounces).
   Pay attention to the indication on the display.
4. If you want to weigh an item or substance in a container, now place the container without anything in it onto the weighing surface. Otherwise, proceed as described in Section 6.
5. Press ON/ZERO. "0" will be displayed.
6. Put the item or substance to be weighed into the container or place it onto the weighing surface.
   The measured weight is shown on the display.
7. Read off the measured weight and remove the item or substance from the container or the weighing surface.

Resetting the scale to zero

If the display is still showing a minus value (symbol), although there is nothing on the weighing surface (for example, if the scale is not positioned properly or a TARE value is still displayed; see next section), you must reset the scale to zero.

-Press ON/ZERO.

Using the tare function (TARE)

This function is practical when baking, for example, if you would like to add another ingredient to the ingredients already on the scale.

1. Press ON/ZERO to set the scale back to "0".

If the weight on the weighing surface is 250 g or more, "TARE" is displayed (tare function). Below 250 g, the "zero function" is activated and the scale is simply reset to zero.

1. Add the new item or substance.

The display shows the added item weight.

"TARE" is only displayed if 250 g or more is added at once. If the total weight exceeds 250 g after being weighed twice, "TARE" does not appear on the display. Example: There is 100 g on the weighing surface. Press ON/ZERO and add 160 g: "TARE" will not appear on the display.

1. Repeat the process whenever you would like to add more ingredients. The process can be repeated as often as needed until the capacity limit (5 kg) is reached.

Switching off the scale

- Press and hold ON/ZERO until the display turns off.

The scale switches off automatically if it is not used for about a minute.

Resetting the scale

Reset the scale to its default settings if unusual or obviously incorrect values are shown on the display.

1. Remove the battery from the battery compartment and wait a moment.
2. Re-insert the battery.

Pay attention to the correct polarity of the battery (+/-). The plus pole (+) must point upwards.

After switching on the scale, you can start weighing as usual.

Cleaning

NOTE on material damage

- Do not immerse the scale or chopping board in water or other liquids. - Never use hard, scratchy or abrasive cloths or detergents to clean the scale or the chopping board. Otherwise, the surface could be scratched.

The scale should be cleaned immediately after use, especially after its contact with fat, spices, vinegar, and other strongly flavoured and/or coloured foodstuffs.

• Wipe the scale as needed with a slightly damp soft cloth. Avoid contact with citric acid.
• You should also clean the chopping board with a slightly damp soft cloth.

- Make sure you let the chopping board dry fully after cleaning.

If possible, keep it upright in a well-ventilated place.

Fault/Remedy

Fault Possible cause
No function	Is the battery empty or inserted improperly?
“EEEE” is shown on the display.	The maximum capacity of the scale (5 kg) has been exceeded.
The display will show “Lo”.	The battery is empty (see “Inserting/ changing the battery”).
The scale appears to be displaying wrong weighing results.	Is the scale located on a firm, even surface?Is a device that can cause electromagnetic disturbances located in the vicinity of the scale?Remove the battery from the scale and wait a moment. Reinsert the battery.

Technical data

Model: KE 2102 "Claire" chopping board with built-in kitchen scale

Battery: 1x CR2032 / 3 V

Rated current: ≤ 100 mA

Measuring range: max. 5 kg

Variance: 1% +/-

Display scaling: 1 g

Scale weight: around 970 g

Scale dimensions: 280 x 210 x 35 mm

Distributor (no service Waagen-Schmitt GmbH

22143 Hamburg, Germany

Our products are constantly being developed and improved.

For this reason, design and technical modifications are possible at any time.

Declaration of conformity

Waagen-Schmitt GmbH hereby declares that the kitchen scale KE 2102 complies with the directives 2014/30/EU and 2011/65/EU.

This declaration will lose its validity if any modification is made to the scale without our consent.

Hamburg, April 2021

Waagen-Schmitt GmbH

Warranty

Waagen-Schmitt GmbH warrants for 2 years from the purchase date the cost-free rectification of defects in material and workmanship through repair or exchange.

In the event of a warranty claim, please return the product with the proof of purchase (specifying the reason for claim) to your dealer.

Disposal

Disposing of the packaging

Dispose of the packaging according to type. Dispose of cardboard with waste paper and of films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste

At the end of its life, the product must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Bring the old device to a collection point for electronic waste or to a recycling depot.

For more information, contact your local waste disposal firm or your local administrative body.

Standard and rechargeable batteries should not be disposed of along with household waste

All batteries and rechargeable batteries must be brought to a local or district collection point or to the retailer. Such batteries and rechargeable batteries can thus be disposed of in an environmentally friendly way.

22143 Hamburg, Germany
