Product type	Digital kitchen scale
Brand	ADE
Model	Mira KE 1733
Maximum capacity	10 kg
Graduation	1 g
Accuracy	±1 %
Measurement units	g, lb, oz, ml
Tare function	Yes
Automatic shutoff	Yes, after 60 seconds
Power supply	2 LR03 (AAA) 1.5 V batteries
Dimensions	approx. 160 x 200 x 19 mm
Display	LCD screen
Material	Plastic
Cleaning	Soft, slightly damp cloth
Safety	Do not immerse, do not overload
Warranty	2 years
Repairability	Repairs by a specialist workshop
Package contents	Scale, 2 AAA batteries, instruction manual

Frequently Asked Questions - Mira KE 1733 ADE

How to turn on the ADE Mira KE 1733 scale?

Press the OFF/TARE button to turn on the scale.

How to change the unit of measurement?

Press the UNIT button several times to select g, lb, oz or ml.

How to use the tare function?

Place an empty container on the scale, press OFF/TARE to zero, then add ingredients. The display shows TARE.

What to do if the display shows 'EEEE'?

This means the maximum capacity of 10 kg has been exceeded. Remove the load.

What to do if the display shows 'Lo'?

The batteries are low. Replace both LR03 (AAA) batteries.

How to clean the scale?

Wipe with a soft, slightly damp cloth. Do not immerse the scale in water.

What is the maximum weighing capacity?

The maximum capacity is 10 kg.

How to reset the scale?

Remove the batteries, wait a few moments, then reinsert them respecting the polarity (+/-).

What to do if the scale displays incorrect values?

Check that the scale is on a flat and hard surface, away from electromagnetic devices, and reset it if necessary.

How to change the batteries?

Open the battery compartment under the scale, insert two LR03 (AAA) batteries respecting polarity, then close the cover.

USER MANUAL Mira KE 1733 ADE

ADE 10000g UNIT 10000g OFF TARE

Bedienungsanleitung

KE 1733

Operating instructions | Instrucciones de operación | Mode d'emploi Istruzioni per l'uso | Instrukcja obsługi

Icon of a person using a laptop inside a circle (no text or symbols)

22089 Hamburg, Germany

You have chosen to purchase a high-quality ADE brand product, which combines intelligent functions with an exceptional design. This kitchen scale is a practical companion for kitchen and household. The wealth of experience of the ADE brand ensures a high technical standard and proven quality.

We wish you much pleasure with your scale and good luck! Your ADE Team

General information

About this operating manual

This operating manual describes how to operate and maintain your product safely. Keep this operating manual in a safe place for future reference. If you pass this product on to someone else, pass on this operating manual as well.

Failure to observe this operating manual may result in injuries or damage to your product.

Explanation of symbols

This symbol combined with the word DANGER warns of serious injuries.

This symbol combined with the word WARNING warns of moderate and mild injuries.

This symbol combined with the word NOTE warns of material damage.

This symbol indicates additional information and general notes.

Table of Contents

General information....12

Intended use....14

Safety 14

Overview 16

Scope of delivery 16

Inserting/changing batteries....17

Operation....17

Weighing....17

Resetting the scale to zero 18

Adding items or substances (TARE)....18

Switching off the scale....18

Resetting the scale....18

Cleaning....19

Fault/Remedy....19

Technical data....20

Declaration of Conformity....20

Warranty 20

Disposal....21

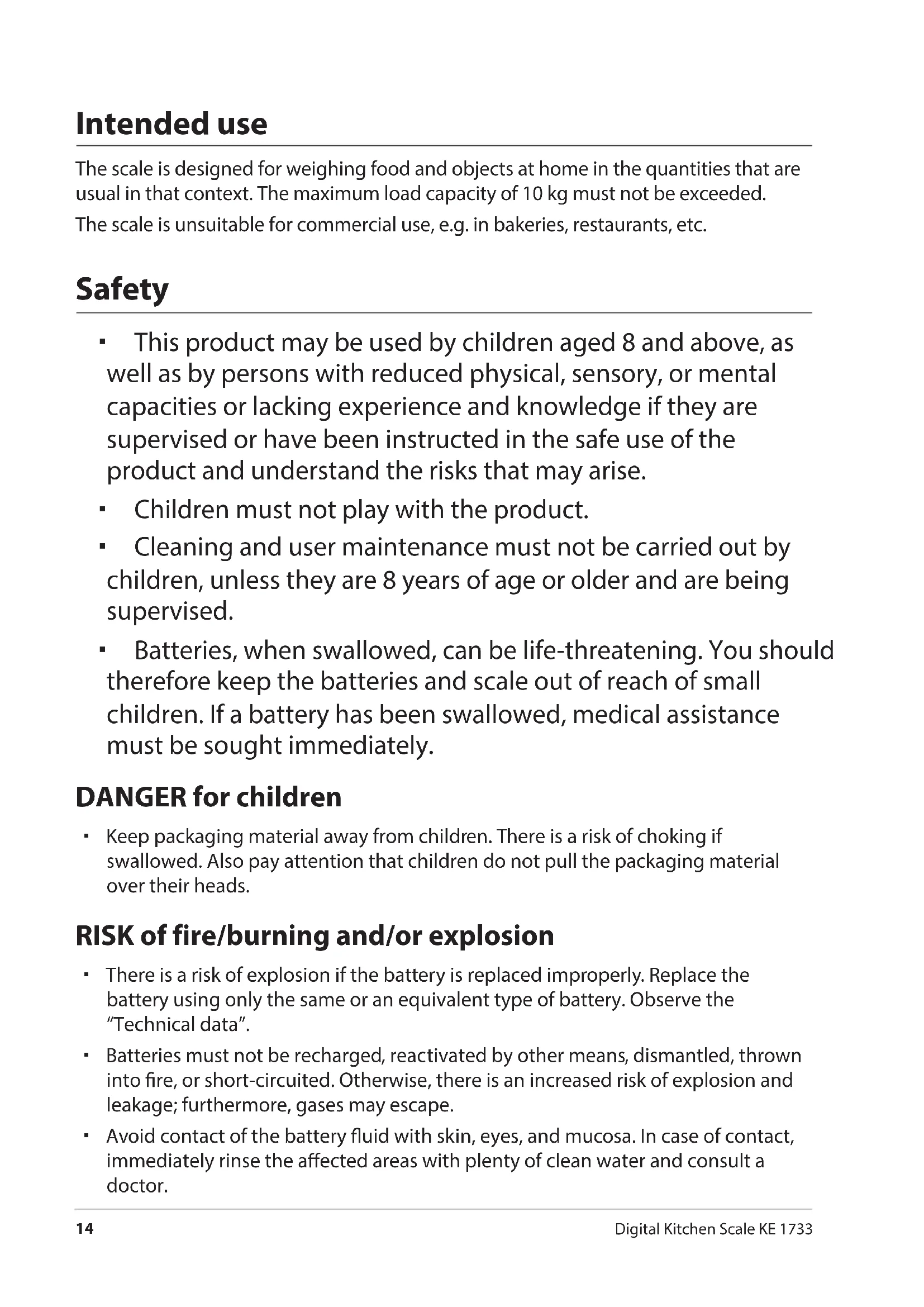

The scale is designed for weighing food and objects at home in the quantities that are usual in that context. The maximum load capacity of 10 kg must not be exceeded.

The scale is unsuitable for commercial use, e.g. in bakeries, restaurants, etc.

Safety

• This product may be used by children aged 8 and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge if they are supervised or have been instructed in the safe use of the product and understand the risks that may arise.
• Children must not play with the product.
• Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised.
• Batteries, when swallowed, can be life-threatening. You should therefore keep the batteries and scale out of reach of small children. If a battery has been swallowed, medical assistance must be sought immediately.

DANGER for children

- Keep packaging material away from children. There is a risk of choking if swallowed. Also pay attention that children do not pull the packaging material over their heads.

RISK of fire/burning and/or explosion

- There is a risk of explosion if the battery is replaced improperly. Replace the battery using only the same or an equivalent type of battery. Observe the "Technical data".

- Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited. Otherwise, there is an increased risk of explosion and leakage; furthermore, gases may escape.

- Avoid contact of the battery fluid with skin, eyes, and mucosa. In case of contact, immediately rinse the affected areas with plenty of clean water and consult a doctor.

WARNING of risk of injury

- If the scale falls and shatters, there is a risk of injury from glass splinters.

BEWARE of material damage

• Do not immerse the scale in water or other liquids.
• Place the scale on a stable, even surface.
• Do not overload the scale. Observe the "Technical data".
• Place objects on the scale exclusively for the purpose of weighing.
• Protect the scale from strong shocks and vibrations.

- Remove the battery from the scale when it is depleted or when you are no longer using the scale. You will thus avoid damage that may result from leakage of battery acid.

- When inserting and changing batteries, pay attention to the correct polarity (+/-).

- Do not expose the battery to any extreme conditions, for example, by storing it on radiators or under direct sunlight. Increased risk of leakage!

- Clean the battery and device contacts, as needed, before inserting the battery.

- Do not make any modifications to the product. Only allow repairs to be carried out by a specialist workshop. Repairs carried out improperly can considerably endanger the user.

- Do not place the scale in the vicinity of devices that emit electromagnetic radiation such as mobile phones, radio equipment, etc. This may result in incorrect display indications or malfunctions.

- Do not place any objects on the scale if you are, for example, storing it in a cupboard. The sensitive measuring electronics in the scale could be damaged by heavy objects.

- There are feet on the underside of the scale. Since surfaces are made from various materials and are treated with diverse care products, it cannot be completely excluded that some of these substances contain ingredients that attack and soften the feet of the device. If necessary, place a non-slip pad under the scale.

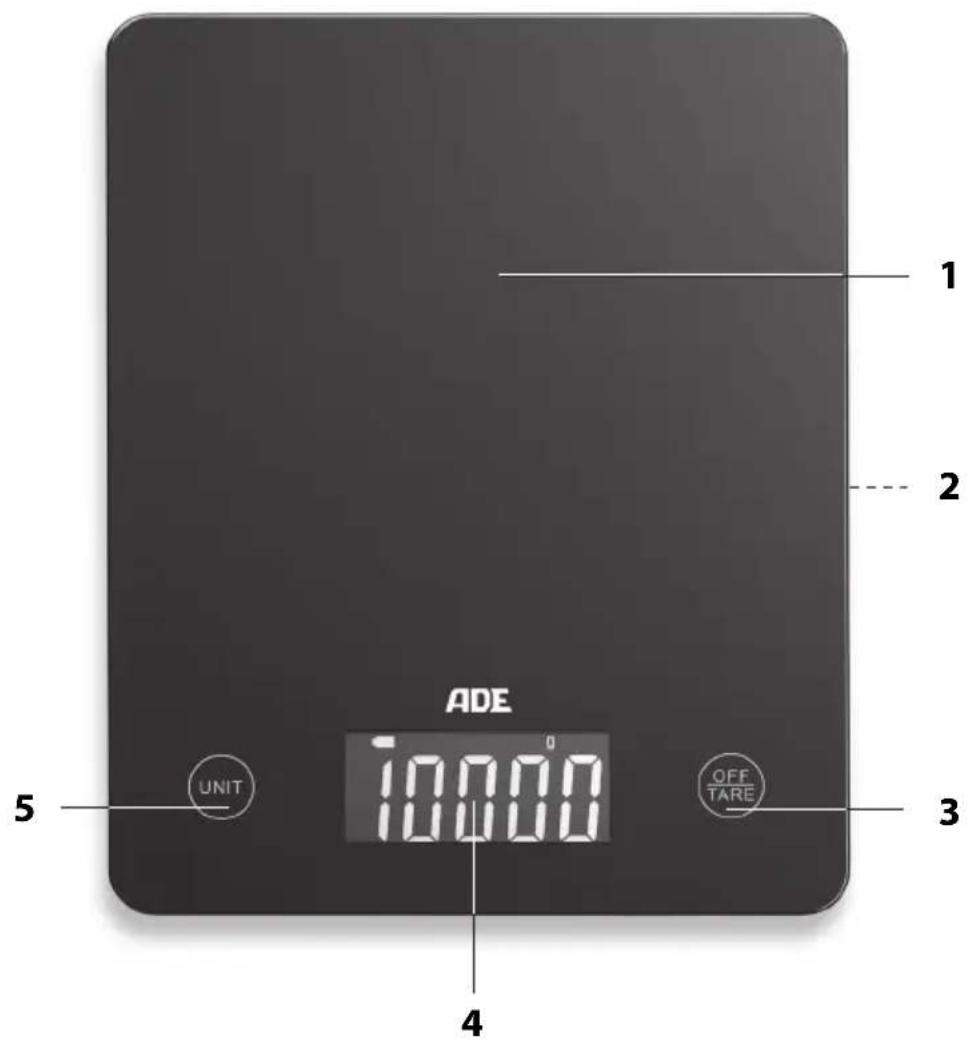

ADE 10.000 UNIT OFF TARE 3 4 5

1 Weighing surface
2 Battery compartment (underside)
3 OFF/TARE: Switching off as well as resetting values to zero (tare function)
4 Display
5 UNIT: Choosing the unit of measurement

Scope of delivery

• Kitchen scale
• Battery type LR03 (AAA), 1.5 = (2x)
• Operating manual

For use, you need 2 batteries of type LR03 (AAA), 1.5 V (included). The battery compartment is located on the underside of the device.

1. Press the locking tab slightly towards the centre of the scale and remove the battery compartment cover.
2. Insert the batteries as indicated at the bottom of the battery compartment. Pay attention to the correct polarity (+/-).
3. Replace the battery compartment cover. The locking tab must snap securely into place.

Notes on changing the battery:

• Battery change is necessary if the display shows either a battery symbol, "Lo" or nothing at all.
• Only use the type of battery that is specified in the "Technical data".
• Always change all batteries at the same time.
• Dispose of old batteries in an environmentally appropriate way (see "Disposal").

Operation

Weighing

1. Place the scale on an even, firm, and dry surface. Carefully position the scale in order to avoid hard shocks to the sensors/feet and therefore any damage.
2. Press OFF/TARE to switch on the scale.
3. Choose the desired unit of measurement by repeatedly tapping UNIT. You can choose between "g" (gramme), "lboz" (pound), "oz" (ounce) and "ml" (millilitre). Pay attention to the indication on the display.

Choose "ml" if you would like to weigh liquids.

1. If you want to weigh an item or substance in a container, now place the container without anything in it onto the weighing surface. Otherwise, proceed as described in Section 6.

2. Press OFF/TARE.

The display will show "0 g", "0:00 lboz", "0.00 oz" or "0 ml" and "TARE" depending on the selected unit of measurement.

1. Put the item or substance to be weighed into the container or place it onto the weighing surface.

The measured weight is shown on the display.

1. Read off the measured weight and remove the item or substance from the container or the weighing surface.

Resetting the scale to zero

If the display still shows values even though the weighing surface is empty (e.g. if the scale is not optimally positioned or a TARE value is still displayed; see next section), you must reset the scale to zero.

– Briefly press OFF/TARE once.

Adding items or substances (TARE)

This function is practical, for example, when baking, if you would like to add another ingredient to the ingredients already on the scale.

1. Press OFF/TARE to reset the scale to "0"."TARE" is shown on the display.
2. Add the new item or substance. The weight of the added item or substance is shown on the display.
3. Repeat the process whenever you would like to add more ingredients. The process can be repeated as often as needed until the capacity limit (10 kg) is reached.

Switching off the scale

- Press and hold down OFF/TARE until the indication on the display goes out.

The scale will turn off automatically if it is not used for approx. 60 seconds.

Resetting the scale

Reset the scale to its default settings if unusual or obviously incorrect values are shown on the display.

1. Remove the batteries from the battery compartment and wait a moment.
2. Reinsert the batteries.

Pay attention to the correct polarity of the batteries (+/-).

After switching on the scale, you can start weighing as usual.

NOTE on material damage

• Do not immerse the scale in water or other liquids.
• Do not under any circumstances use harsh, scouring or abrasive cleaning agents or the like to clean the scale. Otherwise, the surface could be scratched.

The scale should be cleaned immediately after use, especially after its contact with fat, spices, vinegar, and other strongly flavoured and/or coloured foodstuffs.

- Wipe the scale as needed with a slightly damp soft cloth. Avoid contact with citric acid.

Fault/Remedy

Fault Possible cause
No function.	Is the battery empty or inserted the wrong way around?
The scale appears to be displaying wrong weighing results	Is the scale located on a firm, even surface?Is a device that can cause electromagnetic disturbances located in the vicinity of the scale?Remove the batteries from the scale and wait a moment. Reinsert the batteries.
“EEEE” is shown on the display.	The maximum capacity of the scale (10 kg) has been exceeded.
The display shows a battery symbol or “Lo”.	The batteries are empty (see “Inserting/ changing batteries”).
“unSt” is shown on the display.	The scale is not stable. Select a firm and even surface to place the scale.

Model: Kitchen Scale KE 1733 "Mira"

Battery: 2x LR03 (AAA), 1.5 V

Rated current: ≤ 15 mA

Measuring range: max. 10 kg

Variance: 1 % +/-

Display scaling: 1 g

Scale dimensions: approx. 160 x 200 x 19 mm

Distributor (no service address): Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

Our products are constantly being developed and improved.

For this reason, design and technical modifications are possible at any time.

Declaration of Conformity

Waagen-Schmitt GmbH hereby declares that the kitchen scale KE 1733 complies with EU directives 2014/53/EU and 2011/65/EU.

The full text of the EU declaration of conformity is available at the following Internet address: www.ade-germany.de/doc

This declaration will lose its validity if any modification is made to the scale without our consent.

Hamburg, May 2018

Waagen-Schmitt GmbH

Warranty

Waagen-Schmitt GmbH warrants for 2 years from the purchase date the cost-free rectification of defects in material and workmanship through repair or exchange.

In the event of a warranty claim, please return the product with the proof of purchase (specifying the reason for claim) to your dealer.

Disposing of the packaging

Dispose of the packaging with similar materials. Dispose of cardboard with waste paper and of films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste

At the end of its life, the product must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Bring the old device to a collection point for electronic waste or to a recycling depot.

For more information, contact your local waste disposal firm or your local administrative body.

Standard and rechargeable batteries should not be disposed of along with household waste

All standard and rechargeable batteries must be brought to a local or district collection point or to the retailer. Such standard and rechargeable batteries can thus be disposed of in an environmentally friendly way.
