USER MANUAL GOP 18 V28 Professional BOSCH

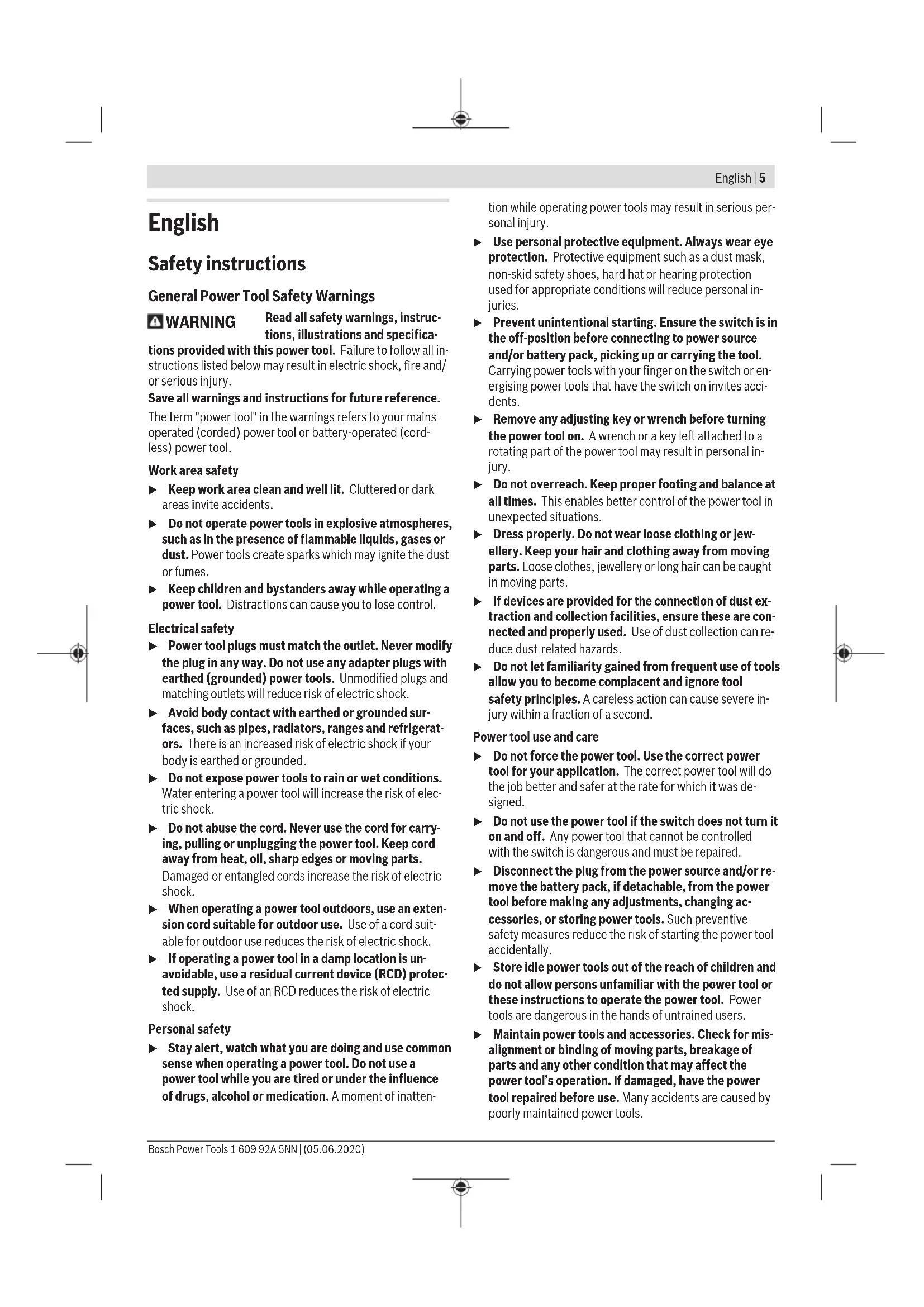

(16) (17) (13) (19) (18) 1 609 92A 5NN | (05.06.2020) Bosch Power ToolsEnglish | 5 English Safety instructions General Power Tool Safety Warnings WARNING Read all safety warnings, instruc- tions, illustrations and specifica- tions provided with this power tool. Failure to follow all in- structions listed below may result in electric shock, fire and/ or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains- operated (corded) power tool or battery-operated (cord- less) power tool. Work area safety u Keep work area clean and well lit. Cluttered or dark areas invite accidents. u Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. u Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety u Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. u Avoid body contact with earthed or grounded sur- faces, such as pipes, radiators, ranges and refrigerat- ors. There is an increased risk of electric shock if your body is earthed or grounded. u Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of elec- tric shock. u Do not abuse the cord. Never use the cord for carry- ing, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. u When operating a power tool outdoors, use an exten- sion cord suitable for outdoor use. Use of a cord suit- able for outdoor use reduces the risk of electric shock. u If operating a power tool in a damp location is un- avoidable, use a residual current device (RCD) protec- ted supply. Use of an RCD reduces the risk of electric shock. Personal safety u Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inatten- tion while operating power tools may result in serious per- sonal injury. u Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal in- juries. u Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or en- ergising power tools that have the switch on invites acci- dents. u Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal in- jury. u Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. u Dress properly. Do not wear loose clothing or jew- ellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. u If devices are provided for the connection of dust ex- traction and collection facilities, ensure these are con- nected and properly used. Use of dust collection can re- duce dust-related hazards. u Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe in- jury within a fraction of a second. Power tool use and care u Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was de- signed. u Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. u Disconnect the plug from the power source and/or re- move the battery pack, if detachable, from the power tool before making any adjustments, changing ac- cessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. u Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. u Maintain power tools and accessories. Check for mis- alignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Bosch Power Tools 1 609 92A 5NN | (05.06.2020)6 | English u Keep cutting tools sharp and clean. Properly main- tained cutting tools with sharp cutting edges are less likely to bind and are easier to control. u Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into ac- count the working conditions and the work to be per- formed. Use of the power tool for operations different from those intended could result in a hazardous situation. u Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. Battery tool use and care u Recharge only with the charger specified by the manu- facturer. A charger that is suitable for one type of bat- tery pack may create a risk of fire when used with another battery pack. u Use power tools only with specifically designated bat- tery packs. Use of any other battery packs may create a risk of injury and fire. u When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. u Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally oc- curs, flush with water. If liquid contacts eyes, addi- tionally seek medical help. Liquid ejected from the bat- tery may cause irritation or burns. u Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. u Do not expose a battery pack or tool to fire or excess- ive temperature. Exposure to fire or temperature above 130°C may cause explosion. u Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. Service u Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. u Never service damaged battery packs. Service of bat- tery packs should only be performed by the manufacturer or authorized service providers. Safety information for multi-cutters u Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contact- ing a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. u Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the workpiece by hand or against your body leaves it un- stable and may lead to loss of control. u Only use the power tool for dry sanding. Water entering a power tool will increase the risk of electric shock. u Warning: Danger of fire! Avoid overheating the work- piece and the sander. Always empty the dust collector before taking a break from work. Sanding dust in the dust bag, microfilter, paper bag (or in the filter bag or va- cuum cleaner filter) can spontaneously combust under certain conditions, for example if flying sparks are cre- ated when sanding metals. This risk is increased if the sanding dust is mixed with paint or polyurethane residue or with other chemical substances and if the workpiece is hot as a result of prolonged work. u Keep hands away from the sawing area. Do not reach under the workpiece. Contact with the saw blade can lead to injuries. u Clean the air vents on your power tool regularly. The motor’s fan will draw the dust inside the housing and ex- cessive accumulation of powdered metal may cause elec- trical hazards. u Use suitable detectors to determine if there are hid- den supply lines or contact the local utility company for assistance. Contact with electric cables can cause fire and electric shock. Damaging gas lines can lead to ex- plosion. Breaking water pipes causes property damage. u Hold the power tool firmly with both hands and make sure you have a stable footing. The power tool can be more securely guided with both hands. u When changing the application tool, wear protective gloves.Application tools can become hot when used for prolonged periods of time. u Do not scrape any dampened materials (e.g. wallpa- per) or on damp surfaces. Water entering a power tool increases the risk of electric shock. u Do not treat the surface you will be working on with any fluids that contain solvents. Poisonous vapours may develop due to the materials heating up when being scraped. u Take particular care when handling scrapers and blades. The application tools are very sharp. Danger of in- jury. u In case of damage and improper use of the battery, va- pours may be emitted. The battery can set alight or ex- plode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system. u Do not open the battery. There is a risk of short-circuit- ing. u The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. 1 609 92A 5NN | (05.06.2020) Bosch Power ToolsEnglish | 7 An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat. u Only use the battery with products from the manufac- turer. This is the only way in which you can protect the battery against dangerous overload. Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting. Product Description and Specifications Read all the safety and general instructions. Failure to observe the safety and general in- structions may result in electric shock, fire and/or serious injury. Please observe the illustrations at the beginning of this oper- ating manual. Intended use The power tool is intended for sawing and cutting wood- based materials, plastic, plasterboard, non-ferrous metals and mounting elements (e.g. non-hardened nails, clamps). It is also suitable for working on soft wall tiles and for dry sand- ing and scraping of small areas. It is ideal for working close to edges and flush with surfaces. The power tool must only be operated using Bosch accessories. Product features The numbering of the product features refers to the diagram of the power tool on the graphics page. (1) On/off switch (2) Ventilation slots (3) Battery

(4) Orbital stroke rate preselection thumbwheel (5) SDS lever for unlocking tools (6) Tool holder (7) Worklight (8) Battery release button

(9) Clamping lever for depth stop

(11) Plunge cut saw blade

(12) Handle (insulated gripping surface) (13) Dust extraction system

(16) Clamping lever for dust extraction system

(18) Dust extraction adapter

(19) Dust extraction hose

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Technical data Cordless multi-cutter GOP 18V-28 Article number 3601HB60.. Rated voltage V= 18 No-load speed n

8000–20000 Oscillation angle on left/right ° 1.4 Weight according to EPTA-Procedure 01:2014 kg 1.5–2.6

Recommended ambient tem- perature during charging °C 0 to +35 Permitted ambient temperat- ure during operation

and during storage °C −20to+50 Recommended rechargeable batteries GBA 18V… ProCORE18V… Recommended chargers GAL 18… GAX 18… GAL 36… A) Depends on battery in use B) Limited performance at temperatures <0°C Technical data determined using the battery that comes with the product. Fitting u Remove the battery from the power tool before carry- ing out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be re- moved for transport and storage. There is risk of injury from unintentionally pressing the on/off switch. Battery Charging u Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of your power tool. Note: The battery is supplied partially charged. To ensure full battery capacity, fully charge the battery in the charger before using your power tool for the first time. The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging process does not damage the battery. The lithium-ion battery is protected against deep discharge by the "Electronic Cell Protection (ECP)". When the battery is discharged, the power tool is switched off by means of a protective circuit: The application tool no longer rotates. u Do not continue to press the On/Off switch after the power tool has automatically switched off. The battery can be damaged. The battery (3) is equipped with two locking levels to pre- vent the battery from falling out if the battery release button Bosch Power Tools 1 609 92A 5NN | (05.06.2020)8 | English (8) is pressed unintentionally. The battery is held in place by a spring when fitted in the power tool. To remove the battery (3), press the battery release button (8) and pull the battery to the rear and out of the power tool. Do not use force to do this. Battery charge indicator The green LEDs on the battery charge indicator indicate the state of charge of the battery. For safety reasons, it is only possible to check the state of charge when the power tool is not in operation. Press the button for the battery charge indicator or to show the state of charge. This is also possible when the bat- tery is removed. If no LED lights up after pressing the button for the battery charge indicator, then the battery is defective and must be replaced. Battery model GBA 18V... LEDs Capacity 3× continuous green light 60−100% 2× continuous green light 30−60% 1× continuous green light 5−30% 1× flashing green light 0−5% Battery model ProCORE18V... LEDs Capacity 5× continuous green light 80−100% 4× continuous green light 60−80% 3× continuous green light 40−60% 2× continuous green light 20−40% 1× continuous green light 5−20% 1× flashing green light 0−5% Changing the tool u Wear protective gloves when changing tools. There is a risk of injury when touching the application tools. Selecting an application tool Please observe the application tools intended for your power tool. Application tool GOP 18V-28 The following table shows examples of application tools. You can find additional application tools in Bosch’s extensive range of accessories. Application tool Material Application AIZ 10 AB Starlock 10×20mm bi- metal plunge cut saw blade for wood and metal Softwood, soft plastics, gypsum, thin-walled alu- minium and non-ferrous metal profiles, thin metal sheets, non-hardened nails and bolts Smaller separation and plunge cuts; delicate adjustment work in wood; Example: Cutting recess for cable, plunge cuts in gypsum boards, resawing recesses for locks and fittings AIZ 32 EPC Starlock 32×50mmHCS plunge cut saw blade for wood Softwood Splinter-free separation and plunge saw cuts thanks to round sawing edge (Curved-Tec); also for sawing close to the edge, in corners and difficult- to-access areas; Example: Plunge cut for the installation of a ventilation grille or recess for plug sockets AIZ 32 APB Starlock 32× 50mm bi- metal plunge cut saw blade for wood and metal Composite materials made from wood and soft non-ferrous metals, un- hardened nails and screws, pipes made from non-ferrous metal and profiles with small dimen- sions Tear-free flush cuts and plunge cuts in wood, soft non-fer- rous metals and plastic thanks to round sawing edge (Curved-Tec); Example: Recess for plug sockets and pipes, flush cuts through unhardened nails and screws 1 609 92A 5NN | (05.06.2020) Bosch Power ToolsEnglish | 9 Application tool Material Application PAIZ 32 APB StarlockPlus 32×60mm bi- metal plunge cut saw blade for wood and metal Composite materials made from wood and soft, non-ferrous metals, un- hardened nails and bolts, pipes made from non-fer- rous metal and profiles of smaller dimensions Quick and deep plunge cuts in wood, abrasive wooden ma- terials and plastics, splinter-free work thanks to round cut- ting edge (Curved-Tec); Example: Quick separation of non-ferrous pipes and pro- files of smaller dimensions, easy cutting through non- hardened nails, bolts and steel profiles of smaller dimen- sions AIZ 32 BSPB Starlock 32×50mm bi- metal plunge cut saw blade for hard- wood Hardwood, laminated boards Splinter-free separation and plunge cuts in coated boards or hardwood thanks to round sawing edge (Curved-Tec), Japan toothing specially suited for hardwood; Example: Installation of skylights, recess for plug sockets AIZ 32 AT/ AIZ32AIT Starlock 32× 40mm carbide plunge cut saw blade for metal Hard ferrous metals, ex- tremely abrasive materi- als, fibreglass, plaster- board, cement-bonded fibreboards, hardened nails and screws Sawing extremely abrasive materials or hard ferrous metals; long service life thanks to BOSCH carbide techno- logy; Example: Cutting of kitchen front covers, simple sawing through hardened nails and stainless steel AIZ 32 APT/ AIZ32APIT Starlock 32× 40mm carbide plunge cut saw blade for multi-material Hard ferrous sheet metal, epoxy, plasterboard, GFRP, CFRP, cement fibreboard Splinter-free separating cuts and plunge cuts in sheet metal thanks to round sawing edge (Curved-Tec); long ser- vice life thanks to BOSCH carbide technology; Example: Sawing through sheet metal, cutting through screws in window frames PAIZ 45 AT/ PAIZ45AIT StarlockPlus 45× 50mm carbide plunge cut saw blade for metal Hard ferrous metals, ex- tremely abrasive materi- als, fibreglass, plaster- board, cement-bonded fibreboards, hardened nails and screws Wide saw blade for sawing highly abrasive materials or hard ferrous metals; long service life thanks to BOSCH carbide technology; Example: Cutting kitchen front covers, easy sawing through hardened screws and stainless steel PAII 52 APT/ PAII52APIT StarlockPlus 52× 50mm carbide plunge cut saw blade for multi-material Hard ferrous sheet metal, epoxy, plasterboard, GFRP, CFRP, cement fibreboard Long saw blade for splinter-free separation and plunge cuts in sheet metal thanks to round sawing edge (Curved- Tec); long service life thanks to BOSCH carbide techno- logy; Example: Cutting through sheet metal, cutting through screws in window frames AYZ 53 BPB Starlock 53×40mm plunge cut saw blade for multi- material Gypsum boards, chip- boards, sandwich mater- ial, wood Optimised for plunge saw cuts with a subsequent longer separation cut; the Dual-Tec shape ensures a clean and complete cut both in the corners and during a longer sep- aration cut; Example: Plug socket recesses in gypsum boards or wooden walls AII 65 APB Starlock 65×40mm bi- metal plunge cut saw blade for wood and metal Softwood, hardwood, veneered boards, plastic- coated boards, non- hardened nails and bolts Splinter-free separation and plunge cuts thanks to round sawing edge (Curved-Tec) in coated boards or hardwood; Example: Shortening door frames, recesses in laminate flooring for a tray or built-in furniture, cutting through non- hardened nails and bolts when flush with the surface ACZ 85 EB Starlock 85mm diameter bimetal segment Wooden materials, plastic, soft and non-fer- rous metals Separation and plunge saw cuts; also for sawing close to the edge in difficult-to-access areas; Bosch Power Tools 1 609 92A 5NN | (05.06.2020)10 | English Application tool Material Application saw blade for wood and metal Example: Shortening already installed skirting boards or door frames, plunge cuts when adapting floor panels ACZ 105 ET Starlock 105mm diameter carbide segment saw blade for multi-material Fibre cement boards, tile joints, brick, fibreglass-re- inforced plastics, lamin- ate Separation and plunge saw cuts; also for sawing close to the edge in difficult-to-access areas; long service life thanks to BOSCH carbide technology; Example: Shortening already installed skirting boards or door frames, milling cable ducts in brick, quick and low- dust cutting out of tile joints, cutting fibreglass boards to size for fittings, adjustment work in laminate; available from mid-2021 ACZ 100 SWB Starlock 100mm diameter bimetal segment serrated knife for multi-material Insulation material, insula- tion boards, floor panels, impact sound insulation boards, cardboard, car- pets, rubber, leather Precise cutting of soft materials; example: Cutting insulation boards to size, cutting pro- truding insulation material to length so that it is flush with the surface ACZ 85 RD4 Starlock 85mm diameter Diamond-RIFF seg- ment saw blade for mortar and abras- ive materials Cement joints, soft wall tiles, fibreglass-reinforced plastics, epoxy, GKF Cutting and separating in areas and corners that are close to the edge or difficult to access, extra long service life thanks to Diamond-RIFF; Example: Removing joints between wall tiles for repair work, recesses in tiles; also available as Carbide-RIFF version: ACZ 85 RT3 for normal joints, ACZ 70 RT5 for thin joints AVZ 70 RT4 Starlock 70mm wide carbide-RIFF mor- tar remover Mortar, joints, epoxy resin, fibreglass-rein- forced plastics, abrasive materials Reaming and separating joint and tile material, as well as rasping and sanding on a hard substrate; long service life thanks to BOSCH carbide technology; Example: Removing tile adhesive and grout AVZ 90 RT2 Starlock 90mm wide carbide-RIFF delta plate for mortar and abrasive ma- terials Mortar, concrete residue, wood, abrasive materials, paint Rasping and sanding on a hard substrate; Example: Removing mortar or tile adhesive (e.g. when re- placing damaged tiles), removing carpet adhesive residues, removing paint residues; available in grain sizes 20 (RT2), 40 (RT4), 60 (RT6) or 100 (RT10) AVZ 93 G Starlock 93mm-wide sand- ing plate for sand- ing sheets of the Delta 93mm series Depends on the sanding sheet Sanding on edges, in corners or in difficult-to-access areas; depending on sanding sheet, e.g. for sanding wood, paint, lacquer, stone; non-woven materials for cleaning and for structuring wood, removing rust from metal and for abrading lac- quers, polishing felt for pre-polishing AUZ 70 G Starlock 70mm wide profile sander for 70×125mm sanding sheets Wood, pipes/profiles, paint, varnish, filler, metal Convenient and efficient sanding of profiles and curved, uneven material surfaces up to a diameter of 55mm; sanding sheets for sanding wood, pipes/profiles, varnish, filler and metal AVZ 32 RT4 Starlock 32× 50mm carbide-RIFF sand- ing finger for wood and paint Wood, paint Sanding wood or paint in difficult-to-access places without sanding paper; long service life thanks to BOSCH carbide technology; Example: Sanding down paint between window shutter slats, sanding wooden flooring in corners; available in grain sizes 40 (RT4) and 100 (RT10) 1 609 92A 5NN | (05.06.2020) Bosch Power ToolsEnglish | 11 Application tool Material Application AIZ 28 SC Starlock 28× 40mm HCS universal joint cut- ter Expansion joints, window putty, insulation materials (rock wool) Cutting soft materials; example: Cutting silicone expansion joints or window putty ASZ 32 SC Starlock 24mm-wide HCS pull cutting edge, 11mm-wide HCS push cutting edge Roofing felt, carpets, arti- ficial turf, cardboard, PVC flooring Quick and precise cutting of soft material and flexible, ab- rasive materials; Example: Cutting carpets, cardboard, PVC flooring, re- cesses in roofing felt ATZ 52 SC Starlock 52mm scraper, ri- gid Carpets, mortar, con- crete, tile adhesive Scraping on a hard substrate; Example: Removing mortar, tile adhesive and concrete and carpet adhesive residues; available as flexible scraper ATZ 52 SFC (soft carpet ad- hesive/paint residues) Fitting/changing the application tool Remove the application tool if one has already been fitted. To do so, open the SDS lever (5) all the way. The application tool/accessory will be ejected. Position the required application tool (e.g. plunge cut saw blade (11)) on the tool holder (6) so that the depressed centre is facing downwards (see figure on the graphics page, text on the application tool should be legible from above). When doing so, place the application tool/accessory in a po- sition which is convenient for the job at hand. Twelve posi- tions offset by 30° are possible for this. Press the application tool in the required position firmly onto the clamping jaws of the tool holder until it locks automatic- ally. u Check that the application tool is seated securely. Ap- plication tools that are attached incorrectly or are not se- curely fixed in place may come loose during operation, thereby putting you at risk. Mounting and adjusting the depth stop The depth stop(10) can be used when working with seg- ment and plunge cut saw blades. Remove the application tool if one has already been fitted. Slide the depth stop(10) into the required working position over the tool holder(6) and onto the collar of the power tool as far as it will go. Allow the depth stop to engage. Twelve positions offset by 30° are possible for this. Set the depth you wish to work at. Push the clamping lever (9) of the depth stop shut to fix the depth stop in position. Selecting a sanding sheet Different sanding sheets are available, depending on the material you are working with and the required surface removal rate: Sanding sheet Material Application Grit – All wood and wood-based materials (e.g. hardwood, softwood, chipboard, con- struction boards) – Metal materials For pre-sanding, e.g. of rough and uneven beams and boards Coarse 40

For surface sanding and levelling of slight irregularities Medium 80

For finish-sanding and fine sanding of wood Fine 180

For sanding undercoats (e.g. removing brushstrokes, paint drips and paint runs) Medium 80

For final sanding of primers prior to painting Fine 180
