USER MANUAL IMS 4441 iP AEG

iPad, iPhone and iPod are trademarks of Apple Inc., registered in the USA and other countries.

C

AEG

Location of Controls.. 3

Instruction Manual.. 27

Technical Specifications.. 33

Disposal Page 33

Location of Controls

iPod/iPhone/iPad Ladefunction

PLAY MODE / i-REPEAT (9)

Bei einer Audio-CD:

VOLUME + / - (Volume) (8)

PLAY MODE / i-REPEAT (9)

Voor een Audio CD:

Installation/Introduction

VOLUME + / - (Volume) (8)

PLAY MODE / i-REPEAT (9)

Pour un Cd audio :

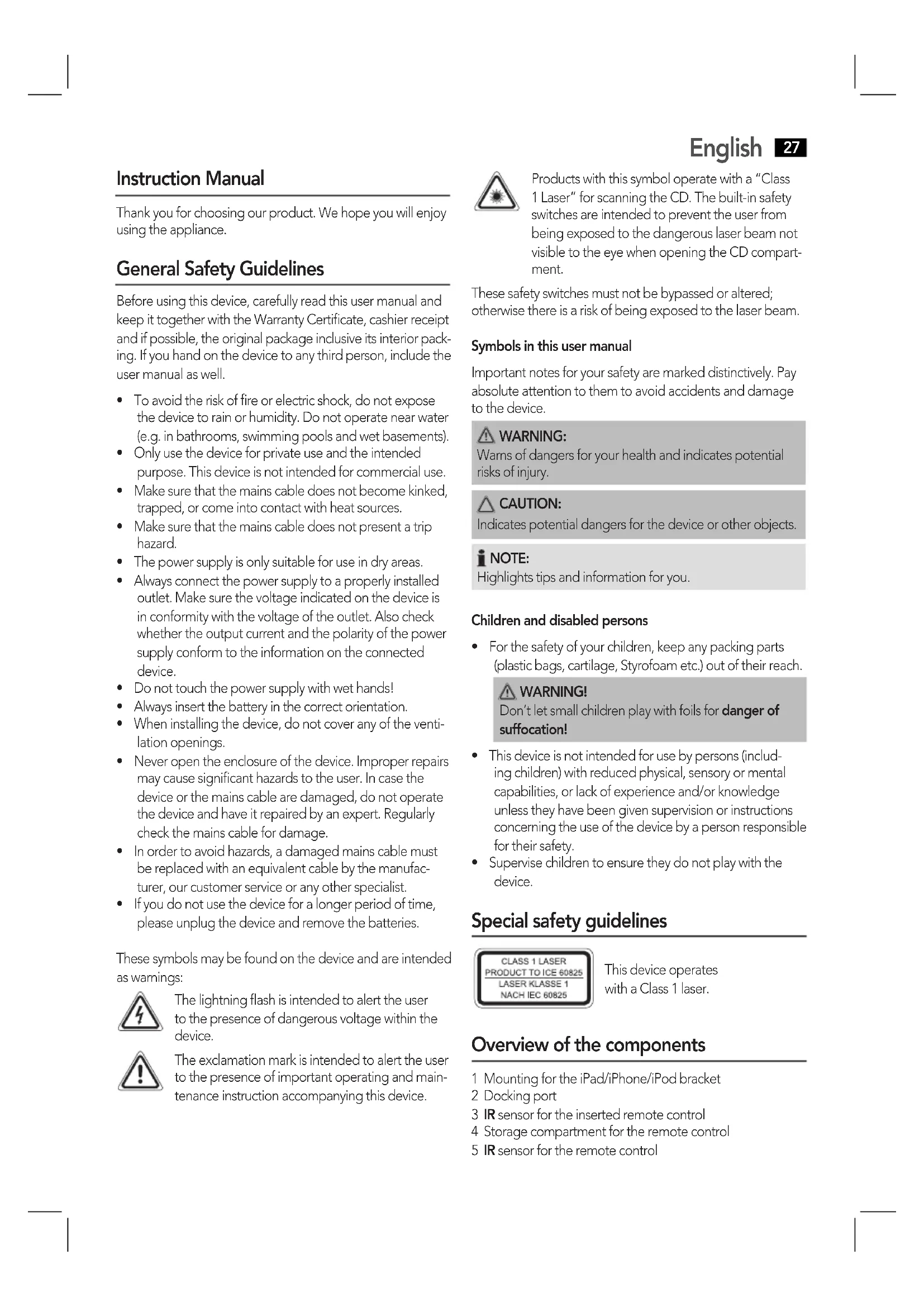

Thank you for choosing our product. We hope you will enjoy using the appliance.

General Safety Guidelines

Before using this device, carefully read this user manual and keep it together with the Warranty Certificate, cashier receipt and if possible, the original package inclusive its interior packing. If you hand on the device to any third person, include the user manual as well.

• To avoid the risk of fire or electric shock, do not expose the device to rain or humidity. Do not operate near water (e.g. in bathrooms, swimming pools and wet basements).
• Only use the device for private use and the intended purpose. This device is not intended for commercial use.
• Make sure that the mains cable does not become kinked, trapped, or come into contact with heat sources.
  Make sure that the mains cable does not present a trip hazard.
  The power supply is only suitable for use in dry areas.
• Always connect the power supply to a properly installed outlet. Make sure the voltage indicated on the device is in conformity with the voltage of the outlet. Also check whether the output current and the polarity of the power supply conform to the information on the connected device.
• Do not touch the power supply with wet hands!
  Always insert the battery in the correct orientation.
• When installing the device, do not cover any of the ventilation openings.
• Never open the enclosure of the device. Improper repairs may cause significant hazards to the user. In case the device or the mains cable are damaged, do not operate the device and have it repaired by an expert. Regularly check the mains cable for damage.
• In order to avoid hazards, a damaged mains cable must be replaced with an equivalent cable by the manufacturer, our customer service or any other specialist.
  If you do not use the device for a longer period of time, please unplug the device and remove the batteries.

These symbols may be found on the device and are intended as warnings:

The lightning flash is intended to alert the user to the presence of dangerous voltage within the device.

The exclamation mark is intended to alert the user to the presence of important operating and maintenance instruction accompanying this device.

English

Products with this symbol operate with a "Class 1 Laser" for scanning the CD. The built-in safety switches are intended to prevent the user from being exposed to the dangerous laser beam not visible to the eye when opening the CD compartment.

These safety switches must not be bypassed or altered; otherwise there is a risk of being exposed to the laser beam.

Symbols in this user manual

Important notes for your safety are marked distinctively. Pay absolute attention to them to avoid accidents and damage to the device.

WARNING:

Warns of dangers for your health and indicates potential risks of injury.

CAUTION:

Indicates potential dangers for the device or other objects.

NOTE:

Highlights tips and information for you.

Children and disabled persons

• For the safety of your children, keep any packing parts (plastic bags, cartilage, Styrofoam etc.) out of their reach.

WARNING!

Don't let small children play with foils for danger of suffocation!

• This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge unless they have been given supervision or instructions concerning the use of the device by a person responsible for their safety.
  Supervise children to ensure they do not play with the device.

Special safety guidelines

This device operates with a Class 1 laser.

Overview of the components

1 Mounting for the iPad/iPhone/iPod bracket
2 Docking port
3 IR sensor for the inserted remote control
4 Storage compartment for the remote control
5 IR sensor for the remote control

28 English

6 (open/close) CD compartment
7 Indicator
81 button (standby/power)
9 Speaker
10 CD compartment
11 LCD display
12 SNOOZE button
13 AUXIN connection
14 Headphone jack

Rear view (not shown)

DC 12V power supply socket

FM ANT. aerial antenna

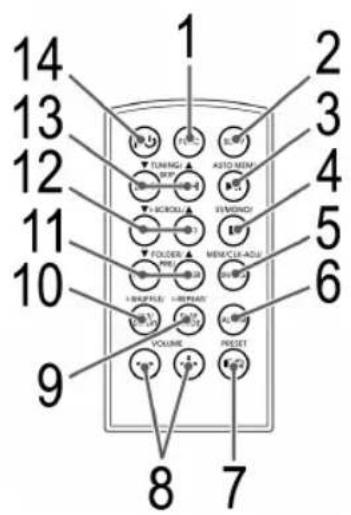

Remote control

1 FUNC Function selector
2 SLEEP button
3 AUTO MEM button (Play/Pause / automatic station search)
4 /T/MONO button (Stop / Stereo/Mono)
5 MEM/CLK-ADJ/SNOOZE button (Memory/time)
6 ALARM button
7 PRESET EQ button (Equalizer)
8 VOLUME + / - button s
9 PLAY MODE / i-REPEAT button (play mode)
10 ID3/DISPLAY/i-SHUFFLE button
11 POLDER/PRE /i-MENU/i-ENTER buttons
12 -10/+10 /i-SCROLL▼▲buttons
13 /RUNING/SKIP / button
14 I/Button (Standby/On)

Installation/Introduction

• Read the manual thoroughly before operating the device!
• Choose a suitable location for the device. Suitable locations are dry, even and anti-slip surfaces on which you may operate the device easily.
  Make sure there is proper ventilation for the device!
• Remove, if necessary, the protection sheet from the display.

i NOTE:

• The unit is mainly operated via the remote control. The description of the buttons therefore refers to the remote control. Some buttons can also be found on the unit. Buttons with the same name perform the same function.
• If the remote control is in the storage compartment (4 on the unit), you can continue to operate the unit via the remote control. The signals are forwarded to the unit via an IR sensor (3).

Power supply

Plug the power supply into a properly installed 230 V, 50 Hz earthed socket.
- Connect the unit to the power supply by plugging the power supply jack into the DC 12 V connector on the back of the unit.
- Make sure the voltage is in conformity with the rating plate.
The time and station settings will be lost as soon as the power supply is interrupted.

CAUTION:

The supplied power supply may only be used with this unit. Do not use it for other units.
Only use a 12V (p) power supply. A different power supply may damage the unit.

NOTE:

If the unit is out of use for long periods, disconnect the power supply from the mains.

Insert/Replace Battery in Remote Control

NOTE:

Where necessary, the lithium cell in the battery compartment of the remote has been fitted with a protective foil for transport. This extends the lifetime of the battery. Before initial use please remove this foil to prepare the remote for use.

The battery in the remote is a long-life lithium cell. Should the range of the remote shorten during use, follow the steps below:

• Open the battery compartment on the underside of the remote.
• Replace the cell with a battery of the same type (CR 2032). Make sure the polarity is correct.
• Close the battery compartment.

If the remote is not in use for a lengthy period of time, please remove the battery to prevent the battery acid from "leaking".

WARNING:

• Do not expose batteries to intense heat or direct sunlight. Never throw batteries onto a fire. Danger of explosion!
• Keep batteries out of the reach of children. They are not toys.
• Do not force batteries open.
• Avoid contact with metallic objects. (Rings, nails, screws etc.) Danger of short circuits!
• Short circuits may overheat or even ignite batteries. This may lead to combustion.
• When transporting the batteries, cover the terminals for your safety with an adhesive strip.

WARNING:

If a battery leaks, do not rub the fluid into the eyes or the skin. If acid comes into contact with the eyes, rinse with purified water and seek medical advice if symptoms persist.

CAUTION:

Batteries must not be disposed of in the garbage. Please bring used batteries to competent collection centers or back to the dealer.

Setting the clock (during standby mode)

1. Keep the MEM/CLK-ADJ/SNOOZE button (5) pressed. The display will show "24 HR".
2. Use the buttons (13) to select between 24-hour and 12-hour display setting. Confirm with MEM/CLK-ADJ / SNOOZE.

NOTE: The 12-hour setting will result in the following display AM = morning,PM = afternoon.

1. Use buttons to set the hours. Confirm with MEM/ CLK-ADJ/SNOOZE.
2. Use buttons to set the minutes.
3. Press MEM/CLK-ADJ / SNOOZE again in order to save the time settings.

iPod/iPhone/iPad Compatibility

Due to the large variety of iPod and iPhone/iPad models and generations on the market, full compatibility cannot be guaranteed. Before connecting your iPod/iPhone/iPad, ensure that it has a compatible interface.

Full compatibility of the remote functions also cannot be guaranteed. Operate your iPod/iPhone/iPad as normal, while it sits in the docking station.

NOTE:

Depending on the software version of your iPhone the following error message may be displayed: "This accessory was not developed for iPhone use. It is possible that noise occurs and signal strength is reduced." In this case press "OK".

General operation

1/4 (14 and 8 on the unit)

Press button to switch the device into standby mode (display will show the time). Press this button again to turn on the device.

VOLUME + / - (Volume) (8)

Adjust to your preferred volume level. The display will show "VOL" and a number. This will equal to the set volume of "VOL 40" or "VOL 00".

headphone jack (14)

When listening via headphones, please use headphones with a 3.5mm stereo jack plug which you will connect to the headphone jack. The speakers will be deactivated.

Infrared remote control

Wireless operation from a distance of up to 5 meters. If this range gets less, please change the batteries. Make sure there are no obstacles between the remote control and the sensor (5) on the device during operation.

AUX IN jack

Connect analogue playback devices. When connecting to this jack you may also listen to the audio of other devices, such as MP3 or CD players etc., via the speakers.

1. Please connect the external device via 3.5mm plug jack to the AUX IN jack (13).
2. Now use FUNC button (1) to select AUX mode.
3. Via the speakers you will listen to the audio of the external device; use VOLUME +/- buttons (8) to adjust the volume. The CD buttons are not active.
4. For further functions please refer to the user manual of the external audio device.

iNOTE:

Set the volume of the external device to a proper audible level.

Listening to the radio

1. Repeatedly press FUNC button (1) until the display shows "TUNER".
2. Use the buttons (13) to tune in the desired station.
3. The FM.ST control lamp display) will light up when the selected station is received with stereo quality. If reception is too poor and the station experiences static, the control lamp will flicker. Try to improve reception by rotating and unwinding/winding up the antenna. For FM stations you may use MONO/ST button (4 on the remote) to switch between MONO and STEREO reception. In case of poor reception we recommend switching to MONO mode.

Save station

1. When you have found the desired station, press the MEM/CLK-ADJ/SNOOZE.button (5).MEMORY and the preset number flash on the display.
2. For choosing the memory position, please press FOLDER/PRE / i-MENU/i-ENTER button (11).
3. Press MEM/CLK-ADJ/SNOOZE.to save the settings.

Select a preset radio station

To select a stored station, please press FOLDER/PRE / i-MENU or FOLDER/PRE / i-ENTER button.

30 English

Automatic Station Search

Press the AUTO MEM button (3) to start the automatic station search. The message "ASTORE" flashes on the display. The unit saves all received stations in ascending order of frequency. Caution! All previously saved radio stations are deleted.

NOTE:

The sequence cannot be changed after it has been saved.
- The preset stations will be lost as soon as the power supply is interrupted.

MusicPlayback from iPod/iPhone/iPad

(iPod/iPhone/iPad not supplied)

1. Press the FUNC button (1) repeatedly until "NO IPOD" appears in the display.

2. CAUTION:

Fit the bracket into the mountings (1) on the unit. Otherwise the port or your iPod/iPhone/iPad may become damaged.

1. If an adapter has been supplied with your iPod, put it onto the dock connector. You can only ensure that the iPod fits correctly into the iPod port if the adapter is plugged in.
2. Insert your iPod/iPhone/iPad into the dock.

CAUTION:

Make sure that your iPod/iPhone/iPad is plugged upright into the port. Do not bend or tilt the iPod/iPhone/iPad whilst it is plugged into the port. This may cause damage to the dock or the iPod/iPhone/iPad.

1. Depending on the iPod/iPhone/iPad Model, firstly release the button lock and start playing music if necessary with the AUTO MEM button (3).
2. Follow your iPod/iPhone/iPad manual for further use of the controls.

CAUTION:

Stop playback before unplugging the iPod/iPhone/iPad from the port since the iPod/iPhone may otherwise be damaged.

NOTE:

If you have an incoming call when playing back music with the iPhone docked, then playback stops and you can hear the ring tone.

iPod/iPhone/iPad Charging

Your iPod/Phone/iPad battery is charged as soon as the iPod/ iPhone/iPad is docked. To do this, the unit must be connected to the mains.

CAUTION:

• Fit the bracket into the mountings (1) on the unit. Otherwise the port or your iPod/iPhone/iPad may become damaged.
• Make sure that your iPod/iPhone/iPad is docked vertically onto the port. Do not bend or tilt the iPod/iPhone/iPad while you are plugging it onto the iPod/iPhone/iPad port. This may damage the port or the iPod/iPhone/iPad.

iNOTE:

• If the slot adapter has been supplied with your iPod, use it to ensure that your iPod fits correctly.
• Not all iPod/iPhone/iPad generations support the charge mode.
  The duration of the charging process depends on the iPod/iPhone/iPad which is used and its operating condition.

Playing CDs/MP3

This is how to play a CD

1. Repeatedly press FUNC button (1) until the display shows "CD".

CAUTION:

Only 12cm discs can be played with this unit!

1. Insert a CD into the CD slot (10) with the printed side facing up. The CD is automatically loaded. DISC IN appears briefly on the display and then READING.

3. AUDIO CD:

The display will show "CD", the number of tracks and total playback time. The playback starts from the first title on the CD. The display will show the current track and the lapsed playback time.

For a CD in MP3 Format:

The number of folders e.g. F04 appears on the display, as well as the total number of titles (e.g. T126). The playback starts from the first track and from the first folder The current track, the elapsed playing time, and "MP3" are shown on the display. Use the FOLDER/PRE / i-MENU or FOLDER/PRE / i-ENTER buttons (11 on the remote) to select the individual folders.

1. To remove a CD, press the button (6 on the unit). DISC OUT appears on the display and the CD is ejected.

iNOTE:

• When a disc is inserted the wrong way up, the message "NO DISC" (no disc) appears on the display. The CD is not automatically ejected.
• Playback of CDs created by the user cannot be guaranteed due to the variety of available software and CD media equipments.

Description of the control buttons

II/AUTO MEM (3)

You may temporarily stop playback and start again. The message "PAUSE" flashes on the display. Pressing the button again will continue playback from the same position.

In Radio mode:

To start the automatic station search. Caution! All previously saved radio stations are deleted.

TUNING/SKIP 23

If an Audio CD, MP3, a CD is running in MP3 Format or in IPOD mode:

With the Tuning/SKIP button you may skip to the next or next but one track, etc. Press and hold this button to quickly search music.

You may operate the TUNING/SKIP Tbutton as followed:

Press 1 x = Starts current track again from the beginning.

Press 2x = Skips back to previous track.

Press 3x = Plays track prior to that, etc. Press and hold this button to quickly search music.

During radio mode:

Tune the desired radio station.

/ST/MONO(4)

Pauses the CD or piece of music.

In Radio mode:

To switch between Stereo and Mono.

PRESET EQ (7)

(Preset equalizer function). There are different sound modes available (EQ=FLAT, EQ=CLASSIC, EQ=ROCK, EQ=POP, EQ=JAZZ).

NOTE: During iPod/iPhone/iPad Music Playback

For optimum sound, change the EQ setting on your iPod/ iPhone/iPad as required.

ID3/ DISPLAY / i-SHUFFLE (10)

In Radio and AUX mode:

Press this button to briefly show the time on the display.

For a CD in MP3 Format:

Stored ID-3 tag information will be shown as banner in the display. Press this button several times to display the following information: FILE, ALBUM, SONG, ARTIST, current time.

In IPOD mode:

Activates random playback of your iPod, iPhone, or iPad.

PLAY MODE / i-REPEAT (9)

For an audio CD:

Press 1x: (flashes on the display) The current track will be repeated entirely.

Press 2x: (lightsup on the display) The complete CD will be repeated entirely.

Press 3x: (RAN appears on the display). All titles are played consecutively in random order.

Press 4x: All functions will be canceled. Normal playback will be continued.

For a CD in MP3 Format:

Press 1x: (flashes on the display) The current track will be repeated continuously.

Press 2x: ( flashes on the display) The complete CD will be repeated continuously.

Press 3x: The selected folder of the MP3 CD will be repeated continuously (the display will show UFOLDER/ PRE buttons (11) to select the individual folders.

Press 4x: (RAN appears on the display). All titles are played consecutively in random order.

Press 5x: The function will be deactivated and the CD will be played in normal mode.

In IPOD mode:

Activates the repeat function of your iPod, iPhone, or iPad.

FOLDER/PRE /i-MENU / i-ENTER (11)

For a CD in MP3 Format:

Press these buttons during playback to switch one folder up or down. The display shortly shows a message, e.g. FLDR 002. Then the system automatically starts playback of the MP3 CD.

During radio mode:

Select a stored radio station.

In IPOD mode:

Press the i-MENU button to open the iPod/iPhone/iPad Menu or to return to the previous menu.

NOTE:

The Music App must be already started.

Press the i-ENTER button to activate a function or to display the next menu.

-10/+10/i-SCROLL 12)

Press the i-SCROLL▼/▲ buttons, to scroll up/down in the iPod/iPhone/iPad Menu.

When an audio CD is running or a CD in MP3 Format: Press this button to skip forwards or back 10 titles (if more than 10 titles are stored on the CD).

32 English

SLEEP (2)

When the device is switched on, you can set the time after which the device will turn into standby mode; set the time in 10 minutes intervals from 90 to 10 minutes. Repeatedly press this button until the display shows the desired time. When the function is activated, the display will show the symbol "zz" the device will turn off automatically after the preset time.

To deactivate the function, press the SLEEP button until OFF is shown on the display.

ALARM (6)

You can set the unit so that it switches on at a certain time.

1. Use button to switch into standby mode (time will be displayed).
2. Keep the ALARM button pressed until the hours and the symbol flash.

Using the TUNING/SKIP / buttons (13), you can now set the turn-on hours, turn-on minutes and turn-on mode in turn.
- Set the turn-on volume with the VOLUME +/- buttons.
- Confirm your input each time with the ALARM button. The current display to be set flashes on the display.

1. After you have selected the turn-on volume, press the ALARM button again. "will be displayed and the timer is activated.

After the set time has been reached, the device switches to the selected mode.

Use the I/and ALARM buttons to turn off the function until the next day. The symbol continues to be shown on the display.
To deactivate the timer, press the ALARM button again. will disappear from the display.

- Snooze function

Use the MEM/CLK-ADJ./SNOOZE button (5 and 12 on the unit) to turn off the automatic preset timer function for approx. 9 minutes. "SNOOZE" appears on the display.

MEM/CLK-ADJ./SNOOZE (5)

Set the clock, store stations and program playback.

Program Playback

Program playback in desired sequence. (Only in CD mode)

1. Drucken Sie die ST/MO Taste (4).

2. Press iPOD/MEM/CLK-ADJ. button (5). The display will show "P01 T001" ("memory position" "Title") and MEM Use the buttons TUNING/SKIP (13) to select the desired track and press iPOD/MEM/C-ADJ. button again. The display will change to memory position P02.

3. Use the TUNING/SKIP /▲ buttons to select the next track and press iPOD/MEM/CLK-ADJ. again. Repeat the steps until you have selected all tracks.

4. Press the AUTO MEM button (3). Playback starts. The display will show the first selected track number.
5. Press ST/MO button once to stop playback. The memory will be kept.
6. To play the program again, press the AUTO MEM button.
7. To delete memory, please press ST/MO button twice. The MEM display switches off.

The unit does not stop automatically after all programmed titles have been played. The program sequence will be kept in the memory until you switch to another mode, remove the CD from the compartment or switch off the device.

Playback of music files in MP3 format

This device allows the playback of music files in MP3 format. The device furthermore supports the common CD types: CD, CD-RW, and CD-R.

Your device can play MP3 CDs. These are compressed CDs that can store up to 200 tracks. Your device automatically recognizes MP3 discs (the display will show total number of tracks and folders). Please refer to chapter "Playing CD/MP3" for playback of such CDs. You may program tracks as already described under "Program playback".

Please note:

There are many burning and compressing methods, as well as differences in quality of CDs and burnt CDs.

Furthermore, the music industry does not apply fixed standards (copy protection).

For that reason there might, in rare cases, occur problems when playing CDs and MP3 discs. That is not a malfunction of this device.

Cleaning and maintenance

• Disconnect the mains plug before cleaning.
• You may wipe off external stains, using a slightly damp cloth without any additives.

Trouble shooting

Problem Cause Solution
The unit cannot be operated	The unit is blocked and “hangs”	Pull the mains plug for approximately 5 seconds. Then connect the unit again

Technical Specifications

Model: IMS 4441 iP

Output power: 100 W PMPO

Power consumption: 38 W

Net weight: 3.26 kg

Radio:

Frequency ranges: VHF/FM 87.5 ~ 108.0 MHz

Power supply

Protection class:

Input: AC 100-240 V~50/60 Hz

Output: DC 12V, 3.5A

Polarity:

Specifications are subject to change!

This device complies with all current CE directives, such as electromagnetic compatibility and low voltage directive and is manufactured according to the latest safety regulations.

"Made for iPod", "Made for iPhone" and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone or iPad and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulators standards. Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance.

Disposal

Meaning of the "Wheelie Bin" Symbol

Take care of our environment, do not dispose of electrical appliances via the household waste.

Dispose of obsolete or defective electrical appliances via municipal collection points.

Please help to avoid potential environmental and health impacts through improper waste disposal.

You contribute to recycling and other forms of utilization of old electric and electronic appliances.

Your municipality provides you with information about collecting points.

GARANTIE-KARTE
