Description Three types of push buttons with display are available:

• eco-display Installation Push buttons with display are integrated in a bridge. The bridge is mounted onto a standard flush-mounting box using screws. 1 Connect the push button to the two-wire bus cable using the double plug-in connector (marked BB) on the back of the control element . Connect each wire separately to one of the contacts. The push button with display is now connected. Use the other opening of the contact to establish a connection to the next control element if required. 2 Mount the bridge onto the single flush-mounting box using screws in order to secure the push button with display. Use a bridge with a set of claws if no screw holes are provided in the flush-mounting box. Three types of bridges are available:

• bridge 60 x 71 mm with claw connection

• bridge 71 x 71 mm with screw connection

• bridge 60 x 71 mm with screw connection 3 Complete the installation using a flush surround plate from our series Niko Pure, Niko Intense or Niko Original.

• Strip the wires of the bus cable 9 - 10 mm.

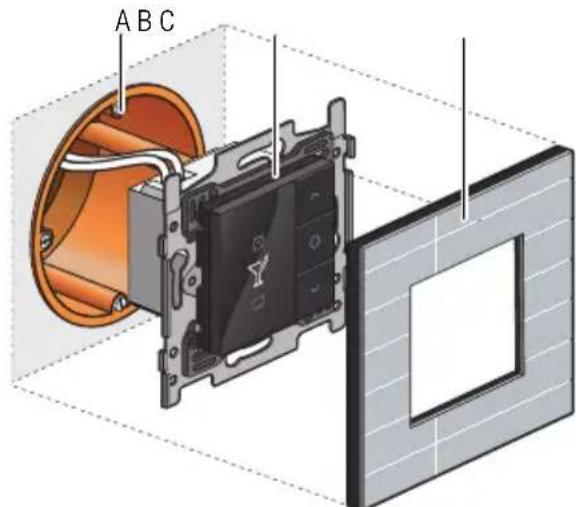

• A maximum of two wires with a diameter of 0.5 - 1 mm each can be connected per contact. Installation diagram for push button with display A. Single flush-mounting box (not a Niko product) B. Push button with display C. Flush surround plate A B C6. Push buttons with display

6.1. Mood setting display Description The mood setting display is used by the resident to select one of the pre-programmed mood settings. A mood setting is a combination of output settings with regard to lighting, roll-down shutters, sun blinds, etc. Overview Operation Mood settings are stored during the programming stage of the installation. The software includes 20 pictograms of which a maximum of eight pictograms can be selected. One or more actions are then linked to each one of those eight pictograms to help create the ideal mood for each occasion. To activate a mood setting: 1 Touch one of the buttons to light up the display. When not in use, the display is dimmed to reduce energy consumption. 2 Press the navigation buttons until the pictogram appears for the mood setting of your choice. 3 Press button "C". The pictogram will change to an amber colour and will remain that way for as long as the mood setting is activated. Installation See Installation on page 30. 550-13040 A. Display B. Navigation button (up) C. Activate D. Navigation button (down) E. Bridge Mood settings can also be activated by sensors integrated in the Niko Home Control installation. You can select this option while programming the installation.

• resting potential: 26 Vdc (SELV, safety extra-low voltage)

• flush-mounting depth: 20 mm6. Push buttons with display

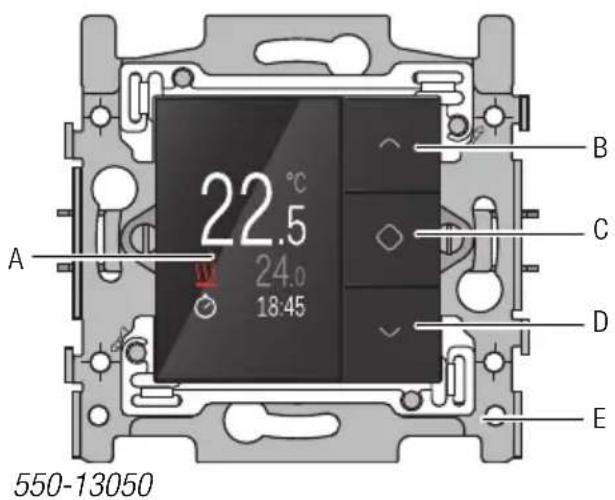

6.2. Thermostat Description Using the thermostat function, you can select heating or cooling options for several different zones or rooms. The thermostat operates in conjunction with a heating or cooling module. See Heating or cooling module on page 103 Overview Operation Each thermostat can be programmed independently. There are three weekly programmes to choose from: two for the heating function and one for the cooling function. In addition, there are five fixed temperature settings (DAY, NIGHT, ECO, COOL, and OFF). You can use the pre-programmed settings or enter your personal settings. Follow the steps below to select one of the pre-programmed weekly programmes or temperature settings: 1 Touch one of the buttons to light up the display. When not in use, the display is dimmed to reduce energy consumption. 2 Press and hold button "C" to view the menu. The following screen will appear: 3 Navigate to the weekly programme or temperature setting of your choice and press button "C". 550-13050 A. Display B. Higher setting, or navigation button (up) C. Confirm/Menu D. Lower setting, or navigation button (down) E. Bridge

The following temperature factory settings are pre-programmed into the system: The following weekly programmes are pre-programmed into the system: Residents can modify these settings according to their needs. DAY 21°C NIGHT 16°C ECO 18°C COOL 24°C OFF 7°C PROG1 Weekday 06:00 => 08:00 DAY 08:00 => 16:00 NIGHT 16:00 => 18:00 ECO 18:00 => 22:00 DAY 22:00 => 06:00 NIGHT Weekend: 08:00 => 22:00 DAY 22:00 => 08:00 NIGHT PROG2 Weekday: 08:00 => 22:00 DAY 22:00 => 08:00 NIGHT Weekend: 08:00 => 22:00 DAY 22:00 => 08:00 NIGHT PROG3 Weekday: 16:00 => 19:00 COOL 19:00 => 16:00 OFF Weekend: 10:00 => 19:00 COOL 19:00 => 10:00 OFF6. Push buttons with display

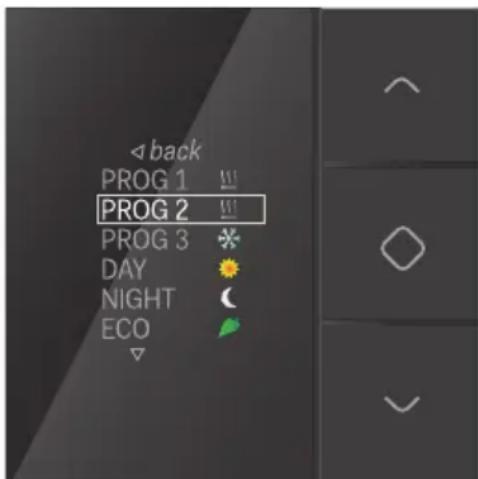

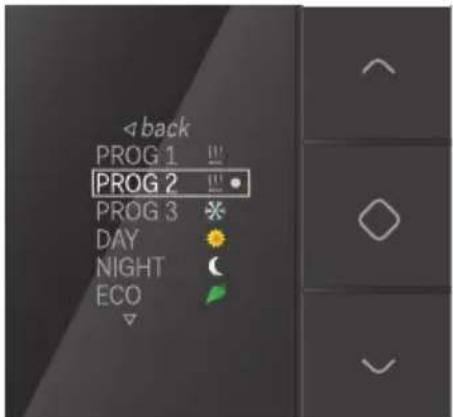

Modifying pre-programmed settings To modify one of the pre-programmed settings: 1 Touch one of the buttons to light up the display. When not in use, the display is dimmed to reduce energy consumption. 2 Press button "C" until the following screen appears: 3 Make sure PROGRAMS is selected and press button "C". The following screen will appear: You can now select and modify the weekly programme or temperature level of your choice.36

6. Push buttons with display

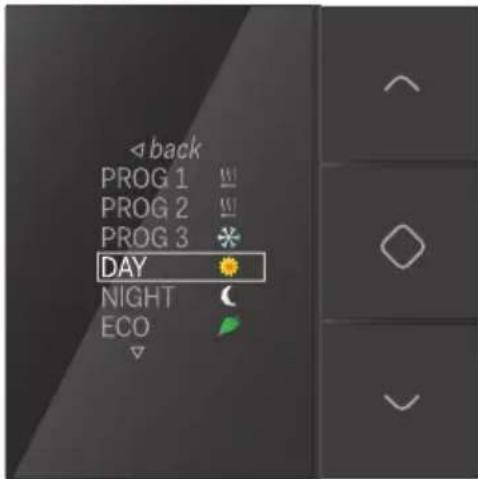

Modifying fixed temperature settings To modify one of the fixed temperature settings: 1 Navigate to the temperature setting you wish to modify. 2 Press button "C". The following screen will appear: 3 Enter the temperature setting of your choice using the navigation buttons. Press button "C". The new temperature setting is now saved and you will be redirected to the previous screen.6. Push buttons with display

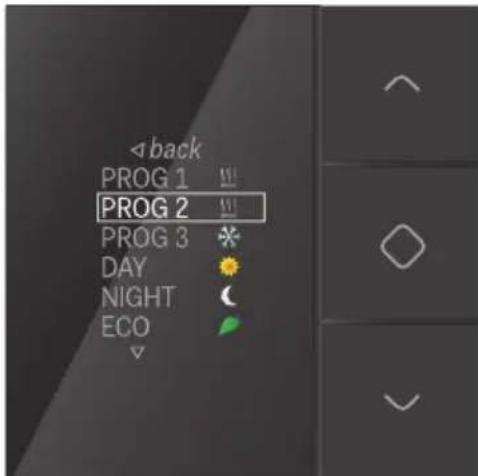

Modifying weekly programmes Weekly programmes include one or more daily programmes. These can be modified or added individually. To select a daily programme: 1 Navigate to the weekly programme you wish to modify. 2 Press button "C". The following screen will appear: On this screen, the top row represents the week while the bottom row represents the weekend. 3 Select either the week or the weekend if you wish to modify an existing daily programme. Select add if you wish to add a new daily programme.38

6. Push buttons with display

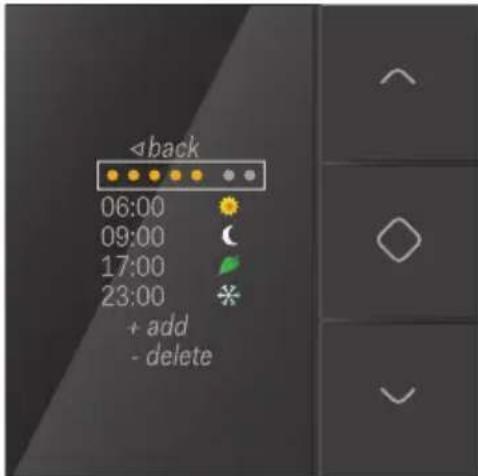

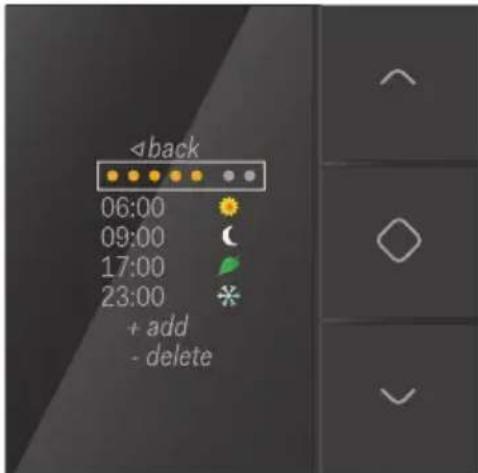

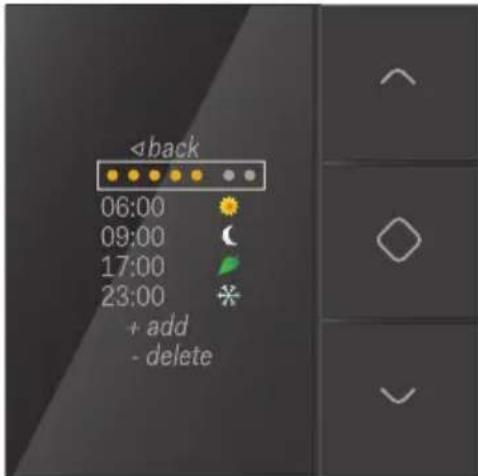

4 Press button "C". The daily programme will appear: You can now modify the daily programme, add new time and temperature settings, or delete existing settings.6. Push buttons with display

To modify a daily programme: 1 Select week or weekend and press button "C". The following screen will appear: 2 Use the navigation buttons to navigate the days of the week. Press button "C" to activate or deactivate the days of your choice. 3 Select back using the navigation buttons and press button "C". The following screen will appear: 4 Select the time and temperature setting you wish to modify and press button "C". The following screen will appear:40

6. Push buttons with display

5 Enter the new time setting using the navigation buttons . Press button "C" when you have completed the process. 6 Select the new temperature setting and press button "C". The following screen will appear: If you do not select a temperature setting, the system will automatically select OFF. The new temperature setting is now saved and you will be redirected to the previous screen. 7 Select back until you reach the following screen: 8 Repeat steps 4 to 7 for each time setting and temperature setting you wish to modify or add.6. Push buttons with display

Setting the date and time 1 Select DATE on the following screen: 2 Press button "C". You can now modify the year, month, day, hour and minutes. 3 Select the settings you wish to modify and press button "C". 4 Use the navigation buttons to enter a new setting and press button "C". 5 Select back using the navigation buttons and press button "C".

• Date and time settings that are modified via the thermostat will apply to the entire Niko Home Control installation.

• The date and time can also be modified via the programming or user software.42

6. Push buttons with display

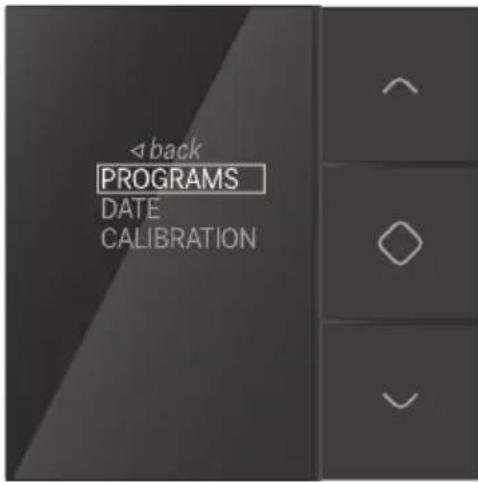

Calibrating the clock thermostat If the thermostat temperature differs from the actual temperature, the thermostat must be calibrated. 1 Measure the temperature in the centre of the room using a thermometer. 2 Select CALIBRATION on the following screen: 3 Press button "C". 4 Use the navigation buttons until the temperature on the display corresponds to the temperature measured in the centre of the room. Press button "C". 5 Select back using the navigation buttons and press button "C".

• Only calibrate the thermostat after the installation has been in use for at least two hours as this will ensure that the temperature displayed has stabilised.

• Do not calibrate the thermostat temperature under extreme temperature conditions. You can increase or decrease the temperature on the display by six degrees.6. Push buttons with display

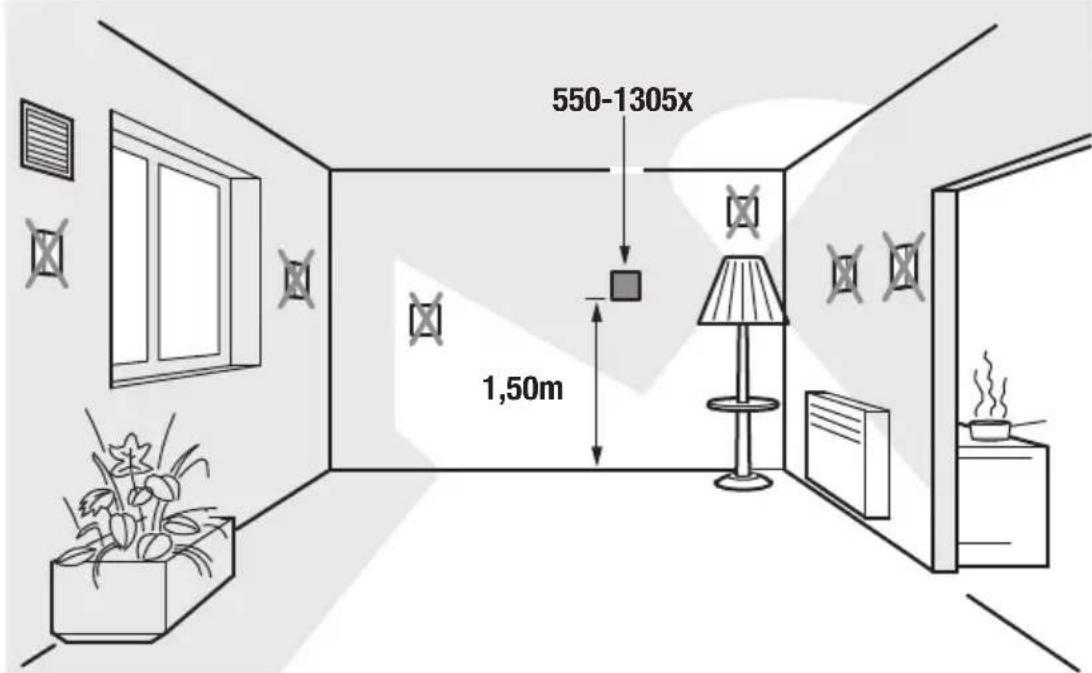

Installation A thermostat can be mounted in any room fitted with a floor-heating system, radiator, heating unit or cooling unit. It controls the heating or cooling for the room in which it is mounted. The thermostat only functions properly when the temperature within the room can be measured accurately. Try to eliminate as many factors as you can that may inhibit the thermostat’s ability to accurately control the room temperature. See Installation on page 30. DO NOT mount the thermostat:

• on an exterior wall.

• within the immediate vicinity of a heat generating source (heater, radiator, etc.) or electrical equipment that may radiate heat (TV, computer, etc.).

• behind a curtain. Do not allow air to circulate behind the thermostat. If needed, fill in any gaps in the flush-mounting box or bus cable duct using PU foam. 1,50m 550-1305x44

• resting potential: 26 Vdc (SELV, safety extra-low voltage)

• flush-mounting depth: 20 mm

• daily/weekly programmes

• 5 temperature settings: day, night, eco, off (frost-free) and cool

• temperature accuracy: 0.5°C

• in conformity with IEC60730-2-9, EN 50491-5-2, EN 50491-2 and EN 50090-2-3

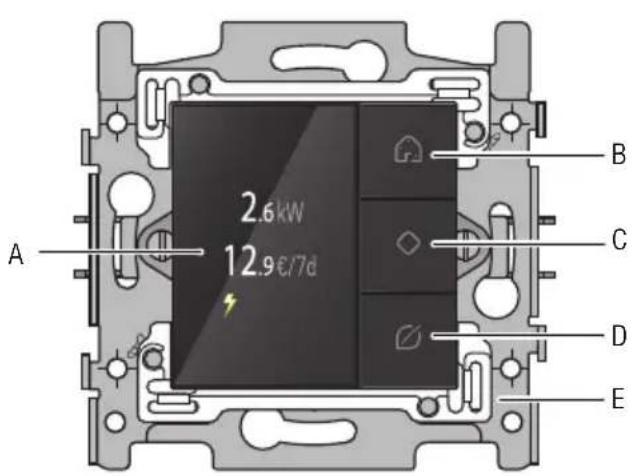

• protection rating: IP20 6.3. Eco-display Description The eco-display allows residents to monitor the energy and water consumption as well as the amount of energy generated (if applicable) in their home. It can also be used to activate the eco-function or presence simulation function. Overview 550-13080 A. Display B. Presence simulation button C. Confirm/Menu/Cycle through screens D. Eco-button E. Bridge

Operation Consumption details The eco-display shows information on the electricity, gas and water consumption as well as the electricity production in the home. See Electricity measuring modules on page 58. The type of information displayed will depend on the types of measuring modules installed. The electricity measuring module measures the electricity consumption or electricity production. The pulse counter communicates the electricity, gas and water consumption. The current electricity consumption is expressed in W or kW, while gas consumption is expressed in m³. The total energy consumption for that week expressed in EUR or GBP is displayed underneath. To view the rates: 1 Touch one of the buttons to light up the display. When not in use, the display is dimmed to reduce energy consumption. 2 Press and hold button "C" to view the menu. The following screen will appear: 3 Press button “C” to select RATES. The following screen will appear: 4 Select ELECTRICITY, GAS or WATER and press button "C". The selected rate will appear. You can modify the rate at this stage.46

6. Push buttons with display

5 Select back using the navigation buttons and press button "C". Eco-function The eco-function applies to all the lights and connected circuits that the resident wishes to switch off upon leaving the home. You can determine the outputs that are to be included in this function while programming the installation. Press the eco-button to activate the eco-function. The reduction in energy consumption will be registered immediately. Presence simulation The presence simulation function allows the resident to have the lights switch on automatically at certain times. This way, it looks as though someone is home. While programming the installation, you can personally determine which lights should be included in the presence simulation as well as when they should switch on and how long they should be left on for. Press the presence simulation button to activate the presence simulation function. Installation See Installation on page 30. Technical data

• back-lit colour display

• resting potential: 26 Vdc (SELV, safety extra-low voltage)

• flush-mounting depth: 20 mm

• weekly energy consumption in EUR or GBP

• in conformity with IEC60730-2-9, EN 50491-5-2, EN 50491-2 and EN 50090-2-3 Mount the eco-display:

• away from direct sunlight.

• near the door most commonly used by the resident to exit the home.30
