USER MANUAL T11 Eudora

511472R2 Publication date: December 2007© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT Installation/Operation Supplement 511472 (EN)

IMPORTANT: Purchaser must consult the local gas supplier for suggested instructions to be followed if the dryer user smells gas. The gas utility instructions plus the SAFETY and WARNING note directly above must be posted in a prominent location near the dryer for customer use.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

• WHAT TO DO IF YOU SMELL GAS: – Do not try to light any appliance. – Do not touch any electrical switch; do not use any phone in your building. – Clear the room, building or area of all occupants. – Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions. – If you cannot reach your gas supplier, call the fire department.

• Installation and service must be performed by a qualified installer, service agency or the gas supplier. W052 FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or death. W033 WARNING

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. W053© Published by permission of the copyright owner. Installation/Operation Supplement © Published by permission of the copyright owner – DO NOT COPY or TRANSMIT

1. Read all instructions before using the dryer.

2. Refer to the EARTHING INSTRUCTIONS in

the INSTALLATION manual for the proper earthing of the dryer.

3. Do not dry articles that have been previously

cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, other flammable or explosive substances as they give off vapors that could ignite or explode.

4. Do not allow children to play on or in the dryer.

Close supervision of children is necessary when the dryer is used near children. This is a safety rule for all appliances.

5. Before the dryer is removed from service or

discarded, remove the door to the drying compartment.

6. Do not reach into the dryer if the cylinder is

7. Do not install or store the dryer where it will be

exposed to water and/or weather.

8. Do not tamper with the controls.

9. Do not repair or replace any part of the dryer, or

attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out. Indicates an imminently hazardous situation that, if not avoided, will cause severe personal injury or death. DANGER Indicates a hazardous situation that, if not avoided, could cause severe personal injury or death. WARNING Indicates a hazardous situation that, if not avoided, may cause minor or moderate personal injury or property damage. CAUTION To reduce the risk of fire, electric shock, or injury to persons when using your dryer, follow these basic precautions: W034 WARNING© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT Installation/Operation Supplement 511472 (EN)

10. Do not use fabric softeners or products to

eliminate static unless recommended by the manufacturer of the fabric softener or product.

11. To reduce the risk of fire, DO NOT DRY plastics

or articles containing foam rubber or similarly textured rubberlike materials.

12. ALWAYS clean the lint filter after every load. A

layer of lint in the filter reduces drying efficiency and prolongs drying time.

13. Keep area around the exhaust opening and

adjacent surrounding area free from the accumulation of lint, dust and dirt.

14. The interior of the dryer and the exhaust duct

should be cleaned periodically by qualified service personnel.

15. If not installed, operated and maintained in

accordance with the manufacturer’s instructions or if there is damage to or mishandling of this product’s components, use of this product could expose you to substances in the fuel or from fuel combustion which can cause death or serious illness and which are known to the State of California to cause cancer, birth defects or other reproductive harm.

16. Dryer will not operate with the loading door

open. DO NOT bypass the door safety switch by permitting the dryer to operate with the door open. The dryer will stop tumbling when the door is opened. Do not use the dryer if it does not stop tumbling when the door is opened or starts tumbling without pressing the START mechanism. Remove the dryer from use and call the service person.

17. Do not put articles soiled with vegetable or

cooking oil in the dryer, as these oils may not be removed during washing. Due to the remaining oil, the fabric may catch on fire by itself.

18. To reduce the risk of fire, DO NOT put clothes

which have traces of any flammable substances such as machine oil, flammable chemicals, thinner, etc., or anything containing wax or chemicals such as in mops and cleaning cloths, or anything dry-cleaned at home with a dry- cleaning solvent in the dryer.

19. Use the dryer only for its intended purpose,

20. Always disconnect the electrical power to the

dryer before attempting service. Disconnect the power cord by grasping the plug, not the cord.

21. If supply cord is damaged, it must be replaced by

a special cord or assembly available from the manufacturer or its service agent.

22. Install this dryer according to the

INSTALLATION INSTRUCTIONS. All connections for electrical power, grounding and gas supply must comply with local codes and be made by licensed personnel when required. Do not do it yourself unless you know how!

23. Remove laundry immediately after the dryer

24. Always read and follow manufacturer’s

instructions on packages of laundry and cleaning aids. Heed all warnings or precautions. To reduce the risk of poisoning or chemical burns, keep them out of reach of children at all times (preferably in a locked cabinet).

25. Do not tumble fiberglass curtains and draperies

unless the label says it can be done. If they are dried, wipe out the cylinder with a damp cloth to remove particles of fiberglass.

26. ALWAYS follow the fabric care instructions

supplied by the garment manufacturer.

27. Never operate the dryer with any guards and/or

28. DO NOT operate the dryer with missing or

29. DO NOT bypass any safety devices.

30. Failure to install, maintain, and/or operate this

machine according to the manufacturer’s instructions may result in conditions which can produce bodily injury and/or property damage. IMPORTANT: Solvent vapors from dry-cleaning machines create acids when drawn through the heater of the drying unit. These acids are corrosive to the dryer as well as to the laundry load being dried. Be sure make-up air is free of solvent vapors. IMPORTANT: Have your dryer installed properly. Don’t do it yourself unless you know how! NOTE: The WARNINGS and IMPORTANT SAFETY INSTRUCTIONS appearing in this manual are not meant to cover all possible conditions and situations that may occur. Common sense, caution and care must be exercised when installing, maintaining, or operating the dryer. Always contact your dealer, distributor, service agent or the manufacturer about any problems or conditions you do not understand.© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT

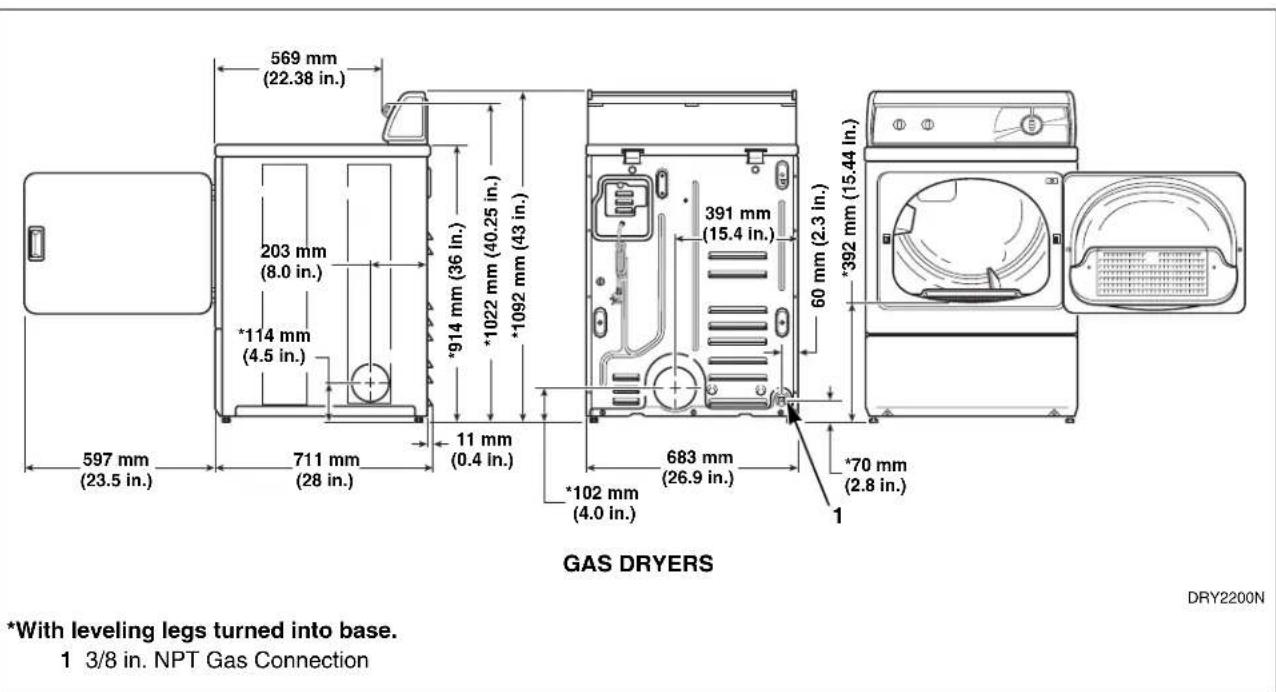

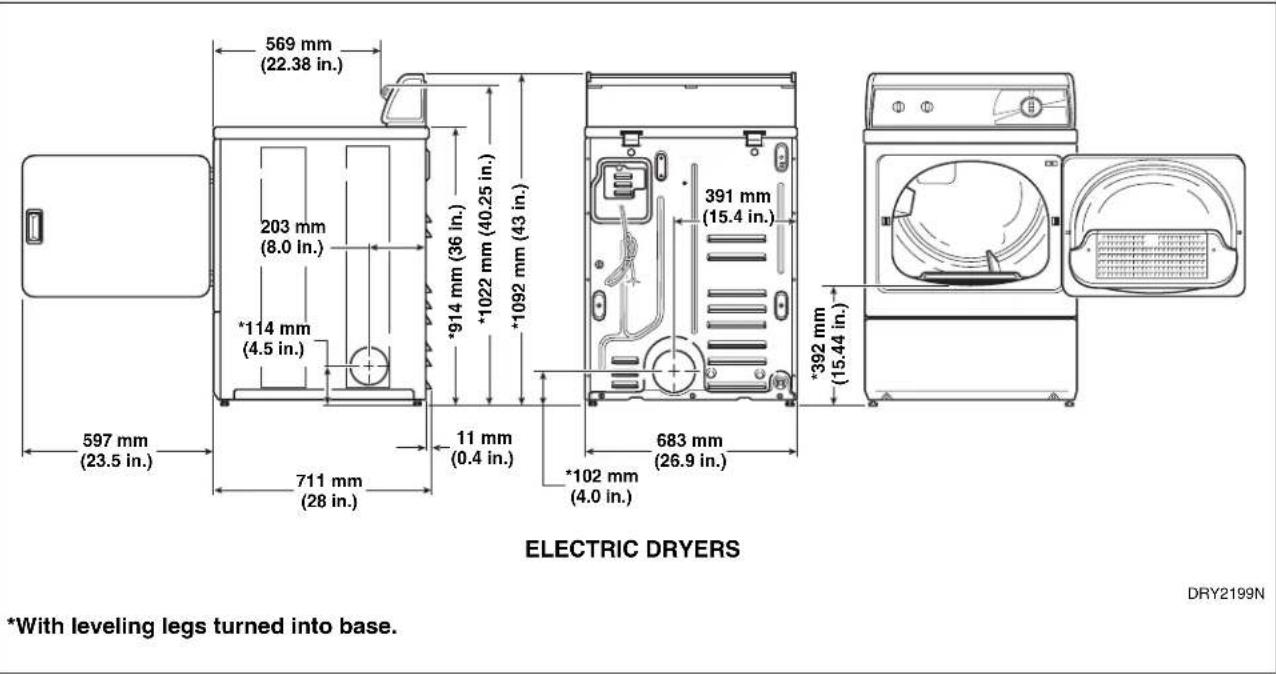

511472 (EN) Installation/Operation Supplement Installation Dimensions and Specifications DRY2199N *With leveling legs turned into base. DRY2200N *With leveling legs turned into base. 1 3/8 in. NPT Gas Connection DRY2199N ELECTRIC DRYERS 597 mm (23.5 in.)*1022 mm (40.25 in.)711 mm (28 in.)*1092 mm (43 in.)683 mm (26.9 in.)11 mm (0.4 in.)*114 mm (4.5 in.)*102 mm (4.0 in.)391 mm (15.4 in.)*392 mm (15.44 in.)203 mm (8.0 in.)*914 mm (36 in.)569 mm (22.38 in.)DRY2200N

GAS DRYERS 597 mm (23.5 in.)*1022 mm (40.25 in.)711 mm (28 in.)*1092 mm (43 in.)683 mm (26.9 in.)11 mm (0.4 in.)*114 mm (4.5 in.)*102 mm (4.0 in.)391 mm (15.4 in.)*392 mm (15.44 in.)*70 mm (2.8 in.)569 mm (22.38 in.)60 mm (2.3 in.)203 mm (8.0 in.)*914 mm (36 in.)© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT Installation/Operation Supplement 511472 (EN)

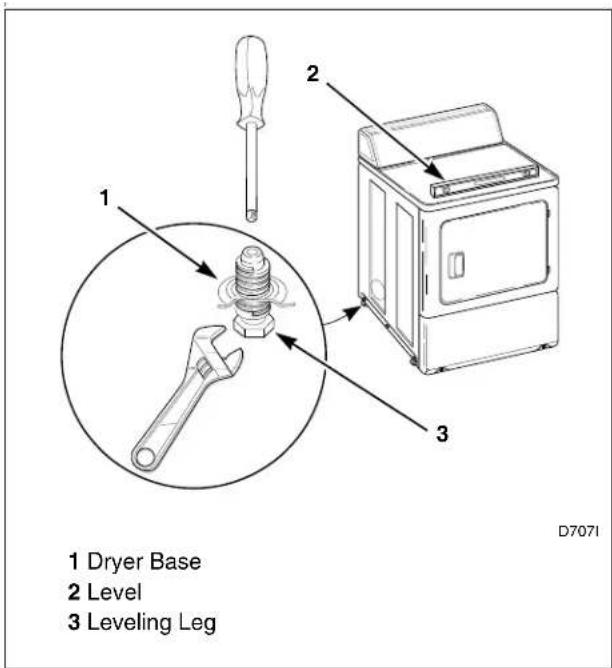

Installing the Dryer NOTE: This manual is only a supplement. Refer to installation/operation manual for full instructions. Step 1: Position and Level the Dryer

Figure 1 Step 2: Connect Dryer Exhaust System

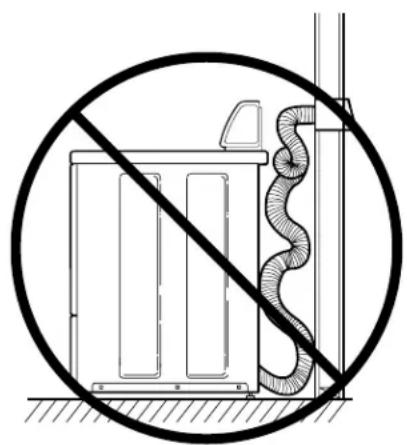

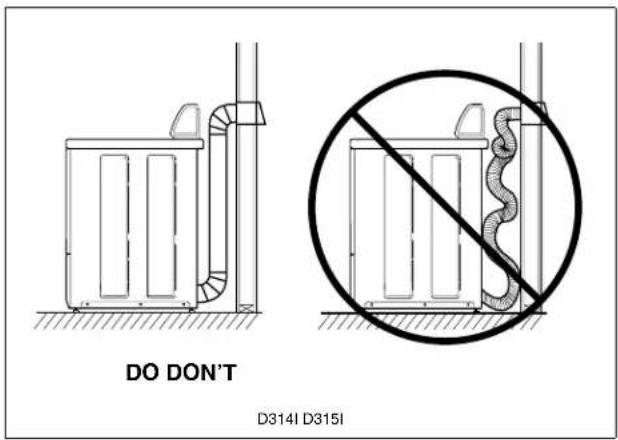

D314I D315I A clothes dryer produces combustible lint. To reduce the risk of fire and combustion gas accumulation the dryer MUST be exhausted to the outdoors. W116 WARNING DO DON’T© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT Installation/Operation Supplement

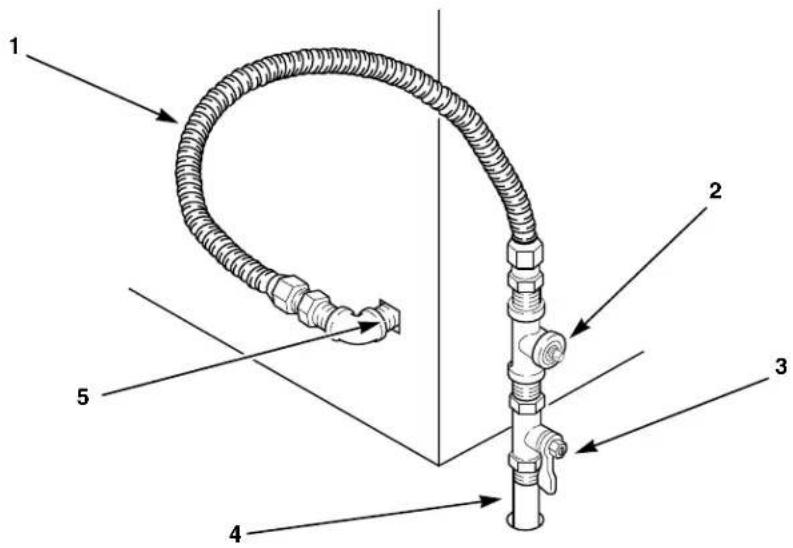

511472 (EN) Step 3: Connect Gas Supply Pipe (Gas Dryer Only) For further assistance, refer to section on Gas Requirements.

1. Make certain your dryer is equipped for use with

the type of gas in your laundry room.

2. Remove the shipping cap from the gas

connection at the rear of the dryer.

3. Connect to gas supply pipe.

4. Tighten all connections securely.

5. For L.P. (Liquefied Petroleum) gas connection,

refer to section on Gas Requirements. Figure 3 D233I 1 New Stainless Steel Flexible Connector – Use only if allowed by local codes (Use Design CSA Certified Connector) 4 Black Iron Pipe Shorter than 6.1 m (20 ft.) – Use 9.5 mm (3/8 in.) pipe 2 1/8 in. NPT Pipe Plug (For checking inlet gas pressure) Longer than 6.1 m (20 ft.) – Use 12.7 mm (1/2 in.) pipe 3 Equipment Shut-Off Valve – Installed within

1.8 m (6 ft.) of dryer

5 3/8 in. NPT Gas Connection D233I

5© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT Installation/Operation Supplement 511472 (EN)

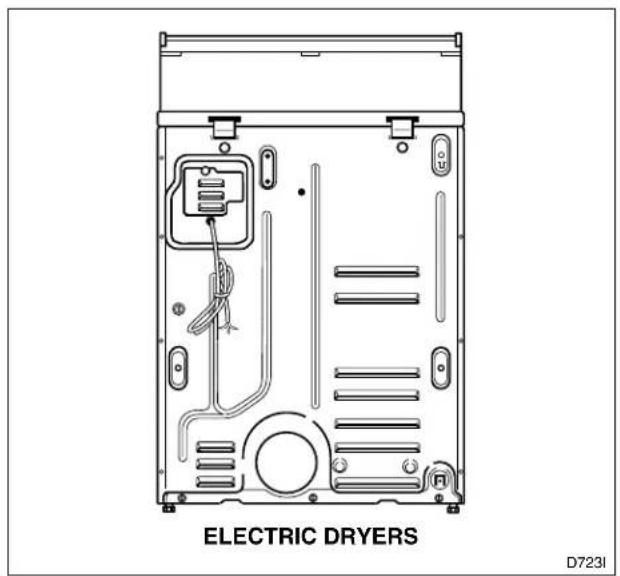

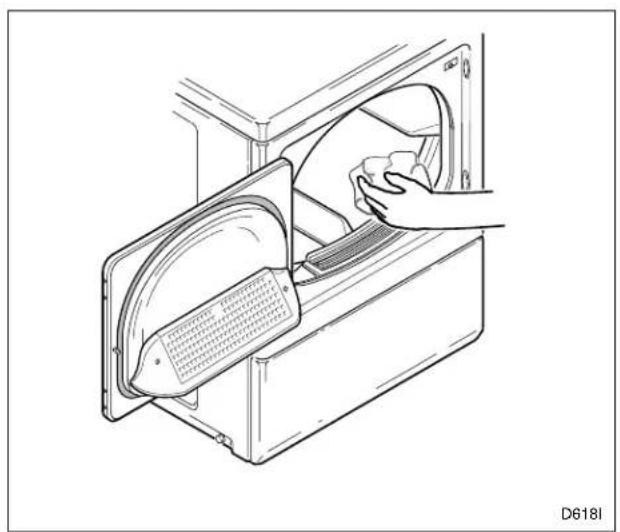

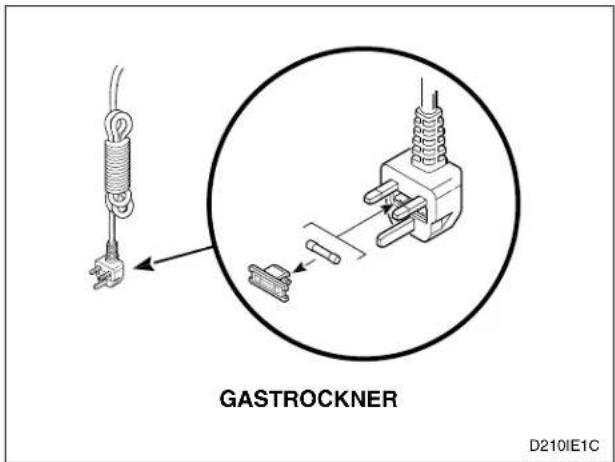

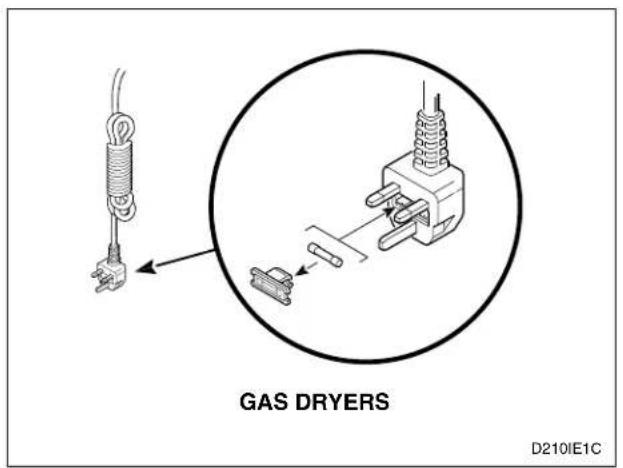

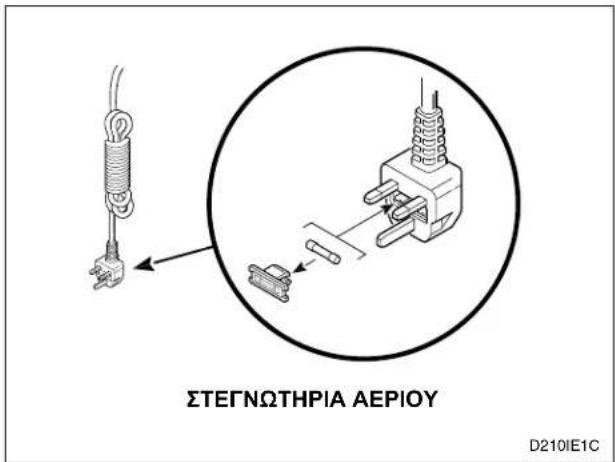

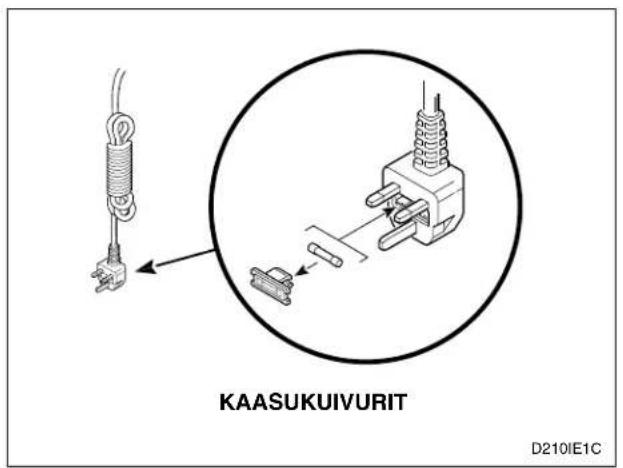

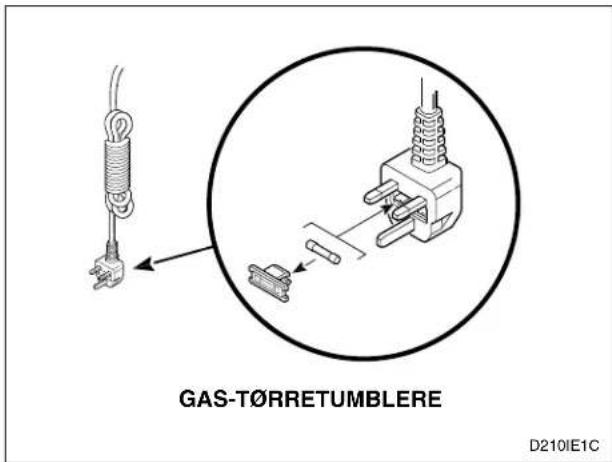

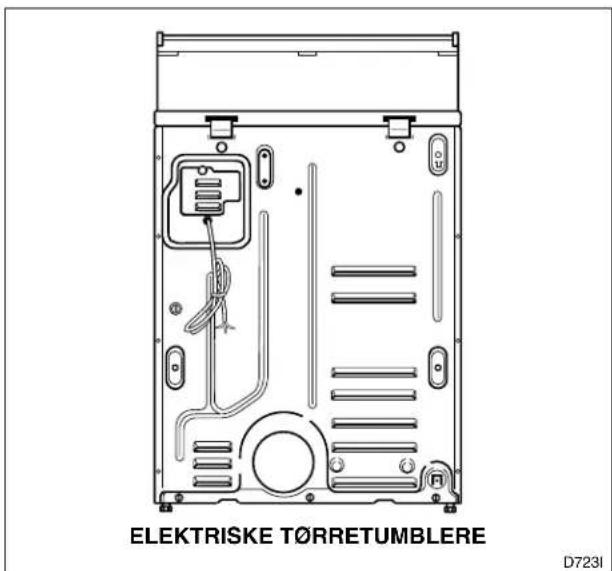

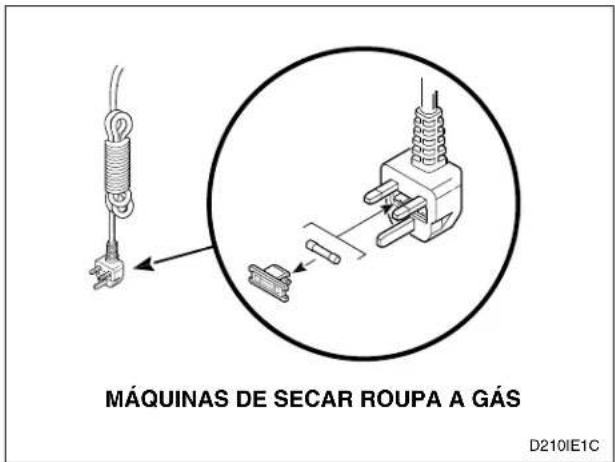

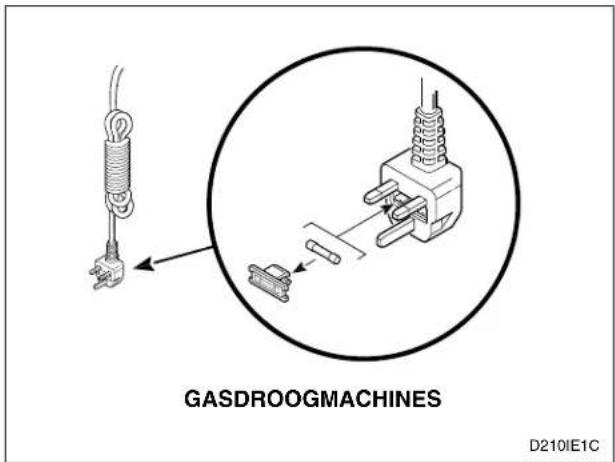

Step 4: Wipe Out Inside of Dryer Figure 4 Step 5: Connect the Dryer to Electrical Power Figure 5 Figure 6 Step 6: Check Installation D618ID723ID618I ELECTRIC DRYERS D210IE1CD210IE1C GAS DRYERS GAS DRYERS© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT Installation/Operation Supplement

511472 (EN) Heat Source Check NOTE: This manual is only a supplement. Refer to installation/operation manual for full instructions. Electric Dryers Close the loading door and start the dryer in a heat setting (refer to Operation section). After the dryer has operated for three minutes, the exhaust air or exhaust pipe should be warm. Gas Dryers IMPORTANT: This operation is to be conducted by qualified personnel only. Electrical Requirements NOTE: This manual is only a supplement. Refer to installation/operation manual for full instructions. Electric Dryers Refer to serial plate for requirements. SINGLE-PHASE MODELS (230 Volt, 50 Hertz, 2 Wire Plus Earth, 30 Amp Installation) THREE-PHASE MODELS (400/240 Volt, 50 Hertz, 4 Wire Plus Earth, 10 Amp Installation) NOTE: Refer to Kit 756P3 for Delta to Wye conversion instructions. To reduce the risk of serious injury or death, the lower front panel must be in place during normal operation. W158 WARNING To reduce the risk of fire, electric shock, severe personal injury or death, all wiring and earthing MUST abide with local electrical codes. It is the customer’s responsibility to have the wiring and fuses checked by a qualified electrician to make sure the laundry room has adequate electrical power to operate the dryer. W458 WARNING© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT Installation/Operation Supplement 511472 (EN)

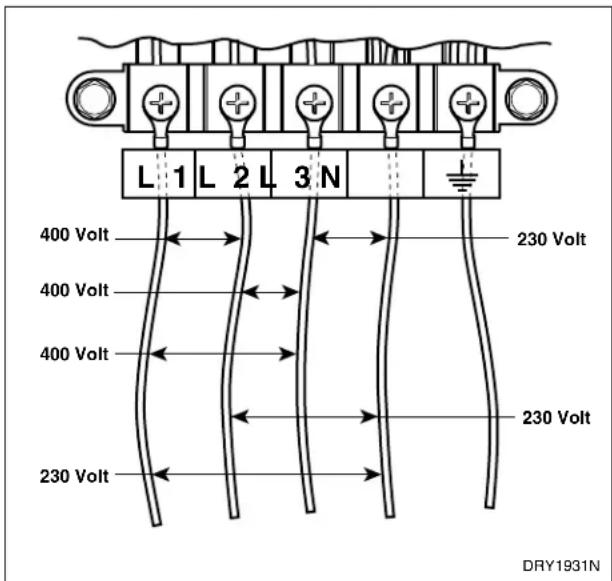

To attach customer-supplied three-phase power cord (400 Volt WYE):

1. Remove electrical access panel on rear of

2. Attach power cord wires as shown in Figure 7.

3. Attach strain relief, supplied with machine, to

power cord in accordance with all local codes and ordinances.

4. Reinstall access panel.

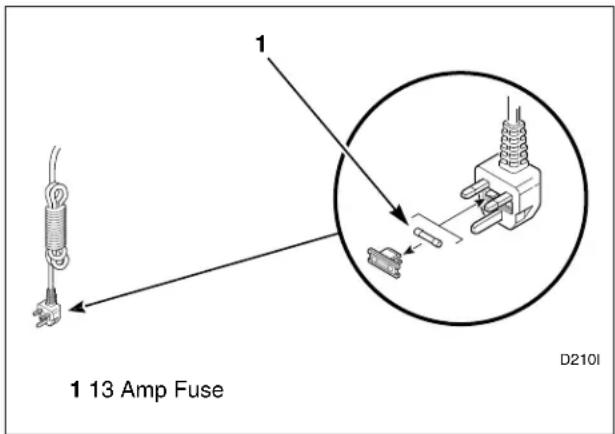

Figure 7 Grounding and Wiring Instructions The dryer must be connected to an earthed metal, permanent wiring system; or an equipment-earthing conductor must be run with the circuit conductors and connected to the equipment-earthing terminal or lead on the dryer. NOTE: Electrical receptacle must be located so that it is easily accessible with machine in place. If machine is hard wired, an intermediate shut-off box with a 3 mm gap is required [335-1 (22.2)]. Gas Dryers NOTE: This manual is only a supplement. Refer to installation/operation manual for full instructions. (230 Volt, 50 Hertz, 2 Wire Plus Earth, 10 Amp Installation) The dryer is designed to be operated on a two-wire plus earth, 230 Volt, 50 Hertz, single-phase supply circuit fused at amperage found on serial plate. Figure 8 NOTE: Electrical receptacle must be located so that it is easily accessible with machine in place. DRY1931N L 1 L 2 L 3 N 400 Volt400 Volt400 Volt230 Volt230 Volt230 VoltD210I1 13 Amp Fuse To reduce the risk of fire, electric shock, severe personal injury or death, the electrical service to a gas dryer must abide with local electrical codes. The gas service to a gas dryer must conform with the local codes and ordinances, or in the absence of local codes and ordinances, with the latest edition of the National Fuel Gas Code ANSI Z223.1. W238 WARNING 1© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT Installation/Operation Supplement

511472 (EN) Gas Requirements NOTE: This manual is only a supplement. Refer to installation/operation manual for full instructions. Gas Dryers (6.2 kW) Gas Rate = 0.55 m

/hr NOTE: This appliance must be installed in accordance with regulations in force. NOTE: This machine is supplied from the factory for operation on Natural Gas [2nd Family, Group H (E)] at nominal inlet pressure of 20 mbar for use in the countries of GB/IE/PT/ES/IT. For installation in other EU Countries, and/or for conversion to L.P. (Liquefied Petroleum) gas, consult the distributor. DO NOT connect the dryer to L.P. gas without consulting the distributor and/or without performing the proper conversion according to the conversion instructions (Conversion Kit 599P3). The unit must be isolated from the gas supply piping system by closing the equipment shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 50 mbar. Natural Gas Altitude Adjustments Altitude Orifice Size Part No. mft.#mmin.

3050 10,000 47 1.99 0.0785 503781 Table 1 To reduce the risk of gas leaks, fire or explosion:

• The dryer must be connected to the type of gas as shown on nameplate located in the door recess.

• Use a new flexible stainless steel connector.

• Use pipe joint compound insoluble in L.P. (Liquefied Petroleum) Gas, or Teflon tape, on all pipe threads.

• Purge air and sediment from gas supply line before connecting it to the dryer. Before tightening the connection, purge remaining air from gas line to dryer until odor of gas is detected. This step is required to prevent gas valve contamination.

• Do not use an open flame to check for gas leaks. Use a non-corrosive leak detection fluid.

• Any disassembly requiring the use of tools must be performed by a suitably qualified service person. W316 WARNING© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT Installation/Operation Supplement 511472 (EN)

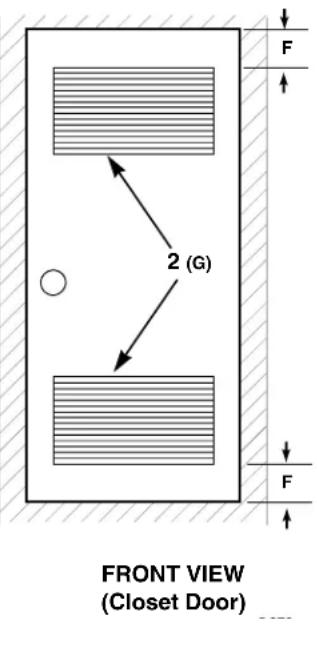

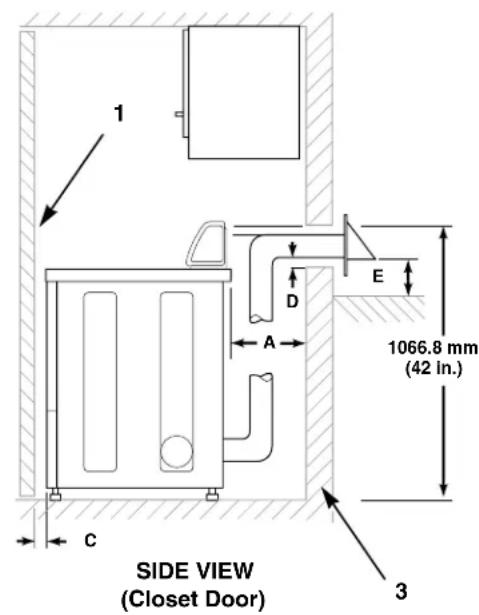

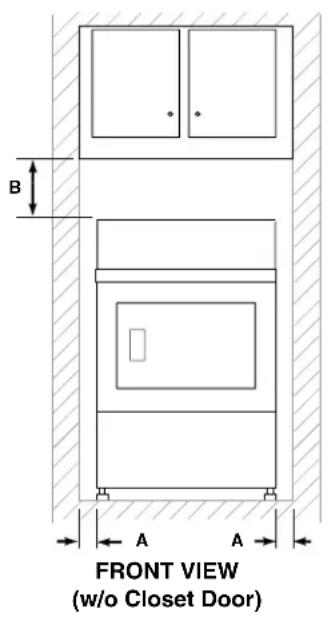

Location Requirements NOTE: This manual is only a supplement. Refer to installation/operation manual for full instructions. Figure 9 D823I 1 Closet Door 3 Outer Wall of Enclosure 2 Centered Air Openings (2 openings minimum) FRONT VIEW (w/o Closet Door) SIDE VIEW (Closet Door) FRONT VIEW (Closet Door)

)© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT Installation/Operation Supplement

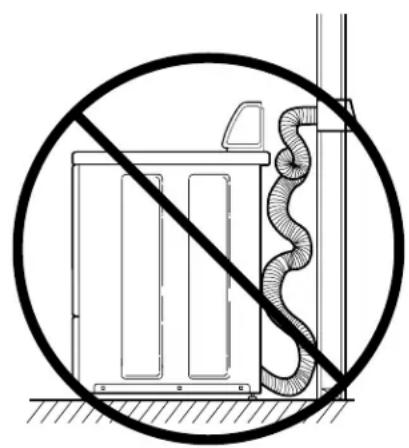

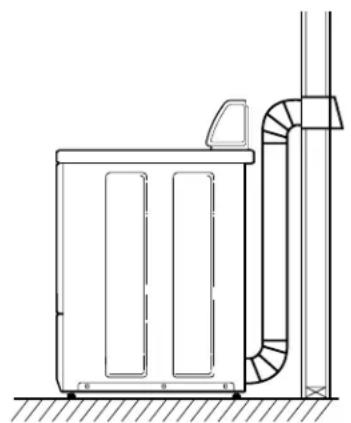

511472 (EN) Dryer Exhaust Requirements NOTE: This manual is only a supplement. Refer to installation/operation manual for full instructions. IMPORTANT: Failure to exhaust dryer properly will void warranty. Exhaust System Materials NOTE: Venting materials are not supplied with the dryer (obtain locally). Rigid metal duct is recommended. Non-combustible flexible metal duct is acceptable. Make-Up Air Requirements A dryer exhausts 85 liters/second (180 cfm) (measured at back of dryer) and sufficient make-up air must be supplied to replace air exhausted by each dryer. Figure 10 A clothes dryer produces combustible lint. To reduce the risk of fire and combustion gas accumulation the dryer MUST be exhausted to the outdoors. W116 This gas appliance contains or produces a chemical or chemicals which can cause death or serious illness and which are known to the State of California to cause cancer, birth defects, or other reproductive harm. To reduce the risk from substances in the fuel or from fuel combustion, make sure this appliance is installed, operated, and maintained according to the instructions in this manual. W115 To reduce the risk of fire and the accumulation of combustion gases, DO NOT exhaust dryer air into a window well, gas vent, chimney or enclosed, unventilated area, such as an attic, wall, ceiling, crawl space under a building or concealed space of a building. W045 To reduce the risk of fire, DO NOT use plastic or thin foil ducting to exhaust the dryer. W354 WARNING D314I D315IDO DON’T© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT Installation/Operation Supplement 511472 (EN)

Exhaust Direction The dryer can be exhausted to the outdoors through the back, left, right or bottom of the dryer. EXCEPTION: Gas dryers cannot be vented out the left side because of the burner housing. Number of 90° Elbows Weather Hood Type Recommended Use Only for Short Run Installations Maximum length of 102 mm (4 in.) diameter rigid metal duct 0 19.8 m (65 ft.) 16.8 m (55 ft.) 1 16.8 m (55 ft.) 14.3 m (47 ft.) 2 14.3 m (47 ft.) 12.5 m (41 ft.) 3 11.0 m (36 ft.) 9.1 m (30 ft.) 4 8.5 m (28 ft.) 6.7 m (22 ft.) Maximum length of 102 mm (4 in.) diameter flexible metal duct 0 13.7 m (45 ft.) 10.7 m (35 ft.) 1 10.7 m (35 ft.) 8.2 m (27 ft.) 2 9.1 m (30 ft.) 6.4 m (21 ft.) 3 7.6 m (25 ft.) 5.2 m (17 ft.) 4 6.1 m (20 ft.) 4.5 m (15 ft.) NOTE: Deduct 1.8 m (6 ft.) for each additional elbow. Table 2 102 mm (4 in.) 102 mm (4 in.) D673I 64 mm (2-1/2 in.) D802I© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT Installation/Operation Supplement

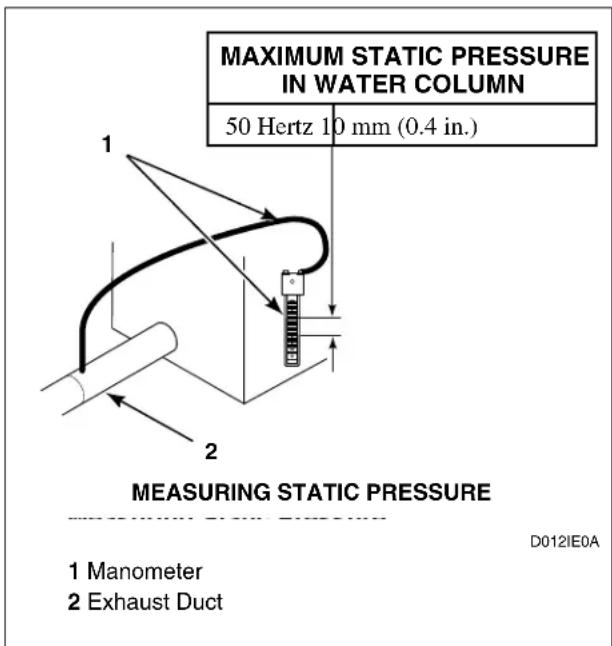

50 Hertz 10 mm (0.4 in.)

MEASURING STATIC PRESSURE© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT 511472 (EN)

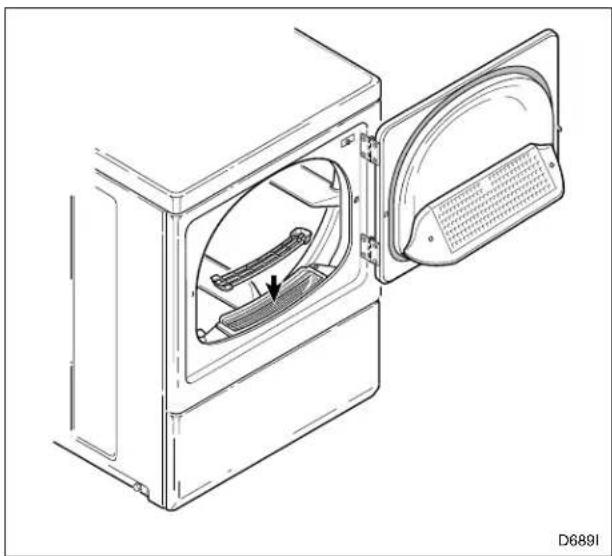

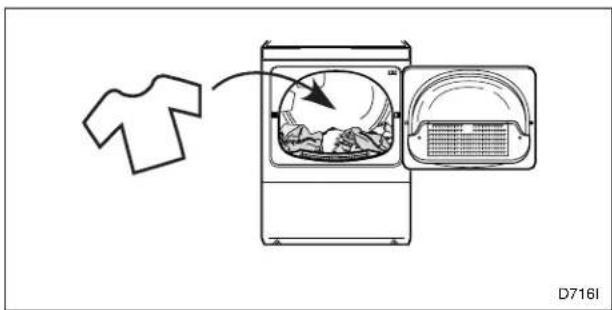

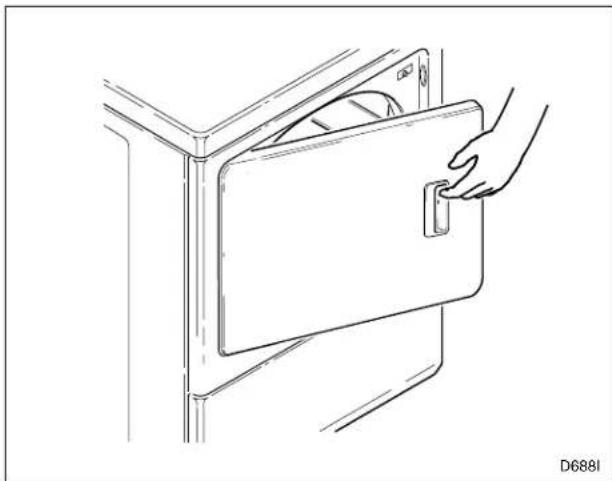

Installation/Operation Supplement Operation Operation Instructions NOTE: This manual is only a supplement. Refer to installation/operation manual for full instructions. Step 1: Clean Lint Filter Figure 12 Step 2: Load Laundry Load dryer half full with laundry (7.8 kg maximum dry clothes load). Figure 13 Step 3: Close Loading Door Figure 14 Step 4: Select Temperature Setting D689ID716ID689ID716iD688IDRY472N No Heat DRY473N Medium Temperature/Delicates DRY474N High Temperature/Regular – Permanent Press D688I© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT Installation/Operation Supplement

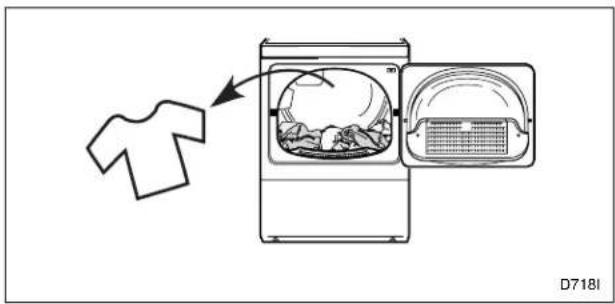

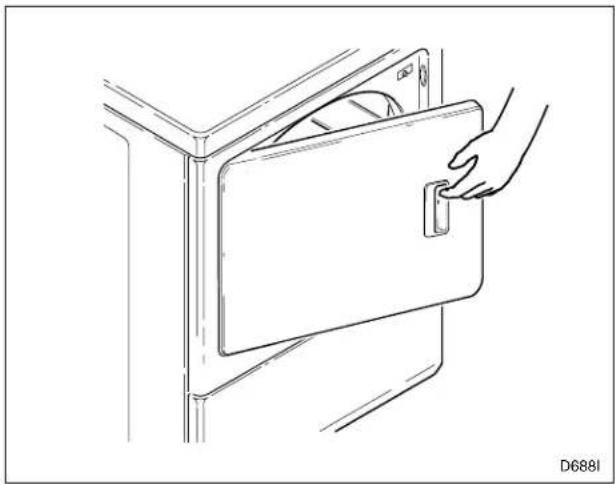

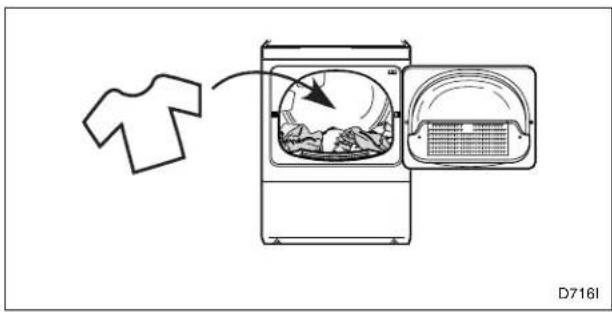

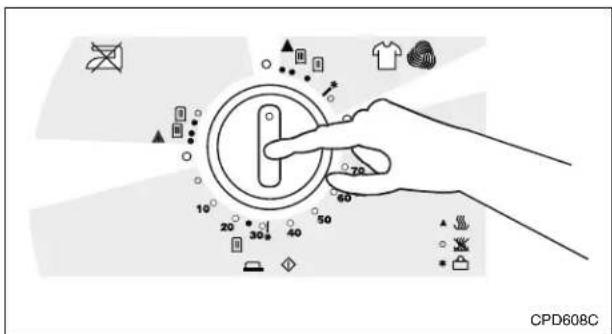

511472 (EN) Step 5: Set Timer Knob Select Fabric/Temperature setting. Step 6: Start Dryer Press timer knob to start dryer. Figure 15 Step 7: Remove Laundry Figure 16 End of Cycle Signal DRY477N Permanent Press DRY481N Normal DRY484N Delicates DRY485N Time Dry DRY478N Heat DRY479N No Heat DRY482N Less Dry DRY483N More Dry

Sound Level DRY476N Sound Range (Low to High) D718i© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT 511472 (EN)

Installation/Operation Supplement Disposal of Unit This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Refer to Figure 17. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Ensuring this product is disposed of correctly will help prevent potential negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact the local city office, household waste disposal service, or the source from which the product was purchased. Figure 17 MIX1NSuplemento de instalación/operación Secadoras de ropa Modelos eléctricos y de gas D715IPieza No. 511472R2SPDiciembre 2007 Guarde estas instrucciones para referencia en el futuro. (Si esta máquina cambia de dueño, asegúrese de que este manual vaya con la misma).© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT Suplemento de instalación/operación 511472 (SP)
