USER MANUAL RXV620RDS YAMAHA

Natural Sound AV Receiver

1 To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.
2 Install this unit in a well ventilated, cool, dry, clean place with at least 30 cm on the top, 20 cm on the right and left, and 10 cm at the back of this unit for ventilation space — away from direct sunlight, heat sources, vibration, dust, moisture, and/or cold.
3 Locate this unit away from other electrical appliances, motors, or transformers to avoid humming sounds. To prevent fire or electrical shock, do not place this unit where it may get exposed to rain, water, and/or any type of liquid.
4 Do not expose this unit to sudden temperature changes from cold to hot, and do not locate this unit in a environment with high humidity (i.e. a room with a humidifier) to prevent condensation inside this unit, which may cause an electrical shock, fire, damage to this unit, and/or personal injury.
5 On the top of this unit, do not place:
- Other components, as they may cause damage and/or discoloration on the surface of this unit.
– Burning objects (i.e. candles), as they may cause fire, damage to this unit, and/or personal injury.
- Containers with liquid in them, as they may cause electrical shock to the user and/or damage to this unit.
6 Do not cover this unit with a newspaper, tablecloth, curtain, etc. in order not to obstruct heat radiation. If the temperature inside this unit rises, it may cause fire, damage to this unit, and/or personal injury.
7 Do not plug in this unit to a wall outlet until all connections are complete.
8 Do not operate this unit upside-down. It may overheat, possibly causing damage.
9 Do not use force on switches, knobs and/or cords.
10 When disconnecting the power cord from the wall outlet, grasp the plug; do not pull the cord.
11 Do not clean this unit with chemical solvents; this might damage the finish. Use a clean, dry cloth.
12 Only voltage specified on this unit must be used. Using this unit with a higher voltage than specified is dangerous and may cause fire, damage to this unit, and/or personal injury. YAMAHA will not be held responsible for any damage resulting from use of this unit with a voltage other than specified.
13 To prevent damage by lightning, disconnect the power cord from the wall outlet during an electrical storm.
14 Take care of this unit so that no foreign objects and/or liquid drops inside this unit.

15 Do not attempt to modify or fix this unit. Contact qualified YAMAHA service personnel when any service is needed. The cabinet should never be opened for any reasons.
16 When not planning to use this unit for long periods of time (i.e. vacation), disconnect the AC power plug from the wall outlet.
17 Be sure to read the "TROUBLESHOOTING" section on common operating errors before concluding that this unit is faulty.
18 Before moving this unit, press STANDBY/ON to set this unit in the standby mode, and disconnect the AC power plug from the wall outlet.

This unit is not disconnected from the AC power source as long as it is connected to the wall outlet, even if this unit itself is turned off. This state is called the standby mode. In this state, this unit is designed to consume a very small quantity of power.

■For U.K. customers

If the socket outlets in the home are not suitable for the plug supplied with this appliance, it should be cut off and an appropriate 3 pin plug fitted. For details, refer to the instructions described below.

Note

- The plug severed from the mains lead must be destroyed, as a plug with bared flexible cord is hazardous if engaged in a live socket outlet.

■Special Instructions for U.K. Model

IMPORTANT

THE WIRES IN MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

Blue: NEUTRAL

Brown: LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

Making sure that neither core is connected to the earth terminal of the three pin plug.

CONTENTS

INTRODUCTION

FEATURES 2

GETTING STARTED 3

Checking the Package Contents .... 3

Installing Batteries in the Remote Control .... 3

CONTROLS AND FUNCTIONS .... 4

Front Panel 4

Remote Control 6

Description of the Numeric Buttons 7

Using the Remote Control 8

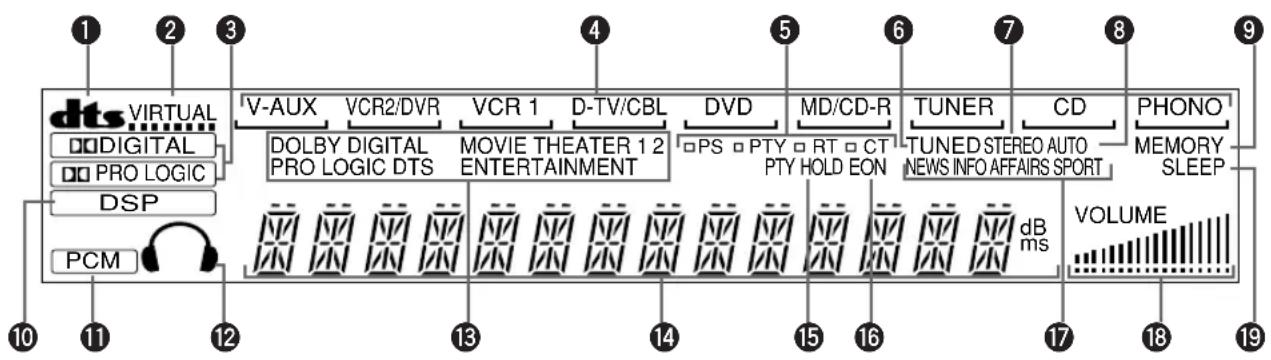

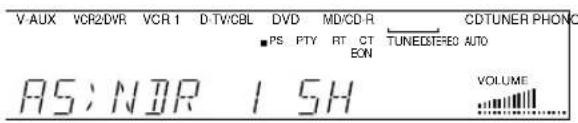

Front Panel Display 9

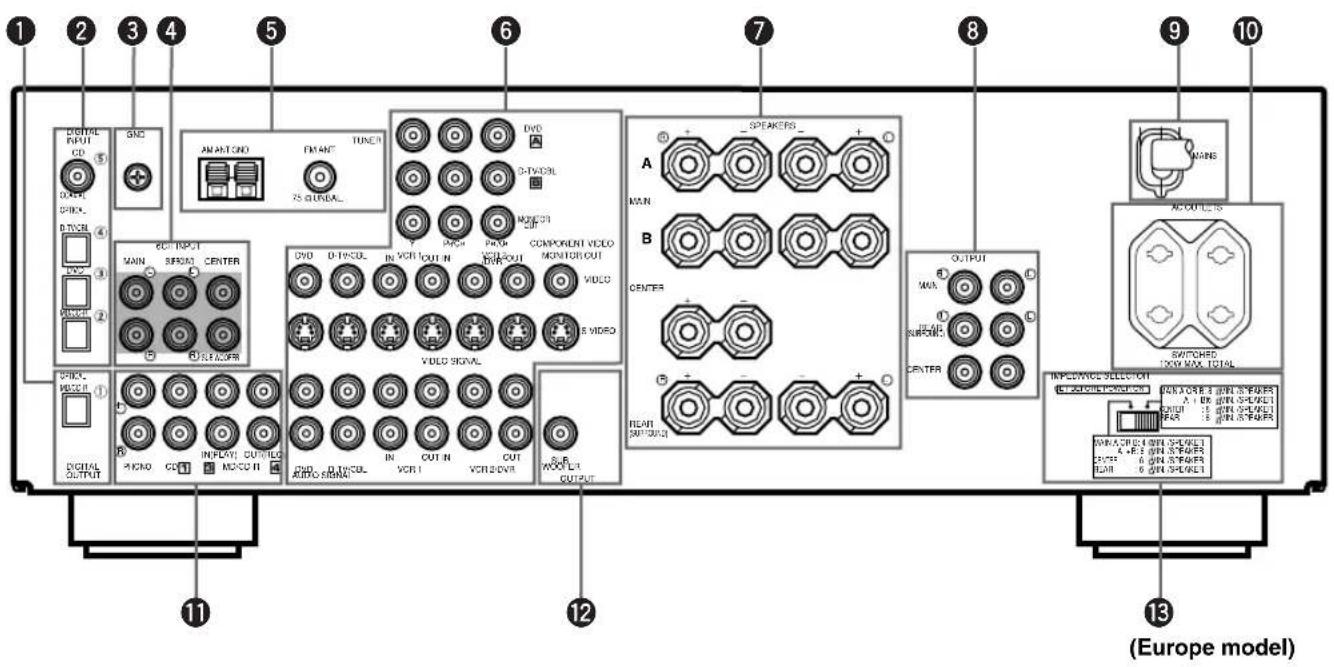

Rear Panel 10

PREPARATION

SPEAKER SETUP 11

Speakers to Be Used 11

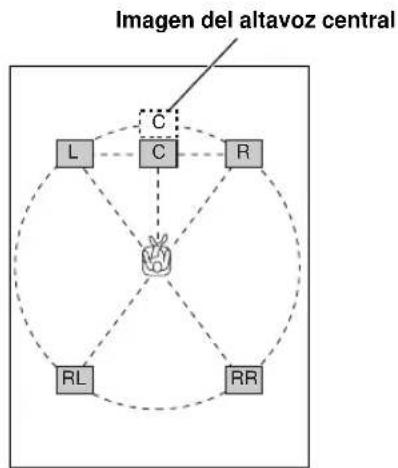

Speaker Placement 11

CONNECTIONS 12

Before Connecting Components .... 12

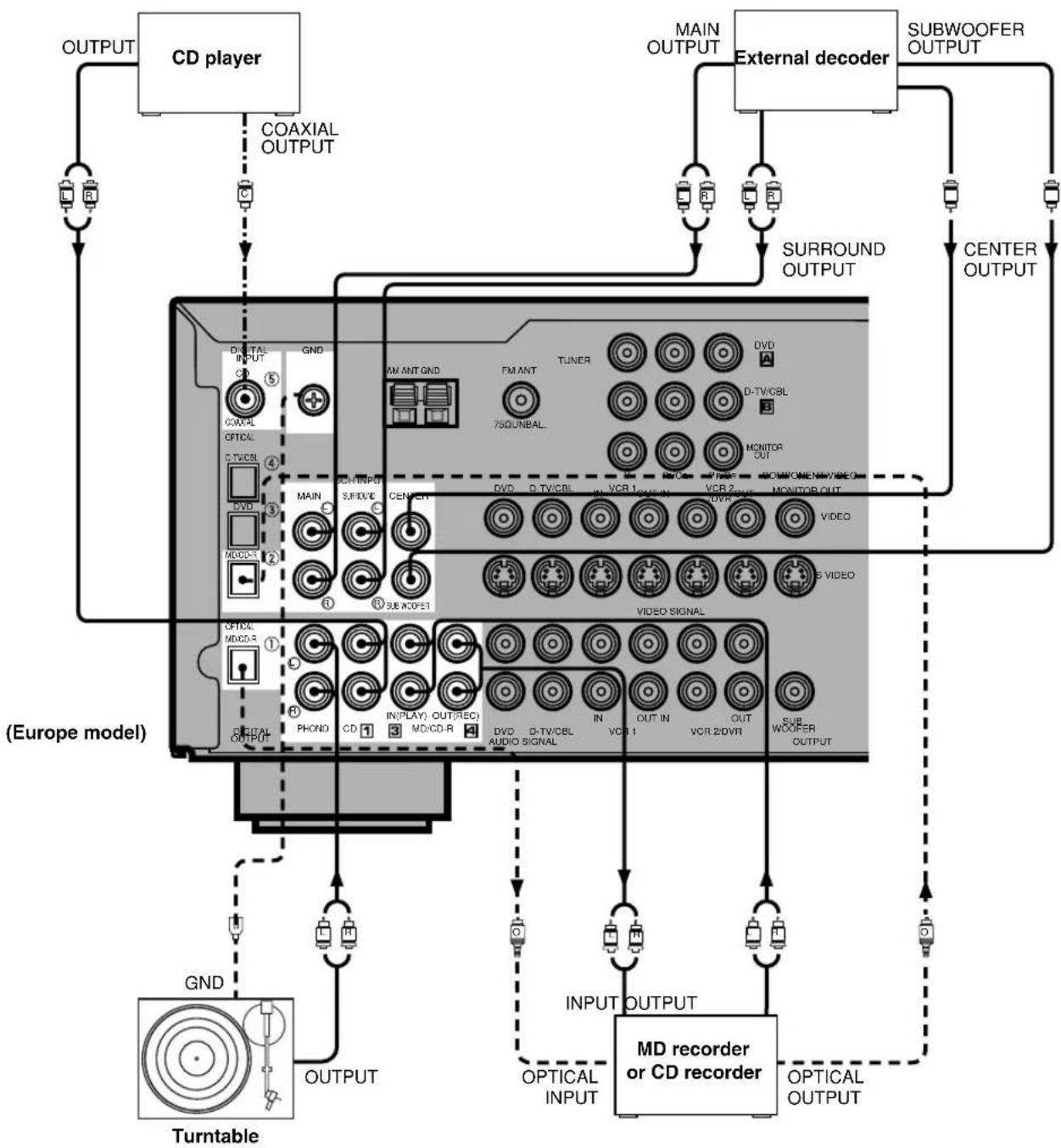

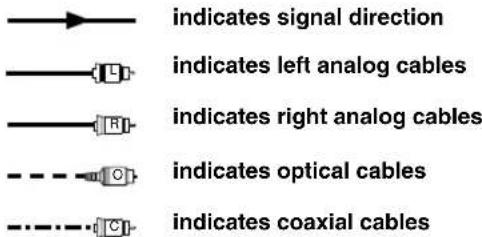

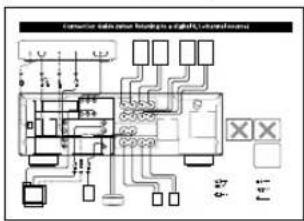

Connecting Audio Components 12

Connecting Video Components 14

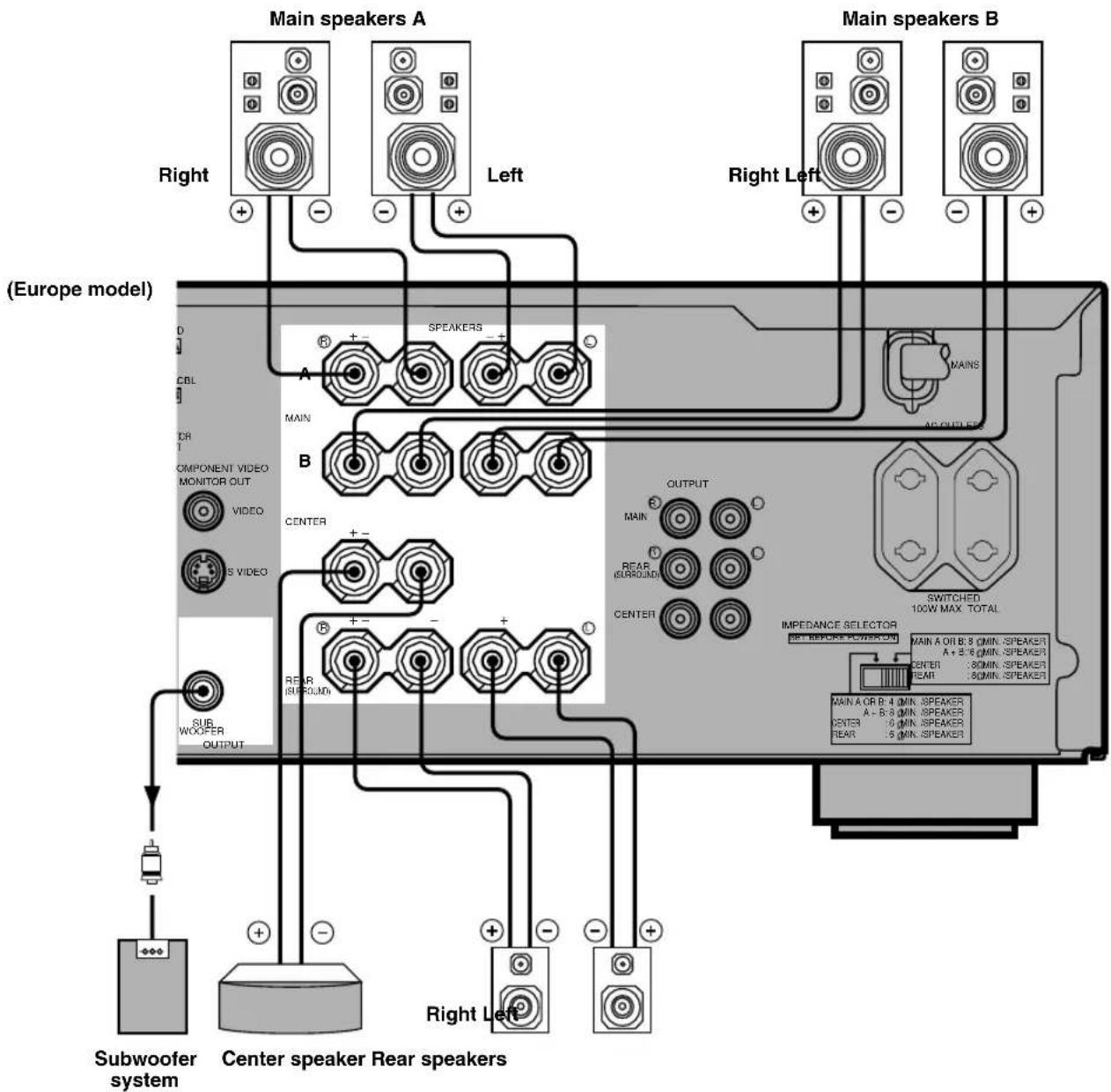

Connecting the Speakers .... 16

Connecting an External Amplifier 18

Connecting an External Decoder 18

IMPEDANCE SELECTOR Switch 19

Connecting the Power Supply Cords 19

ON-SCREEN DISPLAY (OSD) 20

OSD Modes 20

Selecting the OSD Mode 20

SPEAKER MODE SETTINGS 21

Summary of SPEAKER SET Items 1A through 1E .... 21

Input Modes and Indications 26

Selecting a Sound Field Program 28

Normal Stereo Reproduction 29

TUNING 30

Connecting the Antennas 30

Automatic (or Manual) Tuning 31

Presetting Stations 32

Tuning in to a Preset Station 33

Exchanging Preset Stations 34

RECEIVING RDS STATIONS 35

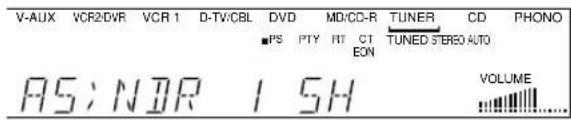

Description of RDS Data 35

Changing the RDS Mode 35

PTY SEEK Function 36

EON Function 37

BASIC RECORDING 38

ADVANCED OPERATION

SET MENU 39

Adjusting the Items on the SET MENU 39

1 SPEAKER SET (speaker mode settings) ...... 40

2 L/R BALANCE (balance of the left and right main speakers) 42

3 HP TONE CTRL (headphone tone control) ..... 43

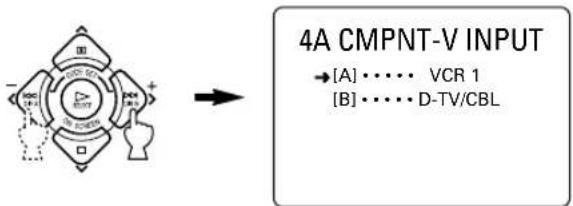

4 I/O ASSIGNMENT 43

5 INPUT MODE (initial input mode) 43

6 DOLBY D. SET (Dolby Digitalset) 44

7 DTS SET (DTS LFE level) 44

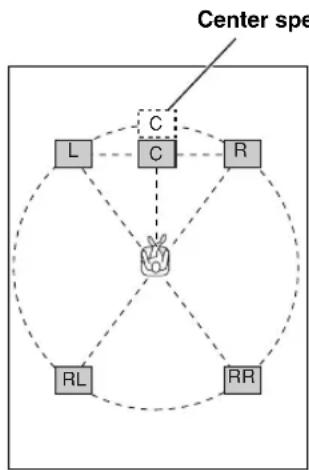

8 SP DELAY TIME 45

9 DISPLAY SET 45

10MEMORY GUARD 45

Commonly Used Buttons in Any Position of the Selector Dial 49

Controlling the Components Connected to This Unit 49

Button Names and Functions in Each Position ..... 50

Setting the Manufacturer Code 53

Returning to the Factory Setting 54

ADDITIONAL INFORMATION

SOUND FIELD PROGRAM 55

Hi-Fi DSP Programs 55

CINEMA DSP Programs 55

SOUND FIELD PROGRAM PARAMETER EDITING .... 58

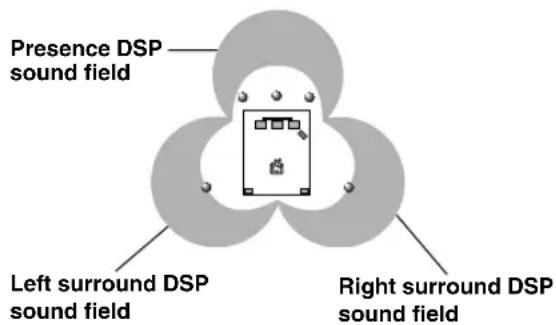

What is a sound field? 58

Sound Field Program Parameters 58

Changing Parameter Settings 59

Resetting a Parameter to the Factory-set Value ..... 59

Sound Field Parameter Descriptions 60

APPENDIX

TROUBLESHOOTING 63

SPECIFICATIONS 68

GLOSSARY 69

INDEX 71

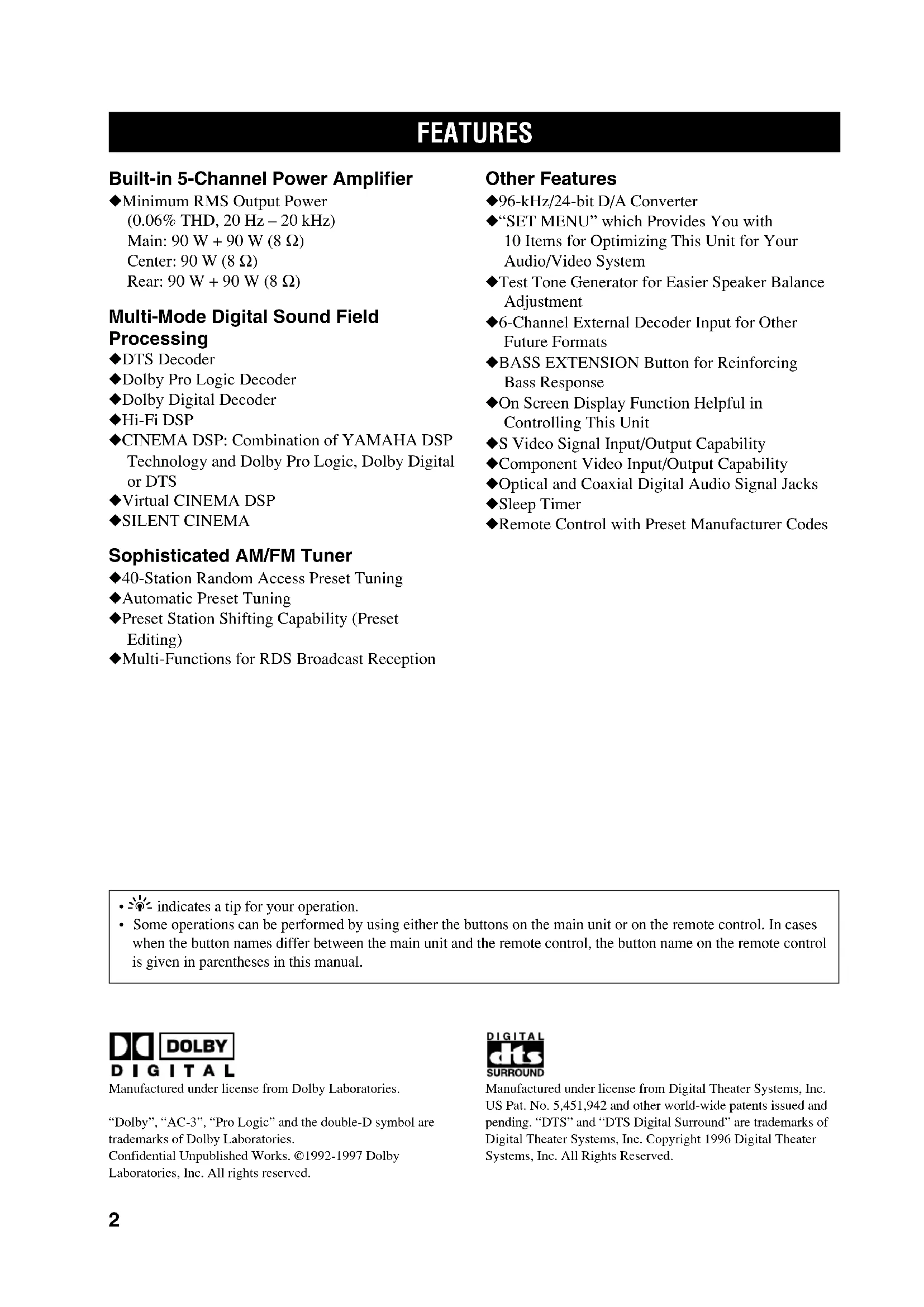

FEATURES

Built-in 5-Channel Power Amplifier

◆Minimum RMS Output Power (0.06% THD, 20 Hz – 20 kHz)
Main: 90 W + 90 W (8 Ω)
Center: 90 W (8 Ω)
Rear: 90 W + 90 W (8 Ω)

Multi-Mode Digital Sound Field Processing

◆DTS Decoder
◆Dolby Pro Logic Decoder
◆Dolby Digital Decoder
◆Hi-Fi DSP
◆CINEMA DSP: Combination of YAMAHA DSP Technology and Dolby Pro Logic, Dolby Digital or DTS
◆Virtual CINEMA DSP
◆SILENT CINEMA

Sophisticated AM/FM Tuner

◆40-Station Random Access Preset Tuning
◆Automatic Preset Tuning
◆Preset Station Shifting Capability (Preset Editing)
◆Multi-Functions for RDS Broadcast Reception

Other Features

◆96-kHz/24-bit D/A Converter
◆“SET MENU” which Provides You with 10 Items for Optimizing This Unit for Your Audio/Video System
◆Test Tone Generator for Easier Speaker Balance Adjustment
◆6-Channel External Decoder Input for Other Future Formats
◆BASS EXTENSION Button for Reinforcing Bass Response
◆On Screen Display Function Helpful in Controlling This Unit
◆S Video Signal Input/Output Capability
◆Component Video Input/Output Capability
◆Optical and Coaxial Digital Audio Signal Jacks
◆Sleep Timer
◆Remote Control with Preset Manufacturer Codes

• indicates a tip for your operation.

- Some operations can be performed by using either the buttons on the main unit or on the remote control. In cases when the button names differ between the main unit and the remote control, the button name on the remote control is given in parentheses in this manual.

Manufactured under license from Dolby Laboratories.

"Dolby", "AC-3", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. ©1992-1997 Dolby Laboratories, Inc. All rights reserved.

Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942 and other world-wide patents issued and pending. "DTS" and "DTS Digital Surround" are trademarks of Digital Theater Systems, Inc. Copyright 1996 Digital Theater Systems, Inc. All Rights Reserved.

GETTING STARTED

Checking the Package Contents

Check your package to make sure it has the following items.

Remote control

YAMAHA

Batteries (4)
(AAA, R03, UM-4)

Line drawing of four cylindrical batteries with battery terminals (no text or symbols)

Indoor FM antenna

75-ohm/300-ohm
antenna adapter
(U.K. model only)

AM loop antenna

Quick Reference Card

Connection guide

Installing Batteries in the Remote Control

Insert the batteries in the correct direction by aligning the + and - marks on the batteries with the polarity markings (+ and -) inside the battery compartment.

Diagram of a battery pack assembly with labeled components and polarity indicators

■Notes on batteries

• Change the batteries periodically.
• Do not use old batteries together with new ones.
• Do not use different types of batteries (such as alkaline and manganese batteries) together. Read the packaging carefully as these different types of batteries may have the same shape and color.

■Changing batteries

As the batteries lose power, the operating range of the remote control decreases and the indicator does not flash or its light becomes dim. When you notice any of these conditions, change all of the batteries.

If the remote control is without batteries for more than 2 minutes, or if exhausted batteries remain in the remote control, the contents of the memory may be cleared. When the memory is cleared, insert new batteries, set up the manufacturer code that may have been cleared.

Note

- If the batteries have leaked, dispose of them immediately. Avoid touching the leaked material or letting it come into contact with clothing, etc. Clean the battery compartment thoroughly before installing new batteries.

CONTROLS AND FUNCTIONS

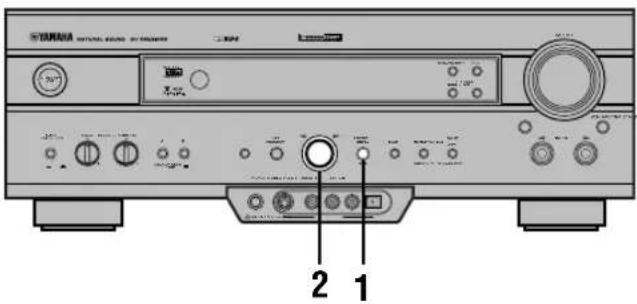

Front Panel

YAMAHA NATURAL SOUND AV RECEIVER RDS CINEMA DSP STANDEY ON RISMOSEERSD ECN PYY SEEK KDOI START VOLUME BASS EXTENSION BASS TREBLE SPEAKERS A B ON/OFFSP DSP PROGRAM FRESET TUNNS RV/AM MEMORY/EFFECT RING MEES INCREASE VIDEO VIDEO AUDIO CONTROL TISUENT VIDEO ARM INPUT 8CH INPUT/INPUT MODE 20 21 22 23 24

①STANDBY/ON

Turns on or sets this unit in the standby mode. When you turn on this unit, you will hear a click and there will be a 4 to 5-second delay before this unit can reproduce sound.

Standby mode

In this mode, this unit consumes a small amount of power to receive infrared-signals from the remote control.

② Remote control sensor

Receives signals from the remote control.

③Front panel display

Shows information about the operational status of this unit.

④PTY SEEK MODE

Sets the unit in the PTY SEEK mode.

⑤RDS MODE/FREQ

When an RDS station is received, press this button to change the display mode among the PS mode, PTY mode, RT mode, CT mode (if the station offers those RDS data services) and/or frequency display mode in turn.

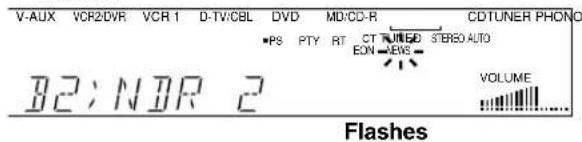

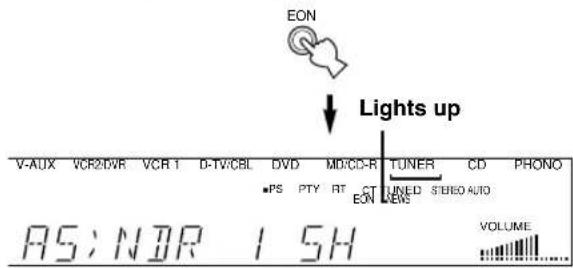

⑥EON

Selects the desired program type (NEWS, INFO, AFFAIRS, SPORT) when you want to tune in to a radio program of that type automatically.

⑦PTY SEEK START

Begins searching for a station after the desired program type has been selected in the PTY SEEK mode.

8INPUT MODE

Selects the mode of input for sources that send two or more types of signals to this unit (see page 26 for details). You cannot control the input mode when you select 6CH INPUT as the input source.

⑨VOLUME

Controls the output level of all audio channels. This does not affect the REC OUT level.

⑩6CH INPUT

Selects the source connected to the 6CH INPUT jacks. The source selected by pressing 6CH INPUT takes priority over the source selected with INPUT ◀/▷ (or the input selector buttons on the remote control).

⑪BASS EXTENSION ON/OFF

When pushed in (ON), this feature boosts the bass frequency of the left and right main speakers by +6 dB (60 Hz) while maintaining overall tonal balance. This boost is useful if you do not use a subwoofer. However, this boost may not be noticeable if “1B MAIN SP” on the SET MENU is set to SMALL and “1D LFE/BASS OUT” is set to SWFR.

⑫BASS

Adjusts the low-frequency response for the left and right main speakers.

Turn the control to the right to increase or to the left to decrease the low-frequency response.

⑬TREBLE

Adjusts the high-frequency response for the left and right main speakers.

Turn the control to the right to increase or to the left to decrease the high-frequency response.

Note

- If you increase or decrease the high-frequency or the low-frequency sound to an extreme level, the tonal quality from the center and rear speakers may not match that of the left and right main speakers.

14 SPEAKERS A/B

When pushed in (ON), these buttons turn on the set of main speakers connected to the A and/or B terminals on the rear panel.

15 EFFECT

Switches the effect speakers (center and rear) on and off. If you turn off the output of these speakers by using EFFECT, all Dolby Digital and DTS audio signals except for the LFE channel are directed to the main left and right channels.

When Dolby Digital or DTS signals are mixed, the left and right main channel signal levels may not match.

⑯DSP PROGRAM

Switches the function of the multi jog knob for selecting DSP program.

⑰PHONES jack

Outputs audio signals for private listening with headphones. When you connect headphones, no signals are output to the OUTPUT jacks or to the speakers.

18Multi jog knob

Selects the tuning frequency in the tuning mode. Selects the preset station after pressing PRESET/TUNING (EDIT) to display “>” in the tuning mode. Selects the DSP program after pressing DSP PROGRAM.

19VIDEO AUX jacks

Inputs audio and video signals from a portable external source such as a game console. To reproduce source signals from these jacks, select V-AUX as the input source.

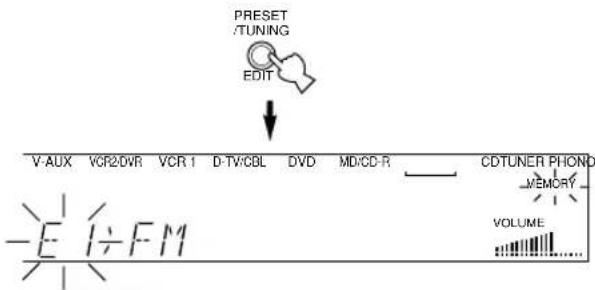

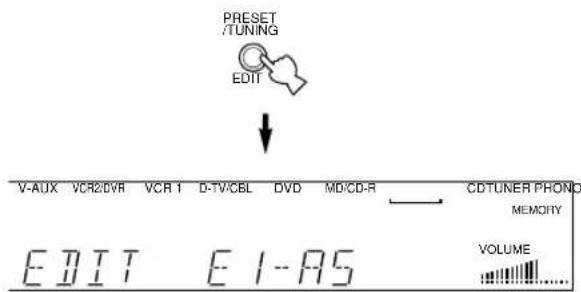

20PRESET/TUNING (EDIT)

Switches the function of the multi jog knob between selecting a preset station number and tuning. This button is also used to exchange the assignment of two preset stations with each other.

②FM/AM

Switches the reception band between FM and AM.

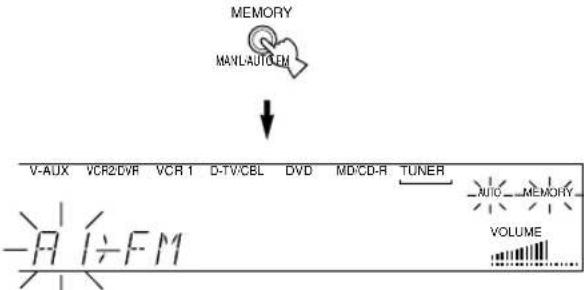

22 MEMORY (MAN'L/AUTO FM)

Stores a station in the memory. Hold down this button for more than 3 seconds to start automatic preset tuning (for FM stations only).

23 TUNING MODE (AUTO/MAN'L MONO)

Switches the tuning mode between automatic and manual. To select the automatic tuning mode, press this button so that the “AUTO” indicator lights up on the front panel display again. To select the manual tuning mode, press this button so that the “AUTO” indicator does not light up.

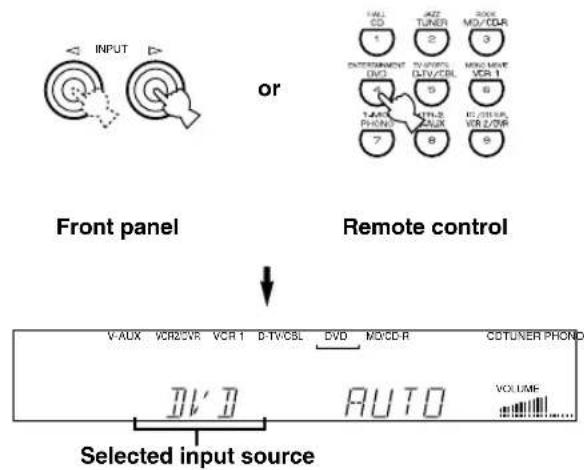

24 INPUT ◀/▶

Selects the input source (CD, TUNER, MD/CD-R, DVD, D-TV/CBL, VCR 1, PHONO, V-AUX, VCR 2/DVR) you want to listen to or watch.

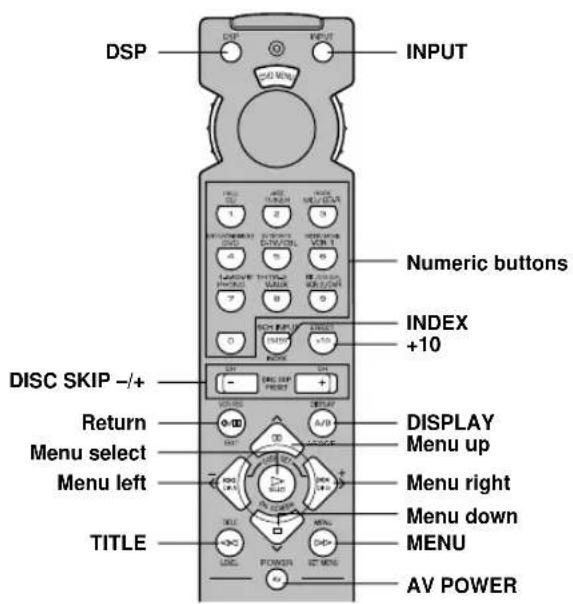

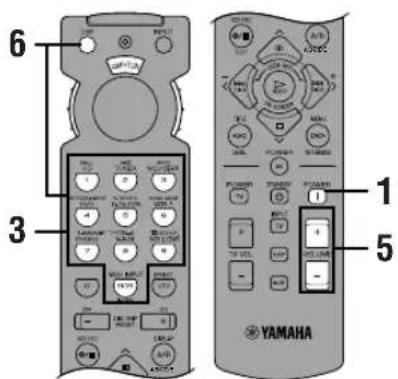

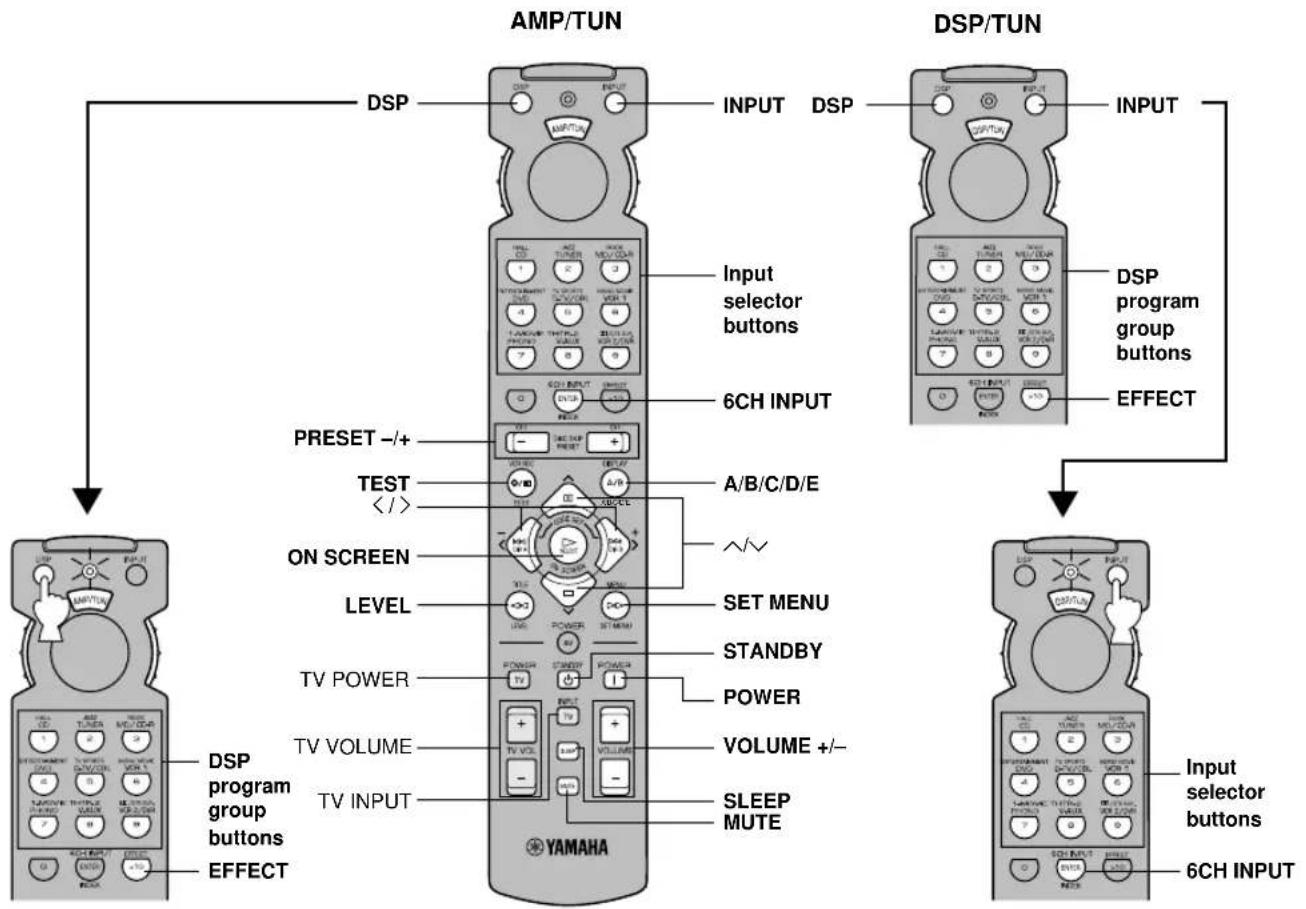

Remote Control

This section describes the basic operation of this unit with the remote control. First, set the selector dial to the AMP/TUN position. See “REMOTE CONTROL FEATURES” for full details.

Select the AMP/TUN position. HALL CD 1 INTERTAINMENT DVD 4 1-MOVIE PHOND 7 JAZZ TUNER 2 TV SPORTS D-TV/CBL 5 THTR-2 V-ALX 8 ROCK MD/CD&R 3 MONO MOVIE VOR 1 6 OE/OTIS NUR. VCR 2/DVR 9 6CH INPUT ENTER INDEX EFFECT 10 4 OFF - CPI - DISC SKIP PREFSET CHI + VCR REC O/O TEST 00 DISPLAY A/B ASCODE - DOCS SET - OK OR A - ON SCREEN + COM DR B + TITLE - LEVEL POWER AV MENU SET MENU 15 TV POWER TV POWER TV VOLUME + TV VOL. - STANDBY POWER I INPUT TV SUBP VOLUME - MULTI TV INPUT YAMAHA

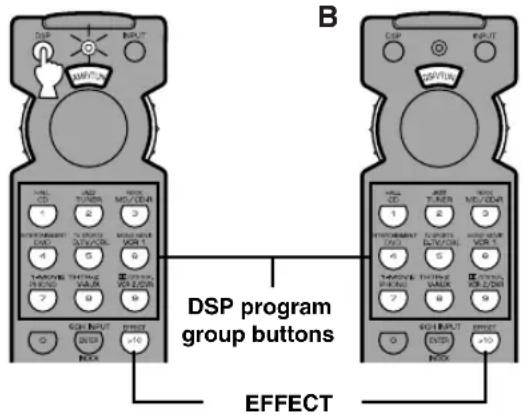

①DSP

Switches the function of the numeric buttons to the DSP program selector.

②Indicator window

Shows the name of components which can be controlled.

③Numeric buttons (Input selector buttons)

These buttons select the input source.

See "Description of the Numeric Buttons" for the numeric buttons.

46CH INPUT

Selects the source connected to the 6CH INPUT jacks.

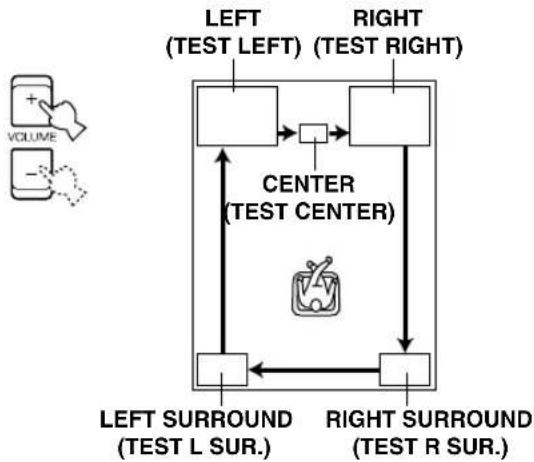

5TEST

Outputs the test tone.

⑥ ON SCREEN

Selects the on-screen display (OSD) mode for your video monitor.

⑦ (-I+)

Adjust DSP program parameters and SET MENU items. - / + is displayed on the on-screen display.

8 LEVEL

Selects the effect speaker channel (center, rear and subwoofer) so you can adjust their output level independently.

⑨SLEEP

Sets the sleep timer.

⑩INPUT

Switches the function of the numeric buttons to the input selector.

⑪Indicator

Flashes while the remote control is sending signals.

⑫Selector dial

Turn this dial to select the position for the component to be controlled. (The proper code must be set up for your component. See “Setting the Manufacture Codes”.) When a position is selected, the remote control is set to that component operation mode.

⑬A/B/C/D/E, PRESET -/+

These buttons are used to select a preset station.

A/B/C/D/E: To select one of 5 preset station groups (A to E)

PRESET -/+: To select a preset station number (1 to 8)

14

Select DSP program parameters and SET MENU items.

15SET MENU

Enters the SET MENU.

16 POWER

Turns on the power of this unit.

⑰STANDBY

Sets this unit in the standby mode.

18VOLUME +/-

Increases or decreases the volume level.

19MUTE

Mutes the sound. Press again to restore the audio output to the previous volume level.

EFFECT

Switches the effect speakers (center and rear) on and off in the following cases:

• When the selector dial is set to the DSP/TUN position.
• While the indicator is lit for about 3 seconds after pressing DSP.

Description of the Numeric Buttons

The numeric buttons function in various ways depending on the position of the selector dial or the combination of other instructions.

■When selecting an input source

INPUT selector buttons 6CH INPUT

1 Press INPUT regardless of the position of the selector dial.
The indicator lights up for about 3 seconds.

2 You can select an input source with the numeric buttons and 6CH INPUT while the indicator is lit.

■When selecting a DSP program and turning on or off the effect speakers (center and rear)

A

DSP program group buttons EFFECT

OFF INPUT 30V/100A OFF Current Power Current Power OFF OUTPUT Current Power OFF OUTPUT Current Power OFF OUTPUT Current Power OFF

A

1 Press DSP regardless of the position of the selector dial.
The indicator lights up for about 3 seconds.

2 You can select a DSP program with the numeric buttons and turn on or off the effect speakers (center and rear) by pressing EFFECT while the indicator is lit.

B

1 Set the selector dial to the DSP/TUN position.
2 You can select a DSP program directly with the numeric buttons and turn on or off the effect speakers (center and rear) by pressing EFFECT.

■When selecting a preset station number

OFF INPUT MINTUAR 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

1 Set code number "0023" in the AMP/TUN (or DSP/TUN) position.

See “Setting the Manufacturer Code” for setting the code.

2 Set the selector dial to the AMP/TUN (or DSP/TUN) position.

3 You can select a preset station number directly with the numeric buttons (1 to 8).

See "Tuning in to a Preset Station".

Using the Remote Control

Approximately 6 m (20 feet) 30°30

The remote control transmits a directional infrared beam. Be sure to aim the remote control directly at the remote control sensor on the main unit during operation.

■Handling the remote control

• Do not spill water or other liquids on the remote control.
• Do not drop the remote control.
• Do not leave or store the remote control in the following types of conditions:
  – high humidity or temperature such as near a heater, stove or bath;
• dusty places; or
  – in places subject to extremely low temperatures.

Front Panel Display
        A[" dts "]
        B[" Virtual "]
        C[" Digital "]
        D[" PRO LOGIC "]
        E[" DSP "]
        F[" PCM "]
    end

    subgraph Frequency
        G[" V-AUX "]
        H[" VCR2/DVR "]
        I[" VCR 1 "]
        J[" D-TV/CBL "]
        K[" DVD "]
        L[" MD/CD-R "]
        M[" TUNER "]
        N[" CD "]
        O[" PHONO "]
    end

    subgraph Volume
        P[" dB ms "]
        Q[" VOLUME "]
    end

    A -->|10| F
    B -->|11| F
    C -->|12| F
    D -->|13| F
    E -->|14| F
    F -->|15| G
    G -->|16| H
    H -->|17| I
    I -->|18| J
    J -->|19| K
    K -->|20| O
    style System fill:#f9f,stroke:#333,stroke-width:2px
    style Frequency fill:#ccf,stroke:#333,stroke-width:2px

①dts indicator

Lights up when the built-in DTS decoder is on.

②VIRTUAL indicator

Lights up when using Virtual CINEMA DSP.

3 DIGITAL and PRO LOGIC indicators

Light up according to the type of Dolby signals this unit is reproducing. “☐ DIGITAL” lights up when the built-in Dolby Digital decoder is on. “☐ PRO LOGIC” lights up when the built-in Dolby Pro Logic decoder is on.

④ Input source indicator

Shows the current input source with a cursor.

⑤RDS mode indicators

The name(s) of the RDS data offered by the currently received RDS station light(s) up. Illumination of the red indicator next to the RDS data name shows that the corresponding RDS mode is now selected.

6 TUNED indicator

Lights up when this unit tunes in to a station.

⑦STEREO indicator

Lights up when the unit is receiving a strong signal for an FM stereo broadcast while the “AUTO” indicator is lit.

⑧ AUTO indicator

Shows that this unit is in the automatic tuning mode.

⑨ MEMORY indicator

Flashes to show a station can be stored.

10 DSP indicator

Lights up when you select a DSP program.

11 PCM indicator

Lights up when this unit is reproducing PCM (pulse code modulation) digital audio signals.

⑫Headphones indicator

Lights up when headphones are connected.

⑬DSP program indicators

The name of the selected DSP program lights up when the ENTERTAINMENT, MOVIE THEATER 1, MOVIE THEATER 2 or ☐☐/DTS SURROUND DSP program is selected.

⑭Multi-information display

Shows the current DSP program name and other information when adjusting or changing settings.

15PTY HOLD indicator

Lights up while searching for stations in the PTY SEEK mode.

⑯EON indicator

Lights up when an RDS station that offers the EON data service is being received.

⑰ Program type name indicators

The name of the selected program type lights up when the “EON” indicator lights up.

18VOLUME level indicator

Indicates the volume level.

19SLEEP indicator

Lights up while the sleep timer is on.

Rear Panel

1 2 3 4 5 6 7 8 9 10 DIGITAL INPUT CD 5 OUTLET PRICE 4 DIN 1 PICKS 2 OUTPUT 1 DIGITAL OUTPUT GND AMOUNT GND TUNCH 75 GURDAL DVH D-TWDRIL 3-DVDRIL MAIN SERIAL CENTER DVD 0-TWDRIL IN VCR OUT IN VCR OUT VCR OUT VIDEO MONITOR OUT VIDEO S VIDRO VIDEO SIGNAL RUMBOA RUMBOA RUMBOA RUMBOA RUMBOA RUMBOA RUMBOA RUMBOA RUMBOA RUMBOA RUMBOA RUMBOA RUMBOA RUMBOA RUMBOA RUMBOA RUMBOA RUMBOA RUMBOA RUMBOA RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOC RUMBOC RUMBOC RUMBOC RUMBOC RUMBOC RUMBOC RUMBOC RUMBOC RUMBOC RUMBOC RUMBOC RUMBOC RUMBOC RUMBOC RUMBOC RUMBOC RUMBOC RUMBOC RUMBOC RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOB RUMBOBC RUMBOBC RUMBOBC RUMBOBC RUMBOBC RUMBOBC RUMBOBC RUMBOBC RUMBOBC RUMBOBC RUMBOBC RUMBOBC RUMBOBC RUMBOBC RUMBOBC RUMBOBC RUMBOBC RUMBOBC RUMBOBC RUMBOBC RUMBOCC RUMBOCC RUMBOCC RUMBOCC RUMBOCC RUMBOCC RUMBOCC RUMBOCC RUMBOCC RUMBOCC RUMBOCC RUMBOCC RUMBOCC RUMBOCC RUMBOCC RUMBOCC RUMBOCC RUMBOCC

① DIGITAL OUTPUT jacks
② DIGITAL INPUT jacks
③GND terminal

See page 12 for connection information.

④6CH INPUT jacks

See pages 13 and 18 for connection information.

⑤Antenna input terminals

See page 30 for connection information.

⑥Video component jacks

See pages 14 and 15 for connection information.

⑦Speaker terminals

See pages 16 and 17 for connection information.

8 OUTPUT jacks

See page 18 for connection information.

⑨ AC power cord

Connect to a power outlet.

⑩AC OUTLET(S)

Use these outlets to supply power to your other audio/video components (see page 19).

⑪Audio component jacks

See pages 12 and 13 for connection information.

⑫SUBWOOFER jack

See page 17 for connection information.

⑬IMPEDANCE SELECTOR switch

Use this switch to match the amplifier output to your speaker impedance. Set this unit in the standby mode before you change the setting of this switch (see page 19).

SPEAKER SETUP

Speakers to Be Used

This unit has been designed to provide the best sound-field quality with a 5-speaker system, using left and right main speakers, left and right rear speakers, and a center speaker. If you use different brands of speakers (with different tonal qualities) in your system, the tone of a moving human voice and other types of sound may not shift smoothly. We recommend that you use speakers from the same manufacturer to ensure even tonal quality.

The main speakers are used for the main source sound plus the effect sounds. They will probably be the speakers from your present stereo system. The rear speakers are used for the effect and surround sounds, and the center speaker is for the center sounds (dialog, vocals, etc.). If for some reason it is not practical to use a center speaker, you can do without it. Best results, however, are obtained with the full system.

The main speakers should be high-performance models and have enough power-handling capacity to accept the maximum output of your audio system. The other speakers do not have to be equal to the main speakers. For precise sound localization, however, it is ideal to use high-performance models that can reproduce sounds over the full range for the center speaker and the rear speakers.

■Use of a subwoofer expands your sound field

It is also possible to further expand your system with the addition of a subwoofer. The use of a subwoofer is effective not only for reinforcing bass frequencies from any or all channels, but also for reproducing the LFE (low-frequency effect) channel with high fidelity when the Dolby Digital signal or the DTS signal is played back. The YAMAHA Active Servo Processing Subwoofer System is ideal for natural and lively bass reproduction.

Speaker Placement

Refer to the following diagram when you place the speakers.

Main speaker (R) Rear speaker (R) Subwoofer 1.8 m Main speaker (L) Center speaker Rear speaker (L)

■Main speakers

Place the left and right main speakers an equal distance from the ideal listening position. The distance of each speaker from each side of the video monitor should be the same.

■Rear speakers

Place these speakers behind your listening position, facing slightly inwards, nearly 1.8 m (approx. 6 feet) above the floor.

■Center speaker

Align the front face of the center speaker with the front face of your video monitor. Place the speaker as close to the monitor as possible, such as directly over or under the monitor and centrally between the main speakers.

Note

• If the center speaker is not used, the center channel sound will be heard from the left and right main speakers. In this case, "1A CENTER SP" on the SET MENU is set to NONE.

Subwoofer

The position of the subwoofer is not so critical, because low bass sounds are not highly directional. But it is better to place the subwoofer near the main speakers. Turn it slightly toward the center of the room to reduce the wall reflections.

CAUTION

Please use magnetically shielded speakers. Sometimes a video monitor may be adversely affected even when magnetically shielded speakers are used. Separate the speakers from the monitor if this happens.

CONNECTIONS

Before Connecting Components

CAUTION

Never connect this unit and other components to mains power until all connections between components have been completed.

• Be sure all connections are made correctly, that is to say L (left) to L, R (right) to R, “+” to “+” and “−” to “−”. Some components require different connection methods and have different jack names. Refer to the operation instructions for each component to be connected to this unit.
• When you connect other YAMAHA audio components (such as a tape deck, MD recorder and CD player or changer), connect them to the jack with the same number labels as 1, 3, 4 etc.
  • After you have completed all connections, check them again to make sure they are correct.

Connecting Audio Components

■Connecting to digital jacks

This unit has digital jacks for direct transmission of digital signals through either coaxial or fiber optic cables. You can use the digital jacks to input PCM, Dolby Digital and DTS bitstreams. When you connect components to both the COAXIAL and OPTICAL jacks, priority is given to the input signals from the COAXIAL jack. All digital input jacks are acceptable for 96-kHz sampling digital signals.

- You can designate the input for each digital jack according to your component by using "4 I/O ASSIGNMENT" on the SET MENU.

About the dust protection cap

Pull out the cap from the optical jack before you connect the fiber optic cable. Do not discard the cap. When you are not using the optical jack, be sure to put the cap back in place. This cap protects the jack from dust.

Note

- The OPTICAL jacks on this unit conform to the EIA standard. If you use a fiber optic cable that does not conform to this standard, this unit may not function properly.

■Connecting a turntable

PHONO jacks are for connecting a turntable with an MM or high-output MC cartridge. If you have a turntable with a low-output MC cartridge, use an inline boosting transformer or MC-head amplifier when connecting to these jacks.

- The GND terminal does not electrically ground the turntable. It simply reduces noise in the signal. In some cases, you may hear less noise if you do not connect to the GND terminal.

■Connecting a CD player

• The COAXIAL jack is available for a CD player which has a coaxial digital output jack.
• When you connect a CD player to both the analog and digital jacks, priority is given to the input signals from the digital jack.

■Connecting an MD recorder, CD recorder or tape deck

- When you connect your recording component to both the analog and digital input and output jacks, the priority is given to the digital signal.

Notes

• When you connect a recording component to this unit, keep its power on while using this unit. If the power is off, this unit may distort the sound from other components.
• Since digital output and analog output (REC OUT) are independent of each other, the analog signal is output only to the analog jack, while the digital signal is output only to the digital jack.

indicates signal direction indicates left analog cables indicates right analog cables indicates optical cables indicates coaxial cables

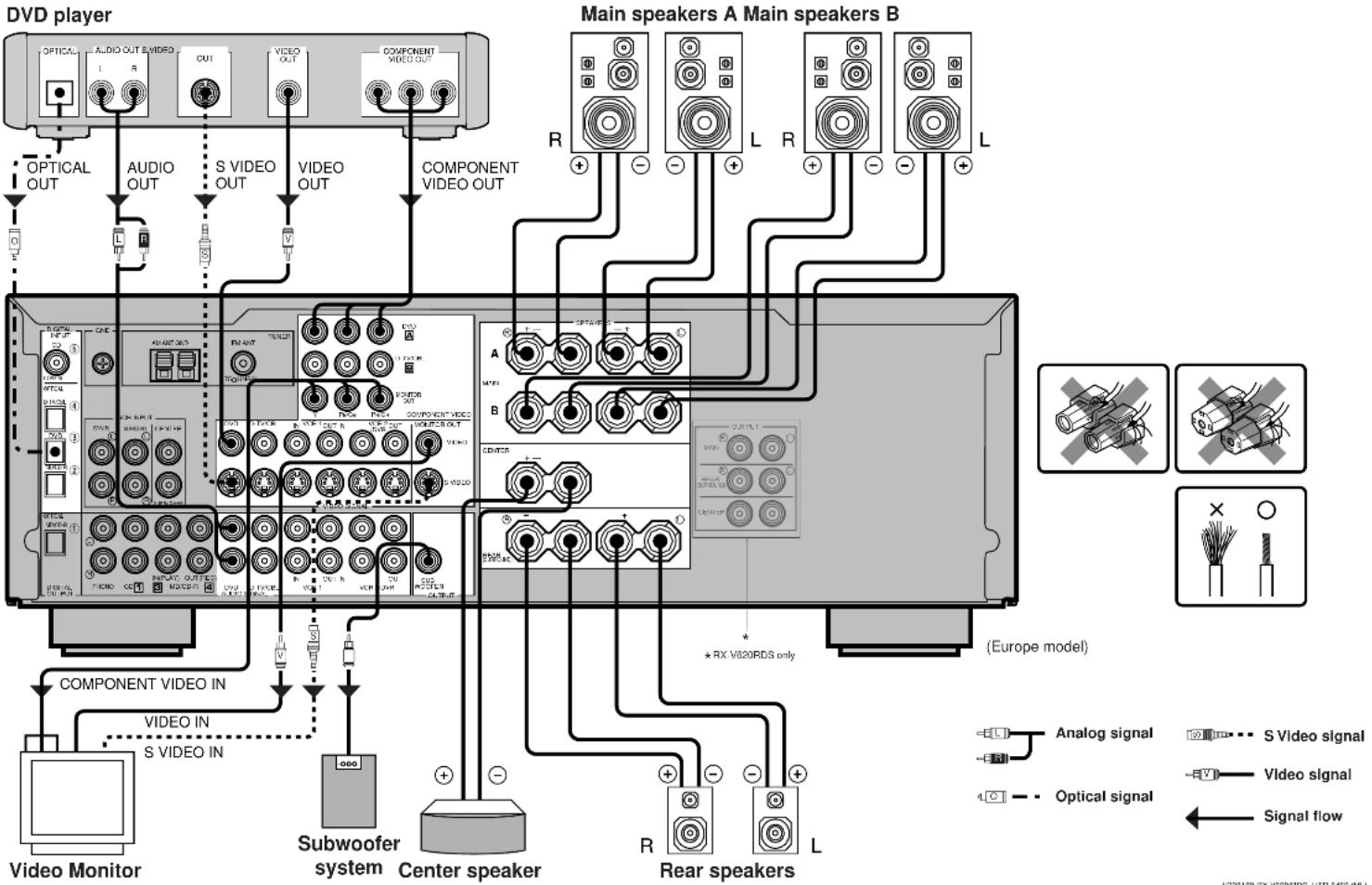

Connecting Video Components

■About the video jacks

There are three types of video jacks. Video signals input through the VIDEO jacks are the conventional composite video signals. Video signals input through the S VIDEO jacks are separated into luminance (Y) and color (C) video signals. The S-video signals achieve high-quality color reproduction. Video signals input through the COMPONENT VIDEO jacks are separated into luminance (Y) and color difference (P_B / C_B,P_R / C_R) video signals. The jacks are also separated into three for each signal. The description of the component video jacks may be different depending on the component (e.g. Y, C_B , C_R/Y , P_B , P_R/Y , B-Y, R-Y etc.). Component video signals provide the best quality in picture reproduction.

If your video component has an S-video output or component video output, you can connect it to this unit. Connect the S-video signal output jack on your video component to the S VIDEO jack or connect the component signal output jacks on your video component to the COMPONENT VIDEO jacks.

• Each type of video jack works independently. Signals input through the composite video, S-video and component jacks are output through the corresponding composite video, S-video, and component jacks, respectively.
- If you make S-video connections to this unit, it is not necessary to make composite video connections. If both types of connections are made, this unit gives priority to the S-video signal.
- You can designate the input for the COMPONENT VIDEO A and B jacks according to your component by using "4 I/O ASSIGNMENT" on the SET MENU.

Notes

• Use a commercially available S-video cable when connecting to the S VIDEO jack, and commercially available video cables when connecting to the COMPONENT VIDEO jacks.
• When you are using the COMPONENT VIDEO jacks, check the details in the owner's manual that came with the component being connected.

■Video monitor with a 21-pin connector

Make a connection as shown on page 15 with a commercially available SCART-plug connector cable.

■VIDEO AUX jacks (on the front panel)

These jacks are used to connect any video input source such as a game console to this unit.

When using an LD player

Connect the LD player output to the DVD jack.

If the LD player has an OPTICAL digital output jack, connect it to this unit's OPTICAL DVD jack. If it has analog jacks, connect it to the analog DVD jacks. If it has an “RF OUTPUT jack” to output a Dolby Digital RF signal (AC-3), use a commercially available RF demodulator and connect it to the OPTICAL DVD jack.

If connecting a DVD player and an LD player, connect the LD player to the digital input jack (ex. D-TV/CBL) or to the analog input jack (D-TV/CBL, VCR 1 or VCR 2/DVR). For details on connections and operations, refer to the instruction manual for the LD player.

Note that this unit's remote control can be used to operate the LD player by setting the corresponding manufacturer code for the DVD/LD position.

Connecting the Speakers

Be sure to connect the left channel (L), right channel (R), “+” (red) and “−” (black) properly. If the connections are faulty, no sound will be heard from the speakers, and if the polarity of the speaker connections is incorrect, the sound will be unnatural and lack bass.

CAUTION

• Use speakers with the specified impedance shown on the rear panel of this unit.
• Do not let the bare speaker wires touch each other and do not let them touch any metal part of this unit. This could damage the unit and/or speakers.

If necessary, use the SET MENU to change the speaker mode settings according to the number and size of the speakers in your configuration after you finish connecting your speakers.

■Speaker cables

10 mm (3/8") 1 2

A speaker cord is actually a pair of insulated cables running side by side. One of the cables is colored or shaped differently, perhaps with a stripe, groove or ridge.

1 Remove approx. 10 mm (3/8") of insulation from each of the speaker cables.
2 Twist the exposed wires of the cable together to prevent short circuits.

■Connecting to the SPEAKERS terminals

Red: positive (+)

Black: negative (−)

1 2 3

1 Unscrew the knob.
2 Insert one bare wire into the hole in the side of each terminal.
3 Tighten the knob to secure the wire.

■MAIN SPEAKERS terminals

One or two speaker systems can be connected to these terminals. If you use only one speaker system, connect it to either of the MAIN A or B terminals.

■REAR SPEAKERS terminals

A rear speaker system can be connected to these terminals.

■CENTER SPEAKER terminals

A center speaker can be connected to these terminals.

(Europe model) Subwoofer system Center speaker Rear speakers Right Main speakers A Left Right Left Main speakers B A B CBL MAIN COMPONENT VIDEO MONITOR OUT VIDEO S VIDEO SUB WOOFER OUTPUT SPEAKERS A B CENTER OUTPUT MAIN REAR (SUROUND) CENTER SWITCHED 100W MAX TOTAL IMPEDANCE SELECTOR SET BEFORE POWER ON MAIN A OR B: 8 MIN. SPEAKER A + B: 6 MIN. SPEAKER CENTER : 80 MIN. SPEAKER REAR : 80 MIN. SPEAKER MAIN A OR B: 4 MIN. SPEAKER A - B: 8 MIN. SPEAKER CENTER : 10 MIN. SPEAKER REAR : 15 MIN. SPEAKER

SUBWOOFER jack

When using a subwoofer with built-in amplifier, including the YAMAHA Active Servo Processing Subwoofer System, connect the input jack of the subwoofer system to this jack. Low bass signals distributed from the main, center and/or rear channels are directed to this jack. (The cut-off frequency of this jack is 90 Hz.) The LFE (low-frequency effect) signals generated when Dolby Digital or DTS is decoded are also directed if they are assigned to this jack.

Notes

• Adjust the subwoofer volume according to the operating instructions for the subwoofer. (Fine adjustment is possible using this unit's output level control of the effect speakers.)
• Depending on the settings of "1 SPEAKER SET", "6 DOLBY D. SET" and "7 DTS SET" on the SET MENU, some signals may not be output from the SUBWOOFER jack.

Connecting an External Amplifier

If you want to increase the power output to the speakers, or want to use another amplifier, connect an external amplifier to the OUTPUT jacks as follows.

Note

- When RCA pin plugs are connected to the OUTPUT jacks for output to an external amplifier, do not use the corresponding SPEAKERS terminals.

OUTPUT MAIN REAR SURROUND CENTER 1 2 3

①MAIN jacks

Main channel line output jacks.

Note

- The signals output through these jacks are affected by the BASS, TREBLE and BASS EXTENSION settings.

② REAR (SURROUND) jacks

Rear channel line output jacks.

③CENTER jacks

Center channel line output jacks.

Connecting an External Decoder

This unit is equipped with 6 additional input jacks (left and right MAIN, CENTER, left and right SURROUND and SUBWOOFER) for discrete multi-channel input from an external decoder, sound processor or pre-amplifier.

Connect the output jacks on your external decoder to the 6CH INPUT jacks. Be sure to match the left and right outputs to the left and right input jacks for the main and surround channels.

Notes

• When you select 6CH INPUT as the input source, this unit automatically turns off the digital sound field processor, and you cannot listen to DSP programs.
• When you select 6CH INPUT as the input source, changing items 1A to 1D on the SET MENU is not affected.

IMPEDANCE SELECTOR Switch

WARNING

Do not change the IMPEDANCE SELECTOR switch setting while the power of this unit is on, otherwise the unit may be damaged.

If this unit fails to turn on when STANDBY/ON (or POWER) is pressed, the IMPEDANCE SELECTOR switch may not be fully slid to either position. If so, slide the switch to either position fully when this unit is in the standby mode.

Select the left or right position according to the impedance of the speakers in your system. Be sure to move this switch only when this unit is in the standby mode.

(Europe model) WAINS AC OUTLETS SWITCHED 100W MAX. TOTAL IMPEDANCE SELECTOR (5" BEFORE POWER ON) MAX. A OR B: 8 g/M, SPEAKER A: 8 g/M, SPEAKER RIVER 20 g/M, SPEAKER REAR 20 g/M, SPEAKER MINA OR B: 4 g/M, SPEAKER A: B, 6 g/M, SPEAKER CENTER : 6 g/M, SPEAKER REAR : 6 g/M, SPEAKER IMPEDANCE SELECTOR

Switch position	Speaker Impedance level
Left	Main	If you use one set of main speakers, the impedance of each speaker must be 4 Ω or higher.
		If you use two sets of main speakers, the impedance of each speaker must be 8 Ω or higher.
	Center	The impedance must be 6 Ω or higher.
	Rear	The impedance of each speaker must be 6 Ω or higher.
Right	Main	If you use one set of main speakers, the impedance of each speaker must be 8 Ω or higher.
		If you use two sets of main speakers, the impedance of each speaker must be 16 Ω or higher.
	Center	The impedance must be 8 Ω or higher.
	Rear	The impedance of each speaker must be 8 Ω or higher.

Connecting the Power Supply Cords

After completing all connections, connect the AC power cord to an AC power outlet. Disconnect the AC power cord if you will not use this unit for a long period of time.

■AC OUTLET(S) (SWITCHED)

(Europe model) SWITCHED 100W MAX. TOTAL IMPEDANCE 5-POWER SET BEFORE POWER ON MAIN A OR B MIN. SPEAKER *6# MIN. SPEAKER 18 MIN. SPEAKER *8 MIN. SPEAKER *9 MIN. SPEAKER MAIN A OR B MIN. SPEAKER A1 B 30 MIN. SPEAKER CKR 16 MIN. SPEAKER PEAK 16 MIN. SPEAKER To AC outlet SWITCHED

Europe model .... 2 OUTLETS U.K. model .... 1 OUTLET Use these outlets to connect the power cords only from your audio/video components to this unit. The power to the AC OUTLET(S) is controlled by this unit's STANDBY/ON (or POWER and STANDBY). These outlets will supply power to any connected component whenever this unit is turned on. The maximum power (total power consumption of components) that can be connected to the AC OUTLET(S) is 100 W.

ON-SCREEN DISPLAY (OSD)

You can display the operation information for this unit on a video monitor. If you display the SET MENU and DSP program parameter settings on a monitor, it is much easier to see the available options and parameters than it is by reading this information on the front panel display.

• If a video source is being reproduced, the OSD is superimposed over the image.
• The OSD signal is not output to the REC OUT jack, and will not be recorded with any video signal.
• You can set the OSD to turn on (blue background) or off when a video source is not being reproduced (or the source component is turned off) by using “9 DISPLAY SET” on the SET MENU.

OSD Modes

You can change the amount of information the OSD shows.

Full display

This mode always shows the DSP program parameter settings on the video monitor.

Short display

This mode briefly shows the same contents as the front panel display at the bottom of the screen and then disappears.

Display off

This mode briefly shows the “DISPLAY OFF” message at the bottom of the screen and then disappears. Afterwards, no changes to operations appear on the monitor except those of the ON SCREEN button.

P01 CONCERT HALL

→ INIT. DLY....45ms ROOM SIZE 1.0 . LIVENESS ..... 5

P01 CONCERT HALL

Full display Short display

• When you choose the full display mode, INPUT / , VOLUME and some other types of operation information are displayed at the bottom of the screen in the same format as that for the front panel display.
• The SET MENU and test tone display appear regardless of the OSD mode.

Selecting the OSD Mode

When you turn on the power, the video monitor and front panel display show the level of the main volume for a few seconds and then switch to show the current DSP program.
2 Press ON SCREEN on the remote control repeatedly to change the display mode. The OSD mode changes in the following order: full display, short display, and display off.

Diagram of a remote control with labeled buttons and a circular dial showing internal function keys

Notes

• If you choose a video input source that has a component connected to both the S VIDEO IN and composite VIDEO IN jacks, and both the S VIDEO OUT and composite VIDEO OUT jacks are connected to a video monitor, the video signal is output to both the S VIDEO OUT and VIDEO OUT jacks. However, the OSD is carried only on the S-video signal. If no video signal is input, the OSD is carried on both the S-video and composite video signals.
• If your video monitor is connected only to the COMPONENT VIDEO jacks of this unit, the OSD is not shown. Make sure to connect your video monitor to the COMPONENT VIDEO jacks and either VIDEO or S VIDEO jacks if you want to see the OSD.
• Playing back video software that has an anti-copy signal or video signals with a lot of noise may produce unstable images.

SPEAKER MODE SETTINGS

This unit is equipped with a main amplifier capable of handling 5.1 channel. Although up to 6 speakers can be connected, it is possible to select the speaker mode that gives the best sound field effect according to the number and size of speakers being used.

Before use, please set the speaker mode setting using "1 SPEAKER SET" on the SET MENU described on page 39.

Summary of SPEAKER SET Items 1A through 1E

Item Description		Control value (default setting indicated in bold)
1A CENTER SP	Selects the output mode according to whether or not a center speaker is being used and its performance.	LRG/SML/NONE
1B MAIN SP	Selects the output mode according to the performance of the main speakers.	LARGE/SMALL
1C REAR L/R SP	Selects the output mode according to whether or not rear L/R speakers are being used and their performance.	LRG/SML/NONE
1D LFE/BASS OUT	Selects the speaker according to use for LFE signal output and low bass signal.	SWFR/MAIN/BOTH
1E MAIN LEVEL Selects	the main speaker level.	Normal/-10 dB

This section explains how to adjust the speaker output levels by using the test tone generator. When this adjustment is made, the output level heard at the listening position will be the same from each speaker. This is important for the best performance of the digital sound field processor, the Dolby Pro Logic decoder, Dolby Digital decoder and DTS decoder.

Note

- Since this unit cannot enter the test mode while headphones are connected to this unit, be sure to unplug the headphones from the PHONES jack when using the test tone.

Before You Begin

1 2 3 3 2

Press STANDBY/ON to turn on the power. Turn on the video monitor.

Press SPEAKERS A or B to select the main speakers to be used. If you are using two sets of the main speakers, press both A and B.

SPEAKERS

Set BASS and TREBLE on the front panel to the center position and set BASS EXTENSION to OFF.

Using the Test Tone (TEST DOLBY SUR.)

The adjustment of each speaker output level should be made at your listening position with the remote control.

1 2,6 5 4 3 YAMAHA

Set the selector dial to the AMP/TUN (or DSP/TUN) position.

Press TEST to output the test tone.

Adjust the volume so you can hear the test one.

The test tone is heard from the left main speaker, center speaker, right main speaker, right rear speaker and left rear speaker in order. The tone is produced for 2.5 seconds each time.

The state of the test tone output is also shown on the monitor by an image of the audio listening room. This is convenient for adjusting each speaker level.

TEST DOLBY SUR. LEFT

- If "1A CENTER SP" on the SET MENU is set to NONE, the center channel sound is automatically output from the left and right main speakers.

Note

- If the test tone cannot be heard, turn down the volume, set the unit in the standby mode and check the speaker connections.

4 Press LEVEL repeatedly to select the speaker to be adjusted.

- Once you press LEVEL, you can also select the speaker to be adjusted by pressing √. (Pressing ∧ changes the selection in the reverse order.)

5 Press repeatedly to adjust the output level of the currently selected speaker so that it becomes almost the same as that of the main speaker.

• While adjusting, the test tone is heard from the selected speaker.
• Repeat steps 4 and 5 to adjust the output levels of the center, left rear and right rear speakers.

6 When the adjustment is complete, press TEST.

The test tone stops and the current DSP program appears on the front panel display and on the video monitor.

Notes

• For details on adjusting the subwoofer speaker, refer to the effect speaker level adjustment described on page 46.
• After adjusting with the test tone, it is possible to adjust the speaker level to taste while listening to the playback of an actual source when using the effect speaker level adjustment described on page 46.

- You can increase the output levels of the effect speakers (center, left rear and right rear) to +10 dB. If the output level of these speakers is lower than that of the main speakers even after you have increased the output level of these speakers up to +10 dB, set “1E MAIN LEVEL” on the SET MENU to -10 dB. This setting decreases the main speaker output level to about one-third of the normal level. After you have set “1E MAIN LEVEL” on the SET MENU to -10 dB, adjust the levels for the center and rear speakers again.

BASIC PLAYBACK

When using the remote control, set the selector dial to the AMP/TUN position.

1 6 5 5 2 3

6 3 1 5 YAMAHA

1 Press STANDBY/ON (or POWER) to turn on the power. Turn on the video monitor.

The front panel display and the video monitor show the level of the main volume for a few seconds and then switch to show the current DSP program.

Front panel
or

Remote control

2 Press SPEAKERS A or B to select the main speakers to be used.

If you are using two sets of main speakers, press both A and B.

Front panel

3 Press INPUT ◀/▷ repeatedly (or press one of the input selector buttons) to select the input source.

• The current input source is indicated on the front panel display with a cursor.
• The current input source name and input mode appear on the front panel display and on the video monitor for a few seconds.

Select this: To reproduce the signal from this component

PHONO: Turntable
CD: CD player
TUNER: AM/FM tuner
MD/CD-R: MD recorder/CD recorder/tape deck
DVD: DVD player
D-TV/CBL: TV/digital TV or cable TV/satellite tuner

VCR 1: Video cassette deck 1

VCR 2/DVR: Video cassette deck 2/digital video recorder

V-AUX: Another audio/video component (connected to the VIDEO AUX jacks on the front panel)

To select a source connected to the 6CH INPUT jacks

Press 6CH INPUT until "6CH INPUT" appears on the front panel display and on the video monitor.

Notes

• If "6CH INPUT" is shown on the front panel display and on the video monitor, no other source can be played. To select another input source with INPUT / (or the input selector buttons), press 6CH INPUT to turn off "6CH INPUT" from the front panel display and the video monitor.
• If you want to enjoy an audio source connected to the 6CH INPUT jacks together with a video source, first select the video source and then press 6CH INPUT.

4 Start playback (or select a broadcast station) on the source component.

Refer to the operation instructions for the component.

5 Adjust the volume to the desired output level.

VOLUME or Front panel Remote control

If desired, use BASS, TREBLE and BASS EXTENSION etc. These controls are only effective for sound from the main speakers.

BASS EXTENSION ON OFF BASS TREBLE Front panel

Note

- If the component connected to the VCR 1 OUT, VCR 2/DVR OUT and MD/CD-R OUT jacks is turned off, the reproduced sound may be distorted or the volume may be lowered. In these cases, turn on the component.

6 Use the digital sound field processor.

See "Selecting a Sound Field Program".
■ To mute the sound

Use this when you want to temporarily mute audio output.

Press MUTE on the remote control.

To restore the audio output to the previous volume level, press MUTE again.

• You can also cancel mute to press any operation buttons such as VOLUME +/-.
• During muting, "MUTE ON" appears on the front panel display and on the video monitor.

■ When you have finished using this unit

Press STANDBY/ON (or STANDBY) to set this unit in the standby mode.

■ Notes on the digital signal

The digital input jacks of this unit can also handle 96-kHz sampling digital signals. (To utilize this, use a source that supports 96-kHz sampling digital signals and set the player for digital output. Refer to the operation instructions for the player.) Note the following when a 96-kHz sampling digital signal is input to this unit:

1. The following indication will appear on the front panel display.

V-AUX VC2-DIR VCR1 D-TV/CBL DVD MD/CO-R CDTUNER PROND PCM PCM STEREO 96K VOLUME

1. DSP programs cannot be selected. Sound will be output as normal 2-channel stereo sound from only the left and right main speakers.

Note

- If "1B MAIN SP" on the SET MENU is set to SMALL and "1D LFE/BASS OUT" is set to SWFR, or "1D LFE/BASS OUT" is set to BOTH, the sound is also output from the subwoofer.

1. Adjustment of the speaker output level (except for subwoofer output level) described on page 46 cannot be made.

■BGV (background video) function

The BGV function allows you to combine a video image from a video source with a sound from an audio source. (For example, you can listen to classical music while you are watching a video.)

Select a source from the video group and then select a source from the audio group with the input selector buttons on the remote control. The BGV function does not work if you select the sources with INPUT ◀/▷ on the front panel.

Input Modes and Indications

When using the remote control, set the selector dial to the AMP/TUN position.

This unit comes with various input jacks. If your component is connected to more than one type of input jack, you can set the priority of the input signal.

Press INPUT MODE (or the input selector button that you have pressed to select the input source on the remote control) repeatedly until the desired input mode is shown on the front panel display and on the video monitor.

AUTO: In this mode, the input signal is

automatically selected in the following order:

1) Dolby Digital or DTS signal
2) Digital (PCM) signal
3) Analog signal

DTS: In this mode, only the digital input

signal encoded with DTS is selected even if another signal is input at the same time.

ANLG (ANALOG): In this mode, only the analog input signal is selected even if a digital signal is input at the same time.

Notes

• If digital signals are input from both the COAXIAL and OPTICAL jacks, the digital signal from the COAXIAL jack is selected.
• When AUTO is selected, this unit automatically determines the type of signal. If this unit detects a Dolby Digital or DTS signal, the decoder automatically switches to the appropriate setting and reproduces 5.1 channel source.
• The sound output may be interrupted for some LD players and DVD players in the following situation: When the input mode has been set to AUTO and a search is performed while playing the source encoded with a Dolby Digital or DTS signal, the sound may delay for a moment when playback is resumed.
• Depending on the LD player, playback may not be made when playing an LD that is not digitally recorded with the input mode set to AUTO. If this happens, set the input mode to ANALOG.

■Notes on playing a source encoded with a DTS signal

• If the digital output data of the player has been processed in any way, you may not be able to perform DTS decoding even if you make a digital connection between this unit and the player.
• If you play a source encoded with a DTS signal and set the input mode to ANALOG, this unit reproduces the noise of an unprocessed DTS signal. When you want to play a DTS source, be sure to connect the source to a digital input jack and set the input mode to AUTO or DTS.
• If you switch the input mode to ANALOG while playing a source encoded with a DTS signal, this unit reproduces no sound.
• The following phenomena may occur if the input mode is set to AUTO when playing back source encoded with a DTS signal.
• If you continue to play a source encoded with a DTS signal, this unit automatically switches to the “DTS-decoding” mode to prevent noise from being generated during subsequent operation. (The “dts” indicator lights up on the front panel display.) The “dts” indicator may flash immediately after playback of a source encoded with a DTS signal has finished. Only a source encoded with a DTS signal can be played back while this indicator is flashing. (The indicator will flash for less than a minute.) If you want to play a normal PCM source soon, set the input mode back to AUTO.
• The “dts” indicator may flash when a search or skip operation is performed. If this status continues for a certain length of time, the unit will automatically switch from the “DTS-decoding” mode to PCM digital signal input mode and the “dts” indicator will go out.

Selecting a Sound Field Program

You can enhance your listening experience by selecting a DSP program. For details about each program, see "SOUND FIELD PROGRAM".

■On the remote control

1 2

1 Press DSP.

The indicator lights up for about 3 seconds.

- If the selector dial is set to the DSP/TUN position, skip this step.

2 Use the numeric buttons to select the desired program before the indicator goes off.

• For example, to select the sub-program "SPECTACLE", press MOVIE THEATER 1 repeatedly.
• The name of the selected program appears on the front panel display and on the video monitor.

■On the front panel

Diagram of a CD-ROM front panel with labeled buttons and ports, showing status indicators and function keys.

1 Press DSP PROGRAM.

2 Turn the multi jog knob to select the program.

The name of the selected program appears on the front panel display and on the video monitor.

Notes

• Choose a DSP program based on your listening preference, and not on the name of the program. The acoustics of your listening room affect the DSP program. Minimize the sound reflections in your room to maximize the effect created by the program.
• When you select an input source, this unit automatically selects the last DSP program used with that source.
• When you set this unit in the standby mode, the current source and DSP program are memorized and are automatically selected when you turn on the power again.
• If a Dolby Digital or DTS signal is input when the input mode is set to AUTO, the DSP program automatically switches to the appropriate decoding program.
• When a monaural source is being played with PRO LOGIC/NORMAL or PRO LOGIC/ENHANCED, no sound will be heard from the main speakers and the rear speakers. Sound can only be heard from the center speaker. However, if "1A CENTER SP" on the SET MENU is set to NONE, the center channel sound is output from the main speakers.
• When a source connected to the 6CH INPUT jacks of this unit is selected, the digital sound field processor cannot be used.
• When 96-kHz sampling digital signals are input to this unit, the DSP program cannot be selected. In this case, the sound is reproduced as normal 2-channel stereo.

■Virtual CINEMA DSP and SILENT CINEMA

Virtual CINEMA DSP

Virtual CINEMA DSP allows you to enjoy the sound field effects of the DSP program without rear speakers. Using YAMAHA original technology, natural surround reproduction is possible through the generation of a virtual speaker.

The sound field processing is changed to the Virtual CINEMA DSP mode by setting “1C REAR L/R SP” on the SET MENU to NONE. Virtual CINEMA DSP is performed by using the main speakers.

Note

• This unit is not set in the Virtual CINEMA DSP mode even if "1C REAR L/R SP" is set to NONE in the following cases:
• when the 5CH STEREO, PRO LOGIC/NORMAL, DOLBY DIGITAL/NORMAL or DTS/NORMAL program is selected;
• when the sound effect is turned off;
• when 6CH INPUT is selected as the input source;
• when 96-kHz sampling digital signals are input to this unit;
• when the Dolby Digital KARAOKE source is played;
• when using the test tone; or
• when connecting the headphones (you will hear SILENT CINEMA).

SILENT CINEMA

SILENT CINEMA allows you to enjoy the realistic feel of the DSP program while using headphones. This feature delivers powerful surround reproduction just as if listening through the speakers.

You can listen to SILENT CINEMA by connecting your headphones to the PHONES jack while the effect speakers are on.

Normal Stereo Reproduction

Press EFFECT to turn off the sound effect for normal stereo reproduction.

Press EFFECT again to turn the sound effect back on.

EFFECT or EFFECT >10 Front panel Remote control ↓ EFFECT OFF

- If the selector dial is set to a position other than the DSP/TUN position, first press DSP and then EFFECT on the remote control.

Notes

• If you turn off the sound effect, no sound is output from the center and rear speakers.
• If you turn off the sound effect while a Dolby Digital or DTS signal is being output, the dynamic range of the signal is automatically compressed and the sounds of the center and rear speaker channels are mixed and output from the main speakers.
• The volume may be greatly reduced when you turn off the sound effect or if you set “6 D-RANGE” on the SET MENU to MIN. In this case turn on the sound effect.

TUNING

Connecting the Antennas

Both AM and FM indoor antennas are included with this unit. In general, these antennas should provide sufficient signal strength.

Connect each antenna correctly to the designated terminals.

AM loop antenna (included) Indoor FM antenna (included) AM ANT GND FM ANT TUNER 75 Ω UNBAL. Ground (GND terminal) For maximum safety and minimum interference, connect the antenna GND terminal to a good earth ground. A good earth ground is a metal stake driven into moist earth.

■Connecting the indoor FM antenna

Connect the included indoor FM antenna to the FM ANT 75Ω UNBAL. terminal.

Note

- Do not connect an outdoor FM antenna and the indoor FM antenna at the same time.

■Connecting the AM loop antenna

1 Press and hold the tab to unlock the terminal hole.

2 Insert the AM loop antenna lead wires into the AM ANT and GND terminals.

3 Release the tab to lock the lead wires. Lightly pull the lead wires to confirm a good connection.
4 Attach the loop antenna to the antenna stand.
5 Orient the AM loop antenna so that the best reception is obtained.

- The AM loop antenna can be removed from the stand and attached to a wall, etc.

Notes

• The AM loop antenna should be placed away from this unit.
• The AM loop antenna should always be connected, even if an outdoor AM antenna is connected to this unit.

A properly installed outdoor antenna provides clearer reception than an indoor one. If you experience poor reception quality, an outdoor antenna may improve the quality. Consult the nearest authorized YAMAHA dealer or service center about the outdoor antennas.

Connecting a coaxial cable to the included 75-ohm/300-ohm antenna adapter (U.K. model only)

1

Open the cover of the included 75-ohm/300-ohm antenna adapter.

2

Cut the external sleeve of the 75-ohm coaxial cable and prepare it for connection.

3

d wire

Cut the lead wire and remove it.

4

Clamp with pliers.

Clamp with pliers. Insert the wire into the slot.

Insert the cable wire into the slot, and clamp it with pliers.

5

Snap the cover into place.

Automatic (or Manual) Tuning

Automatic tuning is effective when station signals are strong and there is no interference.

CD-ROM 1 2 3 4

1 Press INPUT ◀/▷ to select TUNER as the input source.

2 Press FM/AM to select the reception band. "FM" or "AM" appears on the front panel display.

3 Press TUNING MODE (AUTO/MAN'L MONO) so that the "AUTO" indicator lights up on the front panel display.

AUTO Lights up

If “>” appears on the front panel display next to the band indication, press PRESET/TUNING (EDIT) to turn it off.

Turn“>”off.

4 Turn the multi jog knob to the right or left to begin automatic tuning.

Turn the multi jog knob to the right for tuning in to a higher frequency, or to the left for tuning in to a lower frequency. Turn the knob again if the tuning search does not stop at the desired station.

• Use the manual tuning method if the tuning search does not stop at the desired station because the signal is weak.
• When tuned in to a station, the "TUNED" indicator lights up and the frequency of the received station is shown on the front panel display. If an RDS station that offers the PS data service is being received, the station name is shown instead of the frequency on the front panel display.

If the signal from the station you want to select is weak, you must tune in to it manually.

1 Press INPUT ◀/▷ to select TUNER as the input source.

2 Press FM/AM to select the reception band. "FM" or "AM" appears on the front panel display.

3 Press TUNING MODE (AUTO/MAN'L MONO) so that the "AUTO" indicator goes off from the front panel display.

If “>” appears on the front panel display next to the band indication, press PRESET/TUNING (EDIT) to turn it off.

Preset /TUNING EDIT A □F M Turn “>” off.

4 Turn the multi jog knob to the right or left to tune in to the desired station manually.

Note

- Manually tuning in to an FM station will automatically change the reception mode to monaural to increase the signal quality.

Presetting Stations

■Automatically presetting stations (for RDS stations)

You can use the automatic preset tuning feature to store RDS stations. This function enables the unit to automatically tune in to RDS stations with strong signals, and to store up to 40 (8 stations x 5 groups) of those stations in order. This feature enables you to easily tune in to any preset station by selecting the preset station number (see “Tuning in to a Preset Station”).

TANANA 1 3 2

1 Press FM/AM to select the FM band.

2 Press TUNING MODE (AUTO/MAN'L MONO) so that the "AUTO" indicator lights up on the front panel display.

3 Press and hold MEMORY (MAN'L/AUTO FM) for more than 3 seconds.

The preset number, the “MEMORY” and “AUTO” indicators flash. Then, after about 5 seconds, automatic preset tuning begins from the frequency currently displayed toward the higher frequencies.

When automatic preset tuning is completed, the front panel display shows the frequency of the last preset station.

Notes

• Any stored station data existing under a preset number is cleared when you store a new station under that preset number.
• The reception mode is stored along with the station frequency.
• You can manually replace a preset station with another FM or AM station by simply following the procedure in the section "Manually presetting stations".
• If the number of the received stations does not reach E8, automatic preset tuning has automatically stopped after searching all stations.
• Only RDS stations with sufficient signal strength are stored automatically by automatic preset tuning. If the station you want to store is weak in signal strength, tune in to it manually in the monaural mode, and store it by following the procedure in “Manually presetting stations”. (There may be a case that this unit cannot receive a station which could be received by using the automatic tuning method. This is because this unit receives a large amount of PI (Program Identification) data along with the station.)

Automatic preset tuning options

You can select the preset number from which the unit will store RDS stations and/or begin tuning toward lower frequencies. Before automatic preset tuning begins (after pressing MEMORY in step 3):

1. Turn the multi jog knob to select the preset number under which the first station will be stored.
   Automatic preset tuning will stop when stations have all been stored up to E8.

2. Press PRESET/TUNING (EDIT) to turn off “>” and then turn the multi jog knob to the left to begin tuning toward lower frequencies.

Memory back-up

The memory back-up circuit prevents the stored data from being lost even if this unit is set in the standby mode, the power cord is disconnected from the AC outlet, or the power supply is temporarily cut due to power failure. However, if the power is cut for more than one week, the preset stations may be cleared. If so, store the stations again by using the presetting station methods.

■Manually presetting stations

You can also store up to 40 stations (8 stations x 5 groups) manually.

3 2,4

1 Tune in to a station.

See “Automatic (or Manual) Tuning” for tuning instructions.

2 Press MEMORY (MAN'L/AUTO FM).

The “MEMORY” indicator flashes for about 5 seconds.

MEMORY MML-AUTO-CH → — MEMORY — Flashes

3 Turn the multi jog knob to select a preset station number while the "MEMORY" indicator is flashing.

Turn the multi jog knob to the right to select a higher preset station number, and to the left to select a lower preset station number.

4 Press MEMORY (MAN'L/AUTO FM) while the "MEMORY" indicator is flashing.

The station band and frequency appear on the front panel display with the preset group and number you have selected.

V-AUX VCR2/DVR VCH1 D-TV/CBL DVD MD/CD-R TUNER CD PFIONO TUNEDSTEREO AUTO A 1; F M 89,00MHz VOLUME

Shows the displayed station has been stored as A1.

5 Repeat steps 1 to 4 to store other stations.

Notes

• Any stored station data existing under a preset number is cleared when you store a new station under that preset number.
• The reception mode is stored along with the station frequency.

Tuning in to a Preset Station

You can tune any desired station simply by selecting the preset station number under which it was stored.

■On the remote control

1 2 3

1 Set the selector dial to the AMP/TUN position and press TUNER to select TUNER as the input source.

2 Press A/B/C/D/E to select the preset station group.

The preset group letter appears on the front panel display and changes each time you press A/B/C/D/E.

3 Press PRESET -/+ to select a preset station number (1 to 8).

The preset group and number appear on the front panel display along with the station band, frequency and the “TUNED” indicator lights up.

V-AUX VCR2/DVR VCR 1 D-TV/CBL DVD MD/CD-R TUNER CD PHONO TUNED/TH/ELIO AUTO A 1; FM 89.00MHz VOLUME

- You can select the preset station number with the numeric buttons (1 to 8) if code number "0023" has been set up in the AMP/TUN (or DSP/TUN) position.

■ On the front panel

STARAVI 2 1

1 Press PRESET/TUNING (EDIT) so that “>” next to the band indicator appears.

2 Turn the multi jog knob to select the desired preset station number.

The preset group and number appear on the front panel display along with the station band, frequency, and the "TUNED" indicator lights up.

V-AUX VCR2/DVR VCR 1 D-TV/CBL DVD MD/CD-R CDTUNER PHONE TUNED STREO AUTO A 1;FM 89.00MHz VOLUME ..........

Exchanging Preset Stations

You can exchange the assignment of two preset stations with each other. The example below describes the procedure for exchanging preset station "E1" with "A5".

YAMAHA 17:21 2,4

1 Tune in to preset station "E1". See "Tuning in to a Preset Station".
2 Press and hold PRESET/TUNING (EDIT) for more than 3 seconds.

“E1” and the “MEMORY” indicator flash on the front panel display.

PRESET /TUNING EDIT V-AUX VCR2/0VR VCR 1 D-TV/CBL DVD MD/CD-R CDTUNER PHOND MEMORY VOLUME

3 Tune in to preset station "A5" by using the buttons on the front panel.

"A5" and the "MEMORY" indicator flash on the front panel display.

V-AUX VCR2/VR VCR1 D-TV/CBL DVD MD/CD-R -AS÷FM CDTUNER PHONE MEMORY VOLUME

4 Press PRESET/TUNING (EDIT) again.

The stations stored at the two preset assignments are exchanged.

PRESET /TUNING EDIT V-AUX VCR2/DVR VCR1 D-TV/CBL DVD MD/CD-R CDTUNER PHONO MEMORY EDIT E1-AS VOLUME

Shows the exchange of stations has been completed.

RECEIVING RDS STATIONS

RDS (Radio Data System) is a data transmission system by FM stations in many countries. Stations using this system transmit an inaudible stream of data in addition to the normal radio signal.

RDS data contains various information such as PI (Program Identification), PS (Program Service name), PTY (Program Type), RT (Radio Text), CT (Clock Time), EON (Enhanced Other Networks), etc. The RDS function is carried out among the network stations.

Description of RDS Data

This unit can receive PI, PS, PTY, RT, CT, and EON data when receiving RDS broadcasting stations.

■PS (Program Service name) mode:

The name of the RDS station being received is displayed.

■PTY (Program Type) mode:

The program type on the RDS station being received is displayed. There are 15 program types to classify RDS stations. You can make this unit search for a station which is broadcasting a program of the desired type. See “PTY SEEK Function” for details.

■RT (Radio Text) mode:

Information about the program (such as the title of the song, name of the singer, etc.) on the RDS station being received is displayed by a maximum of 64 alphanumeric characters, including the umlaut symbol. If other characters are used for RT data, they are displayed with under-bars.

■CT (Clock Time) mode:

The current time is displayed and updated every minute. If the data are accidentally cut off, “CT WAIT” may appear.

■EON (Enhanced Other Networks):

See "EON Function".

Changing the RDS Mode

The four modes are available in this unit for displaying RDS data. When an RDS station is being received, PS, PTY, RT and/or CT mode indicators that correspond to the RDS data services offered by the station light up on the front panel display. Press RDS MODE/FREQ repeatedly to change the display mode among the RDS data offered by the transmitting station in the order shown below. Illumination of the red indicator next to the RDS mode indicator shows that the corresponding RDS mode is now selected.

Notes

• When an RDS station is being received, do not press RDS MODE/FREQ until one or more RDS mode indicators light up on the front panel display. If you press the button before the indicators light up on the front panel display, the mode cannot be changed. This is because the unit has not yet received all of the RDS data on the station.
• RDS data not offered by the station cannot be selected.
• The RDS data service cannot be utilized by this unit if the received signal is not strong enough. In particular, the RT mode requires a large amount of data to be received, so it is possible that the RT mode may not be displayed even if other RDS modes (PS, PTY, etc.) are displayed.
• RDS data cannot sometimes be received under poor reception conditions. If so, press TUNING MODE so that the “AUTO” indicator goes off from the front panel display. Although the reception mode is changed to monaural by this operation, when you change the display to RDS mode, RDS data may be displayed.
• If the signal strength is weakened by external interference during the reception of an RDS station, the RDS data service may be cut off suddenly and “...WAIT” will appear on the front panel display.

PTY SEEK Function

If you select the desired program type, the unit automatically searches all preset RDS stations that are broadcasting a program of the required type.

TUNAVI 2 1 3

1 Press PTY SEEK MODE to set the unit in the PTY SEEK mode.

The program type of the station being received or "NEWS" flashes on the front panel display.

PTY SEEK MODE START → NEWS Flashes

2 Turn the multi jog knob to select the desired program type.

The selected program type appears on the front panel display.

POP M

3 Press PTY SEEK START to begin searching all preset RDS stations.

The selected program type flashes and the "PTY HOLD" indicator lights up on the front panel display while searching for stations.

PTY SEEK MODE START Light up V-AUX VCR2DWR VCR1 D-TV/CBL DVD MD/CD-R TUNER CD PHONO PS - PTY RT CT TUNED ST BEO AUTO A 1-POP M- The selected program type flashes. VOLUME

• If a station that is broadcasting a program of the required type is found, the unit stops at that station.
• If the called station is not the desired one, press PTY SEEK START again. The unit begins searching for another station that is broadcasting a program of the same type.

■To cancel this function

Press PTY SEEK MODE twice.

■Program types in the PTY mode

There are 15 program types to classify RDS stations.

NEWS News
AFFAIRS Current affairs
INFO General information
SPORT Sports
EDUCATE Education
DRAMA Drama
CULTURE Culture
SCIENCE Science
VARIED Light entertainment
POP M Pops
ROCK M Rock
M.O.R. M Middle-of-the-road music (easy-listening)
LIGHT M	Light classics
CLASSICS	Serious classics
OTHER M Other music

EON Function

This function uses the EON data service on the RDS station network. If you simply select the desired program type (NEWS, INFO, AFFAIRS or SPORT), the unit automatically searches for all preset RDS stations that are scheduled to broadcast a program of the required type and switches from the station being currently received to the new station when the broadcasts starts.

Note

- This function can only be used when an RDS station that offers the EON data service is being received. When such a station is being received, the “EON” indicator lights up on the front panel display.

Diagram of a CD-ROM front panel with labeled buttons and ports, showing front panel 2 and control knobs.

1 Make sure that the "EON" indicator lights up on the front panel display.

If the “EON” indicator does not light up, tune in to another RDS station so that the “EON” indicator lights up.

V-AUX VCR2/DVR VCR 1 D-TV/CBL DVD MD/CD-R CDTUNER PHONE ■ PS PTY RT CT TUNEDST/FEQ AUTO AS ; NDR 1 SH VOLUME

2 Press EON repeatedly to select the desired program type (NEWS, INFO, AFFAIRS or SPORT).

The selected program type name indicator lights up on the front panel display.

EON ↓ Lights up V-AUX VCR2/DVR VCR1 D-TV/CBL DVD MD/CD-R TUNER CD PHONO PS PTY RT CT TUNED ST/IEO AUTO ES EON ENS AS; NBR 1.5H VOLUME

- If a preset RDS station of the selected program type starts broadcasting, the unit will automatically switch from the program being currently received to that program. The program type name indicator flashes.

V-AUX VCR2DVR VCR 1 D-TV/CBL DVD MD/CD-R CDTUNER PHONO PS PTY RT CT TUNED STREO AUTO B2; NDR 2 VOLUME Flashes

- When broadcasting of the required program ends, the previously received station (or another program on the same station) is recalled.

V-AUX VCR2/DVR VCR 1 D-TV/CBL DVD MD/CD-R TUNER CD PHONO ■PS PTY RT CT TUNED STREO AUTO A5; NDR 1 5H VOLUME

■To cancel this function

Press EON repeatedly until no program type name lights up on the front panel display.

BASIC RECORDING

Recording adjustments and other operations are performed from the recording components. Refer to the operation instructions for these components.

Diagram of a vintage audio recording device with labeled buttons and ports, including a remote control panel.

1 Turn on the power to the unit and all connected component.
2 Select the source component you want to record from.

Front panel

or

Remote control

3 Start playback (or select a broadcast station) on the source component.
4 Start recording on the recording component.

Notes

• Do a test recording before you start an actual recording.
• When this unit is set in the standby mode, you cannot record between other components connected to this unit.
• The setting of BASS, TREBLE, BASS EXTENSION, VOLUME, “2 L/R BALANCE” on the SET MENU and DSP programs does not affect the recorded material.
• A source connected to the 6CH INPUT jacks of this unit cannot be recorded.
• S-video and composite video signals pass independently through this unit's video circuits. Therefore, when recording or dubbing video signals, if your video source component is connected to provide only an S-video (or only a composite video) signal, you can record only an S-video (or only a composite video) signal by your VCR.
• A given input source is not output on the same REC OUT channel. (For example, the signal input from VCR 1 IN is not output on VCR 1 OUT.)
• Check the copyright laws in your country to record from records, CDs, radio, etc. Recording of copyrighted material may infringe copyright laws.

If you playback a video source that uses scrambled or encoded signals to prevent it from being dubbed, the picture itself may be disturbed due to those signals.

■Special considerations when recording DTS software

The DTS signal is a digital bitstream. Attempting to digitally record the DTS bitstream will result in noise being recorded. Therefore, if you want to use this unit to record sources that have DTS signals recorded on them, the following considerations and adjustments need to be made.

For DVDs and CDs encoded with DTS

Only 2-channel analog audio signals may be recorded. Set the DVD player (or CD player) as described in the player's operation instructions so that the audio signals are output from the player's analog outputs.

SET MENU

The SET MENU consists of 10 items including the speaker mode setting features. Use the SET MENU to enjoy the optimum audio/video playback for your system.

• You can adjust the items on the SET MENU while playing a source.
• We recommend that you adjust the items on the SET MENU while using a video monitor. It is easier to see the video monitor than it is to see the front panel display on this unit while adjusting the items.

Note

- The indication on the front panel display is the abbreviation of the OSD.

1 SPEAKER SET

1A CENTER SP

1B MAIN SP

1C REAR L/R SP

1D LFE/BASS OUT

1E MAIN LEVEL

2 L/R BALANCE
3 HP TONE CTRL
4 I/O ASSIGNMENT

4A CMPNT-V INPUT

4B OPTICAL OUT

4C OPTICAL IN

4D COAXIAL IN

5 INPUT MODE
6 DOLBY D. SET

LFE LEVEL

D-RANGE

7 DTS SET
8 SP DELAY TIME
9 DISPLAY SET

BLUE BACK

OSD SHIFT

DIMMER

10 MEMORY GUARD

Adjusting the Items on the SET MENU

Adjustment should be made with the remote control.

1 3,6 4,5 2 YAMAHA

Note

- Some items require extra steps to change to the desired setting.

1 Set the selector dial to the AMP/TUN (or DSP/TUN) position.

2 Press SET MENU to enter the SET MENU.

SET MENU 1/3

3 Press ∧√ repeatedly to select the item (1 to 10) you want to adjust.

SET MENU 1/3

- By pressing SET MENU repeatedly, you can select items in the same order as when pressing √.

4 Press < or > once to enter the setup mode of the selected item.

The last setting you adjusted appears on the video monitor or on the front panel display.

4A CMPNT-V INPUT

SET MENU

Depending on the item, press ∧∨∨ to select a sub item.

5 Press <//> repeatedly to change the setting of the item.

4A CMPNT-V INPUT →[A]……VCR 1 [B]……D-TV/CBL

6 Press ∧/∨ repeatedly until the current DSP program appears or simply press one of the DSP program group button to exit from the SET MENU.

Memory back-up

The memory back-up circuit prevents the stored data from being lost even if this unit is set in the standby mode, the power cord is disconnected from the AC outlet, or the power supply is temporarily cut due to power failure. However, if the power is cut for more than one week, the settings of the SET MENU you adjusted will return to the factory settings. If so, adjust the items again.

1 SPEAKER SET (speaker mode settings)

Use this feature to select suitable output modes for your speaker configuration.

Notes

• When 96-kHz sampling digital signals are input to this unit, level adjustments in items 1B, 1D and 1E are possible, but those in items 1A, 1C are not affected.
• When 6CH INPUT is selected as the input source, level adjustments in items 1A through 1E are not affected.

■ 1A CENTER SP (center speaker mode)

By adding a center speaker to your speaker configuration, the unit can provide good dialog localization for many listeners and superior synchronization of sound and images. The OSD shows a large, small or no center speaker depending on how you set this item.

Choices: LRG (large), SML (small), NONE Initial setting: LRG

LRG

Select this if you have a large center speaker. The entire range of the center channel signal is directed to the center speaker.

1A CENTER SP ►LRG SML NONE

SML

Select this if you have a small center speaker. The low-frequency signals (90 Hz and below) of the center channel are directed to the speakers selected with "1D LFE/BASS OUT".

1A CENTER SP LRG ▶SML NONE

NONE

Select this if you do not have a center speaker. All of the center channel signals are directed to the left and right main speakers.

1A CENTER SP LRG SML ▶NONE

■1B MAIN SP (main speaker mode)

The OSD shows large or small main speakers depending on how you set this item.

Choices: LARGE, SMALL

Initial setting: LARGE

LARGE

Select this if you have large main speakers. The entire range of the left and right main channel signal is directed to the left and right main speakers.

1B MAIN SP ►LARGE SMALL

SMALL

Select this if you have small main speakers. The low-frequency signals (90 Hz and below) of the main channel are directed to the speakers selected with "1D LFE/BASS OUT".

1B MAIN SP LARGE ▶ SMALL

Note

- When you select MAIN for "1D LFE/BASS OUT", the low-frequency signals (90 Hz and below) of the main channel are directed to the main speakers even if you select SMALL for the main speaker mode.

■1C REAR L/R SP (rear speaker mode)

The OSD shows large, small or no rear speakers depending on how you set this item.

Choices: LRG (large), SML (small), NONE Initial setting: LRG

LRG

Select this if you have large left and right rear speakers or if a rear subwoofer is connected to the rear speakers. The entire range of the rear channel signal is directed to the left and right rear speakers.

1C REAR L/R SP ►LRG SML NONE

SML

Select this if you have small left and right rear speakers. The low-frequency signals (90 Hz and below) of the rear channel are directed to the speakers selected with "1D LFE/BASS OUT".

1C REAR L/R SP LRG ▶SML NONE

NONE

Select this if you do not have rear speakers.

1C REAR L/R SP LRG SML ▶NONE

- This unit is set in the Virtual CINEMA DSP mode by selecting NONE for "1C REAR L/R SP".

SET MENU

■1D LFE/BASS OUT (bass out mode)

LFE signals carry low-frequency effects when this unit decodes a Dolby Digital or DTS signal. Low-frequency signals are defined as 90 Hz and below.

Choices: SWFR (subwoofer), MAIN, BOTH Initial setting: BOTH

SWFR

Select this if you use a subwoofer. The LFE signals are directed to the subwoofer.

1D LFE/BASS OUT ►SWFR MAIN BOTH

MAIN

Select this if you do not use a subwoofer. The LFE signals are directed to the main speakers.

1D LFE/BASS OUT SWFR ►MAIN BOTH

BOTH

Select this if you use a subwoofer and you want to mix the main channel low-frequency signals with the LFE signals.

1D LFE/BASS OUT SWFR MAIN ▶ BOTH

Notes

• When playing a 2-channel source (CD, MD, tape, video cassette etc.), select the BOTH position to direct low bass signals (below 90 Hz) to the SUBWOOFER jack.
• When you select SMALL (SML) for items 1A, 1B and 1C, the low-frequency signals (90 Hz and below) from those channels are added to the LFE and output to the subwoofer.

■1E MAIN LEVEL (main level mode)

Change this setting if you cannot match the output level of the center and rear speakers with the main speakers because of the unusually high-efficiency performance of the main speakers.

Choices: Normal, -10 dB Initial setting: Normal

Normal

Normally select this setting.

1E MAIN LEVEL ▶Normal -10dB

-10 dB

Select this if you cannot match the output level of your effect speakers with that of your main speakers when using the test tone. This setting decreases the main speaker output level to about one-third of the normal level.

1E MAIN LEVEL Normal ▶-10dB

2 L/R BALANCE (balance of the left and right main speakers)

Use this feature to adjust the balance of the output level from the left and right main speakers.

Control range: 10 for L/R Initial setting: 0

Press > to decrease the output level for the left main speaker. Press < for the right main speaker.

2 L/R BALANCE L·······||·······R 0 -/+ : Adjust ▲/▼ : Exit

Note

- The L/R BALANCE setting also applies to when headphones are being used.

3 HP TONE CTRL (headphone tone control)

Use this feature to adjust the level of the bass and treble when you use your headphones.

Control range (dB): -6 to +3

Initial setting: 0 dB for both BASS and TRBL (treble)

3 HP TONE CTRL →BASS TRBL_ 0dB+

4 I/O ASSIGNMENT

It is possible to assign jacks according to the component to be used if this unit's COMPONENT VIDEO input jack or DIGITAL INPUT/OUTPUT jack settings (component names for jacks) differ from that component. This makes it possible to change the jack assignment and effectively connect more component.

Once you assign, you can select that component with INPUT ◀/▷ (or the input selector buttons).

■4A CMPNT-V INPUT (for the COMPONENT VIDEO jacks)

Initial settings: [A] DVD

[B] D-TV/CBL

4A CMPNT-V INPUT

■4B OPTICAL OUT (for the OPTICAL OUTPUT jack)

Initial setting: (1) MD/CD-R

4B OPTICAL OUT

■4C OPTICAL IN (for the OPTICAL INPUT jacks)

Initial settings: (2) MD/CD-R

(3) DVD

(4) D-TV/CBL

4C OPTICAL IN

■4D COAXIAL IN (for the COAXIAL INPUT jack)

Initial setting: (5) CD

4D COAXIAL IN

→(5)···CD

Note

- You cannot select an item more than once for the same type of jack.

5 INPUT MODE (initial input mode)

Use this feature to designate the input mode when turning on the power of this unit with the source component connected to more than one type of input jacks.

Choices: AUTO, LAST

Initial setting: AUTO

5 INPUT MODE

▶ AUTO LAST

-/+ : Select ▲/▼Exit

AUTO

Select this to allow this unit to automatically detect the type of input signal and select the appropriate input mode.

LAST

Select this to set this unit to automatically select the last input mode used for that source.

6 DOLBY D. SET (Dolby Digital set)

This setting is effective only when this unit decodes Dolby Digital signals.

6 DOLBY D. SET →LFE LEVEL • • • • @dB D-RANGE •••▶MAX STD MIN -/+ : Adjust ▲ ▼Select/

■LFE LEVEL

Use this feature to adjust the output level of the LFE (low-frequency effect) channel when playing back a Dolby Digital signal. The LFE signal carries the low-frequency special effect sound which is only added to certain scenes.

Control value (dB): -20 to 0

Initial setting: 0 dB

Notes

• Adjust the LFE level according to the capacity of your subwoofer.
• Normally, around -6dB to -8dB is most suitable for listening at home.

■D-RANGE (dynamic range)

Use this feature to adjust the dynamic range (the difference between the maximum level and the minimum level of sounds).

Choices: MAX, STD (standard), MIN

Initial setting: MAX

• Select MAX for feature films.
• Select STD for general use.
• Select MIN for listening to sources at an extremely low volume level.

MAX Output level Dialog level Input level

STD Output level Dialog level Input level

MIN Output level Dialog level Input level

Note

- When you select MIN, the sound output may be faint because some Dolby Digital signals are not compatible with the minimum-level dynamic range. In this case, select MAX or STD.

7 DTS SET (DTS LFE level)

This setting is effective only when this unit decodes DTS signals.

Use this feature to adjust the output level of the LFE (low-frequency effect) channel when playing back a DTS signal. The LFE signal carries the low-frequency special effect sound which is only added to certain scenes.

Control range (dB): -10 to +10

Initial setting: 0 dB

7 DTS SET LFE LEVEL ••• 0dB -/+ : Adjust ▲ ▼Exit/

Note

- Adjust the LFE level according to the capacity of your subwoofer.

8 SP DELAY TIME

Use this feature to adjust the delay of the center channel sound. This feature works when this unit decodes a Dolby Digital or DTS signal. Ideally, the center speaker should be the same distance from the listening position as the left and right main speakers. However, in most home situations, the center speaker is placed in line with the main speakers. By delaying the sound from the center speaker, the apparent distance from the center speaker to the listening position can be adjusted to make it seem the same as the distance between the left and right main speakers to the listening position. Adjusting the delay time for the center speaker is especially important for giving depth to the dialog.

Control range (ms): 0 to 5

Initial setting: 0 ms

8 SP DELAY TIME CENTER • • • • • 0ms -/+ : Adjust ▲/▼ : Exit

- Increasing the delay by 1 ms simulates moving the speaker about 30 cm (one foot) farther away from the actual position of the center speaker.

9 DISPLAY SET

9 DISPLAY SET

→BLUE BACK ···· AUTO OSD SHIFT ······ 0 DIMMER ······ ······ 0

BLUE BACK

Selecting AUTO for the on-screen display setting displays a blue background when there's no video signal input. Nothing is displayed on the screen including the on-screen display if OFF is selected.

Initial setting: AUTO

■OSD SHIFT (OSD off-set position)

This setting is used to adjust the vertical position of the OSD.

Control range: +5 (downward) to -5 (upward)

Initial setting: 0

Press > to lower the position of the OSD.

Press < to raise the position of the OSD.

DIMMER

You can adjust the brightness of the front panel display.

Control range: -4 to 0

Initial setting: 0

10 MEMORY GUARD

Use this feature to prevent accidental changes to DSP program parameter values and other settings on this unit.

Choices: ON, OFF

Initial setting: OFF

10 MEMORY GUARD

▶ OFF

ON

: Select

: Exit

Select ON to protect the following features:

• DSP program parameters
• All SET MENU items
• Center, rear speakers and subwoofer levels
  • The on-screen display (OSD) mode

Notes

• When "10 MEMORY GUARD" is set to ON, you cannot use the test tone.
• When “10 MEMORY GUARD” is set to ON, you cannot select any other SET MENU items.

You can adjust the output level of each effect speaker (center, left and right rear and subwoofer) while listening to a music source.

Adjustment should be made with the remote control.

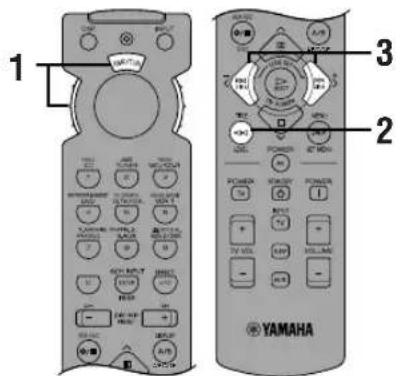

1 2 3 YAMAHA

Set the selector dial to the AMP/TUN (or DSP/TUN) position.

Press LEVEL repeatedly to select the speaker(s) you want to adjust.

Each time you press LEVEL, the selected speaker changes and appears on the front panel display and on the video monitor as follows: center, right rear, left rear and subwoofer.

- Once you press LEVEL, you can also select the speaker(s) to be adjusted by pressing ∨. (Pressing ∧ changes the selection in the reverse order.)

Press < / > to adjust the speaker output level.

• The control range for the center or left and right rear speakers is from +10 dB to -10 dB.
• The control range for the subwoofer is from 0 dB to -20 dB.

Notes

• If the speaker output mode is set to NONE, the output level of that speaker cannot be adjusted.
• When you adjust the output level with LEVEL, the settings you made with the test tone will be changed.
  • To adjust speakers other than the subwoofer, the adjusting procedure using the test tone on page 22 is recommended.

Memory back-up

The memory back-up circuit prevents the stored data from being lost even if this unit is set in the standby mode, the power cord is disconnected from the AC outlet, or the power supply is temporarily cut due to power failure. However, if the power is cut for more than one week, the output level of the effect speakers you adjusted will return to the factory settings. If so, adjust the output level again.

SLEEP TIMER

Use this feature to automatically set this unit in the standby mode after the amount of time you have set. The sleep timer is useful when you are going to sleep while this unit is playing or recording a source. The sleep timer also automatically turns off the external components connected to AC OUTLET(S).

The sleep timer can only be set with the remote control.

Setting the Sleep Timer

1 Select a source and start playback on the source component.

2 Set the selector dial to a position other than the TV position.

3 Press SLEEP repeatedly to set the amount of time before this unit automatically turns off.

Each time you press SLEEP, the front panel display changes as shown below.

V-AUX VOR2/0VR VCR1 D-TWCEL DVD MD/CD-R TUNER CD PHONO DIGITAL DSP SLEEP 120MIN VOLUME

4 The "SLEEP" indicator soon lights up on the front panel display after the sleep timer has been set.

The display then returns to the previous indication.

V-AUX VCR20VR VCR1 D-TV/CBL DVD MD/CD-R TUNER CD PHONO DIGITAL DSP CONCERT HALL SLEEP VOLUME

Canceling the Sleep Timer

Press SLEEP repeatedly until "SLEEP OFF" appears on the front panel display.

After a few seconds, “SLEEP OFF” disappears, the “SLEEP” indicator goes off and the display returns to the previous indication.

- The sleep timer setting can also be canceled by setting this unit in the standby mode by using STANDBY on the remote control (or STANDBY/ON on the front panel) or by disconnecting the AC power cord from the AC outlet.

REMOTE CONTROL FEATURES

It is possible to control this unit and other YAMAHA A/V components using the remote control supplied with this unit. It is also possible to control components from other manufacturers (or some YAMAHA components) by setting the proper manufacturer code (a signal assigned to each manufacturer and component).

Note

- For the notes on batteries, operating distance and names and functions of the remote control, refer to each description in this manual.

Selector Dial

Select the component (position) to be controlled by the remote control. For example, if the CD position is selected, the remote control is set in the CD operation mode, allowing the CD player to be controlled. When turning the selector dial, the position changes as follows:

Notes

• The general operational buttons on the remote control differ depending on the position of the selector dial. See the following pages for details.
• When shipped from the factory, the YAMAHA manufacturer codes listed on page 54 are set for each dial position. If unable to operate your YAMAHA A/V component, please try using another YAMAHA code.

Commonly Used Buttons in Any Position of the Selector Dial

Regardless of the position of the selector dial, you can control this unit and your TV with the following buttons.

Note

- You have to set up the code for your TV in the TV position before you can control the TV.

LEVEL POWER AV SET MENU 1 2 POWER STANDY POWER TV INPUT TV + VOLUME - 3 TV VOL SLIFT - MUTE 4 5 YAMAHA

■Controlling this unit

See "Remote Control".

1STANDBY
②POWER
③VOLUME +/-
④SLEEP

Note

- If you have set up the code for your TV and set the selector dial to the TV position, this button is used to set the sleep timer for the TV.

⑤MUTE

Note

- If you have set up the code for your TV and set the selector dial to the TV position, this button is used to mute the TV sound.

■Controlling your TV

1 TV POWER
2 TV INPUT
3 TV VOLUME +/-

Controlling the Components Connected to This Unit

The example below describes the procedure for controlling a YAMAHA CD player.

1 3 4 5 2 6 YAMAHA

1 Set the selector dial to the CD position.

2 Turn on the power.

3 Press INPUT. The indicator lights up for about 3 seconds.

4 Press CD while the indicator is lit.

5 Press ▷. See “Button Names and Functions in Eash Position” for the CD player operation buttons.

6 Adjust the volume.

If you set the remote control with the manufacturer codes listed from page i at the end of this manual, you can control other brands of components. See "Setting the Manufacturer Codes" for details.

Button Names and Functions in Each Position

■TAPE/MD position (tape deck, MD recorder or CD recorder)

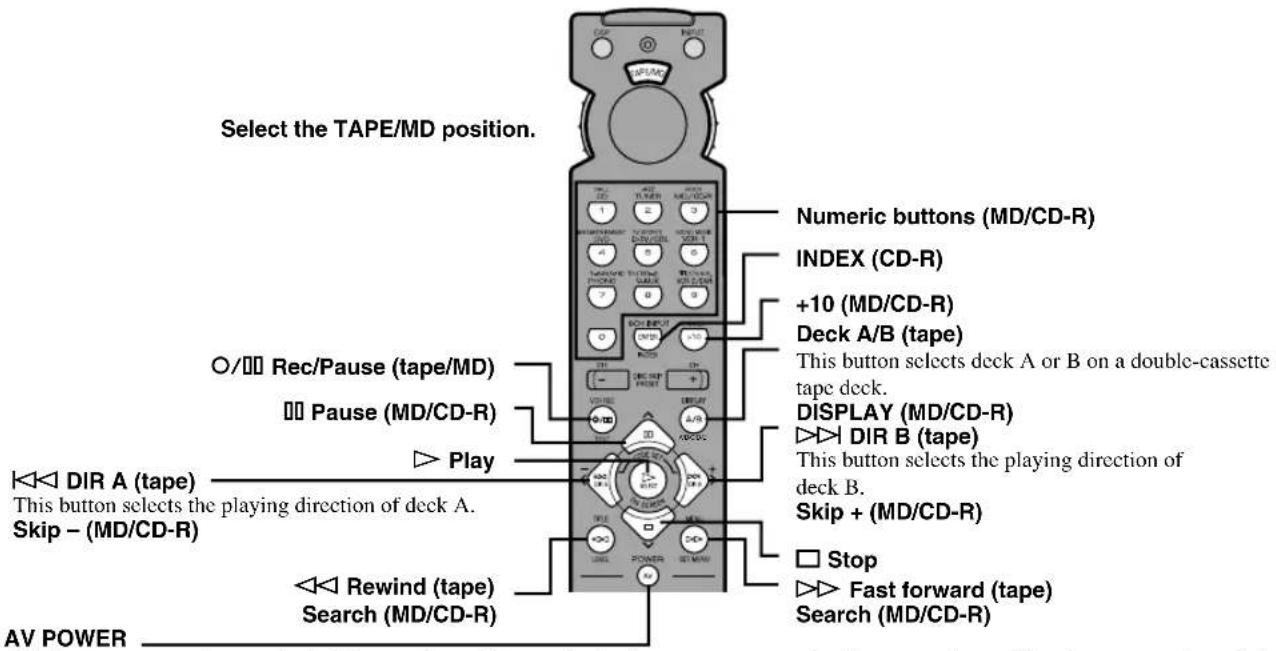

Select the TAPE/MD position. Numeric buttons (MD/CD-R) INDEX (CD-R) +10 (MD/CD-R) Deck A/B (tape) This button selects deck A or B on a double-cassette tape deck. DISPLAY (MD/CD-R) DIR B (tape) This button selects the playing direction of deck B. Skip + (MD/CD-R) Stop Fast forward (tape) Search (MD/CD-R) AV POWER Rec/Pause (tape/MD) Pause (MD/CD-R) Play DIR A (tape) This button selects the playing direction of deck A. Skip - (MD/CD-R) Rewind (tape) Search (MD/CD-R)

This button turns on the tape deck, MD recorder or CD recorder that has a remote control with a power button if you have set up the code for another manufacturer.

■CD position

Select the CD position. Numeric buttons INDEX +10 Pause/Stop function • Press the button once to give a pause in operation and press once more to stop operation. DISPLAY Pause YAMAHA CD player (factory settings): Pause/Stop ▷ Play ◀◀ Skip - ◀◀ Search ◀◀ Skip + ◀ □ Stop YAMAHA CD player (factory settings): Pause/Stop ◀▶ Search AV POWER This button turns on the CD player that has a remote control with a power button if you have set up the code for another manufacturer.

- The dark-shaded buttons do not function even if you have set up the manufacturer code.

- Some of them may not function depending on the component you have. In this case, use the original remote control supplied with your component.

■DVD/LD position

Select the DVD/LD position. Numeric buttons INDEX/Time (DVD) Chapter/Time (LD) +10 DISC SKIP -/+ (DVD) DISPLAY Play Skip - (DVD) Skip/Chapter - (LD) Search Pause Skip + (DVD) Skip/Chapter + (LD) Stop AV POWER

(DVD) This button turns on the DVD player that has a remote control with a power button if you have set up the code for another manufacturer.
(LD) This button turns on the LD player that has a remote control with a power button if you have set up the code for another manufacturer.

■DVD MENU position

Note

- DVD MENU operations cannot be performed for some DVD players.

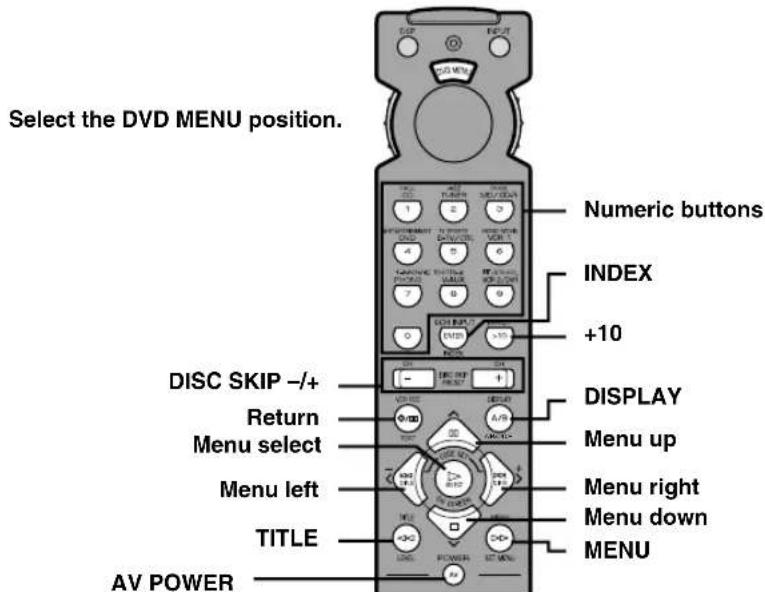

Select the DVD MENU position. Numeric buttons INDEX +10 DISC SKIP -/+ DISPLAY Return Menu up Menu select Menu right Menu left Menu down TITLE MENU AV POWER

This button turns on the DVD player that has a remote control with a power button if you have set up the code for another manufacturer.

• The dark-shaded buttons do not function even if you have set up the manufacturer code.
• Some of them may not function depending on the component you have. In this case, use the original remote control supplied with your component.

■VCR position

Select the VCR position. VCR REC Press this button twice to start recording. Numeric buttons Ch enter/Recall J-- CH -/+ DISPLAY Play Pause Stop Rewind Fast forward AV POWER

This button turns on a VCR that has a remote control with a power button if you have set up the code for your VCR.

■CBL/SAT position

Select the CBL/SAT position. Numeric buttons Ch enter /_ DISPLAY/ Guide (SAT) Menu up Menu right Menu down MENU AV POWER

This button turns on a cable TV/satellite tuner that has a remote control with a power button if you have set up the code for your cable TV/satellite tuner.

■TV position

Note

- You can control your VCR if you have set up the code for it in the VCR position.

Select the TV position. Numeric buttons VCR REC Press this button twice. Ch enter/Recall /_ CH -/+ DISPLAY VCR pause VCR play □ VCR stop ▷ VCR fast forward VCR power TV POWER ◀ VCR rewind This button turns on a TV that has a remote control with a power button if you have set up the code for your TV. TV VOL +/- TV INPUT TV SLEEP TV MUTE YAMAHA

• The dark-shaded buttons do not function even if you have set up the manufacturer code.
• Some of them may not function depending on the component you have. In this case, use the original remote control supplied with your component.

Setting the Manufacturer Code

You can set up the code for the manufacturer of your component in each position of the selector dial.

1 Turn on your component to be used.

2 Set the selector dial to the desired position for the component (TAPE/MD, CD, DVD/LD, etc.).

3 Press < / > at the same time for about 4 seconds.

The indicator flashes twice.

Diagram showing a mechanical or electrical component before and after transformation, with labeled parts and directional arrow.

4 Use the numeric buttons to enter the four-digit manufacturer code for the component to be used. Make sure that the indicator flashes twice.

If the indicator does not flash or flashes rapidly several times, repeat step 3 and re-enter the code.

5 Press AV POWER (or any other button) to check if you have set up the code correctly.

If your component cannot be controlled with the remote control, try setting another code for the same manufacturer.

Notes

• You can set up only one code for one position.
• In the DVD/LD and DVD MENU positions: Be sure to set the selector dial to the DVD/LD position before entering the code for the DVD/LD player. You cannot set up the code for a DVD player when the selector dial is set to the DVD MENU position. The code set up in the DVD/LD position is also simultaneously set up in the DVD MENU position.
• If your component does not respond to any of the codes listed for the manufacturer, use the original remote control supplied with your component.

■To use a second (and third) VCR

You can control a second (and third) VCR in the CBL/SAT and DVD MENU positions if a cable TV/satellite tuner or DVD player is not being used.

Note

- In order to set a second (and third) VCR in the DVD MENU position, it is necessary to first set up the code for an LD player in the DVD/LD position.

1 Turn on the VCR to be used.

2 Set the selector dial to the CBL/SAT or DVD MENU position.

3 Press / at the same time for about 4 seconds.

The indicator flashes twice.

Diagram showing a circular device with labeled components and an arrow pointing to a simplified electrical component.

4 Use the numeric buttons to enter the four-digit code for the second (and third) VCR. Make sure that the indicator flashes twice.

If the indicator does not flash or flashes rapidly several times, repeat step 3 and re-enter the code.

5 Press AV POWER (or any other button) to check if you have set up the code correctly.

If the VCR cannot be controlled with the remote control, try setting another code for the same manufacturer.

Returning to the Factory Setting

■To return to the factory-set codes in all positions

1 Press < / > at the same time for about 4 seconds.

The indicator flashes twice.

2 Enter the code number "9990".

Make sure that the indicator flashes twice.

HALL CO 1 DIGITAL/MOYA 2 TUNER 3 MOYA/CDAR 4 TURS LTV/CDR 5 NOVO VER 1 6 1+MOVE THYS PHONG 7 VAIR 8 BEET/SHE KOSZ/VR 9 O →

■To return to the factory-set codes in each position

1 Set the selector dial to the position for the component to be returned to the factory setting.

2 Press I at the same time for about 4 seconds.

The indicator flashes twice.

Diagram showing a device with labeled components and an arrow indicating transformation or change.

3 Enter the code number "0000".

Make sure that the indicator flashes twice.

FULL CO 1 ENTRINNMENT SVD 2 TV GREEN DUT/DR 3 MOCK MODE VEA 1 4 L/MOVE THICKS PHONE 5 VOLUX 6 DELESTER VEA 2/VR 7 O2 →

The following codes are factory set.

Selector dial position	Component Code Set component Set code
TV TV 0101
CBL/SAT Cable TV 0006
VCR VCR 0002
DVD/LD DVD player	0008 (YAMAHA DVD player)
CD	CD player	0005 (YAMAHA CD player)
TAPE/MD	MD recorder	0024 (YAMAHA MD recorder)

We recommend that you write all the code numbers you have set on the table above.

SOUND FIELD PROGRAM

A digital sound field processor (DSP) based on the latest YAMAHA technology is built into this unit. It is possible to play back various sound fields for the source you are listening to.

Note

- Regardless of the program name and characteristics listed in the table below, select the sound field program that sounds best to you.

Hi-Fi DSP Programs

■For audio sources: Nos. 1 to 4

No.	Program (group) Sub-program Features
1	CONCERT HALL —		A large round concert hall with a rich surround effect. Pronounced reflections from all directions emphasize the extension of sounds. The sound field has a great deal of presence, and your virtual seat is near the center, close to the stage.
2	JAZZ CLUB	—	This is the sound field at stage front in “The Bottom Line”, a famous New York jazz club. The floor can seat 300 people to the left and right in a sound field offering a real and vibrant sound.
3	ROCK CONCERT —		The ideal program for lively, dynamic rock music. The data for this program was recorded at LA’s “hottest” rock club. The listener’s virtual seat is at the center-left of the hall.
4	ENTERTAINMENT DISCO		This program recreates the acoustic environment of a lively disco in the heart of a big city. The sound is dense and highly concentrated. It is also characterized by a high-energy, “immediate” sound.
			5CH STEREO Using this program increases the listening position range. This is a sound field suitable for background music at parties.

Note

- Reverberations (sound effects) for realizing the sound field and unprocessed stereo from the left and right main speakers is output. The sound is not output from the center speaker. (The sound is output when one of these programs is selected while playing a source encoded with a Dolby Digital or DTS signal. If 5CH STEREO is selected, the sound is output from all speakers regardless of the input source.)

CINEMA DSP Programs

■For audio-video sources: Nos. 4 to 6

No.	Program (group) Sub-program Features
4	ENTERTAINMENT GAME		This program adds a deep and spatial feeling to video game sounds.
5	TV SPORTS	—	Although the presence sound field is relatively narrow, the surround sound field employs the sound environment of a large concert hall. With this program, you can enjoy watching various TV programs such as news, variety shows, music programs or sports programs. In a stereo broadcast of a sports game, the commentator is oriented at the center position, and the shouts and the atmosphere in the stadium spread on the surround side, while their spread to the rear is properly restrained.
6	MONO MOVIE	—	This program is provided for reproducing monaural video sources (such as old movies). The program produces the optimum reverberation to create sound depth by using only the presence sound field.

■For movie programs: Nos. 7 to 9

No.	Program (group)	Sub-program		Input source Features
7	MOVIE THEATER 1	SPECTACLE	70 mm SPECTACLE	Analog, PCM, Dolby Digital in 2-channel	This program creates the extremely wide sound field of a 70-mm movie theater. It precisely reproduces the source sound in detail, making both the video and the sound field incredibly real. This is ideal for any kind of video source encoded with Dolby Surround, Dolby Digital or DTS (especially large-scale movie productions).
			DGTL SPECTACLE	Dolby Digital (5.1-channel)
			DTS SPECTACLE	DTS
		SCI-FI 70 mm	SCI-FI	Analog, PCM, Dolby Digital in 2-channel	This program clearly reproduces dialog and sound effects in the latest sound form of science fiction films, thus creating a broad and expansive cinematic space amid the silence. You can enjoy science fiction films in a virtual-space sound field that includes Dolby Surround, Dolby Digital and DTS-encoded software employing the most advanced techniques.
			DGTL SCI-FI Dolby	Digital (5.1-channel)
			DTS SCI-FI	DTS
8	MOVIE THEATER 2	ADVENTURE	70 mm ADVENTURE	Analog, PCM, Dolby Digital in 2-channel	This program is ideal for precisely reproducing the sound design of the newest 70-mm and multichannel soundtrack films. The sound field is made to be similar to that of the newest movie theaters, so the reverberations of the sound field itself are restrained as much as possible.
			DGTL ADVENTURE	Dolby Digital (5.1-channel)
			DTS ADVENTURE	DTS
		GENERAL 70	mm GENERAL Analog, PCM, Dolby Digital in 2-channel		This program is for reproducing sounds from 70-mm and multichannel soundtrack films, and is characterized by a soft and extensive sound field. The presence sound field is relatively narrow. It spatially spreads all around and toward the screen, restraining the echo effect of conversations without losing clarity. For the surround sound field, the harmony of music or chorus sounds beautifully in a wide space at the rear of the sound field.
			DGTL GENERAL	Dolby Digital (5.1-channel)
			DTS GENERAL	DTS
9	DD/DTSSURROUND	NORMAL PRO	LOGIC/NORMAL	Analog, PCM, Dolby Digital in 2-channel	The built-in decoder precisely reproduces sounds and sound effects from sources. The highly efficient decoding process improves crosstalk and channel separation, and makes sound positioning smoother and more precise. In this program, the digital sound field processor is not turned on.
			DOLBY DIGITAL/NORMAL	Dolby Digital (5.1-channel)
			DTS DIGITAL SUR./NORMAL	DTS
		ENHANCED PRO	LOGIC/ENHANCED	Analog, PCM, Dolby Digital in 2-channel	This program ideally simulates the multi-surround speaker systems of the 35-mm film theaters. Dolby Pro Logic decoding, Dolby Digital decoding or DTS decoding and digital sound field processing create precise effects without altering the original sound orientation. The surround effects produced by this sound field wrap around the viewer naturally from the back to the left and right, and toward the screen.
			DOLBY DIGITAL/ENHANCED	Dolby Digital (5.1-channel)
			DTS DIGITAL SUR./ENHANCED	DTS

Notes

- The “DSP” indicator does not light up when selecting the sub-program “NORMAL” of the ☐/DTS SURROUND program.

- If "1A CENTER SP" on the SET MENU is set to NONE, no sound is output from the center speaker.

- The effect sound is output from the main speakers when a monaural source is played with CINEMA DSP program groups 4 (GAME) and 5 to 8.

■MOVIE THEATER 1 and 2

Most commercially available movie software has 4-channel (left, center, right and surround) sound information encoded by Dolby Surround matrix processing and stored on the left and right tracks. These signals are processed by the Dolby Pro Logic decoder. The MOVIE THEATER programs are designed to recreate the spaciousness and delicate nuances of sound that tend to be lost in the encoding and decoding processes.

The 6-channel soundtracks found on 70-mm film produce precise sound field localization and rich, deep sound without using matrix processing. This unit's MOVIE THEATER 70 mm programs provide the same quality of sound and sound localization that 6-channel soundtracks do.

When the input source is analog, PCM or encoded with Dolby Digital in 2-channel

Presence DSP sound field Surround DSP sound field

These programs express an immense sound field and a large surround effect. They also give depth to the sound from the main speakers to recreate the realistic sound of a Dolby Stereo theater.

70 mm SPECTACLE

70 mm SCI-FI

70 mm ADVENTURE

70 mm GENERAL

The built-in Dolby Digital or DTS decoder brings the professional-quality sound designed for movie theaters into your home. With the unit's MOVIE THEATER programs, you can recreate a dynamic sound that gives you the feeling of being at a public theater in your listening room by using Dolby Digital or DTS technology.

When the input source is encoded with Dolby Digital (5.1-channel) or DTS (Tri-Field CINEMA DSP)

Presence DSP sound field Left surround DSP sound field Right surround DSP sound field

These programs use YAMAHA's tri-field DSP processing on each of the Dolby Digital or DTS signals for the front, left surround and right surround channels. This processing enables this unit to reproduce the immense sound field and surround expression of a Dolby Digital- or DTS-equipped movie theater without sacrificing the clear separation of all channels.

DGTL SPECTACLE

DTS SPECTACLE

DGTL SCI-FI

DTS SCI-FI

DGTL ADVENTURE

DTS ADVENTURE

DGTL GENERAL

DTS GENERAL

- If a Dolby Digital signal or DTS signal is input when the input mode is set to AUTO, the DSP program will be automatically switched to the Dolby Digital playback sound field or DTS playback sound field.

SOUND FIELD PROGRAM PARAMETER EDITING

What is a sound field?

What really creates the rich, full tones of a live instrument are the multiple reflections from the walls of the room. In addition to making the sound “live”, these reflections enable us to tell where the player is situated, and the size and shape of the room in which we are sitting.

■Elements of a sound field

In any environment, in addition to the direct sound coming straight to our ears from the player's instrument, there are two distinct types of sound reflections that combine to make up the sound field:

Early reflections

Reflected sounds reach our ears extremely rapidly (50 ms – 100 ms after the direct sound), after reflecting from one surface only — for example, from the ceiling or a wall. These reflections fall into specific patterns for any particular environment, and provide vital information to our ears. Early reflections actually add clarity to the direct sound.

Reverberations

These are caused by reflections from more than one surface — walls, ceiling, the back of the room — so numerous that they merge together to form a continuous sonic “afterglow”. They are non-directional, and lessen the clarity of the direct sound.

Direct sound, early reflections and subsequent reverberation taken together help us to determine the subjective size and shape of the room, and it is this information that the digital sound field processor reproduces in order to create sound fields.

If you could create the appropriate early reflections and subsequent reverberations in your listening room, you would be able to create your own listening environment. The acoustics in your room could be changed to those of a concert hall, a dance floor, or virtually any size room at all. This ability to create sound fields at will is exactly what YAMAHA has done with the digital sound field processor.

Sound Field Program Parameters

DSP programs consist of some parameters to determine the apparent room size, reverberation time, distance from you to the performer, etc. In each program, these parameters are set with values precisely calculated by YAMAHA to create a sound field unique to the program. It is recommended to use DSP programs without changing the values of parameters; however, this unit also allows you to create your own sound fields. Starting with one of the built-in programs, you can adjust those parameters.

Each DSP program has a set of parameters that allow you to change the characteristics of the acoustic environment to precisely create the effect you want. These parameters correspond to the many natural acoustic factors that create the sound field you experience in an actual concert hall or other listening environment. The size of the room, for example, affects the length of time between the early reflections. The “ROOM SIZE” parameter provided in many of the DSP programs alters the timing between these reflections, thus changing the shape of the “room” you are listening. In addition to room size, the shape of the room and the characteristics of its surfaces have a significant effect on the final sound. Surfaces that absorb sound, for example, cause the reflections and reverberations to die out more quickly, while highly reflective surfaces allow the reflections to carry on for a longer period of time. The digital sound field parameters allow you to control these and many other factors that contribute to your personal sound field, allowing you to essentially “redesign” the concert halls, theaters, etc. provided to create custom-tailored listening environments that ideally match your mood and music.

See "Sound Field Parameter Descriptions".

Changing Parameter Settings

Although it is possible to enjoy playback on your system without changing default setting parameters for the sound field program, it is also possible to enjoy specifically tailor the sound field program to the characteristics of the source and the acoustics of the listening room.

3 1 2 4 5 YAMAHA

1 Set the selector dial to the DSP/TUN (or AMP/TUN) position.

or

2 Turn on the video monitor and press ON SCREEN repeatedly to select the full display mode.

3 Select a DSP program you want to adjust.

Example of the MOVIE THEATER 1

4 Press ∨ ∨ to select the parameter.

5 Press < / > to change the parameter value.

- When you set the parameter to a value other than the factory-set value, an asterisk mark (*) appears by the parameter name on the video monitor.

6 Repeat steps 3 to 5 above as necessary to change other program parameters.

Memory back-up

The memory back-up circuit prevents the stored data from being lost even if this unit is set in the standby mode, the power cord is disconnected from the AC outlet, or the power supply is temporarily cut due to power failure. However, if the power is cut for more than one week, the parameter value you edited will return to the factory setting. If so, edit the parameter value again.

Resetting a Parameter to the Factory-set Value

Select the parameter you want to reset. Then press and hold < or > until the value temporarily stops at the factory-set value. The asterisk mark (*) by the parameter name disappears on the video monitor.

Notes

- The available parameters may be displayed on more than one OSD page for some of the programs. To scroll through pages, press ∧/∨.

- You cannot change parameter values when "10 MEMORY GUARD" on the SET MENU is set to ON. If you want to change the parameter values, set "10 MEMORY GUARD" to OFF.

Sound Field Parameter Descriptions

You can adjust the values of certain sound field parameters so the sound fields are recreated accurately in your listening room.

Note

- Not all of the following parameters can be found in every program.

■INIT.DLY (initial delay)

(P.INIT.DLY — for the presence sound field)

Function: This parameter changes the apparent distance from the sound source by adjusting the delay between the direct sound and the first reflection heard by the listener.

Control range: 1 - 99 msec

Description: The smaller the value, the closer the sound source seems to the listener. The larger the value, the farther the apparent distance seems. For a small room, this parameter would be set to a small value, for a large room, set it to a large value.

Level Time INIT. DLY INIT. DLY INIT. DLY Sound source Reflection surface Sound source First reflection Early reflections Level Time Large value = 99 ms Small value = 1 ms

■ROOM SIZE

(P.ROOM SIZE — for the presence sound field)

Function: This parameter adjusts the apparent size of the surround sound field. The larger the value, the larger the surround sound field becomes.

Control range: 0.1 - 2.0

Description: As the sound is repeatedly reflected around a room, the larger the hall is, the longer the time between the original reflected sound and the subsequent reflections. By controlling the time between the reflected sounds, you can change the apparent size of the virtual venue. Changing this parameter from one to two, doubles the apparent length of the room.

Level Time Sound source Early reflections Level Time Sound source Small value = 0.1 Large value = 2.0

LIVENESS

Function: This parameter adjusts the reflectivity of the virtual walls in the hall by changing the rate at which the early reflections decay.

Control range: 0 - 10

Description: The early reflections of a sound source decay much faster in a room with acoustically absorbent wall surfaces than in one which has highly reflective surfaces. A room with acoustically absorbent surfaces is referred to as “dead,” while a room with highly reflective surfaces is referred to as “live”. The “LIVENESS” parameter lets you adjust the early reflection decay rate, and thus the “liveness” of the room.

Level Dead Time Sound source Level Time Live Level Time Small reflected sound Large reflected sound Sound source Small value = 0 Large value = 10

■S.DELAY (surround delay)

Function: This parameter adjusts the delay between the direct sound and the first reflection in the surround sound field.

Control range: 0 - 49 msec (The range depends on the signal format.)

■S.INIT.DLY (surround initial delay)

Function: This parameter adjusts the delay between the direct sound and the first reflection on the surround side of the sound field. You can only adjust this parameter when at least two front channels and two rear channels are used.

Control range: 1 - 49 msec

■S.ROOM SIZE (surround room size)

Function: This parameter adjusts the apparent size of the surround sound field.

Control range: 0.1 - 2.0

■S.LIVENESS (surround liveness)

Function: This parameter adjusts the apparent reflectivity of the virtual walls in the surround sound field.

Control range: 0 - 10

■CT.DELAY (center delay)

Function: These parameters adjust the sound delay for each channel in 5 channel stereo mode.

Control range: 0 - 50 msec

■LS.DELAY (left surround delay)

Function: These parameters adjust the sound delay for each channel in 5 channel stereo mode.

Control range: 0 - 50 msec

■RS.DELAY (right surround delay)

Function: These parameters adjust the sound delay for each channel in 5 channel stereo mode.

Control range: 0 - 50 msec

TROUBLESHOOTING

Refer to the chart below when the unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, set this unit in the standby mode, disconnect the power cord and contact the nearest authorized YAMAHA dealer or service center.

General

Problem Cause	Remedy		Refer to page
The unit fails to turn on when STANDBY/ON (or POWER) is pressed, or enters in the standby mode soon after the power has been turned on.	The power cord is not connected or the plug is not completely inserted.	Firmly connect the power cord.	19
	The IMPEDANCE SELECTOR switch on the rear panel is not fully set to the left or right position.	Set the switch fully to the left or right position when the unit is in the standby mode.	19
	The protection circuitry has been activated.	Make sure all speaker wire connections on this unit and on all speakers are secure and that the wire for each connection does not touch anything other than its respective connection.	16, 17
On-screen display does not appear.	The setting for the on-screen display is set to “DISPLAY OFF”.	Select the full display or short display mode.	20
	The BLUE BACK setting under “9 DISPLAY SET” on the SET MENU is set to OFF, and no video signal is input to this unit.	Set BLUE BACK to AUTO to always show the OSD.	45
No sound and/or no picture.	Incorrect input or output cable connections. Connect the cables properly. If the problem persists, the cables may be defective.		12 – 15
	An appropriate input source has not been selected.	Select an appropriate input source with INPUT <1/> or 6CH INPUT (or the input selector buttons).	24
	The speaker connections are not secure.	Secure the connections.	16, 17
	The main speakers to be used have not been selected properly.	Select the main speakers with SPEAKERS A and/or B.	24
	The volume is turned down.	Turn up the volume.	25
	The sound is muted.	Press MUTE or any operation buttons to cancel a mute and adjust the volume.	25
	Digital signals other than PCM audio, Dolby Digital or DTS signal which this unit cannot reproduce are being input to this unit by playing a CD-ROM, etc.	Play a source whose signals this unit can reproduce.	—
The picture does not appear.	The output and input for the video are connected to different types of video jacks.	Make connections using the same type of jack (between composites, S-VIDEOS, or components) for both the input and output.	14, 15
The sound suddenly goes off.	The protection circuit has been activated because of a short circuit, etc.	Check the IMPEDANCE SELECTOR switch is set to the appropriate position and then turn the unit back on.	19
		Check the speaker wires are not touching each other and then turn the unit back on.	16, 17
	The sleep timer has functioned. Turn on the power, and play the source again.		47
	The sound is muted. Press MUTE or any operation buttons to cancel a mute and adjust the volume.		25
Only the speaker on one side can be heard.	Incorrect cable connections. Connect the cables properly. If the problem persists, the cables may be defective.		12 – 17

TROUBLESHOOTING

Problem Cause	Remedy		Refer to page
No sound from the effect speakers.	The sound effect is off.	Press EFFECT to turn it on.	29
	A Dolby Surround, Dolby Digital or DTS decoding DSP program is being used with material not encoded with Dolby Surround, Dolby Digital or DTS.	Select another DSP program.	55, 56
	A 96-kHz sampling digital signal is being input to this unit.		25
No sound from the center speaker.	The output level of the center speaker is set to minimum.	Raise the level of the center speaker.	46
	“1A CENTER SP” on the SET MENU is set to NONE.	Select the appropriate mode for your center speaker.	40
	One of the Hi-Fi DSP programs (1 to 4) has been selected.	Select another DSP program.	55, 56
	The source encoded with a Dolby Digital or DTS signal does not have a center channel signal.		—
No sound from the rear speakers.	The output level of the rear speakers is set to minimum.	Raise the output level of the rear speakers.	46
	A monaural source is being played with the program 9.	Select another DSP program.	55, 56
No sound from the subwoofer.	“1D LFE/BASS OUT” on the SET MENU is set to MAIN when a Dolby Digital or DTS signal is being played.	Select SWFR or BOTH.	42
	“1D LFE/BASS OUT” on the SET MENU is set to SWFR or MAIN when a 2-channel source is being played.	Select BOTH.	42
	The source does not contain low bass signals (90 Hz and below).		—
Poor bass reproduction.	“1D LFE/BASS OUT” on the SET MENU is set to SWFR or BOTH and your system does not include a subwoofer.	Select MAIN.	42
	The output mode for each speaker (main, center or rear) on the SET MENU does not match your speaker configuration.	Select the appropriate output mode for each speaker based on the size of the speakers in your configuration.	40, 41
A “humming” sound can be heard.	Incorrect cable connections.	Firmly connect the audio plugs. If the problem persists, the cables may be defective.	12 – 15
	No connection from the turntable to the GND terminal.	Connect the grounding cord of your turntable to the GND terminal of this unit.	12, 13
The volume level is low while playing a record.	The record is being played on a turntable with an MC cartridge.	The turntable should be connected to the unit through an MC-head amplifier.	12
The volume level cannot be increased, or the sound is distorted.	The component connected to the REC OUT jacks of this unit is turned off.	Turn on the power to the component.	12
The effect and surround sounds cannot be recorded.	It is not possible to record the effect and surround sounds by a recording component.		38
A source cannot be recorded by a digital recording component connected to the DIGITAL OUTPUT jack of this unit.	A source component is only connected to the analog input jacks of this unit.	Connect the source component to the digital input jacks of this unit.	12 – 15
The sound field parameters and some other settings on this unit cannot be changed.	“10 MEMORY GUARD” on the SET MENU is set to ON.	Select OFF.	45
When TUNER is selected, the DSP program name shown on the display immediately changes to the frequency.	The OSD mode is set to short display or display off.	If you want the DSP program name display to be shown constantly, set the OSD mode to full display.	20
This unit does not operate properly.	The internal microcomputer has been frozen by an external electric shock (such as lightning or excessive static electricity) or by a power supply with low voltage.	Disconnect the AC power cord from the outlet and then plug it in again after about 30 seconds.	—
The sound is degraded when listening with headphones connected to a tape deck or CD player that is connected to this unit.	This unit is in the standby mode. Turn on the power of the unit.		—
There is noise interference from digital or high-frequency equipment, or the unit.	The unit is too close to the digital or high-frequency equipment.	Move the unit further away from such equipment.	—

Tuner

Problem Cause		Remedy		Refer to page
FM	FM stereo reception is noisy.	The characteristics of FM stereo broadcasts may cause this problem when the transmitter is too far away or the antenna input is poor.	Check the antenna connections.Try using a high-quality directional FM antenna.Use the manual tuning method.	30, 31
	There is distortion, and clear reception cannot be obtained even with a good FM antenna.	There is multipath interference.	Adjust the antenna position to eliminate multipath interference.	30
	The desired station cannot be tuned in with the automatic tuning method.	The station is too weak. Use the manual tuning method.	Use a high-quality directional FM antenna.	30, 31
	Previously preset stations can no longer be tuned in.	The unit has been disconnected for a long period.	Re-store the stations.	32
AM	The desired station cannot be tuned in with the automatic tuning method.	The signal is weak or the antenna connections are loose.	Tighten the AM loop antenna connections and orient it for best reception.Use the manual tuning method.	30, 31
	There are continuous crackling and hissing noises.	Noises result from lightning, fluorescent lamps, motors, thermostats and other electrical equipment.	Use an outdoor antenna and a ground wire.This will help somewhat, but it is difficult to eliminate all noise.	30
	There are buzzing and whining noises (especially in the evening).	A TV set is being used nearby. Move this unit.	away from the TV.	—

■Remote control

Problem Cause	Remedy		Refer to page
The remote control does not work nor function properly.	Wrong distance or angle.	The remote control will function within a maximum range of 6 m (20 feet) and no more than 30 degrees off-axis from the front panel.	8
	Direct sunlight or lighting (from an inverter type of fluorescent lamp, etc.) is striking the remote control sensor of this unit.	Reposition the unit.	—
	The batteries are weak. Replace all batteries with new ones.		3
The unit or other component cannot be controlled.	The component to be controlled has not been selected.	Set the selector dial to the appropriate position, corresponding to the component to be controlled.	48
	The remote control cannot control system components.		—
	The manufacturer code has not been set up properly.	Enter the code again.	53
		Try setting another code for the same manufacturer.
	Depending on the manufacturer or the model, some components cannot be controlled with this unit's remote control even though the code has been set up properly.	Use the original remote control supplied with your component.	—

After this unit has been exposed to a strong external electric shock (such as lightning and strong static electricity) or if you mishandle the operation of this unit, it may not function properly. In these cases, set this unit in the standby mode, disconnect the power cord, plug it back in after 30 seconds, and start operating.

SPECIFICATIONS

AUDIO SECTION

- Minimum RMS Output Power for Main, Center, Rear 20 Hz to 20 kHz, 0.06% THD, 8 ohms .... 90 W 1 kHz, 0.06% THD, 8 ohms .... 100 W

• DIN Standard Output Power [Europe model only] 1 kHz, 0.7% THD, 4 ohms .... 130 W

- IEC Output Power [Europe model only] 1 kHz, 0.06% THD, 8 ohms .... 100 W

• Dynamic Power (IHF) 8/6/4/2 ohms 120/140/175/210 W

- Damping Factor 20 Hz to 20 kHz, 8 ohms .... 80 or more

- Frequency Response CD to Main L/R.... 10 Hz to 100 kHz, -3 dB

- RIAA Equalization Deviation PHONO (MM) .... ±0.5 dB

- Total Harmonic Distortion PHONO MM (20 Hz to 20 kHz, 1 V, REC OUT).... 0.02% or less CD, etc. (20 Hz to 20 kHz, 45 W, 8 ohms, Main L/R) .... 0.06% or less

- Signal to Noise Ratio (IHF-A Network) PHONO MM to REC OUT (5 mV, shorted) .... 81 dB or more CD (250 mV, shorted) to Main L/R, Effect Off ....100 dB or more

- Residual Noise (IHF-A Network) Main L/R 150 ×V or less

- Channel Separation (1 kHz/10 kHz) CD (5.1 kohms terminated) to Main L/R 60 dB/45 dB

- Tone Control (Main L/R) BASS Boost/Cut .... ±10 dB/50 Hz TREBLE Boost/Cut.... ±10 dB/20 kHz BASS EXTENSION .... +6 dB/60 Hz

- Phones Output 400 mV/560 ohms

- Input Sensitivity CD, etc. 150 mV/47 kohms PHONO 2.5 mV/47 kohms 6CH INPUT 150 mV/47 kohms

• Maximum Input Signal PHONO MM (1 kHz, 0.1% THD) ..... 100 mV or more CD, etc. (1 kHz, 0.5% THD) ..... 2.2 V or more

- Output Level REC OUT .... 150 mV/1.2 kohms PRE OUT .... 2.1 V/1.2 kohms SUBWOOFER .... 4.0 V/1.2 kohms

VIDEO SECTION

- Video Signal Type ....PAL

- Composite Video Signal Level .... 1 Vp-p/75 ohms

- S-Video Signal Level Y .... 1 Vp-p/75 ohms C .... 0.286 Vp-p/75 ohms

- Component Video Signal Level Y .... 1 Vp-p/75 ohms P_B/C_B, P_R/C_R .... 0.7 Vp-p/75 ohms

- Signal to Noise Ratio 50 dB or more

- Frequency Response (MONITOR OUT) Composite, S-Video .... 5 Hz to 10 MHz, -3 dB Component .... DC to 30 MHz, -3 dB

FM SECTION

- Tuning Range 87.50 to 108.00 MHz

- 50 dB Quieting Sensitivity (IHF, 100% mod.) Mono/Stereo .... 2.0 ∝ V (17.3 dBf) /25 ∝ V (39.2 dBf)

• Alternate Channel Selectivity (400 kHz) 70 dB

- Signal to Noise Ratio (IHF) Mono/Stereo 76 dB/70 dB

- Harmonic Distortion (1 kHz) Mono/Stereo 0.2%/0.3%

- Stereo Separation (1 kHz) 48 dB

- Frequency Response 20 Hz to 15 kHz, +0.5/-2.0 dB

AM SECTION

- Tuning Range 531 to 1611 kHz

- Usable Sensitivity 300 V/m

- Signal to Noise Ratio 52 dB

GENERAL

• Power Supply ...... AC 230 V/50 Hz

• Power Consumption 260 W Standby Mode 0.9 W

- AC Outlets (Total 100 W maximum) [Europe model] ....2 (SWITCHED) [U.K. model] ....1 (SWITCHED)

- Dimension (W x H x D) ....435 x 151 x 390 mm

- Weight 10.5 kg

- Accessories ...... Remote Control ...... Batteries ...... AM loop antenna ...... Indoor FM antenna ...... 75-ohm/300-ohm antenna adapter (U.K. model only) ...... Quick Reference Card ...... Connection Guide

* Specifications are subject to change without notice.

GLOSSARY

■Dolby Surround

Dolby Surround uses a four analog channel recording system to reproduce realistic and dynamic sound effects: two left and right main channels (stereo), a center channel for dialog (monaural), and a rear channel for special sound effects (monaural). The rear channel reproduces sound within a narrow frequency range.

Dolby Surround is widely used with nearly all video tapes and laser discs, and in many TV and cable broadcasts as well. The Dolby Pro Logic decoder built into this unit employs a digital signal processing system that automatically stabilizes the volume on each channel to enhance moving sound effects and directionality.

■Dolby Digital

Dolby Digital is a digital surround sound system that gives you completely independent multi-channel audio.

With three front channels (left, center and right), and two rear stereo channels, Dolby Digital provides five full-range audio channels. With an additional channel especially for bass effects, called LFE (low frequency effect), the system has a total of 5.1 channels (LFE is counted as 0.1 channel).

Using two-channel stereo for the rear speakers, more accurate moving sound effects and surround sound environment are possible than with Dolby Surround. The wide dynamic range (from maximum to minimum volume) reproduced by the five full-range channels and the precise sound orientation generated using digital sound processing provide listeners with previously unheard of excitement and realism.

With this unit, any sound environment from monaural up to a 5.1-channel configuration can be freely selected for your enjoyment.

■DTS (Digital Theater Systems) Digital Surround

DTS digital surround was developed to replace the analog soundtracks of movies with a six-channel digital sound track, and is now rapidly gaining popularity in movie theaters around the world. Digital Theater Systems Inc. has developed a home theater system so that you can enjoy the depth of sound and natural spatial representation of DTS digital surround in your home.

This system is practically distortion-free, clear 6-channel sound (technically, a left, right and center channels, two rear channels, plus an LFE 0.1 channel as a subwoofer, for a total of 5.1 channels).

■LFE 0.1 channel

This channel is for the reproduction of low bass signals. The frequency range for this channel is 20 Hz to 120 Hz. This channel is counted as 0.1 because it only enforces a low frequency range compared to the full-range reproduced by the other 5 channels in a Dolby Digital or DTS 5.1 channel systems.

CINEMA DSP

Since the Dolby Surround and DTS systems were originally designed for use in movie theaters, their effect is best felt in a theater having many speakers and designed for acoustic effects. Since home conditions, such as room size, wall material, number of speakers, and so on, can differ so widely, it's inevitable that there are differences in the sound heard as well. Based on a wealth of actually measured data, YAMAHA CINEMA DSP uses YAMAHA original sound field technology to combine Dolby Pro Logic, Dolby Digital and DTS systems to provide the visual and audio experience of movie theater in the listening room of your own home.

■SILENT CINEMA

YAMAHA has developed a natural, realistic sound effect DSP algorithm for headphones.

Parameters for headphones have been set for each sound field so that accurate representations of all the sound field programs can be enjoyed on headphones.

■Virtual CINEMA DSP

YAMAHA has developed a virtual CINEMA DSP algorithm that allows you to enjoy DSP sound field surround effects even without any rear speakers by using virtual rear speakers.

It is even possible to enjoy virtual CINEMA DSP in a minimum two-speaker system that does not include a center speaker.

■S VIDEO signal

With S VIDEO signal system, the video signal normally transmitted using a pin cable is separated and transmitted as the Y signal for the luminance and the C signal for the chrominance through the S VIDEO cable. Using the S VIDEO jack eliminates video signal transmission loss and allows recording and playback of even more beautiful images.

■Component video signal

With the component video signal system, the video signal is separated into the Y signal for the luminance and the P_B/C_B and P_R/C_R signals for the chrominance. Color can be reproduced more faithfully with this system because each of these signals is independent. The component signal is also called the “color difference signal” because the luminance signal is subtracted from the color signal. A monitor with component input jacks is required in order to use the component signal for output.

■PCM (Linear PCM)

Linear PCM is a signal format under which an analog audio signal is digitized, recorded and transmitted without using any compression. This is used as a method of recording CDs and DVD audio. The PCM system uses a technique for sampling the size of the analog signal per very small unit of time. Standing for “pulse code modulation”, the analog signal is encoded as pulses and then modulated for recording.

■Sampling frequency and number of quantized bits

When digitizing an analog audio signal, the number of times the signal is sampled per second is called the sampling frequency, while the degree of fineness when converting the sound level into a numeric value is called the number of quantized bits.

The range of rates that can be played back is determined based on the sampling rate, while the dynamic range representing the sound level difference is determined by the number of quantized bits. In principle, the higher the sampling frequency, the wider the range of frequencies that can be played back, and the higher the number of quantized bits, the more finely the sound level can be reproduced.

■I/O assignment (SET MENU)

Although component is normally connected according to jack names shown on the rear panel, this unit includes a function that assigns jacks according to the component being connected. If the component being used differs from the component name shown for this unit's component video input jacks or digital input/output jacks, it is possible to assign jacks according to the component being connected. This makes it possible to change the jack assignment and effectively connect more component.

INDEX

A

Accesories 3

AC outlets 19

Antennas 30

B

Balance (L/R BALANCE) (SET MENU) 42

BGV function 26

C

CBL/SAT position 52

CD position 50

CINEMA DSP 55,69

Component video 70

Connections

Antennas 30

Audio components (MD recorder, CD recorder, CD player and turntable) 12

External amplifier 18

External decoder 18

Power supply cords 19

Speakers 16

Video components (DVD player, VCR and TV/digital TV or cable TV/satellite tuner) 14

D

Delay time 45

DISPLAY SET (SET MENU)

BLUE BACK 45

DIMMER 45

OSD SHIFT 45

DOLBY D. SET (SET MENU)

D-RANGE 44

LFE LEVEL 44

Dolby Digital 69

Dolby Surround (Dolby Pro Logic) 69

DSP program

CINEMA DSP program 55

Hi-Fi DSP program 55

DTS 69

DTS SET (SET MENU) 44

Dust protection cap 12

DVD/LD position 51

DVD MENU position 51

E

External decoder 18

F

Front panel 4

Front panel display 9

H

HP TONE CTRL (SET MENU) 43

|

IMPEDANCE SELECTOR switch 19

INPUT MODE (SET MENU) 43

Input modes 26

I/O ASSIGNMENT (SET MENU) 43,70

L

LFE 44,69

M

Manufacturer codes 53, i

Memory back-up 32, 40, 46, 59

MEMORY GUARD (SET MENU) 45

Muting 25

P

PCM 70

PHONO jacks 12

Playing 24

Power supply cords 19

Preset stations Exchanging preset station .... 34 Tuning in to a preset station .... 33

Presetting stations Automatic presetting .... 32 Manual presetting .... 33

R

RDS stations EON function .... 37 PTY SEEK function .... 36 RDS mode .... 35

Rear panel 10

Recording 38

Remote control Basic operation .... 6 Batteries .... 3 Operation range .... 8 Setup codes .... 53

S

Sampling frequency 25,70

Selector dial 6,48

SET MENU 39

SILENT CINEMA 29,69

Sleep timer 47

Sound field 58

SP DELAY TIME (SET MENU) 45

Speaker Output levels (LEVEL mode) .... 46 Output mode (SET MENU) .... 21 Placement .... 11 Output balance (test tone) .... 22

SPEAKER SET (SET MENU) CENTER SP .... 40 LFE/BASS OUT .... 42 MAIN LEVEL .... 42 MAIN SP .... 41 REAR L/R SP .... 41

Stereo reproduction 29

Subwoofer 17

S VIDEO 70

T

TAPE/MD position 50

Test tone (TEST DOLBY SUR.) 22

Tuning Automatic tuning .... 31 Manual tuning .... 31

TV position 52

V

VCR position 52

Video jacks 14

Virtual CINEMA DSP 29,69

ATTENTION : TENIR COMPTE DES PRÉCAUTIONS CI-DESSOUS AVANT DE FAIRE FONCTIONNER L'APPAREIL.

(IMPEDANCE SELECTOR).... 19

RÉCEPTION DES STATIONS RDS.... 35

Line drawing of four cylindrical batteries with battery caps (no text or symbols)

Diagram showing three rows of remote control devices with labeled buttons and a central display unit, likely illustrating a system or device layout.

Guide des raccordements (Connection guide)

Converter control panel (control) is a single transformation.

Technical diagram showing three labeled mechanical components with arrows indicating assembly or connection points.

VAINS AC OUTLETS SWITCHKO 100W MAX. TOTAL SPEDANCE SPEDUCTOR SET BEFORE POWER ON MAIN A OR 0.8 pWR, SPEAKER A = 3 pWR, SPEAKER CENTER = 9 pWR, SPEAKER NEAR = 9 pWR, SPEAKER MAIN A OR 4 pWR, SPEAKER A = R 5 pWR, SPEAKER CENTER = 6 pWR, SPEAKER RACE = 5 pWR, SPEAKER

AC OUTLETS SWITCHED 100W MAX. TOTAL IMPEDANCE SPEAKER SET BEFORE POWER ON MAX A: 8.8 gMN, SPEAKER -3.8 gMN, SPEAKER SETER 8 gMN, SPEAKER REAR 8 gMN, SPEAKER MAX A CHS: 4 gMN, SPEAKER A = B: 5 gMN, SPEAKER CENTER : 6 gMN, SPEAKER REAR : 6 gMN, SPEAKER Switched Prise CA

→ INIT. DLY....45ms ROOM SIZE 1.0. LIVENESS....5

P01 CONCERT HALL

Diagram showing a remote control with labeled buttons and a circular dial indicator for rotary function.

Remarques

PRESET /TUNING EDIT A O F M

PRESET /TUNING EDIT A F M

Front panel of a CD-ROM audio amplifier with labeled buttons and ports

PRESET /TUNING EDIT V-AUX VCR20VR VCR 1 D-TV/CBL DVD MD/CD-R CDTUNER MEMORY PHONO EDIT E1-AS VOLUME

RÉCEPTION DES STATIONS RDS

Diagram of a CD-ROM front panel with labeled buttons and control knobs, plus an analog remote control panel showing function keys.

5 INPUT MODE
6 DOLBY D. SET
LFE LEVEL
D-RANGE
7 DTS SET
8 SP DELAY TIME
9 DISPLAY SET

BLUE BACK

OSD SHIFT

DIMMER

10 MEMORY GUARD

→[A] ····· DVD [B] ····· D-TV/CBL

SET MENU

4A CMPNT-V INPUT →[A] ······ VCR 1 [B] ······ D-TV/CBL

Protection de la mémoire

1A CENTER SP ►LRG SML NONE

SML (petite)

1A CENTER SP LRG ▶SML NONE

NONE (aucune)

1A CENTER SP LRG SML ▶NONE

1B MAIN SP ▶LARGE SMALL

SMALL (petites)

1B MAIN SP LARGE ▶SMALL

Remarque

1C REAR L/R SP LRG SML NONE

SML (petites)

Options : SWFR (subwoofer), MAIN (principales), BOTH (les deux)

1D LFE/BASS OUT SWFR MAIN ▶ Both

Remarques

1E MAIN LEVEL ▶Normal -10dB

-10 dB

1E MAIN LEVEL Normal ▶-10dB

→[A] ····· DVD [B] ····· D-TV/CBL

■ 4B OPTICAL OUT (pour la prise OPTICAL OUTPUT)

Réglage initial : (1) MD/CD-R

4B OPTICAL OUT

(3) DVD
(4) D-TV/CBL

4C OPTICAL IN

V-AUX VCR/DVR VCR 1 D TV/CBL DVD MD/CD R TUNER CD PHONO DIGITAL DSP SLEEP 120MIN VOLUME

Diagram showing a circular component with labeled dimensions and an arrow pointing to a device interface with buttons and indicators.

Diagram showing a device with labeled components and an arrow indicating transformation or change.

8/6/4/2 ohms 120/140/175/210 W

BASS : Accentuation/désaccentuation ....±10 dB/50 Hz TREBLE : Accentuation/désaccentuation ....±10 dB/20 kHz BASS EXTENSION....+6 dB/60 Hz

Y....1 Vc-c/75 ohms C....0,286 Vc-c/75 ohms

DTS SET (SET MENU) 44

E

I/O ASSIGNMENT (SET MENU).... 43,70

INPUT MODE (SET MENU) 43

L

Lecture 24

LFE 44,69

M

SPEAKER SET (SET MENU) CENTER SP 40

LFE/BASS OUT 42

MAIN LEVEL.... 42

MAIN SP 41

REAR L/R SP.... 41

7 DTS SET (DTS LFE-Pegel) 44

Confidential Unpublished Works. ©1992-1997 Dolby

Line drawing of four cylindrical batteries with battery terminals (no text or symbols)

UKW-Innenantenne

Technical diagram of a mechanical assembly with numbered components and directional arrow

Diagram showing a remote control with a circular dial indicator and directional arrows, likely illustrating a home control or navigation system.

Hinweise

Front panel of a CD-ROM audio recording device with labeled buttons and ports

PREFST /TUNING EDIT V-AUX VCR20VR VCR 1 D-TV/CBL DVD MD/CD-R TUNER CD PHONO MEMORY EDIT E1-AS VOLUME

Front panel of a vintage audio amplifier with labeled buttons and ports, showing model number 2 and control knobs.

Diagram of a radio receiver with labeled buttons and ports, showing front panel and remote control panel.

7 DTS SET
8 SP DELAY TIME
9 DISPLAY SET

BLUE BACK

OSD SHIFT

DIMMER

10 MEMORY GUARD

1A CENTER SP LRG SML NONE

SML

1A CENTER SP LRG ▶ SML NONE

NONE

1A CENTER SP LRG SML ▶NONE

■ 1B MAIN SP

1B MAIN SP ▶LARGE SMALL

SMALL

1B MAIN SP LARGE ▶SMALL

Hinweis

1C REAR L/R SP LRG SML NONE

1D LFE/BASS OUT SWFR MAIN ▶ Both

Hinweise

1E MAIN LEVEL ▶Normal -10dB

-10 dB

1E MAIN LEVEL Normal ▶-10dB

7 DTS SET (DTS LFE-Pegel)

SLEEP → SLEEP OFF

0 + - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Diagram showing a circular device with labeled components and an arrow indicating transformation or change.

8/6/4/2 Ohm 120/140/175/210 W

- Dämpfungsfaktor

■ PCM (Lineare Pulscode-Modulation)

DISPLAY SET (SET MENU)

BLUE BACK 45

DIMMER 45

OSD SHIFT 45

DOLBY D. SET (SET MENU)

D-RANGE 44

LFE LEVEL 44

Dolby Digital 69

Dolby Surround (Dolby Pro Logic).... 69

DSP-Programm

CINEMA DSP-Programm.... 55

DTS SET (SET MENU) 44

DVD/LD-Position....51

DVD MENU-Position 51

E

Eingangsmodi 26

I/O ASSIGNMENT (SET MENU) 43,70

IMPEDANCE SELECTOR-Wahlschalter.... 19

INPUT MODE (SET MENU) 43

L

Lautsprecher

Aufstellung 11

SPEAKER SET (SET MENU)

CENTER SP 40

LFE/BASS OUT 42

MAIN LEVEL.... 42

MAIN SP 41

REAR L/R SP.... 41

JUSTERING AV HÖGTALARNAS UTNIVÅER 22

Innan du börjar 22

CINEMA DSP-program 55

REDIGERING AV LJUDFÄLTSPROGRAMMENS PARAMETRAR 58

Illustration of four cylindrical batteries with battery terminals (no text or symbols)

Inomhus-FM-antenn

Diagram of a battery pack assembly with labeled components and polarity indicators

■ Att observera angående batterier

Technical diagram showing three labeled mechanical components with arrows indicating assembly or connection points.

MAINS AC OUTLETS SWITCHED 100W MAX. TOTAL M PEDANCE SELECTOR PER WIRENC POWER/VEGET MAN A OR B S GAIN, SPEAKER A - B 3/6 GAIN, SPEAKER OUTER B GAIN, SPEAKER REAR B GAIN, SPEAKER MAN A OR B 4 GAIN, SPEAKER A - B 3/6 GAIN, SPEAKER COUCH B GAIN, SPEAKER REAR B GAIN, SPEAKER

IMPEDANCE SELECTOR

Diagram showing a remote control with labeled buttons and a circular diagram illustrating the function of a rotary dial.

Observera

JUSTERING AV HÖGTALARNAS UTNIVÅER

Diagram of a CD-ROM front panel with labeled buttons and ports, showing status indicators and function keys.

PRESET /TUNING EDIT V-AUX VCR2/DVA VCR1 D-TV/CBL DVD MD/CD-R TUNER CD PHONO MEMORY VOLUME

V-AUX VCR2/DVR VCR 1 D-TV/CBL DVD MD/CD-R TUNER CD PHONO MEMORY -VAS-FM VOLUME

PRESSET /TUNING EDIT V-AUX VCR20VR VCR 1 D-TW/CBL DVD MD/CD-R TUNER CD PHONO MEMORY EDIT E I-AS VOLUME

Diagram showing front panel and remote control device with labeled buttons and ports

4A CMPNT-V INPUT

INSTÄLLNINGSMENYN (SET MENU)

1A CENTER SP ►LRG SML NONE

SML

1A CENTER SP LRG ▶SML NONE

NONE

1A CENTER SP LRG SML ▶NONE

1B MAIN SP LARGE ▶SMALL

Observera

1C REAR L/R SP LRG SML NONE

SML

1D LFE/BASS OUT SWFR MAIN BOTH

MAIN

1D LFE/BASS OUT SWFR MAIN ▶ Both

Observera

1E MAIN LEVEL ▶Normal -10dB

-10 dB

1E MAIN LEVEL Normal ▶-10dB

→BLUE BACK ···· AUTO OSD SHIFT ······ 0 DIMMER ······ ···· 0

■ BLUE BACK (Blå bakgrund)

V AUX VCP2/DWR VCR 1 D TV/CBL DVD MD/CD R TUNER CD PHONO DIGITAL DSP CONCERT HALL SLEEP VOLUME

Diagram showing a device with four labeled components and an arrow indicating transformation or change.

Diagram showing a circular device with labeled components and an arrow indicating direction, alongside a control panel with switches and display.

2 Mata in kod nummer "9990".

Dolby Surround (Dolby Pro Logic).... 69

DSP-program CINEMA DSP-program .... 55
Hi-Fi DSP-program 55

DTS 69

DVD/LD-läget 51

DVD MENU-läget.... 51

F

Minnes-backup 32, 40, 46, 59

Line drawing of four cylindrical batteries with battery caps (no text or symbols)

Antenna FM interna

Connection Code: Pin 1000000 to a digital I/O control circuit 1/4 1/15

30° 30 Circa 6 m

AC-30 LETS SWITCHED 130W MAX. TOTAL IMPEDANCE SWITCHING SET BEPOSED FLOW FLOW MAIN: A B C D E W/ S P E A K E R + B I N S P E A K E R C E V B C + 5 O W N S P E A K E R + 5 O W N S P E A K E R MAIN: A B C D E W/ S P E A K E R A - B, 8 O W N S P E A K E R CENTER + 5 O W N S P E A K E R + 5 O W N S P E A K E R ALLA PRESA di rete c.a.

SWITCHED

MESSAGGI SULLO SCHERMO (OSD)

Diagram showing a remote control with labeled buttons and a circular dial indicator for rotary function.

Note

Labeled diagram of a CD-ROM audio workstation with numbered buttons and control knobs

PRESET /TUNING EDIT A :FM Spegnere "\\".

PRESET /TUNING EDIT A F M Spegnere " ."

PRESET /TUNING EDIT V-AUX VCR2/DVR VCR 1 D-TV/CBL DVD MD/CD-R TUNER CD PHONO MEMORY VOLUME

PRESET /TUNING EDIT V-AUX VCR2/DVR VCR 1 D-TW/CBL DVD MD/CD-R TUNER CD PHONO MEMORY EDIT E1-AS VOLUME

Diagram showing front panel and remote control interface with labeled buttons and ports

7 DTS SET
8 SP DELAY TIME
9 DISPLAY SET

BLUE BACK

OSD SHIFT

DIMMER

10 MEMORY GUARD

1A CENTER SP LRG SML NONE

SML

1A CENTER SP LRG ▶SML NONE

NONE

1A CENTER SP LRG SML NONE

1B MAIN SP ▶LARGE SMALL

SMALL

1B MAIN SP LARGE ▶SMALL

Nota

1C REAR L/R SP LRG SML NONE

1D LFE/BASS OUT SWFR MAIN BOTH

MAIN

1D LFE/BASS OUT SWFR MAIN▶BOTH

Note

1E MAIN LEVEL ▶Normal -10dB

-10 dB

1E MAIN LEVEL Normal ▶-10dB

V-AUX VCR2WR VCR T D-TWCBL DVD MDCO-R CDTUNEH PRONO DIGITAL DSP SLEEP 120MIN SLEEP VOLUME

Diagram showing a four-pole device with labeled ports and directional arrow, likely illustrating a process or transformation.

Diagram showing a device with labeled buttons and a transformation arrow, likely illustrating a process or system change.

Diagram showing a four-pole device with labeled buttons and a right-side schematic of its control panel.

Simple line drawing of a refrigerator inside a circular frame (no text or symbols)

Campo sonoro DSP surround

■ S.DELAY (ritardo surround)

8/6/4/2 Ω 120/140/175/210 W

- Dimensioni (L x A x P)

435 x 151 x 390 mm

- Peso ....

10,5 kg

- Accessori

telecomando

pile

.antenna AM a telaio

......antenna FM interna

DISPLAY SET (SET MENU)

BLUE BACK....45

DIMMER 45

OSD SHIFT 45

DOLBY D. SET (SET MENU)

D-RANGE 44

LFE LEVEL 44

Dolby Digital 69

Dolby Surround (Dolby Pro Logic).... 69

DTS 69

DTS SET (SET MENU) 44

F

I/O ASSIGNMENT (SET MENU).... 43,70

INPUT MODE (SET MENU) 43

SPEAKER SET (SET MENU)

CENTER SP 40

LFE/BASS OUT 42

MAIN LEVEL 42

MAIN SP 41

REAR L/R SP.... 41

Line drawing of four cylindrical batteries with battery caps (no text or symbols)

Antena de FM interior

Connection blocks panel bearing to a digital I2, internal status

Diagram of a battery pack assembly with labeled components and polarity indicators

MINI MAX MINI MAX MINI MAX MINI MAX MINI MAX MINI MAX MINI MAX MINI MAX MINI MAX MINI MAX MINI MAX MINI MAX MINI MAX MINI MAX MINI MAX MINI MAX MINI MAX MINI MAX MINI MAX MINI MAX MINI MAX

→ INIT. DLY....45ms ROOM SIZE 1.0. LIVENESS....5

P01 CONCERT HALL

Diagram showing a remote control with labeled buttons and a circular dial indicator for rotary settings.

Notas

BASS EXTENSION OFF BASS TREBLE

Panel delantero

Nota

PRESET /TUNING EDIT A B F M Apague " >

Front panel diagram of a CD-ROM audio recording device with labeled buttons and ports

PREFET /TUNING EDIT V-AUX VCR2/DVR VCR 1 D-TV/CBL DVD MD/CD-R TUNER CD PHONO MEMORY EDIT E1-AS VOLUME

Diagram of a CD-ROM audio workstation with labeled ports and control knobs

Diagram of a U-DAI audio recording device with labeled buttons and control panel, plus a remote control panel showing function keys.

1A CENTER SP LRG SML NONE

SML

1A CENTER SP LRG ▶SML NONE

NONE

1A CENTER SP LRG SML ▶NONE

1B MAIN SP LARGE ▶SMALL

Nota

1D LFE/BASS OUT SWFR MAIN BOTH

MAIN

1D LFE/BASS OUT SWFR MAIN ▶ BOTH

Notas

1E MAIN LEVEL ▶Normal -10dB

-10 dB

1E MAIN LEVEL Normal ▶-10dB

(3) DVD
(4) D-TV/CBL

4C OPTICAL IN

Gama de control (ms): de 0 a 5

Ajuste inicial: 0 ms

8 SP DELAY TIME CENTER • • • • • 0ms -/+ : Adjust ▲ ▼Exit/

Diagram showing a device with four buttons and a directional arrow, alongside a schematic view of a control panel.

Diagram showing a device with labeled components and an arrow indicating transformation or operation.

DISPLAY SET (SET MENU)

BLUE BACK.... 45

DIMMER 45

OSD SHIFT 45

DOLBY D. SET (SET MENU)

D-RANGE 44

LFE LEVEL 44

Dolby Digital 69

Dolby Surround (Dolby Pro Logic).... 69

DTS 69

DTS SET (SET MENU) 44

E

I/O ASSIGNMENT (SET MENU) 43,70

INPUT MODE (SET MENU) 43

Interruptor IMPEDANCE SELECTOR 19

L

LFE 44,69

M

MEMORY GUARD (SET MENU).... 45

Modos de entrada 26

P

Panel delantero 4

Panel trasero 10

PCM....70

Posición CBL/SAT 52

Posición CD 50

Posición DVD/LD 51

SPEAKER SET (SET MENU)

CENTER SP 40

LFE/BASS OUT 42

MAIN LEVEL 42

MAIN SP 41

REAR L/R SP....41

Sintonización

Simple line drawing of a trash bin with no text or symbols

INHOUD

INLEIDING

EIGENSCHAPPEN 2

VOOR GEBRUIK 3

CINEMA DSP-programma's 55

INSTELLEN VAN DE

GELUIDSVELDPROGRAMMA-

PARAMETERS 58

Line drawing of four cylindrical batteries with battery terminals (no text or symbols)

FM-binnenantenne

⑪ BASS EXTENSION ON/OFF

⑬DSP-programma-indicators

15 PTY HOLD-indicator

Technical diagram showing three labeled mechanical components with arrows indicating assembly or connection points.

Diagram showing a remote control with labeled buttons and a circular dial indicator for rotary function.

Opmerkingen

VCR 1: Videorecorder 1

VCR 2/DVR: Videorecorder 2/digitale videorecorder

BASS EXTENSION ON OFF BASS TREBLE Voorpaneel

Opmerking

MEMORY MANL/AUTO-FM V-AUX VCR2/DVR VCR 1 D-TV/CBL DVD MD/CD-R TUNER AUTO MEMORY VOLUME

PRESET /TUNING EDIT V-AUX VCR2/DVR VCR 1 D-TV/CBL DVD MD/CD-R TUNER CD PHONO MEMORY VOLUME -E I-FM

PRESET /TUNING EDIT V-AUX VCR20VA VCR 1 D-TW/CBL DVD MD:CD-R TUNER CD PHONO MEMORY EDIT E1-AS VOLUME

Labeled diagram of a CD-ROM audio workstation with control knobs, buttons, and indicator lights

Diagram of a radio receiver with labeled buttons and ports, showing front and back views with Chinese annotations.

→[A] ····· DVD [B] ····· D-TV/CBL

INSTELMENU

1A CENTER SP ►LRG SML NONE

SML (klein)

1A CENTER SP LRG ▶ SML NONE

NONE (geen)

1A CENTER SP LRG SML NONE

1B MAIN SP LARGE SMALL

SMALL (klein)

1B MAIN SP LARGE ▶SMALL

Opmerking

1C REAR L/R SP LRG SML NONE

1D LFE/BASS OUT SWFR MAIN ▶ Both

Opmerkingen

1E MAIN LEVEL ▶Normal -10dB

-10 dB

1E MAIN LEVEL Normal ▶-10dB

2 L/R BALANCE L·······||·······R 0 -/+ : Adjust ▲/▼ : Exit

Opmerking

→[A] ····· DVD [B] ····· D-TV/CBL

(3) DVD (4) D-TV/CBL

4C OPTICAL IN

→ BLUE BACK ···· AUTO OSD SHIFT ······ 0 DIMMER ······ ···· 0

■ Stand TAPE/MD (tapedeck, md-recorder of cd-recorder)

Diagram showing a mechanical or electrical component with polarity markings and an arrow indicating transformation or assembly.

Hifi DSP-programma's

CINEMA DSP-programma's

Presence-DSP- geluidsveld Surround-DSP- geluidsveld

Presence-DSP- geluidsveld Linker surround-DSP- geluidsveld Rechter surround-DSP- geluidsveld

DGTL SPECTACLE DTS SPECTACLE DGTL SCI-FI DTS SCI-FI DGTL ADVENTURE DTS ADVENTURE DGTL GENERAL DTS GENERAL

■ S.INIT.DLY (surround-beginvertraging)

DISPLAY SET (SET MENU) BLUE BACK 45

DIMMER 45

OSD SHIFT 45

Dolby Surround (Dolby Pro Logic)....69

DSP-programma CINEMA DSP-programma .... 55

Hi-Fi DSP-programma 55

DTS 69

DTS SET (SET MENU) 44

DVD/LD-stand 51

DVD MENU-stand 51

E

Externe decoder 18

F

Fabrikantcodes....53,i

G

I/O ASSIGNMENT (SET MENU) 43,70

SPEAKER SET (SET MENU) CENTER SP 40

LFE/BASS OUT.... 42

MAIN LEVEL 42

MAIN SP 41

REAR L/R SP....41

Stereoweergave 29

Stofkapje 12

Subwoofer.... 17

S VIDEO-signaal 70

T

TAPE/MD-stand 50

Testtoon (TEST DOLBY SUR.) 22

TV-stand 52

V

VCR-stand 52

Vertragingstijd 45

GBC 0021,0141,1321, 1511,1621,1981

GEC 0451, 1101, 1281, 2321

GEC (UK) 0031, 0081, 0581, 0601, 1101, 1281, 1561

GELOSO 0021, 0411, 0451, 1321, 1511, 1621, 1981

ITT 0031,0041,0051, 0061,0071,0081, 0181,0411,0451, 0491,1241,1291, 1351,1501,1601, 1641,1741,1921, 1981,2091,2331, 2431

ITT-NOKIA 0031, 0041, 0051, 0061, 0071, 0081, 0181, 0411, 0451, 0491, 1241, 1291, 1351, 1501, 1601, 1641, 1741, 1921, 1981, 2091, 2331, 2431

JVC (VICTOR) 0071, 0721, 1441, 1581, 1591, 1741, 1791

KAISUI 0591, 1321, 1331

KAMOSONIC 0601

KARCHER 0591, 0601, 0841, 1091, 1321, 1511, 1561, 2051

KAWASHO 0761

KENDO 0261

KENNEDY 0021, 0351, 0951, 1981

KONKA 2701

KORTING 0431, 1011, 1021, 1081, 1541

KTV 0601, 1171

LENOIR 0601, 1511

LEYEO 1181

LIFETEC 2591, 2601, 2611,2621, 2641, 2651,2661, 2671, 2681,2691, 2711, 2761,2771, 2781

LOEWE OPTA 0121, 0131, 0581,0611, 1081

LOGIC 1691, 2281

LOGIK 0551, 1681, 2281

LOWEWE 0831

LUMA 0351, 0451, 1901

LUXMAN 0791

LUXMAN STEREO TUNER

0791

LUXOR 0001, 0061, 0181,0341, 0421, 0451,0461, 0491, 0601,0671, 1351, 1371,1561, 1601, 1911,1921, 1981

LYCO 1181

MAGNADYNE 0021, 0061, 0261,0581, 0641, 0771,1021, 1081, 1621,1981

MAGNAFON 0261, 0491, 0581,0591, 0641, 0761,1091, 2001

MANESTH 0101

MARANTZ 0101

MARELLI 1081

MARK 0101

MATSUI 0061, 0451, 0601,0691, 1101, 1151,1241, 1271, 1301,1511, 1561, 1681,1691

MAXIMAL 0071, 1981

MCMICHAEL 1281

MEDION 2591, 2601, 2611,2621, 2641, 2651,2661, 2671, 2681,2691, 2711, 2721,2761, 2771, 2781

MEMOREX 1511

METZ 0231, 0741, 1001,1041, 1081, 1481,2071, 2081

MGA 1231

MICROMAXX 2591, 2621, 2641,2651, 2711, 2761,2771, 2781

MINERVA 0221, 0231, 0491,1381, 2141, 2151

MISTRAL 2281

MITSUBISHI 0141, 0201, 0231,0661, 1191, 1201,1231, 1671, 1691,1741

MIVAR 0491, 0501, 0581,0591, 0761, 0771,1371, 1431, 2031

MTC 0791

MULTITECH 0261, 0581, 0601,0641, 0981, 1321,1511

MURPHY 0451, 2091

MURPHY (UK) 0081, 1031

N.E.I. 0101, 0961

NAD 1341

NEC 0141, 1711, 1721,1731

NECKERMANN

0451, 0601, 0981, 1081, 1561, 1931, 1981, 2211, 2231, 2241

NEDIATOR 0101

NICAMAGIC 0761
NIKKAI	1101, 1331, 1641, 1701, 2011
NOBLIKO	0261, 0491, 0591, 0641, 1381, 1411

NOGAMATIC 0571

NOKIA

0031, 0041, 0051, 0061, 0071, 0081, 0181, 0411, 0451, 0491, 1241, 1291, 1351, 1501, 1601, 1641, 1741, 1921, 1981, 2091, 2331, 2431, 2461, 2791

NORDMENDE

0031, 0291, 0331, 0451, 0531, 0541, 0571, 1051, 1131, 1591, 1791, 1811, 1821, 1891, 1941, 2631

OCEANIC 0321, 1651, 1981

OCEANIC (F)

0031, 0061, 0321, 0441, 1661

ONCEAS 0601

ONWA	1171
ORION	0061, 0391, 0691, 0851, 1211, 1241, 1251, 1301, 1481, 1511, 1681, 1691, 1981, 2371, 2421

OSAKA 2011

OSAKI 1101, 1331, 2011
OSUME	0151
OTTO VERSAND	0021, 0121, 0141, 0221, 0601, 1561, 1741, 1981

PAEL 0591,1411

PANASONIC

0031, 0201, 0211, 0451, 0701, 1311, 1751, 1961, 2561, 2741

PANORAMIC 2351

PATHE MARCONI	0571
PATHE' CINEMA (F)	0431, 0591, 1621, 1661, 1971

PAUSA 1511

PAUZA	1511
PERDIO 0891, 1101
PHILCO 0021, 0491, 0811,
	0981, 1021, 1081,
	1401, 1611, 1621,
	1751, 2201, 2251,
	2271, 2451, 2471

PHILIPS 0101, 0361, 0591,

0621, 0681, 0751,

0761, 1021, 1081,

1281, 2031, 2281,

2291, 2431, 2441,

2511, 2731

PHOENIX 1081

PHONOLA	0751, 1081
PIONEER	0291, 0451, 1341, 1821
PRANDONI-PRINCE	0411, 0451, 0491, 0581, 1411

PRANDONI-PROMCE0451, 0491, 0581

PRIMA	0451
PROFEX	1981
PROTECH	0641, 1181, 1981
QUELLE	0041, 0061, 0121, 0221, 0231, 0391, 0491, 0521, 0601, 0781, 1371, 1381, 1411, 1421, 1641, 1681, 2051, 2091, 2141, 2151, 2201, 2211, 2231, 2241, 2251, 2271, 2551, 2571, 2581

REDIOMARELLI

0101, 0451, 0661, 0771, 1081

RADIONETTE 0031, 2051, 2091

RADIOLA	2291
RANK	0481, 2151
RBM	2131, 2151
RBM (UK)	0481
REDIFFUSION	0451, 0661, 1641, 1981, 2331

REDIFFUSION (UK)

0061, 0081, 1031

REX	0071, 0101, 0351, 0411, 0451, 0951, 1901, 2061, 2101, 2111

RFT 0991,2511

ROADSTAR	1321, 1511
ROTEL	0151

SABA 0291, 0331, 0421,

0451, 0531, 0541,

0571, 0581, 0651,

0731, 0931, 1021,

1071, 1081, 1131,

1791, 1811, 1821,

1891, 1941, 2631

SACCS	1971
SAISHO	0451, 0601, 1161, 1241, 1301, 1511, 1671, 1681, 1691

SALORA 0011, 0041, 0061,

0071, 0341, 0451,

0671, 1291, 1351,

1521, 1561, 1601,

1641, 1911, 1921,

1931, 1981, 2321

SAMBERS

0261, 0491, 0581, 0641, 1091, 1371, 1411, 2001

SAMSUNG

0101, 0601, 0841, 0981, 1101, 1181, 1371, 1511, 2011

SANYO 0141, 0151, 0401,
	0601, 0801, 0821,
	0981, 1021, 1101,
	1111, 1291, 1351,
	1691, 1741, 2051,
	2091, 2551
SBR	0681, 0751, 1281,
	2281

SCHAUB LORENZ 0451

SCHNEIDER	0021, 0071, 0091, 0451, 0511, 0591, 0601, 0751, 1321, 1361, 1621, 1641, 2101, 2111, 2291
SCOTT	1171, 1261
SEG	0261, 0601, 0821, 0991
SEI	0641, 0691, 1081, 1301, 1481, 1981

SELECO

0071, 0101, 0351, 0411, 0451, 0951, 1901, 2061, 2101, 2111

SENTRA	1601
SHARP	0141, 0151, 0191, 1761, 1781

SIAREM

0021, 0261, 0581, 0641, 1021, 1081, 1981

SICATEL 1971

SIEMENS

0151, 0221, 0231, 0451, 0741, 2011, 2201, 2211, 2221, 2231, 2241, 2261, 2571, 2581

SILVER 1181

SINGER 0021, 0261, 1021,
	1081
SINUDYNE	0021, 0061, 0101,
	0261, 0391, 0641,
	0691, 0851, 0941,
	1021, 1081, 1241,
	1301, 1321, 1481,
	1631, 1981

SKANTIC 0451

SOLAVOX	0451, 1641, 2011
SONOKO	0101, 1181, 1511
SONY	0141, 0171, 1121, 1681, 1691, 2751

SOUNDESIGN	1171
SSS	1171

STERN

0071, 0101, 0351, 0411, 0451, 0951, 1901, 2061, 2101, 2111

SUNKAI 0691

SUPRA	0791
TANDBERG	0161, 0331, 0611, 1021, 1421, 1771, 1791, 2081
TANDY	0191, 0451, 1331, 1531

TASHIKO 0141

TATUNG	0271, 0581, 0601, 0971, 1101, 1681, 1691
TCM	2621, 2641, 2711, 2761, 2771, 2781

Connection Guide (when listening to a digital 5.1-channel source)

V728160 RX V520ARDS, HTR 5460 (ML)

TAPE/MD (CD-R) DSP INPUT Numeric buttons (MD/CD-R) INDEX (CD-R) +10 (MD/CD-R) Deck A/B (tape) DISPLAY (MD/CD-R) Pause (MD/CD-R) O/□□ Rec/Pause (tape/MD) Play DIR A (tape) Skip - (MD/CD-R) Rewind (tape) Search (MD/CD-R) Stop Fast forward (tape) Search (MD/CD-R) AV POWER

CD DSP INPUT CO Numeric buttons 1 2 3 4 5 6 7 8 INDEX +10 DISC SKIP -/+ ON +10 DISPLAY Pause Skip + Stop Search AV POWER Play Skip - VOLICE A/R ADDCE +30 +30 +30 +30 +30 +30 +30 +30 +30 +30 +30

Quick Reference Card

DVD/LD DVD MENU DSP INPUT Numeric buttons INDEX/Time (DVD) Chapter/Time (LD) +10 DISC SKIP -/+ (DVD) DISPLAY Pause Skip + (DVD) Skip/Chapter + (LD) Stop Search AV POWER Play Skip - (DVD) Skip/Chapter - (LD) Search

DSP INPUT Numeric buttons INDEX +10 DISC SKIP -/+ Return Menu select Menu left TITLE DISPLAY Menu up Menu right Menu down MENU AV POWER

VCR DSP INPUT VCR HULL OFF TURER RISK MOS/DDR 1 2 3 4 5 6 7 8 9 Numeric buttons CH -/+ REC INPUT OFF +10 Ch enter/ Recall VCR REC¹ Play DISPLAY Pause Stop Fast forward AV POWER Rewind

TV DSP INPUT Numeric buttons Ch enter/ Recall CH -/+ VCR REC VCR play DISPLAY VCR pause VCR stop VCR fast forward VCR power TV INPUT TV POWER TV VOL +/- TV SLEEP TV MUTE

CBL/SAT DSP INPUT CH-/+ Menu select Menu left Recall Numeric buttons Ch enter DISPLAY/ Guide (SAT) Menu up Menu right Menu down MENU AV POWER

*1 Presserbildau voletetriess to stato perodizire la registrazione. Appuyer deux fois sur cette touche pour commencer l'enregistrement. Drücken Sie diese Taste zweimal, um die Aufnahme zu starten. Tryck två gånger på den här knappen för att börja spela in.
Presione dos veces este botón para empezar a grabar. Druk tweemaal op deze toets om met opnemen te beginnen. 按此按钮两次即可开始录像。
