USER MANUAL Pixma TS9000 CANON

Silhouette of a person working at a desk with a device and a bag nearby (no text or symbols)

Getting Started

Démarrage

Inbetriebnahme

Aan de Slag-gids

Guida Rapida

Para Começar

Guía de inicio

Ξεκινώντας

Uppstartsguide

Komme i gang

Før du begynder

Aloitusopas

1

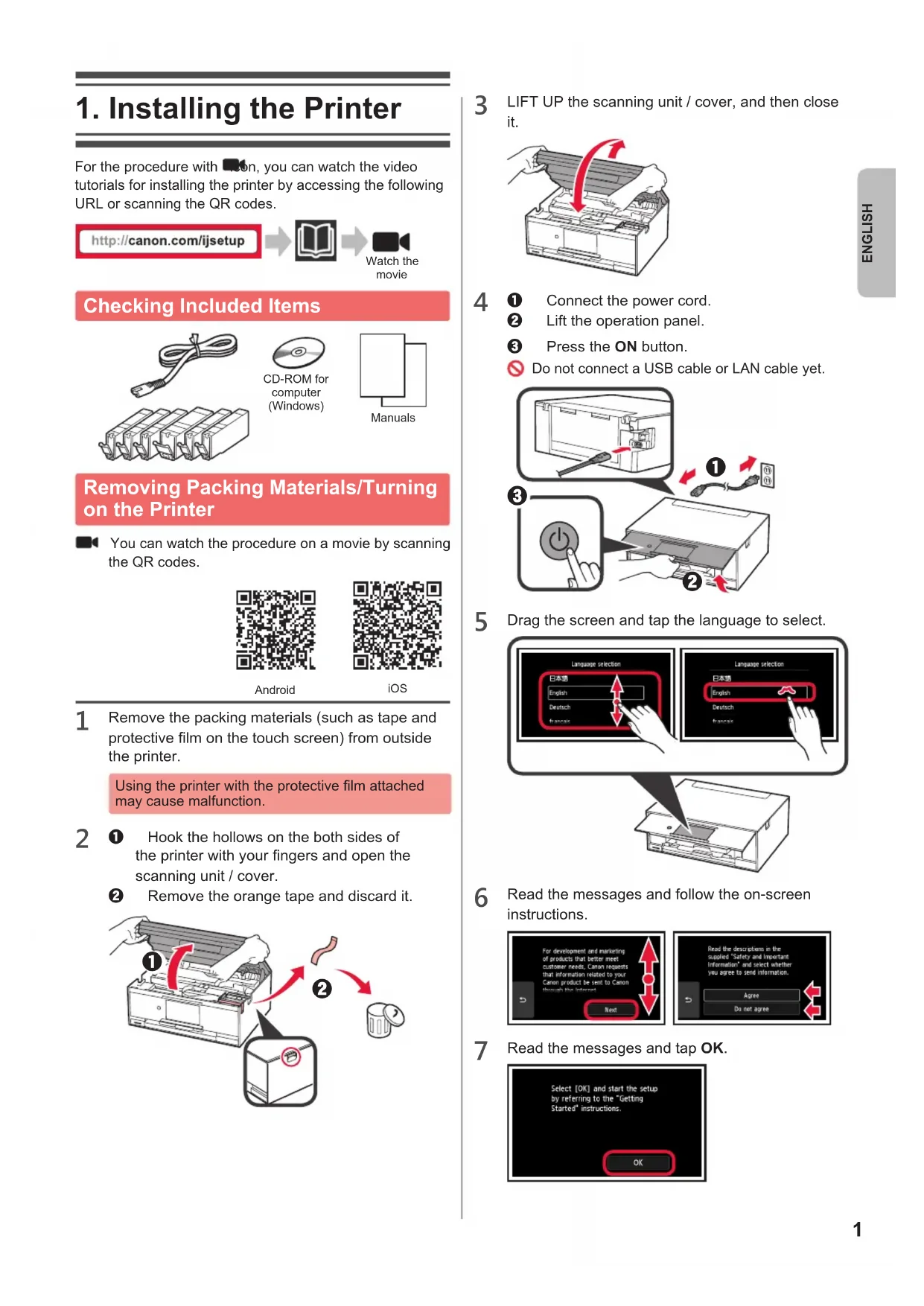

Installing the Printer......page1

Installation de l'imprimante ......page1

Red background with white icons of a laptop and smartphone, no text or symbols present

Connecting with Computer and Smartphone/Tablet......page5

Prohibition sign showing hands using a block with a diagonal line, enclosed in a red circle

When the printer starts printing, automatically the operation panel opens and the paper output tray comes out. Keep the front of the printer clear.

For the procedure with ☐on, you can watch the video tutorials for installing the printer by accessing the following URL or scanning the QR codes.

http://canon.com/ijsetup

Watch the movie

Checking Included Items

Illustration of a cable and two stacked electrical connectors (no text or symbols)

Removing Packing Materials/Turning on the Printer

You can watch the procedure on a movie by scanning the QR codes.

Android

iOS

1 Remove the packing materials (such as tape and protective film on the touch screen) from outside the printer.

Using the printer with the protective film attached may cause malfunction.

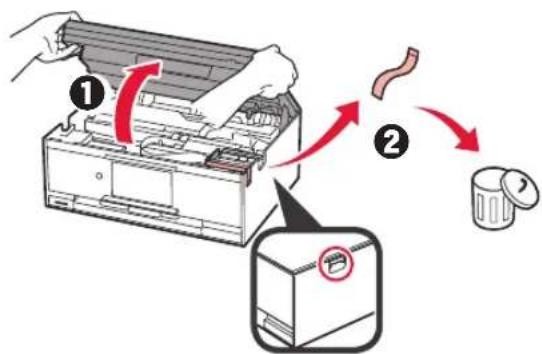

2 Hook the hollows on the both sides of the printer with your fingers and open the scanning unit / cover.

② Remove the orange tape and discard it.

Diagram illustrating the process of a printer's internal structure and disposal, labeled with steps ① and ②.

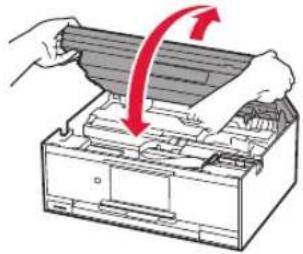

3 LIFT UP the scanning unit / cover, and then close it.

Illustration of hands installing or removing a printer into a machine, with red arrows indicating the process (no text or symbols present)

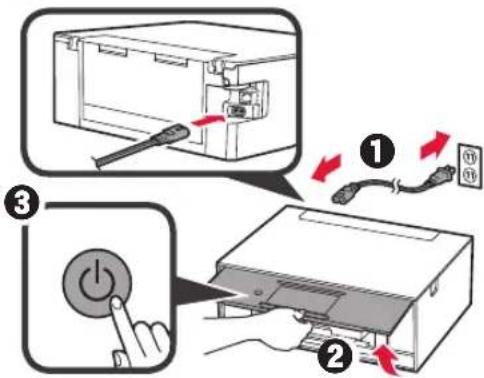

4 ① Connect the power cord.

② Lift the operation panel.
③ Press the ON button.
Do not connect a USB cable or LAN cable yet.

Diagram illustrating the process of inserting a power button into a computer, with numbered steps and directional arrows indicating sequence.

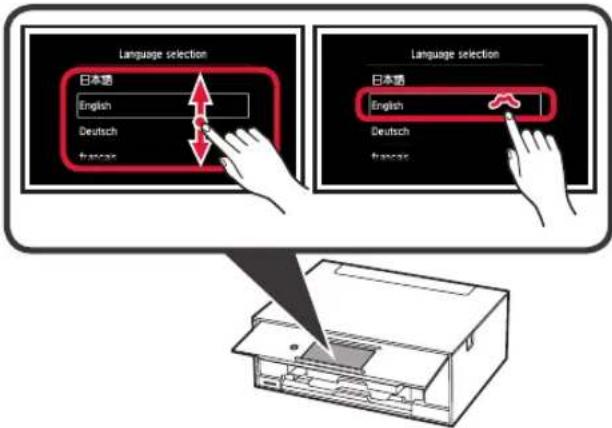

5 Drag the screen and tap the language to select.

Language selection 日本語 English Deutsch francas Language selection 日本語 English Deutsch francas

6 Read the messages and follow the on-screen instructions.

For development and marketing of products that better meet customer needs. Canon requests that information related to your Canon product be sent to Canon through the interest. Next

Read the descriptions in the supplied "Safety and Important information" and select whether you agree to send information. U Agree Do not agree

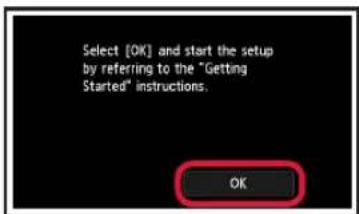

7 Read the messages and tap OK.

Select [OK] and start the setup by referring to the "Getting Started" instructions. OK

Installing the Ink Tank

You can watch the procedure on a movie by scanning the QR codes.

Android iOS

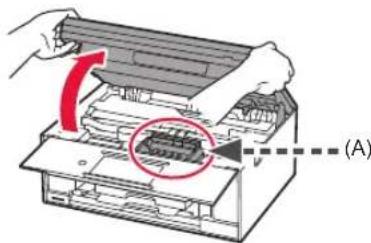

1 Open the scanning unit / cover.

Do not touch the print head holder (A) until it stops.

Diagram showing a printer or printer with a red arrow indicating rotation and a circled component, labeled (A)

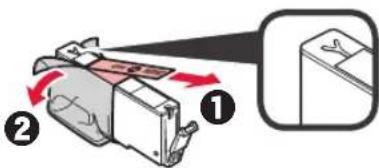

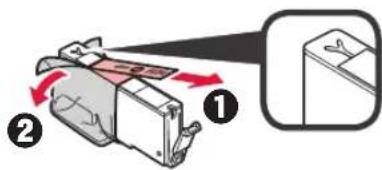

2 ① Remove the orange tape.

② Remove the protective wrap.

Diagram illustrating a device's motion with labeled parts and directional arrows, including a magnified inset showing the device.

Remove the orange tape completely.

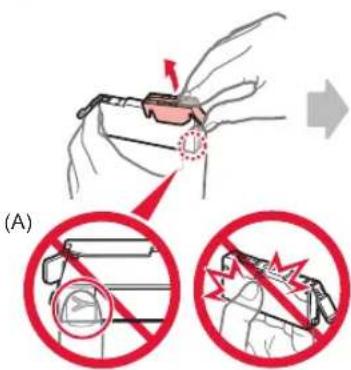

3 Hook the orange cap with your finger to remove it GENTLY.

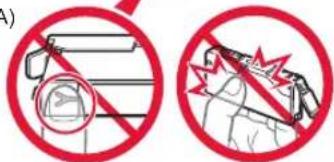

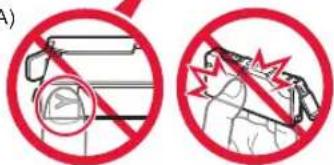

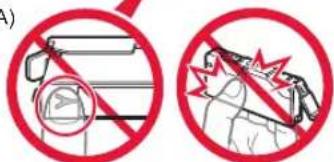

(A) Do not push the both sides of the ink tank with the Y-shape air hole blocked.
(B) Do not touch.

(A)

Illustration of a hand holding a small object with a red arrow indicating direction (no text or symbols)

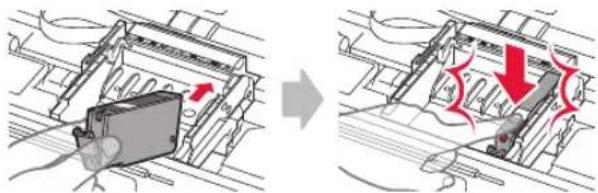

4 Insert the ink tank into the print head holder and push it down firmly until it snaps into place. After the lamp lights up, install the next ink tank.

Diagram showing a mechanical assembly before and after process, with no visible text or symbols

5 Check that all lamps are lit.

Diagram of a printer with red triangular markers indicating print direction (no text or symbols)

6 LIFT UP the scanning unit / cover, and then close it.

Illustration of hands operating a printer with a red arrow indicating compression or disassembly (no text or symbols present)

If an error message appears, make sure the ink tanks are installed correctly.

Loading Paper / Aligning the Print Head

You can watch the procedure on a movie by scanning the QR codes.

Android iOS

To obtain better print result, print a pattern for print head alignment and scan it.

1 ① Pull out the cassette.

② Remove the cassette cover.

Diagram illustrating a printer press operation with labeled steps and directional arrows indicating press direction.

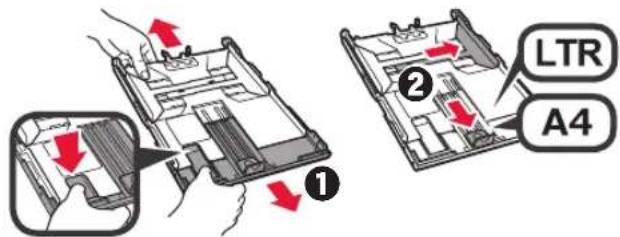

2 ① Pull out the cassette forward while pressing the lock on the cassette. ② Open the paper guides, and then align the guide in front with the mark of LTR or A4.

① ② LTR A4

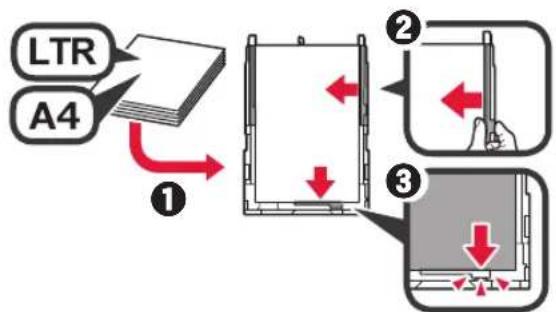

3 ① Load several sheets of plain paper with the print side facing down. ② Slide the right paper guide to align it with the side of the paper stack. ③ Align the paper stack with the paper guide in front.


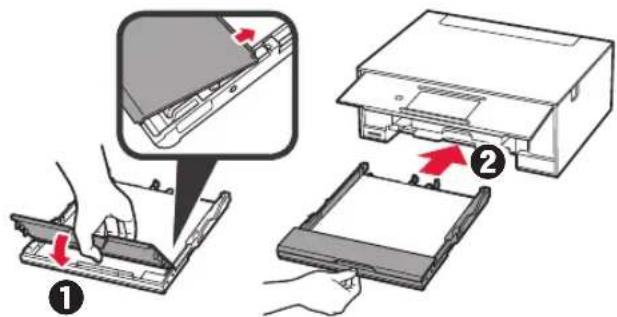

4 ① Attach the cassette cover. ② Insert the cassette.

Diagram illustrating a device's internal structure and assembly, labeled with arrows and numbered parts.

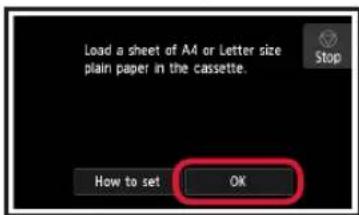

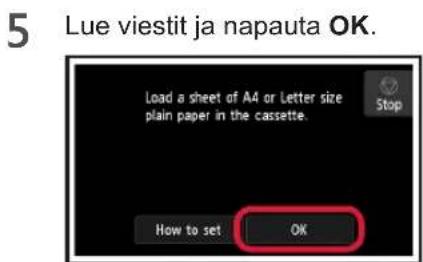

5 Read the messages and tap OK.

Load a sheet of A4 or Letter size plain paper in the cassette. How to set OK

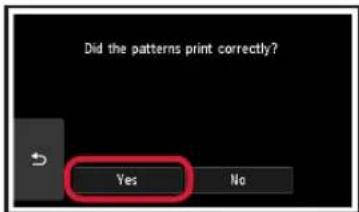

6 When the pattern for print head alignment is printed, tap Yes.

Did the patterns print correctly? Yes No

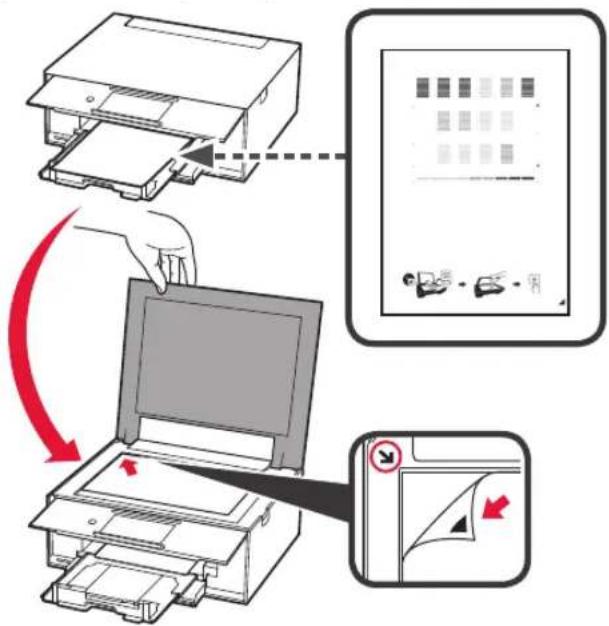

7 Follow the on-screen instructions to load the pattern on the platen glass.

Diagram illustrating printer operation steps with labeled components and directional arrows indicating process flow.

8 Close the document cover, and then follow the on-screen instructions to tap OK.

Diagram of a printer with a red downward arrow indicating compression or disassembly (no text or symbols present)

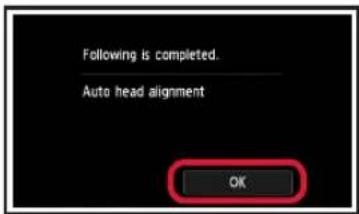

9 If the following screen appears, tap OK.

Following is completed. Auto head alignment OK

The print head alignment is now complete.

Selecting a Printer Connection Method

The connection method varies depending on how you use the printer. Select a printer connection method according to the table below. In the following description, smartphones and tablet devices are collectively described as smartphone.

Using the printer with your computer or smartphone connected Using the printer			without connecting any other devices
Wireless LAN connection Wired LAN connection USB connection Do not connect
Connecting the printer to your computer or smartphone via a wireless routerConnecting the printer to your computer or smartphone directly without a wireless router *
			Tap Do not connect on the connection method selecting screen. The setup is now complete.

* You may not connect your smartphone to the Internet wirelessly during connecting the printer to the smartphone directly. In that case, you may be charged depending on the contract with your service provider.
* Up to 5 devices can be connected to the printer via wireless LAN connection directly.

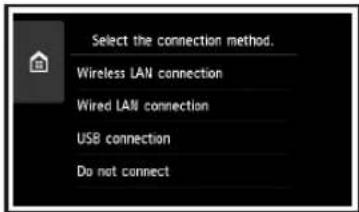

1 Tap your printer connection method.

Select the connection method. Wireless LAN connection Wired LAN connection USB connection Do not connect

Follow the on-screen instructions to proceed with the setup.

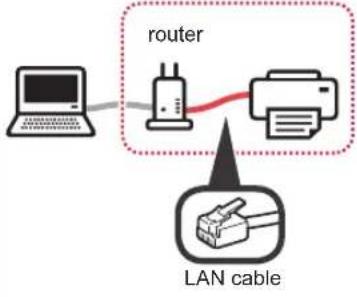

Users who select Wired LAN connection:

The wired LAN connector is on the back of the printer.

Users who select USB connection:

Do not connect a USB cable until you are instructed.

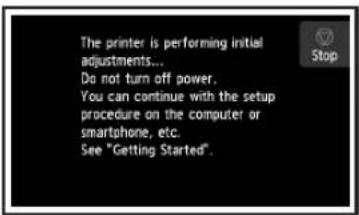

2 If the following screen appears, proceed to the next page.

■ If you select Wireless LAN connection:

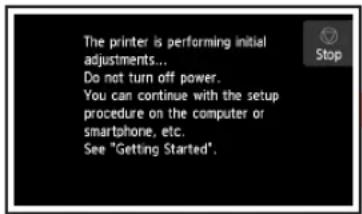

The printer is performing initial adjustments... Do not turn off power. You can continue with the setup procedure on the computer or smartphone, etc. See "Getting Started".

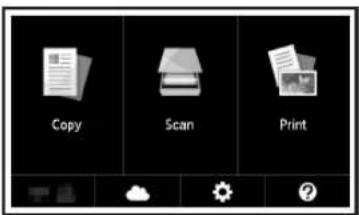

■ If you select Wired LAN connection or USB connection:

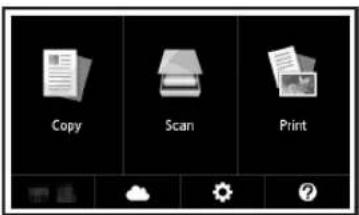

Copy Scan Print

2. Connecting with Computer and Smartphone/Tablet

If you connect the printer to both your computer and your smartphone, connect it to the computer first.

To connect the printer only to your smartphone, proceed to "Connecting with Smartphone" on page 6.

Connecting with Computer

You need connection setup for each computer. Proceed with the setup from step 1 for each computer.

The followings describe the procedures for Windows and Mac OS.

If you use a computer except for Windows or Mac OS such as Chrome OS, access "http://canon.com/ijsetup", and then follow the instructions on the Canon website to set up your computer.

1 Select one of the following steps A to B start up the setup file.

A MacOS Windows

Accessing the Canon website

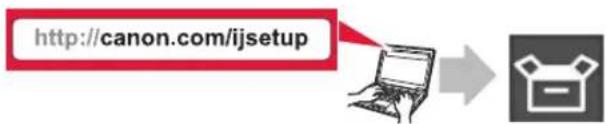

① Visit the Canon website below and click Set Up.

http://canon.com/ijsetup

Follow the on-screen instructions to proceed with the setup.

② If the following screen appears, click Download.

Setup - Microsoft - ■ Click Downloads on the computer to which you want to connect the printer Download

③ Start up the downloaded file.

B Windows

Using the Setup CD

① Insert the setup CD into your computer.

When using Windows 10, Windows 8.1 or Windows 8:

② Click or File Explorer on the taskbar.

③ Select This PC or Computer on the left side of the opened window.

4 Double-click the CD-ROM icon on the right side of the window.

* If the contents of the CD-ROM appear, double-click MSETUP4.EXE.

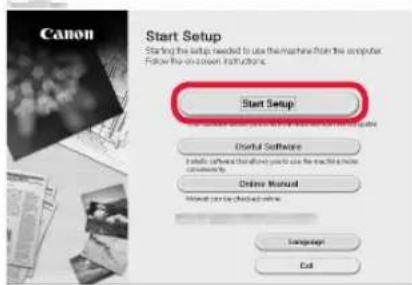

2 Click Start Setup.

Start Setup Starting the setup needed to use the machines from the computer. Follow this on-coven instructions. Start Setup Use a desktop or network device to access the following sites: Userful Software Install software that allows you to use the next file's mode computer type Online Manual How much you be checked online. Language Cut

Follow the on-screen instructions to proceed with the setup.

You can set up your smartphone in the middle of the steps.

On the following screen, click Instructions to proceed with setup of your smartphone.

You Can Print from a Smartphone or Tablet False to (防止某) and set up your smartphone to table. Send to Phone Your phone check information about the next user.

* Depending on your settings, the screen above may not appear. In that case, proceed to "Connecting with Smartphone" on page 6 after finishing the connection to your computer.

3 If the following screen appears, click Exit.

Canon Installation completed successfully. Exit

The connection with your computer is now complete. You can print from your computer.

Connecting with Smartphone

You need connection setup for each smartphone. Proceed with the setup from step 1 for each smartphone.

Preparation

• Turn on Wi-Fi on your smartphone.
• If you have a wireless router, connect your smartphone to the wireless router.
  * For operations, refer to manuals of your smartphone and the wireless router or contact those manufacturers.

1 Install the application software Canon PRINT Inkjet/SELPHY in your smartphone.

iOS : Search "Canon PRINT" in App Store. Android : Search "Canon PRINT" in Google Play.

Or access the Canon website by scanning the QR code.

2 Check the display on the printer.

The screen turns off when no operation is made for 10 minutes. Tap the touch screen to display the screen.

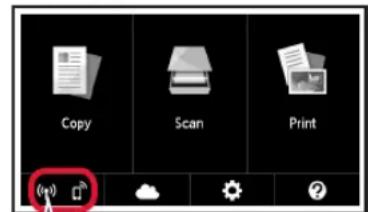

■ If the following screen appears: Check the icon on the lower left, and then proceed to A or B

Copy Scan Print

The following icon appears. (The printer is connected to a network.)

Yes

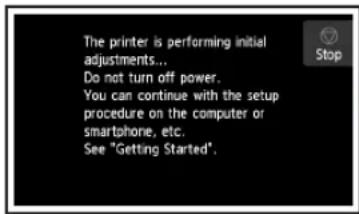

■ If the following screen appears: Proceed to B.

The printer is performing initial adjustments... Do not turn off power. You can continue with the setup procedure on the computer or smartphone, etc. See "Getting Started".

No (Proceed to B.)

If 📄 appears, the printer can not communicate by wireless LAN connection. For details, access "http://canon.com/ijsetup" to see Frequently Asked Questions.

iOS

Android

① Tap the installed application software.

② Follow the on-screen instructions to register the printer.

③ Make sure that the following screen appears.

The connection with your smartphone is now complete. You can print from your smartphone.

To print photos, load photo paper. Proceed to "Loading Photo Paper" on page 8.

Procedures below vary depending on iOS or Android. Select your operating system and proceed to its procedure.

iOS

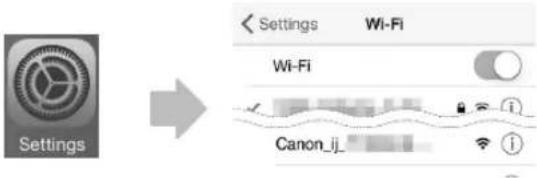

① Tap Settings on the HOME screen, and then tap Canon_ij_XXXX on the Wi-Fi settings.

Settings Settings Wi-Fi Wi-Fi Canon_ij

If Canon_ij_XXXX does not appear on the list, see "Preparation of the Printer" below to operate the printer, and then repeat step ①.

② Tap the installed application software.

③ Follow the on-screen instructions to register the printer.

Follow the on-screen instructions to proceed with the setup.

If you select Auto Select Conn. Method (recommended) on the connection method selecting screen, the appropriate connection method is selected automatically depending on your environment.

④ Make sure that the following screen appears.

Android

① Tap the installed application software.

② Follow the on-screen instructions to register the printer.

If a message saying "Printer is not registered. Perform printer setup?" does not appear, see "Preparation of the Printer" below to operate the printer, and then wait for a while until a message appears.

Follow the on-screen instructions to proceed with the setup.

The appropriate connection method is selected depending on your environment.

③ Make sure that the following screen appears.

The connection with your smartphone is now complete. You can print from your smartphone.

To print photos, load photo paper. Proceed to "Loading Photo Paper" on page 8.

Preparation of the Printer

① Tap on the printer's touch screen.

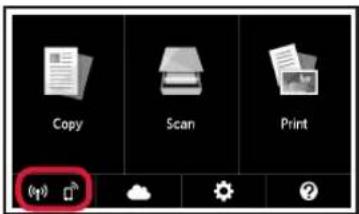

② Tap the icon on the lower left of the HOME screen.

Copy Scan Print

③ Tap Yes or No.
④ Tap LAN settings > Wireless LAN > Wireless LAN setup > Easy wireless connect.
⑤ Tap Yes.
⑥ Return to the operation of your smartphone.

Loading Photo Paper

Load photo paper in the rear tray.

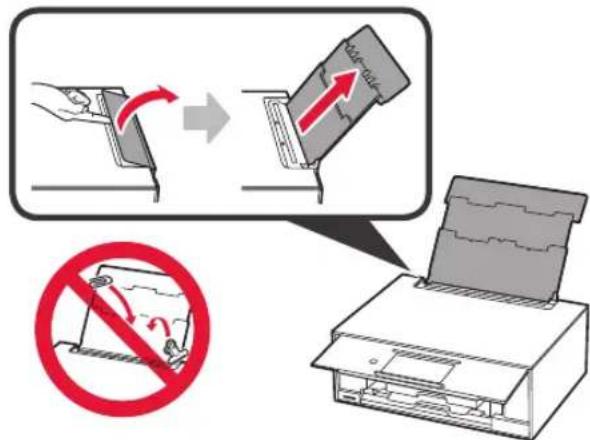

1 Open the rear tray cover and pull out the paper support.

Diagram illustrating printer printing process with red prohibition symbol and directional arrows

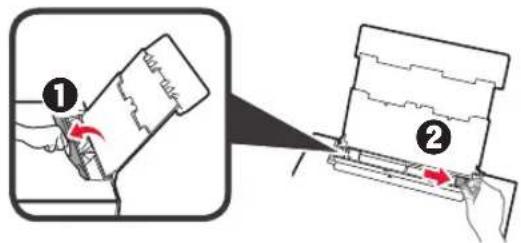

2 ① Open the feed slot cover.

② Slide the right paper guide to the end.

Diagram illustrating two steps of a document processing or packaging, labeled ① and ② with arrows indicating process flow.

3 ① Load several sheets of photo paper with the print side facing up.

② Slide the right paper guide to align it with the side of the paper stack.

Diagram showing two labeled components (① and ②) with arrows indicating movement or flow, likely illustrating a process or assembly.

4 Close the feed slot cover.

Read the message on the printer's screen and register the information of the loaded paper.

Diagram of a mechanical device with a red arrow indicating motion or force direction (no text or symbols)

Printing Photos Saved on a Memory Card

You can print photos saved on a memory card with easy operations.

1 Make sure the printer is turned on.
2 Load several sheets of photo paper.

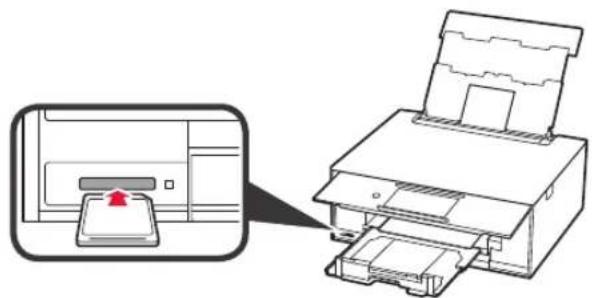

3 Insert the memory card into the card slot.

Diagram showing a printer being inserted into a paper airplane (no text or symbols present)

4 Select photos to be printed.
5 Tap the Color button.

The printer starts printing.

1. Installation de l'imprimante

Illustration of a cable and two separate electrical connectors (no text or symbols)

Diagram illustrating the process of removing a component into a device, with numbered steps and directional arrows indicating removal or disassembly.

Illustration of hands inserting a card into a printer with a red arrow indicating the process (no text or symbols present)

Diagram illustrating computer power switch operation with labeled steps and directional arrows

Diagram showing a printer's internal structure with red arrow indicating rotation and labeled (A)

2 ① Retirez la bande orange.

② Retirez l'emballage de protection.

Diagram illustrating a device with labeled parts and directional arrows, likely illustrating a process or assembly.

Illustration of a hand holding a device with a red arrow indicating force or movement (no text or symbols present)

(A)

Illustration of a hand holding a small red object with an arrow indicating direction (no text or symbols)

(B)

Two red prohibition signs with arrows and a magnified circular icon, indicating no protection or no liability.

Diagram showing a device being processed into a machine, with arrows indicating process flow (no text or symbols present)

Diagram of a mechanical or electrical component with red triangular markers indicating positions or features (no text or symbols present)

Illustration of a printer's internal structure being cut with a red arrow indicating rotation (no text or symbols present)

Diagram illustrating the process of printer press application, showing steps to press or attach a printer into a device.

Diagram illustrating a printer's internal structure and assembly process, labeled with arrows and numbered parts.

Diagram illustrating printer operation steps with labeled components and directional arrows indicating process flow.

Diagram of a printer or printer with a red downward arrow indicating compression or disassembly (no text or symbols present)

Diagram showing a device with a fuse and a router connected to a server, labeled 'Réseau' in French.

Diagram illustrating printer operation with directional arrows and a prohibition sign, showing step-by-step assembly and printing process.

Diagram illustrating two steps of a document processing or assembly, labeled ① and ②, with arrows indicating process direction.

Diagram showing two labeled components (① and ②) with directional arrows indicating movement or flow.

Diagram of a mechanical device with a red arrow indicating motion or force direction (no text or symbols)

Diagram showing a printer being inserted into a stack of paper, with an inset image highlighting the printer's tip (no text or symbols present)

Illustration of a cable and two separate electrical connectors (no text or symbols)

Diagram illustrating the process of removing a component into an air conditioner, with numbered steps and a magnified view.

Illustration of hands operating a printer with a red arrow indicating compression or disassembly (no text or symbols present)

Diagram illustrating computer power switch operation with labeled steps: adding a power button to a device, adding cable to a power outlet, and adding a switch to a power button.

For development and marketing of products that better meet customer needs. Canon requests that information related to your Canon product be sent to Canon through the internet. Next

Read the descriptions in the supplied "Safety and Important Information" and select whether you agree to send information. Agree Do not agree

Select [OK] and start the setup by referring to the "Getting Started" instructions. OK

Diagram showing a printer or printer with a red arrow indicating rotation and a circled component, labeled (A)

Diagram illustrating a device with labeled parts and directional arrows, likely illustrating a process or assembly.

Illustration of a hand holding a small object with a red arrow indicating direction (no text or symbols)

Diagram showing a mechanical assembly before and after process, with no visible text or symbols

Diagram of a printer with red triangular warning symbols indicating no text or labels (no readable document text)

Illustration of a printer's internal structure being cut with a red arrow indicating rotation (no text or symbols present)

Diagram illustrating a printer press operation with labeled steps and directional arrows indicating press release or disassembly.

Diagram illustrating a device assembly process with labeled steps and directional arrows indicating movement or movement.

Load a sheet of A4 or Letter size plain paper in the cassette. How to set OK

Did the patterns print correctly? Yes No

Diagram illustrating printer operation steps with labeled components and directional arrows indicating process flow.

Diagram of a printer with a red downward arrow indicating compression or disassembly (no text or symbols present)

Following is completed. Auto head alignment OK

Select the connection method. Wireless LAN connection Wired LAN connection USB connection Do not connect

Diagram illustrating network connection between a device and LAN, showing packet transmission via router and switch.

The printer is performing initial adjustments... Do not turn off power. You can continue with the setup procedure on the computer or smartphone, etc. See "Getting Started".

Copy Scan Print

Setup - Microsoft - • Click Download on the computer to which you want to connect the printer Download

Start Setup Starting the setup needed to use the machines from the computer. Following on screen instructions Start Setup Useful Software Include software that allows you to use the device more concerning. Online Manual Manual can be checked online Campaigns Cut

You Can Print from a Smartphone or Tablet Pilot in [Applications] and set up your smartphone content. Instructions Your user should be aware about the next user's file. Timeout Information Next

Canon Installation completed successfully. Exit

Copy Scan Print

The printer is performing initial adjustments... Do not turn off power. You can continue with the setup procedure on the computer or smartphone, etc. See "Getting Started".

Copy Scan Print

Diagram illustrating printer operation with labeled steps and prohibition symbols

Diagram illustrating two steps of a document processing or assembly, labeled ① and ②, with arrows indicating process direction.

Diagram showing two labeled components (① and ②) with arrows indicating movement or flow, likely illustrating a mechanical or architectural process.

Diagram of a mechanical device with a red arrow indicating motion or force direction (no text or symbols)

Diagram showing a printer being inserted into a paper airplane (no text or symbols present)

Illustration of a cable and four separate electrical connectors (no text or symbols)

Diagram illustrating the process of removing a component into an air conditioner, with numbered steps and directional arrows.

Illustration of hands inserting a card into a printer with a red arrow indicating the process (no text or symbols present)

Diagram illustrating computer power switch operation with labeled steps and directional arrows

For development and marketing of products that better meet customer needs; Canon requests that information related to your Canon product be sent to Canon through the Internet Next

Read the descriptions in the supplied "Safety and Important Information" and select whether you agree to send information. Agree Do not agree

Select [OK] and start the setup by referring to the "Getting Started" instructions. OK

De inkttank installeren

Diagram showing printer internal structure with red arrow indicating rotation and label (A)

Diagram illustrating a device's motion with numbered steps and directional arrows, including a magnified inset showing the device's internal structure.

Diagram showing a device being processed into a machine, with red arrows indicating process flow (no text or symbols present)

5 Controleer of alle lampjes branden.

Diagram of a battery pack with red triangular symbols indicating charge distribution (no text or labels)

Illustration of a printer's internal structure being folded with a red arrow indicating compression (no text or symbols present)

Diagram illustrating printer press process with labeled steps and directional arrows indicating movement

Diagram illustrating a printer's internal structure and assembly process, labeled with arrows and numbered parts.

Load a sheet of A4 or Letter size plain paper in the cassette. How to set OK

Did the patterns print correctly? Yes No

Diagram illustrating printer printing process with labeled components and directional arrows indicating movement

Diagram of a printer with a red downward arrow indicating compression or disassembly (no text or symbols present)

Following is completed. Auto head alignment OK

Select the connection method. Wireless LAN connection Wired LAN connection USB connection Do not connect

The printer is performing initial adjustments... Do not turn off power. You can continue with the setup procedure on the computer or smartphone, etc. See "Getting Started".

■ Als u Bedrade LAN-verbinding (Wired LAN connection) of USB-verbinding (USB connection) selecteert:

Copy Scan Print

Setup - Windows • Click Download on the computer to which you want to connect the printer Download

Canon Start Setup Starting the setup needed to use the machine from the computer. Follow the screen instructions. Start Setup Useful Software Include software that allows you to use the machine in your systemware. Online Manual Manual can be checked online. Language Col

You Can Print from a Smartphone or Tablet Pattern to [Unshooting] and using your smartphone print kit. You can check in the emotion about the next user order. Download Network Information Read

Canon Installation completed successfully. Exit

iOS : Zoek "Canon PRINT" in App Store. Android : Zoek "Canon PRINT" in Google Play.

Copy Scan Print

The printer is performing initial adjustments... Do not turn off power. You can continue with the setup procedure on the computer or smartphone, etc. See "Getting Started".

Copy Scan Print

③ Tik op Ja (Yes) of Nee (No).
4 Tik op LAN-instell. (LAN settings) > Draadloos LAN (Wireless LAN) > Draadloos LAN instellen (Wireless LAN setup) > Eenv. draadloos verbinden (Easy wireless connect).
⑤ Tik op Ja (Yes).
⑥ Ga verder met de bediening van uw smartphone.

Fotopapier plaatsen

Diagram illustrating printer press operation with directional arrows and no-noise symbol indicating no printing or disassembly.

Diagram illustrating two steps of a document processing or assembly, labeled ① and ② with arrows indicating process direction.

Diagram showing two labeled components (① and ②) with directional arrows indicating movement or flow.

Diagram of a mechanical device with a red arrow indicating motion or force direction (no text or symbols)

Diagram showing a printer being inserted into a stack of paper, with an inset view highlighting the printer's internal structure (no text or symbols present)

Illustration of a cable and four rectangular electronic components (no text or symbols)

Manuali

Diagram illustrating the process of removing a component into an air conditioner, with numbered steps and a warning symbol.

Illustration of a hand inserting a card into a printer with red arrows indicating the process (no text or symbols)

Diagram illustrating computer power switch operation with labeled steps and directional arrows

For development and marketing of products that better meet customer needs, Canon requests that information related to your Canon product be sent to Canon through the internet Next

Read the descriptions in the supplied "Safety and Important Information" and select whether you agree to send information. Agree Do not agree

Select [OK] and start the setup by referring to the "Getting Started" instructions. OK

Diagram showing a printer's internal structure with a red arrow indicating rotation and label (A)

Diagram illustrating a device with labeled parts and directional arrows, likely illustrating a process or assembly.

Illustration of a person using a pair of glasses with a red arrow indicating motion (no text or symbols)

(A)

Illustration of a hand holding a small object with a red arrow indicating direction (no text or symbols)

(B)

Two red prohibition signs with arrows and symbols, one showing a crossed-out gun and the other a broken tool with a lightning bolt.

Diagram showing a mechanical device before and after assembly, with red arrows indicating motion or force direction (no text or symbols present)

Diagram of a mechanical or electrical component with red triangular elements and internal components (no text or symbols)

Illustration of a printer's internal structure being folded with a red arrow indicating compression (no text or symbols present)

Diagram illustrating the process of printer press application, showing steps from receipt to printer release with red arrows indicating motion.

Diagram illustrating a printer's internal structure and assembly process, labeled with arrows and numbered parts.

Load a sheet of A4 or Letter size plain paper in the cassette. How to set OK

Did the patterns print correctly? Yes No

Diagram illustrating printer operation steps with labeled components and directional arrows indicating process flow.

Diagram of a printer with a red downward arrow indicating compression or disassembly (no text or symbols present)

Following is completed. Auto head alignment OK

Select the connection method. Wireless LAN connection Wired LAN connection USB connection Do not connect

The printer is performing initial adjustments... Do not turn off power. You can continue with the setup procedure on the computer or smartphone, etc. See "Getting Started".

Se si seleziona Connessione LAN wired (Wired LAN connection) o Connessione USB (USB connection):

Copy Scan Print

2. Connessione con computer e smartphone/tablet

Setup - All services - ■ Click Download on the computer to which you want to connect the printer Download

Canon Start Setup Starting the setup needed to use the machines from the computer. Follow the screen instructions. Start Setup Useful Software Include Software that allows you to use the machine or more in particular. Online Manual Manual can be checked online. Language Edit

You Can Print from a Smartphone or Tablet Refer to [Unfected] and send your smartphone to install. You can check in the emotion about the next app order. Instructions Network Information Read

Canon Installation completed successfully. ExE

Copy Scan Print

The printer is performing initial adjustments... Do not turn off power. You can continue with the setup procedure on the computer or smartphone, etc. See "Getting Started".

Copy Scan Print (1)

Diagram illustrating printer operation with directional arrows and a prohibition sign, showing step-by-step assembly and print output.

Diagram illustrating two steps of a document processing or assembly, labeled ① and ②, with arrows indicating process direction.

Diagram showing two labeled components (① and ②) with arrows indicating movement or flow, likely illustrating a process or assembly.

Diagram of a mechanical device with a red arrow indicating motion or force direction (no text or symbols)

Diagram showing a printer being inserted into a paper airplane, with no text or symbols present.

Illustration of a cable being inserted into multiple rectangular blocks (no text or symbols)

Diagram illustrating the process of removing a component into an air conditioner, with numbered steps and a warning symbol.

Illustration of hands operating a printer with a red arrow indicating compression or disassembly (no text or symbols present)

Diagram illustrating computer power switch operation with labeled steps: adding a power button to switch, adding cable to power outlet, and adding a power switch.

For development and marketing of products that better meet customer needs; Canon requests that information related to your Canon product be sent to Canon through the Internet Next

Read the descriptions in the supplied "Safety and Important Information" and select whether you agree to send information. Agree Do not agree

Select [OK] and start the setup by referring to the "Getting Started" instructions. OK

Diagram showing printer internal structure with red arrow indicating rotation and labeled (A)

Diagram illustrating a device with labeled parts and directional arrows, likely illustrating a process or assembly.

Remova completamente a fita laranja.

3 Puxe a aba laranja CUIDADOSAMENTE.

Diagram showing a device being processed into a machine, with arrows indicating process flow (no text or symbols present)

Diagram of a mechanical or electrical component with red triangular elements and no visible text or symbols

Illustration of a printer's internal structure with a red arrow indicating compression or disassembly (no text or symbols present)

Diagram illustrating a printer press operation with labeled steps and directional arrows indicating press direction.

Diagram illustrating a device's internal structure and assembly, labeled with arrows and numbered parts.

Load a sheet of A4 or Letter size plain paper in the cassette. How to set OK

Did the patterns print correctly? Yes No

Diagram illustrating printer operation steps with labeled components and directional arrows indicating process flow.

Diagram of a printer with a red downward arrow indicating compression or disassembly (no text or symbols present)

Following is completed. Auto head alignment OK

Select the connection method. Wireless LAN connection Wired LAN connection USB connection Do not connect

Diagram illustrating network connection between a device and LAN, showing packet transmission via USB port and router.

The printer is performing initial adjustments... Do not turn off power. You can continue with the setup procedure on the computer or smartphone, etc. See "Getting Started".

Copy Scan Print

Setup - All services - • Click Download on the computer to which you want to connect the printer Download

③ Inicie o arquivo baixado.

B Windows

Start Setup Starting the setup needed to use the machines from the computer. Following on-screen instructions. Start Setup Useful Software Include software that allows you to use the machine or more commodality. Online Manual Manual can be checked online. Language Cut

You Can Print from a Smartphone or Tablet Refer to [instruction] and setup your smartphone reader. In millions You can check information about the next user's order. Name: Microsoft Enter

Canon Installation completed successfully. Exit

Copy Scan Print

The printer is performing initial adjustments... Do not turn off power. You can continue with the setup procedure on the computer or smartphone, etc. See "Getting Started".

Copy Scan Print

Diagram illustrating printer operation with directional arrows and a prohibition sign, showing step-by-step assembly and print process.

Diagram illustrating two steps of a document processing or assembly, labeled ① and ②, with arrows indicating process direction.

Diagram showing two labeled components (① and ②) with red arrows indicating movement or flow, likely illustrating a process or system.

Diagram of a mechanical device with a red arrow indicating motion or force direction (no text or symbols)

Diagram showing a printer being inserted into a stack of paper onto a printer (no text or symbols present)

Illustration of a cable and two separate electrical connectors (no text or symbols)

Diagram illustrating the process of removing a component into an air conditioner, with numbered steps and directional arrows.

Illustration of hands inserting a card into a printer with a red arrow indicating the process (no text or symbols present)

Diagram illustrating computer power switch operation with labeled steps and directional arrows

For development and marketing of products that better meet customer needs. Canon requests that information related to your Canon product be sent to Canon through the Internet Next

Read the descriptions in the supplied "Safety and Important Information" and select whether you agree to send information. Agree Do not agree

Select [OK] and start the setup by referring to the "Getting Started" instructions. OK

Diagram showing a printer's internal structure with red arrow indicating rotation and label (A)

2 ① Retire la cinta naranja.

② Retire el envoltorio protector.

Diagram illustrating a device with labeled parts and directional arrows, likely illustrating a motion or assembly process.

Retire totalmente la cinta naranja.

Illustration of a hand inserting a red object into a battery pack (no text or symbols)

Diagram showing a device being processed into a machine, with arrows indicating process flow (no text or symbols present)

Diagram of a mechanical or electrical component with red triangular markers and no visible text or symbols

Illustration of a printer's internal structure being folded with a red arrow indicating compression (no text or symbols present)

Diagram illustrating printer press operation with labeled steps and directional arrows indicating press direction

Diagram illustrating a printer's internal structure and assembly process, labeled with arrows and numbered parts.

Load a sheet of A4 or Letter size plain paper in the cassette. How to set OK

Did the patterns print correctly? Yes No

Diagram illustrating printer operation steps with labeled components and directional arrows indicating process flow.

Diagram of a printer with a red downward arrow indicating compression or disassembly (no text or symbols present)

Following is completed. Auto head alignment OK

Select the connection method. Wireless LAN connection Wired LAN connection USB connection Do not connect

The printer is performing initial adjustments... Do not turn off power. You can continue with the setup procedure on the computer or smartphone, etc. See "Getting Started".

■ Si selecciona Conexión LAN cableada (Wired LAN connection) o Conexión USB (USB connection):

Copy Scan Print

Setup ■ Click Download on the computer to which you want to connect the printer Download

Canon Start Setup Starting the setup needed to use the machines from the computer Following on written instructions. Start Setup Useful Software Include software that allows you to use the next file or more computer by: Online Manual Instructions can be checked online. Language Edit

You Can Print from a Smartphone or Tablet Refer to [ption] and set up your smartphone icon list. Add Phone New! Importing... Next

Canon Installation completed successfully. Eval

Copy Scan Print

The printer is performing initial adjustments... Do not turn off power. You can continue with the setup procedure on the computer or smartphone, etc. See "Getting Started".

Copy Scan Print

Diagram illustrating printer operation with directional arrows and a prohibition sign, showing step-by-step assembly and print output.

Diagram illustrating two steps of a document processing or packaging, labeled with arrows and numbered annotations.

Diagram showing a mechanical or electrical component with numbered parts and directional arrows indicating movement or force.

Diagram of a mechanical device with a red arrow indicating motion or force direction (no text or symbols)

Diagram showing a printer being inserted into a stack of paper, with an inset image highlighting the printer's internal structure (no text or symbols present)

Illustration of a cable and two separate electrical connectors (no text or symbols)

Diagram illustrating the process of removing a component into an air conditioner, with numbered steps and directional arrows.

Illustration of hands operating a printer with a red arrow indicating compression or disassembly (no text or symbols present)

Diagram illustrating the process of inserting a power button into a printer, with numbered steps and directional arrows indicating action.

For development and marketing of products that better meet customer needs. Canon requests that information related to your Canon product be sent to Canon through the Internet. Next

Read the descriptions in the supplied "Safety and Important Information" and select whether you agree to send information. Agree Do not agree

Select [OK] and start the setup by referring to the "Getting Started" instructions. OK

Diagram showing a printer's internal structure with red arrow indicating rotation and labeled (A)

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or assembly.

Diagram showing a mechanical assembly before and after process, with no visible text or symbols

Pure electrical circuit lines without any symbols

Illustration of a printer with a paper roll being inserted, showing red arrows indicating the process (no text or symbols present)

Diagram illustrating the process of printer press application, showing steps from receipt to print output with red arrows indicating motion.

Diagram illustrating a printer's internal structure and assembly process, labeled with arrows indicating component placement.

Load a sheet of A4 or Letter size plain paper in the cassette. How to set OK

Did the patterns print correctly? Yes No

Diagram illustrating printer printing process with labeled components and red directional arrows indicating motion

Diagram of a printer with a red downward arrow indicating compression or disassembly (no text or symbols present)

Following is completed. Auto head alignment OK

Select the connection method. Wireless LAN connection Wired LAN connection USB connection Do not connect

The printer is performing initial adjustments... Do not turn off power. You can continue with the setup procedure on the computer or smartphone, etc. See "Getting Started".

Copy Scan Print

Setup - All • Click Download on the computer to which you want to connect the printer Download

Canon Start Setup Starting the setup needed to use the machines from the computer. Follow the open-caten instructions. Start Setup: Use a software to allow your computer to access the system. Useful Software Include software that allows you to use the installed hardware converting Online Manual Allow you to check or install... Language Cut

You Can Print from a Smartphone or Tablet Refer to (Copyrighted) and not up your smartphone content. You can check your email about the next user.

Canon Installation completed successfully. Exit

Copy Scan Print

The printer is performing initial adjustments... Do not turn off power. You can continue with the setup procedure on the computer or smartphone, etc. See "Getting Started".

Copy Scan Print

Diagram illustrating a printer press operation with directional arrows and a prohibition sign, showing steps to press or print.

Diagram illustrating two steps of a mechanical or electrical device operation, labeled ① and ②, with arrows indicating direction of movement.

Diagram showing two labeled components (① and ②) with arrows indicating movement or force, likely illustrating a mechanical or structural assembly.

Diagram of a mechanical device with a red arrow indicating motion or force direction (no text or symbols)

Diagram showing a printer being inserted into a stack of paper, with an inset image highlighting the printer's internal structure (no text or symbols present)

Illustration of a cable and two stacked electrical connectors (no text or symbols)

Diagram illustrating the process of removing a component into a fan, with numbered steps and directional arrows indicating removal or disassembly.

Illustration of hands operating a printer with a red arrow indicating compression or disassembly (no text or symbols present)

4 ① Anslut strömkabeln.

Diagram illustrating the process of inserting a power drive into a printer, with numbered steps and directional arrows indicating action.

For development and marketing of products that better meet customer needs; Canon requests that information related to your Canon product be sent to Canon through the Internet Next

Read the descriptions in the supplied "Safety and Important Information" and select whether you agree to send information. Agree Do not agree

Select [OK] and start the setup by referring to the "Getting Started" instructions. OK

Diagram showing a printer's internal structure with a red arrow indicating rotation and label (A)

2 ① Ta bort den orange tejpen.

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or assembly.

Ta bort den orange tejpen helt.

Diagram showing a mechanical assembly before and after process, with arrows indicating motion or force direction (no text or symbols present)

Diagram of a battery pack with red triangular indicators indicating charge distribution (no text or symbols)

Illustration of a printer with a paper roll being inserted, showing the blade and paper (no text or symbols)

Diagram illustrating a printer press operation with labeled steps and directional arrows indicating press direction.

4 ① Sätt dit kassettlocket.
② Sätt i kassetten.

Diagram illustrating a device's internal structure and assembly, labeled with arrows and numbered parts.

Load a sheet of AA or Letter size plain paper in the cassette. How to set OK

Did the patterns print correctly? Yes No

Diagram illustrating printer printing process with labeled components and red directional arrows indicating motion

Diagram of a printer with a red downward arrow indicating compression or disassembly (no text or symbols present)

Following is completed. Auto head alignment OK

Select the connection method. Wireless LAN connection Wired LAN connection USB connection Do not connect

The printer is performing initial adjustments... Do not turn off power. You can continue with the setup procedure on the computer or smartphone, etc. See "Getting Started".

■ Om du väljer Kablad LAN-anslutning (Wired LAN connection) eller USB-anslutning (USB connection):

Copy Scan Print

Setup - Microsoft - • Click Download on the computer to which you want to connect the printer Download

Start Setup Starting the setup needed to use the machines from the computer. Follow the open-down instructions. Start Setup: Use a software to install your computer system Userful Software Initials software that allows you to use the installed mode computer by Online Manual Show you to be checked online Language Cut

You Can Print from a Smartphone or Tablet Paste to [dictioned] and write your smartphone card to Add Phone You can print information about the next user order Remove Information Next

Canon Installation completed successfully. Exit

Copy Scan Print

The printer is performing initial adjustments... Do not turn off power. You can continue with the setup procedure on the computer or smartphone, etc. See "Getting Started".

Copy Scan Print

Diagram illustrating printer operation with directional arrows and a prohibition sign, showing step-by-step assembly and print output.

Diagram illustrating two steps of a document processing or assembly, labeled ① and ② with arrows indicating direction.

Diagram showing two labeled components (① and ②) with arrows indicating movement or flow, likely illustrating a mechanical or electrical assembly.

Diagram of a mechanical device with a red arrow indicating motion or force direction (no text or symbols)

Diagram showing a printer being inserted into a stack of paper, with an inset view highlighting the printer's internal structure (no text or symbols present)

Illustration of a cable and two separate electrical connectors (no text or symbols)

Fjerne beskyttelsesmateriale / slå på skriveren

Du kan se fremgangsmåten på film ved å skanne QR-kodene.

Android

iOS

Diagram illustrating a process of fabric handling with numbered steps and directional arrows indicating movement.

Illustration of a hand inserting a card into a printer with a red arrow indicating the process (no text or symbols present)

Diagram illustrating computer power switch operation with labeled steps: adding a power button, adding cable to a power adapter, and adding cable to an outlet.

For development and marketing of products that better meet customer needs, Canon requests that information related to your Canon product be sent to Canon through the Internet. Next

Read the descriptions in the supplied "Safety and Important Information" and select whether you agree to send information. Agree Do not agree

Select [OK] and start the setup by referring to the "Getting Started" instructions. OK

Installere blektanken

Du kan se fremgangsmåten på film ved å skanne QR-kodene.

Android iOS

1 Åpne skanneenheten/dekselet.

Diagram showing a printer with a red arrow indicating rotation and a magnified inset highlighting a component, labeled (A)

2 ① Fjern den oransje tapen.

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or assembly.

Diagram showing a mechanical assembly before and after process, with red arrows indicating motion or force direction (no text or symbols present)

5 Kontroller at alle lampene lyser.

Pure electrical circuit lines without any symbols

Illustration of hands operating a printer with a red arrow indicating compression or disassembly (no text or symbols present)

Diagram illustrating printer press operation with labeled steps and directional arrows indicating press direction

Diagram illustrating a device's internal structure and assembly process, labeled with arrows and numbered parts.

Load a sheet of A4 or Letter size plain paper in the cassette. How to set OK

Did the patterns print correctly? Yes No

Diagram illustrating printer operation steps with labeled components and directional arrows indicating process flow.

Diagram of a printer or printer with a red downward arrow indicating compression or disassembly (no text or symbols present)

Following is completed. Auto head alignment OK

Select the connection method. Wireless LAN connection Wired LAN connection USB connection Do not connect

The printer is performing initial adjustments... Do not turn off power. You can continue with the setup procedure on the computer or smartphone, etc. See "Getting Started".

■ Hvis du velger Kablet LAN-tilkobling (Wired LAN connection) eller USB-tilkobling (USB connection):

Copy Scan Print

Setup - Windows - ■ Click Download on the computer to which you want to connect the printer Download

③ Start den nedlastede filen.

B Windows

Canon Start Setup Starting the setup needed to use the machines from the computer. Follow the on-screen instructions. Start Setup: Start Setup required to use the machine from the computer. Start Setup Start Setup Software Initial software that allows you to use the next file or more computer. Online Manual Allow you to check online. Language Call

You Can Print from a Smartphone or Tablet File to [dustʃəntən] and install your smartphone print kit. Instructions You can check information about the next user order.

Canon Installation completed successfully. Exit

Copy Scan Print

The printer is performing initial adjustments... Do not turn off power. You can continue with the setup procedure on the computer or smartphone, etc. See "Getting Started".

Copy Scan Print

Diagram illustrating printer operation with labeled steps: press, printer, and no/no prohibition symbol

2 1 Åpne spordekselet for mating.

Diagram illustrating two steps of a document processing or packaging, labeled ① and ② with arrows indicating direction.

Diagram showing two labeled components (① and ②) with arrows indicating movement or flow, likely illustrating a mechanical or electrical assembly.

4 Lukk spordekselet for mating.

Diagram of a mechanical device with a red arrow indicating motion or force direction (no text or symbols)

Diagram showing a printer being inserted into a stack of paper, with an inset view highlighting the printer's internal structure (no text or symbols present)

4 Velg bildene som skal skrives ut.
5 Trykk på Farge (Color)-knapen.

Skriveren starter utskriften.

1. Installation af printeren

Illustration of a cable and two separate electrical connectors (no text or symbols)

Diagram illustrating the process of removing a component into a fan, with numbered steps and directional arrows indicating removal or disassembly.

Illustration of a printer with a paper roll being inserted, showing red arrows indicating the process (no text or symbols present)

Diagram illustrating computer power switch operation with labeled steps: adding a power button to a device, adding cable to a wall-mounted power outlet.

For development and marketing of products that better meet customer needs; Canon requests that information related to your Canon product be sent to Canon through the Internet Next

Read the descriptions in the supplied "Safety and important Information" and select whether you agree to send information. Agree Do not agree

Select [OK] and start the setup by referring to the "Getting Started" instructions. OK

Diagram showing a printer's internal structure with red arrow indicating rotation and label (A)

2 ① Fjern den orange tape.

Diagram illustrating a device with labeled parts and directional arrows, likely illustrating a process or assembly.

Fjern al den orange tape.

Illustration of a hand holding a pen or tool with red arrows indicating motion, no text or symbols present

(A)

Illustration of a hand holding a small object with a red arrow indicating direction (no text or symbols)

(B)

Two red prohibition signs with arrows and symbols, one showing a crossed-out pen and the other a broken tool with a lightning bolt.

Diagram showing a mechanical assembly before and after process, with no visible text or symbols

Diagram of a printer or printer with red triangular markers indicating mounting points (no text or symbols present)

Illustration of a printer's internal structure with a red arrow indicating compression or disassembly (no text or symbols present)

Diagram illustrating a printer's internal structure and printer's internal mechanism, with numbered annotations indicating process steps.

Diagram illustrating a device assembly process with labeled steps 1 and 2, showing hand positioning and component insertion.

Load a sheet of A4 or Letter size plain paper in the cassette. How to set OK

Did the patterns print correctly? Yes No

Diagram illustrating printer operation steps with labeled components and directional arrows indicating process flow.

Diagram of a printer with a red downward arrow indicating compression or disassembly (no text or symbols present)

Following is completed. Auto head alignment OK

Printhovedjustering er fuldført.

Select the connection method. Wireless LAN connection Wired LAN connection USB connection Do not connect

The printer is performing initial adjustments... Do not turn off power. You can continue with the setup procedure on the computer or smartphone, etc. See "Getting Started".

Copy Scan Print

Setup - - Click Download on the computer to which you want to connect the printer Download

③ Start den downloadede fil.

B Windows

Brug Setup-CD'en

① Sæt setup-cd'en i computeren.

Når Windows 10, Windows 8.1 eller Windows 8 bruges:

Canon Start Setup Starting the setup needed to use the machine from the computer. Follow the on-screen instructions. Start Setup Use a device to access to a computer system Useful Software Use all software that uses you to use the device more otherwise. Online Manual Manual to be checked online Language Cut

You Can Print from a Smartphone or Tablet Printer is [Electronic] and read up your smartphone card list. Instructions How you change this device about the next user's order.

Canon Installation completed successfully. Exit

Copy Scan Print

The printer is performing initial adjustments... Do not turn off power. You can continue with the setup procedure on the computer or smartphone, etc. See "Getting Started".

Diagram illustrating printer operation with directional arrows and a prohibition sign, showing step-by-step assembly and print output.

Diagram illustrating two steps of a document processing or assembly, labeled ① and ②, with arrows indicating process direction.

Diagram showing two labeled components (① and ②) with arrows indicating movement or flow, likely illustrating a process or assembly.

Diagram of a mechanical device with a red arrow indicating motion or force direction (no text or symbols)

Diagram showing a printer being inserted into a stack of paper, with an inset view highlighting the printer's internal structure (no text or symbols present)

Illustration of a cable and two stacked electrical connectors (no text or symbols)

Diagram illustrating the process of removing a component into an air conditioner, with numbered steps and directional arrows.

Illustration of hands inserting a card into a printer with a red arrow indicating the process (no text or symbols present)

Diagram illustrating computer power switch operation with labeled steps and directional arrows

For development and marketing of products that better meet customer needs, Canon requests that information related to your Canon product be sent to Canon through the Internet. Next Read the descriptions in the supplied "Safety and Important Information" and select whether you agree to send information. Agree Do not agree

Select [OK] and start the setup by referring to the "Getting Started" instructions. OK

Diagram showing a printer's internal structure with red arrow indicating rotation and labeled (A)

Diagram illustrating a device with labeled parts and directional arrows, including a magnified inset showing a device's internal structure.

Diagram showing a device being processed into a machine, with red arrows indicating process flow (no text or symbols present)

Pure electrical circuit lines without any symbols

Illustration of hands operating a printer with a red arrow indicating compression or disassembly (no text or symbols present)

Diagram illustrating the process of printer press application, showing steps to press or attach a printer onto a device.

Diagram illustrating a device's internal structure and assembly, labeled with arrows and numbered parts.

5 Lue viestit ja napauta OK. Load a sheet of A4 or Letter size plain paper in the cassette. Stop How to set OK

Did the patterns print correctly? Yes No

Diagram illustrating printer operation steps with labeled components and directional arrows indicating process flow.

Diagram of a printer with a red downward arrow indicating compression or disassembly (no text or symbols present)

Following is completed. Auto head alignment OK

Select the connection method. Wireless LAN connection Wired LAN connection USB connection Do not connect

The printer is performing initial adjustments... Do not turn off power. You can continue with the setup procedure on the computer or smartphone, etc. See "Getting Started".

Copy Scan Print

Setup - Microsoft - ■ Click Download on the computer to which you want to connect the printer Download

Canon Start Setup Starting the setup needed to use the machines from the computer. Follow the on-stent instructions. Start Setup Useful Software Include software that should you to use the machine more concurrently. Online Manual Manual can be checked before. Campaigns Cut

You Can Print from a Smartphone or Tablet Parker to [Electronic] and will apply your smartphone to add it. Add Phone You can check your phone about the next user's phone. Next

Canon Installation completed successfully. Exit

Copy Scan Print

The printer is performing initial adjustments... Do not turn off power. You can continue with the setup procedure on the computer or smartphone, etc. See "Getting Started".

Copy Scan Print

Diagram illustrating printer operation with labeled steps: press, printer, and no/no prohibition symbol

Diagram illustrating two steps of a printer or printer operation, labeled ① and ②, with arrows indicating process flow.

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or flow, likely illustrating a process or assembly.

Diagram of a mechanical device with a red arrow indicating rotation or force direction (no text or symbols)

Diagram showing a printer being inserted into a stack of paper (no text or symbols present)

Gray oval icon with two red question marks, no text or symbols present

Visit the Website

Diagram showing three device icons: a laptop, a smartphone, and a tablet, with corresponding red arrows pointing to them.

Read Online Manual

Frequently Asked Questions
