Product type	Portable Bluetooth speaker
Brand	PEAQ
Model	PPA30BT
Bluetooth version	2.1+EDR
Supported Bluetooth profiles	HFP (hands-free), A2DP (stereo audio), AVRCP (remote control)
Power supply	5 V DC, 500 mA (via micro-USB cable)
Power consumption	Max. 2.5 W
Speaker	1.5" x 1 + 1 passive bass radiator
Operating temperature	45 °C max.
Battery charging	Approximately 2 hours (red LED on during charging, off when charged)
Water resistance	Yes (water-resistant cover)
Hands-free function	Yes (answer/end button, call priority)
NFC technology	Yes (quick pairing)
AUX input	Yes (3.5 mm jack)
Included accessories	Micro-USB cable, AUX cable, 2 wrist straps, user manual
Maintenance	Clean with a soft, damp cloth; no harsh solvents
Safety instructions	Do not expose to water, rain, extreme temperatures; use in moderate climate
Repairability	Do not disassemble yourself; contact a qualified technician
Disposal	Do not dispose of with household waste; recycle via WEEE

Frequently Asked Questions - PPA30BT PEAQ

How to turn on and off the PPA30BT speaker?

To turn on, press and hold the Power button for more than 2 seconds. To turn off, briefly press the same button.

How to pair the speaker with a Bluetooth phone?

Turn on the speaker. The LED flashes red and blue, indicating it is in pairing mode. Enable Bluetooth on your phone, search for 'PPA30BT' and select it. Once connected, the blue LED stays on.

How to charge the speaker's battery?

Connect the provided micro-USB cable to the speaker's micro-USB port and the other end to a computer USB port or a USB charger (5V, 500 mA). The red LED turns on during charging and turns off when the battery is full (about 2 hours).

What to do if the speaker no longer responds to buttons?

This may be due to electrostatic discharge. Turn off and unplug the speaker, then plug it back in after a few seconds. It should work normally.

Can I use the speaker while it is charging?

Yes, the speaker can be used while charging. This is mentioned in the manual.

How to use the NFC function for pairing?

Make sure your phone supports NFC and it is enabled. Bring your phone's NFC area close to the speaker's NFC chip (indicated on the casing). The Bluetooth connection will be established automatically. To disconnect, bring the two devices close again.

How to connect an external device via the AUX input?

Before connecting, disconnect any Bluetooth source. Connect the provided AUX cable to the speaker's AUX port and to the headphone or line output of your external device. Adjust the volume on both devices.

What do the indicator lights mean?

- Red LED on: battery charging. - Red LED flashing: low battery (<20%). - Blue LED flashing: pairing mode. - Blue LED on: Bluetooth connection established.

How to clean the speaker?

Unplug the device. Clean with a soft, damp cloth (slightly soapy water). Do not use alcohol, acetone, benzene, or abrasive cleaners. Wipe with a dry cloth.

Is the speaker water-resistant?

Yes, thanks to a water-resistant cover. However, do not immerse it and avoid prolonged exposure to rain.

USER MANUAL PPA30BT PEAQ

Two modern portable speakers with black earbuds and a strap, one labeled '0V3d' (no additional text or symbols visible)

Portable Bluetooth Speaker PPA30BT-B/SL

DF Bedienungsanleitung Gebruiksaanwijzing
EL Oδηγίες χρήσης Instrukcja obsługi PL
EN User Manual Instruções de utilização PT
ES Manual de instrucciones Руководство пользователя
FR Mode d'emploi Bruksanvisning SV
HU Kezelési leírás Kullanım Kilavuzu TR
IT Manuale dell'utente

Deutsch 4 - 19

Ελληνικά 20 - 34

English 35 - 48

Español 49 - 64

Français 65 - 79

Magyar 80 - 93

Italiano 94 - 107

Close-up of a hand holding a dark, glossy object with a small triangular mark and 'N' logo visible (no readable text or symbols)

Close-up of a dark, curved surface with decorative patterns and a white arrow pointing downward (no readable text or symbols)

Close-up of a black cylindrical device with a cable inserted, showing a small connector or socket (no visible text or symbols)

12

Diagram of a USB cable inserted into a device panel with four ports (no text or symbols visible)

Close-up of a mechanical component with a starburst symbol and a cable inserted (no visible text or symbols)

Hinweis

Illustration of a CD player with Bluetooth signal icons and a music player interface (no text or symbols on the player or device)

Illustration of a CD player with sound waves and a music player interface (no text or symbols)

Illustration of a CD player with Bluetooth signal and a digital audio workstation (no text or symbols on device)

Hinweis:

Illustration of a sound player with Bluetooth icons and a CD player on the right (no text or symbols)

Close-up of a black electronic device with a circular control panel and antenna, no visible text or symbols.

Mobiltelefon

Hinweis

Close-up of a mechanical component with a cable inserted, showing a small connector or socket (no visible text or symbols)

Illustration of a USB cable connected to an Apple and a smartphone (no text or symbols visible)

Close-up of a hand holding a small black object with an arrow pointing to it, against a dark background (no visible text or symbols)

Close-up of a dark, curved object with a white V-shaped mark and a small symbol inside, resembling a logo or icon (no readable text)

Close-up of a mechanical component with a cable inserted, showing a white arrow pointing to a section (no text or symbols visible)

Diagram of an electrical outlet with a USB cable inserted into a device (no text or symbols visible)

Close-up of a mechanical component with a starburst effect and a cable inserted (no visible text or symbols)

Close-up of a dark, curved object with embossed symbols and decorative patterns (no readable text or numbers)

Illustration of a sound player with Bluetooth icons and a CD player on the right (no text or symbols)

Illustration of a CD player with Bluetooth signal icons and an audio player interface (no text or symbols)

Illustration of a circular device connected to an electronic device with a Bluetooth symbol (no text or labels)

Σημείωση:

Illustration of a circular device emitting sound waves next to a digital audio player (no text or symbols)

Close-up of a black electronic device with a circular button and a star-shaped control panel (no visible text or symbols)

ΕΛΛΗΝΙΚΑ

Κινητό τηλέφωνο

Close-up of a black electronic device with a white 'V' symbol and a smartphone displaying a telephone icon (no readable text or symbols)

Σημείωση

Close-up of a black mechanical component with a cable inserted, showing a white arrow pointing to a small component (no text or symbols visible)

Illustration of a USB cable connected to a smartphone and a remote control panel (no text or symbols)

Σημείωση

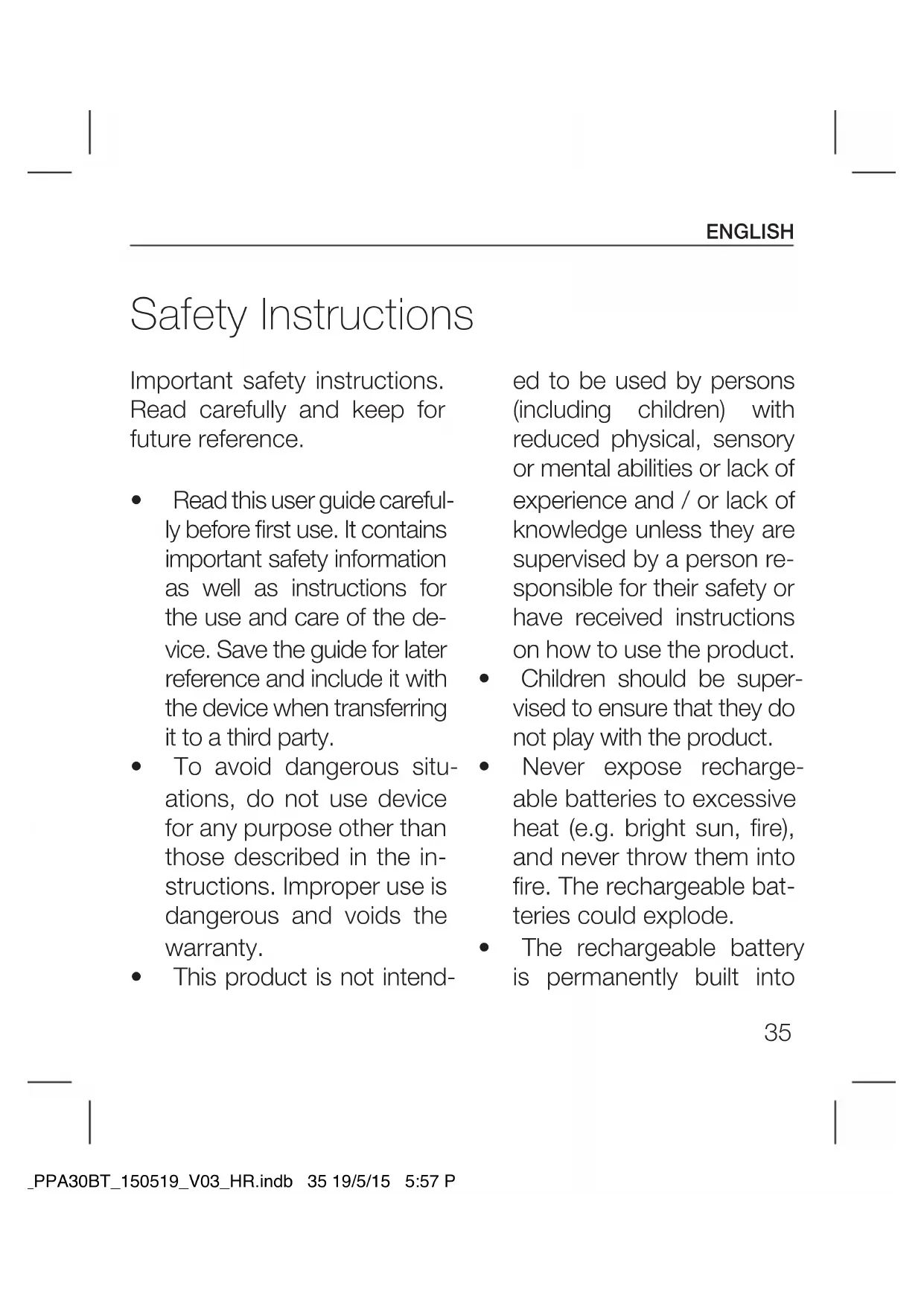

Important safety instructions. Read carefully and keep for future reference.

• Read this user guide carefully before first use. It contains important safety information as well as instructions for the use and care of the device. Save the guide for later reference and include it with the device when transferring it to a third party.
• To avoid dangerous situations, do not use device for any purpose other than those described in the instructions. Improper use is dangerous and voids the warranty.
  • This product is not intend-

ed to be used by persons (including children) with reduced physical, sensory or mental abilities or lack of experience and / or lack of knowledge unless they are supervised by a person responsible for their safety or have received instructions on how to use the product.

• Children should be supervised to ensure that they do not play with the product.
• Never expose rechargeable batteries to excessive heat (e.g. bright sun, fire), and never throw them into fire. The rechargeable batteries could explode.
• The rechargeable battery is permanently built into

the product and cannot be replaced.

• Never damage the rechargeable battery. Damaging the casing of the rechargeable battery might cause an explosion or a fire!
• Never short-circuit the contacts of the rechargeable battery. Do not throw the rechargeable battery or the product into fire. There is a danger of fire and explosion!

- Charge the rechargeable battery regularly, even if you are not using the product. Due to the rechargeable battery technology being used, you do not need to discharge the

rechargeable battery first.

• Never charge the rechargeable battery of the product unattended.
• Use only under normal room conditions (temperature and humidity).
• The product is intended to be used in moderate climates only. Do not use in tropical or very humid climates.
• Do not move the product from cold into warm environments and vice versa. Condensation can damage the product and electric components.
• The use of accessories and parts not specifically recommended by the manufacturer may cause

injuries or damages and will result in forfeiture of the warranty.

• Do not touch, press or rub the surface of the product with sharp or hard objects
• To reduce the risk of fire or electric shock, do not expose the device to rain or humidity.
• The product may not be exposed to dripping or splashing water, and liquid filled objects such as vases must not be placed on the product.
• Do not impede ventilation by covering the ventilation openings with items, such as newspapers, tablecloths, curtains, etc. Do

not insert any objects.

• No naked flame sources, such as lighted candles, should be placed on the product.
  • Make sure no objects or liquids penetrate through openings into the housing.
• Never immerse electric parts of the product in water or other liquids while cleaning or using it. Never place the product under running water.
• Do not place the product in the vicinity of devices producing strong magnetic fields (for example motors, loudspeakers, transformers).
  • Do not expose the product

to direct sunlight, humidity, dirt, hot light sources or strong magnetic fields. Do not expose the product to high temperatures and strong vibrations and avoid high mechanical stress.

• The product may not function properly or not react to the operation of any control due to electrostatic discharge. Switch off and disconnect the product; reconnect/switch on after a few seconds.
• If the product shows damages, do not use it any longer and have it repaired by a qualified technician, or contact our customer service department. Do

not disassemble the product, and do not try to repair it yourself.

Intended use

The product is intended only for sound reproduction and phone call reception via Bluetooth. Use the product only as described in this manual.

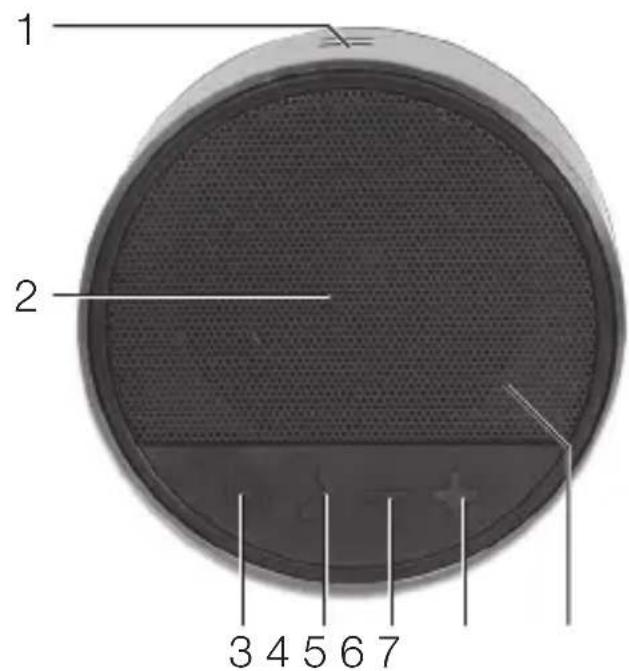

Components

1. Opening for hand strap
2. Loudspeaker
3. On/Off button
4. Pick up call
5. Volume -
6. Volume +

7. Bluetooth-indicator

8. Water-resistant cover

9. LED-indicator battery
10. Micro-USB jack
11. AUX IN
12. NFC-Chip
13. Anti-slip feet

Accessoires

1 x Bluetooth speaker
1 x Micro-USB-cable
1 x AUX IN cable
2 x Hand straps
1 x User manual

Compatibility

This product is compatible with Bluetooth enabled mobile phones and music devices. It features Bluetooth version 2.1+EDR. It also works with devices featuring other Bluetooth versions that support e.g.

Wireless Hands-Free com- munication

• HFP (Hands-free Profile)

Wireless stereo listening

• A2DP (Advanced Audio Distribution Profile)

Wireless music control

AVRCP

Before first time use

- Read this user guide carefully to avoid damages or injuries due to improper use. Pay special attention to the safety instructions. Keep the instructions for future reference and include them when transferring the device to third persons.

- The device must be charged before the first use. Please refer to the chapter "Charging the battery".

- Carefully remove all packaging materials and check the device for completeness and integrity. Do not use a damaged device.

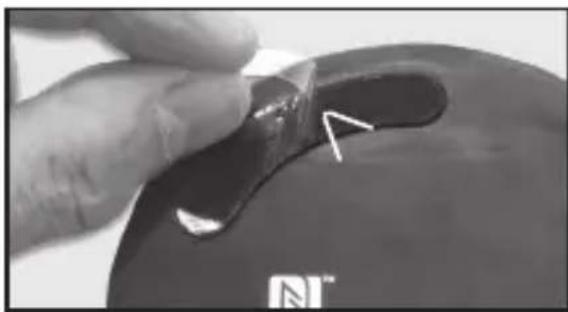

- Remove the protection foil from the anti-slip feet.

Close-up of a hand holding a small object with a triangular mark and arrow, against a dark background (no visible text or symbols)

- Pair the speaker with a Bluetooth AV source or Bluetooth mobile phone first. Please refer to the chapters "Pairing".

- The Bluetooth Speaker ID is PPA30BT.

Charging the batteryOperation

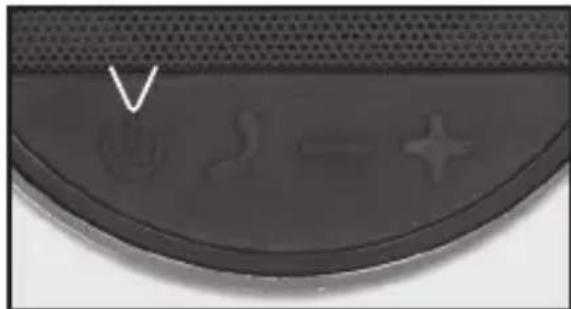

TURNING ON/OFF

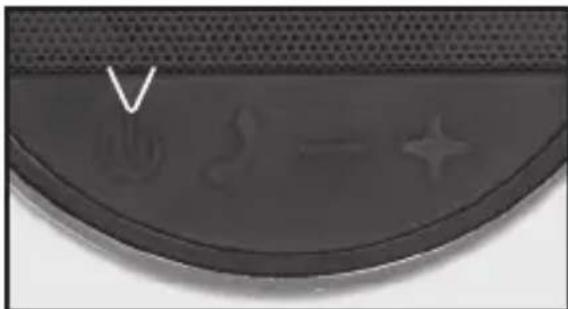

To turn on, press and hold the On-Off button for approx. 2 seconds. The LED flashes up in blue. Press the On/Off button once to turn off.

Close-up of a dark, curved object with embossed symbols (no readable text or numbers)

ADJUSTING THE VOLUME

Press the Volume +/- buttons to adjust the volume.

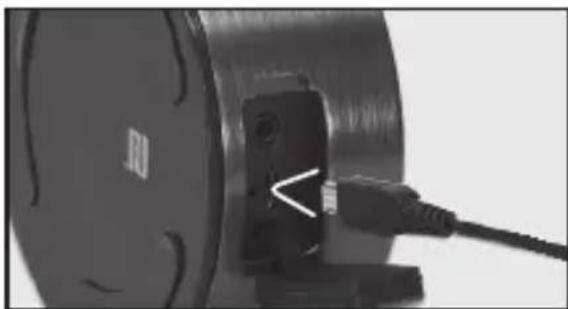

1. Connect the USB cable (included) to the speaker.

Close-up of a mechanical component with a cable inserted, showing no visible text or symbols.

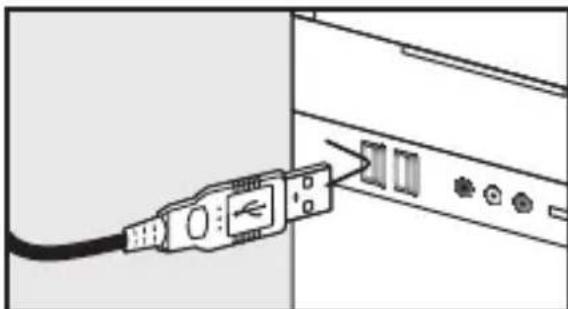

1. Connect the other end of the USB cable to the USB port of the computer or a USB-charger.

Line drawing of an Ethernet cable inserted into a device panel with ports (no text or symbols)

Pairing

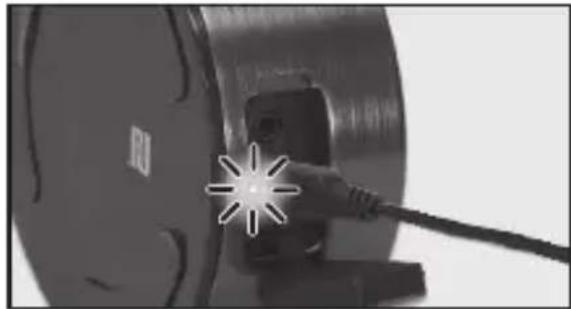

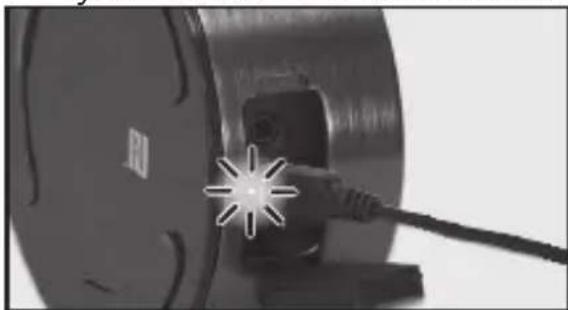

1. During the battery charging the LED lights continuously red.

Close-up of a cable inserted into a mechanical component with a starburst symbol (no text or symbols visible)

Note

LED turns on continuously: Battery charging.

LED twinkles: The capacity of the battery is <20%. Battery must be re-charged.

LED turns off: Battery charging complete.

The speaker can still be used during charging. It will take approx. 2 hours to fully charge the battery.

1. Press On/Off button until the LED turns on blue. The speaker is ready for pairing, when the LED twinkles in red-and-blue and a sound is chimed.

Close-up of a dark, curved object with abstract symbols and patterns (no readable text or symbols)

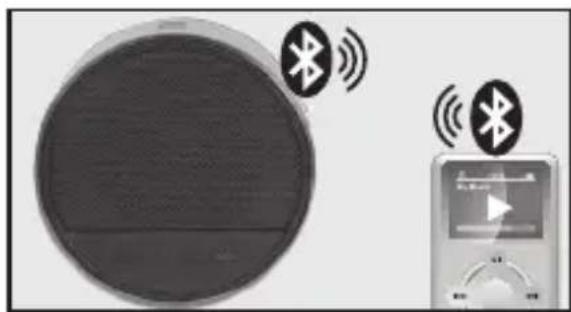

1. Activate the Bluetooth function on the audio device. Connect the Bluetooth-AV-Source with the Speaker via Bluetooth pairing.

Illustration of a CD player with Bluetooth signal icons next to an electronic music player (no text or symbols on the player or device)

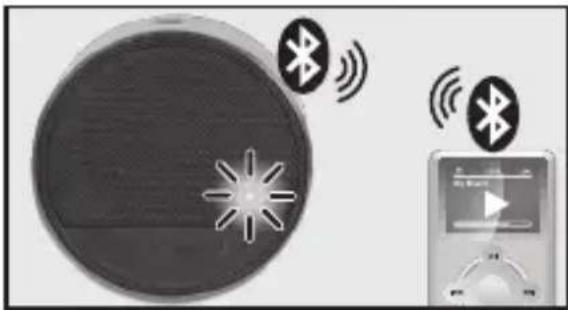

1. When both devices are paired the LED turns on blue continuously.

Illustration of a CD player with Bluetooth signal icons and an external media player (no text or symbols)

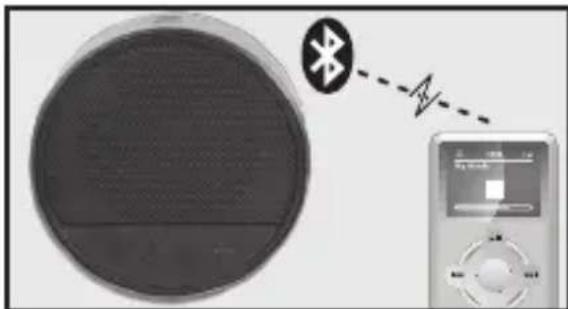

1. Unpair at the Bluetooth source to disconnect. A sound indicates that Bluetooth is deactivated and the LED flashes in blue and red.

Illustration of a circular device emitting a Bluetooth signal from a digital audio workstation (no text or symbols)

Note:

Keep the range of 1 meter when pairing. Before pairing a Bluetooth AV source, refer to the AV source user guide regarding safety instructions and use with other devices.

Pairing with NFC Music playback

1. If your playback device has an NFC chip, turn on NFC and Bluetooth on your playback device.
2. Place your playback device's NFC chip near the NFC chip on the speaker. A bluetooth connection between both devices will be automatically established.

Illustration of a CD player with Bluetooth signal icons next to an electronic music player (no text or symbols on the player or device)

1. To end the bluetooth connection, once again place your playback device's NFC chip next to the NFC chip on the speaker.

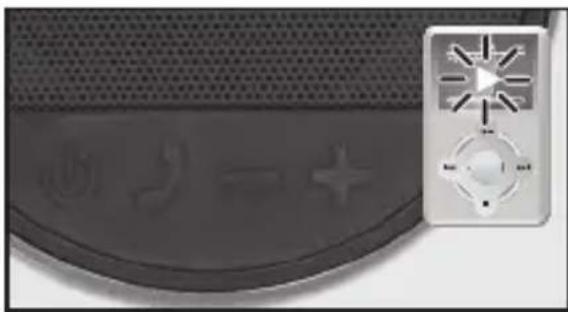

Start the music playback on the Bluetooth AV source.

Close-up of a speaker grille with sound waves and a control panel (no visible text or symbols)

Mobile phone

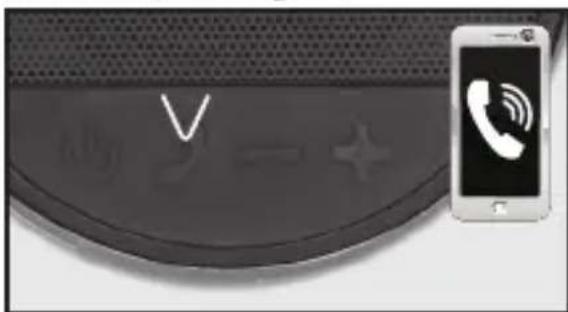

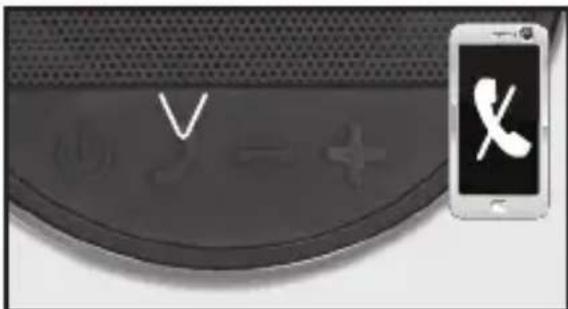

1. To pick up an incoming call, press key.

External device via AUX connection

1. To end a call press 🔍 key or end the call on your mobile phone.

Note

Phone calls will always be the top priority. When an incoming/outgoing call is being progressed, it actively interrupts the music playback. As soon as the call has been ended, the music resumes.

ATTENTION

Before you connect your external player (for example an MP3 player), refer to its user guide regarding safety instructions and use with other devices.

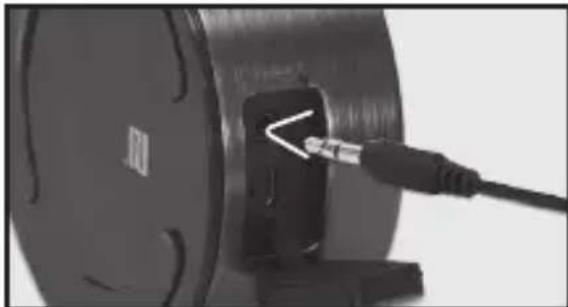

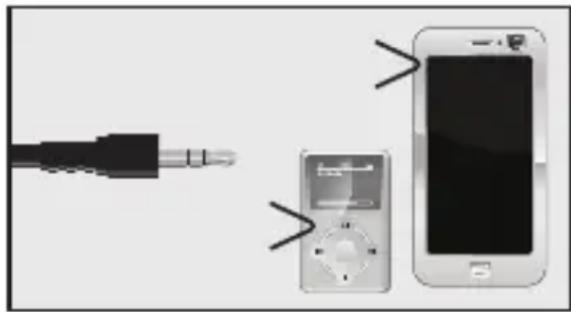

1. Connect the stereo cable (included) to the AUX jack.

Close-up of a black mechanical component with a cable inserted, showing a white arrow pointing to a small component (no text or symbols visible)

1. Insert the other end of the cable into the headphone or LINEOUT jack of the external device.

Cleaning and care

Illustration of a USB cable connected to an Apple and a smartphone, with no visible text or symbols.

Note

• Disconnect the Bluetooth connection with audio sources before connecting an external device via AUX IN.
• Switch the external player on and turn its volume to zero.

• Turn the speaker system on and regulate the volumes of both devices.

• Switch off the device before cleaning.

• Clean the device with a soft, damp cloth and a mild cleaning agent. Finish by wiping it with a dry cloth.
• Do not use alcohol, acetone, benzene, scouring cleansers etc. to clean the device. Do not use hard brushes or metal objects.

• Power supply : 5 V DC, 500 mA
- Speaker unit : 1.5" x 1 + 1 passive subwoofer
• Power consumption : max. 2.5 W
- Operating temperature: Max. 45 °C

DisposalSpecification

Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Please dispose of batteries in an environmentally friendly manner. Do not put batteries into the household waste. Please use the return and collection systems in your community or contact the dealer where you purchased the product.

Close-up of a hand holding a small object with an arrow pointing to it, against a dark background (no visible text or symbols)

Close-up of a curved metallic object with embossed symbols (no readable text or numbers)

AJUSTE DEL VOLUMEN

Close-up of a mechanical component with a cable inserted, no visible text or symbols

Line drawing of an audio jack connected to a device panel (no text or symbols visible)

Close-up of a mechanical component with a starburst effect, no visible text or symbols

Close-up of a dark, curved object with abstract patterns and small symbols (no readable text or symbols)

Illustration of a CD player with Bluetooth signal icons next to an electronic music player (no text or symbols on the player or device)

Illustration of a CD player with sound waves and a music player on the right (no text or symbols)

Close-up of a black surface with decorative icons and a small white control panel (no readable text or symbols)

Teléfono móvil

Nota

Close-up of a black mechanical component with a cable inserted, showing a white arrow pointing to a small component (no text or symbols visible)

62

Illustration of a USB cable connected to a smartphone and an open music player (no text or symbols present)

Nota

Close-up of a hand holding a small black object with an arrow pointing to it, against a dark background (no visible text or symbols)

MISE EN MARCHE/ARRÊT

Close-up of a dark, curved surface with abstract markings and a white V symbol (no readable text or symbols)

RÉGLAGE DU VOLUME

Close-up of a mechanical component with a cable inserted, showing a highlighted section (no visible text or symbols)

Line drawing of a USB cable inserted into a device panel with ports (no text or symbols)

Close-up of a mechanical component with a starburst symbol and cable inserted (no visible text or symbols)

Remarque

Close-up of a curved metallic object with embossed symbols (no readable text or numbers)

Illustration of a CD player with Bluetooth signal icons next to an electronic music player (no text or symbols on the player or device)

Illustration of a CD player with sound waves and a music player interface (no text or symbols)

Remarque :

Illustration of a CD player with Bluetooth signal icons and a music player monitor (no text or symbols)

Close-up of a black electronic device with a circular button and starburst pattern, no visible text or symbols.

Téléphone mobile

Remarque

Close-up of a mechanical component with a cable inserted, showing a highlighted section (no text or symbols visible)

Remarque

Close-up of a hand holding a small object with an arrow pointing to it, against a dark background (no visible text or symbols)

Close-up of a curved metallic object with embossed symbols (no readable text or numbers)

A HANGERÓ BEÁLLÍTÁSA

Close-up of a mechanical component with a cable inserted, showing a highlighted section (no visible text or symbols)

Line drawing of a USB cable inserted into a device panel with ports (no text or symbols)

Close-up of a mechanical component with a starburst symbol and a cable inserted (no visible text or symbols)

Close-up of a dark circular object with embossed symbols and a white V-line (no readable text or numbers)

Illustration of a CD player with Bluetooth signal icons next to an electronic music player (no text or symbols on the player or device)

Illustration of a CD player with Bluetooth signal icons and a music player interface (no text or symbols)

Megjegyzés:

Illustration of a CD player with Bluetooth signal icons and an audio player on the right (no text or symbols)

Close-up of a black electronic device with a circular button and indicator lights, no visible text or symbols.

Megjegyzés

Close-up of a mechanical component with a cable inserted into a black socket (no visible text or symbols)

Megjegyzés

Close-up of a hand holding a dark, glossy object with a small hole and a white arrow pointing to it (no text or symbols visible)

Close-up of a dark circular object with embossed symbols and a white V-shaped mark (no readable text or numbers)

Close-up of a black cylindrical device with a cable inserted, showing a white arrow pointing to a small component (no visible text or symbols)

Diagram of a USB cable inserted into a device panel with four ports (no text or symbols visible)

Close-up of a mechanical component with a starburst effect and a cable inserted (no visible text or symbols)

Nota

Close-up of a curved electronic device with power and indicator lights (no visible text or symbols)

Illustration of a CD player with Bluetooth signal icons and an electronic music player (no text or symbols on the player or device)

Illustration of a CD player with Bluetooth signal icons and a music player control panel (no text or symbols)

Nota:

Illustration of a smart speaker with Bluetooth icons and a CD player interface (no text or symbols)

Close-up of a black circular object with textured surface and a small white device with starburst pattern (no visible text or symbols)

Telefono cellulare

Close-up of a black electronic device with icons and a smartphone displaying a white telephone handset (no readable text or symbols)

Close-up of a mechanical component with a cable inserted into a black housing (no visible text or symbols)

Diagram showing a black audio jack connected to a digital play controller and a smartphone (no text or symbols present)

Nota

• Scollegare il Bluetooth

106

Close-up of a hand holding a small object with a pointed hole, partially visible on a dark surface (no text or symbols)

- De Bluetooth luidspreker ID is PPA30BT.

Gebruik

AAN/UIT ZETTEN

Close-up of a dark circular object with embossed symbols and a white arrow pointing to it (no readable text or numbers)

HET GELUIDSVOLUME IN- STELLEN

Close-up of a mechanical component with a cable inserted, no visible text or symbols

Line drawing of a USB cable inserted into a device panel with ports (no text or symbols)

Close-up of a mechanical component with a starburst symbol and a cable inserted (no visible text or symbols)

Opmerking

Close-up of a dark circular object with abstract symbols and a white V-shaped mark (no readable text or numbers)

Illustration of a CD player with sound waves and a music player interface (no text or symbols)

Illustration of a CD player with sound waves and Bluetooth icons, next to an electronic music player (no text or symbols on the player or device)

Opmerking:

Illustration of a sound player with Bluetooth icons and a CD player on the right (no text or symbols)

Close-up of a speaker grille with sound waves and a control panel (no visible text or symbols)

Mobiele telefoon

Close-up of a black electronic device with a white 'V' symbol and a smartphone displaying a white telephone handset (no readable text or symbols)

120

Opmerking

Close-up of a mechanical component with a cable inserted, showing a highlighted section (no text or symbols visible)

Illustration of a USB cable connected to an Apple and a smartphone (no text or symbols visible)

Opmerking

Close-up of a hand holding a black object with an arrow pointing to a small hole, against a dark circular background (no text or symbols visible)

WŁĄCZANIE/WYŁĄCZANIE (ON/OFF)

Close-up of a dark, curved object with embossed symbols (no readable text or numbers)

REGULACJA GŁOŚNOŚCI

Close-up of a mechanical component with a cable inserted, showing a highlighted section (no visible text or symbols)

Line drawing of an electrical plug inserted into a device panel (no text or symbols visible)

Close-up of a mechanical component with a starburst effect, no visible text or symbols

Wskazówka

Close-up of a curved surface with a white triangular symbol and plus/minus signs, no readable text or symbols present.

Illustration of a CD player with sound waves and a music player interface (no text or symbols)

Illustration of a CD player with Bluetooth signal icons and a music player control panel (no text or symbols)

Illustration of a circular device with a Bluetooth symbol and an external CD player interface (no text or symbols on the device itself)

Wskazówka:

Illustration of a circular device emitting sound waves next to a music player interface (no text or symbols)

Close-up of a black electronic device with a grid pattern and a control panel (no visible text or symbols)

Telefon komórkowy

Close-up of a black electronic device with a white 'V' symbol and icons, next to a smartphone displaying a white telephone handset (no readable text or symbols)

Close-up of a mechanical component with a cable inserted into a housing, showing no visible text or symbols.

Illustration showing a USB cable connected to an audio recording device and a smartphone (no text or symbols present)

Uwaga

Close-up of a hand holding a dark, glossy object with a small hole and arrow pointing to it (no visible text or symbols)

Close-up of a curved metallic object with embossed symbols (no readable text or numbers)

AJUSTAR O VOLUME

Close-up of a black cylindrical device with a plug inserted into a socket, showing no visible text or symbols.

Diagram of an Ethernet cable inserted into a device panel with ports (no text or symbols visible)

Close-up of a mechanical component with a starburst symbol and a cable inserted (no visible text or symbols)

Nota

Close-up of a curved metallic object with embossed symbols (no readable text or numbers)

Illustration of a CD player with Bluetooth signal icons next to an electronic music player (no text or symbols on the player or device)

Illustration of a CD player with Bluetooth signal icons and a music player control panel (no text or symbols)

Illustration of a circular device with a Bluetooth symbol and an external CD player interface (no text or symbols on the device itself)

Nota:

Illustration of a CD player with sound waves and an electronic music player (no text or symbols)

Close-up of a black electronic device with a circular button and a starburst symbol on its side (no readable text or symbols)

Telemóvel

Nota

Close-up of a mechanical component with a cable inserted into a housing, showing no visible text or symbols.

Illustration of a USB cable, an audio recording device, and a smartphone (no text or symbols)

Nota

Close-up of a hand holding a small black object with an arrow pointing to it, against a dark background (no visible text or symbols)

Close-up of a curved metallic object with textured surface and small star-shaped markings (no readable text or symbols)

Close-up of a mechanical component with a cable and connector, no visible text or symbols

Line drawing of a USB cable inserted into a device panel with four ports (no text or symbols)

Сопряжение

Close-up of a mechanical component with a glowing starburst symbol (no text or symbols visible)

Close-up of a dark circular object with abstract geometric patterns and symbols (no readable text or labels)

Illustration of a CD player with Bluetooth signal icons and a music player control panel (no text or symbols)

Illustration of a CD player with sound waves and Bluetooth icons, next to a music player control panel (no text or symbols on the player or device)

Illustration of a circular device emitting a Bluetooth signal from a CD to an electronic device (no text or symbols)

Примечание:

Illustration of a CD player with sound waves and a music player on the right (no text or symbols)

Close-up of a speaker grille and a control panel with a starburst icon (no readable text or symbols)

Мобильный телефон

Black electronic device with a V-shaped display and a smartphone displaying a telephone handset (no readable text or symbols)

Close-up of a black electronic device with a cable inserted into a socket (no visible text or symbols)

Illustration of a USB cable connected to a smartphone and a music player (no text or symbols present)

Чистка и уход

Примечание

Close-up of a hand holding a dark, glossy object with a small arrow pointing to a hole (no visible text or symbols)

Close-up of a curved metallic object with embossed symbols (no readable text or numbers)

JUSTERA VOLYMEN

Close-up of a black electronic device with a cable inserted, showing a small component and a circular base (no visible text or symbols)

Diagram of a USB cable inserted into a device panel with ports (no text or symbols visible)

1. Medan batteriet laddas lyser LED:n konstant rött.

Close-up of a mechanical component with a glowing starburst symbol (no readable text or symbols)

Notera

LED:n lyser konstant:

Batteriet laddas.

Close-up of a dark, curved object with abstract patterns and small symbols (no readable text or labels)

Illustration of a CD player with Bluetooth signal icons and an audio player interface (no text or symbols on the player or device)

Illustration of a CD player with Bluetooth signal icons and a music player interface (no text or symbols on the player or device)

Illustration of a circular device emitting a Bluetooth signal from a digital audio workstation (no text or symbols)

Notera:

Illustration of a CD player with sound waves and a music player on the right (no text or symbols)

Close-up of a white remote control panel with a circular button and plus symbol, against a textured gray background (no readable text or symbols)

Mobiltelefon

Close-up of a black electronic device with decorative symbols and a smartphone displaying a white X-shaped symbol (no readable text or labels)

Notera

Close-up of a mechanical component with a cable inserted, showing a small internal component and a label 'R' on the left (no readable text or symbols beyond basic markings)

Illustration of a USB cable connected to a digital audio workstation and a smartphone (no text or symbols visible)

Notera

Close-up of a hand holding a small object with a white arrow pointing to it, against a dark background (no visible text or symbols)

Close-up of a dark, curved surface with abstract patterns and small symbols (no readable text or numbers)

SES AYARI

Close-up of a black electronic device with a cable inserted, showing a white arrow pointing to a component (no visible text or symbols)

Diagram of a USB cable inserted into a device panel with ports (no text or symbols visible)

Close-up of a mechanical component with a starburst symbol and a cable inserted (no visible text or symbols)

Not

Close-up of a dark, curved object with embossed symbols (no readable text or numbers)

Illustration of a sound player with Bluetooth icons and a CD player interface (no text or symbols)

Illustration of a circular device with a Bluetooth symbol and an external CD player interface (no text or symbols on the device itself)

Not:

Close-up of a black electronic device with a grid pattern and a control panel (no visible text or symbols)

Cep telefonu

Close-up of a mechanical component with a cable inserted, showing a small internal component and a label 'III' on the left (no readable text or symbols beyond the label)

Illustration showing a USB cable connected to an audio recording device and a smartphone (no text or symbols present)

Not

Subsidiary of Media-Saturn Group

(Managing Director) KLQUS (WHKANJOL)

Signature/ Unterschrift: Klaus Lahrmann
