USER MANUAL INW 802 HECO

At the end of the product's useful life, please dispose of it at appropriate collection points provided in your country.

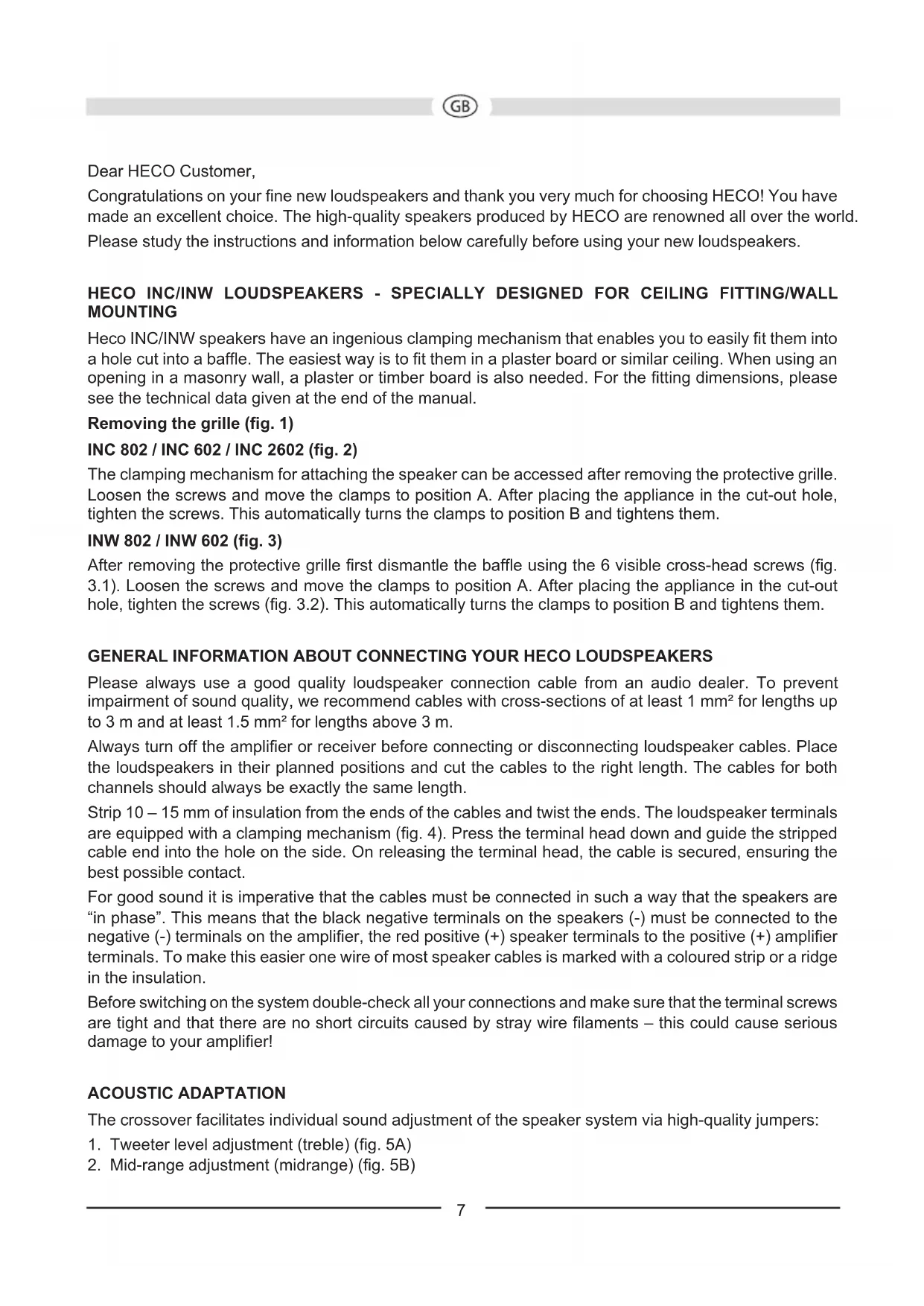

Congratulations on your fine new loudspeakers and thank you very much for choosing HECO! You have made an excellent choice. The high-quality speakers produced by HECO are renowned all over the world.

Please study the instructions and information below carefully before using your new loudspeakers.

HECO INC/INW LOUDSPEAKERS - SPECIALLY DESIGNED FOR CEILING FITTING/WALL MOUNTING

Heco INC/INW speakers have an ingenious clamping mechanism that enables you to easily fit them into a hole cut into a baffle. The easiest way is to fit them in a plaster board or similar ceiling. When using an opening in a masonry wall, a plaster or timber board is also needed. For the fitting dimensions, please see the technical data given at the end of the manual.

Removing the grille (fig. 1)

INC 802 / INC 602 / INC 2602 (fig. 2)

The clamping mechanism for attaching the speaker can be accessed after removing the protective grille. Loosen the screws and move the clamps to position A. After placing the appliance in the cut-out hole, tighten the screws. This automatically turns the clamps to position B and tightens them.

INW 802 / INW 602 (fig. 3)

After removing the protective grille first dismantle the baffle using the 6 visible cross-head screws (fig. 3.1). Loosen the screws and move the clamps to position A. After placing the appliance in the cut-out hole, tighten the screws (fig. 3.2). This automatically turns the clamps to position B and tightens them.

GENERAL INFORMATION ABOUT CONNECTING YOUR HECO LOUDSPEAKERS

Please always use a good quality loudspeaker connection cable from an audio dealer. To prevent impairment of sound quality, we recommend cables with cross-sections of at least 1mm^2 for lengths up to 3m and at least 1.5mm^2 for lengths above 3m .

Always turn off the amplifier or receiver before connecting or disconnecting loudspeaker cables. Place the loudspeakers in their planned positions and cut the cables to the right length. The cables for both channels should always be exactly the same length.

Strip 10 - 15mm of insulation from the ends of the cables and twist the ends. The loudspeaker terminals are equipped with a clamping mechanism (fig. 4). Press the terminal head down and guide the stripped cable end into the hole on the side. On releasing the terminal head, the cable is secured, ensuring the best possible contact.

For good sound it is imperative that the cables must be connected in such a way that the speakers are "in phase". This means that the black negative terminals on the speakers (-) must be connected to the negative (-) terminals on the amplifier, the red positive (+) speaker terminals to the positive (+) amplifier terminals. To make this easier one wire of most speaker cables is marked with a coloured strip or a ridge in the insulation.

Before switching on the system double-check all your connections and make sure that the terminal screws are tight and that there are no short circuits caused by stray wire filaments – this could cause serious damage to your amplifier!

ACOUSTIC ADAPTATION

The crossover facilitates individual sound adjustment of the speaker system via high-quality jumpers:

1. Tweeter level adjustment (treble) (fig. 5A)
2. Mid-range adjustment (midrange) (fig. 5B)

It is advisable to conduct the optimum setting according to your own personal listening preferences. We recommend the following switch positions as a basic setting for various listening areas:

Listening area Example	Switch position	„treble“	Switch position „midrange“
Low sound-absorbing setup	Wet rooms, hard reflective surfaces, tiles, large glass areas, rooms with minimal furniture	-3dB -3dB
Normal sound-absorbing setup	Carpets, glass surfaces with curtains, leather objects, rooms with a normal amount of furniture	0dB 0dB
High sound-absorbing setup	Carpets, upholstered objects, heavy curtains, rooms with lots of furniture	+3dB 0dB

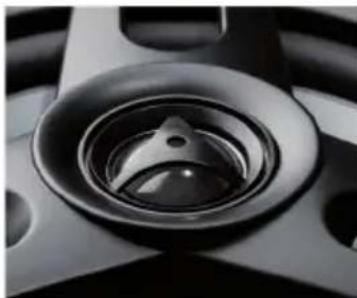

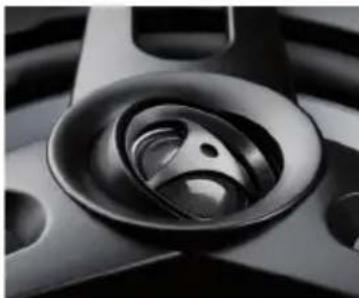

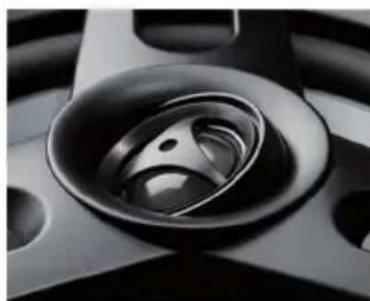

The tweeters "swivel" technology allows it to be pivoted by up to 35 degrees, thereby enabling ideal sound dispersion and perfect alignment to the listening area:

CONNECTING A STEREO AMPLIFIER

Fig. 6 shows the loudspeakers connected to a stereo amplifier.

HOW TO AVOID DAMAGE TO YOUR VALUABLE SPEAKERS

All HECO loudspeakers are designed and built for optimum sound reproduction with the tone controls in the central position - i.e. with "linear" amplifier output. Turning up the bass and treble controls too far delivers more power to the woofers and/or tweeters, and at high volumes this can actually destroy the speaker units!

If the output of your amplifier is significantly higher than the rated power handling capacity of your speakers extremely high volumes can physically destroy your speakers. This doesn't actually happen often but you should be aware that it is possible.

Weak amplifiers with low output ratings can actually be more dangerous for your speakers at medium volumes because weak amplifiers may overload much faster than powerful ones and this causes measurable and audible distortion, which is extremely dangerous to your loudspeakers.

Always turn the volume down immediately as soon as you hear distortion! If you like listening to loud music make sure that your amplifier can deliver at least as much power as the speakers' power-handling rating.

Amplifiers, tuners and CD/DVD players can all produce inaudible high-frequency signals - and this doesn't only apply to cheap products. If your tweeters fail at low or medium volumes you should have a qualified technician check your system components for dangerous inaudible signals.

SPECIFICATIONS

INC 802 INC 602 INC 2602

Power-handling capacity: 120 / 200 W 100 / 180 W 100 / 180 W

Impedance: 4 - 8 ohms 4 - 8 ohms 2 × 4 ohms

Crossover frequency: 3,500 Hz 3,500 Hz 3,600 Hz

Frequency response: 32 - 32,000 Hz 35 - 32,000 Hz 35 - 30,000 Hz

Recommended amplifier output: 30 - 180 W 30 - 140 W 30 - 140 W

Efficiency (1W/1m): 91 dB 90 dB 90 dB

External dimensions 272 mm 231 mm 231 mm

Hole cut-out ： 242 mm 198 mm 198 mm

Mounting depth: 112 mm 98 mm 92 mm

INW 802

Power-handling capacity: 120 / 200 W 100 / 180 W

Impedance: 4 ohms 4-8 ohms

Crossover frequency: 3,500 Hz 3,500 Hz

Frequency response: 32 - 32,000 Hz 38 - 32,000 Hz

Recommended amplifier output: 30 - 180 W 30 - 160 W

Efficiency (1W/1m): 91 dB 90 dB

External dimensions (w x h): 253 x 356 mm 219 x 306 mm

Hole cut-out (w x h): 223 x 325 mm 188 x 274 mm

Mounting depth: 90 mm 75 mm

Subject to technical change.

Très cher client,

TEXHUNCHECKNEXAPAKTEPNCNTIKN

INC 802 INC 602 INC 2602

Harpzouhna cnoocb: 120/200 Bt 100/180 Bt 100/180 Bt

IMpeHaH4-8OM4-8OM2x4OM

Pa3deJIInTeIbHaJaacToTa:3500Tc

UaCTOnTbI dHaNa3OH:

PekomeHdyemam MOuHocb yCnJInteIa:

Ko3Φ. noné3Horo DeiCTBnA (1 Bt/1 M):

HapyxHbIe pa3Mepbl 0:

OTBepTne 0:

MOnTaXHa rIy6HnHa:

3500Γu 3600Γu

32-32000Γu 35-32000Γu 35-30000Γu

30-180Bt 30-140BT 30-160BT

91D6 90D6

272MM 231 MM 231 MM

242 MM 198 MM 198 MM

112MM 98 MM 92 MM

INW802 INW602

Harpuzhna cnoocb: 120/200BT100/180BT

Umpeanu:4OM4-8OM

Pa3dJIInTeNbHaJa cTota: 3500 T

UactOnTbIy Dnana3OH:

PekomeHdyemam MOuHocTh ycnJnteIa:

Ko3Φ. nOe3HOro DeiCtBnA (1 Bτ/1 M):

HapyxHbIe pa3Mepbl (LXB):

OTBepTne (UxB):

MOnTaXHaYrIy6HnHa:

3500T

32-32000Γu 38-32000Γ

30-180B30-160BT

91d6 90d6

253× 356MM 219× 306MM

223× 325MM 188× 274MM

90 MM 75 MM

Bo3MOxHbI TexHnueckNe n3MeHeHn.

尊敬的HECO用户，

This is a great idea. It's good to be able to make it easier for people to get the information about the COVID-19 pandemic and the way of doing business.

Congratulations! You have made a wise selection in becoming the owner of a HECO HiFi equipment. Due to high quality HECO HiFi products have earned an excellent reputation through the western world. And this high quality standard enables us to grant a 5-years warranty for HECO HiFi products.

The equipments are checked and tested continuously during the entire production process. In case you have problems with your HECO HiFi equipment, kindly observe the following:

1. The guarantee period commences with the purchase of the component and is applicable only to the original owner.
2. During the guarantee period we will rectify any defects due to faulty material or workmanship by replacing or repairing the defective part at our discretion. Further claims, and in particular those for price reduction, cancellation of sale, compensation for damages or subsequent damages, are excluded. The guarantee period is not altered by the fact that we have carried out guarantee work.
3. Unauthorized tampering with the equipment will invalidate this guarantee.
4. Consult your authorized dealer first, if guarantee service is needed. Should it prove necessary to return the component to the factory, please insure that the component is packed in original factory packing in good condition the quality control card has been filled out and enclosed with the component your enclose your receipt as proof of purchase.
5. Excluded from the guarantee are: · Illuminates · Wear parts · Shipping damages, either readily apparent or concealed (claims for such damages must be lodged immediately with forwarding agent, the railway express office or post office). · Scratches in cases, metal components, front panels, etc. (You must notify your dealer directly of such defects within three days of purchase.) · Defects caused by incorrect installation or connection, by operation errors (see operating instructions), by overloading or by external force. · Equipments which have been repaired incorrectly or modified or where the case has been opened by persons other than us. · Consequential damages to other equipments. · Reimbursement of cools, without our prior consent, when repairing damages by third parties.

Name and address of the dealer/stamp

Käufer/Customer

Name/Name

Straße/Street

PLZ, Ort/City

Land/Country

Kaufdatum/buying date

No warranty without receipt!

HECO®

Lise-Meitner-Str. 9 • D-50259 Pulheim • Germany
Tel. [phone] / 807 - 0 • Fax [phone] / 807 - 399
Internet: http://www.heco-audio.de
