Brand	Clatronic
Model	PO 3342
Product type	Table oven
Power supply	230 V, 50 Hz
Cooking functions	Top heat, bottom heat, combined heat
Timer	15 minutes, mechanical with automatic shut-off
Recommended maximum capacity	Pizza up to 350 g
Included accessories	Baking rack, crumb tray
Material	Steel and tempered glass
Safety	Automatic shut-off at end of cooking, hot surface indicator
Cleaning	Clean with a damp cloth, removable crumb tray
Maintenance	Unplug before cleaning, do not immerse
Installation	Heat-resistant surface, 50 cm clearance above, 20 cm on sides
Usage	Private, indoor only
Repairability	Do not repair yourself, contact a qualified technician
Environmental protection	Do not dispose with household waste, recycle at a waste disposal center

Frequently Asked Questions - PO 3342 CLATRONIC

How to use the Clatronic PO 3342 oven?

Place the food in the oven, close the door, select the cooking mode (top heat, bottom heat, or combined) with the switch, then set the cooking time with the timer. The oven stops automatically at the end of the time. For short times, preheat for 3 minutes.

What are the recommended cooking times for toasts?

For 2-3 slices of toast, allow 2-3 minutes in top and bottom heat mode. For sandwiches, same duration. The full table is in the manual.

How to clean the oven?

Unplug the appliance and wait for it to cool down. Clean the interior with a damp cloth and mild detergent. Never use abrasive sponges or harsh cleaners. The crumb tray is removable and should be emptied regularly.

What to do if the oven does not heat up?

Check that the timer is set to a position other than OFF and that the power outlet works. If the problem persists, contact a qualified technician. Do not attempt to repair the appliance yourself.

Can I use glass containers in the oven?

Yes, provided they are heat-resistant. Avoid plastic or unsuitable paper containers. Always check compatibility with high temperatures.

The oven emits odor and smoke during first use, is this normal?

Yes, it is normal. Let the oven heat empty for 15 minutes in top and bottom heat mode to eliminate the protective layer of the resistors. Ensure good ventilation.

How to set the timer for a time less than 3 minutes?

First turn the timer to 10 minutes, then turn back to the desired time (e.g., 3 minutes). The mechanism is more precise this way.

What safety distance must be observed around the oven?

Leave at least 50 cm above the oven and 20 cm on the sides. Do not place the oven near flammable materials such as curtains or wood.

Can I leave the oven unattended?

No, never leave the appliance running unattended. Turn it off and unplug it when you leave the room.

How to dispose of the oven at the end of its life?

Do not dispose of the appliance with household waste. Take it to a waste disposal center or collection point for electrical and electronic appliances. Contribute to recycling.

USER MANUAL PO 3342 CLATRONIC

Overview of the Components ...... Page 3

Instruction Manual Page 23

Technical Data.... Page 25

JEZYK POLSKI

Spis tres' ci

Labeled diagram of a toaster oven with numbered parts for identification

D-47906 Kempen/Germany

WAARSCHUWING: GEVAAR VOOR VERBRANDING!

Consommation: 1000 W

Classe de protection: I

Poids net: 3,55 kg

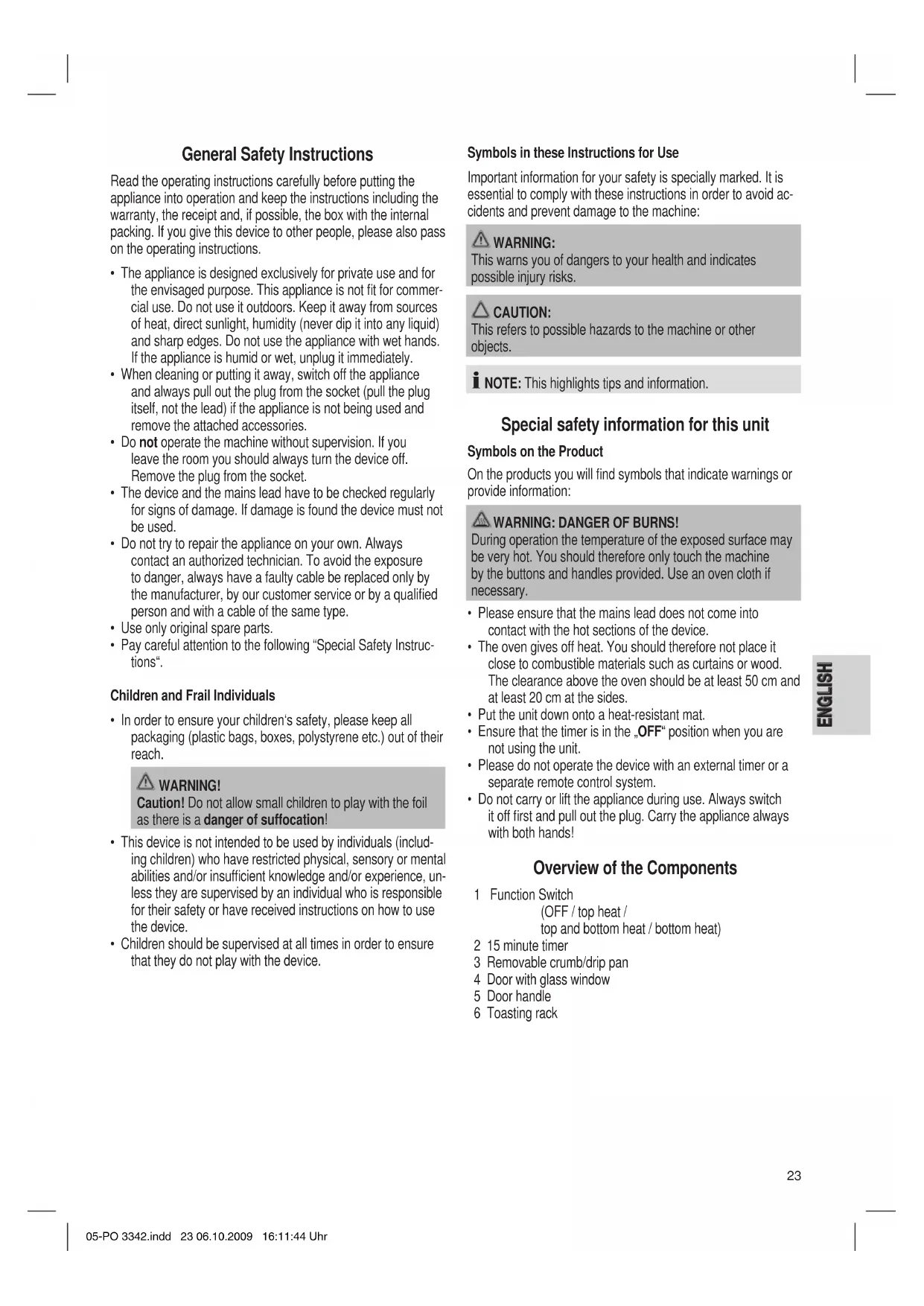

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Children and Frail Individuals

- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• This device is not intended to be used by individuals (including children) who have restricted physical, sensory or mental abilities and/or insufficient knowledge and/or experience, unless they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.
• Children should be supervised at all times in order to ensure that they do not play with the device.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

Special safety information for this unit

Symbols on the Product

On the products you will find symbols that indicate warnings or provide information:

WARNING: DANGER OF BURNS!

During operation the temperature of the exposed surface may be very hot. You should therefore only touch the machine by the buttons and handles provided. Use an oven cloth if necessary.

• Please ensure that the mains lead does not come into contact with the hot sections of the device.
• The oven gives off heat. You should therefore not place it close to combustible materials such as curtains or wood. The clearance above the oven should be at least 50 cm and at least 20 cm at the sides.
• Put the unit down onto a heat-resistant mat.
• Ensure that the timer is in the „OFF“ position when you are not using the unit.
• Please do not operate the device with an external timer or a separate remote control system.
• Do not carry or lift the appliance during use. Always switch it off first and pull out the plug. Carry the appliance always with both hands!

Overview of the Components

1 Function Switch

(OFF / top heat /

top and bottom heat / bottom heat)

2 15 minute timer
3 Removable crumb/drip pan
4 Door with glass window
5 Door handle
6 Toasting rack

Preliminary Operations

Before Initial Use

Remove any packaging materials that may be present in the oven.

CAUTION:

Before initial use please operate the oven for 15 minutes to remove the protective coating on the heating element. Set the temperature control to „top and bottom heat“.

NOTE:

Any smoke or smells produced during this procedure are normal. Please ensure sufficient ventilation.

How to use

1. The timer must be switched to the OFF position.
2. Connect the device to a duly installed 230 V/50 Hz protective contact socket.
3. Open the door and place the food to be cooked in the oven. For meat or pizzas please use the pizza tin. The grill is suitable for preparing toast If you would like to use other tableware, please ensure that this is sufficiently heat-resistant.
4. Close the oven door.
5. Set the required heating with the upper knob (top or bottom heating or both together).
6. Use the lower knob (timer) to set the desired cooking time. Please see the table in these instructions for reference values.
7. After the set time has expired, the machine automatically switches off and a short ringing is heard. The control lamp goes off. The timer can continue for a short time (ticking sounds).
8. If you would like to terminate the heating process prematurely, simply turn the button of the timer to the left to the OFF position.
9. If the cooking time is to be set to less than three minutes, please first set the timer to approximately 10 minutes and then to 3 minutes, for example.
10. In the case of short cooking times (under 5 minutes) it is recommended that the oven is preheated briefly (approximately 3 minutes) without food.
11. When the oven is switched off, you can open the door again and take out the food.

WARNING: This is hot!

For your safety you should use a cloth or similar object.

Recommended Toasting Times

Cooked Food Quantity/No. Cooking Time			Type of heating
Sandwiches 2 – 3 2 – 3 Min.			top and bottom heat
Toast 2 – 3 slices 2 – 3 Min.			top and bottom heat
Bacon 4 rashers		5 – 10 Min.each side	top heat
Ham slices 3 – 4 slices		7 – 12 Min.each side	top heat
Hamburger	2 – 3 slices	8 – 10 Min.each side	top heat
Pork cutlets	2	12 – 14 Min.each side	top heat
Fish fillet 1 – 2 slices		10 – 12 Min.each side	top heat
Sausage/hotdogs	3 – 4	10 – 12 Min.each side	top heat
Beef steaks	2 slices(approx. 2 cm thick)	12 – 14 Min.each side	top heat
Lamb cutlets	2 – 3	11 – 14 Min.each side	top heat
Chicken	1 half	15 – 20 Min.each side	top heat
Pizza	up to 350g	according to the recipe	top and bottom heat
Pizza, deep frozen	approx. 300g	approx.15 Min.please also note the manufacturer's instructions	top and bottom heat

These times are only approximations and may vary depending on circumstances.

How to clean

WARNING:

• Pull the plug out of the socket.
- ONLY clean or put away the unit when it has cooled down. DANGER OF BURNS!
• Under no circumstances should the device be immersed in water for cleaning.

CAUTION:

• Do not use any wire brush or other abrasive objects.
• Do not use any acidic or abrasive detergents.

Crumbs or similar residues on the floor of the device fall into the crumb drawer. Empty the drawer regularly. In order to do so, pull it all the way out. After emptying the drawer please reinsert it correctly into the guide mechanism.

Interior

• Keep the interior of the oven clean. Splashes and food residues on the oven walls can be removed with a damp cloth. If the oven is very dirty a mild detergent can also be used. Please do not use any abrasive detergents. Do not wipe the heating elements.
• Wipe the viewing window off on the inside and outside with a damp cloth and remove any splashes and food residues regularly.

External Walls

• The external walls of the microwave should only be cleaned with a damp cloth. Please ensure that no water enters the openings in the housing and therefore inside the device.
• Please only use a damp cloth for cleaning the controls.

Accessories

Removable parts that have come into contact with food, can be rinsed by hand.

Technical Data

Model: PO 3342

Power supply: 230 V, 50 Hz

Power consumption: 1000 W

Protection class:.... I

Net weight: 3.55 kg

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
