PO 3681 - Oven CLATRONIC - Free user manual and instructions

Product type	Pizza oven
Brand	Clatronic
Model	PO 3681
Power supply	220-240 V~, 50/60 Hz, 800-900 W
Total weight	Approximately 3.35 kg
Materials	Terracotta dome, stainless steel base plate, plastic base
Functions	Cooking pizzas, flammkuchen, puff pastries; keep warm
Included accessories	Stainless steel pizza spatula, biscuit cutter, base plate
Recommended preheating	Approximately 30 minutes
Cooking time	Varies depending on dough and toppings
Maintenance	Clean the spatula and plate with soapy water; dome and base with a damp cloth; do not immerse the base
Safety	Hot surface (caution burn), do not move while operating, wait for complete cooling
Repairability	Do not repair yourself; contact an authorized technician; cord must be replaced by a professional
Intended use	Domestic use for baking thin pizzas, flammkuchen, puff pastries
Environmental instructions	Do not dispose of with household waste; take to a recycling center

Frequently Asked Questions - PO 3681 CLATRONIC

How to preheat the pizza oven PO 3681?

Plug in the appliance, the indicator light turns on. Let it heat for about 30 minutes before baking the pizza.

Can I use thick dough?

No, the dough should not be too thick because, when rising, it may come into contact with the heating element. Use a thin dough.

What type of dough is recommended?

The appliance is designed for thin pizzas, flammkuchen, and puff pastries.

How to clean the terracotta dome?

Let the dome cool completely, then clean it with a damp cloth. It does not absorb water, let it air dry.

Can I immerse the base in water?

No, never immerse the base in water. Clean it only with a damp cloth to avoid the risk of electric shock.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, its after-sales service, or a similarly qualified person to avoid any danger.

Can the appliance be used by children?

Yes, from 8 years under supervision. Children must not play with the appliance. Cleaning and maintenance shall not be made by children under 8 without supervision.

How long to cook a pizza?

The cooking time varies depending on the type of dough, toppings, and ambient conditions. The pizza is ready when the dough is lightly golden and the topping is well cooked.

What is the basic recipe for pizza dough?

Mix 200 g flour, 100 ml water, ½ packet dry yeast, ½ spoon olive oil, salt and sugar. Let rest for 45 minutes in a warm place.

Where to dispose of the appliance at the end of its life?

Do not throw the appliance away with household waste. Take it to a municipal recycling center to contribute to recycling and reuse.

USER MANUAL PO 3681 CLATRONIC

Red and black photo of a CTO CATRONIC coffee pot with two small food items, no visible text or symbols on the main body.

DEUTSCH

Inhalt

Overview of the Components ......Page 3

Instruction Manual......Page 30

Technical Data......Page 33

Labeled diagram of a cooking appliance with numbered parts including a dome-shaped top, wok, and dishware.

Bedienungsanleitung

Terracotta kap, basis

LET OP:

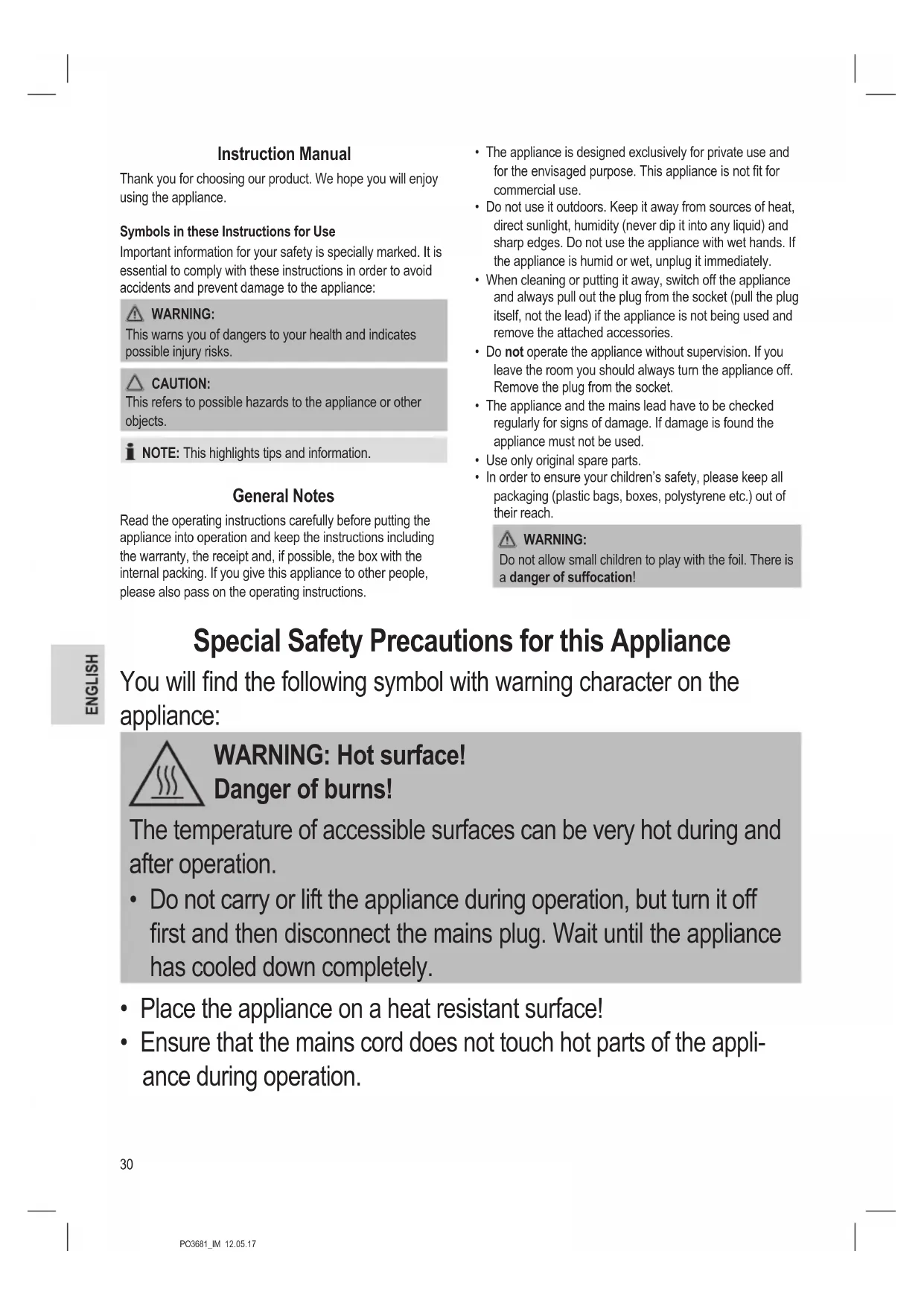

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special Safety Precautions for this Appliance

You will find the following symbol with warning character on the appliance:

WARNING: Hot surface!

Danger of burns!

The temperature of accessible surfaces can be very hot during and after operation.

• Do not carry or lift the appliance during operation, but turn it off first and then disconnect the mains plug. Wait until the appliance has cooled down completely.
• Place the appliance on a heat resistant surface!

• Ensure that the mains cord does not touch hot parts of the appliance during operation.

• Do not operate the appliance with an external timer or separate remote control system.

• Do not repair the appliance by yourself. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.

CAUTION:

This appliance is not intended for immersion in water during cleaning. Please refer to the instructions provided in the chapter, "Cleaning".

Intended Use

This appliance is used for baking thin pizzas, tarte flambées and puff pastry bags.

It is intended for the use in private households and similar applications. The appliance is only to be used as described in the user manual. Do not use the appliance for any other purpose.

Any other use is not intended and can result in damages or personal injuries.

The manufacturer assumes no liability for damages caused by improper use.

Overview of the Components / Delivery Scope

1 Handmade terracotta hood
2 Heating element
3 Stainless steel base plate
4 Power plugs
5 Power control lamp
6 Support for the base plate
7 Base
8 Biscuit cutter
9 Stainless steel pizza lifter

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging materials such as films, filler material, cable clips and carton.
3. Check the contents for completeness.
4. In case of incomplete delivery or damage, do not operate the appliance. Return it to your dealer immediately.

i NOTE:

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning".

Notes on Use

• The dough may not be too thick, as the rising dough can come into contact with the heating element.
• The baking time depends on the following factors:
• Type of dough
• Dough cover
• The number of pastries baked at the same time
• Ambient conditions (e. g. temperature, draught)
• The terracotta dome holds the heat well. This „keep warm function“ keeps your pizza at the right temperature.

Electric Connection

1. Before inserting the power plug into the outlet, check that the mains voltage to be used matches that of the appliance. You can find the required information on the nameplate.
2. Connect the mains plug to a properly installed shockproof socket only.

Operation

WARNING: Risk of burns!

Do not plug the main plug into the wall outlet before the device has been fully assembled! When inserting the main plug, the appliance immediately starts to heat up!

1. Place the base plate onto the brackets in such a way that the cutout is on the heating rods.
2. Place the terracotta hood on the base.
3. Plug the power cord into the wall outlet. The power control lamp is on. Preheat the appliance for approx. 30 minutes.

WARNING: Risk of burns!

The terracotta hood of the appliance gets very hot! Do not touch the hood during operation.

1. Cut the pre-prepared dough with the biscuit cutter.
2. Place the cut dough on the pizza lifter and cover the dough with ingredients of your choice.
3. Insert the pizza lifter with the dough into the opening of the terracotta hood and place it on the base plate.
4. Remove the pizza once the dough is slightly brown and the topping is well done.
5. If you wish to prepare another piece, repeat points 4 - 7. 32

End of Operation

1. Unplug the power cord from the wall outlet. The power control lamp turn off.
2. Allow the appliance to cool down completely!

WARNING: Risk of burns!

Do not touch the hood until it is completely cooled down.

Recipe Suggestions

Basic Recipe Pizza Dough

200 g flour

100 ml lukewarm water

12 packet of dried yeast

12 tablespoon olive oil

1 pinch of salt

1 pinch of sugar

1. Sieve the flour and then mix with the salt in a bowl. Stir the yeast and sugar into the lukewarm water until dissolved. Work into the flour using the dough hook on a hand-held electric whisk. Add the olive oil and knead together to create a smooth dough.

2. Using your hands, vigorously knead the dough on a floured work surface, and then shape it into a ball. Put the dough into a bowl, and then cover and leave to rise in a warm, draught-free place for 45 minutes.

3. Knead the dough on the floured surface again and roll it out.

4. Cut the dough with the biscuit cutter and place it on the pizza lifter. Then spread the dough with tomato sauce and cover as desired.

Basic Recipe Tarte Flambées

300 g flour

125 ml mineral water (sparkling)

4 tbsp oil (tasteless)

1 pinch of salt

50 ml of cream or milk

1. Place flour, oil, water and salt in a bowl and mix with a hand mixer. The dough must be smooth and not sticky. If the dough is too dry, add a little more oil and mineral water. The mineral water makes the dough a little fluffier. If the dough sticks, add some flour.

2. Form the dough into a ball and place in a refrigerator for approx. 30 minutes.

3. Stir crème fraîche or sour cream with the milk or cream.

4. Remove the dough from the refrigerator and roll out filmy.

5. Cut the dough with the biscuit cutter and place it on the pizza lifter. Subsequently, coat the dough with the cream and cover as desired.

Basic Recipe Puff Pastry

270 g flour

25 g butter (melted)

1 pinch of salt

1 egg yolk

125 ml water (cold)

250 g butter (cold)

1. Sift 250 g flour into a bowl, add liquid butter. Knead the butter and some flour with the hands to make crumbs. Add salt and egg yolk and then gradually add 125 ml of cold water. Mix everything with the hands to a smooth dough. Wrap in cling film and put in a cool place for 30 minutes.

2. Cut the cold butter into small cubes and dust the remaining flour over it. Knead the butter and the flour well and place between 2 layers of cling film. Roll out the butter to a square of about 19 cm. Place it in the refrigerator for at least 30 minutes to cool down.

3. Roll out the flour dough on a small amount of flour to a rectangle of about 20 x 40 cm. Place the cold butter square on one half of the dough, and fold over the other half of the dough. Press down the edges of the dough well. Roll the dough packet into an elongated rectangle. From the bottom and the top, fold over about one third of the puff pastry to the middle. Roll out this three-layered dough pack again. Once again, fold over the rolled puff pastry from the top and bottom to a third and place the folded dough packet in the refrigerator for at least 30 minutes.

4. Roll out the puff pastry on a small amount of flour once more and fold it over one third from the bottom and the top to the middle again. Store in a cool place for 30 minutes. By rolling out and folding (also called "touring") as well as cooling off the puff pastry, the fine leafy layers are created.

5. Roll out the puff pastry again. Cut a piece twice as big as the pizza lifter. Cover as desired and fold half.

Cleaning

WARNING:

• Always disconnect the mains plug before cleaning.
- Wait until the appliance has cooled down completely!
- Never immerse the base in water for cleaning. It could result in an electric shock or fire.

CAUTION:

• Do not use wire brushes or other abrasive objects.
• Do not use aggressive or abrasive cleaning detergents.

Pizza Lifter, Base Plate

Clean these parts in a warm rinsing bath after every use.

Terracotta Hood, Base

CAUTION:

The terracotta hood has to completely cool off before getting into contact with water. Otherwise the terracotta hood may burst!

• Clean the hood and base only with a damp cloth.
• The terracotta hood may not soak up water. It can dry in the air.
• Only use the appliance again once the hood is completely dry.

Technical Data

Model: PO 3681

Voltage supply: 220-240 V\~, 50/60 Hz

Power input: 800-900 W

Protection class:....I

Net weight: .... approx. 3.35 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance complies with all current CE directives, such as electromagnetic compatibility and low voltage directive and is manufactured according to the latest safety regulations.

Disposal

Meaning of the "Wheelie Bin" Symbol

Take care of our environment; do not dispose of electrical appliances via the household waste.

Dispose of obsolete or defective electrical appliances via municipal collection points.

Please help to avoid potential environmental and health impacts through improper waste disposal.

You contribute to recycling and other forms of utilization of old electric and electronic appliances.

Your municipality provides you with information about collecting points.
