USER MANUAL MRC 4106 RC AEG

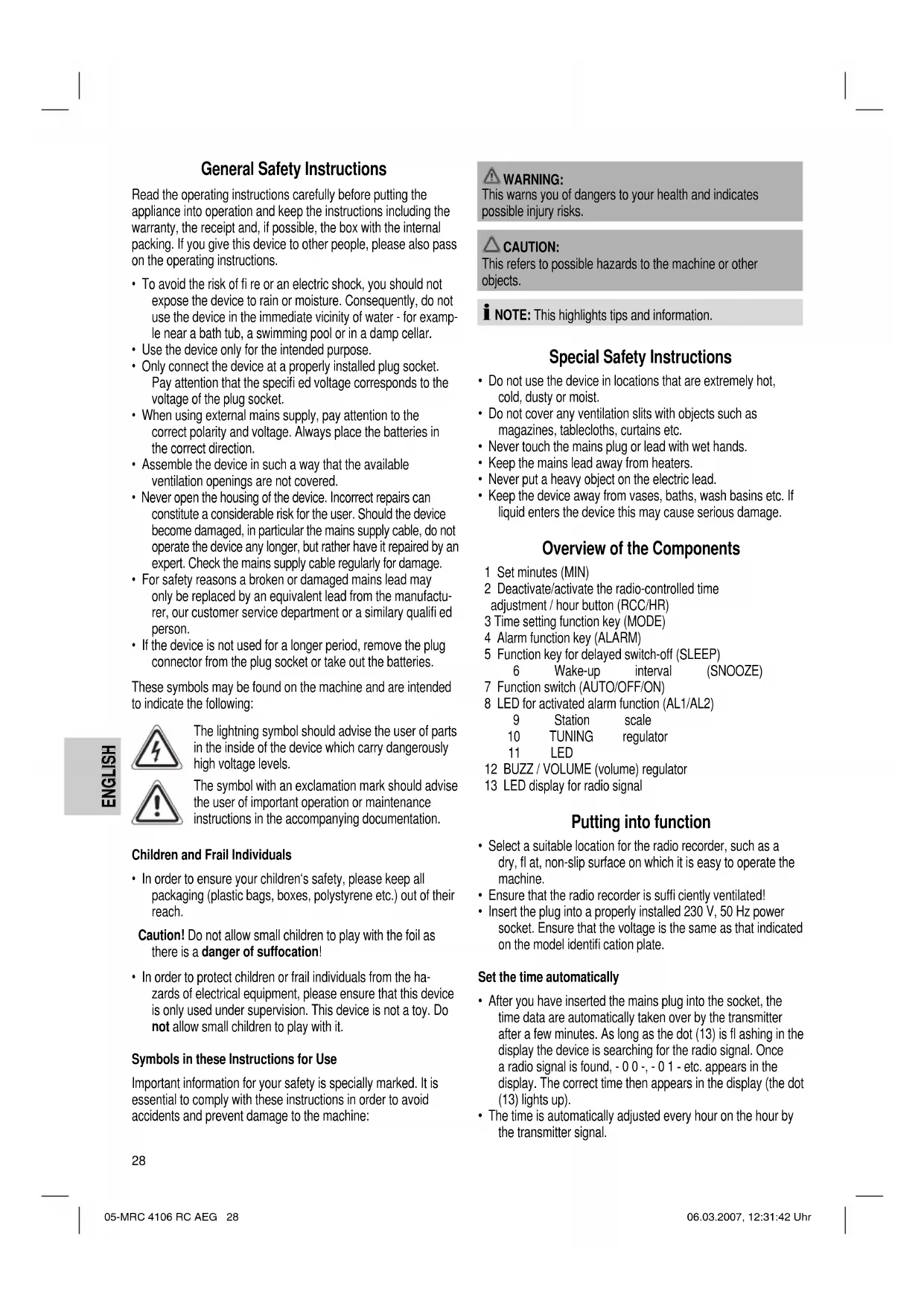

General Safety Instructions Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• To avoid the risk of fi re or an electric shock, you should not expose the device to rain or moisture. Consequently, do not use the device in the immediate vicinity of water - for examp- le near a bath tub, a swimming pool or in a damp cellar.

• Use the device only for the intended purpose.

• Only connect the device at a properly installed plug socket. Pay attention that the specifi ed voltage corresponds to the voltage of the plug socket.

• When using external mains supply, pay attention to the correct polarity and voltage. Always place the batteries in the correct direction.

• Assemble the device in such a way that the available ventilation openings are not covered.

• Never open the housing of the device. Incorrect repairs can constitute a considerable risk for the user. Should the device become damaged, in particular the mains supply cable, do not operate the device any longer, but rather have it repaired by an expert. Check the mains supply cable regularly for damage.

• For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufactu- rer, our customer service department or a similary qualifi ed person.

• If the device is not used for a longer period, remove the plug connector from the plug socket or take out the batteries. These symbols may be found on the machine and are intended to indicate the following: The lightning symbol should advise the user of parts in the inside of the device which carry dangerously high voltage levels. The symbol with an exclamation mark should advise the user of important operation or maintenance instructions in the accompanying documentation. Children and Frail Individuals

• In order to ensure your children‘s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach. Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• In order to protect children or frail individuals from the ha- zards of electrical equipment, please ensure that this device is only used under supervision. This device is not a toy. Do not allow small children to play with it. Symbols in these Instructions for Use Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

This warns you of dangers to your health and indicates possible injury risks. CAUTION: This refers to possible hazards to the machine or other objects. NOTE: This highlights tips and information. Special Safety Instructions

• Do not use the device in locations that are extremely hot, cold, dusty or moist.

• Do not cover any ventilation slits with objects such as magazines, tablecloths, curtains etc.

• Never touch the mains plug or lead with wet hands.

• Keep the mains lead away from heaters.

• Never put a heavy object on the electric lead.

• Keep the device away from vases, baths, wash basins etc. If liquid enters the device this may cause serious damage. Overview of the Components 1 Set minutes (MIN) 2 Deactivate/activate the radio-controlled time adjustment / hour button (RCC/HR) 3 Time setting function key (MODE) 4 Alarm function key (ALARM) 5 Function key for delayed switch-off (SLEEP) 6 Wake-up interval (SNOOZE) 7 Function switch (AUTO/OFF/ON) 8 LED for activated alarm function (AL1/AL2) 9 Station scale 10 TUNING regulator 11 LED 12 BUZZ / VOLUME (volume) regulator 13 LED display for radio signal Putting into function

• Select a suitable location for the radio recorder, such as a dry, fl at, non-slip surface on which it is easy to operate the machine.

• Ensure that the radio recorder is suffi ciently ventilated!

• Insert the plug into a properly installed 230 V, 50 Hz power socket. Ensure that the voltage is the same as that indicated on the model identifi cation plate. Set the time automatically

• After you have inserted the mains plug into the socket, the time data are automatically taken over by the transmitter after a few minutes. As long as the dot (13) is fl ashing in the display the device is searching for the radio signal. Once a radio signal is found, - 0 0 -, - 0 1 - etc. appears in the display. The correct time then appears in the display (the dot (13) lights up).

NOTE: Reception in a radius of 2000 km from Franfurt/Main should be trouble-free. However, disturbances may occur owing to the local reception position. Buildings with tall metal elements and the vicinity of TV sets, PCs, cell phones, etc. can disturb reception! If the automatic setting is still not possible after 10 minutes despite the alignment of the incorporated antenna, the reception position is too bad. In this case please adjust the time manually or change the position of the device. Manual time setting (24 h) Hours: Press the MODE key (3) and the RCC/HR key (2) simultaneously. Minutes: Press the MODE key (3) and the MIN key (1) simultaneously. Year: Keep the MODE button (3) pressed down. The year appears in the display. Press the MIN button (1) repeatedly to set the year in annual steps. Press the RCC/HR button (2) repeatedly to set the year in decade steps. Date: First keep the MODE button (3) pressed down until the year is displayed. Then press the SNOOZE button (6) to display the date. Set the month with the MIN button (1) and the day with the RCC/HR button (2). NOTE: In order to display the weekday, press the SNOOZE button again (6) in date mode. In the display appears e.g. „dA Y 1“ = day 1 = Monday, „dA Y 2“ = Tuesday etc. Radio station tuning Push the function switch (7) to the ON position and select a station by turning the TUNING control (10). The station scale (9) indicates the selected frequency. If reception is too weak and the station being received hisses, try to improve reception by turning, unwinding or winding up the throw-out antenna. Volume The desired volume can be sent using the BUZZ / VOLUME regulator (12). Alarm Function You also have the opportunity of setting two alarm times.

• Keep the ALARM button (4) pressed down to call up AL1 in the display.

• Release the button to set the alarm time. „- - : - -“ appears in the display.

• Keep the SNOOZE button (6) pressed down to set the days on which you would like to be woken up on the set days. „dY 15“ = Monday - Friday appears in the display, for example. Keep pressing the SNOOZE button to set the following periods: dY 15 = Monday - Friday, dY 67 = Saturday - Sunday, dY 17 = Monday - Saturday and „- - : - -“ = deactivate alarm function.

• With the RCC/HR button (2) you can set the hours, and with the MIN button (1) the minutes.

• Press the MODE button (3) to call up the normal time display.

• A dot lights up in the display next to AL 1 (8). The fi rst alarm is now active!

• If you would like to set a second alarm time, press the ALARM button (4) twice (AL2 appears in the display). For the following steps please proceed as described above.

• A dot appears in the display next to AL 2 (8). The second alarm is now active! In order to deactivate the alarm times, press the ALARM button once (AL1) or twice (AL2). Then press the SNOOZE button (6) repeatedly until „- - : - -“ appears in the display. Press the MODE button (3) to call up the normal display. The dot (8) next to AL1 or AL2 goes off. Radio alarm

• Once the alarm times are set and a radio station has been selected, shift the function selector (7) to „AUTO“.

• As soon as the alarm time is reached, the radio is switched on. The selected radio station plays at the set volume. To turn the radio off simply press the ALARM button. Buzzer alarm

• If you would not like to be woken up by the radio, turn the volume control (12) to the BUZZ position (buzzer) until it locks in place.

• Instead of the radio, the buzzer goes off when the alarm time is reached. To turn off the alarm, push the function switch (7) to the OFF position or press the ALARM button (4). Automatic Alarm Interval The automatically set alarm function can be shut off for approxi- mately 9 minutes with the SNOOZE key (6). Switch-off The device is switched off if the function switch (7) is in the „OFF“ position. Delayed Shut-Off The delayed switch-off function can be used when the switch is in the positions AUTO or OFF.

• If the SLEEP button (5) is pressed the radio turns off after 1 hour or 1 hour and 59 minutes. The switch-off time can be adjusted by pressing the SLEEP and the HOUR button (2) or the MIN button (1) at the same time.

Inserting the batteries (not supplied) If there is a power cut or the mains plug has been removed from the power socket, the settings will be retained if the power reserve batteries are inserted.

1. Open the battery compartment on the bottom.

2. Insert 2 batteries of type R03 „AAA“ 1,5 V. Ensure that the

polarity is correct (see the fl oor of the battery compartment)!

3. Close the battery compartment again.

4. If the device is not used for a prolonged period of time,

please take the batteries out in order to prevent leakage of battery acid.

5. Different battery types or new and used batteries must not

be used together. CAUTION: Batteries are not to be disposed of together with domestic wastes. Dispose of the used batteries at the relevant collection bin or at your dealer’s.

Do not expose the batteries to high temperatures or direct sunlight. Never throw batteries into the fi re. There is a danger of explosion! Cleaning

• Remove the plug before cleaning.

• Clean the appliance with a slightly humid cloth without any additives.

• Do not dip the appliance in water. Technical Data Model: ................................................................. MRC 4106 RC Power supply: ........................................................ 230 V, 50 Hz Power consumption: ............................................................ 3 W Battery power reserve: ................................2 x 1,5V „R03/AAA“ Frequency range: ...............................UKW / FM 88 ~ 108 MHz This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations. Subject to technical changes without prior notice! Guarantee The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt). During the life of the guarantee any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee! Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out. If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt. Defects to consumables or parts subject to wearing as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid! The guarantee lapses in case of unauthorized tampering. After the expiry of the guarantee After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs. Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of electrical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of reutilisati- on of electrical and electronic equipment. Information concerning where the equipment can be disposed of can be obtained from your local authority. 05-MRC 4106 RC AEG 30 06.03.2007, 12:31:47 Uhr31
