SR 4345 CD - Radio AEG - Free user manual and instructions

Product type	Stereo radio with CD player
Brand	AEG
Model	SR 4345 CD
Mains power supply	230 V, 50 Hz
Battery supply	6 x 1.5 V, type UM2/R14
Consumption	12 W
Net weight	1.29 kg
Protection class	II
Radio frequency range	FM 88 – 108 MHz
CD playback functions	Play, pause, stop, forward/reverse search, repeat, programming
Radio functions	FM synthesizer with manual tuning
Auxiliary input	AUX IN socket (3.5 mm jack)
Display	LCD screen
Built-in speakers	Yes
Control keys	Volume, function, tuning, play/pause, stop, search, repeat, programming
Repeat	Repeat one track or entire disc
Programming	Up to 20 tracks (free order)
Laser safety	Class 1 laser, built-in safety switches
Cleaning	Soft cloth slightly dampened without additives
Auto stop	After playback of the last programmed track
Power cord	Detachable
Antenna	Rotatable dipole

Frequently Asked Questions - SR 4345 CD AEG

How do I plug the device into the mains?

Plug the supplied power cable into a 230 V / 50 Hz socket. The device turns on by selecting a function.

How do I listen to FM radio?

Set the function selector to FM and use the TUNING button to adjust the desired frequency. Improve reception by orienting the dipole.

How do I play an audio CD?

Select the CD function, press PUSH/OPEN to open the drawer, place the CD with the printed side up, close and press ▶ II.

How do I program the play order of tracks?

In stop mode, press PROG, select a track with ◀▶, confirm with PROG, repeat for each track, then press ▶ II to start programmed playback.

What should I do if the CD does not play?

Check that the CD is correctly placed (printed side up) and that it is not dirty or scratched. If the display shows 'NO', the CD is unreadable or missing.

How do I clean the device?

Unplug the device, then wipe the surfaces with a soft cloth slightly dampened. Do not use chemical products.

Can I use rechargeable batteries?

Yes, but ensure correct polarity and use UM2/R14 type batteries (1.2 V for rechargeables). The device also operates on mains power.

How do I use the AUX input?

Connect an external player (MP3, etc.) to the AUX IN socket with a 3.5 mm jack cable. Set the selector to AUX/OFF and adjust the volume.

What does the 'NO' display mean?

The 'NO' display appears when no CD is inserted or the CD is incorrectly positioned (upside down). Check the disc.

Does the device play MP3s?

No, the device does not play MP3 format. Only standard audio CDs are compatible.

USER MANUAL SR 4345 CD AEG

GB Stereo radio with CD player

Black AEG portable radio with digital display and speaker grille (no visible text or symbols on device body)

AEG

Overview of the Components ...... Page 3

Instruction Manual......Page 25

Technical Data Page 28

Disposal Page 28

Język polski

Spis treści

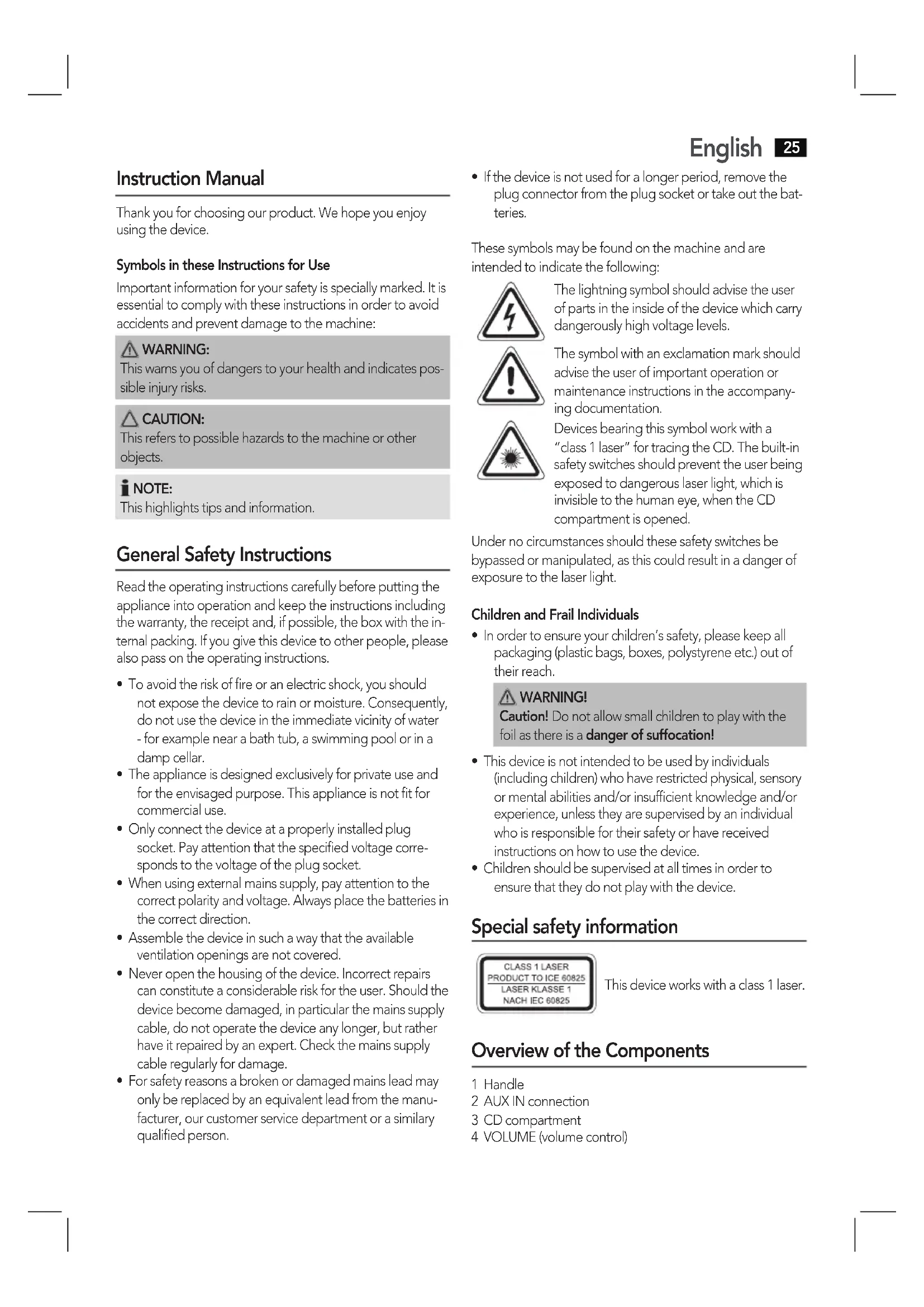

Thank you for choosing our product. We hope you enjoy using the device.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE:

This highlights tips and information.

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• To avoid the risk of fire or an electric shock, you should not expose the device to rain or moisture. Consequently, do not use the device in the immediate vicinity of water - for example near a bath tub, a swimming pool or in a damp cellar.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Only connect the device at a properly installed plug socket. Pay attention that the specified voltage corresponds to the voltage of the plug socket.
• When using external mains supply, pay attention to the correct polarity and voltage. Always place the batteries in the correct direction.
• Assemble the device in such a way that the available ventilation openings are not covered.
• Never open the housing of the device. Incorrect repairs can constitute a considerable risk for the user. Should the device become damaged, in particular the mains supply cable, do not operate the device any longer, but rather have it repaired by an expert. Check the mains supply cable regularly for damage.
• For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similar qualified person.

English

- If the device is not used for a longer period, remove the plug connector from the plug socket or take out the batteries.

These symbols may be found on the machine and are intended to indicate the following:

The lightning symbol should advise the user of parts in the inside of the device which carry dangerously high voltage levels.

The symbol with an exclamation mark should advise the user of important operation or maintenance instructions in the accompanying documentation.

Devices bearing this symbol work with a "class 1 laser" for tracing the CD. The built-in safety switches should prevent the user being exposed to dangerous laser light, which is invisible to the human eye, when the CD compartment is opened.

Under no circumstances should these safety switches be bypassed or manipulated, as this could result in a danger of exposure to the laser light.

Children and Frail Individuals

- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• This device is not intended to be used by individuals (including children) who have restricted physical, sensory or mental abilities and/or insufficient knowledge and/or experience, unless they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.
  • Children should be supervised at all times in order to ensure that they do not play with the device.

Special safety information

This device works with a class 1 laser.

Overview of the Components

1 Handle
2 AUX IN connection
3 CD compartment
4 VOLUME (volume control)

26 English

5 FUNCTION Function selector switch (FM / AUX/OFF / CD)

6 TUNING control
7 PUSH/OPEN (push/open) CD tray
8 Loudspeaker
9 REP button (Repeat)
10 ▶ button (forward search)
11 ■ button (Stop)
12 ▶ II button (Play/Pause)
13 Button (reverse search)
14 PROG button (memory)
15 LCD-display
16 AC Mains connection

Bottom side (without illustration)

Battery compartment

Dipole antenna

Intended Use

This device is used for

• The reception of radio programmes
- Playing back audio CDs
• Sound playback from external audio sources.

It is intended exclusively for this purpose and may only be used as such.

It may only be used in the manner described in these instructions for use. The device must not be used for commercial purposes.

Any other use of this device is considered to be contrary to the intended use and may result in damage to materials or even personal injury.

The firm ETV – Elektro-Technische Vertriebsgesellschaft mbH does not accept any liability for damage caused as a result of the use of this device contrary to its intended use.

Start-up of the device/introduction

• Please read the operating instructions carefully before using the device for the first time!
• Select a suitable location for the device, such as a dry, flat, non-slip surface on which it is easy to operate the machine.
• Ensure that the device is sufficiently ventilated!
• Remove the protective film from the display if it is still present.

Power Supply

• Connect the power cable supplied (see battery compartment if necessary) to a properly installed 230 V / 50 Hz safety power socket and the mains connector AC \~ (16) on the back of the machine.
• Ensure that the voltage is the same as that indicated on the model identification plate.

Inserting the Batteries (not supplied)

• Open the lid of the battery compartment on the bottom.
• Insert 6 batteries of type UM2/R14 1.5 V. Please ensure that the polarity is correct (see the floor of the battery compartment)!
• If the device is not used for a long period of time, remove the batteries to avoid the spilling of battery acid.
• Then close the battery lid. While doing so, guide the dipole antenna through the small notch on the battery compartment.

i NOTE:

When a mains cable is connected the batteries are automatically switched off.

△ CAUTION:

• Different battery types or new and used batteries must not be used together.
• Batteries are not to be disposed of together with domestic wastes. Dispose of the used batteries at the relevant collection bin or at your dealer's.

WARNING:

Do not expose the batteries to high temperatures or direct sunlight. Never throw batteries into the fire. There is a

danger of explosion!

Transport Safety Device, CD Compartment

• Open the CD tray (3) by pushing the PUSH/OPEN button (7).
• Before operating the machine for the first time, remove the transport safety device from the CD player if it is still in place.

Volume

The desired volume can be sent using the VOLUME regulator (4).

Switch-off

The machine is switched off when the function selector switch (5) is turned to the AUX/OFF position. Unplug the device.

AUX IN socket

To connect analogue replay devices. Via this socket you can also hear the sound of other playback devices such as MP3 players, CD players etc. through the loudspeakers.

1. Please connect the external device with a 3.5 mm stereo jack plug to the AUX socket (2).
2. Set the function selector (5) to AUX/OFF. The device switches automatically to AUX IN operation.

3. Through the loudspeakers you can hear the playback of the sound from the external device; with the VOLUME control (4) you can change the volume. The CD buttons do not have any function.

4. For the remaining procedure please see the operating instructions of the external sound source.

i NOTE:

Adjust the volume of the external device to a comfortable level.

Listening to the Radio

1. Turn the function selector switch (5) to the FM.
2. Tune in the desired station with the station adjustment knob TUNING (6).
3. In case of poor reception, try to improve the reception by changing the position or winding, respectively unwinding the dipole antenna.

Playing CDs

This is how you play a CD

1. Turn the function selector switch (5) to the "CD" position.
2. Open the CD tray (3) by pushing the PUSH/OPEN button (7).
3. Insert an audio CD with the printed side facing upwards on to the central cone so that the CD clicks into place and then close the lid of the CD compartment.
4. The display shows "--" and then the number of titles. Press the ▶ II button (12) to play the CD. The current song and the symbol "▶" are shown in the display.

i Important NOTE: Playing of CDs and CDRs in MP3 format!

The unit cannot play MP3s. The CD will rotate, but the sound cannot be reproduced.

1. In order to remove a CD, please press the ■ button (11), open the CD compartment and lift the CD out carefully.

Always keep the CD deck closed.

i NOTE:

• If a disc is incorrectly inserted - or no disc has been inserted - the symbol “--” and the word "NO" appear in the display.
• Please observe:
  Many burning methods exist, as well as quality differences with CDs and burned CDs.
  In addition, the music industry does not observe fixed standards (copy protection).
  Because of this, in rare cases there may be problems with playback of CDs. This is not a malfunction of the device.

Description of the CD buttons

▶ II (12)

You can briefly interrupt and resume playback using this button. The symbol "▶" will blink in the display. Pressing again continues playback.

▶V◀(10/13)

When audio CD is playing:

With ▶▶I you can jump to the next or previous track etc.

- If the button is kept pressed down, the machine starts to search through the tracks.

The ◀ button can be used as follows:

Press once = This starts the current track again from the beginning.

Press twice = This jumps back to the previous track.

Press three times = This plays the song before etc. If the button is kept pressed down, the machine starts to search through the tracks.

■(11)

The CD stops.

REP (9)

When audio CD is playing:

Press once = the current track is repeated continuously. REP 1 will be shown in the display.

Press twice = the whole CD is played continuously. REP ALL will be shown in the display.

Press three times = all functions are cancelled. The normal play mode is resumed.

Programmed Play

This can be used to program any desired sequence of tracks.

1. Press the button (11).

2. Press the PROG button (14). PROG. 01 (storage space) blinks in the display. Use 🎨 Button (10/13) to select the desired track and then press the PROG button again. The display changes to memory slot 02.

3. Select the next track with the ▶button and press the PROG button again. Repeat the procedure until all the desired tracks are selected.

i NOTE:

If the storage capacity of the titles to be programmed has been reached, the programmed titles will be shown in sequence.

1. Press the ▶II button (12). The playback starts. The display shows the first selected title number. The display PROG. lights up.

28 English

1. Press once the button to stop the playback while retaining the program. The display PROG. will stay lit.
2. To play the programme back again, press the button.
3. To delete the program, press the ■ button twice. The display PROG. goes out.

The device stops automatically once the entire sequence of programmed tracks is completed. The display PROG. goes out and the programmed sequence will be deleted from the memory.

Cleaning and Maintenance

• Always remove the mains plug before cleaning the machine.
- Any marks on the surface can be wiped off with a slightly damp cloth without any additives.

Troubleshooting

Symptoms Course Solution
CD can not be played back.	CD is not inserted or inserted incorrectly.	Ensure that the disc is inserted with the label facing upwards.
	Batteries too weak.	Insert new batteries or operate the device with the mains lead.
CD jumps during playback.	Check the disc for fingerprints, dirt or scratches.	Check the disc for fingerprints, dirt or scratches.
The unit does not work.	The unit is blocked and “hangs”.	Disconnect the mains plug for approximately 5 seconds. Then switch the unit back on.

Technical Data

Model: SR 4345 CD

Power supply: 230 V, 50 Hz

Battery operation: 6 x 1.5 V, Type UM2/R 14

Power consumption: 12 W

Protection class: ....II

Net weight: 1.29 kg

Radio section:

Frequency ranges: VHF /FM 88 \~ 108.0 MHz

Subject to technical changes without prior notice!

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
