USER MANUAL TP 20 Tectro ZIBRO

I. Do not insert anything.

J. Do not use an extension cord. K. Keep out of the reach of children. L. Do not repair.

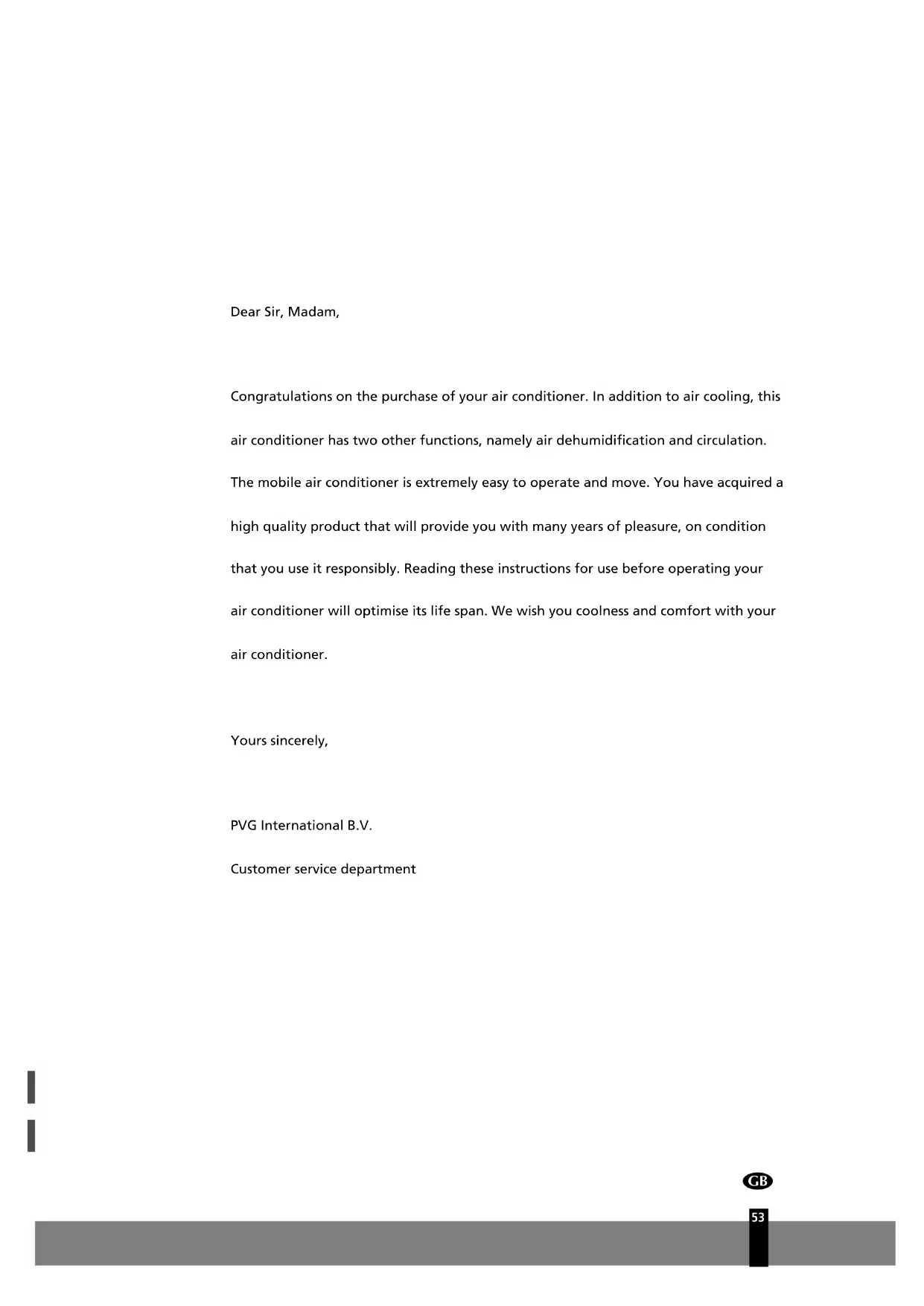

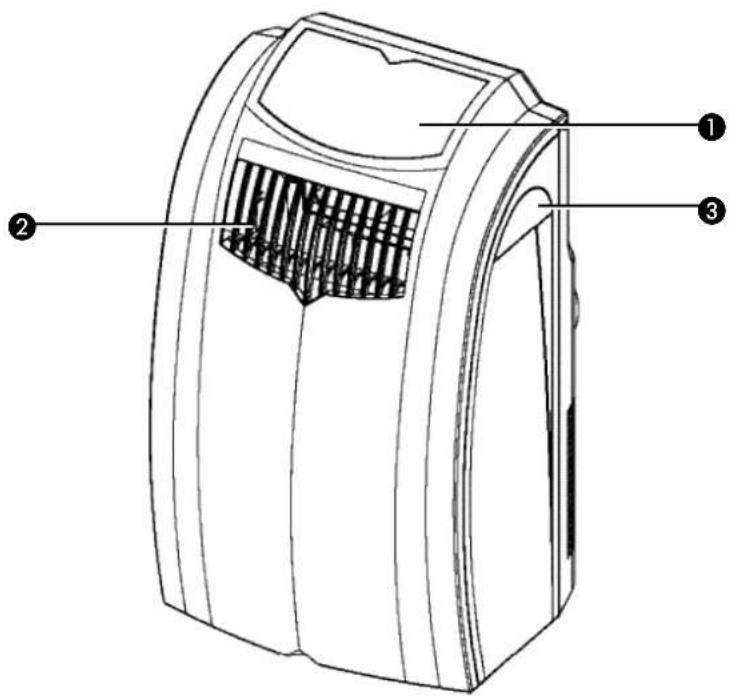

Dear Sir, Madam, Congratulations on the purchase of your air conditioner. In addition to air cooling, this air conditioner has two other functions, namely air dehumidification and circulation. The mobile air conditioner is extremely easy to operate and move. You have acquired a high quality product that will provide you with many years of pleasure, on condition that you use it responsibly. Reading these instructions for use before operating your air conditioner will optimise its life span. We wish you coolness and comfort with your air conditioner. Yours sincerely, PVG International B.V. Customer service departmentA SAFETY INSTRUCTIONS Install the device only when it complies with local regulations, by-laws and s t a n d a rds. The unit is only suitable for use in dry locations, indoors. Check the mains voltage and fre q u e n c y. This unit is only suitable for earthed sockets, connection voltage 220-240 V. / 50 Hz. Before connecting the unit, check the following:

• The voltage supply must correspond with the mains voltage stated on the rating label.

• The socket and power supply must be suitable for the current stated on the rating label.

• The plug on the cable of the device must fit into the wall socket.

• The device must be placed on a flat and stable surface. The electricity supply to the device must be checked by a recognised pro f e s s i o n a l if you have any doubts regarding the compatibility.

• This device is manufactured according to CE safety standards. Nevert h e l e s s , you must take care, as with any other electrical device.

• Do not cover the air inlet and outlet grill.

• Empty the water reservoir before moving the unit.

• Never allow the device to come into contact with chemicals.

• Never spray the unit with or submerge in water

• Do not insert objects into the openings of the unit.

• Always remove the plug from the electric power supply before cleaning or replacing the unit or components of the unit.

• Never use an extension cable to connect the device to the electric power s u p p l y. If there is no suitable, earthed wall socket available, have one installed by a recognised electrician.

• For safety reasons take care when children are in the surrounding of the device, as with any other electrical device.

• Have any repairs only carried out by a recognised service engineer or your s u p p l i e r. Follow the instructions for use and maintenance as indicated in the user manual of this device.

• Always remove the plug of the unit from the wall socket when it is not in use.

• A damaged power cord or plug must always be replaced by a re c o g n i s e d electrician or your supplier.

I M P O R TA N T The device MUST always have an earthed connection. If the power supply is not earthed, you may not connect the unit. The plug must always be easily accessible when the unit is connected. Read these instructions carefully and follow the instructions.

I N S TA L L AT I O N This unit is portable and can easily be moved from one room to another. In doing so keep this in mind: Ensure that the unit is positioned upright and on a level surface. Do not operate the unit inside the bathroom, shower, or in any other very humid environment. Please keep a distance of 50 cm between the unit and the wall or other objects to ensure proper air circulation. Insert both ends of the air exhaust hose J in the round connectors 9. Fasten the connectors by turning them clockwise onto the hose. Insert one round connector 9 in the backside of the unit 7. Fasten the other connector 9 to the window air outlet K. E n s u r e that the window air outlet K has a free flow outside. Close the window or door as much as possible to prevent outside air from entering the room.

I M P O R TA N T The flexible exhaust hose should be less than 1m during operation, which provides the best performance. This length has been designed especially according to the specifications of the air conditioner. Do not use an extension or exchange for a different hose as that may lead to malfunctioning. The exhaust air must flow freely, any blockage can lead to overheating of the air conditioner. Take care to prevent any bow or bend in the exhaust hose.

WA R N I N G Before using the air conditioner it should be left in an upright position for at least 2 hours.

• Never use the device with a damaged power cord, plug, cabinet or control panel. Never trap the power cord or allow it to come into contact with sharp edges.

• Never seal the room - where this device will be used - completely airtight. This will prevent under pressure in this room. Under pressure can disrupt the safe operation of geysers, ventilation systems, ovens, etc.

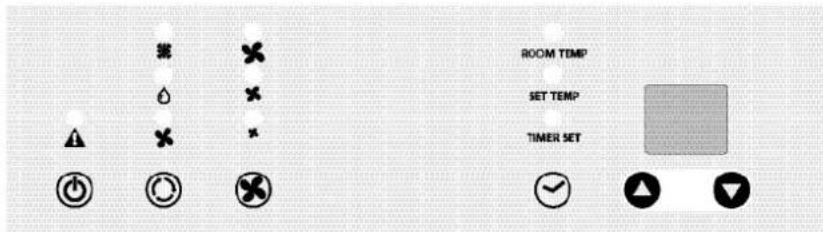

• Failing to follow the instructions may lead to nullification of the guarantee on this device.C O P E R AT I O N Insert the plug into the wall outlet. Press the -button to switch on the air conditioner. With -button you can change the operating mode of the unit. By pressing the -button the following modes appear:

• Cooling, the green light lits.

• Dehumidifying, the orange light lits.

• Air circulation, the yellow light lits. COOLING When the unit is in the cooling mode, the following functions apply:

• The fan speed can be adjusted by pressing the -button - Maximum setting. - Medium setting. - Lowest setting.

• The temperature can be set by pressing the and buttons, anywhere between 16°C en 32°C. The display will show the set temperature for 15 seconds and the “set temp” will light up. Fifteen seconds after setting the required temperature, the display will show the room temperature. DEHUMIDIFYING When the unit is primarily used as a dehumidifier, then please follow these i n s t r uctions: Do not connect the air exhaust hose and let the warm air go back into the room. Connect a drainage hose onto the permanent drain connector on the back of the unit (refer to Chapter G). When the unit is in the dehumidifying mode, the fan speed cannot be adjusted. The fanspeed will be automatically set on ‘Medium setting’. The buttons and can also not be adjusted. AIR CIRCULATION In this mode the unit only circulates air; the unit will not cool or dehumidify. When the unit is in this mode, the following functions apply:

It depends on the environment whether the required temperature will be reached. It is not a malfunction of the air conditioner if the room temperature remains above the “set temp”.

• The fan speed can be adjusted by pressing the -button - Maximum setting. - Medium setting. - Lowest setting. When the unit is switched off the most recent setting will be stored in memory. The timer function allows you to switch the unit on or off at a certain time. TO SWITCH ON THE UNIT AT A CERTAIN TIME

• Ensure that the unit is set in the required operating mode , of .

• Switch off the unit by pressing the -button. Ensure that the plug is properly inserted into the wall outlet.

• Press the -button. The light “Timer set” will flash.

• Use the and buttons to set a time between 1 and 12 hours.

• When the set time has expired the unit will switch on. TO SWITCH OFF THE UNIT AT A CERTAIN TIME

• When the unit is operating in the re q u i r ed mode press the - b u t t o n . The light "Timer set” will flash.

• Use the and buttons to set a time between 1 and 12 hours.

• When the set time has expired the unit will switch off.

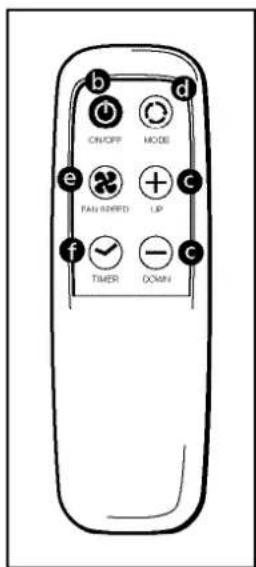

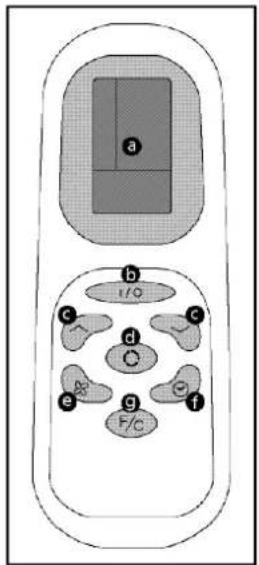

N O T E ! The compressor has been set so that it starts functioning three minutes after the (re)start of the air conditioner. The cooling will switch off when the room temperature is lower than the set one. Air circulation will however continue to work on the set level. When the room temperature rises above the selected value, the cooling will work again.REMOTE CONTROL a. LCD Screen (TP 25) b. Power on/off button c. Timer and thermostat setting buttons d. Mode button (select A/C, Fan or Dehumidifier) e. A/C Fan Speed button (High, Medium, Low) f. Timer ON / OFF button g. Celsius / Fahrenheit selector (TP 25) The remote control works in combination with the control panel. Aim the fro n t end of the remote control at the red window. The maximum operating distance f r om the air conditioner is approximately 5 metres. Place AAA Batteries before use. TIMER PROGRAMMING P r ess the button on the remote or the “Timer Setting” button on the control panel to turn on the Timer Function. P r ess the or buttons on the remote or the or buttons on the control panel to set the desired shut-off period. The unit will shut off when the set time elapses. DEHUMIDIFACATION OPERATION P r ess the button on the remote or the MODE button on the control panel to select the dehumidifier mode. When the dehumidifier mode is on, the tempera- t u r e buttons and the fan speed buttons do not function and the fan will operate on medium speed. The dehumidifier indicator light will illuminate and stay solid while the unit is dehumidifying. When the humidity in the room is 50% or lower, the compre s s o r will not run, the unit will not dehumidify, and the dehumidifier light will blink. Remember, the exhaust hose does not need to be used in dehumidifier mode.

The air conditioner is equipped with a screen mesh to filter dust particles from the room air and to keep the internals of the unit clean. With normal usage the screen mesh filter has to be cleaned every two weeks with a vacuum cleaner. If the filter is not cleaned regularly the filter may block the air flow.

AIR FLOW Move the air vent directly to adjust the air flow direction of the horizontal louvres.

EMPTY INTERNAL WATER CONTA I N E R Under extreme (environmental) circumstances it may be necessary to empty the i n t e r nal water container re g u l a r l y. When the internal water container is full the light will flash and the unit will beep continously. The unit will switch off automatically. To empty the water container do the following: Do not move the unit. Drastic movements can cause water leakage. Switch off the unit and remove the plug from the wall outlet. Place a pan or appropriate tray on the floor underneath the permanent drain tube. Remove the rubber plug 8 f rom the drain tube and let the water run out. (±

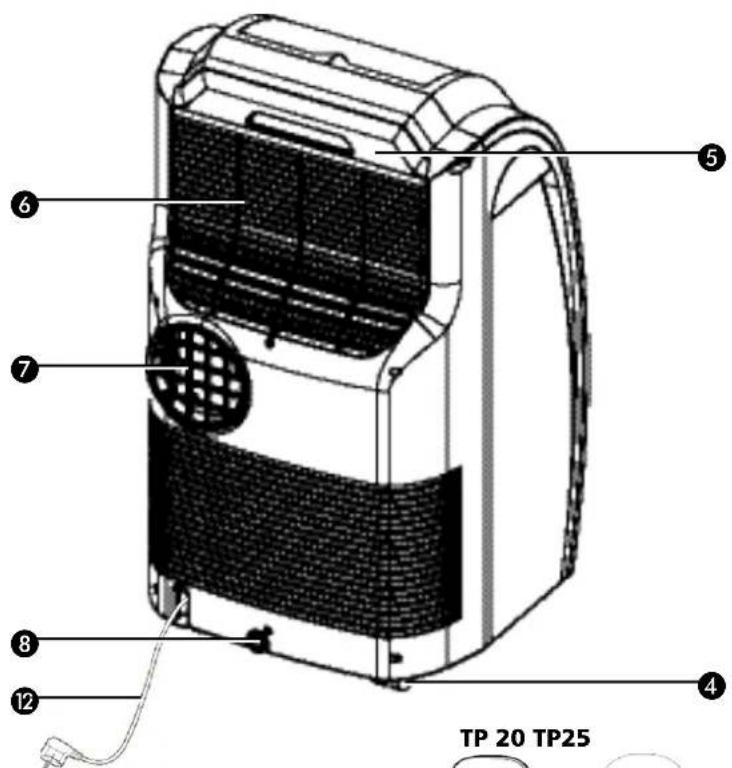

Replace the rubber plug 8, put the plug into the wall outlet, and switch on the unit. The warning light should be off.

• Remove the active carbon filter before seasonal storage and install a new filter at the beginning of the new season. The old filter can be disposed in the ‘Non-biological garbage container’ .

• Never use the airconditioner without the screen filter.

• Using the unit without the activated carbon filter will not damage your airconditioner. In that case, airborne micro-organisms are not neutralised and unpleasant odours are not removed.

• Only use suitable Tectro filters. This will prevent damage to your airconditioner.

• Suitable filter packages are available at your dealer.G CONTINUOUS DRAINAGE Switch off the unit and remove the plug from the mains. Place a pan or appropriate tray on the floor underneath the permanent drain tube to collect any water draining away. Remove the rubber plug 8. Connect a drain tube (ø 15 mm) into the water outlet and extend with extra water tube as needed. Place the other end of the drain tube at a location suitable for the purpose (a drain hole, for instance). In doing so, take care to ensure that the tube is not twisted and is free of kinks. The tube must be placed so as to be declining along its entire length. DEHUMIDIFICATION If the unit will be used mainly as dehumidifier, do not connect the exhaust hose and let the warm air re t u r n in the room. Continuous drainage is then necessary and more efficient. You must, however, use a water drain tube (ø 0.5 inch internal diameter), placing its discharge end at a suitable drainage point.

C L E A N I N G Clean the housing with a soft, damp cloth. Never use aggressive chemicals, petrol, d e t e r gents or other cleansing solutions. Clean the screenfilter regularly with a vacuum cleaner. See also chapter D “Air filter”.

N O T E ! Never use the air conditioner without screenfilter.

WA R N I N G ! First of all switch off the unit and pull the plug.

N O T E ! When the air conditioner is in use, under normal circumstances the condensed water will be drained through the air outlet-tube.

S T O R A G E Empty the internal water container (refer to Chapter F) Clean and replace the filter. Put the unit in air circulation mode for a couple of hours to ensure that the inside becomes completely dry. S t o r e cable as shown, protect the unit against dust and store in a dry place not accessible to children.

TROUBLE SHOOTING Never try to repair or dismantle the air conditioner yourself. Incompetent re p a i r s result in loss of warranty and can endanger the user. Problem Cause Solution No power supply Connect to a functioning outlet and switch on Water tank indicator is on Empty the internal water container (refer to Chapter F) In direct sunlight Close curtains Windows or doors open, many people or heat source in room Close doors and windows, or place an extra air conditioner Dirty filter Clean or replace filter Air inlet or air outlet blocked Remove blockage Room temperature lower than selected value Change temperature selection The unit is noisy Unit stands uneven Place on even surface (less vibrations) The compressor does not work Overheat protection probably activated Wait 3 minutes until the temperature has decreased, and turn on the unit again Distance too great Remote control signal not detected by control panel Batteries empty Replace the batteries The unit does not seem to perform The unit does not function Remote control does not function Make sure the remote control is correctly aimed at the control panelK GUARANTEE CONDITIONS The air conditioner is supplied with a 24-month guarantee, commencing on the date of purchase. All material and manufacturing defects will be re p a i r ed or replaced free of charge within this period. The following rules apply:

1. We expressly refuse all further damage claims, including claims for collateral

2. Repairs to or replacement of components within the guarantee period will

not result in an extension of the guarantee.

3. The guarantee is invalidated if any modifications have been made, non

genuine parts are fitted or repairs are carried out by third parties.

4. Components subject to normal wear, such as the filter, are not covered by the

5. The guarantee is valid only when you present the original, dated purc h a s e

invoice and if no modifications have been made.

6. The guarantee is invalid for damage caused by neglect or by actions that

deviate from those in this instruction booklet.

7. Tr a n s p o rtation costs and the risks involved during the transportation of the

air conditioner or air conditioner components shall always be for the account of the purchaser.

8. Damage caused by not using suitable Te c t rofilters is not covered by the gua-

rantee. To prevent unnecessary expense, we recommend that you always first care f u l l y consult the instructions for use. Take the air conditioner to your dealer for re p a i r s if these instructions do not provide a solution.

TECHNICAL DATA To be used as indication, subject to modifications

• Conform EN 14511 ** Moisture removal at 32°C, 80% RH Waste electrical products should not be disposed with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. Model TP 20 TP 25 Cooling capacity* W 2000 2500 B B

Power consumption W 800 1000 Current nom. A 3.6 4.5 Mains V/Hz/PH Air delivery max.
