z Do not operate the device if it is visibly damaged. z Ensure that the ventilation slots are not covered. z This device may only be repaired by qualified personnel. Inadequate repairs can lead to considerable hazards. z Do not use electrical devices inside the cooler unless they are recommended by the manufacturer for the purpose. z Persons (including children) whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely should not use this appliance without initial supervision or instruction by a responsible person. z Electronic devices are not toys. Always keep and use the device out of the reach of children. z Children must be supervised to ensure that they do not play with the device. z Food may only be stored in its original packaging or in suitable containers. _S25_X25_30_DC-AC.book Seite 5 Montag, 28. April 2008 3:29 15Safety instructions S25 DC/AC, X25 DC/AC, X30 DC/AC

z The cooling device is not suitable for transporting caustic materials or materials containing solvents.

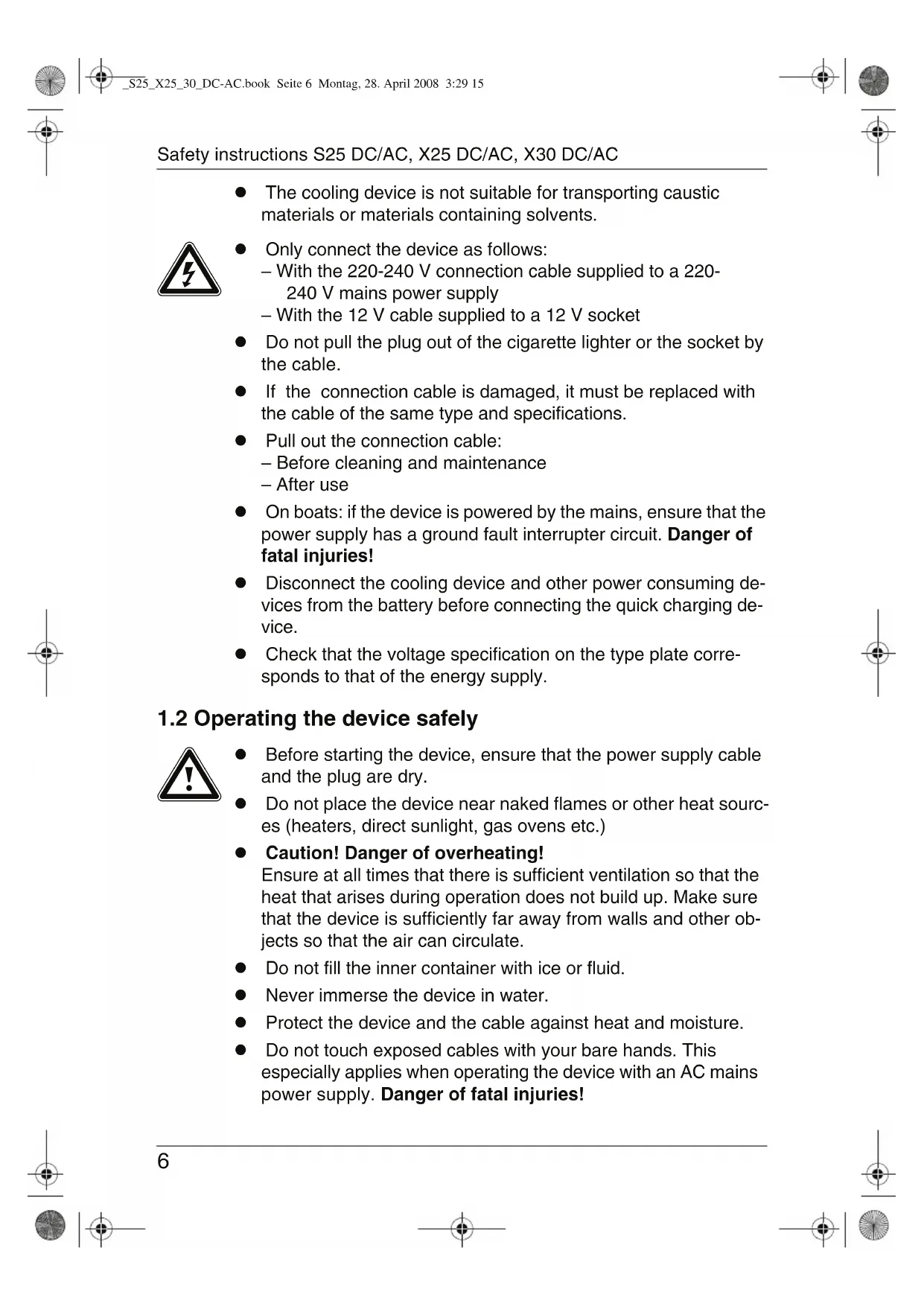

z Only connect the device as follows: – With the 220-240 V connection cable supplied to a 220- 240 V mains power supply – With the 12 V cable supplied to a 12 V socket z Do not pull the plug out of the cigarette lighter or the socket by the cable. z If the connection cable is damaged, it must be replaced with the cable of the same type and specifications. z Pull out the connection cable: – Before cleaning and maintenance – After use z On boats: if the device is powered by the mains, ensure that the power supply has a ground fault interrupter circuit. Danger of fatal injuries! z Disconnect the cooling device and other power consuming de- vices from the battery before connecting the quick charging de- vice. z Check that the voltage specification on the type plate corre- sponds to that of the energy supply.

1.2 Operating the device safely

z Before starting the device, ensure that the power supply cable and the plug are dry. z Do not place the device near naked flames or other heat sourc- es (heaters, direct sunlight, gas ovens etc.) z Caution! Danger of overheating! Ensure at all times that there is sufficient ventilation so that the heat that arises during operation does not build up. Make sure that the device is sufficiently far away from walls and other ob- jects so that the air can circulate. z Do not fill the inner container with ice or fluid. z Never immerse the device in water. z Protect the device and the cable against heat and moisture. z Do not touch exposed cables with your bare hands. This especially applies when operating the device with an AC mains power supply. Danger of fatal injuries! _S25_X25_30_DC-AC.book Seite 6 Montag, 28. April 2008 3:29 15S25 DC/AC, X25 DC/AC, X30 DC/AC Intended use

z The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation. 2 Intended use The cooler is suitable for cooling foodstuffs. If your device has the additional equipment for warming, you can heat up foodstuffs or keep them warm. There is a switch to change between heat- ing and cooling modes. The device has been designed for use with a 12 V DC on-board power supply socket of a car (cigarette lighter), boat or caravan as well as a 220-240 V AC mains supply. The appliance may also be used for camping use. The appliance shall not to be exposed to rain. It can be used as a box or cupboard.

Caution! If you wish to cool medicines, please check if the cooling capacity of the device is suitable for the medicine in question. 3 Scope of delivery For versions with the additional insulating lid: Quantity Description 1 A, page 3 1 Cooling device 2 1, page 4 1 Connection cable for 12 V DC connection 2 2, page 4 1 Connection cable for 220-240 V AC connection No. in 1, page 3 Quantity Description B 1 Insulating lid _S25_X25_30_DC-AC.book Seite 7 Montag, 28. April 2008 3:29 15Technical description S25 DC/AC, X25 DC/AC, X30 DC/AC

4 Technical description The cooler is suitable for mobile use. If can cool goods to max. 16 °C (S25) or 20 °C (X25/X30) under the ambient temperature or keep them cool. Its cooling system is a non-wearing and CFC-free Peltier cooling, the heat is discharged by a fan. S25 Pockets on the outside provide additional storage space. Note that objects stored in them are not cooled.

4.1 Optional accessories

The device is available in different versions. The version you bought may have the following additional features: z Heating The contents of your cooler can be warmed or kept warm to max. 65 °C. z ABS (activatable battery protection) An integrated battery monitor can be switched on to protect your vehicle battery from discharging to dangerously low levels (see “Using the bat- tery monitor” chapter on page 11). z Insulating lid Insulating lid as an alternative to the unit lid for transporting (not for cool- ing)

4.2 Description of the device

S25 No. in 1, page 3 Description 1 Shoulder strap 2 Ventilation slots 3 Control panel (Only on versions with the additional heating or ABS feature) 4 Handle _S25_X25_30_DC-AC.book Seite 8 Montag, 28. April 2008 3:29 15S25 DC/AC, X25 DC/AC, X30 DC/AC Operation

Note Before starting your new cooling device for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the “Cleaning and maintenance” chapter on page 12).

5.1 Energy saving tips

z Choose a well ventilated installation location which is protected against di- rect sunlight. z Allow warm food to cool down first before placing it in the device to keep cool. z Do not open the cooling device more often than necessary. z Do not leave the lid open for longer than necessary. z Clean the lid seal regularly.

Caution! S25: Lift the cooler by the handle, not by the shoulder strap. Otherwise you risk spillage.

Caution! The lid of the cooler must always be secured with the lock when loading and unloading. If the lid is fully open without being secured, the box could tip over. No. in 1, page 3 Description 1 Handle 2 Ventilation slots 3 Control panel (Only on versions with the additional heating or ABS feature) _S25_X25_30_DC-AC.book Seite 9 Montag, 28. April 2008 3:29 15Operation S25 DC/AC, X25 DC/AC, X30 DC/AC

Note If the handle is folded back of if the cooler is being carried, the lid is locked. You can only open the lid when the handle is folded for- wards.

Note Like every cooling device, your cooler must be properly ventilated so that any heat created can dissipate. Otherwise proper function- ing cannot be ensured. ➤ Place the cooler on a firm base. ➤ Connect the 12 V connection cable (2 1, page 4) into the cigarette light- er socket or a 12 V socket in the vehicle

➤ Plug the 220-240 V connection cable (2 2, page 4) into the AC voltage socket and connect it to the 220-240 V AC mains supply. Switch off the battery monitor (3 2, page 4, ABS accessory) (OFF position). ➤ Only on versions with the additional heating feature: Push the switch (3 3, page 4) on the control panel to "COLD" or "HOT" to switch on the cooler.

Note Close the box tightly by pushing down the lid. ✓ The indicators on the control panel show you the operating mode: ✓ The cooler starts cooling/heating the interior

Caution! Ensure that the objects placed in the cooler are suitable for cooling to the selected temperature. ➤ If you wish to switch the cooler off: – Slide the switch (4 3, page 4) to the “OFF” position (only with the heating accessory) – Pull out the connection cable Operating display Operating mode Green (4 1, page 4) Cooling Red (4 2, page 4) Heating _S25_X25_30_DC-AC.book Seite 10 Montag, 28. April 2008 3:29 15S25 DC/AC, X25 DC/AC, X30 DC/AC Operation

5.3 Using the battery monitor

(Only on versions with the additional ABS feature)

Caution! If you operate your cooler with the 220-240 V AC mains supply, switch off the battery monitor. ➤ Push the switch (3 2, page 4) on the operating panel to “ON” to switch on the battery monitor. ✓ The red LED (3 1, page 4) on the operating panel displays the status of the battery monitor: ➤ Push the switch (3 2, page 4) on the operating panel to “OFF” to switch off the battery monitor.

5.4 Changing the lid

(Only on versions with the additional insulating lid feature) As an alternative to the unit lid, you can use an insulating lid when transport- ing the cooler. ➤ Fold the handle of the cooler forwards. ➤ Open the lid until it is vertical and then remove it by lifting it upwards. ➤ Place the insulating lid with the guide lugs into the slots on the cooler.

Note Remember that the lid is only suitable for keeping cool and not for active cooling.

5.5 Connecting to a cigarette lighter

Note If you connect the device to the cigarette lighter of your vehicle, re- member that the ignition must be turned on to supply the device with power. Operating display Operating mode LED glows The switch-on voltage (13.1 V ± 0.2 V) is present and the cooler is in operation. LED flashes The switch-off voltage (11.7 V ± 0.2 V) has been reached and the battery monitor has switched off the cooler. _S25_X25_30_DC-AC.book Seite 11 Montag, 28. April 2008 3:29 15Cleaning and maintenance S25 DC/AC, X25 DC/AC, X30 DC/AC

6 Cleaning and maintenance

Caution! Before cleaning the cooler, pull the cable out of the socket or the cigarette lighter.

Caution! Do not clean the cooler under running water or in dishwater.

Caution! Do not use abrasive cleaning agents or hard objects during clean- ing as these can damage the cooler. ➤ Occasionally clean the device interior and exterior with a damp cloth. 7 Troubleshooting Fault Possible cause Suggested remedy Your cooler does not func- tion (plug is inserted, LED (accessory) does not glow). There is no voltage flowing from the 12 V socket (cigarette lighter) in your vehicle. The ignition must be switched on in most vehicles for voltage to flow at the cigarette lighter. No voltage present at the AC voltage socket. Try using another plug socket. Your cooler does not cool (plug is inserted, LED (4 1, page 4, acces- sory) glows). The inner fan or the cooling element is defective. This can only be repaired by an author- ised customer services unit. Your cooler does not heat (plug is inserted, LED (4 2, page 4, acces- sory) glows). The inner fan or the cooling element is defective. This can only be repaired by an author- ised customer services unit. Operation with a 12 V socket (cigarette lighter): The ignition is on and the cooler is not working. Pull the plug out of the socket and make the fol- lowing checks. The cigarette lighter socket is dirty. This results in a poor elec- trical contact. If the plug of your cooler becomes very warm in the cigarette lighter socket, either the socket must be cleaned or the plug has not been assembled correctly. The fuse of the 12 V plug has blown. Replace the fuse (5 A) in the 12 V plug (5 1, page 4). The vehicle fuse has blown. Replace the vehicle's 12 V socket fuse (usually 15 A). (Please refer to the oper- ating manual of your vehicle.) _S25_X25_30_DC-AC.book Seite 12 Montag, 28. April 2008 3:29 15S25 DC/AC, X25 DC/AC, X30 DC/AC Disposal

8 Disposal ➤ Place the packaging material in the appropriate recycling waste bins wherever possible. If you wish to finally dispose of the device, ask your local recycling centre or specialist dealer for details about how to do this in accord- ance with the applicable disposal regulations. 9 Technical data Versions, technical modifications and delivery options reserved. S25 DC/AC X25 DC/AC X30 DC/AC Gross capacity: 24 litres 24 litres 28 litres Connection voltage: 12 V DC 220-240 V AC, ~50 Hz Power consumption: DC: Cooling: 37 W, Warming: 34 W AC: Cooling: 36 W, Warming: 32 W Cooling capacity: Max. 16 °C Max. 20 °C under ambient temperature Accessory Heating Heating capacity: Approx. 65 °C interior temperature Weight: 3.9 kg 4.9 kg 5.3 kg Testing/certification: _S25_X25_30_DC-AC.book Seite 13 Montag, 28. April 2008 3:29 15Sicherheitshinweise S25 DC/AC, X25 DC/AC, X30 DC/AC
