USER MANUAL Everlast Anticalc DW7000 ROWENTA

1103912802-01DW7000D1.qxp_110x22003/07/1511:48Page51103912802-01DW7000D1.qxp_110x22003/07/1511:48Page6SAFETY INSTRUCTIONS

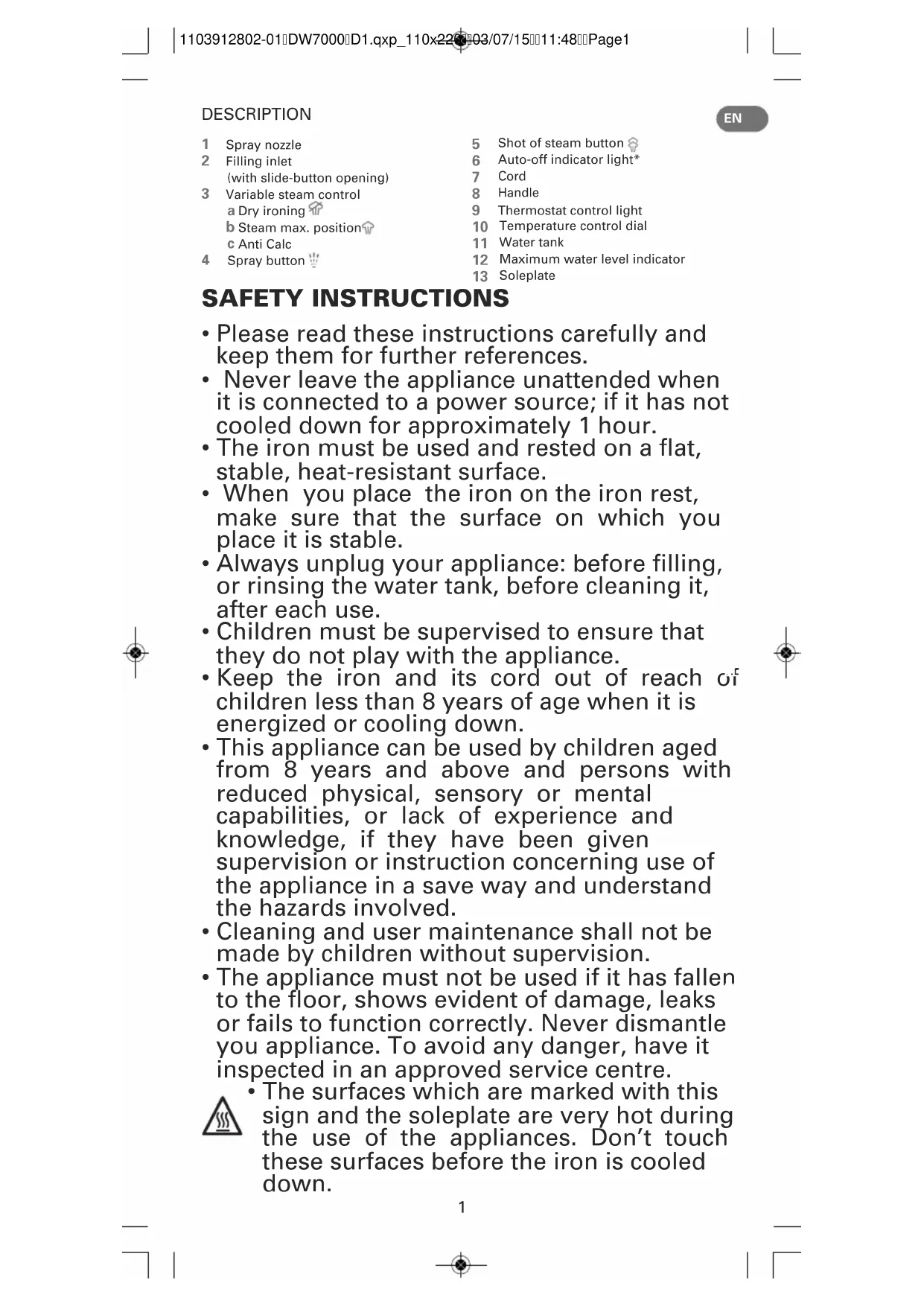

• Please read these instructions carefully and

keep them for further references.

• Never leave the appliance unattended when

it is connected to a power source; if it has not

cooled down for approximately 1 hour.

• The iron must be used and rested on a flat,

stable, heat-resistant surface.

• When you place the iron on the iron rest,

make sure that the surface on which you

• Always unplug your appliance: before filling,

or rinsing the water tank, before cleaning it,

• Children must be supervised to ensure that

they do not play with the appliance.

• Keep the iron and its cord out of reach of

children less than 8 years of age when it is

energized or cooling down.

• This appliance can be used by children aged

from 8 years and above and persons with

reduced physical, sensory or mental

capabilities, or lack of experience and

knowledge, if they have been given

supervision or instruction concerning use of

the appliance in a save way and understand

the hazards involved.

• Cleaning and user maintenance shall not be

made by children without supervision.

• The appliance must not be used if it has fallen

to the floor, shows evident of damage, leaks

or fails to function correctly. Never dismantle

you appliance. To avoid any danger, have it

inspected in an approved service centre.

• The surfaces which are marked with this

sign and the soleplate are very hot during

the use of the appliances. Don’t touch

these surfaces before the iron is cooled

(with slide-button opening)

Variable steam control

Shot of steam button

Temperature control dial

Maximum water level indicator

IMPORTANT RECOMMANDATIONS

• The voltage of your electrical installation must correspond to that of the iron (220-

240V). Always plug your iron into an earth socket. Connecting to the wrong voltage

may cause irreversible damage to the iron and will invalidate the guarantee.

• If you are using a mains extension lead, ensure that it is corrected rated (16A) with an

arth, and is fully extended.

• If the electric power cord is damaged, it must be replaced by an Approved Service

Centre in order to prevent any danger.

• Do not unplug your appliance by pulling on the cord.

• Never immerse your steam iron in water or any other liquid. Never hold it under the

• Never touch the electric cord with the soleplate of the iron.

• Your appliance gives off steam, which may cause burns, especially when you are

ironing close to the edge of your ironing board.

• Never direct the steam towards people or animals.

• For your saftey, this appliance conforms to the applicable standards and regulations

(Low Voltage, Electromagnetic Compatibility, Environmental Directives).

• This product has been designed for domestic use only. Any commercial use,

inappropriate use or failure to comply with the instructions, the manufacturer accepts

no responsibility and the guarantee will not apply.

WARNING! For Iron models with anti-calc collector :

• Do not open and remove the anti-calc collector tray from the appliance during use.

• Only use the anti-calc collector tray that is supplied with the appliance. Do not use

other tray on the appliance.

• Do not fill water, perfume, vinegar, starch, descaling agents, ironing aids or other

chemicals at the channel of the anti-calc collector tray.

• Do not insert your finger or pointed objects into the channel of the anti-calc collector

Environment protection first !

i Your appliance contains valuable materials which can be recovered

‹ Leave it at a local civic waste collection point.

Keep these instructions

BEFORE USE Warning ! Remove any labels from the soleplate before heating up the iron.

Warning ! Before using your iron with the steam function for the first time, we

recommend that you operate it in a horizontal position for a few moments,

away from your linen, i.e. press the Shot of Steam button a few times.

During the first few uses, a harmless odour and a small amount of smoke may

This has no effect on the use of the iron and will disappear quickly.

1 • What water may be used ?

Your iron has been designed to operate using untreated tap water. If in doubt, check

with your local water authority. However, if your water is very hard, you can mix 50%

untreated tap water with 50% distilled or demineralised water.

IMPORTANT Heat concentrates the elements contained in water during

evaporation. The types of water listed below contain organic waste or mineral

elements that can cause spitting, brown staining or premature wear of the

appliance : water from clothes dryers, scented or softened water, water from

refrigerators, batteries or air conditioners, pure distilled or demineralised water

or rain water should not be used in your iron. Also do not use boiled, filtered or

IRONING BOARD: Due to the powerful steam output, a mesh type ironing board

must be used to allow any excess steam to escape and to avoid steam venting

2 • Filling the water tank

IMPORTANT Before filling the water tank, unplug the iron and set the steam

control to dry position .

Tilt the iron. Open the filling inlet (fig.6). Pour in water up to the max mark (fig.7). Tilt

the iron. Open the filling inlet (fig.6). Pour in water up to the max mark (fig.7). Close

the filler inlet (fig.8) and return the iron to the horizontal.

EN NL DE FR IT ES PT EL TR DA SV FI NO AR

Set the iron temperature to suit the type of material using the temperature control dial

Temperature control*: The temperature control light indicates that the soleplate is

heating up. When the temperature control light goes off (fig.10), the set temperature is

reached and you can begin ironing.

IMPORTANT The iron takes longer to cool down than to heat up.

We recommend that you start with fabrics to be ironed at a low temperature.

For mixed fabrics set the temperature for the most delicate fabric.

TIP Always spray starch onto the reverse side of the fabric to be ironed.

Set the variable steam control to (fig.11) and set the temperature to suit the type of

material (care points •, ••, •••).

You can steam iron from temperature setting •• upwards.

Steam function* : The steam quantity can be set to between no steam (minimum steam

quantity) and (maximum steam quantity) (fig.12).

We recommend setting to maximum steam quantity only when the iron is at

temperature setting •••.

(from temperature setting •• upwards)

Press the shot of steam button to generate a powerful jet of steam

Wait a few seconds between each shot before pressing the button again.

7 • Vertical shot of steam

(from temperature setting •• upwards)

TIP Hold the iron 10 to 20 centimetres away from the garment to avoid burning

Hold the iron to the vertical and press the shot of steam button ( fig.14) to remove

creases from suits, jackets, skirts, hanging curtains etc.

IMPORTANT Never direct the steam at persons or animals!

Press the spray button to dampen stubborn creases (fig.15).

9 • Anti-Drip system

This prevents water escaping from the soleplate when the temperature is too low.

10 • Automatic electronic 3-position cut-out*

If, although switched on, the appliance is not moved, it will automatically switch off and

the auto off light will blink after the following intervals:

- After 30 sec., if the iron is left resting on the the soleplate or lying on its side.

- After 8 mins., if the iron is left resting on its heel.

To switch the iron back on, move the iron gently.

Unplug the iron (fig.4), pour away remaining water (fig.16) and set steam control to .

Open and close the steam control several times (fig.17) to prevent the valve hole into the

steam chamber from scaling or blocking up.

Allow the appliance to cool down before storing the iron standing on its heel (fig.23).

* depending on model

1103912802-01DW7000D1.qxp_110x22003/07/1511:48Page3* depending on model

IMPORTANT Do not wind the cord around the hot soleplate. Never store your iron

placed down on the soleplate.

MAINTENANCE AND CLEANING IMPORTANT Unplug and allow the iron to fully cool down before maintenance and

13 • Anti-scale system

Your iron contains an anti-scale cartridge to reduce scale deposits. This considerably

prolongs the operational life of your iron.

The anti-scale cartridge is an integral part of the water tank

and does not need to be replaced.

14 • Descale your steam iron easily

Do not put any descaling products (vinegar, industrial descaling agents...) to rinse

out your iron: they could damage it (fig.16).

To prolong the steam performance, your iron is equipped with an integrated limescale

collector. This collector, which is located on the iron's support base, automatically

collects limescale that forms inside the iron.

It is recommended that you clean the collector every 2 months. The amount of scale

collected will depend on the hardness of the water.

BE CAREFUL: this operation should only be carried out when the iron has been

unplugged for more than one hour and has cooled down completely.

To carry out this operation, the steam iron must be close to a sink so that water can flow

from the tank when opened.

Hold the iron in one hand and tilt it slightly, pointing the soleplate upwards.

To descale the iron:

Once the steam iron has completely cooled down, raise and turn the tab to unlock it

Remove the collector from the iron, it contains the limescale collected in the iron

To clean the collector thoroughly rinse in water to remove the limescale inside (fig.21).

Reposition the collector in its housing and turn the tab a quarter turn to the right in

order to lock the collector and ensure it is watertight (fig.22).

WARNING! Never use your iron without the limescale collector correctly mounted.

TIP Additionally to this regularly maintenance we recommend to perform the

following Anti Calc function after each emptying of the tray and approx. every two

weeks. If the water is very hard clean the iron weekly

15 • Anti Calc function

(prolongs the life of the iron)

The Anti Calc function flushes dirt and scale particles out of the steam chamber.

IMPORTANT Do not use descaling agents, as these damage the lining of the steam

chamber and so may impair the steam function.

Fill the water tank with untreated tap water up to the max mark and heat the iron to the

••• temperature. Unplug the iron and hold it over a sink horizontally. Hold the steam

control into the Anti Calc position (fig.5) : steam will now begin to build up. After a few

seconds water will emerge from the soleplate, rinsing dirt and scale particles out of the

Move the steam control to position after approx. 1 minute.

Plug in the iron and allow the iron to heat up again. Wait until the remaining water has

evaporated. Unplug from the mains and allow the iron to fully cool down.

When cool, the soleplate can be wiped with a damp cloth.

TIP Use the Anti Calc function approx. every 2 weeks.

If the water is very hard, clean the iron weekly.

16 • Cleaning the iron

When the appliance has cooled down, wipe it down with a damp cloth or sponge, as

Remove the dirt from the soleplate with a damp cloth or sponge.

IMPORTANT Do not use sharp or abrasive cleaning agents or objects to clean

soleplate and other parts of the iron.

If the appliance has been standing unused for long periods, use the Anti Calc

function (see § 15).

Residues in the steam

Anti-Drip* is active

Wait for the soleplate to reach

the correct temperature.

Fill the water tank.

urn the steam control to the

required setting area.

to the water in the water tank.

holes of the soleplate

Clean the soleplate with a

non-metallic sponge.

Vacuum the holes of the

soleplate from time to time.

Your linen is not rinsed

sufficiently or you have

ironed a new garment

Ensure linen is rinsed thoroughly

to remove any soap deposits or

chemicals on new garments

which may be sucked by the

Use of starch. Always spray starch onto the

reverse side of the fabric to be

ironed and clean your iron

Only use untreated tap water or

mix half tap water with half

distilled/demineralised water.

Use the Anti Calc function and

Set the temperature control to a

Allow more time between each

* depending on model

No mains supply. Check that the mains plug is

properly inserted or try plugging

the iron into a different socket.

emperature control set

et the temperature control to a

electronic cut-out* is
