USER MANUAL Professional DW8005 ROWENTA

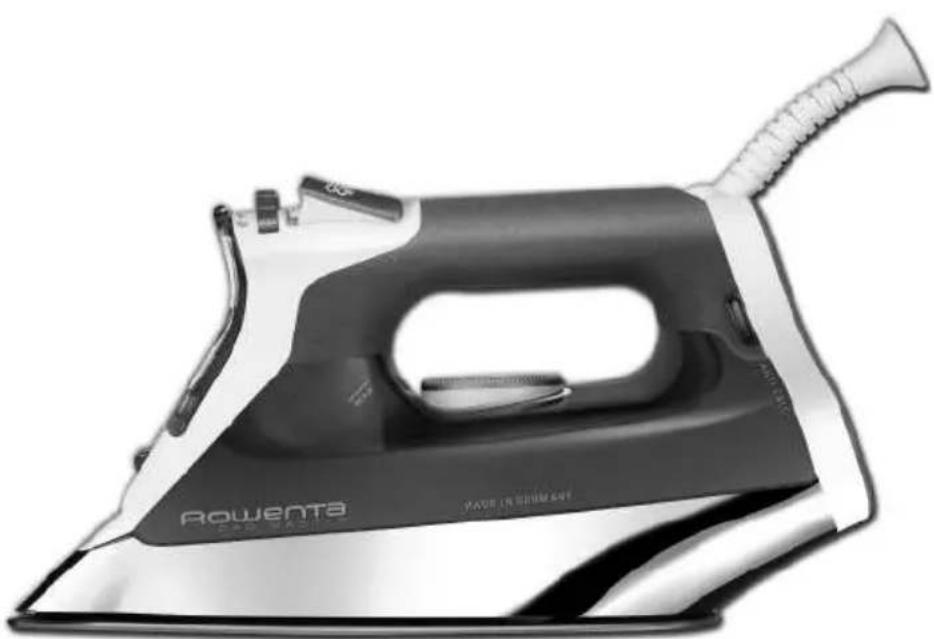

Black and white photo of a rowenta PRO MASTER electric iron with a metal handle, no visible text or symbols on the device itself.

Black and white image of a Rowenta air iron with a handle, no visible text or symbols on the device itself.

FR

NL

DE

EN

IT

ES

PT

EL

DA

sv

NO

FI

AR

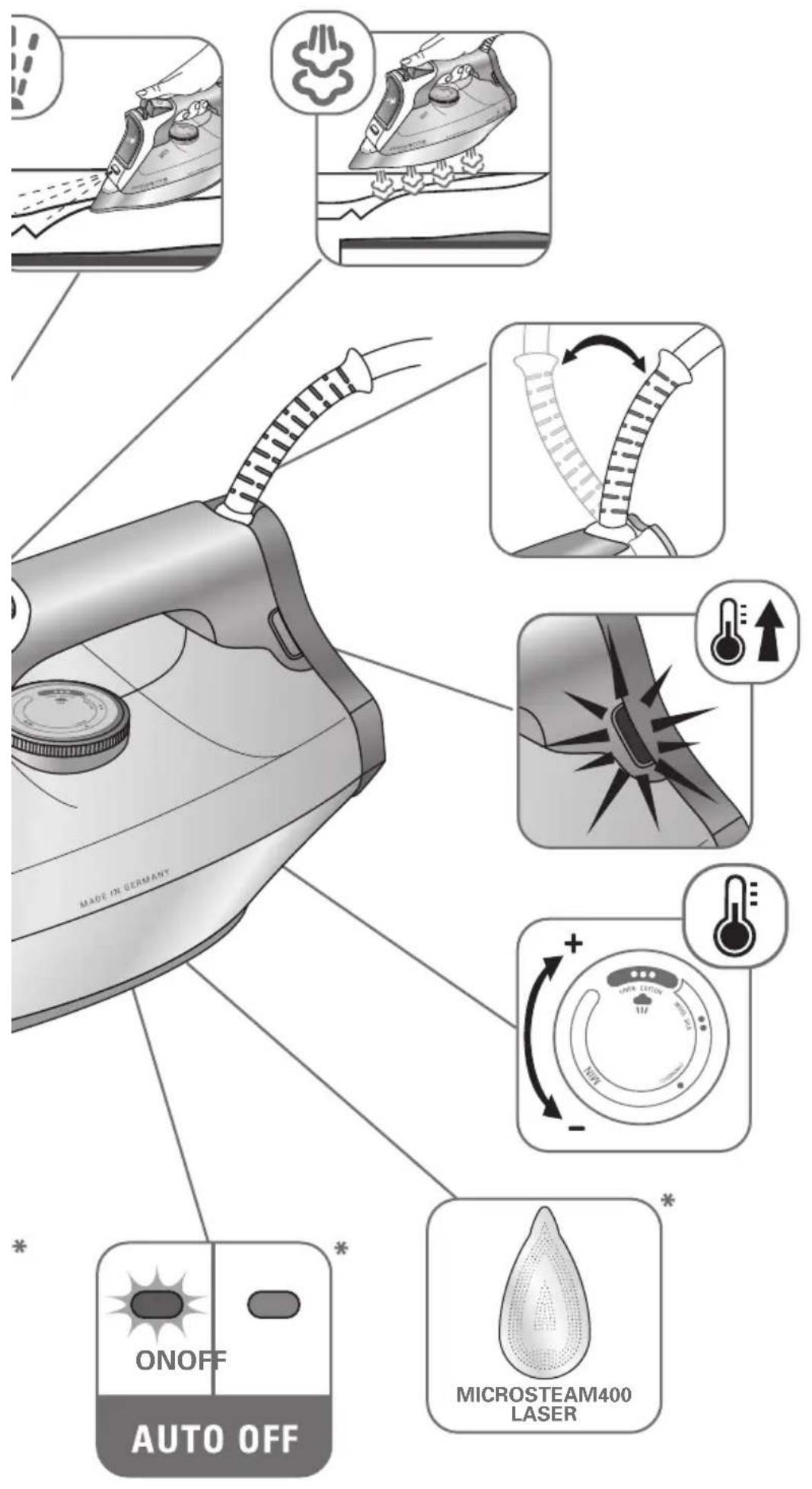

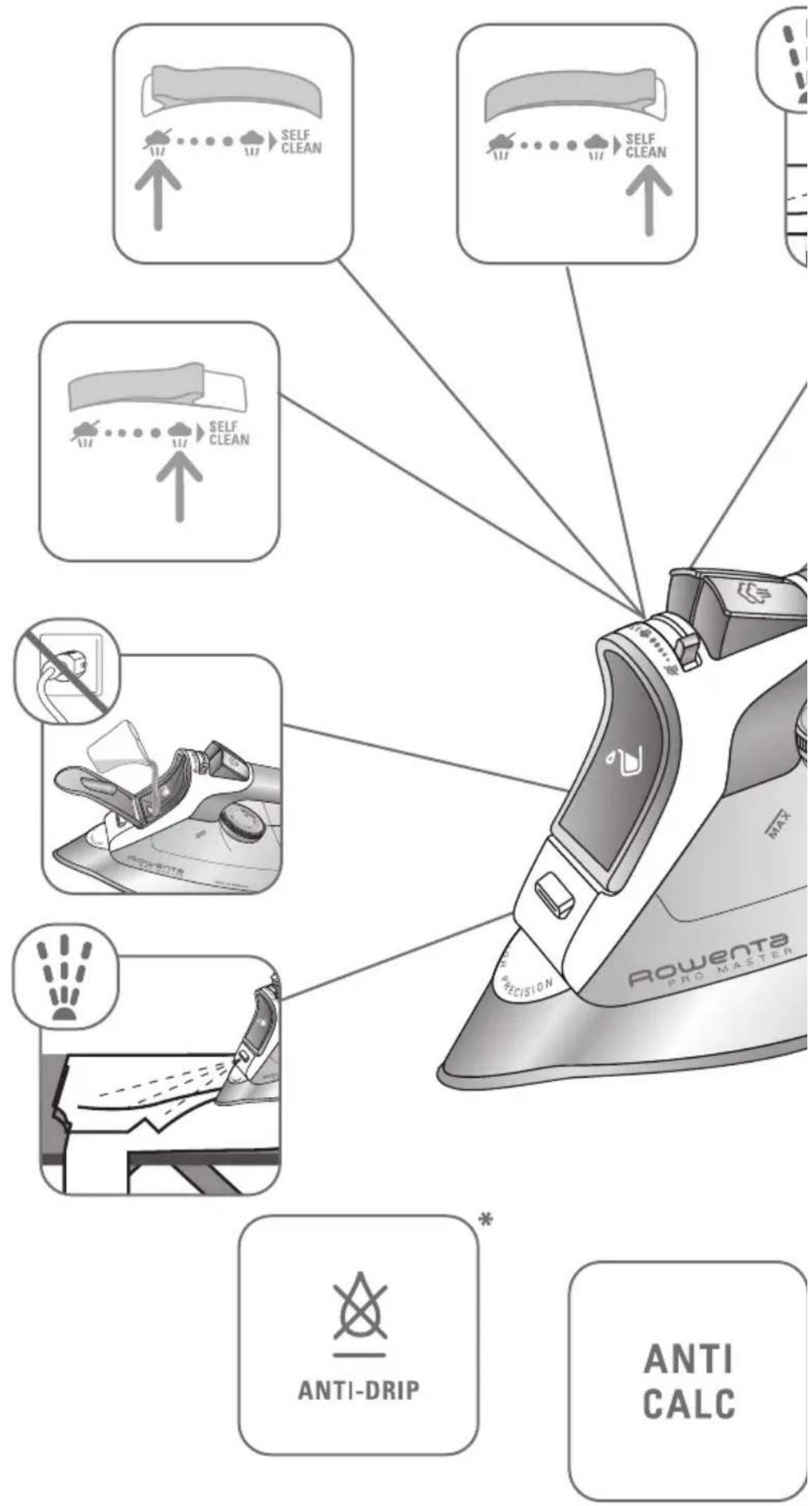

SELF CLEAN SELF CLEAN ANTI-DRIP ANTI CALC

* FR Selon modèle - NL Afhankelijk van het model - DE Je nach Modell - EN depend EL ανάλογα με το μοντέλο - DA Afhængig af model - SV Beroende på

MADE IN GERMANY ONOFF AUTO OFF MICROSTEAM400 LASER

ding on model - IT Secondo i modelli - ES Según modelo - PT Consoante o modelo - modell - NO Avhenger av modell - FI Mallista riippuen - AR حسب الموديل

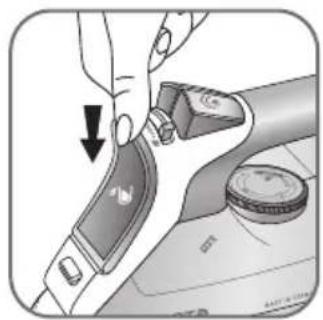

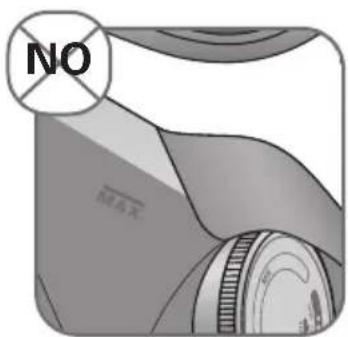

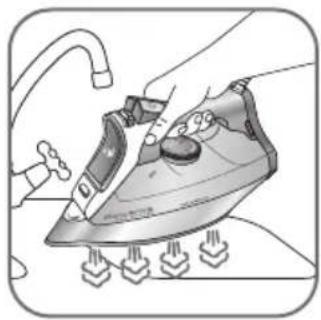

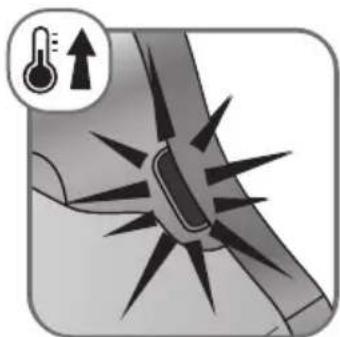

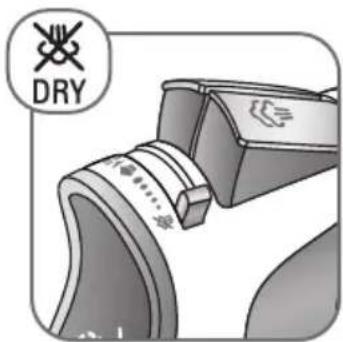

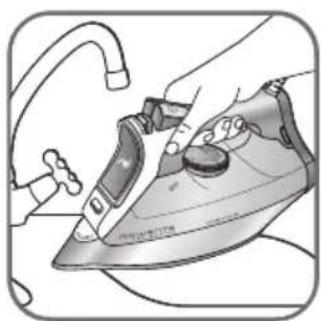

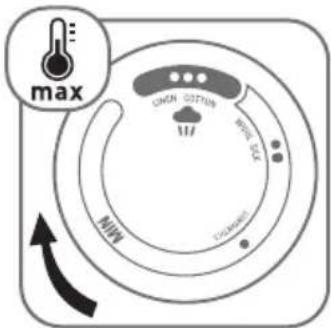

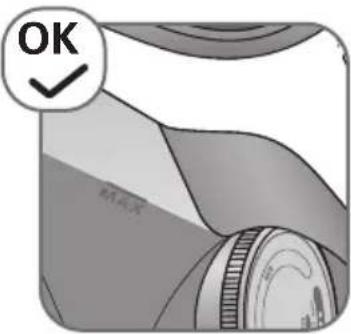

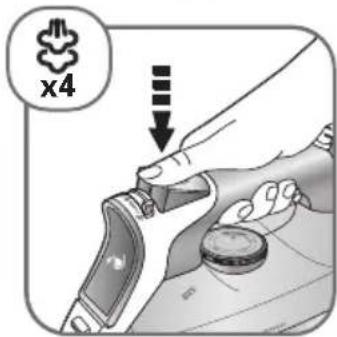

1. FIRST USE \*

Illustration of a hand pressing down on a triangular object with a curved arrow indicating motion (no text or symbols)

DRY

Close-up of a hand inserting a small object into a device, with a coin partially visible (no text or symbols)

Illustration of a power iron cutting into a socket (no text or symbols)

POUWITS

OK

NO

Illustration of a power iron being adjusted for installation, showing the iron being inserted (no text or symbols present)

max ONON GOTTON 200V 150V 100V

Illustration of a car interior with heat exclamation mark and thermometer icon (no text or symbols)

Close-up of a mechanical component with a lock icon and 'OK' label (no other text or symbols)

Illustration of hands ironing a steam iron with a pipe and valve (no text or symbols)

x4

Illustration of a hand using a steam iron to clean or install a surface, with no text or symbols present.

* FR Première utilisation • NL Voor het eerste gebruik • DE Erstgebrauch • EN First use • IT Primo utilizzo • ES Primer uso • PT Primeira utilização • EL Πρώτη χρήση • DA Første brug • SV Första användningen • NO Før første bruk • FI Ensimmäinen käyttökerta • AR الاستعمال للمركة الأولى

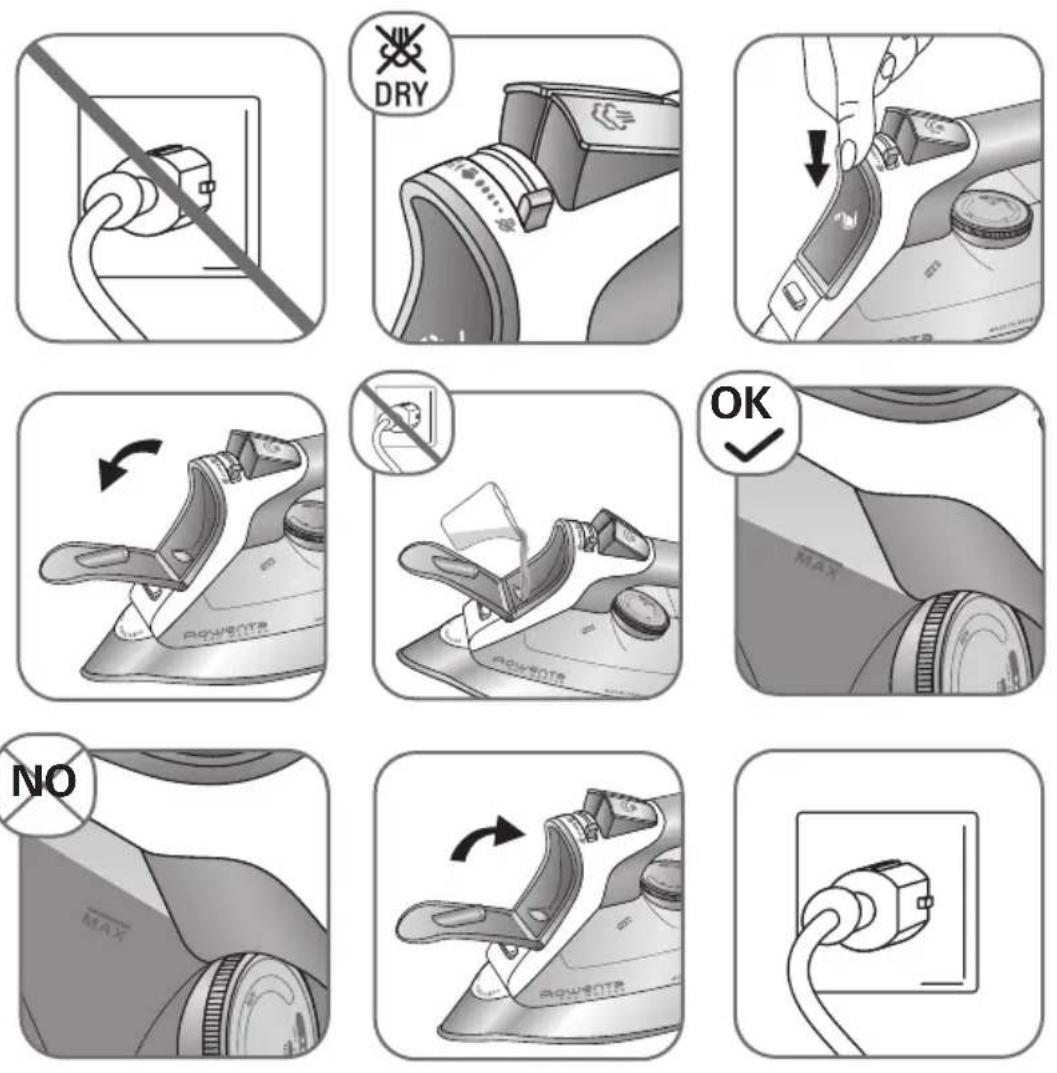

2. WATER TANK FILLING \*

* FR Remplissage du réservoir d'eau • NL Vullen van het waterreservoir • DE Wassertankbefüllung • EN Water tank filling • IT Riempimento del serbatoio • ES Llenado del tanque de agua • PT Encher o reservatório de água • EL Γέμισμα του δοχείου νερού • DA Vandpåfyldning • SV Påfyllning av vattentank • NO Fylle vanntanken • FI Vesisäilion täyttö • AR تعبئة خزان الماء

TEMPERATURE AND STEAM ADJUSTMENT\*3.

		STEAM
		DRY
	[G340]
	[LIN - LINNEN - LEINEN - LINEN - LINO - LINO - LINHO - AINA - H∅R - LINNE - LIN - PELLAVA - KAN
	COTON - KATOEN - BAUMWOLLE - COTTON - COTONE - ALGODÔN - ALGODÃO - BAMBAKEPA - BOMULD - BOMULL - BOMULL - PUUVILLA - QATN
	LAINE - WOL - WOLLE - WOOL - LANA - LANA - LÄ - MÄLINA - ULD - YLLE - ULL - VILLA - صوقي
	SOIE - ZIJDE - SEIDE - SILK - SETA - SEDA - SEDA - METAΣΩTA - SILKE - SILKE - SILKKI - حير	[6CK]
	NYLON - NYLON - NYLON - NYLON - NYLON - NYLON - NYLON - NYLON - NYLON - NYLON - NYLON - NYLON - NYLON - NYLON - NYLON - NYLON - NYLON - NYLON - NYLON - NYLON - NYLON - NYLON - NYLON - NYLON - NYLON - NYLON - YILON	[0420]

* FR Réglez la température de repassage • NL Temperatuur instellen • DE Temperatur einstellen • EN Setting the temperature • IT Selezionare la temperatura di stiratura • ES Ajustar la temperatura • PT Ajustar a temperatura • EL Púθμιση θερμοκρασίας • DA Indstilling af strygetemperatur • SV Inställning av temperatur • NO Innstille stryketemperaturen • FI Säädä silityslämpötila • AR ΦΠ∂OX «∞∫d«,...

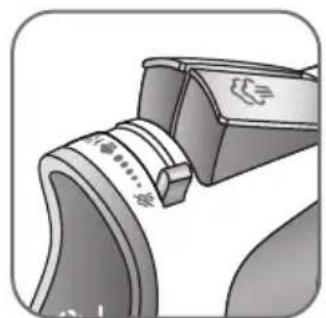

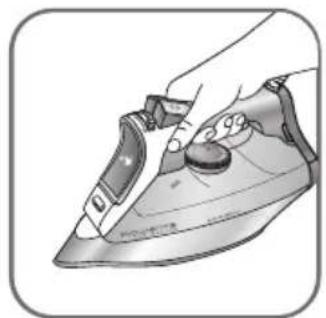

DRY IRONING4\*. DRY IRONING4.

Close-up of a mechanical component with no visible text or symbols

Illustration of a hand using a steam iron to clean or install a button (no text or symbols visible)

* FR Repassez sans vapeur • NL Strijken en stoomfuncties • DE Trockenbügeln • EN Dry ironing • IT Stirare senza vapore • ES Planchado sin vapor • PT Engomar SEM vapor • EL Σιδέρωμα ΧΩΡΙΣ ατμό • DA Tørstrygning • SV Strykning utan ånga • NO Stryke uten damp • FI Silitä ilmanhöyryä • AR الكى الجاف

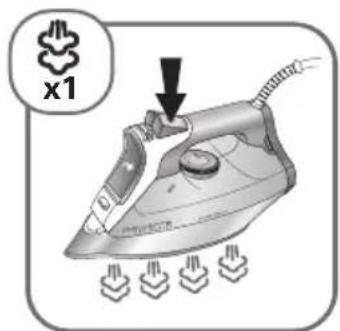

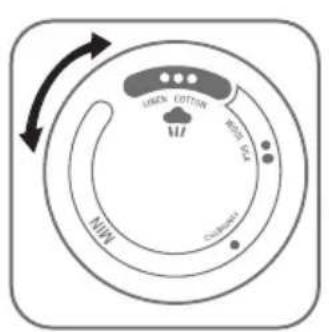

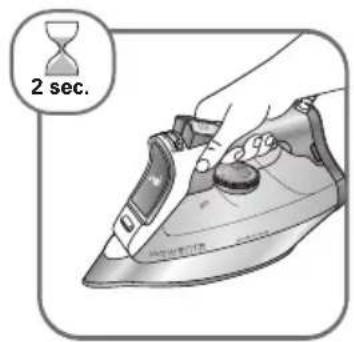

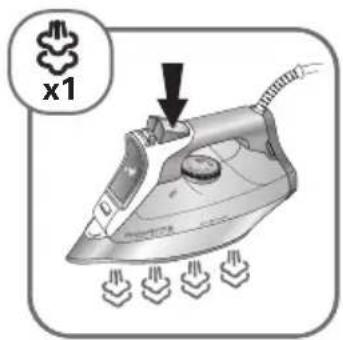

5. SHOT OF STEAM \*

x1

2 sec.

x1

* FR Jet de vapeur • NL Stoomshot • DE Dampfstoss • EN Shot of steam • IT Getto di vapore • ES Chorro de vapor • PT Jacto de vapor • EL PINTH ATMOY • DA Dampskud • SV Ångpuff • NO Dampstråle • FI Höyrysuihke • AR نفث البخار

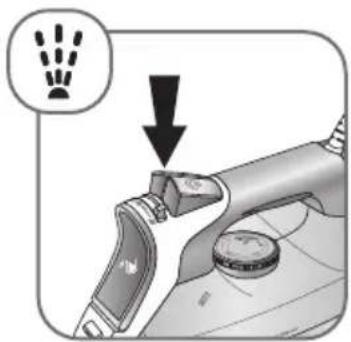

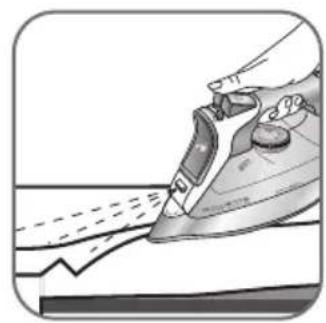

6. SPRAY \*

Diagram showing a robotic arm with a hand holding a device and a warning symbol pointing to it, indicating a hazard or alert.

Illustration of a hand using a power iron to clean or wear a piece of material (no text or symbols visible)

* FR Spray • NL Spray • DE Spray • EN Spray • IT Spray • ES Spray • PT Spray • EL Σπρέλ • DA Spray • SV Sprej • NO Spray • FI Suihke • AR

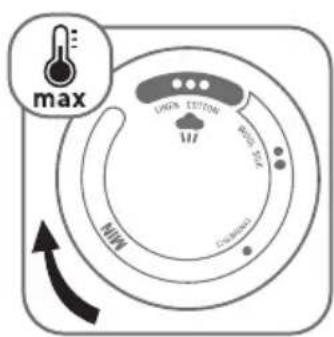

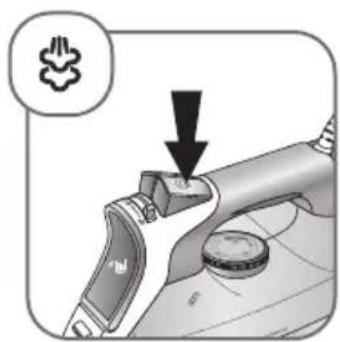

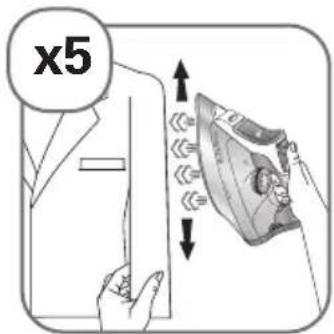

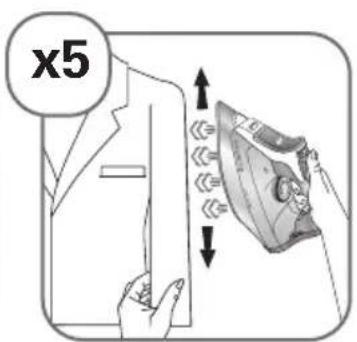

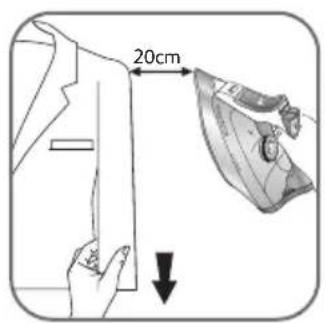

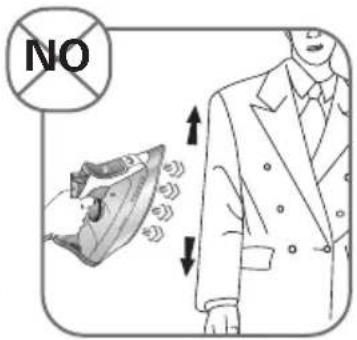

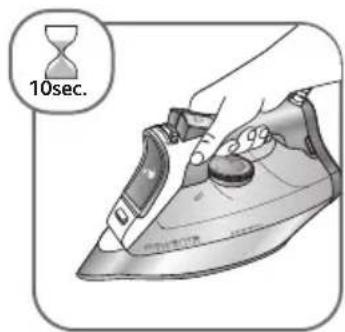

7. VERTICAL STEAM (●●●) \*

max LNGN ECON MAX MAX MAX MAX

NO

20cm

Close-up of a smartwatch with a hand operating the button, showing a black arrow pointing to the handle (no text or symbols present)

x5

10sec.

x5

* FR Vapeur verticale • NL Verticale stoom • DE Vertikaldampf • EN Vertical steam • IT Vapore verticale • ES Vapor vertical • PT Engomar na vertical • EL Káθετος ατμός • DA Lodret damp • SV Vertikal ånga • NO Vertikal damp • FI Pystyhöyrytys • AR بخار عمودی

8. AUTO-OFF \*

8 min 30 sec AUTO OFF

ON OFF AUTO OFF

* FR Arrêt automatique • NL Automatisch uitschakelen • DE Automatik-Stopp • EN Auto-off • IT Spegnimento automatico • ES Parada automática • PT Paragem automática • EL αυτόματη απενεργοποίηση • DA Automatisk sluk • SV Automatisk avstängning • NO Automatisk stopp • FI Automaattinen sammutus • AR τوَقَف أَوْتُوماتِيَكِي

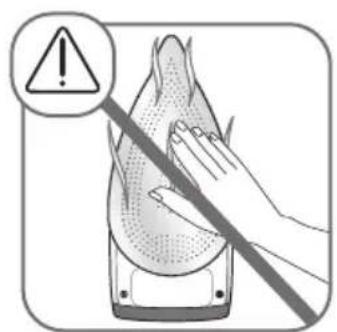

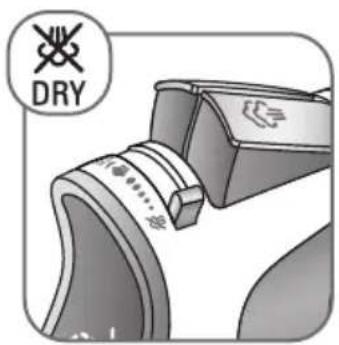

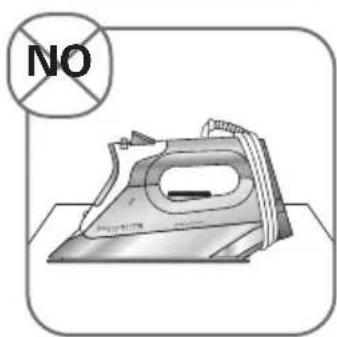

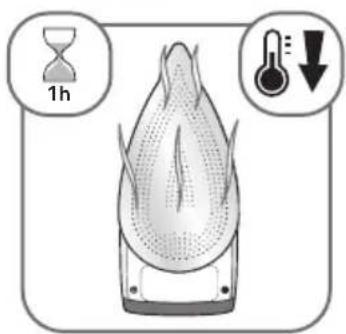

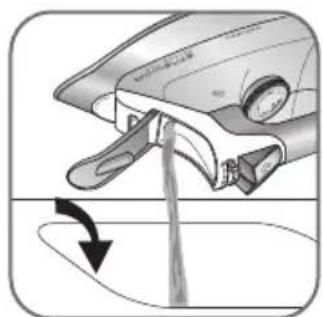

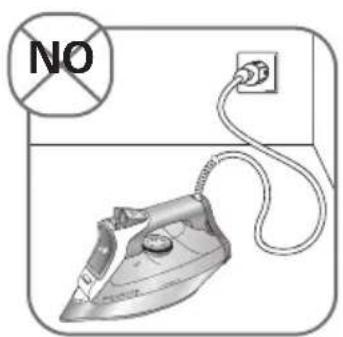

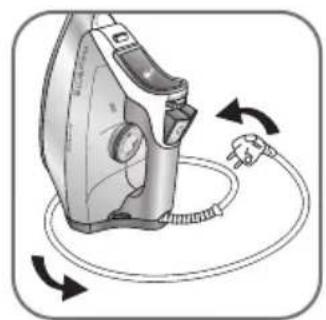

9. IRON STORAGE \*

DRY

Simple line drawing of an electric plug connected to a wall-mounted power socket (no text or symbols)

Warning symbol showing hand using a tool to mark safety, with exclamation icon above

1h ↓

Illustration of a hand holding a car with a lever and a downward arrow indicating motion (no text or symbols)

Illustration of a steam iron with circular motion arrows indicating circulation (no text or symbols)

Illustration of a baby washing machine with a child inside (no text or symbols)

NO

NO

* FR Rangement du fer • NL Opbergen van het strijkijzer • DE Aufbewahrung des Bügeleisens • EN Iron storage • IT Alloggio del ferro • ES Almacenamiento de la plancha • PT Arrumar o ferro • EL Αποθήκευση του σίδερου • DA Opbevaring af strygejern • SV Förvaring av strykjärnet • NO Oppbevaring av jernet • FI Silitysraudan säilytys • AR تخزين المكواة

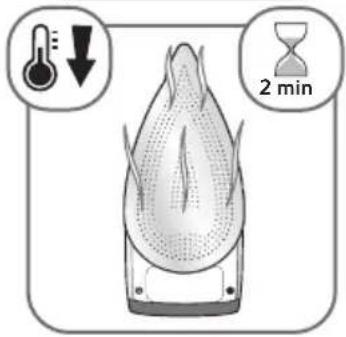

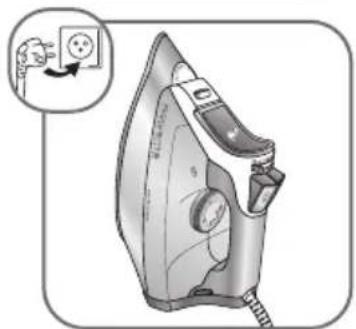

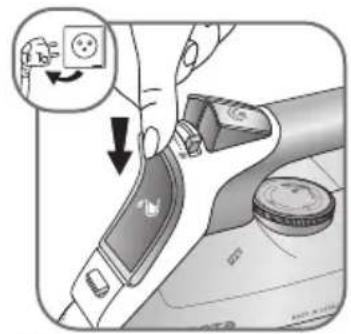

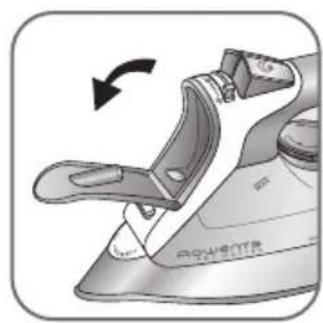

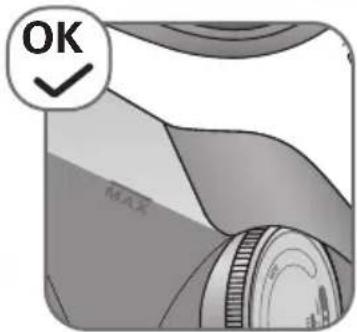

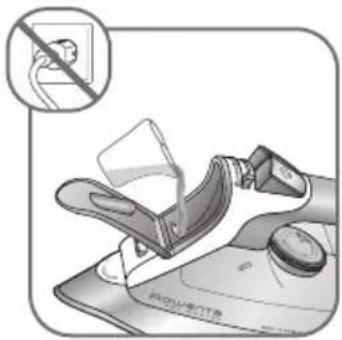

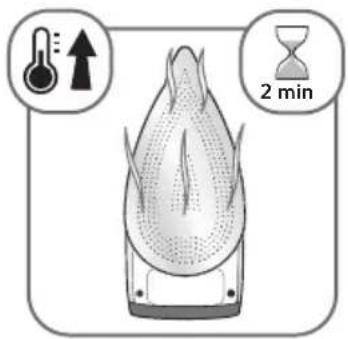

10. SELF-CLEANING (EVERY 2 WEEKS) \*

DRY SELF CLEAN

Diagram showing a hand inserting a device into a device with an icon and a magnified view of the device's internal structure.

Illustration of a power iron being adjusted with a black arrow indicating rotation (no text or symbols)

POWOTA

OK √

Illustration of a steam iron with a close-up of its electrical socket (no text or symbols)

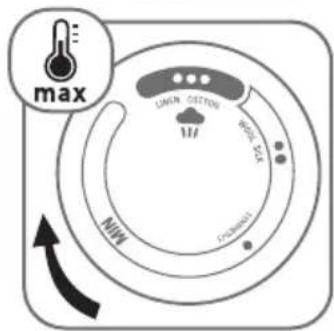

max MAIN OGTON M R0.4A NWH DINAMOUNT

Illustration of a car with a thermometer and upward arrow, no text or symbols present

OK ANTI

Simple line drawing of an electric plug connected to a wall-mounted power socket (no text or symbols)

Illustration of a hand using a steam iron to clean or install a small object (no text or symbols visible)

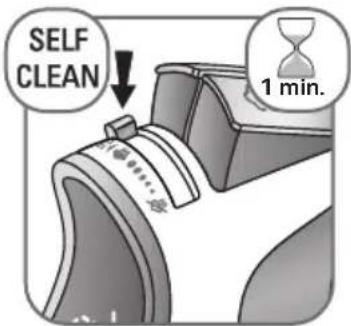

SELF CLEAN 1 min.

Simple line drawing of an electric plug connected to a wall-mounted power socket with a smiley face (no text or symbols)

2 min

Simple line drawing of a plug with a square outlet, showing an electrical switch symbol (no text or labels)

2 min

* FR AUTO NETTOYAGE (toutes les 2 semaines) • NL ZELFREINIGEND (elke 2 weken) • DE SELBSTREINIGUNG (alle 2 Wochen) • EN CLEAN (every 2 weeks) • IT AUTOPULIZIA (ogni 2 settimane) • ES AUTO-LIMPIEZA (cada 2 semanas) • PT AUTO-LIMPEZA (de 2 em 2 semanas) • EL Autokαθαρισμός (KAΘΕ 2 EBΔΟΜΑΔΕΣ) • DA SELVRENSNING (hver 2. uge) • SV SELF CLEAN (varannan vecka) • NO SELVRENSING (Hver 2. uke) • FI ITSEPUHDISTUSKÄYTTÖ (joka 2. viikkoo) • AR (التنظيف الذاتي (كل أسبوعين)

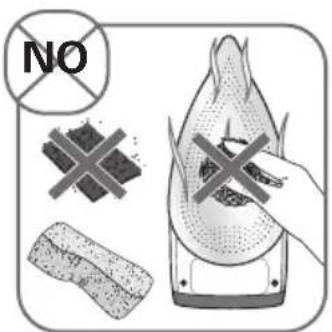

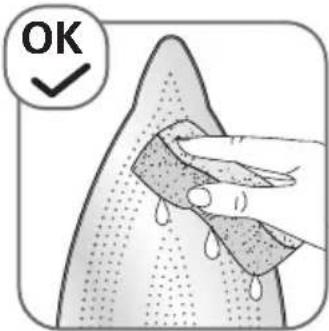

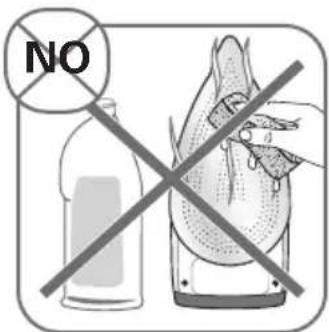

11. SOLEPLATE CLEANING \*

Diagram illustrating heat transfer with temperature and hour indicators, showing a flame-like object under pressure.

OK

NO

NO

* FR Nettoyage de la semelle • NL Reinigen van de strijkzool • DE Reinigung der Bügelsohle • EN Soleplate cleaning • IT Pulizia della piastra • ES Única placa de limpieza • PT Limpeza da base • EL Kaθαρισμός της πλάκας • DA Rengöring af strygesål • SV Rengöring av stryksulan • NO Rensing av strykesålen • FI Pohjan puhdistus • AR تنظيفIPAعدة

CONSIGNES DE SÉCURITÉ

RECOMMANDATIONS IMPORTANTES

• Please read these instructions carefully and keep them for further references.
• Never leave the appliance unattended when it is connected to a power source; if it has not cooled down for approximately 1 hour.
• The iron must be used and rested on a flat, stable, heat-resistant surface.

- When you place the iron on the iron rest, make sure that the surface on which you place it is stable.

• Always unplug your appliance: before filling, or rinsing the water tank, before cleaning it, after each use.

• Children must be supervised to ensure that they do not play with the appliance.

- Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a save way and understand the hazards involved.

- Cleaning and user maintenance shall not be made by children without supervision.

- The appliance must not be used if it has fallen to the floor, shows evident of damage, leaks or fails to function correctly. Never dismantle you appliance. To avoid any danger, have it inspected in an approved service centre.

- The surfaces which are marked with this sign and the soleplate are very hot during the use of the appliances. Don't touch these surfaces before the iron is cooled down.

IMPORTANT RECOMMANDATIONS

• The voltage of your electrical installation must correspond to that of the iron (220-240V). Always plug your iron into an earth socket. Connecting to the wrong voltage may cause irreversible damage to the iron and will invalidate the guarantee.

• If you are using a mains extension lead, ensure that it is corrected rated (16A) with an earth, and is fully extended.

• If the electric power cord is damaged, it must be replaced by an Approved Service Centre in order to prevent any danger.

• Do not unplug your appliance by pulling on the cord.
• Never immerse your steam iron in water or any other liquid. Never hold it under the water tap.
• Never touch the electric cord with the soleplate of the iron.
• Your appliance gives off steam, which may cause burns, especially when you are ironing close to the edge of your ironing board.
• Never direct the steam towards people or animals.
• For your saftey, this appliance conforms to the applicable standards and regulations (Low Voltage, Electromagnetic Compatibility, Environmental Directives).
• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

What water to use?

Your appliance has been designed to function with untreated tap water. If your water is very hard (check with your local water authority), it is possible to mix untreated tap water with store-bought distilled or demineralised water in the following proportions:

- 50% tap water, - 50% distilled or demineralised water.

However, it is necessary to operate the Self clean function regularly in order to eliminate hard water deposits from the steam chamber.

Use the Self clean function approximately every 2 weeks. If the water is very hard clean the iron weekly

Types of water not to use?

Heat concentrates the elements contained in water during evaporation. The types of water listed below contain organic waste or mineral elements that can cause spitting, brown staining, or premature wear of the appliance: water from clothes dryers, scented or softened water, water from refrigerators, batteries or air conditioners, pure distilled or demineralised water or rain water should not be used in your Rowenta iron. Also do not use boiled, filtered or bottled water.

Automatic 3-position cut-out\*

If, although switched on, the appliance is not moved, it will automatically switch off and the auto off light will blink after the following intervals:

- After 30 sec., if the iron is left placed down on the soleplate or lying on its side.

- After 8 mins., if the iron is left standing on its heel.

To switch the iron back on, move the iron gently.

If there is a problem?

PROBLEM	POSSIBLE CAUSE	SOLUTION
Water drips from the holes in the soleplate.	You are using steam while the iron is not hot enough.	Wait until the thermostat light goes out.
	You are using the shot of steam button too often.	Wait a few seconds between each use of the button.
	You have stored the iron horizontally, without emptying it and without setting it to 📋	See the section "Storing your iron".
Brown streaks come through the holes in the soleplate and stain the linen.	You are using ironing water additives (i.e. scented water, starch).	Never use ironing water additives; these will permanently damage your steam iron.
	You are not using the right type of water.	Perform a Self cleaning operation and consult the chapter "What water should I use?".
	Your linen has not been rinsed sufficiently or you have ironed a new garment before washing it.	Make sure that your laundry is rinsed sufficiently in order to remove any deposits of soap or chemical products on new clothes.
The soleplate is dirty or brown and can stain the linen.	Your are ironing with an inappropriate temperature selection (temperature too high).	Clean the soleplate (refer to chapter 11). Select the appropriate program.
	You have ironed over a printed are of a garment.	Never iron over printed areas or applications – always iron the reverse side of such a garment.
There is little or no steam.	The water tank is empty. Fill the water tank.
	Your iron has been used dry for too long.	Carry out a Self clean.
The soleplate is scratched or damaged.	You have placed your iron flat on a metallic rest-plate or ironed over a zip.	Refrain from ironing over metallic buttons or zippers.
Steam or water come from the iron as you finish filling the tank.	The steam control is not set to the position.	Check that the steam control is set to the position.
	The water tank is overfilled.	Never exceed the Max level.
The spray does not spray.	The water tank is not filled enough.	Fill up the water tank.

EN

Environnement

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled. Leave it at a local civic waste collection point.
