IC20 - Ice machine STEBA - Free user manual and instructions

Brand	Steba
Model	IC20
Product type	Ice cream maker with pre-freeze bowl
Capacity (approx.)	Approximately 1 liter
Preparation time	30 to 40 minutes
Power supply	Mains (see rating plate)
Power (approx.)	150 W
Dimensions (approx.)	25 x 25 x 30 cm
Weight (approx.)	3.5 kg
Bowl type	Insulated bowl with saline solution, pre-freeze 12 h
Motor	Removable, located in lid
Paddle	Removable for cleaning
Main functions	Ice cream, sorbet, frozen yogurt
Recommended ingredients	Cold milk, cream, fresh eggs, sugar, flavors
Cleaning	Parts (except motor) washable in hot water with mild detergent; motor cleaned with damp cloth
Safety	Do not immerse; do not use with timer; keep out of reach of children under 8
Spare parts	Insulated bowl (ref. 99.40.00)
After-sales service	Contact Steba
Use	Household use only

Frequently Asked Questions - IC20 STEBA

How to prepare the insulated bowl before use?

Place the insulated bowl horizontally in the freezer for at least 12 hours to allow the saline solution to freeze completely. Wrap it in a freezer bag to prevent it from sticking.

How much mixture can I put in the bowl?

Fill the bowl only up to half because the volume increases as it freezes. For a bowl of about 1 liter, put a maximum of 500 ml of mixture.

Why is my ice cream not hard enough?

Homemade ice cream is softer than commercial ice cream. Make sure the bowl is well frozen (12 h) and that the mixture is very cold (refrigerated for at least 5 h). You can also increase the fat content (cream, whole milk).

Can I use hot or warm ingredients?

No, the mixture must be very cold (preferably refrigerated for several hours). Hot ingredients prevent proper freezing and may damage the appliance.

How to clean the ice cream maker?

Unplug the appliance. Remove the motor from the lid (do not immerse it). Wash all other parts (bowl, paddle) in hot water with a mild detergent, then dry thoroughly. Do not use abrasive products.

Can I make several flavors in a row?

Yes, it is recommended to buy a second insulated bowl (ref. 99.40.00) to prepare another flavor while the first is still frozen.

How long does it take to make ice cream?

The churning time is 30 to 40 minutes depending on the recipe and room temperature. Do not exceed 40 minutes to avoid overloading the motor.

Can I add alcohol to the ice cream?

Yes, add small amounts of alcohol (rum, liqueur) at the end of the process, just before serving. Note: alcohol lowers the freezing point, so the ice cream will be softer.

What to do if the appliance does not work?

First check that the bowl is well frozen, the plug is connected, and the lid is properly engaged. If the problem persists, contact Steba after-sales service.

Where to find additional recipes?

The manual provides several recipes (vanilla, chocolate, raspberry sorbet, etc.). You can also consult cookbooks or specialized websites, adapting the quantities for a 1-liter bowl.

USER MANUAL IC20 STEBA

Instructions for use 9

Mode d'emploi 16

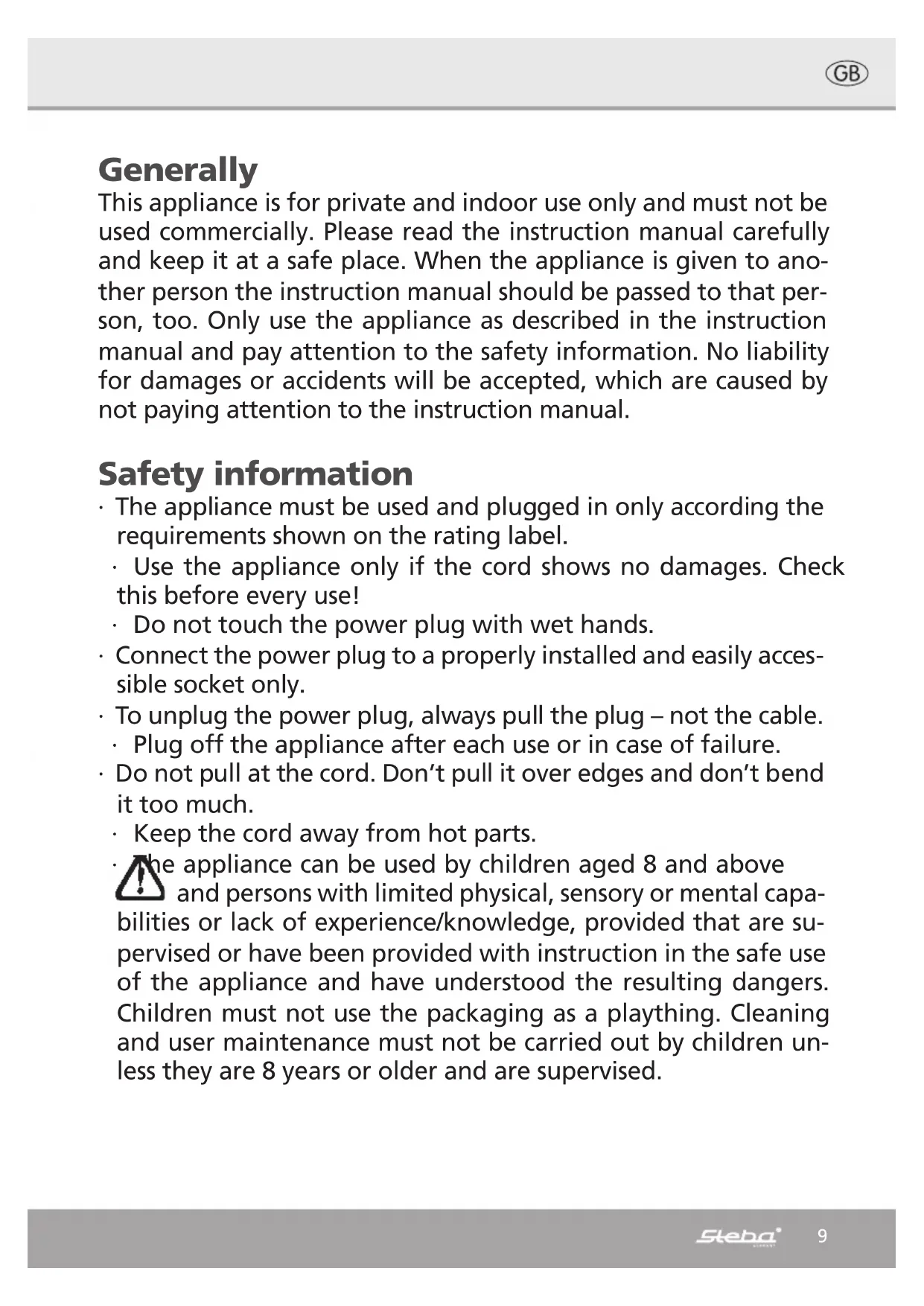

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.

Safety information

• The appliance must be used and plugged in only according the requirements shown on the rating label.

• Use the appliance only if the cord shows no damages. Check this before every use!

• Do not touch the power plug with wet hands.

• Connect the power plug to a properly installed and easily accessible socket only.

• To unplug the power plug, always pull the plug – not the cable.

• Plug off the appliance after each use or in case of failure.

• Do not pull at the cord. Don't pull it over edges and don't bend it too much.

• Keep the cord away from hot parts.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a plaything. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

Children under the age of 8 must be kept away from the appliance and the connecting cable.
- The appliance must not be operated using a timer or a separate remote system!
- Don't keep the appliance outside or in a humid environment.
- Never immerse the appliance in water.
- Use the appliance never after a malfunction, e.g. when it fell down or was damaged in any other way.
- The producer takes no responsibility for wrong use, which comes from not obeying the instruction manual
- To avoid any dangers, any repairs at the appliance, e.g. an ex-changement of the cord, must only be done by an authorised repair service.
- The appliance must be used on a stable and even surface.
- The appliance is only for the intended use described in the instruction manual.
- Das Gerät nicht auf oder neben einem Wärmegerät (z.B. Ofen) betreiben.

Cleaning

Unplug the device.
- Never immerse the motor part into water.
- Pull the rabble arm and the drive axle out of the motor part to take the motor out of the lid.
- All parts, except the motor can be cleaned with water and normal detergent. Do not use abrasive detergent! Leave to dry.
- Clean the motor part with a damp cloth.

Hygiene

Pay attention to an absolute cleanliness of all equipment. Always use fresh eggs. Place the prepared raw mixture in the refrigerator immediately and do not store longer than 24 hours. If the ice begun to thaw, don't freeze again in any case! (Salmonella risk)

Before the first use:

To remove production residues, the device must be cleaned before first use.
- Attention: Never immerse the motor part into water, but clean it with a damp cloth.
- All other parts can be cleaned with warm water and some detergent. Then leave to dry.

Freeze container

Place the double-walled freeze container for about 12 hours in advance in an upright position into the freezer. The salt solution in the container must be frozen. This can be found out by shaking the container. If no sound is hearable the liquid is frozen. To avoid the container to freeze up, pack it into a freezer bag.

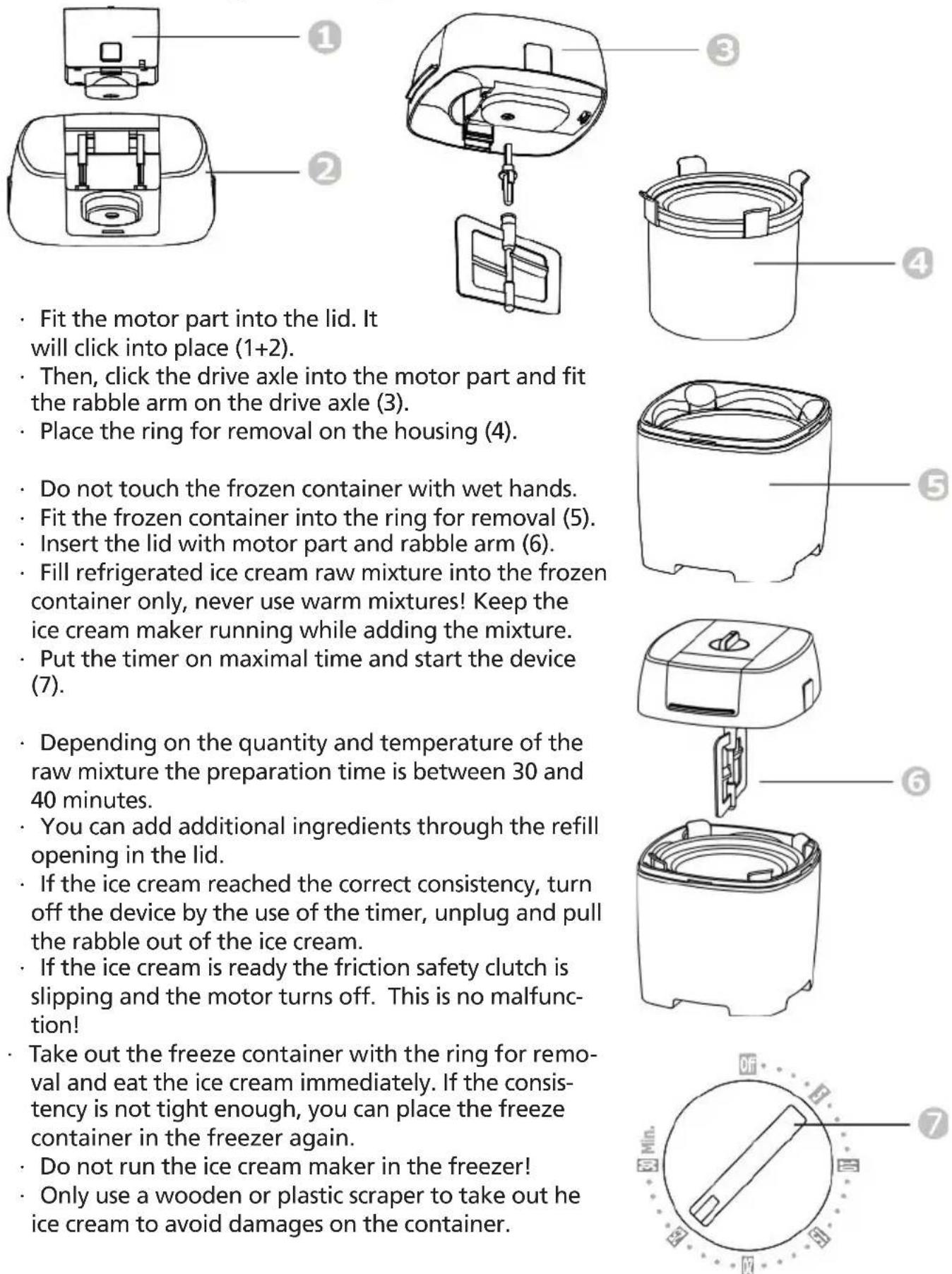

Assembling and operation

Hints

• Prepare raw mixtures which need to be cooked already a day before and keep them refrigerated.
• Add little amounts of alcohol at the end (Attention! Children)
• Never insert fingers or other objects into the opening.
• The higher the fat content of the ingredients, the creamier the ice.
• Keep in mind while preparing: cold ice cream tastes less sweet than the warm raw mixture!
• Fill the freeze container only by half because the volume of the mixture gets bigger while freezing.
• Homemade ice cream is not that firm as machine-made.
  It is recommended to freeze a second freeze container for another variety of ice cream. This container can be gained at Steba-Service or in a specialist shop. (Art.Nr. 99-40-00, EAN: 4011833400772)

Recipes

Vanilla ice cream

300ml cold milk, 300ml cold cream, 3 egg yolk, 100gr sugar, vanilla bean.

Basic recipe

Heat milk, cream and the scratched vanilla bean. Mix the egg yolks with sugar, stir in the hot liquid and beat until fluffy. Leave the mixture to cool in the refrigerator. Now, put the cooled mixture into the frozen container and let the ice cream maker work for 30 to 40 minutes.

Malaga ice cream

Use the basic recipe for vanilla ice cream and add through the refill opening, while stirring, 50gr raisins which have been soaked with 4 tbsp. rum for 12 hours.

Chocolate ice cream

Use the basic recipe for vanilla ice cream and add 80gr cocoa while heating the milk with the cream.

Mocha ice cream

Use the recipe for chocolate ice cream and add 2 tsp espressor powder to the milk-cream mixture.

Yoghurt ice cream

300gr cold plain yoghurt, 400gr cold cream, 150gr icing sugar, 2 tbsp. lemon juice. Mix yoghurt with icing sugar and lemon juice. Beat the cream and fold in. Fill into the frozen container and let the ice cream maker run work 30 to 40 minutes.

Berry ice cream

300gr cold plain yoghurt, 300gr cold mixed berries, 150gr icing sugar. Purée the washed berries and add icing sugar, yoghurt. Fill into the frozen container and let the ice cream maker work for 30 to 40 minutes.

Raspberry sorbet

500gr cold raspberries, 125gr icing sugar, 150ml white wine, 2 tbsp. strawberry liqueur. Purée the cold berries with icing sugar and white wine. Fill the mixture into the frozen container and let the ice cream maker work for 30 to 40 minutes. Add the liqueur at the end.

Apple sorbet

600ml apple juice, 200gr sugar, 1 tbsp. lemon juice. Boil up the apple juice, sugar and lemon juice. Leave to cool in the refrigerator. Fill the mixture into the frozen container and let the ice cream maker work for 30 to 40 minutes.

Pineapple ice cream

150ml cold milk, 200ml cream, 1 vanilla bean, 3 egg yolk, 120gr sugar, 1 can pineapple (600gr). Boil up milk, cream and the scratched vanilla bean. Brew for 10 minutes. Beat egg yolk and sugar until fluffy. Fold the egg mixture into the milk-cream mix. Heat everything to 85^ while stirring constantly. Do not let the mixture boil! Purée the pineapple with some salt and add to the milk-mix. Let the mixture cool down in the refrigerator for about 5 hours. Fill into the ice cream maker and let it work for 20 to 40 minutes.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return used device, please use the return and collection systems or contact the retailer the product was purchased. They can take this product for environmental safety.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
