USER MANUAL IC 150 STEBA

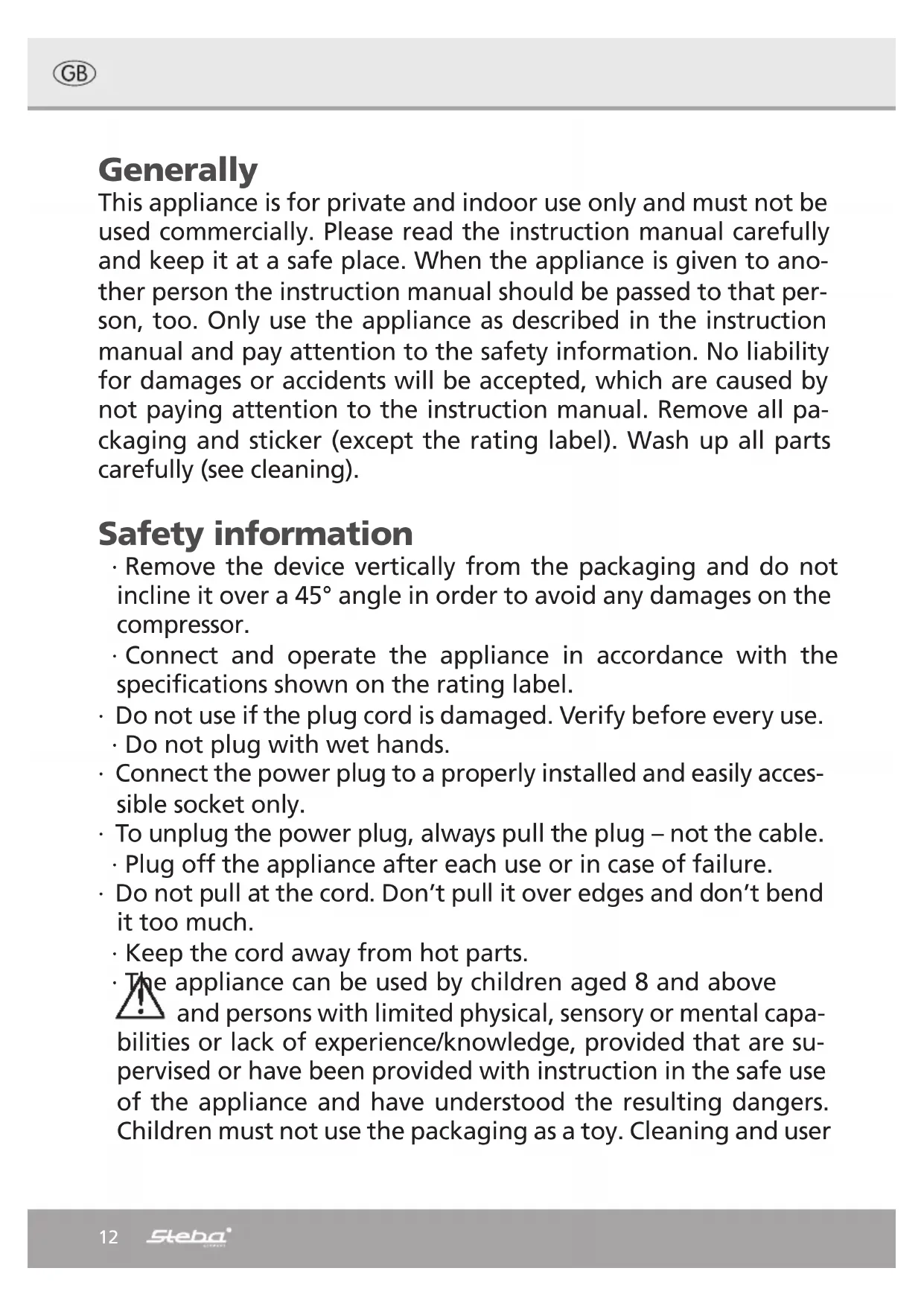

The ventilation slots must always remain free. Do not place sharp objects into the ventilation slots! ∙ Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner. ∙ The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as de- scribed or a mistake in the handling has been made. ∙ To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used. ∙ Only use the device as described in this manual. ∙ This appliance is intended to be used in household and similar applications such as: o staff kitchen areas in shops, offices and others working environments o by clients in hotels, motels and other residential type en- vironments o bed and breakfast type environments. ∙ Before initial use: clean all parts carefully and leave to dry. ∙ If an extension cable is used, it has to have a cross-section of 1,5mm². A cable drum must always be unwound.14 ∙ If a GS-tested 16 A multi-pin extension is used, it may not be charged with more than 3680 watts due to fire hazard. ∙ Make sure that children do not tease the cable or that a trip hazard occurs. ∙ The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning. ∙ Danger of injury! Do not touch or place any object into the device working device. ∙ Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. ∙ Do not press the on / off switch several times in succession to avoid damages on the compressor. Ensure an interval of at least 5 minutes between turning the device on and off. ∙ Warning: do not use the device directly in front of a socket or a multiple portable socket. ∙ Only start the device when all parts have been mounted prop- erly. ∙ Warning: do not use mechanical devices or other means to ac- celerate the defrosting process. ∙ Warning: do not use electric appliances inside the ice contain- er. ∙ When taking out the ice container, do not knock the surface or the edge of the container to avoid damages. ∙ A maximum of 1,5 l ice cream can be produced within this de- vice. ∙ Hygiene: Please always clean the device to avoid bacteria and mould formation.15 Specific Safety Information ∙ The refrigerant R600a complies with EU regulations on environ- mental protection. ∙ Nevertheless, the refrigerant circuit of the appliance must never be interrupted, so that the refrigerant leaks. At the end of its service life, the device must only be disposed at spe- cially installed collection points.

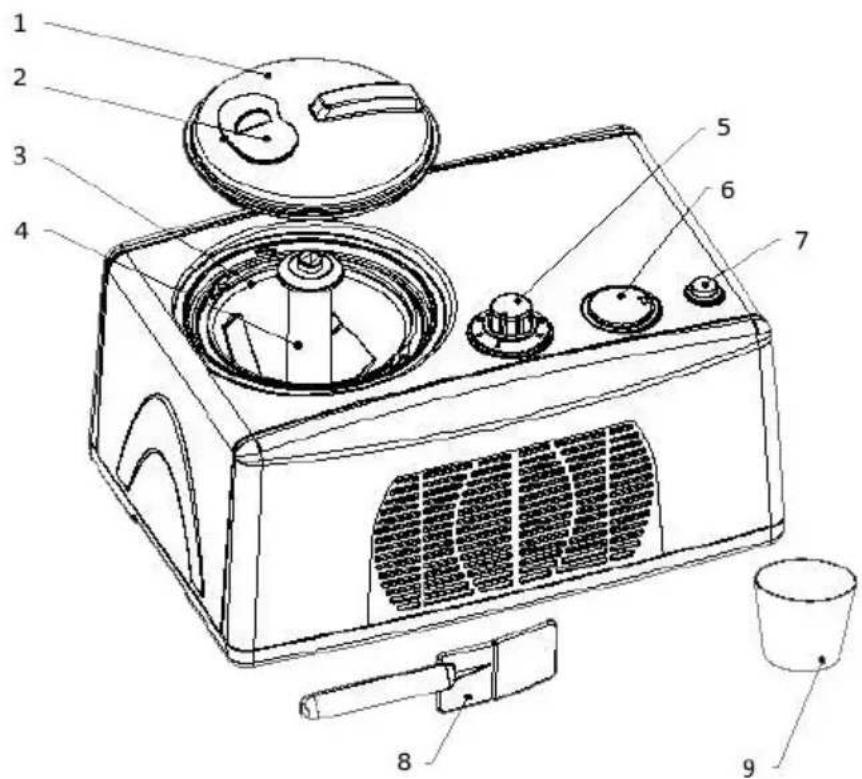

The refrigerant R600a is flammable! Risk of fire! ∙ If the refrigerant circuit is damaged, keep the appliance away from the open fire and ensure that the room is adequately ven- tilated. Cleaning ∙ Attention! Pull the plug before cleaning. ∙ Never immerse the unit into water. ∙ Ensure that no liquid enters the ventilation slots during clean- ing, as this will damage the electrical system. ∙ Wash all removable parts in dishwater and allow them to dry. ∙ Do not use abrasive detergents. ∙ Ensure that the ice container is not dented, otherwise the rab- ble arm may become blocked.16

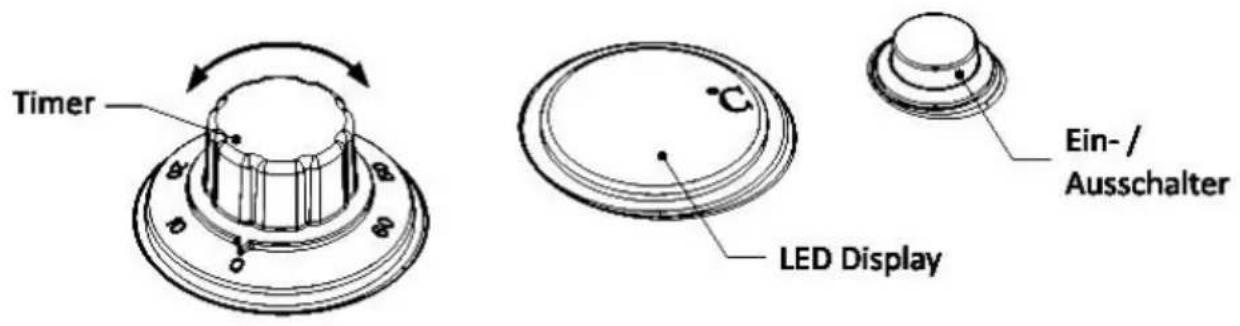

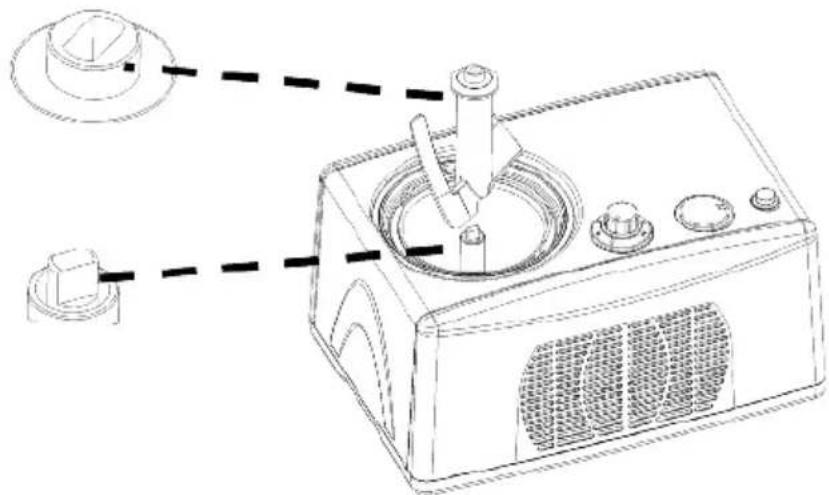

Preparation ∙ Unpack the machine vertically. ∙ Clean all removable parts to remove any production residue. ∙ Leave the appliance to stand for 2 hours before first use to allow the refrigerant (R 600a) to settle. ∙ Insert the ice container and place the rabble arm on the axis in the ice container. Hygiene Pay attention to an absolute cleanliness of all equipment. Always use fresh eggs. Place the prepared raw mixture in the refrigerator immediately and do not store longer than 24 hours. If the ice begun to thaw, don not freeze again in any case! (Salmonella risk) Making Ice Cream ∙ Prepare ice cream raw mixture with the basic recipe. ∙ If the liquid should be heated according to the recipe, it should cool in the refrig- erator. ∙ Place the cooled ice mixture in the removable ice container. ∙ Never freeze the ice container in the machine. By adding the ice mixture, an ice film is formed on the container wall and can block the rabble arm. ∙ Place the ice container and the rabble arm in the appliance and close the lid.
