TV EasyScope Multi - Flat screen mount Cabstone - Free user manual and instructions

Product Type	Wall mount for LED/LCD/plasma screens
Brand	Cabstone
Model	TV EasyScope Multi (ref. 51928/51929, 51930/51931)
Compatible screen size	250 - 740 mm (10" - 30")
Maximum load	30 kg
Compatible VESA standard	50x50, 75x75, 100x100, 100x200, 200x200 mm
Tilt angle	±20°
Swivel angle	±90°
Distance from wall	100 - 330 mm (model M) / 100 - 470 mm (model Multi)
Material	Powder-coated resistant steel
Color	Silver / Black
Mount weight	2.0 kg (M) / 2.3 kg (Multi)
Dimensions (W x H x D)	220 x 220 x 330 mm (M) / 220 x 220 x 470 mm (Multi)
Cable management	Yes, arrange cables in the provided channels
Installation	On solid wall (stone, concrete) - requires drilling and wall plugs
Warranty	2 years (parts and labor, excluding installation)
Maintenance and cleaning	Dry cotton cloth, avoid abrasive products
Safety	Installation by a qualified professional mandatory
Package contents	Wall mount, receptacle, nuts, screws (A,B,C), wall plugs (E), adjustment screw (H), screws (J), manual

Frequently Asked Questions - TV EasyScope Multi Cabstone

Which screens are compatible with the Cabstone TV EasyScope Multi mount?

This mount accepts LED/LCD/plasma screens from 10 to 30 inches (25-74 cm) with a maximum weight of 30 kg and VESA standards: 50x50, 75x75, 100x100, 100x200, and 200x200 mm.

Does the wall mount installation require a professional?

Yes, installation and removal must be carried out by a qualified professional to ensure safety and avoid risks of electrocution or falling.

What type of wall is needed to attach this mount?

The mount is designed for solid stone or concrete walls. For other structures, use appropriate materials and consult a specialist.

What tools are needed for installation?

You will need a 10 mm masonry drill bit, a drill, a spirit level, wall plugs (supplied), and the provided screws. The manual details the steps.

How to adjust the tilt and swivel of the screen?

Loosen the adjustment screw (H) by one or two turns, adjust the screen to the desired tilt (±20°), then retighten the screw. Lateral swivel (±90°) is done manually.

Does the mount allow hiding cables?

Yes, the EasyScope Multi model integrates cable management: you can arrange cables in the provided channels for a neat appearance.

What is the minimum and maximum distance between the screen and the wall?

For model M, the screen is between 100 and 330 mm from the wall. For model Multi, between 100 and 470 mm.

What to do in case of missing screws or parts?

Contact your retailer or the manufacturer (contact details on the cover of the manual). The warranty covers defects, not lost parts.

How to clean the mount without damaging it?

Use a dry cotton cloth for dust. For stains, slightly dampen the cloth. Disconnect cables before cleaning and avoid abrasive products.

What is the warranty period for the mount?

The mount comes with a 2-year warranty from the date of purchase, covering manufacturing defects. Incorrect installation voids the warranty.

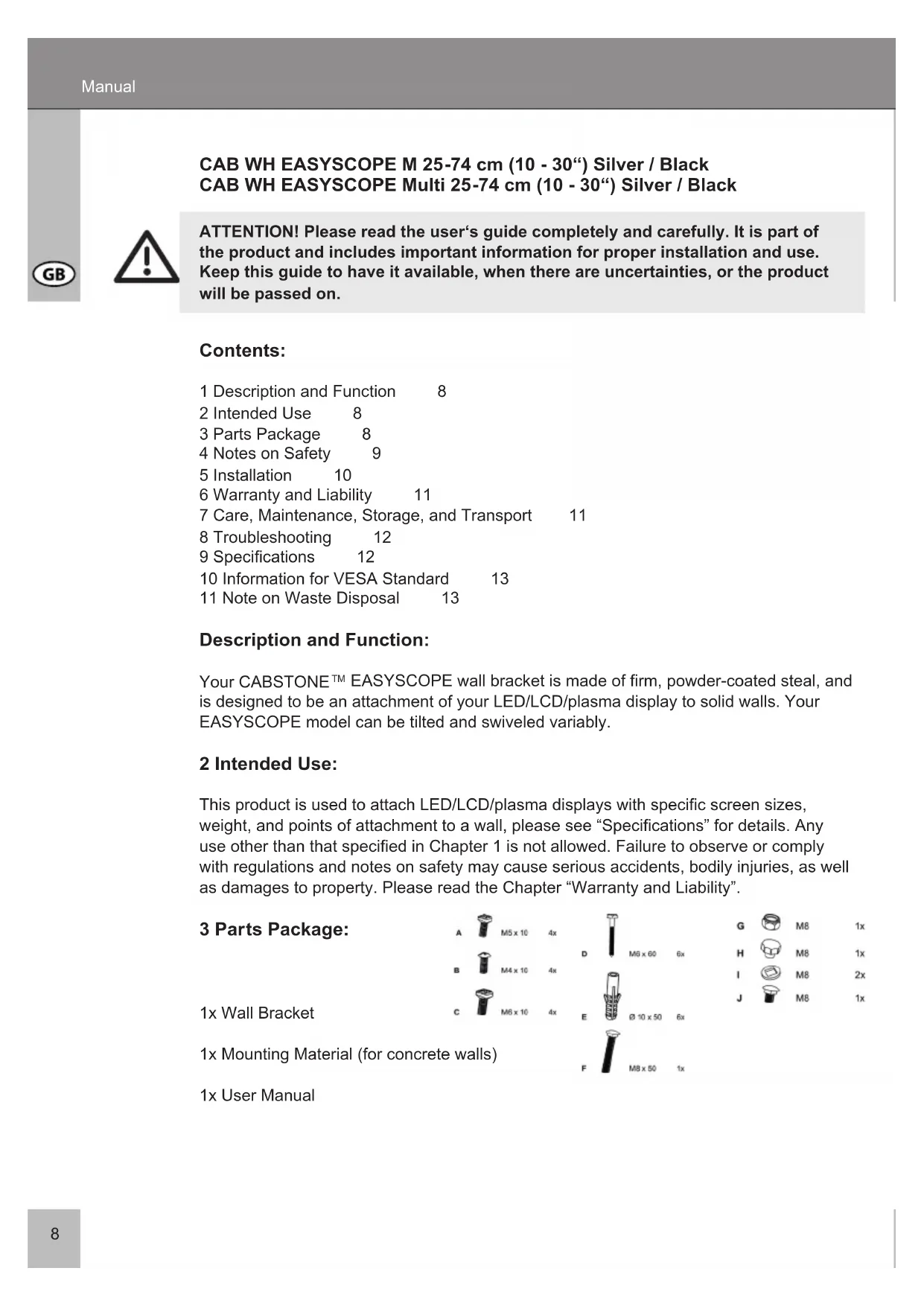

USER MANUAL TV EasyScope Multi Cabstone

TV EASYSCOPE M/MULTI

CAB WH EASYSCOPE M 25-74 CM (10 - 30") SILBER / SILVER 51928

CAB WH EASYSCOPE M 25-74 CM (10 - 30") SCHWARZ / BLACK 51929

CAB WH EASYSCOPE MULTI 25-74 CM (10 - 30") SILBER / SILVER 51930

CAB WH EASYSCOPE MULTI 25-74 CM (10 - 30") SCHWARZ / BLACK 51931

Bedienungsanleitung

Manual

ATTENTION! Please read the user's guide completely and carefully. It is part of the product and includes important information for proper installation and use. Keep this guide to have it available, when there are uncertainties, or the product will be passed on.

Contents:

1 Description and Function 8
2 Intended Use 8
3 Parts Package 8
4 Notes on Safety 9
5 Installation 10
6 Warranty and Liability 11
7 Care, Maintenance, Storage, and Transport 11
8 Troubleshooting 12
9 Specifications 12
10 Information for VESA Standard 13
11 Note on Waste Disposal 13

Description and Function:

Your CABSTONE™ EASYSCOPE wall bracket is made of firm, powder-coated steal, and is designed to be an attachment of your LED/LCD/plasma display to solid walls. Your EASYSCOPE model can be tilted and swiveled variably.

2 Intended Use:

This product is used to attach LED/LCD/plasma displays with specific screen sizes, weight, and points of attachment to a wall, please see "Specifications" for details. Any use other than that specified in Chapter 1 is not allowed. Failure to observe or comply with regulations and notes on safety may cause serious accidents, bodily injuries, as well as damages to property. Please read the Chapter "Warranty and Liability".

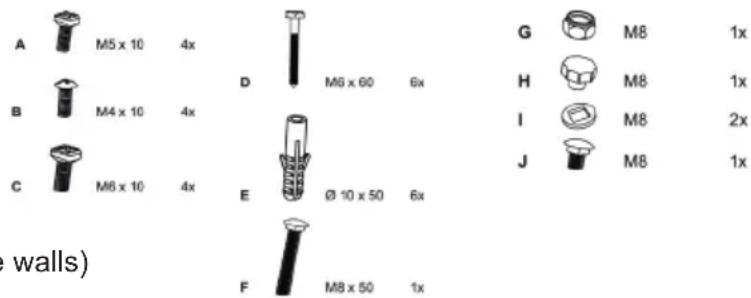

3 Parts Package:

1x Wall Bracket

1x Mounting Material (for concrete walls)

1x User Manual

4 Notes on Safety:

ATTENTION! Only trained professionals are authorized to inspect the wall, as well as install and remove the product! Among others, there is a risk of electric shock, bruises, and crashes!

• Your CABSTONE™ product is not a toy and is not meant for children, because it contains small parts which can be swallowed and can injure when used inappropriately!
• NEVER place the display screen on its front side during installation, lean the display screen against a wall or a sturdy surface. Placing the display screen on its front side could cause permanent damage!
• Please install the system and devices attached to it in a way that persons cannot be injured, or objects not be damaged for example by dropping.
• Please remove the packing materials, because children may cut themselves on them while playing. Furthermore, there is a risk of swallowing and inhalation of incidentals and insulating material.
  We recommend that the wall installation only be performed by qualified technicians.
• To avoid accidents it is necessary to check the wall structure before installation, or to carefully look for a safe place for installation. Look out for live cables embedded in the wall!
• The wall must be strong enough at the place of installation to carry at least the fourfold of the total weight of the product, the audio / video devices, the bracket, and the installation material.
  Please also read the Chapter "Specifications".
• The place of installation must be able to withstand earthquakes, or other strong vibrations.
• Avoid places with high temperatures, or humidity, or places which might come into contact with water.
• Do not install the product close to openings of air conditioners, or at places with an excessive amount of dust or smoke.
• Install it only on a vertical wall. Avoid slant surfaces, because other kind of tensile stress may then interact with the material.
• Do not install the product at places subject to vibration, or oscillation.
• Do not modify and alter any accessories! Make sure you also read the Chapter "Warrantry and Liability". Do not use any damaged parts.
• Tighten all screws. Do not use too much force to avoid breakage of screws and overturning of threads.
• Drill holes are still visible on the wall after the device bracket and the cable management system is removed. After use for a longer time period, a spot may remain on the wall.
• Do not install the product at places subject to direct solar radiation, or strong light. This will increasingly tire the eyes while looking at the display. Keep sufficient space around the output devices, as well as audio / video devices, and around the entire system to ensure proper ventilation and clearance, and to avoid damages.
• During transport, observe the details listed in the Chapter "Specifications", and implement measures suitable for transport.
• For questions, defects, mechanical damages, malfunctions, and other functional problems which cannot be resolved by this guide, please contact your dealer for repair or replacement, as described in the Chapter "Warranty and Liability".
  Please observe the maximum bearing loads listed in the Chapter "Specifications".
  Please also observe the terms of use described in the Chapter "Intended Use".
• The supplied components are only suitable for installation to a solid stone and concrete

wall. If the structure of your wall is different, corresponding installation material must be used. In any case, consult a specialist.

• Make sure to observe the correct thread size during installation of the display screen to the wall bracket.

5 Installation:

ATTENTION! Only trained professionals are authorized to inspect the wall, as well as install and remove the product! For more information please read the Chapters "Notes on Safety" and "Troubleshooting".

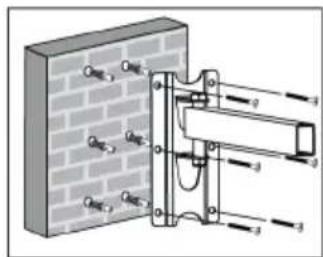

Step 1 Wall Installation: 1

Please use the wall bracket as a template to mark the holes to be drilled in the wall using a level. Check, if gas or water pipes, or power lines are behind the wall before drilling. Use a 10mm stone drill to bore the holes to a depth of 60~mm . Insert one dowel (E) into each of the drilled holes. Now, use the 6 wall screws (D) to attach the wall bracket.

Step 2 Installation of Display Screen: 2

Use screws (J), and the adjusting screw (H) to attach the screen bracket to the receptacle. Use the supplied screws (A), (B), or (C) to fasten the screen bracket to your display screen.

CAB WH EASYSCOPE M (25-74 cm)

CAB WH EASYSCOPE Multi (25-74 cm)

Step 3 Layout of Cables:

CAB WH EASYSCOPE M (25-74 cm)

CAB WH EASYSCOPE Multi (25-74 cm)

Lay out the cables as illustrated in the adjacent picture (Fig. 4).

Adjustment:

5

ATTENTION! Always hold the display screen during the entire adjustment!

• Drive the adjusting screw one or two turns a counter-clockwise direction (Figure 5).
• Adjust the display screen to the desired inclination.
• Tighten the adjusting screw again in a clockwise direction.

The installation is completed. Please proceed in reverse order for disassembly.

Step 4

NOTE:

6 Warranty and Liability:

• The manufacturer warrants this new device for 2 years.
• As the manufacturer has no influence on the wall type and the installation of the wall installation kit, warranty of the product only applies to the installation kit.
• If any fault or damage is detected on your device, please contact your dealer and provide your sales slip or invoice as evidence of the purchase, if necessary. Your dealer will repair the fault either on site, or send the device to the manufacturer. You make the work of our technicians considerably easier, when you describe possible faults in detail - only then you can be assured that faults occurring only rarely will be found and repaired with certainty!
• If your dealer cannot be contacted, you can also contact us directly.
• The manufacturer is not liable for damages to persons or property caused by improper installation or operation not described in this guide. This includes, among others, any alteration and modification of the product and its accessories.
• Any use other than described in this user's guide is not permitted, and causes loss of warranty, loss of guarantee, and non-liability.
• We reserve our right for misprints and changes of the device, packing, or user's guide.

7 Care, Maintenance, Storage, and Transport:

• Use a dry linen cloth to clean your product, or use a slightly moist cloth for heavy stains. Look out for live cables of your device during cleaning! Pull the plug prior to cleaning!
• Make sure no body parts will be pinched in the swivel device, when parts of the device are swiveled!

ATTENTION! There is a risk of electric shock and bruises!

• Make sure there is sufficient space around the display unit to ensure proper ventilation, and check the clearance of the system, if necessary.
• Periodically check, if all attachments and screws are secured, and tighten them again when they are loose. This may be caused for example by frequent movements.
• Avoid places with high temperatures, humidity, or places which can become wet, also during care, maintenance, storage, and transport.
• Drill holes are still visible on the wall after the device and the wall installation kit is removed. After use for a longer time period, a spot may remain on the wall.
• Follow the safety symbols on the packing during transport.

8 Troubleshooting:

Problem	Correction	Marking
How can the wall quality be tested?	Check the wall thickness, and the material below plaster and wallpaper.Consult trained professtionals.	Live loads for living space are listed for example in standards such as DIN 1055, and EN 594.
Which holes must bedrilled?	Please read the Chapters „Parts Package" and „Installation".Ask a second person for help, and observe the „Notes on Safety“!	Holes are marked in drawings.
The wall bracket is hard to align.	Please read Chapter 5.Check all attachments, and contact your dealer, if necessary.
other questions:	Contact us.	Contact details - back of cover sheet

9 Specifications:

Model 51928 / 51929 51930 / 51931
screen size 250 – 740 mm, 10" –	30" 250 – 740 mm, 10" – 30"
max. load 30 kg 30 kg
Weight 2.0 kg 2.3 kg
Dimensions 220 x 220 x 330 mm	220 x 220 x 470 mm
VESA hole distance 50 x 50 mm	50 x 50 mm
	75 x 75 mm 75 x 75 mm
	100 x 100 mm	100 x 100 mm
	100 x 200 mm	100 x 200 mm
	200 x 200 mm	200 x 200 mm
Wall distance	100 - 330 mm	100 - 470 mm
Angle of inclination	+/-20° +/-20°
Swivel angle	+/-90°	+/-90°

10 Information for VESA-Standard:

To harmonize attachment options of monitors, TV devices, and their stands and wall brackets in a user-friendly manner, VESA (Video Electronic Standard Organization) defined 3 standards for the applications mentioned above. Using the relevant VESA standard specified on your display unit, or in its user's guide, and the specifications in Chapter "Specifications" in this guide you are able to define the possible points of attachment. Some models allow for an infinitely variable individual attachment. (eg. 300 × 300 mm for Sony TVs)

VESA Class Hole distance for attachment of monitors

MIS-D: 75 × 75 , or 100 × 100 ~mm

MIS-E: 200 × 100 , or 200 × 200 ~mm

MIS-F: 400 × 200, 400 × 400, 600 × 200, 600 × 400, or 800 × 400 ~mm

11 Note on Waste Disposal:

This product should be not disposed together with domestic waste. Please return your device free of charge at the end of its service life at public collection points established for this purpose, or at the sales outlet. Details for disposal are regulated in the relevant federal state law. Potential recyclable materials are fed into the recycling cycle to obtain new raw materials from them. Following recyclable materials are collected a local collection points:

• Waste glass, plastic, waste metal, metal sheet, and more.

This type of recycling of waste equipment contributes significantly to the protection of our environment.
