TV EasyFlex M - Flat screen mount Cabstone - Free user manual and instructions

Product Type	Wall mount for flat screen
Brand	Cabstone
Model	TV EasyFlex M
Compatible screen size	250 - 740 mm (10" - 30")
Maximum load	30 kg
Mount weight	1.1 kg
Dimensions (W x H x D)	220 x 220 x 90 mm
Compatible VESA standards	50x50, 75x75, 100x100, 100x200, 200x200 mm
Distance from wall	90 mm
Tilt angle	+/- 20°
Swivel angle	+/- 45°
Material	Powder-coated resistant steel
Wall mounting type	Solid stone or concrete wall
Package contents	1x wall mount, 1x mounting kit (screws, wall plugs), 1x manual
Installation	By a qualified professional
Maintenance and cleaning	Dry or slightly damp cloth, disconnect before cleaning
Safety	Check wall strength (4x total weight), avoid proximity to air conditioning, dust, humidity
Warranty	2 years (covers only the mount, not installation)
Troubleshooting	Contact the retailer or manufacturer
Disposal	Do not dispose of with household waste, recycle at a collection point

Frequently Asked Questions - TV EasyFlex M Cabstone

What screen sizes are compatible with the TV EasyFlex M mount?

The mount is designed for screens from 10 to 30 inches (250 to 740 mm).

What is the maximum load supported by this wall mount?

The maximum load is 30 kg.

What are the compatible VESA standards?

The available VESA standards are: 50x50, 75x75, 100x100, 100x200 and 200x200 mm.

Can I tilt or swivel the screen after installation?

Yes, the mount allows a tilt of +/- 20° and a swivel of +/- 45°.

Is the mount suitable for all types of walls?

The supplied kit is intended for solid concrete or stone walls. For other materials, consult a specialist.

Can I install the mount myself?

It is recommended to have a qualified professional install it to avoid any risk of falling.

What tools are needed for installation?

You will need a level, a drill with a 10 mm drill bit, a hammer, and a screwdriver.

How to clean the wall mount?

Use a dry or slightly damp cloth. Disconnect electrical cables before cleaning.

What is the distance between the wall and the screen?

The screen is located 90 mm from the wall.

What to do if a screw or fastener becomes loose?

Regularly check all fasteners and tighten them if necessary. If a defect persists, contact your dealer.

USER MANUAL TV EasyFlex M Cabstone

Two metallic mechanical components with mounting holes, one white and one black, shown without any text or symbols.

TV EASYFLEX M

CAB WH EASYFLEX M 25-74 CM (10 - 30") SILBER / SILVER 51926

CAB WH EASYFLEX M 25-74 CM (10 - 30") SCHWARZ / BLACK 51927

Bedienungsanleitung

Manual

Pure mechanical diagram of a lever mechanism without any text or symbols

Diagram showing a tool interacting with a wall-mounted brick structure, with labeled components and directional arrows.

Pure electrical circuit lines without any symbols

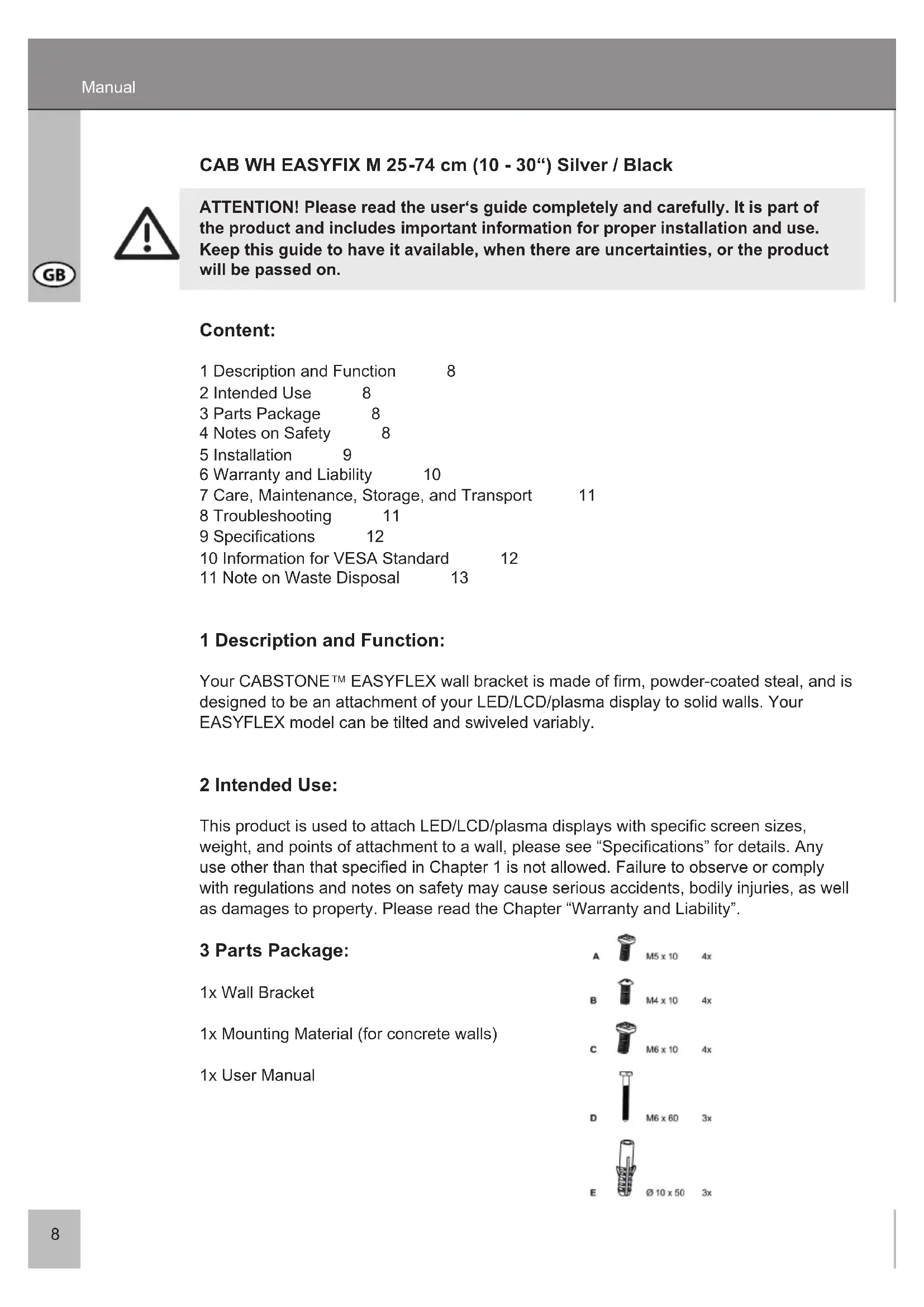

ATTENTION! Please read the user's guide completely and carefully. It is part of the product and includes important information for proper installation and use. Keep this guide to have it available, when there are uncertainties, or the product will be passed on.

Content:

1 Description and Function 8

2 Intended Use 8

3 Parts Package 8

4 Notes on Safety 8

5 Installation 9

6 Warranty and Liability 10

7 Care, Maintenance, Storage, and Transport 11

8 Troubleshooting 11

9 Specifications 12

10 Information for VESA Standard 12

11 Note on Waste Disposal 13

1 Description and Function:

Your CABSTONE™ EASYFLEX wall bracket is made of firm, powder-coated steal, and is designed to be an attachment of your LED/LCD/plasma display to solid walls. Your EASYFLEX model can be tilted and swiveled variably.

2 Intended Use:

This product is used to attach LED/LCD/plasma displays with specific screen sizes, weight, and points of attachment to a wall, please see “Specifications” for details. Any use other than that specified in Chapter 1 is not allowed. Failure to observe or comply with regulations and notes on safety may cause serious accidents, bodily injuries, as well as damages to property. Please read the Chapter “Warranty and Liability”.

3 Parts Package:

1x Wall Bracket

1x Mounting Material (for concrete walls)

1x User Manual

A M5 x 10 4x B M4 x 10 4x C M6 x 10 4x D M6 x 60 3x E Ø 10 x 50 3x

4 Notes on Safety:

ATTENTION! Only trained professionals are authorized to inspect the wall, as well as install and remove the product! Among others, there is a risk of electric shock, bruises, and crashes!

- Your CABSTONE ^TM product is not a toy and is not meant for children, because it contains small parts which can be swallowed and can injure when used inappropriately!

- NEVER place the display screen on its front side during installation, lean the display screen against a wall or a sturdy surface. Placing the display screen on its front side could cause permanent damage!

- Please install the system and devices attached to it in a way that persons cannot be injured, or objects not be damaged for example by dropping.

- Please remove the packing materials, because children may cut themselves on them while playing. Furthermore, there is a risk of swallowing and inhalation of incidentals and insulating material.

• We recommend that the wall installation only be performed by qualified technicians.

- To avoid accidents it is necessary to check the wall structure before installation, or to carefully look for a safe place for installation. Look out for live cables embedded in the wall!

- The wall must be strong enough at the place of installation to carry at least the fourfold of the total weight of the product, the audio / video devices, the bracket, and the installation material.

- Please also read the Chapter "Specifications".

- The place of installation must be able to withstand earthquakes, or other strong vibrations.

- Avoid places with high temperatures, or humidity, or places which might come into contact with water.

- Do not install the product close to openings of air conditioners, or at places with an excessive amount of dust or smoke.

- Install it only on a vertical wall. Avoid slant surfaces, because other kind of tensile stress may then interact with the material.

- Do not install the product at places subject to vibration, or oscillation.

- Do not modify and alter any accessories! Make sure you also read the Chapter "Warranty and Liability". Do not use any damaged parts.

- Tighten all screws. Do not use too much force to avoid breakage of screws and overturning of threads.

- Drill holes are still visible on the wall after the device bracket and the cable management system is removed. After use for a longer time period, a spot may remain on the wall.

- Do not install the product at places subject to direct solar radiation, or strong light. This will increasingly tire the eyes while looking at the display. Keep sufficient space around the output devices, as well as audio / video devices, and around the entire system to ensure proper ventilation and clearance, and to avoid damages.

- During transport, observe the details listed in the Chapter “Specifications”, and implement measures suitable for transport.

- For questions, defects, mechanical damages, malfunctions, and other functional problems which cannot be resolved by this guide, please contact your dealer for repair or replacement, as described in the Chapter “Warranty and Liability”.

- Please observe the maximum bearing loads listed in the Chapter "Specifications".

- Please also observe the terms of use described in the Chapter "Intended Use".

- The supplied components are only suitable for installation to a solid stone and concrete

wall. If the structure of your wall is different, corresponding installation material must be used. In any case, consult a specialist.

- Make sure to observe the correct thread size during installation of the display screen to the wall bracket.

5 Installation:

ATTENTION! Only trained professionals are authorized to inspect the wall, as well as install and remove the product! For more information please read the Chapters "Notes on Safety" and "Troubleshooting".

Step 1 Wall Installation: 1

Please use the wall bracket shown in figure 1 as a template to mark the position of attachment to the wall using a level. Check, if water or gas pipes, or power lines are behind the wall before drilling! Use a 10 mm stone drill to bore the holes with a depth of 60 mm. Insert dowels (E) into the 3 drilled holes. In doing so, a hammer can be useful. Drive the screws (D) into the holes. Now, you can hook the wall brackets onto the screws previously attached.

Pure mechanical diagram of a lever mechanism without any text or symbols

Diagram showing a screwdriver interacting with a brick wall and its cross-section, with labeled dimensions and coordinate axes.

Step 2 Installation of Display Screen: 2

Use the supplied screws (A), (B), or (C) to fasten the screen bracket to your display screen. The standard bracket is suitable for VESA 50mm / 75mm / 100mm / 200mm, and 200mm x 100mm.

Pure electrical circuit lines without any symbols

Step 3 Adjustment:

ATTENTION! Always hold the display screen during the entire adjustment, or ask a second person to help you!

Drive the adjusting screw in the top view one or two turns in a counter-clockwise direction. Adjust the display screen to the desired inclination. Tighten the adjusting screw again in top view in clockwise direction.

NOTE: The installation is completed. Please proceed in reverse order for disassembly.

6 Warranty and Liability:

• The manufacturer warrants this new device for 2 years.
• As the manufacturer has no influence on the wall type and the installation of the wall installation kit, warranty of the product only applies to the installation kit.
• If any fault or damage is detected on your device, please contact your dealer and provide your sales slip or invoice as evidence of the purchase, if necessary. Your

dealer will repair the fault either on site, or send the device to the manufacturer. You make the work of our technicians considerably easier, when you describe possible faults in detail – only then you can be assured that faults occurring only rarely will be found and repaired with certainty!

• If your dealer cannot be contacted, you can also contact us directly.
- The manufacturer is not liable for damages to persons or property caused by improper installation or operation not described in this guide. This includes, among others, any alteration and modification of the product and its accessories.
- Any use other than described in this user's guide is not permitted, and causes loss of warranty, loss of guarantee, and non-liability.
• We reserve our right for misprints and changes of the device, packing, or user's guide.

7 Care, Maintenance, Storage, and Transport:

• Use a dry linen cloth to clean your product, or use a slightly moist cloth for heavy stains. Look out for live cables of your device during cleaning! Pull the plug prior to cleaning!
  • Make sure no body parts will be pinched in the swivel device, when parts of the device are swiveled!

ATTENTION! There is a risk of electric shock and bruises!

• Make sure there is sufficient space around the display unit to ensure proper ventilation, and check the clearance of the system, if necessary.
• Periodically check, if all attachments and screws are secured, and tighten them again when they are loose. This may be caused for example by frequent movements.
• Avoid places with high temperatures, humidity, or places which can become wet, also during care, maintenance, storage, and transport.
• Drill holes are still visible on the wall after the device and the wall installation kit is removed. After use for a longer time period, a spot may remain on the wall.
• Follow the safety symbols on the packing during transport.

8 Troubleshooting:

Problem

How can the wall quality be tested?

The wall bracket is hard to align.

Correction

Check the wall thickness, and the material below plaster and wallpaper. Consult trained professionals.

Please read the Chapters „Parts Package“ and „Installation“.

Ask a second person for help, and observe the

Marking

Live loads for living space are listed for example in standards such as DIN 1055, and N 594.

Holes are marked in drawings.

„Notes on Safety“!

Please read Chapter 5.

Check all attachments, and

contact your dealer, if

necessary.

other questions:

Contact us. Contact details – back of

cover sheet

9 Specifications:

Model 51926 / 51927
Screen size 250 – 740 mm, 10“ – 30“
max. load 30 kg
Weight 1.1 kg
Dimensions 220 x 220 x 90 mm
VESA hole diameters 50 x 50 mm
	75 x 75 mm
	100 x 100 mm
	100 x 200 mm
	200 x 200 mm
Wall distance 90 mm
Angle of inclination +/-20°
Swivel angle +/-45°

10 Information for VESA-Standard:

To harmonize attachment options of monitors, TV devices, and their stands and wall brackets in a user-friendly manner, VESA (Video Electronic Standard Organization) defined 3 standards for the applications mentioned above. Using the relevant VESA standard specified on your display unit, or in its user's guide, and the specifications in Chapter "Specifications" in this guide you are able to define the possible points of attachment. Some models allow for an infinitely variable individual attachment (eg. 300 x 300 mm for Sony TVs).

VESA Class Hole distance for attachment of monitors

MIS-D: 75 x 75, or 100 x 100 mm

MIS-E: 200 x 100, or 200 x 200 mm

MIS-F: 400 x 200, 400 x 400, 600 x 200, 600 x 400,

or 800 x 400 mm

11 Note on Waste Disposal:

This product should be not disposed together with domestic waste. Please return your device free of charge at the end of its service life at public collection points established for this purpose, or at the sales outlet. Details for disposal are regulated in the relevant federal state law. Potential recyclable materials are fed into the recycling cycle to obtain new raw materials from them. Following recyclable materials are collected a local collection points:

- Waste glass, plastic, waste metal, metal sheet, and more.

This type of recycling of waste equipment contributes significantly to the protection of our environment.

CAB WH EASYFLEX M 25-74 cm (10 - 30") Argenté / Noir

Installation murale:

Simple line drawing of a mechanical device with a lever and base (no text or symbols)

Diagram showing a screwdriver interacting with a wall-mounted device, labeled with dimensions and components.

Étape 2

Pure electrical circuit lines without any symbols

Étape 3

Réglage:

CAB WH EASYFLEX M 25-74 cm (10 - 30")

Plateada / Negrito

Pure mechanical diagram of a lever mechanism without any text or symbols

Diagram showing a mechanical device and a brick wall with labeled dimensions and coordinate axes

Paso 2

Pure electrical circuit lines without any symbols

Paso 3

Ajuste:

CAB WH EASYFLEX M 25-74 cm (10 - 30")

Argento / Bianco

Pure mechanical diagram of a lever mechanism without any text or symbols

Diagram showing a mechanical device and a brick wall with labeled dimensions and coordinate axes

Passo 2

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols visible.

Passo 3

Regolazione:

CAB WH EASYFLEX M 25-74 cm (10 - 30") Silver / Svart

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Technical diagram showing a screwdriver and a brick wall with labeled dimensions and coordinate axes

Steg 2

Pure technical diagram of a mechanical component with no text, numbers, or symbols

Steg 3

Justering:

Technical line drawing of a mechanical component with a pointed tip and flange (no text or symbols)

Two diagrams showing a screwdriver and a brick wall with labeled dimensions (no text or symbols present)

Pure technical diagram of a mechanical component with no text, numbers, or symbols

Etapa 3 Ajuste:

CAB WH EASYFLEX M 25-74 cm (10 - 30")

άργυρο / Μαύρα

Pure mechanical diagram of a lever mechanism without any text or symbols

Diagram showing a mechanical device and a brick wall with labeled dimensions and coordinate axes

Pure electrical circuit lines without any symbols

Βήμα 3 Ρύθμιση:
