USER MANUAL LE40A4577C1DXXC SAMSUNG

Customer Care Centre

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at www.samsung.com/global/register Model Serial No. BN68-01425A-00Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products,

please contact the SAMSUNG customer care centre.

BN68-01425A-Cover.indd 1 2008-03-03 ¿ÀÈÄ 6:49:17© 2008 Samsung Electronics Co., Ltd. All rights reserved.

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen.

• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen

This image retention is also known as "screen burn".

To avoid such image retention, reduce the degree of brightness and contrast of the screen when

displaying a still image.

• Watching the LCD TV in 4:3 format for a long period of time may leave traces of

borders displayed on the left, right and center of the screen caused by the difference

of light emission on the screen. Playing a DVD or a game console may cause a similar

effect to the screen. Damages caused by the above effect are not covered by the Warranty.

• Displaying still images from Video games and PC for longer than a certain period of time may

produce partial after-images.

To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG

customer care centre.(See back cover for more information)

Book-��.indb1 2008-03-03¿ÀÈÄ5:49:16Contents

CONNECTING AND PREPARING YOUR TV List of Parts 2

Installing the Stand 2

Installing the Wall Mount Kit 2

Viewing the Control Panel 3

Viewing the Connection Panel 4

Viewing the Remote Control 7

Installing Batteries in the Remote Control 8

Switching On and Off 8

Placing Your Television in Standby Mode 8

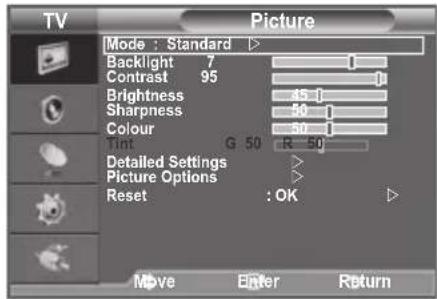

Viewing the Menus 9

Using the TOOLS Button 9

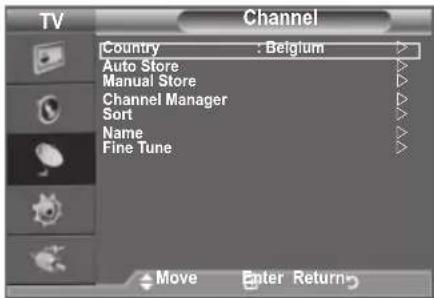

SETTING THE CHANNELS Storing Channels Automatically 11

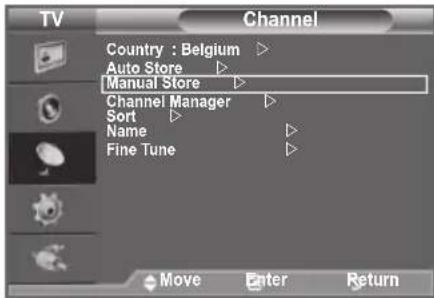

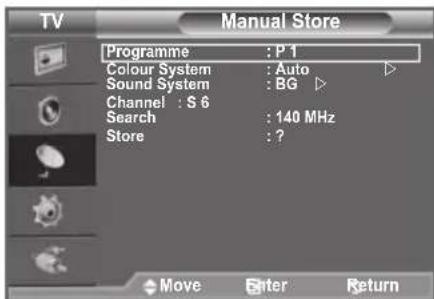

Storing Channels Manually 12

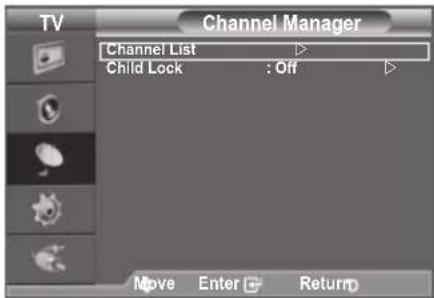

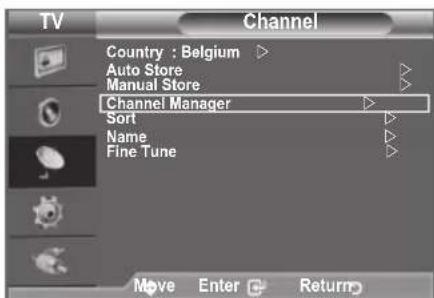

Adding / Locking Channels 13

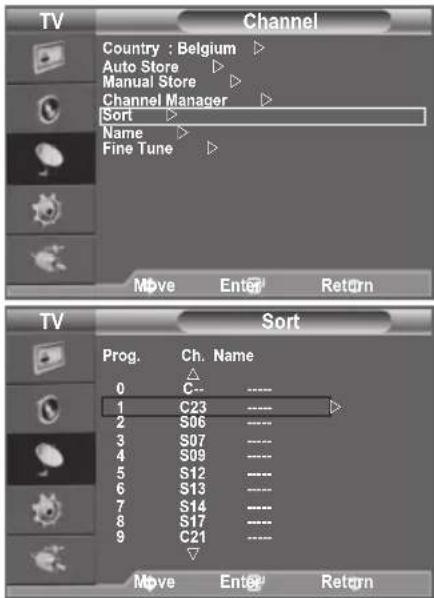

Sorting the Stored Channels 14

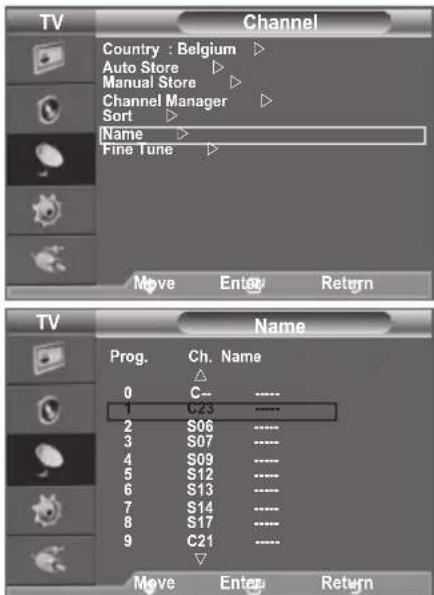

Assigning Channels Names 14

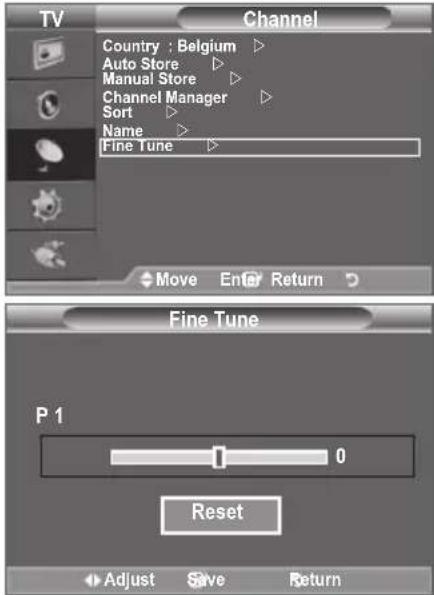

Fine Tuning Channel Reception 15

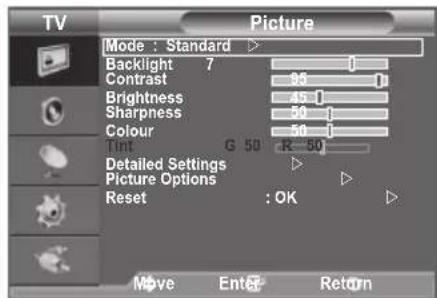

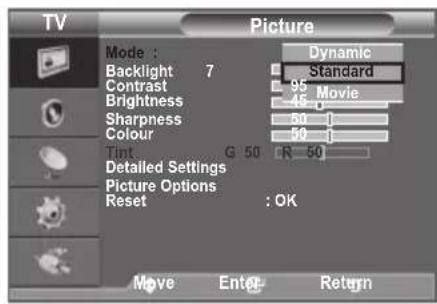

SETTING THE PICTURE Changing the Picture Standard 16

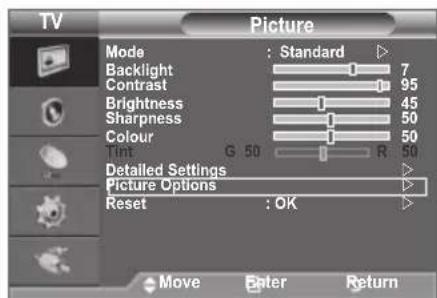

Adjusting the Custom Picture 17

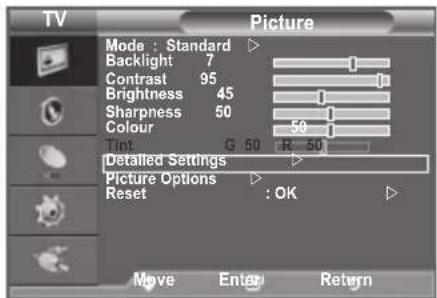

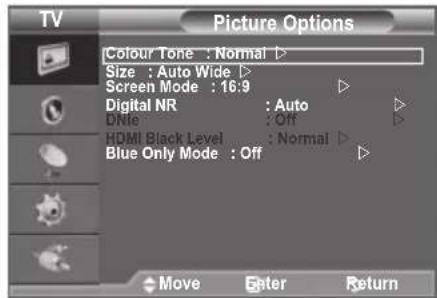

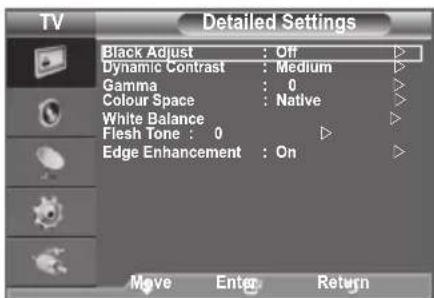

Conguring Detailed Settings on the Picture ... 17

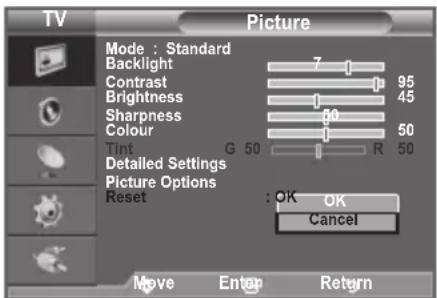

Resetting the Picture Settings to the

Factory Defaults 18

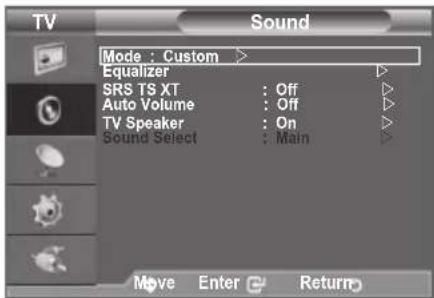

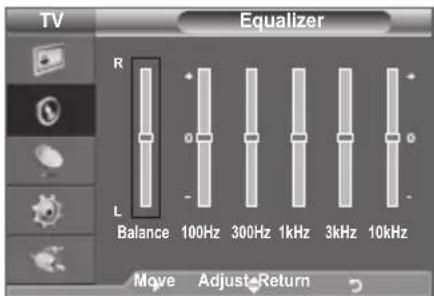

SETTING THE SOUND Sound Features 22

Selecting the Sound Mode 23

Connecting Headphones (Sold separately) 23

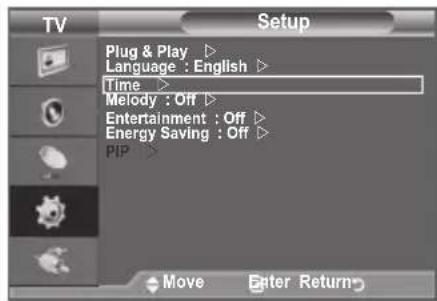

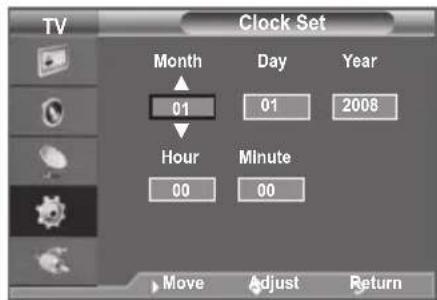

SETTING THE TIME Setting and Displaying the Current Time 24

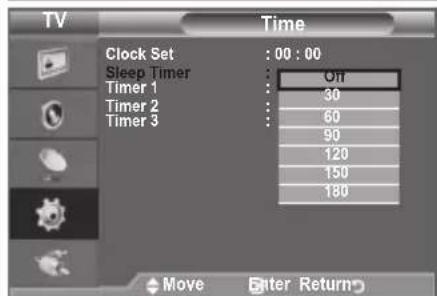

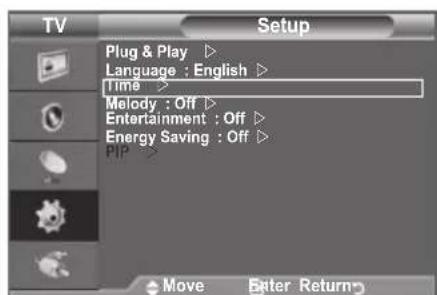

Setting the Sleep Timer 24

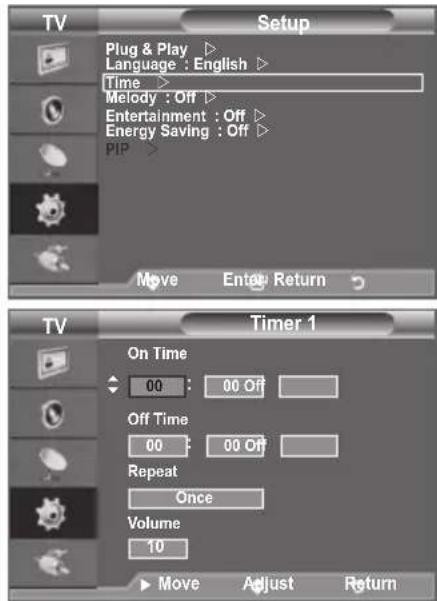

Switching the Television On and Off

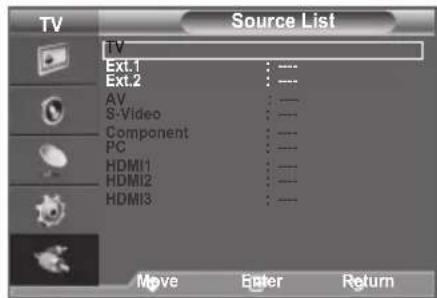

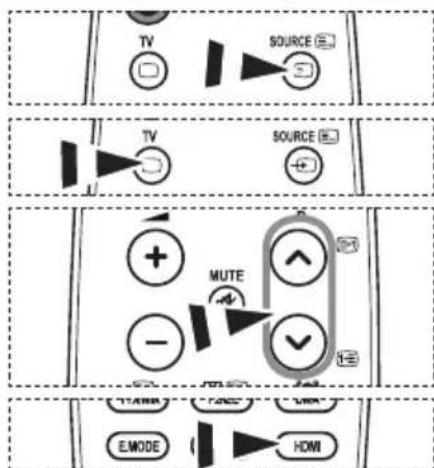

Selecting the Source 27

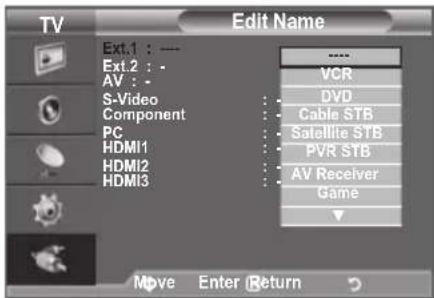

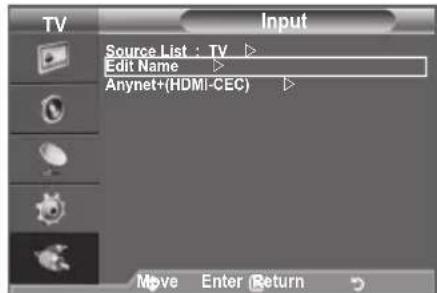

Editing the Input Source Names 28

SETTING THE PC Setting up Your PC Software

(Based on Windows XP) 29

Setting up the TV with your PC 30

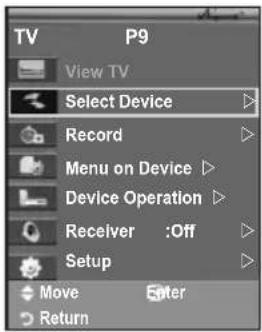

Scanning and Switching between

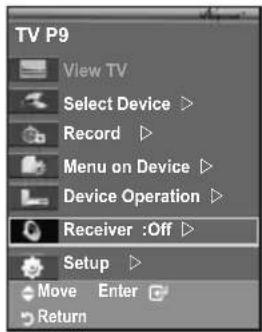

Listening through a Receiver 35

Check Points before Requesting Service 36

RECOMMENDATIONS FOR USE Teletext Feature 37

Wall-Mount Adjustment (Sold separately)

Using the Anti-Theft Kensington Lock

Troubleshooting: Before Contacting

Service Personnel 41

Technical and Environmental Specications ... 42

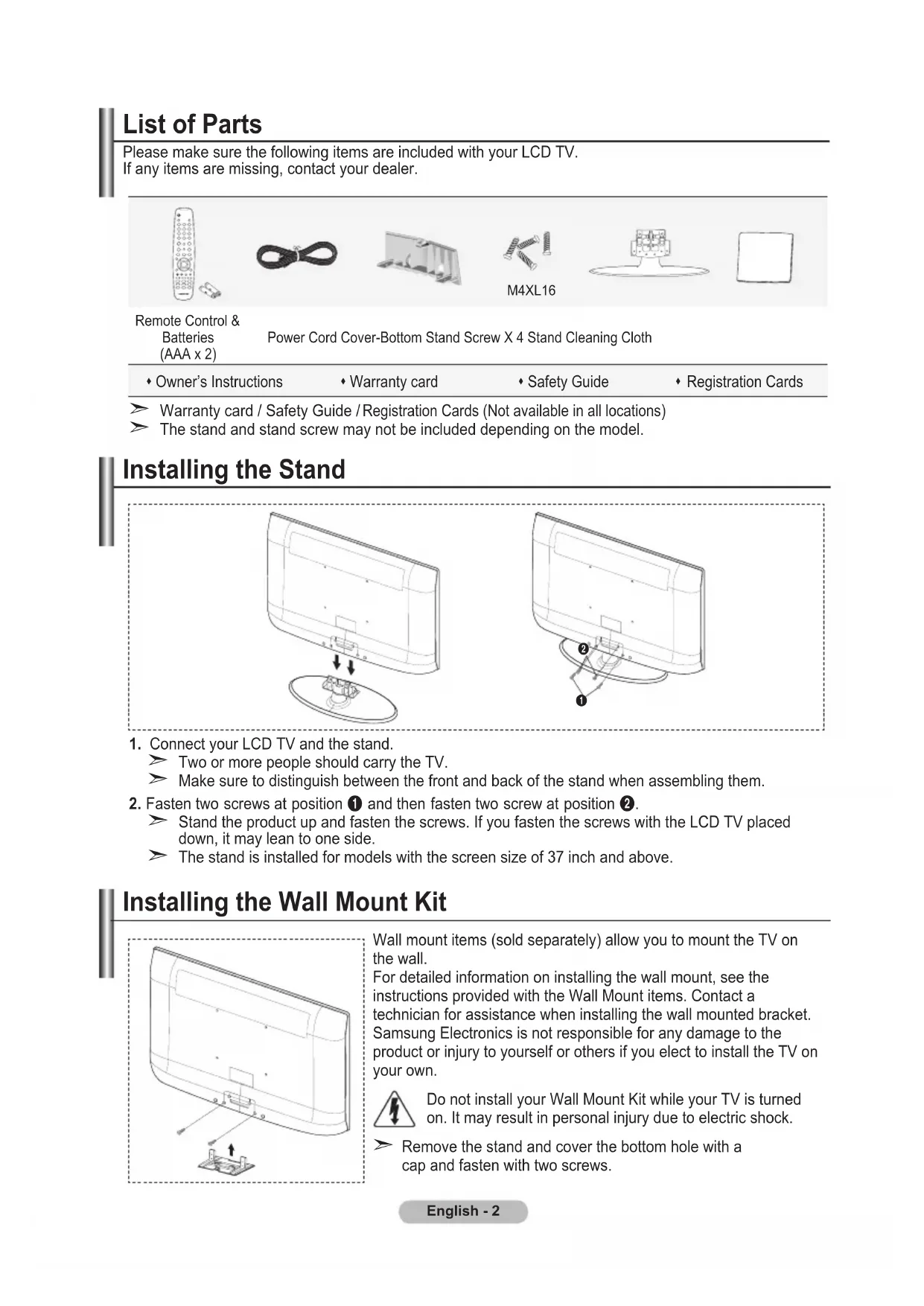

Please make sure the following items are included with your LCD TV.

If any items are missing, contact your dealer.

Wall mount items (sold separately) allow you to mount the TV on

For detailed information on installing the wall mount, see the

instructions provided with the Wall Mount items. Contact a

technician for assistance when installing the wall mounted bracket.

Samsung Electronics is not responsible for any damage to the

product or injury to yourself or others if you elect to install the TV on

Do not install your Wall Mount Kit while your TV is turned

on. It may result in personal injury due to electric shock.

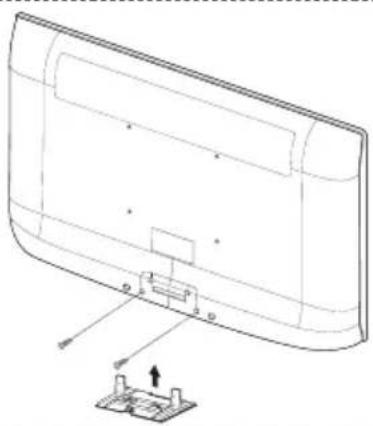

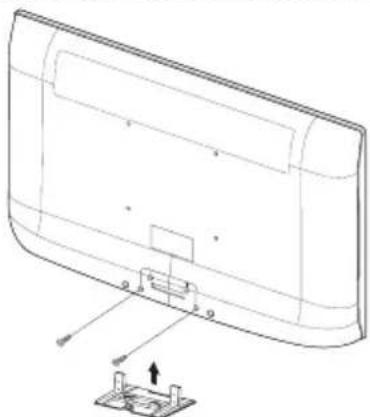

Remove the stand and cover the bottom hole with a

cap and fasten with two screws.

Warranty card / Safety Guide /

Registration Cards (Not available in all locations)

The stand and stand screw may not be included depending on the model.

1. Connect your LCD TV and the stand.

Two or more people should carry the TV.

Make sure to distinguish between the front and back of the stand when assembling them.

2. Fasten two screws at position 1 and then fasten two screw at position 2.

Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed

down, it may lean to one side.

The stand is installed for models with the screen size of 37 inch and above.

Installing the Wall Mount Kit Book-��.indb2 2008-03-03¿ÀÈÄ5:49:18English - 3

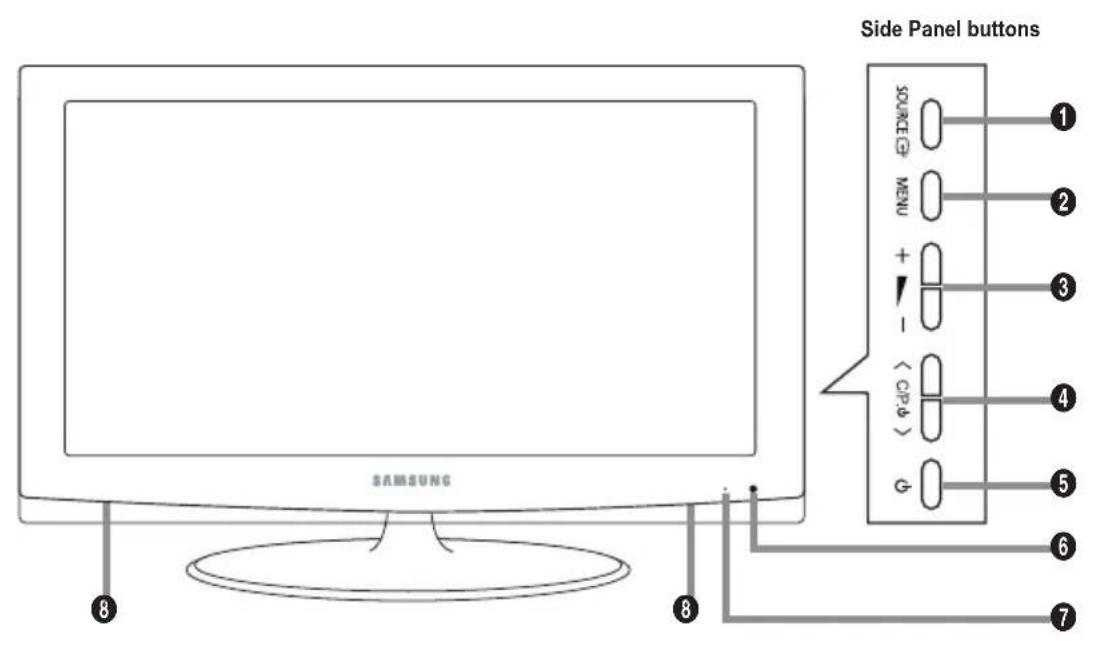

Viewing the Control Panel

1 SOURCE Toggles between all the available input

sources (TV, Ext.1, Ext.2, AV, S-Video,

Component, PC, HDMI1, HDMI2, HDMI3).

In the on-screen menu, use this button as

button on the remote

2 MENU Press to see an on-screen menu of your TV’s

Press to decrease or increase the volume.

In the on-screen menu, use the

buttons as you use the

Press to change channels. In the on-screen

menu, use the buttons as you use

buttons on the remote control.

(Without the Remote Control, you can turn on

the TV by using the Channel buttons.)

Press to turn the TV on and off.

6 Remote Control Sensor

Aim the remote control towards this spot on

Blinks and turns off when the power is on and

lights up in stand-by mode.

The product colour and shape may vary depending on the model.

Book-��.indb3 2008-03-03¿ÀÈÄ5:49:19English - 4

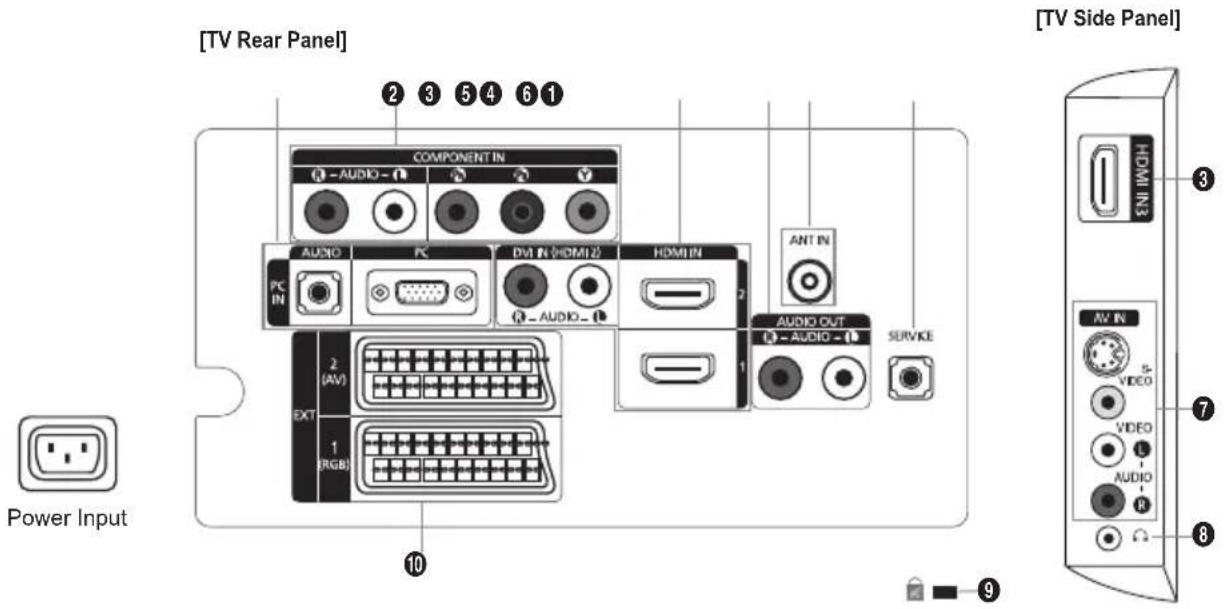

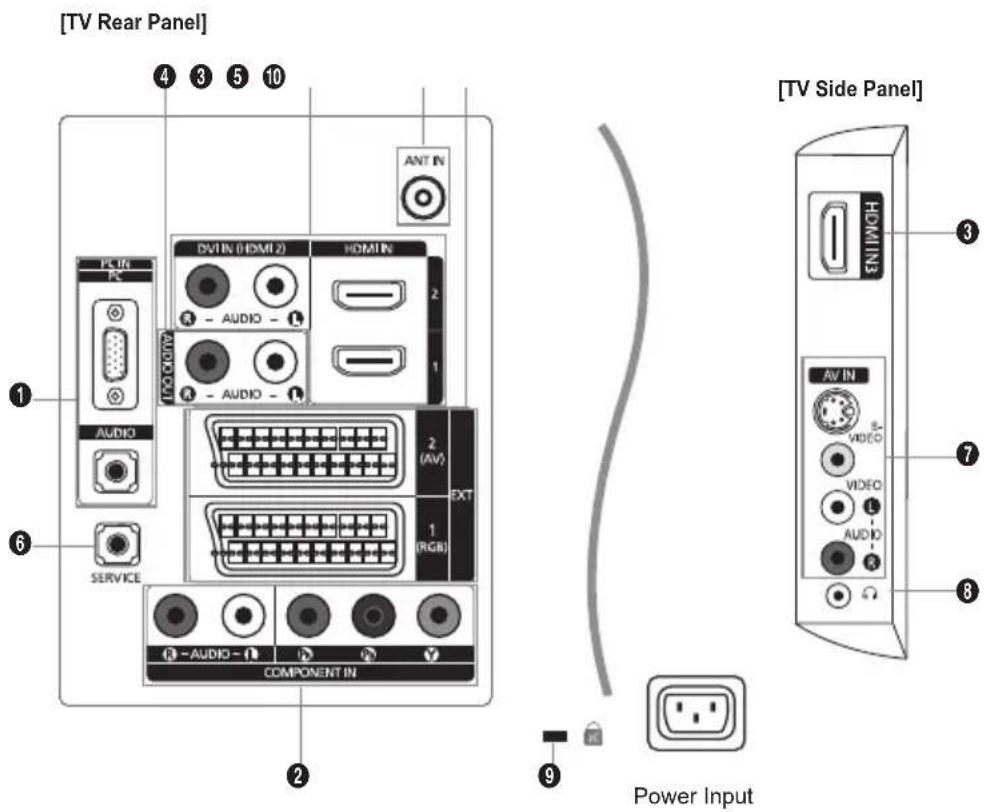

Viewing the Connection Panel

Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

When connecting an external device, match the colour of the connection terminal to the cable.

The product colour and shape may vary depending on the model.

Power Input [TV Rear Panel][TV Side Panel] 7

1 PC IN [PC] / [AUDIO]

Connect to the video and audio output jack on your PC.

2 COMPONENT IN Connect component video cables (optional) to component connector (“PR”, “PB”, “Y”) on the rear of

your set and the other ends to corresponding component video out connectors on the DVD.

If you wish to connect both the Set-Top Box and DVD, you should connect the Set-Top Box to the DVD

and connect the DVD to component connector (“PR”, “PB”, “Y”) on your set.

The PR, PB and Y connectors on your component devices (DVD) are sometimes labeled Y, B-Y and

R-Y or Y, Cb and Cr.

Connect RCA audio cables (optional) to [R - AUDIO - L] on the rear of your set and the other ends to

corresponding audio out connectors on the DVD

HDMI IN 1, HDMI IN 2, HDMI IN 3

Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD

No additional Audio connection is needed for an HDMI to HDMI connection.

When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

“High Denition Multimedia interface” allows the transmission of high denition digital video data

and multiple channels of digital audio.

The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable

(not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has

the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports

multi - channel digital audio.

DVI IN(HDMI2) [R-AUDIO-L]

DVI audio outputs for external devices.

Supported modes for HDMI/DVI and Component

480i 480p 576i 576p 720p 1080i

4 AUDIO OUT [R-AUDIO-L]

Connect RCA audio cables to AUDIO OUT [R-AUDIO-L] on the rear of your set and the other ends

to corresponding audio in connectors on the Amplier or DVD Home Theatre.

5 ANT IN To view television channels correctly, a signal must be received by the set from one of the following

An outdoor aerial / A cable television network / A satellite network

6 SERVICE LE26A450, LE26A451

Connector for SERVICE only.

LE32A450, LE32A451, LE32A454, LE37A450, LE37A451, LE40A450, LE40A451, LE40A454

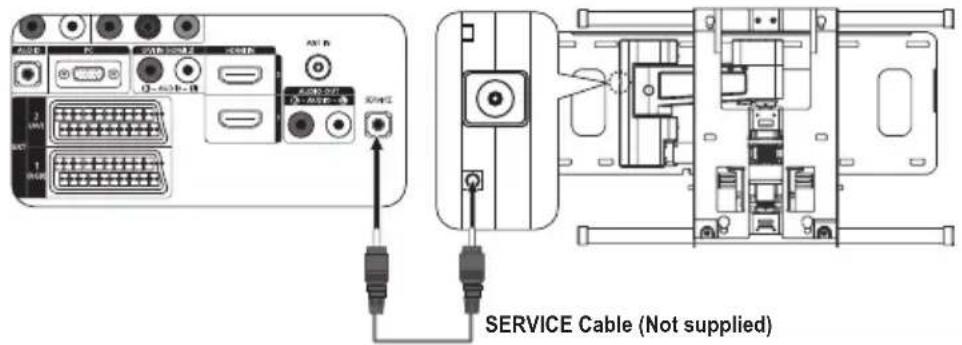

Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing

angle using your remote control.

Connect RCA audio cables to [R-AUDIO-L] on your set and the other ends to corresponding audio

out connectors on the A/V device.

Headphone may be connected to the headphone output on your set. While the head phone is

connected, the sound from the built-in speakers will be disabled.

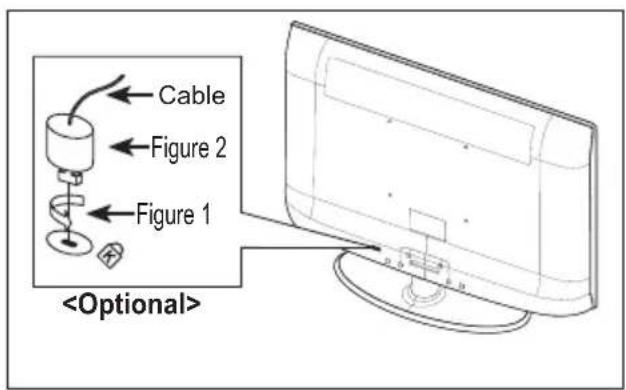

9 Kensington Lock (depending on the model)

The Kensington Lock (optional) is a device used to physically x the system when used in a public

If you want to use a locking device, contact the dealer where you purchased the TV.

The location of the Kensington Lock may be different depending on its model.

O O O Only TV output is available.

O O Output you can choose.

-Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

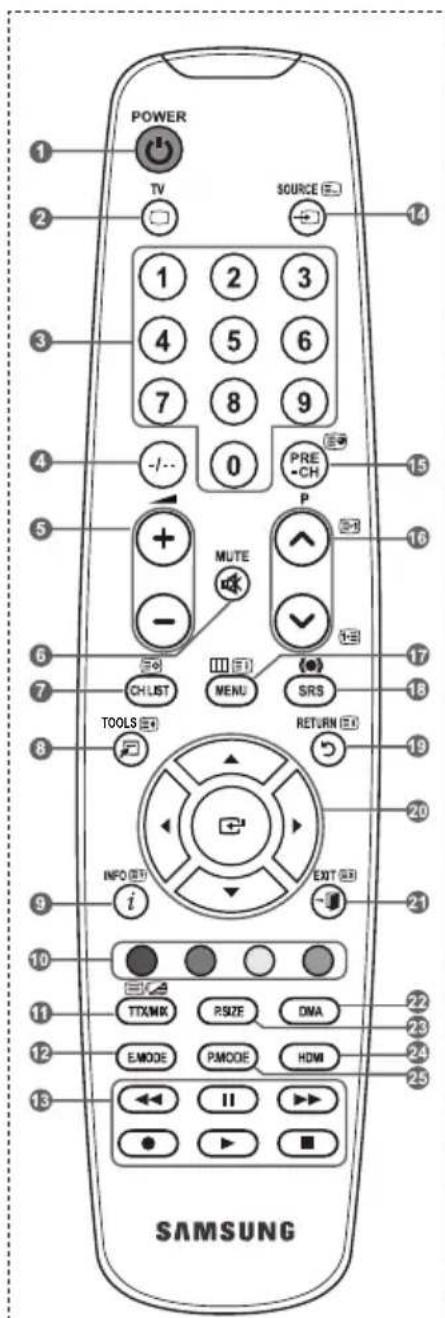

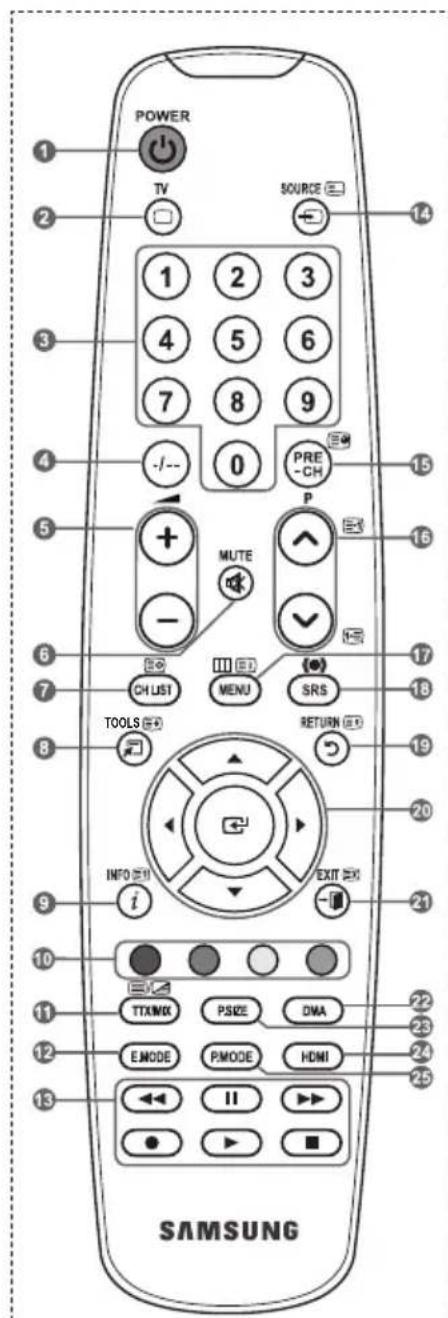

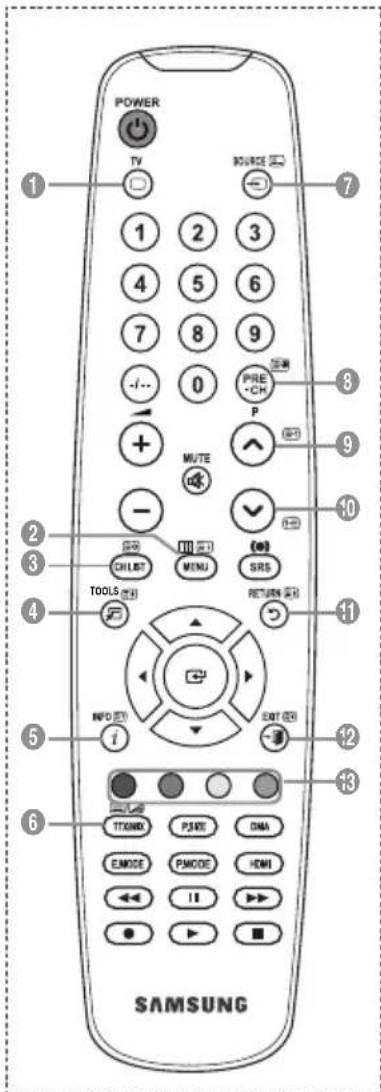

3 Number buttons for direct

6 Temporary sound switch-off

7 Displays the Channel List on

8 Use to quickly select

frequently used functions.

Use to see information on

the current broadcast

Use these buttons in the

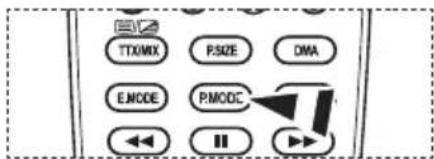

Press to select the optional

display and sound modes for

sports, cinema and games.

# Use these buttons in the

: This remote can be

used to control recording on

Samsung recorders with the

$ Available source selection

P : Previous channel

& Displays the main on-screen

Returns to the previous

) Control the cursor in the

a Exit the on-screen menu

b Use this when connecting

a SAMSUNG DMA (Digital

Media Adapter) device

through an HDMI interface

and switching to DMA

mode.(The DMA button is

For more information on the

operating procedures, refer to

the user manual of the DMA.

This button is available when

Picture effect selection

2 Exit from the teletext display

8 Teletext size selection

0 Fastext topic selection

Alternately select Teletext,

$ Teletext mode selection

P : Teletext next page

P : Teletext previous page

The performance of the remote control may be affected by bright light.

Viewing the Remote Control Book-��.indb7 2008-03-03¿ÀÈÄ5:49:20English - 8

1. Lift the cover at the back of the remote control upward as shown in the

2. Install two AAA size batteries.

Make sure to match the "+" and "–" ends of the batteries with the

diagram inside the compartment.

3. Replace the cover.

Remove the batteries and store them in a cool, dry place if you won’t

be using the remote control for a long time.

If the remote control doesn’t work, check the following:

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power outage, or is the power cord unplugged?

5. Is there a special uorescent light or neon sign nearby?

Installing Batteries in the Remote Control

Switching On and Off

The mains lead is attached to the rear of your set.

1. Plug the mains lead into an appropriate socket.

The standby indicator lights up on your set.

2. Press the button on your set.

You also can press the POWER button or the TV button on the remote control to turn the TV

The channel that you were watching last is reselected automatically

3. Press the numeric button (0~9) or channel up/down ( / ) button on the remote control or

When you switch the set on for the very rst time, you will be asked to choose language in which the

menus are to be displayed.

4. To switch your set off, press the POWER button again.

Your set can be placed in standby mode in order to reduce the power consumption. The standby

mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

Press the POWER button on the remote control.

The screen is turned off and a red standby indicator appears on your set.

2. To switch your set back on, simply press the POWER , numeric buttons (0~9), TV button or

channel up/down ( / ) button again.

Do not leave your set in standby mode for long periods of time (when you are away on holiday,

It is best to unplug the set from the mains and aerial.

Placing Your Television in Standby Mode

Book-��.indb8 2008-03-03¿ÀÈÄ5:49:21English - 9

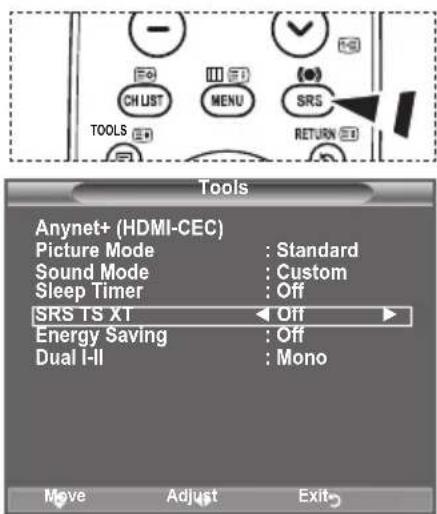

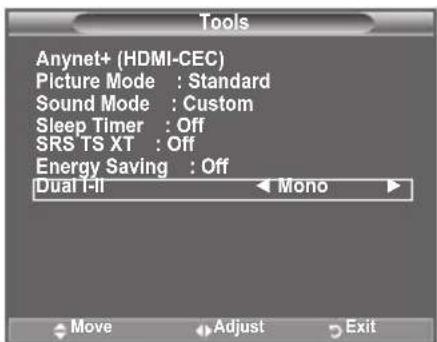

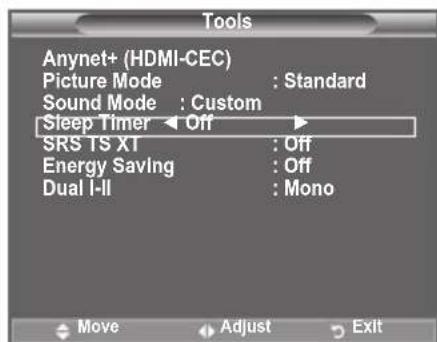

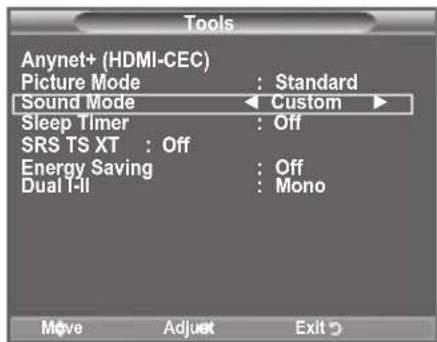

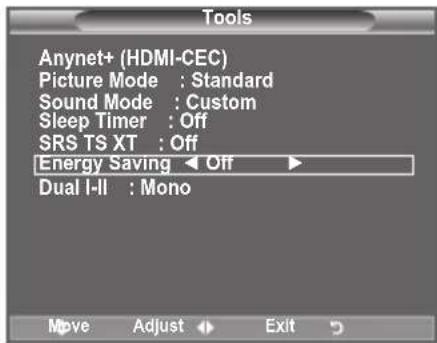

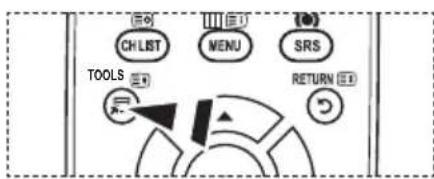

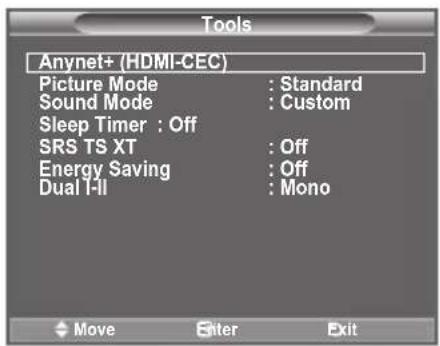

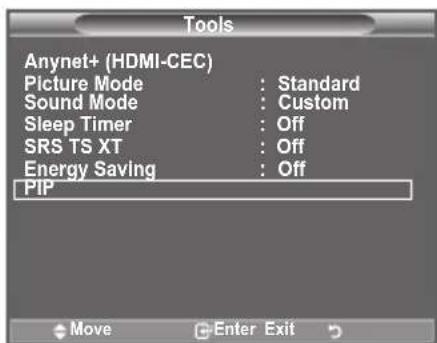

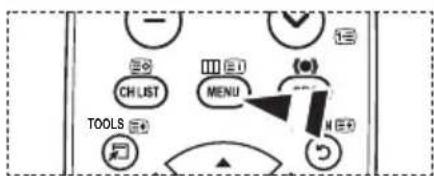

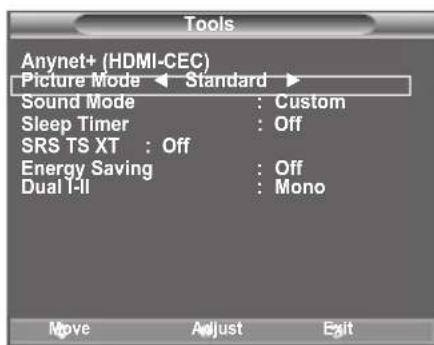

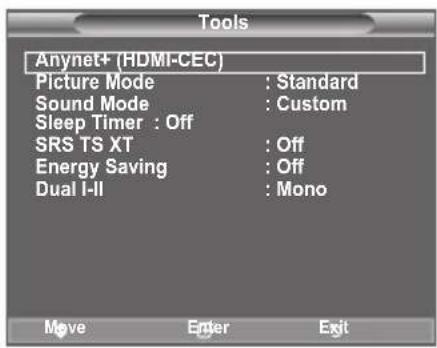

You can use the TOOLS button to select your frequently

used functions quickly and easily. The “Tools” menu change

depending on which external input mode you are viewing.

Press the TOOLS button.

The “Tools” menu will appear.

2. Press the ▲ or ▼ button to select a menu.

3. Press the ▲/▼/◄/►/ENTER

buttons to display, change, or

use the selected items. For a more detailed description of each

function, refer to the corresponding page.

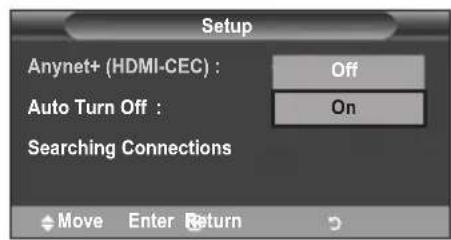

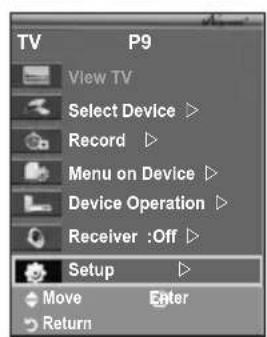

• Anynet+ (HDMI-CEC), see page 31

• Energy Saving, see page 27

• Dual l-ll, see page 23

• Auto Adjustment, see page 30

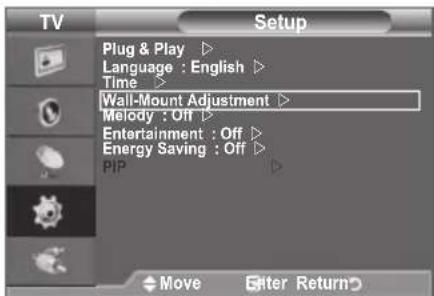

1. With the power on, press the MENU button.

The main menu appears on the screen. The menu’ s left side

has icons: Picture, Sound, Channel, Setup, Input.

2. Press the ▲ or ▼ button to select one of the icons.

Then press the ENTER

button to access the icon’s sub-

3. Press the EXIT button to exit.

The on-screen menus disappear from the screen after about

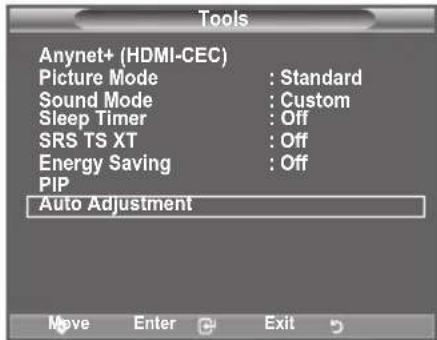

Using the TOOLS Button

Book-��.indb9 2008-03-03¿ÀÈÄ5:49:22English - 10

When the TV is initially powered on, several basic settings

proceed automatically and subsequently. The following

settings are available.

Press the POWER button on the remote control.

The message "Start Plug & Play." is displayed with "OK"

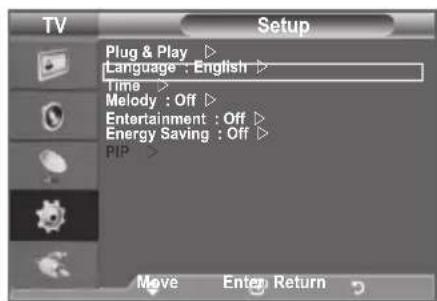

2. Select the appropriate language by pressing the

button to confirm your choice.

We recommend setting the TV to "Home Use" mode for the best picture in your home

"Store Demo" mode is only intended for use in retail environments.

If the unit is accidentally set to “Store Demo” mode and you want to return to “Home Use”

(Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and

hold the MENU button on the TV for 5 seconds

4. The message "Check antenna input." is displayed with "OK" selected.

Please check that the antenna cable is connected correctly.

5. Select the appropriate country by pressing the

button to confirm your choice.

The "Auto Store" menu is displayed with the "Start" selected. Press the

The channel search will start and end automatically.

After all the available channels are stored, the "Clock Set" menu appears.

button at any time to interrupt the memorization process.

You can also set the “Month”, “Day”, “Year”, “Hour” and "Minute" by pressing the number buttons

on the remote control.

button to confirm your setting. The message “Enjoy your viewing” is displayed.

When you have finished, press the

button is not pressed, the message will automatically disappear after

: Select your language.

: Select your country.

: Automatically scans for and stores channels available in the local area.

: Sets the current time for the TV clock.

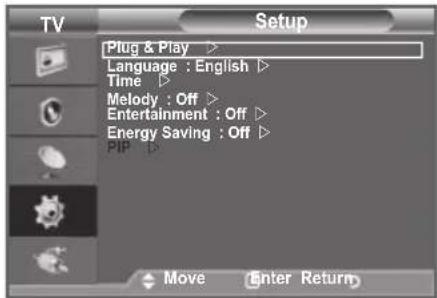

If you want to reset this feature...

button again, to select "Plug & Play".

For further details on setting up options, refer to the page 10.

The “Plug & Play” feature is only available in the TV mode.

You can scan for the frequency ranges available to you (and

availability depends on your country).

Automatically allocated programme numbers may not correspond

to actual or desired programme numbers. However, you can sort

numbers manually and clear any channels you do not wish to

3. Select the appropriate country by pressing the

button to confirm your choice.

The TV will begin memorizing all of the available channels.

button at any time to interrupt the memorization process and return to the

After all the available channels are stored, the "Sort" menu appears. (refer to page 14)

Storing Channels Automatically

Fine Tune  Move Enter Return Book-��.indb11 2008-03-03¿ÀÈÄ5:49:23English - 12

Storing Channels Manually

You can store television channels, including those received

When storing channels manually, you can choose:

♦ Whether or not to store each of the channels found.

♦ The programme number of each stored channel which you wish

3. Select the required option by pressing the ▲ or ▼ button,

then press the ENTER

4. When you are satisfied with your setting, press the

Press the EXIT button to exit.

♦ Programme (Programme number to be assigned to a channel)

− Press the ▲ or ▼ button until you find the correct number.

You can also select the channel number directly by pressing the numeric buttons (0~9).

 Channel (When you know the number of the channel to be stored)

− Press the ▲ or ▼ button to select C (Air channel) or S (Cable channel).

− Press the ► button, then press the ▲ or ▼ button to select the required number.

You can also select the channel number directly by pressing the numeric buttons (0~9).

If there is abnormal sound or no sound, re-select the sound standard required.

 Search (When you do not know the channel numbers)

− Press the ▲ or ▼ button to start the search.

− The tuner scans the frequency range until the first channel or the channel that you selected is

received on the screen.

Store (When you store the channel and associated programme number)

− Set to "OK" by pressing the ENTER

− P (Programme mode): When completing tuning, the broadcasting stations in your area have been

assigned to position numbers from P00 to P99. You can select a channel by entering the position

number in this mode.

− C (Air channel mode): You can select a channel by entering the assigned number to each air

broadcasting station in this mode.

− S (Cable channel mode): You can select a channel by entering the assigned number for each

cable channel in this mode.

Channel Country : Belgium  Auto Store Manual Store Channel Manager Sort  Name Fine Tune  Move Enter Return

TV Manual Store Programme : P 1Colour System : Auto Sound System : BG Channel : S 6Search : 140 MHzStore : ? Move Enter Return

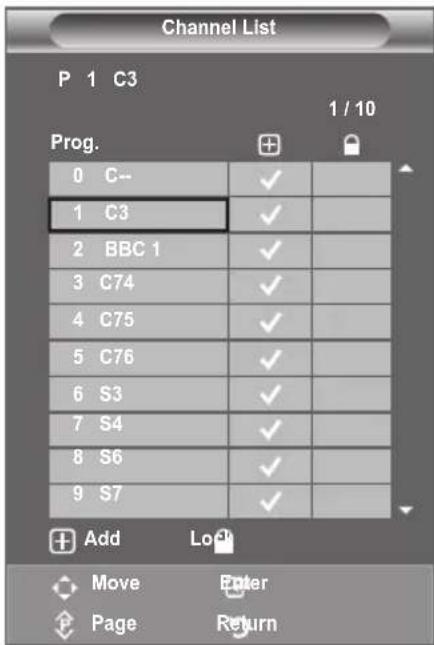

Using the Channel Manager, you can conveniently lock or add

button to select "Channel Manager",

Using the Channel List, you can add channels.

3. Select "Channel List" by pressing the ENTER

4. Move to the ( ) field by pressing the ▲, ▼, ◄ or ►

button, select a channel to be added, and press the

button to add the channel.

button again, the ( ) symbol

next to the channel disappears and the channel is not

" is active when "Child Lock" is selected to "On".

This feature allows you to prevent unauthorized users, such

as children, from watching unsuitable programmes by muting

out video and audio.

Select "On" by pressing the ▲ or ▼ button, then press the

button to select "Channel List",

then press the ENTER

8. Move to the " " field by pressing the ▲, ▼, ◄ or ► button,

select a channel to be locked, and press the ENTER

button again, the ( ) symbol

next to the channel disappears and the channel lock is

A blue screen is displayed when "Child Lock" is activated.

Press the EXIT button to exit.

Select "On" or "Off" in "Child Lock" to easily turn the channels which selected on " " to be active

You can select these options by simply pressing the CH LIST

button on the remote control.

TV TV Channel ManagerChannel List Child Lock : Off  Move Enter Return Book-��.indb13 2008-03-03¿ÀÈÄ5:49:25English - 14

This operation allows you to change the programme numbers

of the stored channels.

This operation may be necessary after using the auto store.

1. Press the MENU button to display the menu.

3. Select the channel number that you wish to change by

The selected channel number and name are moved to

button to move to the position in which you

would like to change and then press the ENTER

The selected channel is exchanged with the one

previously stored to the chosen number.

Repeat steps 3 to 4 for another channel to be sorted.

Sorting the Stored Channels

Assigning Channels Names

Channel names will be assigned automatically when channel

information is broadcast. These names can be changed,

allowing you to assign new names.

3. If necessary, select the channel to be assigned to a new

name by pressing the

The selection bar is displayed around the name box.

The following characters are available: Letters of the alphabet (A~Z) / Numbers

(0~9) / Special characters (+, -, *, /, space)

Repeat steps 3 to 4 for each channel to be assigned to a new name.

Select a letter, number or symbol

Move on the next letter

Move back the previous letter

Use fine tuning to manually adjust a particular channel for

Use the number buttons to directly select the channel that

you want to fine tune.

2. Press the MENU button to display the menu.

button to adjust the fine tuning.

Fine tuned channels that have been saved are marked

" on the right-hand side of the channel

number in the channel banner. And the channel number

To reset the ne-tuning, select "Reset" by pressing the

0 Reset Adjust Save Return Book-��.indb15 2008-03-03¿ÀÈÄ5:49:27English - 16

You can select the type of picture which best corresponds to

your viewing requirements.

Press the MENU button to display the menu.

button, to select "Picture".

button again, to select "Mode".

button to select the desired picture effect.

♦ Dynamic: Selects the picture for high-definition in a bright

Selects the picture for optimum display in a

Selects the picture for comfortable display in a

The Picture mode must be adjusted separately for each

You can also press the P.MODE button on the remote control

to select one of the picture settings.

Changing the Picture Standard

Picture Mode : Standard Backlight 7Contrast 95Brightness 45Sharpness 50 Colour 50Tint G 50 R 50Detailed Settings Picture Options  Reset : OK  TV Move Enter Return Picture Mode : Standard Backlight 7Contrast 95Brightness 45Sharpness 50 Colour 50Tint G 50 R 50Detailed Settings Picture Options Reset : OK TV Move Enter ReturnDynamicStandardMovie Easy Setting

Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select "Picture Mode".

3. Press the ◄ or ► button to select the required option.

4. Press the EXIT or TOOLS button to exit.

Tools Move Adjust Exit

TOOLS Book-��.indb16 2008-03-03¿ÀÈÄ5:49:28English - 17

Your set has several settings which allow you to control

To select the desired picture effect, follow the

"Changing the Picture Standard" instructions number 1 to 3.

button to decrease or increase the value of

4. Press the EXIT button to exit.

♦ Backlight: Adjusts the screen brightness by adjusting the

LCD backlight brightness. (0~10)

Adjusts the lightness and darkness between

objects and the background.

Brightness: Adjusts the brightness of the whole screen.

Adjusts the outline of objects to either

sharpen them or make them more dull.

Colour: Adjusts the colours, making them lighter or

Adjusts the colour of objects, making them more red or

green for a more natural look.

The adjusted values are stored according to the selected Picture mode.

In PC mode, you can only make changes to "Backlight", "Contrast" and "Brightness". (26, 32, 37 inch)

In PC mode, you can only make changes to "Contrast" and "Brightness". (40 inch)

In TV, Ext., AV, S-Video modes of the PAL system, you cannot use the "Tint" Function.

You can return to the factory defaults picture settings by selecting the "Reset".

(Refer to "Resetting the Picture Settings to the Factory Defaults" on page 18)

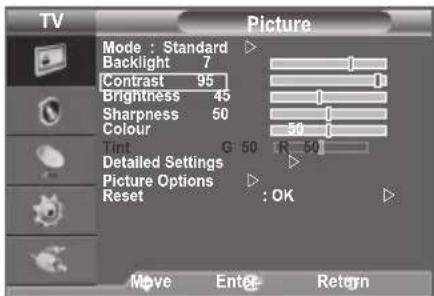

Adjusting the Custom Picture PictureMode : Standard Backlight 7Contrast 95Brightness 45Sharpness 50 Colour 50Tint G 50 R 50Detailed Settings Picture Options  Reset : OK  TV Move Enter Return 7

▲ Backlight ▼ Move Adjust Return You can set detailed picture settings.

button, to select "Picture".

button to select “Mode”.

3. Press the ▲ or ▼ button to select "Detailed Settings", then

4. Select the required option by pressing the ▲ or ▼ button,

then press the ENTER

5. When you are satisfied with your setting, press the

"Detailed Settings" is available in "Standard" or "Movie"

In PC mode, you can only make changes to

“Dynamic Contrast”, “Gamma” and “White Balance” from

among the “Detailed Settings” items.

Conguring Detailed Settings on the Picture Detailed SettingsBlack Adjust : Off Dynamic Contrast : Medium Gamma : 0 Colour Space : Native White Balance Flesh Tone : 0 Edge Enhancement : On  Move Enter Return TV PictureMode : Standard Backlight 7Contrast 95Brightness 45Sharpness 50 Colour 50Tint G 50 R 50Detailed Settings Picture Options  Reset : OK  TV Move Enter Return Book-��.indb17 2008-03-03¿ÀÈÄ5:49:29English - 18

♦ Black Adjust: Off/Low/Medium/High

You can directly select the black level on the screen to adjust the screen depth.

♦ Dynamic Contrast: Off/Low/Medium/High

You can adjust the screen contrast so that the optimal contrast is provided.

You can adjust the Primary Colour (Red, Green, Blue) Intensity.

Press the ◄ or ► button until you reach the optimal setting.

♦ Colour Space: Auto/Native/Custom

Colour space is a Colour matrix composed of red, green and blue colours.

Select your favourite Colour space to experience the most natural Colour.

♦ Auto: Auto Color Space automatically adjusts to the most natural color tone based on program

♦ Native: Native Color Space offers deep and rich color tone.

♦ Custom: Adjusts the color range to suit your preference.

Customizing the Colour Space

Colour: Red/Green/Blue/Yellow/Cyan/Magenta

Adjusts the Colour range to suit your preference.

“Colour” is available when “Colour Space” is set to “Custom”.

Press the ▲ or ▼ button to select “Red”, “Green”, “Blue”, “Yellow”, “Cyan” or “Magenta”.

Red/Green/Blue: In "Colour", you can adjust the RGB values for the selected colour.

Press the ▲ or ▼ button to select "Red", "Green" or "Blue" to change it. Press the

You can adjust the colour temperature for more natural picture colours.

R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain: Changing the adjustment value will refresh the

Select the required option by pressing the ▲ or ▼ button, then press the ENTER

Press the ◄ or ► button until you reach the optimal setting.

Reset: The previously adjusted white balance will be reset to the factory defaults.

Flesh Tone: -15 ~ +15

You can emphasize the pink 'flesh tone' in the picture.

Press the ◄ or ► button until you reach the optimal setting.

Changing the adjustment value will refresh the adjusted screen.

♦ Edge Enhancement: Off/On

You can emphasize object boundaries in the picture.

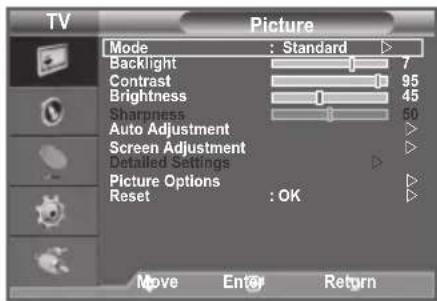

Resetting the Picture Settings to the Factory Defaults

You can return to the factory defaults picture settings.

To select the desired picture effect, follow the

"Changing the Picture Standard" instructions number 1 to 3

button, to select "Picture".

3. Select the required option by pressing the ▲ or ▼ button,

then press the ENTER

4. When you are satisfied with your setting, press the

Press the EXIT button to exit.

In PC mode, you can only make changes to the

“Colour Tone” and “Size” from among the items in “Picture

Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2

You can select the most comfortable colour tone to your eyes.

The adjusted values are stored according to the selected

“Warm1” or “Warm2” is only activated when the picture mode is "Movie".

Size: Auto Wide/16:9/Wide Zoom/Zoom/4:3/Just Scan

You can select the picture size which best corresponds to your viewing requirements.

♦ Auto Wide: Automatically adjusts the picture size to the "16:9" aspect ratio.

♦ 16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting.

♦ Wide Zoom: Magnify the size of the picture more than 4:3.

: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size.

♦ 4:3: This is the default setting for a video movie or normal broadcasting.

♦ Just Scan: Use the function to see the full image without any cutoff when HDMI (720p/1080i) or

Component (1080i) signals are input.

"Auto Wide" function is available only in "TV", "Ext.1", "Ext.2", "AV", and "S-Video" mode.

In PC Mode, only "16:9" and "4:3" mode can be adjusted.

Settings can be adjusted and stored for each external device you have connected to an input of

Temporary image retention may occur when viewing a static image on the set for more than two

, ) mode has been set in PIP, the Picture Size cannot be set.

: Move the screen up/down using the ▲ or ▼ button after selecting the by

Use the ▲ or ▼button to move the picture up and down. After selecting

use the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction.

After selecting “Just Scan” in HDMI (1080i) or Component (1080i) mode:

Select by pressing the ◄ or ►button. Use the ▲, ▼, ◄ or ► button to move the picture.

Reset: Press the ◄ or ► button to select “Reset”, then press the

You can initialize the setting.

O You can select these options by simply pressing the P.SIZE

button on the remote control.

: 16:9/ Wide Zoom/Zoom/4:3

When setting the picture size to "Auto Wide" in a 16:9 wide TV, you can determine the picture size

you want to see the 4:3 WSS (Wide Screen Service) image or nothing. Each individual European

country requires different picture size so this function is intended for users to select it.

♦ 16:9: Sets the picture to 16:9 wide mode

♦ Wide Zoom: Magnify the size of the picture more than 4:3.

: Magnify the size of the picture vertically on screen.

♦ 4:3: Sets the picture to 4:3 normal mode.

This function is available in "Auto Wide" mode.

This function is not available in “PC”, "Component" or "HDMI" mode.

Digital NR: Off/Low/Medium/High/Auto

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction

feature to help reduce any static and ghosting that may appear on the screen.

When the signal is weak, select one of the other options until the best picture is displayed.

This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you

can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the

applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function,

you can view the difference in the visual quality.

(Digital Natural Image engine)

This feature brings you more detailed image with 3D noise reduction, detail enhancement,

contrast enhancement and white enhancement. New image compensation Algorithm gives

brighter, clearer, more detailed image to you. DNIe

technology will fit every signal into your eyes.

“DNIe” is only available in “Dynamic” mode.

♦ HDMI Black Level: Normal/Low

You can select the black level on the screen to adjust the screen depth.

This function is active only when the external input connects to HDMI(RGB signals).

♦ Blue Only Mode: Off/On

This function is for AV device measurement experts. This function displays the blue signal only by

removing the red and green signals from the video signal so as to provide a Blue Filter effect that is

used to adjust the Colour and Tint of video equipment such as DVD players, Home Theaters, etc.

Using this function, you can adjust the Colour and Tint to preferred values appropriate to the signal

level of each video device using the Red/Green/Blue/Cyan/Magenta/Yellow Colour Bar Patterns,

without using an additional Blue Filter.

“Blue Only Mode” is available when the picture mode is set to “Movie” or “Standard”.

Book-��.indb20 2008-03-03¿ÀÈÄ5:49:31English - 21

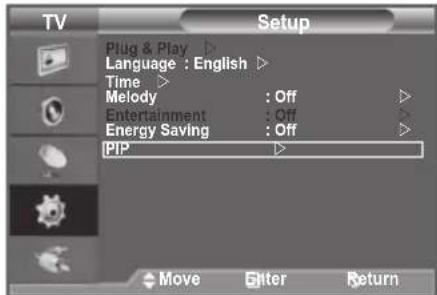

You can display a sub picture within the main picture of set programme or video input. In this

way, you can watch the picture of set programme or video input from any connected equipment

while watching the main picture.

3. Select the required option by pressing the ▲ or ▼ button, then

press the ENTER button.

4. When you are satised with your setting, press the

5. Press the EXIT button to exit.

You may notice that the picture in the PIP window becomes

slightly unnatural when you use the main screen to view a

TOOLS button on the remote control.

5. Press the EXIT or TOOLS button to exit.

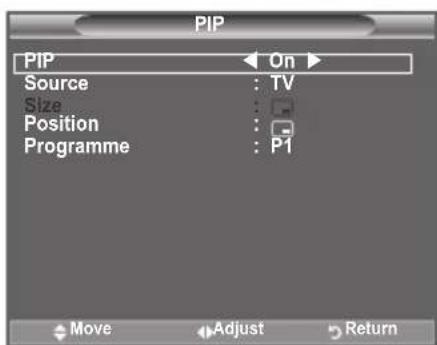

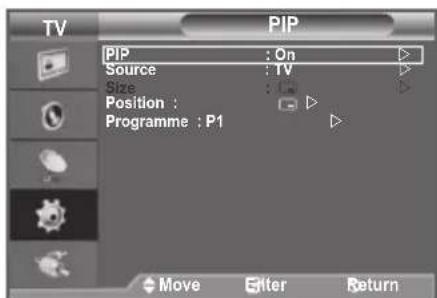

You can activate or deactivate the PIP function.

Main picture Sub picture

Component TV, Ext.1, Ext.2, AV HDMI 1, 2, 3 TV, Ext.1, Ext.2, AV PC TV, Ext.1, Ext.2, AV Source

You can select a source of the sub-picture.

You can select a size of the sub-picture.

If main picture is in "HDMI" mode, "Size" is available.

You can select a position of the sub-picture.

, ) mode, "Position" cannot be selected.

You can select a channel of the sub-picture only when the "Source" is set to "TV".

2. Select the required option by pressing the ▲ or ▼ button,

then press the ENTER button.

3. When you are satisfied with your setting, press the ENTER

4. Press the EXIT button to exit.

♦ Mode: Standard/Music/Movie/Speech/Custom

You can select the type of special sound effect to be used

when watching a given broadcast.

TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select "Sound Mode".

3. Press the ◄ or ► button to select the desired sound mode.

4. Press the EXIT or TOOLS button to exit.

♦ Equalizer: Balance/100Hz/300Hz/1kHz/3kHz/10kHz

The sound settings can be adjusted to suit your personal

If you make any changes to these settings, the sound

mode is automatically switched to "Custom".

TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel

content over two speakers. TruSurround delivers a compelling, virtual surround sound experience

through any two-speaker playback system, including internal television speakers. It is fully

compatible with all multichannel formats.

O You can also set these options simply by pressing the SRS

button on remote control.

Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select "SRS TS XT".

3. Press the ◄ or ► button to select the "Off" or "On".

4. Press the EXIT or TOOLS button to exit.

TruSurround XT, SRS and Symbol are trademarks of SRS Labs,

Inc.TruSurround XT technology is incorporated under license from

TOOLS Book-��.indb22 2008-03-03¿ÀÈÄ5:49:33English - 23

You can connect a set of headphones to your set if you wish to

watch a TV programme without disturbing the other people in the

When you insert the head set jack into the corresponding port, you

can operate only “Auto Volume” and “Sound Select”(in PIP mode) in

Prolonged use of headphones at a high volume may damage your

You will not receive sound from the speakers when you connect headphones to the system.

The headphone volume and TV volume are adjusted differently.

Connecting Headphones (Sold separately)

You can set the sound mode in the TOOLS menu.

When you set to "Dual I-II", the current sound mode is

displayed on the screen.

Press the TOOLS button on the remote control.

If the stereo signal is weak and an automatic switching occurs, then switch to the Mono.

This function is only activated in stereo sound signal. It is deactivated in mono sound signal.

This function is only available in TV mode.

Selecting the Sound Mode Anynet+ (HDMI-CEC)Picture Mode : StandardSound Mode : CustomSleep Timer : OffSRS TS XT : OffEnergy Saving : OffDual l-ll ◄ Mono ► Move Adjust Exit Tools ♦ Auto Volume: Off/On

Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume

every time the channel is changed. This feature lets you automatically adjust the volume of the

desired channel by lowering the sound output when the modulation signal is high or by raising the

sound output when the modulation signal is low.

♦ TV Speaker: Off/On

If you want to hear the sound through separate speakers, cancel the internal amplifier.

The +, - and MUTE buttons do not operate when the "TV Speaker" is set to "Off".

When "TV Speaker" is set to "Off", you can operate only “Sound Select” (in PIP mode) in Sound

♦ Sound Select: Main/Sub

When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture.

− Main: Used to listen to the sound of the main picture.

− Sub: Used to listen to the sound of the sub picture.

Book-��.indb23 2008-03-03¿ÀÈÄ5:49:34English - 24

You can select a time period of between 30 and 180 minutes

after which the television automatically switches to standby

4. Press the ▲ or ▼ button repeatedly until the desired time

appears (Off, 30, 60, 90, 120, 150, 180).

You can set the TV’s clock so that the current time is

displayed when you press the INFO button. You must also set

the time if you wish to use the automatic On/Off timers.

5. Press the EXIT button to exit.

If you disconnect the power cord, you have to set the clock again.

You can also set "Year", "Month", "Day", "Hour" and "Minute" by pressing the number buttons on

Setting and Displaying the Current Time

Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Sleep Timer”.

3. Press the ◄ or ► button to select the minute.

4. Press the EXIT or TOOLS button to exit.

Book-��.indb24 2008-03-03¿ÀÈÄ5:49:36English - 25

When you start using your set for the first time, you must

select the language which will be used for displaying menus

3. Select a particular language by pressing the ▲ or ▼ button

3. Press the ▲ or ▼ button to select "Timer 1", "Timer 2",

"Timer 3", then press the ENTER

Three different On/Off Timer Settings can be made.

You must set the clock first.

4. Press the ◄ or ► button to select the required item below.

Press the ▲ or ▼ button to adjust to the setting satisfied.

♦ On Time: Select hour, minute, and "On"/"Off". (To activate

timer with the setting satisfied, set to "On".)

♦ Off Time: Select hour, minute, and "On"/"Off". (To activate

timer with the setting satisfied, set to "On".)

♦ Repeat: Select "Once", "Everyday", "Mon~Fri", "Mon~Sat",

♦ Volume: Select the desired turn on volume level.

You can set the hour and minute directly by pressing the number buttons on the remote control.

When you set the timer On, the TV will eventually turn off, if no controls are operated for 3 hours

after the TV was turned on by timer. This function is only available in timer On mode and prevents

overheating, which may occur if a TV is on for too long time.

Switching the Television On and Off Automatically

2. Select the required option by pressing the ▲ or ▼ button,

then press the ENTER

3. When you are satisfied with your setting, press the

4. Press the EXIT button to exit.

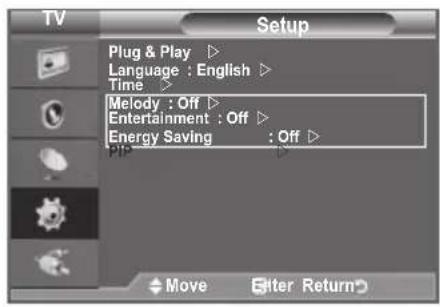

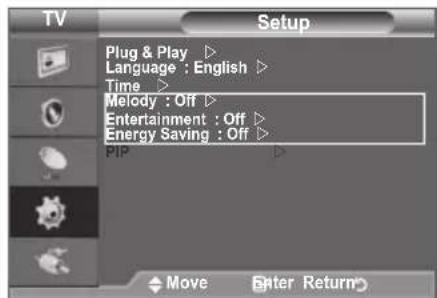

♦ Melody: Off/Low/Medium/High

The TV power on/off melody sound can be adjusted.

The Melody does not play

- When no sound is output from the TV because the MUTE button has been pressed

- When no sound is output from the TV because the (Volume) button has been pressed

- When the TV is turned off by Sleep Timer function.

♦ Entertainment: Off/Sports/Cinema/Game

The “Entertainment” mode enables you to select the optimal display and sound for sports, cinema

- Off: Switch the "Entertainment" function off.

- Sports: Provides the optimal picture and sound quality for sports. You can enjoy more thrilling

- Cinema: Provides the optimal picture and sound quality for cinema. You can experience a richer

picture and enhanced sound.

- Game: Provides the optimal picture and sound quality for games. This mode accelerates the

playing speed when using an external game console connected to the TV.

If you set any of the three “Entertainment” modes to On, the settings will be locked and can not

be adjusted. If you want to make Picture and Sound mode adjustments, the “Entertainment”

mode must be turned off.

The “Entertainment” settings are saved for each input source.

If you set any of the three “Entertainment” modes to On, “SRS TS XT” function is not available.

O You can press the E.MODE button on the remote control

repeatedly to change the “Entertainment” setting.

TOOLS Book-��.indb26 2008-03-03¿ÀÈÄ5:49:37English - 27

♦ Energy Saving: Off/Low/Medium/High/Auto

This feature adjusts the screen brightness depending on the surrounding lighting conditions.

− Off: Turns off the energy saving function.

− Low: Sets the TV to low energy saving mode.

− Medium: Sets the TV to medium energy saving mode.

− High: Sets the TV to high energy saving mode.

− Auto: Automatically adjusts the brightness of the TV screen in accordance with the scenes.

TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Energy Saving”.

3. Press the ◄ or ► button to select the "Off","Low",

"Medium", "High" or "Auto".

4. Press the EXIT or TOOLS button to exit.

This function is not available in "PC" mode. (40 inch)

You can select among external sources connected to your

button again, to select "Source List".

Available signal sources: TV, Ext.1, Ext.2, AV, S-Video,

Component, PC, HDMI1, HDMI2, HDMI3.

You can choose only those external devices that are

connected to the TV.

3. Select the required device by pressing the ▲ or ▼ button.

O Press the SOURCE button on the remote control to toggle

between all the available source.

TV mode can be selected by pressing the TV button, number

buttons(0~9), and the P / button on the remote control.

O You can also watch HDMI mode simply by pressing the HDMI

button on the remote control.

Selecting the Source

Name the device connected to the input jacks to make your

3. Press the ▲ or ▼ button to select the device that you wish to

4. Press the ▲ or ▼ button to select the required device.

Editing the Input Source Names

Book-��.indb28 2008-03-03¿ÀÈÄ5:49:39English - 29

The Windows display-settings for a typical computer are shown below. The

actual screens on your PC may be different depending upon your particular

version of Windows and your particular video card. Even if your actual

screens look different, the same, basic set-up information will apply in almost

all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

First, click on "Control Panel" on the Windows start menu.

2. When the control panel window appears, click on "Appearance and Themes"

and a display dialog-box will appear.

3. When the control panel window appears, click on "Display" and a display

dialog-box will appear.

4. Navigate to the "Settings" tab on the display dialog-box.

The correct size setting (resolution): Optimum- 1360 X 768

If a vertical-frequency option exists on your display settings dialog box, the correct value is

"60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box.

Setting up Your PC Software (Based on Windows XP)

When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

The interlace mode is not supported.

The set might operate abnormally if a non-standard video format is selected.

Separate and Composite modes are supported. SOG is not supported.

Both screen position and size will vary depending on the type of PC monitor and its resolution.

The resolutions in the table are recommended.

Setting up the TV with your PC Preset: Press the SOURCE button to select PC mode.

button, to select "Picture".

2. Select the required option by pressing the ▲ or ▼ button,

then press the ENTER

3. When you are satisfied with your setting, press the

Auto adjustment allows the PC screen of set to self-adjust to

the incoming PC video signal. The values of fine, coarse and

position are adjusted automatically.

TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Auto Adjustment”, then

press the ENTER button.

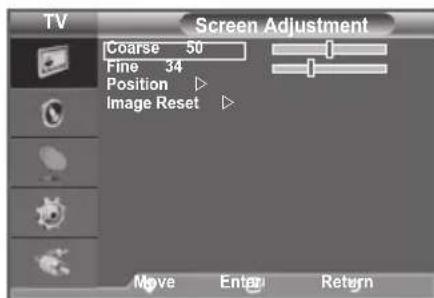

♦ Screen Adjustment:

The purpose of picture quality adjustment is to remove or

reduce picture noise. If the noise is not removed by Fine-

tuning alone, then adjust the frequency as best as possible

(coarse) and Fine-tune again. After the noise has been

reduced, re-adjust the picture so that it is aligned on the

Press the ◄ or ► button to adjust the screen quality.

Adjust the PC’s screen positioning if it does not fit the TV

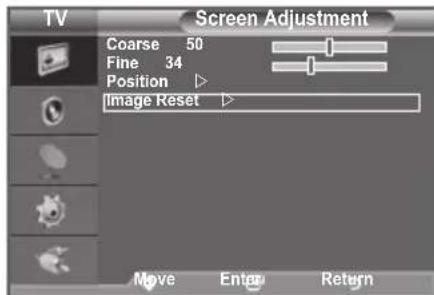

You can replace all image settings with the factory default

Screen Adjustment Coarse 50Fine 34Position Image Reset  TV Move Enter Return Position

Screen Adjustment  Detailed Settings  Picture Options 

PIP Auto Adjustment Move Enter Exit Tools

The Anynet+ system supports AV devices supporting Anynet+ only.

Check if there is an Anynet+ mark on the AV device to be connected to the TV.

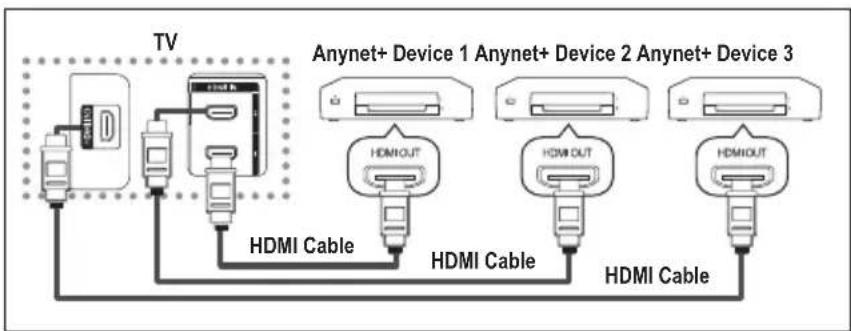

To directly connect to TV Connect the [HDMI 1], [HDMI

2] or [HDMI 3] jack on the TV

and the HDMI OUT jack of the

corresponding Anynet+ device

using the HDMI cable.

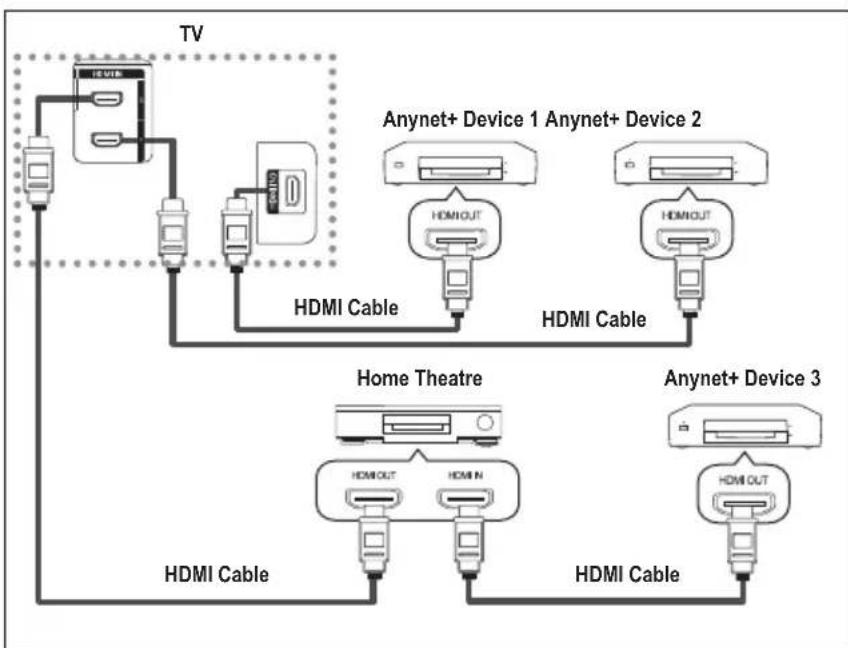

To connect to Home Theater

1. Connect the [HDMI 1],

[HDMI 2] or [HDMI 3]

jack on the TV and the

2. Connect the HDMI IN jack

of the home theatre and

the HDMI OUT jack of the

corresponding Anynet+

device using the HDMI

Connect only one receiver.

You can connect an Anynet+ device using the HDMI cable. Some HDMI cables may not support

Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status.

Anynet+ supports up to 8 AV devices in total.

Anynet+ is an AV network system that enables an easy-to-use AV interface for users by controlling

all connected AV devices through the Anynet+ menu when Samsung Electronics AV devices are

The following settings are to use Anynet+ functions.

button to select "Anynet+ (HDMI-CEC)",

The "Anynet+ (HDMI-CEC)" function is enabled.

If you select "Off", "Anynet+ (HDMI-CEC)" is disabled.

When the "Anynet+ (HDMI-CEC)" function is disabled, all the

Anynet+ related operations are deactivated.

Turning an Anynet+ Device Off Automatically when the TV is Turned Off

1. Press the ▲ or ▼ button to select "Auto Turn Off", then press

The Auto turn off function is enabled.

If you select "No", the Auto turn off function is cancelled.

Press the EXIT button to exit.

The Select Device setting of the TV remote control is to be set

to TV to use the Anynet+ function.

If you set "Auto Turn Off" to "No", connected external devices are also turned off when the TV is

turned off. However, if the device is recording, it may not be turned off.

Scanning and Switching between Anynet

3. Press the ▲ or ▼ button to select to a particular device and

press the ENTER button. It is switched to the selected

4. If you cannot find a device you want, press the ▲ or ▼ button

to select "Setup", then press the ENTER button.

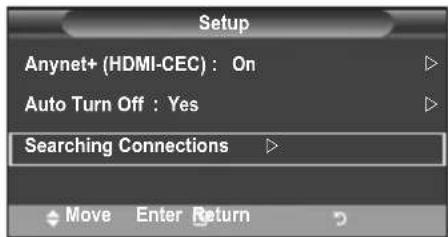

5. Press the ▲ or ▼ button to select "Searching Connections",

then press the ENTER button.

The message "Configuring Anynet+ connection..." is displayed.

When searching devices completes, the connected devices are

listed in the Anynet+ menu.

Switching to the selected devices may take up to 2 minutes.

You cannot cancel the operation during the switching

The time required to scan for devices is determined by the

number of connected devices.

When the device scan is complete, the number of found devices is not displayed.

Although the TV automatically scans devices when it is turned on using the POWER button, devices

connected when the TV is on or under a specic circumstance are not displayed in the device list.

Therefore select "Searching Connections" menu to search devices.

If you have selected external input mode by pressing the SOURCE button, you cannot use the

Anynet+ function. Make sure to switch to an Anynet+ device by using the

The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected

Anynet+ Menu Description

View TV Switches from Anynet+ to TV broadcast mode.

Select Device Your TV connects to the corresponding device.

Record Starts a recording. (This menu works only for a device supporting

Menu on Device Shows the menu of the connected device.

Example. When a DVD Recorder is connected, the DVD Recorder’s

Device Operation Shows the play control menu of the connected device.

Example. When a DVD Recorder is connected, the play control

menu of the DVD Recorder appears.

Receiver Sound is output through the receiver.

Setup You can set the environment for using Anynet+.

TV Remote Control Buttons Available in Anynet+ Mode

Device Type Operating Status Available Buttons

After switching to the

device, when the menu of

the corresponding device is

displayed on the screen.

Colour buttons EXIT button

After switching to the device,

while playing a file

Device with built-in Tuner

After switching to the device,

when you are watching a TV

Audio Device When Receiver is activated

The Anynet+ function only works when the remote control is set to TV.

button works only while in the recordable state.

You cannot control Anynet+ devices using the buttons on the TV. You can control Anynet+ devices

only using the TV remote control.

The TV remote control may not work under certain conditions. In this case, re-select the Anynet+

The Anynet+ functions don’t operate for the products from other manufacturers.

In Anynet+ mode, the colour buttons may not work properly.

operations may differ depending on the device.

You can make a recording of a TV programme using a recorder.

Recording begins. (Only when the Anynet+ enabled recording device is connected.)

The current TV programme is recorded in the Watching TV status. If you are watching video from

another device, the video from the device is recorded.

You can also record the source streams by selecting "Record" after pressing the

Before recording, check whether the antenna jack is properly connected to the recording device. For

the antenna connection to the recording device, refer to its user manual.

Listening through a Receiver

You can listen to sound through a receiver instead of the TV speaker.

1. Press The TOOLS button. Then Press the ENTER

Press the ▲ or ▼ button to select "Receiver", then press the

2. Press the ◄ or ► button to select to "On", then press the

Now you can listen to sound through the receiver.

3. Press the EXIT button to exit.

When the receiver is set to On, you can listen to the TV sound

through the 2-channel receiver.

If the receiver is exclusively for a home theatre only

(supporting audio only), it may not appear in the device list.

In case of a content with copyright problem, listening through the receiver may not properly operate.

If there is a power interruption to the TV when the “Receiver” is set to “On” (by disconnecting the

power cord or a power failure), the “TV Speaker” may be set to “Off” when you turn the TV on again.

Check Points before Requesting Service

■ Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+

■ Connect only one receiver.

■ Check if the Anynet+ device power cord is properly connected.

■ Check the Anynet+ device’s Video/Audio/HDMI cable connections.

■ Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.

■ Check whether the TV remote control is in TV mode.

■ Check whether it is Anynet+ exclusive remote control.

■ Anynet+ doesn’t work at a certain condition. (Searching channels, Plug & Play,

■ When connecting or removing the HDMI cable, please make sure to search

devices again or restart your TV.

■ Check if the Anynet+ Function of Anynet+ device is set on.

■ Check if the Anynet+ device is properly connected to the TV and check if the

Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu.

■ Press the TV button on the TV remote control to switch to TV. Then press the

TOOLS button to show the Anynet+ menu and select a menu you want.

I want to exit Anynet+.

■ Select View TV in Anynet+ menu.

■ Press the SOURCE button on the TV remote control and select a device other

than Anynet+ devices.

■ Press any of P / , CH LIST, PRE-CH, and such to change to the

TV mode. (Note that the channel button operates only when a tuner-embedded

Anynet+ device is not connected.)

■ You cannot use the remote control when you are configuring Anynet+ or

switching to a view mode.

■ Use the remote control when the Anynet+ setting or switching to view mode is

You cannot use the play function when Plug & Play is in progress.

The connected device

■ Check whether or not the device supports Anynet+ functions.

■ Check whether or not the HDMI cable is properly connected.

■ Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.

■ Search Anynet+ devices again.

■ You can connect an Anynet+ device using the HDMI cable only. Some HDMI

cables may not support Anynet+ functions.

■ If it is terminated by an abnormal situation such as disconnecting the HDMI cable

or power cord or a power failure, please repeat the device scan.

Check whether the antenna jack on the recording device is properly connected.

Book-��.indb36 2008-03-03¿ÀÈÄ5:49:44English - 37

Most television stations provide written information services via Teletext. The index page of

the teletext service gives you information on how to use the service. In addition, you can select

various options to suit your requirements by using the remote control buttons.

For teletext information to be displayed correctly, channel reception must be stable. Otherwise,

information may be missing or some pages may not be displayed.

Exit from the teletext display

Used to display the index (contents) page at any time while you

are viewing teletext.

Used to store the teletext pages.

Press to display the double-size letters in the upper half of the

screen. For lower half of the screen, press it again. To display

normal screen, press it once again.

Used to display the hidden text (answers to quiz games, for

Press to activate teletext mode after selecting the channel

providing the teletext service. Press it twice to overlap the teletext

with the current broadcasting screen.

Press to select the teletext mode (LIST/FLOF). If you press it

in the LIST mode, it switches into the List save mode. In the

List save mode, you can save teletext page into list using the

Used to hold the display on a given page if the selected page is linked with several secondary

pages which follow on automatically. To resume, press it again.

Coloure buttons (red/green/yellow/blue)

If the FASTEXT system is used by a broadcasting company, the different topics covered on a

teletext page are colour-coded and can be selected by pressing the coloured buttons. Press one

of them corresponding to the required. The page is displayed with other coloured information that

can be selected in the same way. To display the previous or next page, press the corresponding

You can change teletext pages by pressing the numeric buttons on

The teletext pages are organized according to six categories:

A Selected page number.

B Broadcasting station identity.

C Current page number or search status.

Teletext information is often divided between several pages displayed in sequence, which can be

♦ Entering the page number

♦ Selecting a title in a list

♦ Selecting a coloured heading (FASTEXT system)

Press the TV button to exit from the teletext display.

TOOLS Book-��.indb38 2008-03-03¿ÀÈÄ5:49:45English - 39

Once the auto wall mount is installed, your TV’s position can be easily adjusted.

Wall-Mount Adjustment (Sold separately) (depending on the model) TV Rear Panel Auto Wall-MountSERVICE Cable (Not supplied) Entering the menu

1. Press the ▲, ▼, ◄ or ► button on your remote control.

The Wall Mount Adjustment screen is displayed.

If the Wall Mount Adjustment screen is not displayed when

clicking on a direction button while watching your TV, use

the menu to display that screen.

• Press the MENU butt on to display the menu.

• Press the ▲ or ▼ button to select “Wall-Mount Adjustment”,

then press the ENTER

Remembering the Position

2. Adjust to the desired position using the ▲,▼,◄,► buttons.

If you press an arrow button when no OSD is displayed on

the TV screen, the Adjustment screen appears.

The position is initialized to the default setting.

3. Press the blue button.

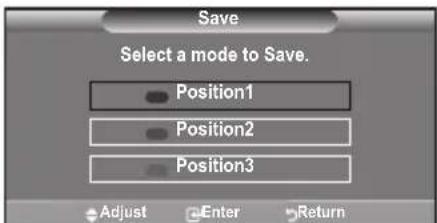

Press the ▲ and ▼ buttons to select a save mode from either

Position 1, Position 2 or Position 3 in order to save the current

To not save the current position, press the

When selecting a save mode, you cannot use the Colour

When Position1 is selected, the message "Current position

saved as Position1" is displayed.

The saved Position appears on the left side of the OSD.

Moving to the remembered position

1. Complete Step 1 of “Entering the menu”.

2. Pressing a Colour (Red, Green, Yellow) button moves the auto

wall mount to the saved position.

You can move the wall mount to one of the 3 pre-set

positions by pressing the Red (Position 1),

Green (Position 2) or Yellow (Position 3) buttons.

If you adjust the Position after moving to a pre-set position,

the position display will disappear.

For installation, refer to the Installation Manual provided with the wall mount.

For product installation and the installation and moving of the wall mount, make sure to consult a

specialized installation company.

This installation manual is to be used when attaching the wall mount to a wall. When attaching to

other building materials, please contact your nearest dealer.

The auto wall mount will not work when Anynet+ is operating.

37 and 40 inch models are not compatible with the old electrically powered wall mount model

➣ Wall-Mount AdjusmentAdjust Save Center INFO Position1Position 1 2 3 Using the Anti-Theft Kensington Lock (depending on the model)

The Kensington Lock is a device used to physically fix the system when using it in a public place.

The appearance and locking method may differ from the illustration depending on the manufacturer.

Refer to the manual provided with the Kensington Lock for proper use. The locking device has to be

purchased separately.

Insert the locking device into the Kensington

slot on the LCD TV (Figure 1), and turn it in the

locking direction (Figure 2).

2. Connect the Kensington Lock cable.

3. Fix the Kensington Lock to a desk or a heavy

The location of the Kensington

different depending on its model.

No sound or picture.

Check that the mains lead has been connected to a wall socket.

Check that you have pressed the

Check the picture contrast and brightness settings.

Normal picture but no

button has been pressed on the remote control.

Check if "TV Speaker" is on.

Screen is black and power

indicator light blinks steadily.

On your computer check; Power, Signal Cable.

The TV is using its power management system.

Move the computer’s mouse or press any key on the keyboard.

No picture or black and

Adjust the colour settings.

Check that the broadcast system selected is correct.

Try to identify the electrical appliance that is affecting the set and move it

Plug your set into a different mains socket.

Check the direction, location and connections of your aerial.

This interference is often due to the use of an indoor aerial.

Remote control malfunctions.

Replace the remote control batteries.

Clean the upper edge of the remote control (transmission window).

Check the battery terminals.

'Check signal cable.'

message is displayed.

Check that the signal cable is firmly connected to the PC or video sources.

Check that the PC or video sources are turned on.

On PC mode, 'Not Supported

Mode.' message is displayed.

Check the maximum resolution and the frequency of the video adaptor.

Compare these values with the data in the Display Modes.

The damaged picture appears

in the corner of the screen.

If "Just Scan" is selected in some external devices, the damaged picture

may appear in the corner of the screen. This symptom is caused by external

The 'Resets all settings to

the default values' message

This appears when you press and hold the

EXIT button for a while. The prod-

uct settings are reset to the factory defaults.

The TFT LCD panel uses a panel consisting of sub pixels (3 133 440) which require sophisticated

technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will

have no impact on the performance of the product.

Book-��.indb41 2008-03-03¿ÀÈÄ5:49:46English - 42

Technical and Environmental Specications

Screen Size (Diagonal)

Environmental Considerations

Operating Temperature

Screen Size (Diagonal)

Environmental Considerations

Operating Temperature

Book-��.indb42 2008-03-03¿ÀÈÄ5:49:47English - 43

Design and specifications are subject to change without prior notice.

This device is a Class B digital apparatus.

For the power supply and Power Consumption, refer to the label attached to the product.

LE26A451 LE32A451, LE32A454

Screen Size (Diagonal)

Environmental Considerations

Operating Temperature

Screen Size (Diagonal)

Environmental Considerations

Operating Temperature

“Mois”, “Date”, “Année”,

Installationshandbuch.

modus "Film" is ingeschakeld.

invoer HDMI (720p/1080i) of Component (1080i) is.

♦ Auto Volume: Uit/Aan

Naar “Maand”, “Data”, “Jaar”, “Uur” of

“Maand”, “Data”, “Jaar”, “Uur” of “min”

Entertainment: Uit/Sport/Film/Spelcomputer

[HDMI 1], [HDMI 2] of

(Picture in Picture) 21

Melodia/Entertainment/Risp. energia 26

procedure operative, consultare

quando “Anynet+ (HDMI-CEC)”

Melodia/Entertainment/Risp. energia

teletexto (LIST/FLOF)

“Rojo”, “Verde” o “Azul”

9 Teletexto – exibir.

PIP: Zapnuto/Vypnuto

/ (zapnout teletext/mix)

You can select a position of the sub-picture.

(zapnúť teletext/mix)

in R-Y ali Y, Cb in Cr.

DVI IN (HDMI 2) [R-AUDIO-L]

Black Adjust: Off/Low/Medium/High

Neposredno lahko na izberete raven črne na zaslonu, da prilagodite globino zaslona.

Dynamic Contrast: Off/Low/Medium/High

Colour: Red/Green/Blue/Yellow/Cyan/Magenta

spreminjati samo “Color Tone” in “Size”.

Digital NR: Off/Low/Medium/High/Auto

Blue Only Mode: Off/On

Mode: Standard/Music/Movie/Speech/Custom

TruSurround XT, SRS in simbol

Sound Select: Main/Sub

časovnika z izbrano nastavitvi�o izberite “On”.)

♦ Repeat: Izberite “Once”, “Everyday”, “Mon~Fri”,

“Mon~Sat”, ali “Sat~Sun”.

♦ Volume: Izberite želeno nastavitev glasnosti.

Melody: Off/Low/Medium/High

Entertainment: Off/Sports/Cinema/Game

Energy Saving: Off/Low/Medium/High/Auto

position saved as Position1”.

Book-��.indb 43 2008-03-03 ¿ÀÈÄ 6:43:39Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other

household wastes at the end of its working life. To prevent possible harm to the environment or human health

from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to

promote the sustainable reuse of material resources. Household users should contact either the retailer where

they purchased this product, or their local government office, for details of where and how they can take this

item for environmentally safe recycling. Business users should contact their supplier and check the terms

and conditions of the purchase contract. This product should not be mixed with other commercial wastes for
