USER MANUAL UE37D6500VQ SAMSUNG

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country	Customer Care Centre	Web Site
ALBANIA 42 27 5755 -
AUSTRIA 3810 - SAMSUNG (7267864, € 0.07/min) www.samsung.com
BELGIUM 02-201-24-15 www.samsung.com/be (Dutch)		www.samsung.com/be_fr (French)
BOSNIA 05 133 1999 -
BULGARIA 07001 33 11 www.samsung.com
CROATIA 062 SAMSUNG (862 726 7864) www.samsung.com
CZECH	600 - SAMSUNG (800-728768)	www.samsung.com
	Samsung Zrl., česká organizačni složka. Oasis Florenc, Sokolovská354/17, 160 00, Praha 6
DENMARK	70 70 19 70	www.samsung.com
FINLAND	030 - 6227 515	www.samsung.com
FRANCE	01 46 63 00 00	www.samsung.com
GERMANY 01805 - SAMSUNG (726-7864 € 0,14/Min) www.samsung.com
GREECE 2108293100 www.samsung.com
HUNGARY	06-80-SAMSUNG (726-7964)	www.samsung.com
ITALIA	800-SAMSUNG (726-7864)	www.samsung.com
KOSOVO [phone]	-
LUXEMBURG	201 03 710 www.samsung.com
MACEDONIA	023 207 777 -
MONTENEGRO	020 405 868 -
NETHERLANDS	0900-SAMSUNG (0900-7267864) (€ 0,10/Min)	www.samsung.com
NORWAY	615-56 480	www.samsung.com
POLAND	0 601 1SAMSUNG (172678)022-607-93-33	www.samsung.com
PORTUGAL	80820-SAMSUNG (726-7864)	www.samsung.com
RUMANIA	09010 SAMSUNG (08010 7267864) – doar din rejeusa Romtelecom. tarif local021 206 01.10 – din orice rejoa, tarif normal	www.samsung.com
SERBIA	0700 Samsung (0700 726 7864)	www.samsung.com
SLOVAKIA	0800 - SAMSUNG (0800-726 788)	www.samsung.com/sk
SPAIN	902 - 1 - SAMSUNG (902 172 678)	www.samsung.com
SWEDEN	0771 726 7864 (SAMSUNG)	www.samsung.com
Switzerland	0848 - SAMSUNG(7267864, CHF 0.08/min)	www.samsung.com/chwww.samsung.com/ch_fri(French)
U.K	0330 SAMSUNG (7267864)	www.samsung.com
EIRE	0816 717100	www.samsung.com
LITHUANIA	6-800-77777	www.samsung.com
LATVIA	8000-7267	www.samsung.com
ESTONIA	800-7267	www.samsung.com
Turkey	444 77 11	www.samsung.com

SAMSUNG

LED TV

user manual

E-MANUAL

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Model ____ Serial No. ____

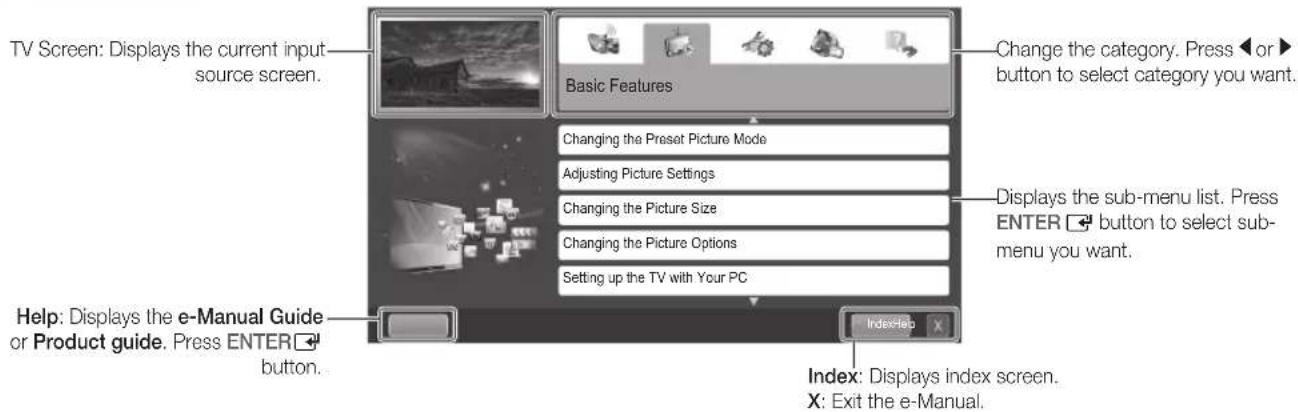

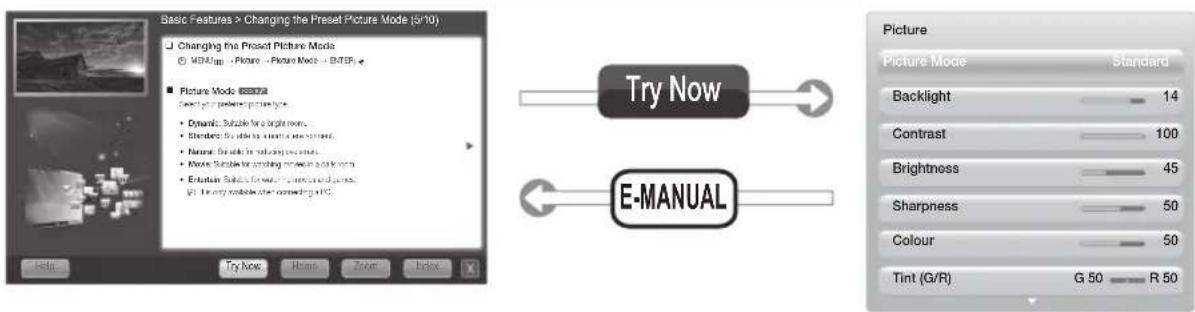

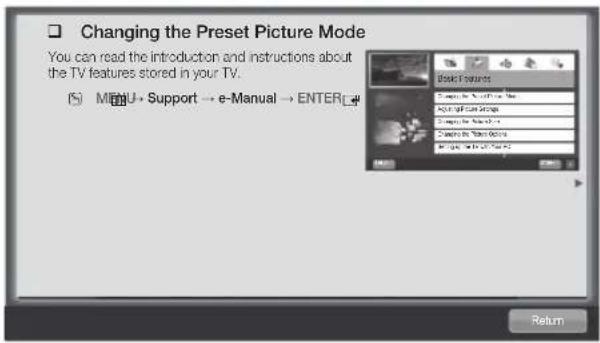

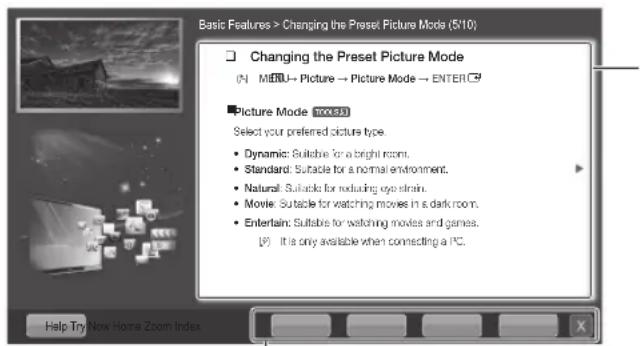

For more information on how to use the e-Manual (p. 14)

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice.

Digital TV notice

1. Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal.
2. DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast transmission of digital TV over cable. However, some differentiated features like EPG (Electric Programme Guide), VOD (Video On Demand) and so on, are not included in this specification. So, they cannot be workable at this moment.
3. Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital terrestrial and DVB-C digital cable broadcasts cannot be guaranteed.
4. Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a service and you may be required to agree to terms and conditions of their business.
5. Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service providers.
6. For more information, please contact your local Samsung customer care centre.

The reception quality of TV may be affected due to differences in broadcasting method between the countries. Please check the TV performance in the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconfiguring TV setting or not.

Still image warning

Avoid displaying still images (like jpeg picture files) or still image element (like TV programme logo, panorama or 4:3 image format, stock or news bar at screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of LED screen, which will affect image quality. To reduce risk of this effect, please follow below recommendations:

• Avoid displaying the same TV channel for long periods.
  • Always try do display any image on full screen, use TV set picture format menu for best possible match.
• Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout process.
• Frequently use all TV features designed to reduce image retention and screen burnout, refer to e-Manual for details.

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.

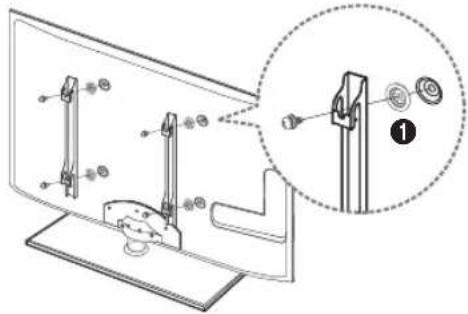

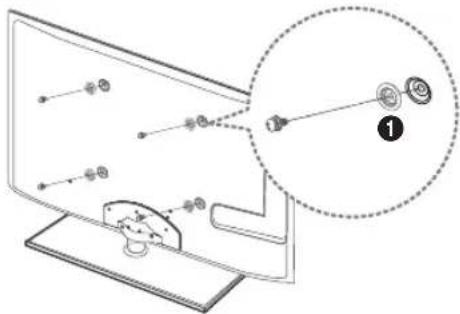

When using a stand or wall-mount, use parts provided by Samsung Electronics only.
- If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.
The appearance may differ depending on the product.
- Be careful when you contact the TV because some parts can be somewhat hot.

Installation with a stand. Installation with a wall-mount.

10 cm 10 cm10 cm

10 cm 10 cm 10 cm 10 cm

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Accessories

Please make sure the following items are included with your TV. If any items are missing, contact your dealer.

The items' colours and shapes may vary depending on the models.

Cables not included in the package contents can be purchased separately.

Check that there is no accessory hidden behind packing materials when you open the box.

AUTION: INSERT SECURELY LEST SHOULD BE DETACHED IN SET

• Remote Control & Batteries (AAA x 2)

- Cleaning-Cloth

- Owner's Instructions

- Power cord

- Warranty Card (Not available in some locations) / Safety Guide

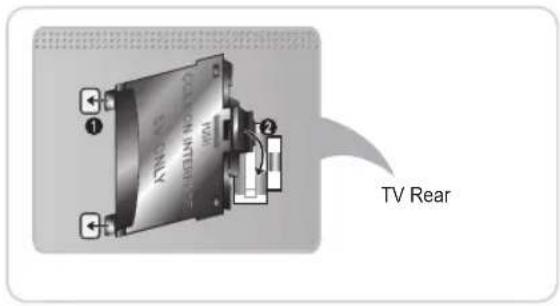

Holder Ring (4 EA) Holder-Wire Stand CI Card Adapter

AV / Component Adapter Scart Adapter

An administration fee may be charged if either

– (a) an engineer is called out at your request and there is no defect in the product

(i.e. where you have failed to read this user manual)

- (b) you bring the unit to a repair centre and there is no defect in the product

(i.e. where you have failed to read this user manual)

- The amount of such administration charge will be advised to you before any work or home visit is carried out.

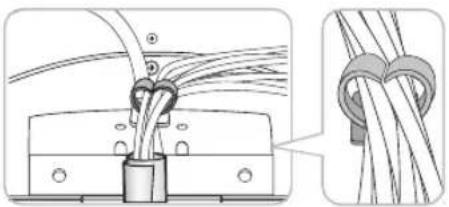

Assembling the Holder-Wire stand

Simple line drawing of a mechanical assembly with a base and mounting plate (no text or symbols)

Diagram of cable routing through a connector (no text or symbols)

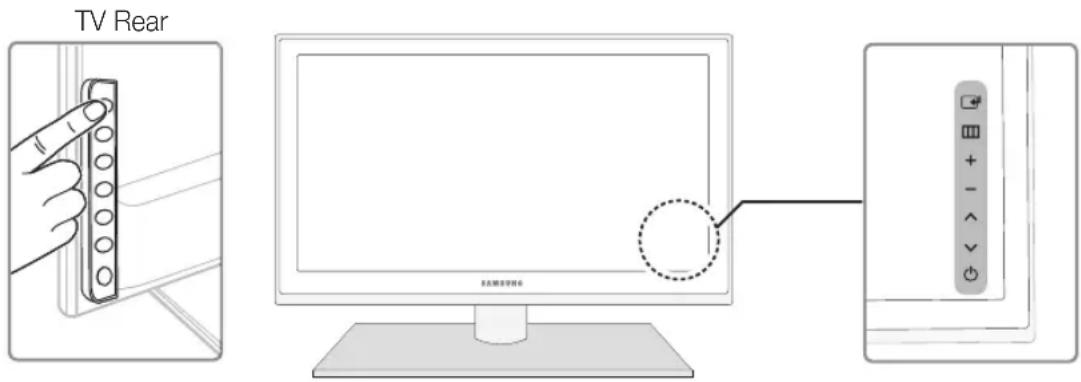

Viewing the Control Panel

The product colour and shape may vary depending on the model.
There are control buttons in rear of TV. When you touch the button, control icons appears.
Any object (an electric wire, etc.) near the control panel may cause unintended activation of the OSD.
Press the POWER button a little longer when you turn off the TV.

Remote control sensor Aim the remote control towards this spot on the TV.

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.

(Source)

Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTER button on the remote control.

Menu

Displays an on-screen menu, the OSD (on screen display) of your TV's features.

± (Volume)

Adjusts the volume. In the OSD, use the +- buttons as you would use the ◀ and ▶ buttons on the remote control.

(Channel)

Changes the channels. In the OSD, use the ▲▼ buttons as you would use the ▲ and ▼ buttons on the remote control.

(Power)

Turns the TV on or off.

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

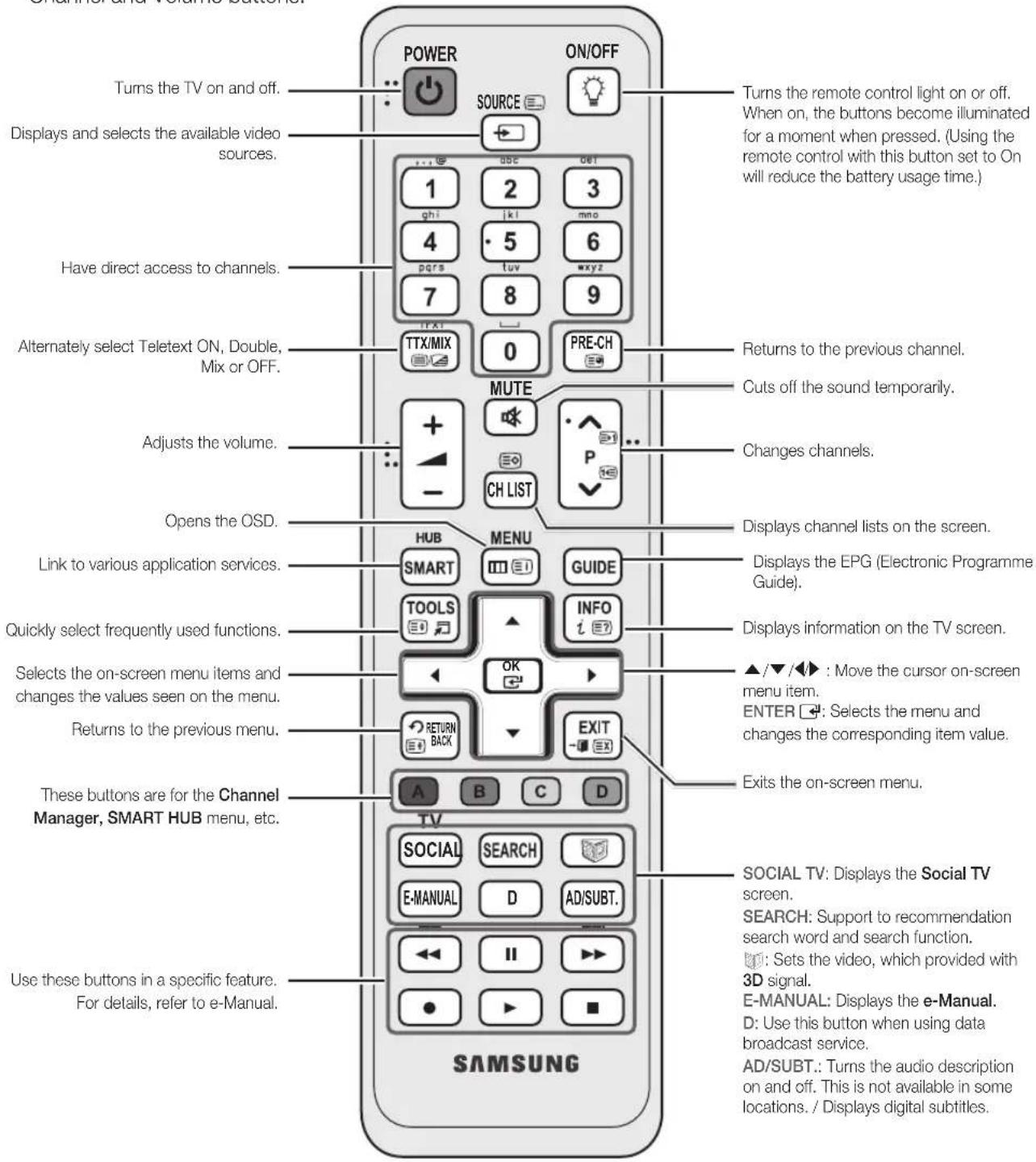

Viewing the Remote Control

This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel and Volume buttons.

Turns the TV on and off. Displays and selects the available video sources. Have direct access to channels. Alternately select Teletext ON, Double, Mix or OFF. Adjusts the volume. Opens the OSD. Link to various application services. Quickly select frequently used functions. Selects the on-screen menu items and changes the values seen on the menu. Returns to the previous menu. These buttons are for the Channel Manager, SMART HUB menu, etc. Use these buttons in a specific feature. For details, refer to e-Manual. POWER SOURCE 1 2 3 4 5 6 7 8 9 TTX/MIX 0 PRE-CH MUTE + - CH LIST HUB MENU SMART GUIDE TOOLS INFO OK EXIT A B C D TV SOCIAL SEARCH E-MANUAL D AD/SUBT. SAMSUNG Turns the remote control light on or off. When on, the buttons become illuminated for a moment when pressed. (Using the remote control with this button set to On will reduce the battery usage time.) Returns to the previous channel. Cuts off the sound temporarily. Changes channels. Displays channel lists on the screen. Displays the EPG (Electronic Programme Guide). Displays information on the TV screen. ▲/▼/◄► : Move the cursor on-screen menu item. ENTER : Selects the menu and changes the corresponding item value. Exits the on-screen menu. SOCIAL TV: Displays the Social TV screen. SEARCH: Support to recommendation search word and search function. ◆: Sets the video, which provided with 3D signal. E-MANUAL: Displays the e-Manual. D: Use this button when using data broadcast service. AD/SUBT.: Turns the audio description on and off. This is not available in some locations. / Displays digital subtitles.

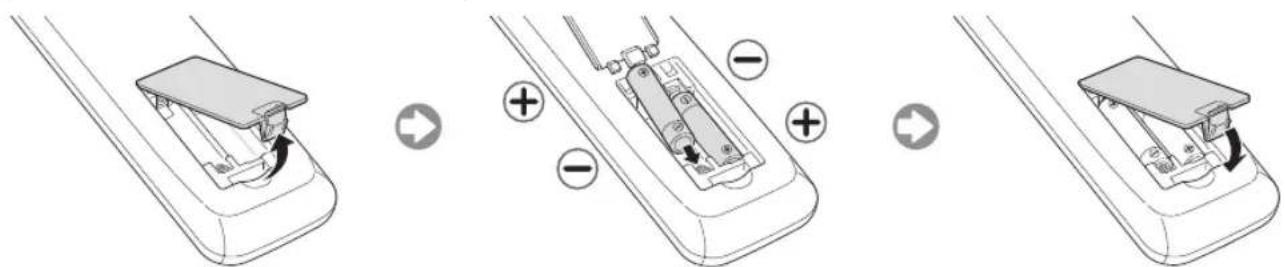

Installing batteries (Battery size: AAA)

Diagram illustrating the step-by-step assembly of a device's internal components, showing valve states and directional arrows.

Changing the Input Source

Source

Use to select TV or an external input sources such as a DVD / Blu-ray player / cable box / STB satellite receiver.

■TV / Ext. / PC / AV / Component / HDMI1/DVI / HDMI2 / HDMI3 / HDMI4 / USB / AllShare

In the Source, connected inputs will be highlighted.

Ext. and PC always stay activated.

If the connected external devices are not highlighted, press the red button. The TV will search for connected devices.

Edit Name

In the Source, press the TOOLS button, and then you can set an external input sources name you want.

■VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name the device connected to the input jacks to make your input source selection easier.

When connecting a PC to the HDMI IN 1(DVI) port with HDMI cable, you should set the TV to PC mode under Edit Name.

When connecting a PC to the HDMI IN 1(DVI) port with HDMI to DVI cable, you should set the TV to DVI PC mode under Edit Name.

When connecting an AV devices to the HDMI IN 1(DVI) port with HDMI to DVI cable, you should set the TV to DVI Devices mode under Edit Name.

Edit Favourites

In the Source, press the TOOLS button to select Edit Favourites. You can set an external input source to Favorites.

Information

You can see detailed information about the selected external device.

Refresh

In the Source, If the external devices are not displayed, press the TOOLS button to select Refresh. Search for connected devices.

For best cable connection to this product, be sure to use cables with a maximum thickness as below:

• Maximum thickness - 0.55 inches (14mm)

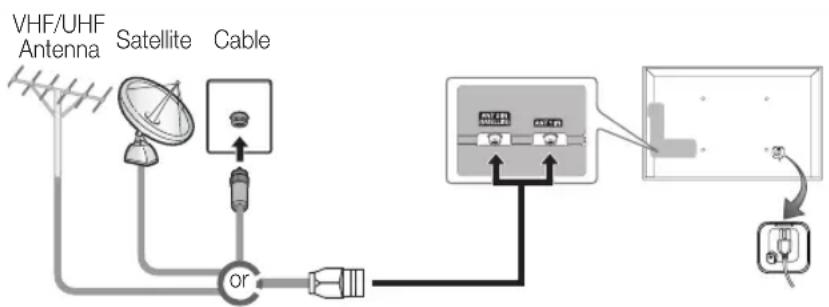

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

Preset: Connecting the mains and antenna.

VHF/UHF Antenna Satellite Cable or

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the POWER button. Plug & Play is available only when the Input source is set to TV.

Before turning on the TV, make sure the antenna cable is connected (p. 6).

The option may differ depending on country.

1	Selecting the OSD Language	Press the ▲ or ▼ button, then press the ENTER button.Select the desired OSD (On Screen Display) language.

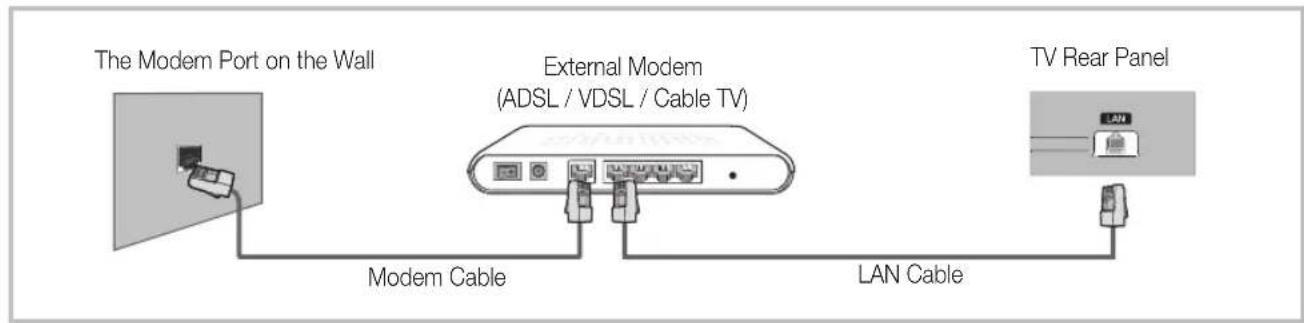

2	Setting up the Network	Set up your network connection. Press the ENTER button to start. If you do not know your network set up information or want to set to it later, select Skip.We suggest you skip network connection setup now and refer to “Network menu” in the e-Manual for set up requirements and instructions, and the Network Connection section of this manual (Page 13).You can set up the network connection later using the Network menu.
3	Software upgrade When	network connection settings are complete, Software Upgrade is available.Select Next to upgrade TV software. Your TV will automatically upgrade, if your TV need a software upgrade. If you want to upgrade later, select the Skip. For more information, refer to "Software Upgrade" (Preference → Support) in the e-Manual.This may take some time, depending on network status.
4	Selecting the usage mode	Press the ▲ or ▼ button to select Home Use, and then press the ENTER button twice.Select the Home Use mode. Store Demo mode is for retail environments.
5	Selecting a country (Depending on the country)	Press the ▲ or ▼ button, then press the ENTER button.Select the appropriate country.After selecting the country in the Country menu, some models may proceed with an additional option to setup the pin number.When you input the PIN number, “0-0-0-0” is not available.The option may differ depending on country.
6	Setting the Clock Mode	Set the Clock Mode automatically or manually.
7	Selecting search options for auto tuning	Press the ▲ or ▼ button, then press the ENTER button. Select the channel source to memorise. When setting the antenna source to Cable, a step appears allowing you to assign numerical values (channel frequencies) to the channels. For more information, refer to Channel - Memorising Channels - Auto Tuning.When Aerial or Cable is selected first: After all Aerial or Cable channels are stored, the step for storing Satellite channels is displayed.When Satellite is selected first: After all Satellite channels are stored, the step for storing Aerial or Cable channels is displayed.Press the ENTER button at any time to interrupt the memorisation process.
8	Enjoy your TV.	If you want to watch a broadcast program, select Close. If you want to enjoy the Smart Hub, select the Smart Hub. The Smart Hub will start. For more detailed information, refer to “Smart Hub” in the e-Manual.

If You Want to Reset This Feature...

Select System - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is "0-0-0-0." If you want to change the PIN number, use the Change PIN function.

You should do Plug & Play (MENU → System) again at home although you did in shop.

If you forget the PIN code, press the remote control buttons in the following sequence in Standby mode, which resets the PIN to "0-0-0-0": MUTE → 8 → 2 → 4 → POWER (on).

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, VCR


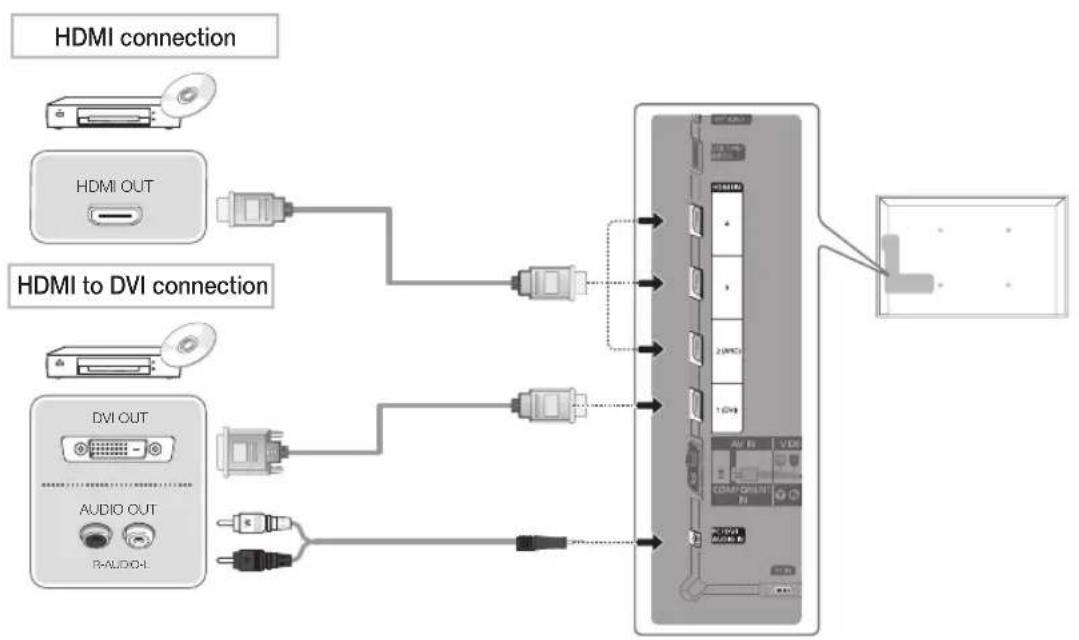

Using an HDMI or an HDMI to DVI cable (up to 1080p)

HDMI IN 1(DVI), 2(ARC), 3, 4 / PC/DVI AUDIO IN

For better picture and audio quality, connect to a digital device using an HDMI cable.

• An HDMI cable supports digital video and audio signals, and does not require an audio cable.

- To connect the TV to a digital device that does not support HDMI output, use an HDMI/DVI and audio cables.

•The picture may not display normally (if at all) or the audio may not work if an external device that uses an older version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.

- Be sure to use an HDMI cable with a thickness of 14 mm or less.

- Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may occur.

A basic high-speed HDMI cable or one with ethernet is recommended. This product does not support the ethernet function via HDMI.

•This product supports the 3D and ARC (Audio Return Channel) functions via an HDMI cable. Note that the ARC function is supported by the HDMI IN 2(ARC) port only.

•The ARC function allows digital audio to output via the HDMI IN 2(ARC) port. It can be enabled only when the TV is connected with an audio receiver that supports the ARC function.


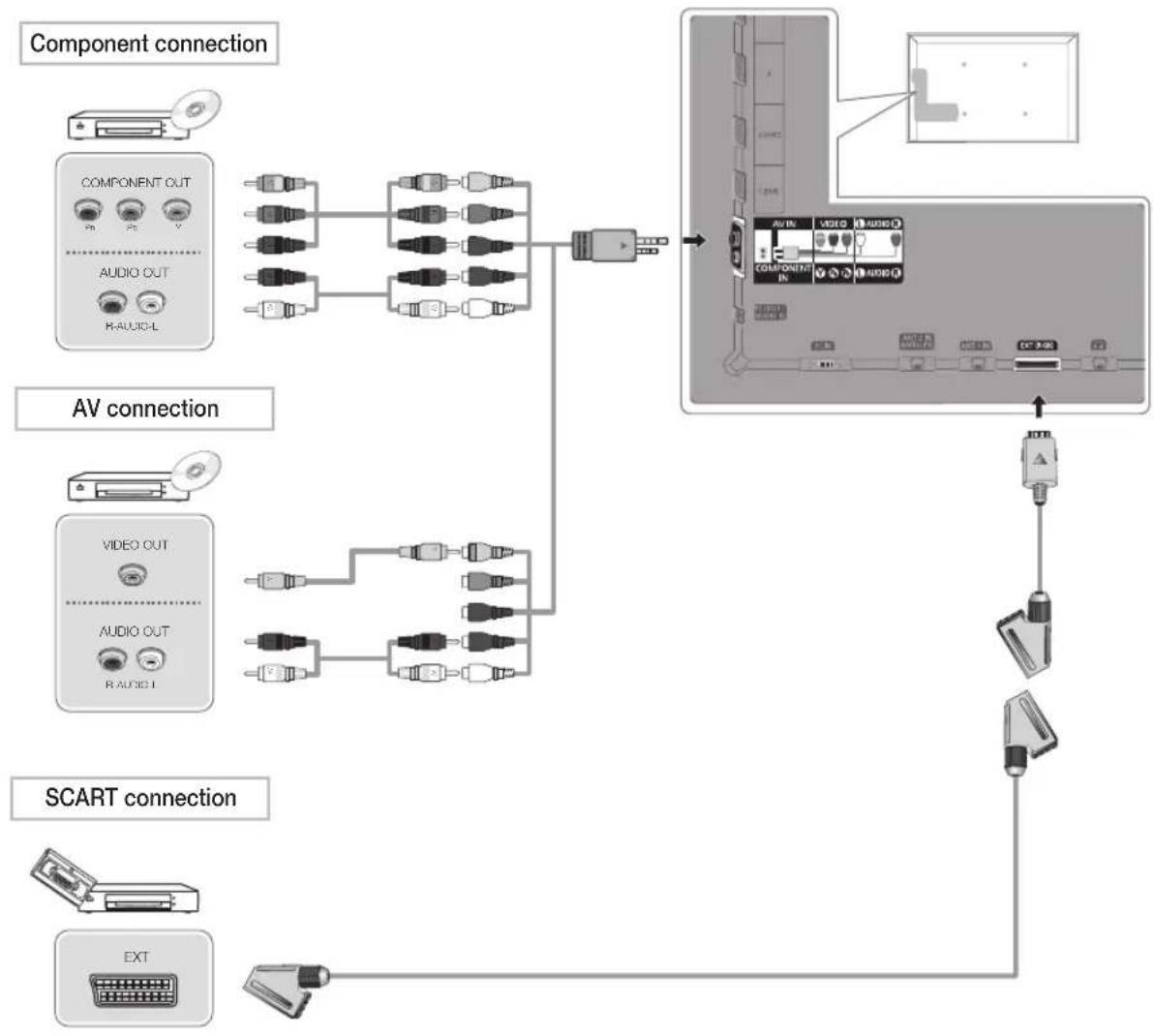

Using a Component (up to 1080p) or an Audio/Video (480i only) and a Scart Cable

In Ext. mode, DTV Out supports MPEG SD Video and Audio only.

When connecting to AV IN, the colour of the AV IN [VIDEO] jack (green) will not match the video cable (yellow).

To obtain the best picture quality, the Component connection is recommended over the A/V connection.

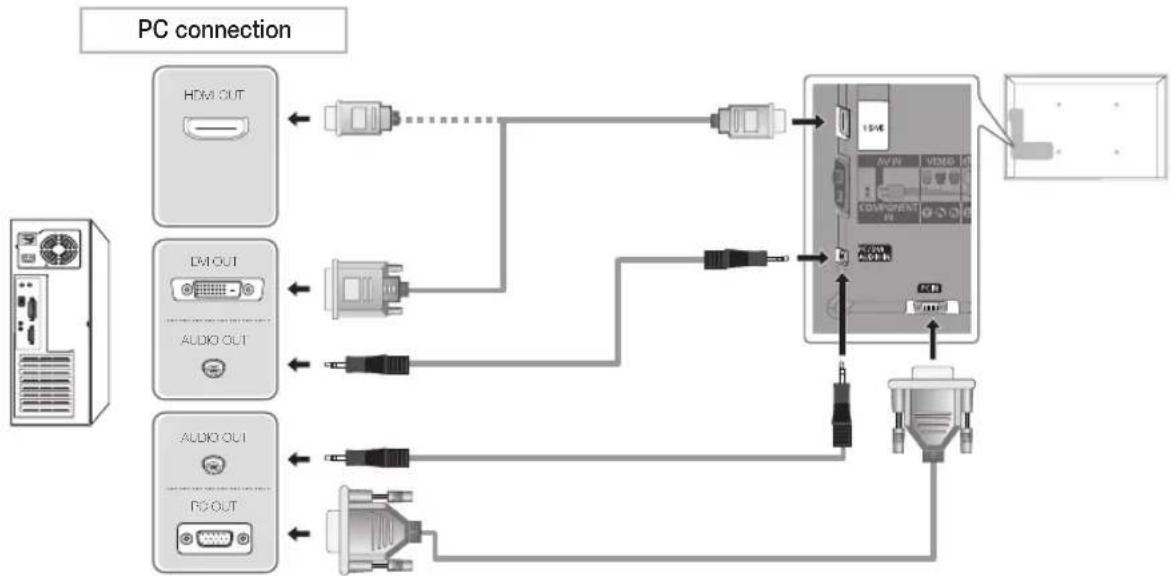

Using an HDMI cable or an HDMI to DVI cable or a D-sub cable

Connecting through the HDMI cable may not be supported depending on the PC.

Display Modes (D-Sub and an HDMI to DVI Input)

Optimal resolution is 1920 X 1080 @ 60 Hz.

Mode Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H / V)
IBM	640 x 350	31.469	70.086	25.175	+/-
	720 x 400	31.469	70.087	28.322	-/+
MAC	640 x 480	35.000	66.667	30.240	-/-
	832 x 624	49.726	74.551	57.284	-/-
	1152 x 870	68.681	75.062	100.000	-/-
VESA DMT	640 x 480	31.469	59.940	25.175	-/-
	640 x 480	37.861	72.809	31.500	-/-
	640 x 480	37.500	75.000	31.500	-/-
	800 x 600	37.879	60.317	40.000	+/+
	800 x 600	48.077	72.188	50.000	+/+
	800 x 600	46.875	75.000	49.500	+/+
	1024 x 768	48.363	60.004	65.000	-/-
	1024 x 768	56.476	70.069	75.000	-/-
	1024 x 768	60.023	75.029	78.750	+/+
	1152 x 864	67.500	75.000	108.000	+/+
	1280 x 1024	63.981	60.020	108.000	+/+
	1280 x 1024	79.976	75.025	135.000	+/+
	1280 x 800	49.702	59.810	83.500	-/+
	1280 x 800	62.795	74.934	106.500	-/+
	1280 x 960	60.000	60.000	108.000	+/+
	1360 x 768	47.712	60.015	85.500	+/+
	1440 x 900	55.935	59.887	106.500	-/+
	1440 x 900	70.635	74.984	136.750	-/+
	1680 x 1050	65.290	59.954	146.250	-/+
VESA DMT /DTV CEA	1920 x 1080p 67.500 60.000 148.500 +/+

NOTE

For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.

The interlace mode is not supported.

The set might operate abnormally if a non-standard video format is selected.

Separate and Composite modes are supported. SOG(Sync On Green) is not supported.


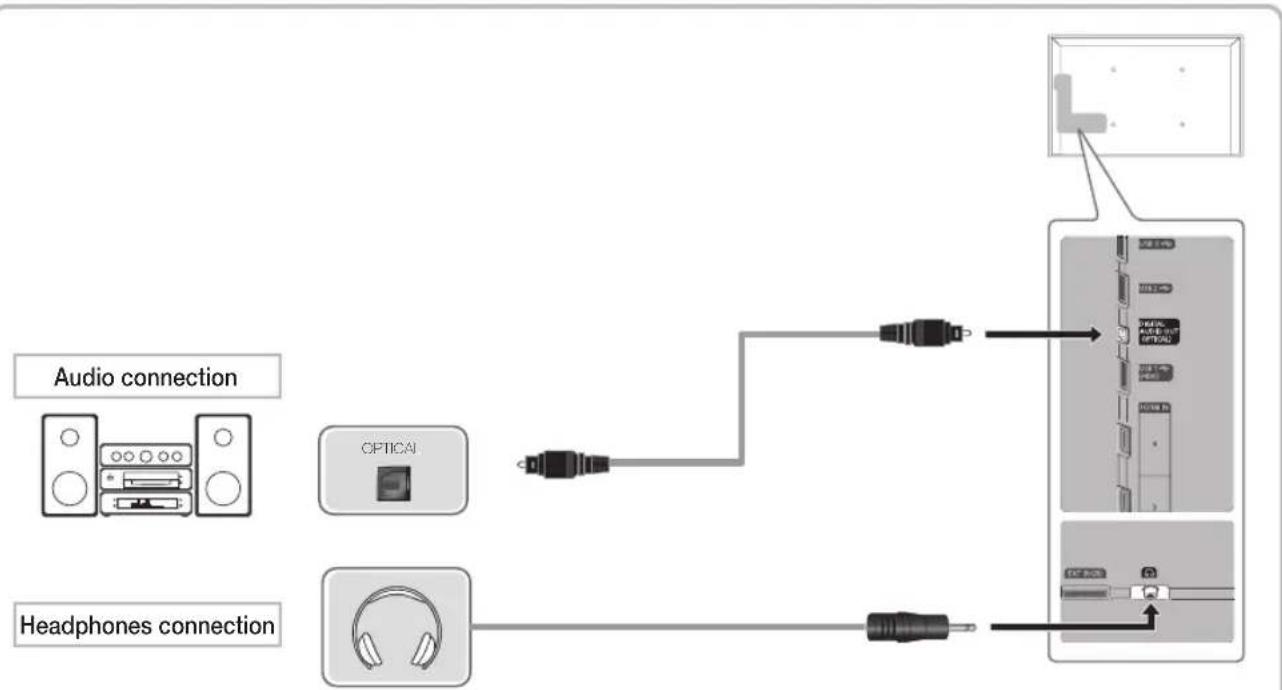

Using an Optical (Digital) or a Headphone Connection

DIGITAL AUDIO OUT (OPTICAL)

When a digital audio system is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume of both the TV and the system.

5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH. When the receiver (home theatre) is set to on, you can hear sound output from the TV's optical jack. When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theatre receiver. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the home theatre receiver. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theatre.

Headphones 📄: You can connect your headphones to the headphones output on your set. While the headphones are connected, the sound from the built-in speakers will be disabled.

Sound function may be restricted when connecting headphones to the TV.

Headphone volume and TV volume are adjusted separately.

Connecting to a COMMON INTERFACE slot

Attaching the CI Card Adapter

Attach the adapter as shown below.

To connect the CI CARD Adapter, follow these steps.

We recommend attaching the adapter before installing the wall mount, or inserting the "CI or CI+ CARD."

1. Insert the CI CARD Adapter into the two holes on the product ①.

Please find a two holes on the rear of the TV. A two holes is beside the COMMON INTERFACE port.

TV Rear

1. Connect the CI CARD Adapter into the COMMON INTERFACE port on the product ②.

2. Insert the "CI or CI+ CARD".

We recommend that you insert the CI card before you mount the TV on a wall.

It may be difficult to insert after the mounting.

Insert the card after attaching the CI CARD Adapter, on TV.

It is difficult to attach the module if you insert the card before attaching.

Using the "CI or CI+ CARD"

To watch paid channels, the "CI or CI+ CARD" must be inserted.

• If you don't insert the "CI or CI+ CARD," some channels will display the message "Scrambled Signal".
• The pairing information containing a telephone number, the "CI or CI+ CARD" ID the Host ID and other information will be displayed in about 2\~3 minutes. If an error message is displayed, please contact your service provider.
• When the configuration of channel information has finished, the message "Updating Completed" is displayed, indicating the channel list is updated.

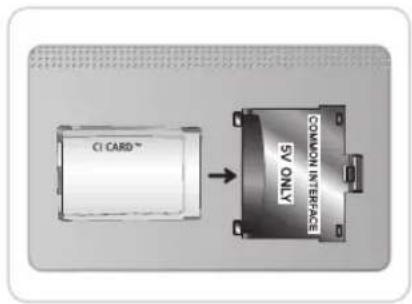

CI CARD COMMON INTERFACE 5V ONLY

NOTE

- You must obtain a "CI or CI+ CARD" from a local cable service provider.

When removing the "CI or CI+ CARD", carefully pull it out with your hands since dropping the "CI or CI+ CARD" may cause damage to it.

Insert the "CI or CI+ CARD" in the direction marked on the card.

•The location of the COMMON INTERFACE slot may be different depending on the model.

“CI or CI+ CARD” is not supported in some countries and regions; check with your authorized dealer.

If you have any problems, please contact a service provider.

Insert the "CI or CI+ CARD" that supports the current antenna settings. The screen will be distorted or will not be seen.

Network Connection

You can connect your TV to your LAN through a standard wireless router or modem. You can use a wireless network to use the Samsung Wireless LAN Adapter where is built-in the TV.

Network Connection - Wireless

You can connect your TV to your LAN through a standard wireless router or modem.

The LAN Port on the Wall Wireless IP sharer (router having DHCP server) LAN Cable TV

Samsung's Wireless LAN adapter supports the IEEE 802.11a/b/g and n communication protocols. Samsung recommends using IEEE 802.11n. When you play the video over a IEEE 802.11b/g connection, the video may not play smoothly.

Most wireless network systems incorporate a security system that requires devices that access the network through an access point or wireless router (typically a wireless IP Sharer) to transmit an encrypted security code called an access key.

If Pure High-throughput (Greenfield) 802.11n mode is selected and the Encryption type is set to WEP, TKIP or TKIP AES (WPS2Mixed) for your wireless router, Samsung TVs will not support a connection in compliance with new Wi-Fi certification specifications.

Network Connection - Wired

There are two main ways to connect your TV to your network using cable, depending on your network setup. They are illustrated below:


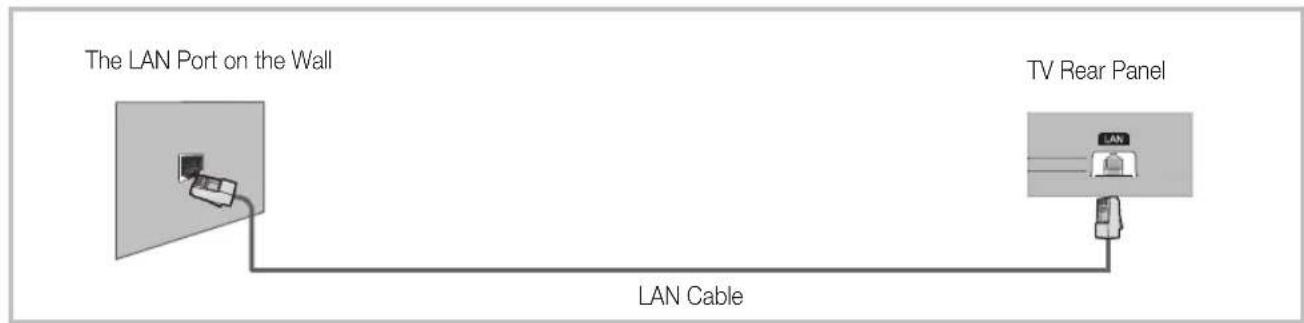

The LAN Port on the Wall LAN Cable TV Rear Panel

It is not supported when the network speed is under 10 Mbps.

How to view the e-Manual

You can read the introduction and instructions about the TV features stored in your TV.

MENU → Support → e-Manual → ENTER

If you want to return to e-Manual, press E-MANUAL button on remote.

You can't use the Try Now function, if the menu is not activated.

Screen Display

TV Screen: Displays the current input source screen. Basic Features Change the category. Press ← or → button to select category you want. Changing the Preset Picture Mode Adjusting Picture Settings Changing the Picture Size Changing the Picture Options Setting up the TV with Your PC Displays the sub-menu list. Press ENTER ← button to select sub- menu you want. Help: Displays the e-Manual Guide or Product guide. Press ENTER← button. Index: Displays index screen. X: Exit the e-Manual. Index=Help

Using the Help

Display the e-Manual Guide & the Product Guide by pressing Help.

Changing the Preset Picture Mode You can read the introduction and instructions about the TV features stored in your TV. (MMU) → Support → e-Manual → ENTER Book Features Change in Book Features (New) Change in Book Settings Change in Book Settings (New) Change in Book Settings (New) Change in Book Settings (New) Return

The e-Manual guide appears as above.

oilshare Sponsor markets multiple devices in OilShare • The "OilShare" is a key product with the following: • The product is used to use the oil share in the oil market. • The product is used to use the oil share in the oil market. • The product is used to use the oil share in the oil market. Return

The product guide appears as above.

How to toggle between the e-Manual and the corresponding menu(s).

Basic Features > Changing the Preset Picture Mode (5/10) Changing the Preset Picture Mode M3MUp - Picture - Picture Mode - ENTER Picture Mode Select your preset picture mode. Dynamic Suitable for a bright room. Standard Suitable for a brightness image. Natural Suitable for reducing pixels. Motion Suitable for anything inside a dark room. Entertainment Suitable for setting images and objects. Get any available image to complete PC. Try Now E-MANUAL Picture Picture Mode Standard Backlight 14 Contrast 100 Brightness 45 Sharpness 50 Colour 50 Tint (G/R) G 50 R 50

This function is not enabled in some menus.

Method 1 Method 2

1. During watching the e-Manual, move the cursor to select Try Now, when you want to execute the corresponding menu(s).

2. To return to the e-Manual screen, press the E-MANUAL button.

3. Press the ENTER button when selecting Contents Area. The "Are you sure?" is displayed. Select Yes and then press the ENTER button. The OSD window will be displayed.

4. To return to the e-Manual screen, press the E-MANUAL button.

Viewing the Contents

Basic Features > Changing the Preset Picture Mode (5/10) Changing the Preset Picture Mode (N: MERTU→ Picture → Picture Mode → ENTERC) Picture Mode TOKI 933 Select your preferred picture type. • Dynamic: Suitable for a bright room. • Standard: Suitable for a normal environment. • Natural: Suitable for reducing eye strain. • Movie: Suitable for watching movies in a dark room. • Entertain: Suitable for watching movies and games. [8] It is only available when connecting a PC. Help Try Now Home Zoom Index

Contents Area: You can view the corresponding contents, if you selected a sub-menu. To move previous or next page, press the ◀ or ▶ button.

Try Now: Displays the corresponding menu(s).

Home: Moves to the e-Manual home screen.

Zoom: Magnifies a screen.

Index: Displays index screen.

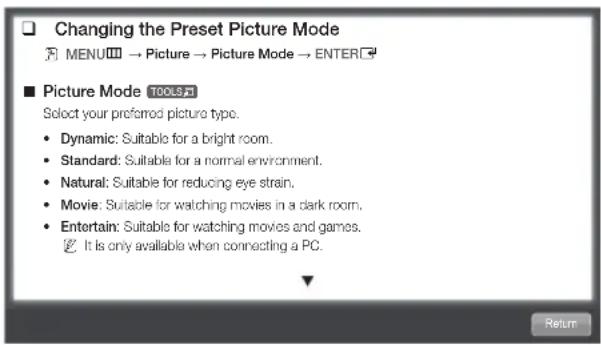

Using the Zoom mode

When you view the e-Manual instruction, select the Zoom to magnify the screen. You can scroll through the magnified screen by using the ▲ or ▼ buttons.

To return to the previous screen, press the RETURN button.

Changing the Preset Picture Mode MENU → Picture → Picture Mode → ENTER ■ Picture Mode 1000$21 Select your preferred picture type. • Dynamic: Suitable for a bright room. • Standard: Suitable for a normal environment. • Natural: Suitable for reducing eye strain. • Movie: Suitable for watching movies in a dark room. • Entertain: Suitable for watching movies and games. It is only available when connecting a PC.

How to search a keyword by using index page

This function may not support depending on the language.

1. If you want to search a keyword, select Index.
2. Press the ◀ or ▶ button to select a character order you want, and then press the ENTER ↩ button.
3. Press the ▲ or ▼ button to select a keyword you want to see, and then press the ENTER button.
4. You can view the corresponding e-Manual instruction screen.

To close the Index screen, press the RETURN button.

Installing the Wall Mount

Installing the Wall Mount Kit

The wall mount kit (sold separately) allows you to mount the TV on the wall.

For detailed information on installing the wall mount, see the instructions provided with the wall mount. Contact a technician for assistance when installing the wall mount bracket.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

Preparing before installing Wall-Mount

Case A. Installing the SAMSUNG Wall-Mount Case B. Installing another company's Wall-Mount

Diagram showing a computer monitor with labeled components and an inset magnified view highlighting a specific component.

Technical diagram showing mechanical assembly with labeled parts and a magnified detail view of a bracket assembly.

To install a wall-mount, use the Holder-Ring ①.

Wall Mount Kit Specifications (VESA)

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

NOTE

Standard dimensions for wall mount kits are shown in the table below.

When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.

Do not use screws that do not comply with the VESA standard screw specifications.

Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw specifications. Screws that are too long may cause damage to the inside of the TV set.

For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on the wall mount specifications.

Do not fasten the screws that are too strongly; this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.

Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.

Our 55" model do not comply with VESA Specifications. Therefore, you should use our dedicated wall mount kit for this model.

Do not mount the TV at more than a 15 degree tilt.

Product Family inches VESA Spec. (A * B) Standard			Screw Quantity
LED-TV	19~22 75	X 75	M4	4
	23~27 200	X 100
	32~40 200	X 200	M846~60 400 X 400
	65~75 600	X 400

A B

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

Troubleshooting

If you have any questions about the TV, first refer to this list. If none of these troubleshooting tips apply, please visit "www.samsung.com", then click on Support, or contact the call centre listed on the back-cover of this manual.

Issues Solutions and Explanations

The TV won't turn on. • Make sure the AC power cord is securely plugged in to the wall outlet and the TV.• Make sure the wall outlet is working.• Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns on, refer to “Remote control does not work” below.
There is no picture/video. • Check cable connections (remove and reconnect all cables connected to the TV and external devices).• Set your external device's (Cable/Sat Box, DVD, Blu-ray etc) video outputs to match the connections to the TV input. For example, if an external device's output is HDMI, it should be connected to an HDMI input on the TV.• Make sure your connected devices are powered on.• Be sure to select the TV's correct source by pressing the SOURCE button on the remote control.• Reboot the connected device by reconnecting the device's power cable.
The remote control does not work. • Replace the remote control batteries with the poles (+/-) in the right direction.• Clean the sensor's transmission window on the remote.• Try pointing the remote directly at the TV from 5~6 feet away.
The cable/set top box remote control doesn't turn the TV on or off, or adjust the volume.	• Programme the Cable/Set remote control to operate the TV. Refer to the Cable/Set user manual for the SAMSUNG TV code.

This TFT LED panel uses a panel consisting of sub pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

You can keep your TV as optimum condition to upgrade the latest firmware on web site (samsung.com → Support → Downloads) by USB.

Licence

TheaterSound HD

DIGITAL PLUS

PULSE

2.0+Digital Out

HD

List of Features

Excellent Digital Interface & Networking: With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed without a cable box / STB (Set-Top-Box) satellite receiver.

3D

This exciting new feature enables you to view 3D content.

SMART HUB

The Gateway to all content integrated in one place

• It's all integrated to guide you to easier and diverse entertainment choices.
• Control your entertainment life with easy and simple user friendly UI.
• Access to diverse Apps that are adding up every day.
• Customize your TV, by App grouping & sorting to your taste.

AllShare™

AllShare™ connects your TV and compatible Samsung mobile phones/devices through a network.

Anynet+(HDMI-CEC)

Allows you to control all connected Samsung devices that support anynet+ with your Samsung TV's remote.

Storage and Maintenance

If you attached some stickers on the TV screen, it remains some debris after removing the sticker. Please clean it to watch TV.

Illustration of a hand cleaning a tablet with a stopper emitting a spray bottle (no text or symbols)

Do not spray water or a cleaning agent directly onto the product. Any liquid that goes into the product may cause a failure, fire, or electric shock.

Illustration of a hand cleaning a tablet with a magnified inset showing a spray bottle (no text or symbols)

Clean the product with a soft cloth dapped in a small amount of water.

©

Specifications

Display Resolution 1920 x 1080
Environmental ConsiderationsOperating TemperatureOperating HumidityStorage TemperatureStorage Humidity	10°C to 40°C (50°F to 104°F)10% to 80%, non-condensing-20°C to 45°C (-4°F to 113°F)5% to 95%, non-condensing
TV System Analogue: B/G, D/K, L, I (Depending on your country selection) Digital: DVB-T/DVB-C/DVB-S2
Colour/Video System Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3, MP@L4.0, HP@L4.0
Sound System BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC.
HDMI IN Video: 1080 24p, 1080p, 1080i, 720p, 576p, 480pAudio: 2Ch Linear PCM 32/44.1/48kHz, 16/20/24bits.
Stand Swivel (Left / Right) -20° ~ 20°
Model Name UE32D6500 / UE32D6510/ UE32D6530 / UE32D6540 /UE32D6570	UE37D6500 / UE37D6510/ UE37D6530 / UE37D6540 /UE37D6570	UE40D6500 / UE40D6510 /UE40D6530 / UE40D6540 /UE40D6570
Screen Size 32 inches 37 inches 40 inches
Sound(Output) 10 W X 2
Dimensions (WxDxH)BodyWith stand	745.8 X 29.9 X 443.4 mm745.8 X 240.0 X 503.8 mm	867.7 X 29.9 X 512.3 mm867.7 X 255.0 X 571.6 mm	933.0 X 29.9 X 548.8 mm933.0 X 255.0 X 608.2 mm
WeightWithout StandWith Stand	7.1 kg9.8 kg	9.1 kg12.4 kg	10.7 kg14.0 kg
Model Name UE46D6500 / UE46D6510/ UE46D6530 / UE46D6540 /UE46D6570	UE55D6500 / UE55D6510/ UE55D6530 / UE55D6540 /UE55D6570	UE60D6500
Screen Size 46 inches 55 inches 60 inches
Sound(Output) 10 W X 2 15 W X 2
Dimensions (WxDxH)BodyWith stand	1068.4 X 29.9 X 625.2 mm1068.4 X 275.0 X 683.6 mm	1258.8 X 29.9 X 731.7 mm1258.8 X 305.0 X 791.4 mm	1379.0 x 30.4 x 799.4 mm1379.0 x 335.0 x 860.3 mm
WeightWithout StandWith Stand	13.2 kg17.2 kg	17.3 kg21.5 kg	23.5 kg29.1 kg

Design and specifications are subject to change without prior notice.
For information about power supply, and more about power consumption, refer to the label attached to the product.

Recommendation - EU Only

CE!

• Hereby, Samsung Electronics, declares that this LED TV is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
• The official Declaration of Conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name.
  • This equipment may only be used indoors.
  • This equipment may be operated in all EU countries.

Simple line drawing of a mechanical assembly with a base and mounting plate (no text or symbols)

Diagram of cable routing through a connector (no text or symbols)

Diagram showing a hand interacting with a monitor and its screen, with a magnified view highlighting the screen's location.

Diagram illustrating the step-by-step assembly of a device with labeled components and directional arrows indicating motion.

Cross-sectional diagram of a cable or connector with internal structure and dimension lines (no text or symbols)

• Diametro massimo - 0,55 pollici (14 mm)

DIGITAL AUDIO OUT (OPTICAL)

oilshare System provides multiple devices in the OilShare on a 200% or more. It is also a 100% or more device that is used to use the oil share in the oil market. It is also a 50% or more device that is used to use the oil share in the oil market. It is also a 50% or more device that is used to use the oil share in the oil market.

Diagram illustrating a computer monitor with labeled components and an inset showing a circular diagram with numbered labels.

Technical diagram showing mechanical assembly with labeled parts and a magnified detail view of a bracket assembly.

Illustration of a hand cleaning a tablet with a QR code (no text or symbols)

Illustration of a hand cleaning a tablet with a magnified inset showing a cloth swab (no text or symbols)

Diagram showing a computer monitor with a screw and a magnified view of its screen (no text or symbols present)

Parete

This page is intentionally left blank.

Simple line drawing of a mechanical assembly with a base and mounting plate (no text or symbols)

Diagram of cable routing through a connector (no text or symbols visible)

Bedienfeld

Diagram showing a hand pointing to a control panel and connected to a monitor with a dial indicator, illustrating a device operation or system adjustment.

Diagram illustrating the process of battery charging mechanism, showing step-by-step states with positive and negative charges.

When connecting a PC to the HDMI IN 1(DVI) port with HDMI cable, you should set the TV to PC mode under Edit Name.

When connecting a PC to the HDMI IN 1(DVI) port with HDMI to DVI cable, you should set the TV to DVI PC mode under Edit Name.

DIGITAL AUDIO OUT (OPTICAL)

Diagram showing a computer monitor with labeled components and an inset diagram highlighting a circular component labeled '1'.

Technical diagram showing a mechanical assembly with labeled parts and an inset detail view of a bracket or mounting detail.

Illustration of a hand cleaning a tablet with a no-smoking spray bottle (no text or symbols)

Illustration of a hand cleaning a tablet with a magnified inset showing a cloth cleaning process (no text or symbols)

Diagram illustrating a mechanical assembly or disassembly process on a monitor, with labeled components and directional arrows.

Wand

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram showing cable installation with a magnified detail of the rope knot (no text or symbols present)

Diagram showing a hand inserting a cable to a monitor, with a magnified view highlighting the cable's size and control panel.

Diagram of a cable connector with internal components and dashed lines indicating hidden edges (no text or symbols)

DIGITAL AUDIO OUT (OPTICAL)

oilshare System markets multiple devices in OilShare OilShare: 100% of the market, 20% of the market, 30% of the market, 40% of the market, 50% of the market, 60% of the market, 70% of the market, 80% of the market, 90% of the market, 100% of the market, 110% of the market, 120% of the market, 130% of the market, 140% of the market, 150% of the market, 160% of the market, 170% of the market, 180% of the market, 190% of the market, 200% of the market, 210% of the market, 220% of the market, 230% of the market, 240% of the market, 250% of the market, 260% of the market, 270% of the market, 280% of the market, 290% of the market, 300% of the market, 310% of the market, 320% of the market, 330% of the market, 340% of the market, 350% of the market, 360% of the market, 370% of the market, 380% of the market, 390% of the market, 400% of the market, 410% of the market, 420% of the market, 430% of the market, 440% of the market, 450% of the market, 460% of the market, 470% of the market, 480% of the market, 490% of the market, 500% of the market, 510% of the market, 520% of the market, 530% of the market, 540% of the market, 550% of the market, 560% of the market, 570% of the market, 580% of the market, 590% of the market, 600% of the market, 610% of the market, 620% of the market, 630% of the market, 640% of the market, 650% of the market, 660% of the market, 670% of the market, 680% of the market, 690% of the market, 700% of the market, 710% of the market, 720% of the market, 730% of the market, 740% of the market, 750% of the market, 760% of the market, 770% of the market, 780% of the market, 790% of the market, 800% of the market, 810% of the market, 820% of the market, 830% of the market, 840% of the market, 850% of the market, 860% of the market, 870% of the market, 880% of the market, 890% of the market, 900% of the market, 910% of the market, 920% of the market, 930% of the market, 940% of the market, 950% of the market, 960% of the market, 970% of the market, 980% of the market, 990% of the market, 1000% Return

Installation du support mural

Diagram showing a computer monitor with labeled components and an inset magnified view highlighting a numbered component.

Technical diagram showing a mechanical assembly with labeled parts and an inset close-up of a component detail.

Illustration of a hand cleaning a tablet with a spray bottle and no clear text or symbols

Illustration of a hand cleaning a tablet with a magnified inset showing a spray bottle (no text or symbols)

Diagram showing a computer monitor with an icon and a magnified view of a screw being inserted (no text or symbols present)

Mur

This page is intentionally left blank.
