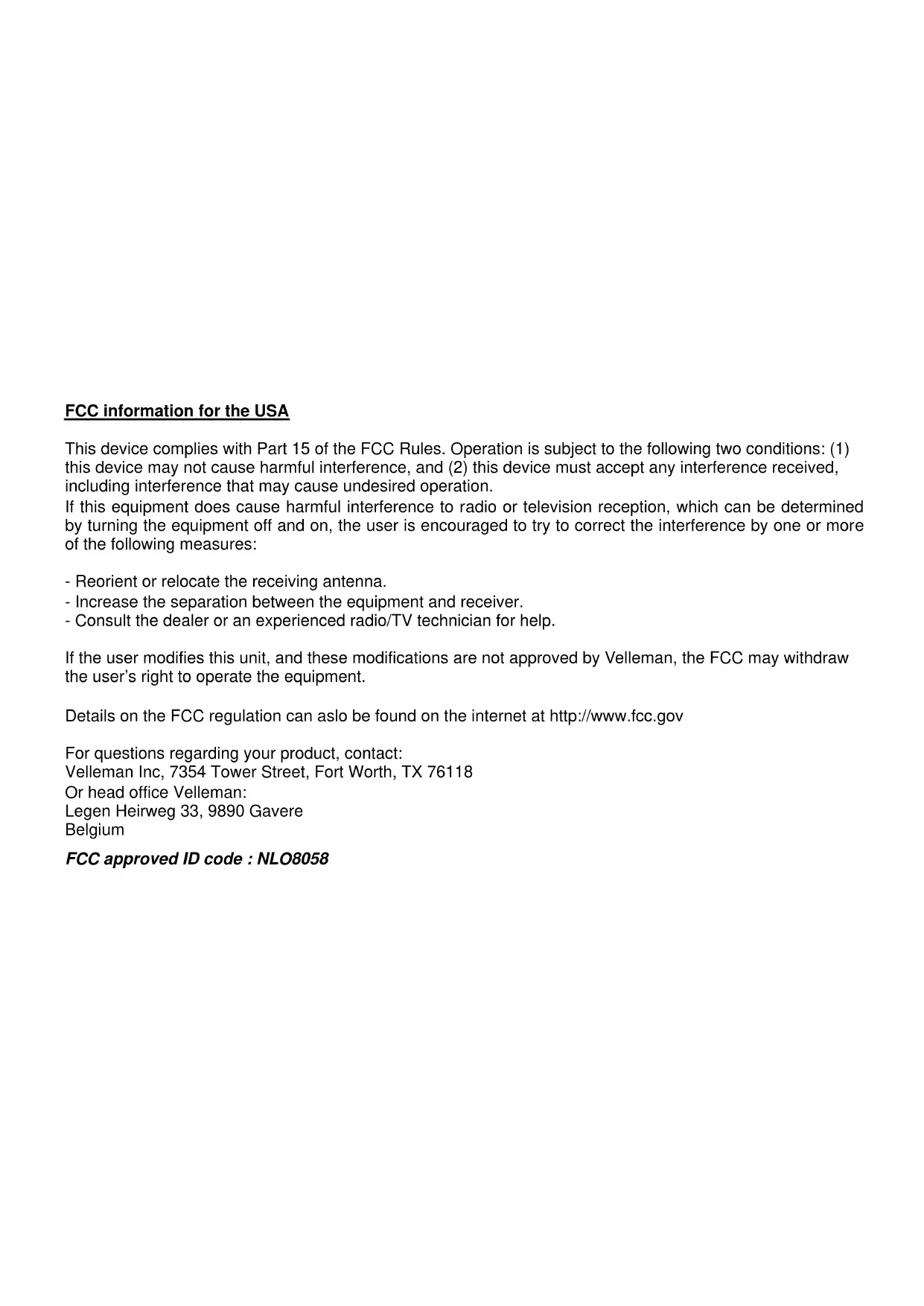

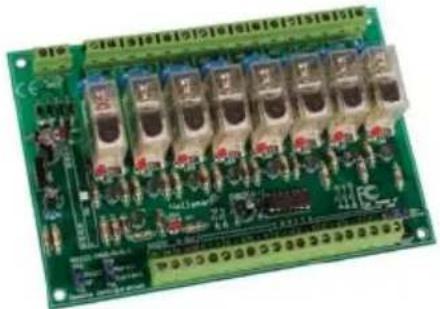

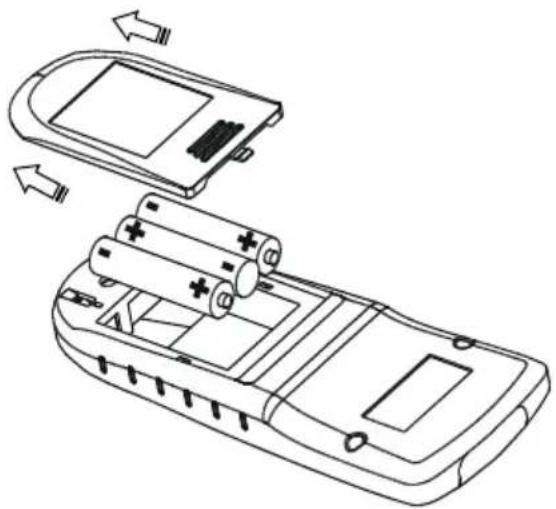

TRANSMITTER : FEATURES Works together with the K8056/VM118 relay card. 8 addresses allow the use of multiple receivers 'all clear'- function Toggle or momentary mode for each key Open-field range up to 50m Rubber keypad SPECIFICATIONS 8 digital encoded channels 433MHz operation LED function/mode indication Power supply: 3 AAA batteries (not included) Dimensions: 150x58x23mm FCC approved ID code: NLO8058 Velleman hereby certifies that the device VM118 meets the essential requirements and all other relevant stipulations of directive 1999/5/EG and 1995/5/EC. For the complete conformity declaration check out :http://www.velleman.be/downloads/doC/declaration_VM118.pdf Transmitter5 USE Transmitter Insert the batteries in the battery compartment as indicated in figure and close the compartment. Remark : Respect your national and local laws when disposing of empty batteries.

• Channels 1..8 can be configured as 'toggle' (on/off) or pulse (see set-up)

• The indicator LED will briefly light when a button is pressed.

• Briefly pressing the shift button turns off all relays. Note: All settings remain in memory after battery replacement

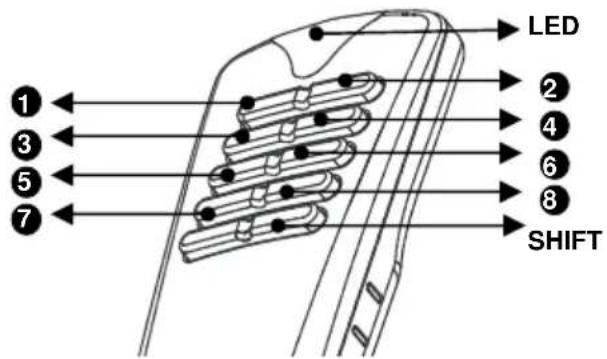

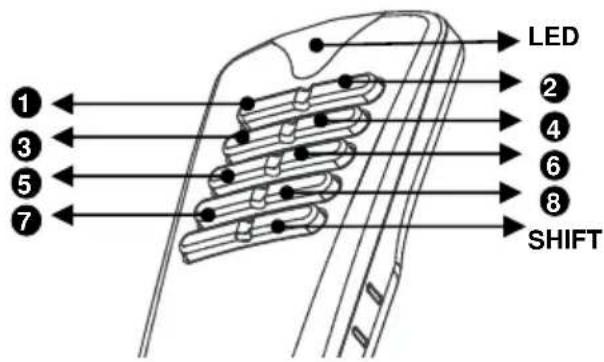

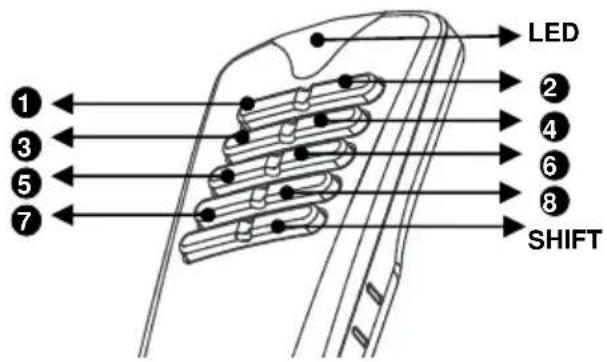

SHIFT CHANNEL SELECTION LED6 Hold 'shift' until the LED lights to enter the 'set-up' mode. Choose one of the following options by pressing the corresponding button : (1) ‘Toggle’/’pulse’-selection. (2) Display the current remote control address (3) Change remote/relay card address (4) Force remote/relay card address to address 1 (1) ‘Toggle’/’pulse’-selection (LED flashes once) :

Allows you to select ‘toggle’ or ‘pulse’mode for each channel. Pressing a channel button (1..8) repeatedly allows you to choose between 'toggle'- and 'pulse'-mode for that particular channel (LED flashes once : pulse, two flashes : toggle). Press 'shift' to leave this mode. Press ‘shift’ again to leave set-up mode. (2) Display the current remote control address on the K8056/VM118 relay card (LED flashes twice) :

Relay LEDs display the address in binary fashion i.e. LD8 : LSB, LD1 : MSB Press ‘shift’ to leave the set-up mode. (3) Change the current address of the remote and relay card (available addresses : 1..8) (LED flashes three times) :

Press button 1..8 to change the current address of the remote and the relay card. The relay card will display the current address in binary fashion (see (2)). Attention : All active cards will respond to this command (except when the ‘remote control’ jumper on the relay card is set to ‘off’). Press ‘shift’ to leave this mode. Press ‘shift’ again to leave the set-up mode.

4) Force the remote/relay card to address 1.

If the receiver (e.g. K8056 or VM118) has been set to an address other than 1..8, you can force it to respond to address 1. Attention : All active cards will respond to this command (except when the ‘remote control’ jumper on the relay card is set to ‘off’). Press ‘shift’ to leave the set-up mode. Setup8
