Product type	Remote control for LED strips
Brand	Velleman
Model	LEDC06
Dimensions	15 x 5 x 2 cm
Weight	50 g (with battery)
Power supply	1 CR2032 battery (included)
Range	Up to 10 m
Radio frequency	2.4 GHz
Main functions	On/off, dimming, color change, dynamic modes (strobe, fade, etc.), timer
Number of zones	1 zone
Care and cleaning	Clean with a dry, soft cloth. Do not use chemicals.
Safety	Do not expose to humidity, extreme temperatures, or direct sunlight. Keep out of reach of children.
Spare parts and repairability	Replaceable battery (CR2032). Device not user-repairable. In case of malfunction, contact customer service.
Warranty	2 years
Color	Black

Frequently Asked Questions - LEDC06 VELLEMAN

How to pair the remote control with my LED strip?

Insert the CR2032 battery into the remote. Power on the LED strip. Press the 'Pair' button or hold the 'ON' button for 3 seconds until the LED strip flashes. The remote is then paired.

What type of battery does the LEDC06 remote use?

It uses a CR2032 battery (3V lithium). Remove the insulating tab before first use.

The remote no longer works, what to do?

First check the battery: replace it if necessary. Make sure the LED strip is powered on and within range (max 10 m). If the problem persists, reset the remote by removing the battery for 10 seconds and then reinserting it.

What is the maximum range of the remote?

The range is approximately 10 meters in open field. Obstacles (walls, furniture) may reduce this distance.

Can I use this remote with other brands of LED strips?

The LEDC06 remote is designed for compatible Velleman LED strips. It uses a proprietary 2.4 GHz RF protocol. It may not work with other brands.

How to change the color of the LED strip?

Use the color buttons (red, green, blue, etc.) or the 'Mode' button to scroll through preset colors. You can also use the brightness adjustment to vary the intensity.

Is there a timer function?

Yes, the remote has a timer. Press the 'Timer' button to set a duration (e.g., 30 min, 1 h, 2 h). The LED strip will automatically turn off after that time.

Is the remote compatible with RGB or RGBW LED strips?

It is compatible with Velleman LEDC series RGB (Red, Green, Blue) and RGBW (Red, Green, Blue, White) LED strips. Check your strip's reference.

How to clean the remote?

Use a soft, dry cloth. Never use solvents, alcohol, or abrasive products. Avoid any contact with water.

What to do if the remote no longer responds after a fall?

Check that the battery has not been dislodged. If the remote is damaged, it must be replaced as it is not repairable. Contact Velleman customer service.

USER MANUAL LEDC06 VELLEMAN

Display of colored and white electronic components including a control panel, connector, and remote control (no visible text or symbols)

USER MANUAL 4 GEBRUIKERSHANDLEIDING 8 MODE D'EMPLOI 12 MANUAL DEL USUARIO 16 BEDIENUNGSANLEITUNG 20

	1
	to LED strip
	naar ledstrip
	vers ruban LED
	hacia la cinta con LEDs
	zu LED-Leiste
	2
	IR LED
	infraroodled
	LED infrarouge
	LED infrarrojo
	IR-LED
	3
	power input
	voedingsingang
	entrée d'alimentation
	entrada de alimentación
	Netzeingang
	4

5

USER MANUAL

1. Introduction

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service.

Respect the local environmental rules. If in doubt, contact your local waste disposal authorities.

Thank you for choosing Vellight! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer.

2. Safety Instructions

Keep this device away from children and unauthorized users.

There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

• Keep this device away from dust and extreme temperatures.
• Protect this device from shocks and abuse. Avoid brute force when operating the device.
• Familiarise yourself with the functions of the device before actually using it.
  • All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the

warranty.

• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Keep this manual for future reference.

4. Operation

Refer to the illustrations on page 2–3 of this manual.

Installation

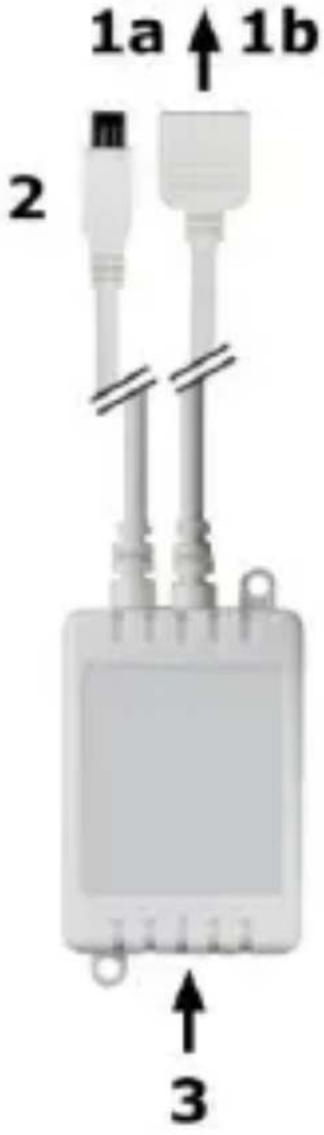

1. Plug the controller [1a] into the LED strip (not incl.). Make sure the arrows on the strip and controller are aligned.

Note: If the plug is not compatible with your LED strip, use the extension cable with the loose wire ends [1b] and connect it to your LED strip. Make sure the arrows on the extension cable and controller are aligned. Make sure to connect matching wire colours. Do not short-circuit any wires.

1. Connect the controller [3] to a suitable power adaptor (see Technical Specifications).

Use

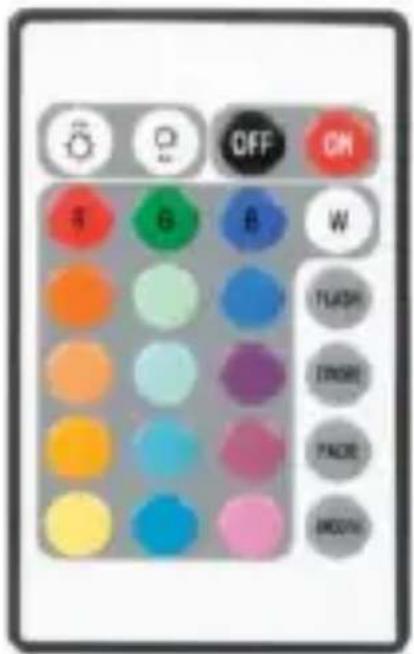

1. Aim the remote control [4,5] towards the IR LED [2] of the controller to control the output of the LED strip.

2. LEDC06: Switch the LED strip on with the ON button on the remote control. To switch it off again, press the OFF button.

LEDC07: Switch the LED strip on or off with the button on the remote control.

1. Select the desired light output colour by pressing the corresponding colour button on the remote control.

Note: (LEDC07 model) If you want a different colour, you can define your own using the DIY buttons. For more information, see further in this manual.

1. To increase or decrease output brightness, press the Ⓞ or ⏻ button.

2. Press the effect buttons to generate different effects.

LEDC06 effects:

Button	Effect
FLASH	7 colours switching
STROBE	gradual change
FADE	7 colours gradually changing
SMOOTH	red, green, blue colours switching

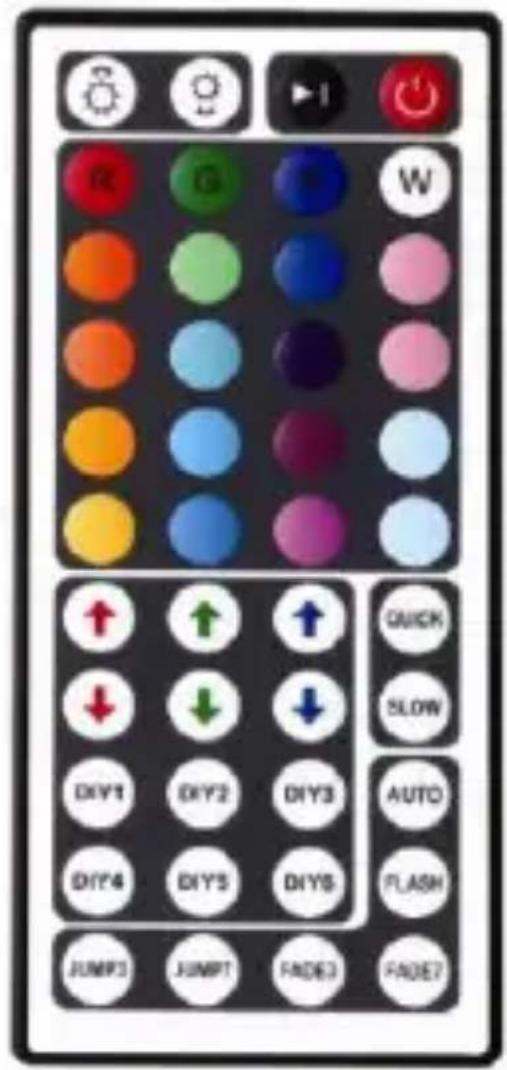

LEDC07 effects:

1. Press the effect buttons to generate different effects: Auto, Flash, Jump3 (3 colours switching), Jump7 (7 colours switching), Fade3 (3 colours fading), Fade7 (7 colours fading).
2. To increase the speed of the effects, press Quick. To decrease the speed, press Slow.
3. To pause the effect, press the button. Press the button again to restart.

LEDC07: Creating Custom Colours

You can define and store up to 6 custom colours using the DIY1-6 buttons. When you press the DIY button, the LED strip will change to your custom colour. For example, to store a colour for button DIY1:

1. Press DIY1.
2. Use the coloured and buttons to mix your own colour.
3. Press DIY1 again to store the colour. The LED strip blinks once if the colour is stored correctly.

5. Battery

Refer to the illustration on page 3 of this manual. The remote control uses 1 battery type 3 V lithium CR2025 (included).

1. To (re)place the battery, press on the side of the battery cover [6] and pull [7] to slide it open.
2. Insert the battery with the correct polarity and close the battery compartment by pushing it back into the housing of the remote control until it snaps into place.

Warning: Do not puncture batteries or throw them in fire as they may explode. Do not to recharge non-rechargeable batteries

(alkaline). Dispose of batteries in accordance with local regulations. Keep batteries away from children.

6. Technical Specifications

• input voltage: 12-24 VDC
Output current of power supply must not exceed 6 A. Suitable power supplies: 70 W / 12 V or 140 W / 24 V. The output voltage must be equal to the rated voltage of the LED strip.
• maximum load: 3 x 2 A
• PWM frequency: ± 500 Hz
- dimensions: controller 50 x 35 x 22 mm; IR remote control: LEDC06 85 x 51 x 7 mm, LEDC07 125 x 56 x 7 mm
• weight: controller ± 30 g; IR remote control: LEDC06 ± 19 g, LEDC07 ± 35 g
- power supply: remote control 3 V lithium CR2025 battery, incl.

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE – The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

GEBRUIKERSHANDLEIDING

1. Inleiding

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries. All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally); - damage resulting from an inappropriate packing and shipping of the article;

- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

• Repairs occurring after warranty expiration are subject to shipping costs.
- The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
