RATIO - Wireless thermometer

Thank you for choosing this instrument from TFA.

1. Before you start using it

• Please make sure to read the instruction manual carefully. This information will help you to familiarise yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it, and to get advice in the event of faults
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
• We shall not be liable for any damage occurring as a result of not following these instructions. Likewise, we take no responsibility for any incorrect readings and for any consequences which may result from them.
• Please take particular note of the safety advice!
• Please keep this manual for future reference.

2. Delivery contents

• Wireless thermometer (base station)
  Transmitter Cat.-Nr.30.3163
• Instruction manual

3. Field of operation and all the benefits of your new instrument at a glance

• Outdoor temperature wireless (433 MHz), distance range up to 100 m (free field)
• Expandable up to 3 outdoor transmitters, also for the temperature control of remote rooms, e.g. children's room, wine-cellar
• Indoor temperature
  Maximum and minimum values
• Radio-controlled clock with alarm
• For wall mounting or table standing

4. For your safety

• This product is exclusively intended for the field of application described above. It should only be used as described in your instruction manual.

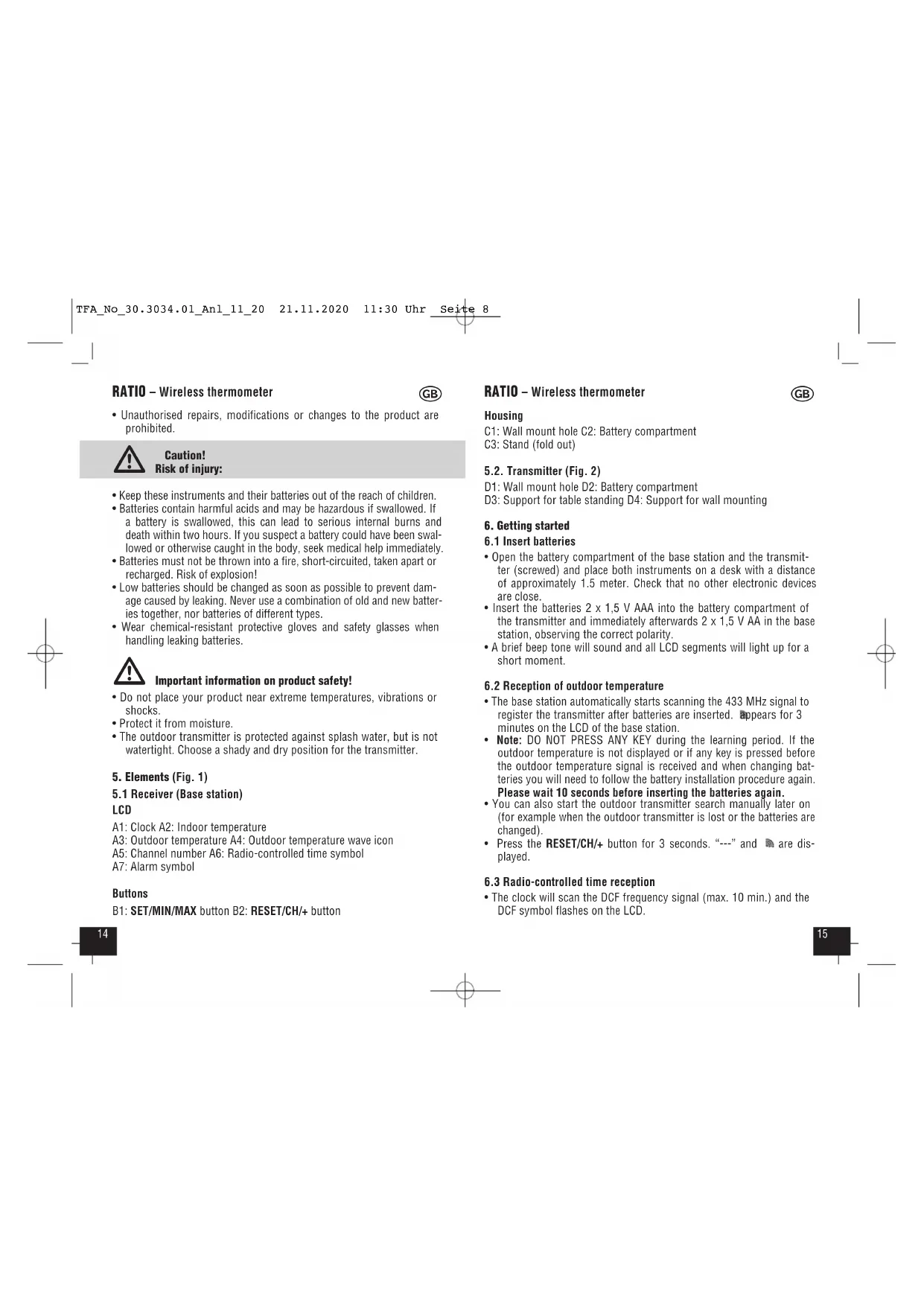

RATIO - Wireless thermometer

• Unauthorised repairs, modifications or changes to the product are prohibited.

Caution! Risk of injury:

• Keep these instruments and their batteries out of the reach of children.
• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types.
• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important information on product safety!

• Do not place your product near extreme temperatures, vibrations or shocks.
• Protect it from moisture.
• The outdoor transmitter is protected against splash water, but is not watertight. Choose a shady and dry position for the transmitter.

5. Elements (Fig. 1)

5.1 Receiver (Base station)

LCD

A1: Clock A2: Indoor temperature
A3: Outdoor temperature A4: Outdoor temperature wave icon
A5: Channel number A6: Radio-controlled time symbol
A7: Alarm symbol

Buttons

B1: SET/MIN/MAX button B2: RESET/CH/+ button

RATIO - Wireless thermometer

Housing

C1: Wall mount hole C2: Battery compartment
C3: Stand (fold out)

5.2. Transmitter (Fig. 2)

D1: Wall mount hole D2: Battery compartment
D3: Support for table standing D4: Support for wall mounting

6. Getting started

6.1 Insert batteries

• Open the battery compartment of the base station and the transmitter (screwed) and place both instruments on a desk with a distance of approximately 1.5 meter. Check that no other electronic devices are close.
• Insert the batteries 2 × 1,5V AAA into the battery compartment of the transmitter and immediately afterwards 2 × 1,5V AA in the base station, observing the correct polarity.
• A brief beep tone will sound and all LCD segments will light up for a short moment.

6.2 Reception of outdoor temperature

• The base station automatically starts scanning the 433 MHz signal to register the transmitter after batteries are inserted. Appears for 3 minutes on the LCD of the base station.
• Note: DO NOT PRESS ANY KEY during the learning period. If the outdoor temperature is not displayed or if any key is pressed before the outdoor temperature signal is received and when changing batteries you will need to follow the battery installation procedure again. Please wait 10 seconds before inserting the batteries again.
• You can also start the outdoor transmitter search manually later on (for example when the outdoor transmitter is lost or the batteries are changed).
• Press the RESET/CH/+ button for 3 seconds. "---" and are displayed.

6.3 Radio-controlled time reception

The clock will scan the DCF frequency signal (max. 10 min.) and the DCF symbol flashes on the LCD.

RATIO - Wireless thermometer

• When the signal is received successfully, the radio-controlled time and the DCF symbol appear permanently.
• If the reception fails, scanning stops and will be repeated every hour.
• The time base for the radio-controlled time is a Caesium Atomic Clock operated by the Physikalisch Technische Bundesanstalt Braunschweig which has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio-controlled clock receives this signal and converts it to show the precise time in summer or wintertime. The quality of the reception depends greatly on the geographic location. In normal cases, there should be no reception problems within a 1,500 km radius around Frankfurt.

Please take note of the following:

The recommended distance from any interfering sources like computer monitors or TV sets is a minimum of 1.5 - 2 metres.
- Within ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened. In extreme cases, please place the base station close to a window and/or point its front or back towards the Frankfurt transmitter.
- During night-time, the atmospheric disturbances are usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second.
- In case the clock cannot detect the DCF-signal (for example due to disturbances, transmitting distance, etc.), the time can be set manually. The clock will then work as a normal quartz clock.

6.4 Manual setting

• Press the SET/MIN/MAX button for 3 seconds. "On" appears on the display. The DCF time is activated. To turn off the DCF time, press the RESET/CH/+ button. "Off" appears on the display. Confirm with the SET/MIN/MAX button.
• "1" (1 = default = DCF time) starts flashing. Using the RESET/CH/+ button you can set the time zone (+12/-12). The time zone is used for the countries where the DCF signal can be received but the time zone is different from the DCF time (e.g. 2=one hour later).

RATIO - Wireless thermometer

• Press the SET/MIN/MAX button again. The 24 h digit is flashing. Press the RESET/CH/+ button to choose 12 HR or 24 HR system. Confirm with the SET/MIN/MAX button.
• The minute digit is flashing. Press the RESET/CH/+ button to adjust minutes. Confirm with the SET/MIN/MAX button. Set hours in the same way.
• Press the SET/MIN/MAX button again and with the RESET/CH/+ button you can change between ^ C or ^ F as temperature unit.
• Press the SET/MIN/MAX button again.
• Press and hold the RESET/CH/+ button in setting mode and you will enter fast mode.
• If DCF reception is on, the manually set time will be overwritten by the DCF time when the signal is received successfully.

6.5 Alarm setting

• Press the SET/MIN/MAX button in normal mode.
  12:00 (default) is displayed or the last adjusted alarm time.
• Press and hold the SET/MIN/MAX button for three seconds.
  The minute digit is flashing. Press RESET/CH/+ button to adjust minutes.
• Press the SET/MIN/MAX button again and you can adjust the hours with the RESET/CH/+ button.
• Holding the RESET/CH/+ button, you will enter fast mode.
• Confirm with the SET/MIN/MAX button and the display shows the current adjusted alarm time.
• Press the RESET/CH/+ button and the alarm function is activated.
  The alarm symbol appears on the display.
• Press any button to stop the alarm.

7. Maximum/Minimum function

• Press the SET/MIN/MAX button in normal mode.
  The last adjusted alarm time appears on the display.
• Press the SET/MIN/MAX button again to show the minimum ("MIN") values of indoor and outdoor temperature. Press the SET/MIN/MAX button again to show maximum ("MAX") values.
• Press and hold the RESET/CH/+ button for 2 seconds while the maximum or minimum values are displayed to clear the recorded maximum readings.

RATIO - Wireless thermometer

8. Additional transmitters

• If you like to connect additional transmitters (max. 3), repeat the installation procedure for all extra transmitters. The wireless thermometer will number the transmitters in the order of set-up automatically.
• If you have installed more than one transmitter, press the RESET/CH/+ button to change between the outdoor transmitters. Display for channel 1 channel 2 or f channel 3.

9. Positioning of base station and transmitter

• Choose a shady and dry position for the transmitter. (Direct sunshine falsifies the measurement and continuous humidity strains the electronic components needlessly).
• Place the base station at the final position. Avoid the vicinity of any interfering field like computer monitors or TV sets and solid metal objects.
• Check the transmission of the signal from the transmitter to the base station (transmission range 100m free field, within ferro-concrete rooms, especially with metal parts, the received signal is naturally weakened).
  If necessary choose another position for transmitter and/or base station.
• Use the bracket stand for mounting or standing when the signal is received successfully.

10. Care and maintenance

• Clean the instruments with a soft damp cloth. Do not use solvents or scouring agents.
• Remove the batteries if you do not use the products for a lengthy period.
• Keep the instruments in a dry place.

10.1 Battery replacement

• When the batteries are used up, the low battery indicator appears on the display (RX = base station, TX = transmitter).
• Please note: When the batteries are changed, the contact between transmitter and base station must be restored - so always insert new batteries into both units or start a manual transmitter search.

RATIO - Wireless thermometer

11. Troubleshooting

Problems Solution

No indication Ensure correct battery polarity
Change the batteries

No transmitter reception Start the transmitter search manually Display "---" according to the manual

Check batteries of external transmitter (do not use rechargeable batteries!)
Restart the transmitter and the base station according to the manual
Choose another place for the transmitter and/or the base station
Reduce the distance between the transmitter and the base station
Check if there is any source of interference

No DCF reception Wait for attempted reception during the night

Choose another place for the instrument
Check if there is any source of interference
Restart the device according to the manual
Set the clock manually

Incorrect indication Change the batteries

12. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries in household waste. As a consumer, you are legally required to take them to your retail store or to appropriate collection sites depending on national or local regulations in order to protect the environment.

RATIO - Wireless thermometer

GB

The symbols for the heavy metals contained are: Cd=cadmium, Hg=mercury, Pb=lead

This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

13. Specifications

Base station:

Measuring range

Indoor temperature: 0...+60°C (+32...+140°F)

Precision: ± 1^

Power consumption: 2 × 1.5 ~V AA

(Batteries not included) Use alkaline batteries

Dimensions: 68 × 29 (78) x 113 mm

Weight: 86 g (instrument only)

Outdoor transmitter:

Measuring range

Outdoor temperature: -40...+65°C (-40...+149°F)

Precision: ±1°C

Transmission frequency: 433 MHz

Maximum radio-frequency power: < 10mW

Distance range (free field): 100m

RATIO - Wireless thermometer

GB

Power consumption: 2 × 1.5 ~V AAA

(Batteries not included) Use alkaline batteries

Dimensions: 36 (46) x 16 (30) x 120 (123) mm

Weight: 33g (instrument only)

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.

The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.

EU declaration of conformity

Hereby, TFA Dostmann declares that the radio equipment type 30.3034.01 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address:

www.tfa-dostmann.de/service/downloads/ce

www.fta-dostmann.de

E-Mail: [e-mail]
