USER MANUAL 30.3057.01 TFA

Important information on product safety!

• Do not expose your device to extreme temperatures, vibrations or shocks.

• Protect it from moisture.

• The transmitters are protected against splash water, but are not watertight. Should you decide to use the transmitters in the outdoor area, choose a shady and dry place for the transmitters.

5.1 Base station (Receiver)

D: Buttons: D 1: Channel search switch D 2: TX-button E: Housing: E 1: LED signal lamp E 2: Battery compartment E 3: Wall mount hole Thank you for choosing this instrument from TFA.

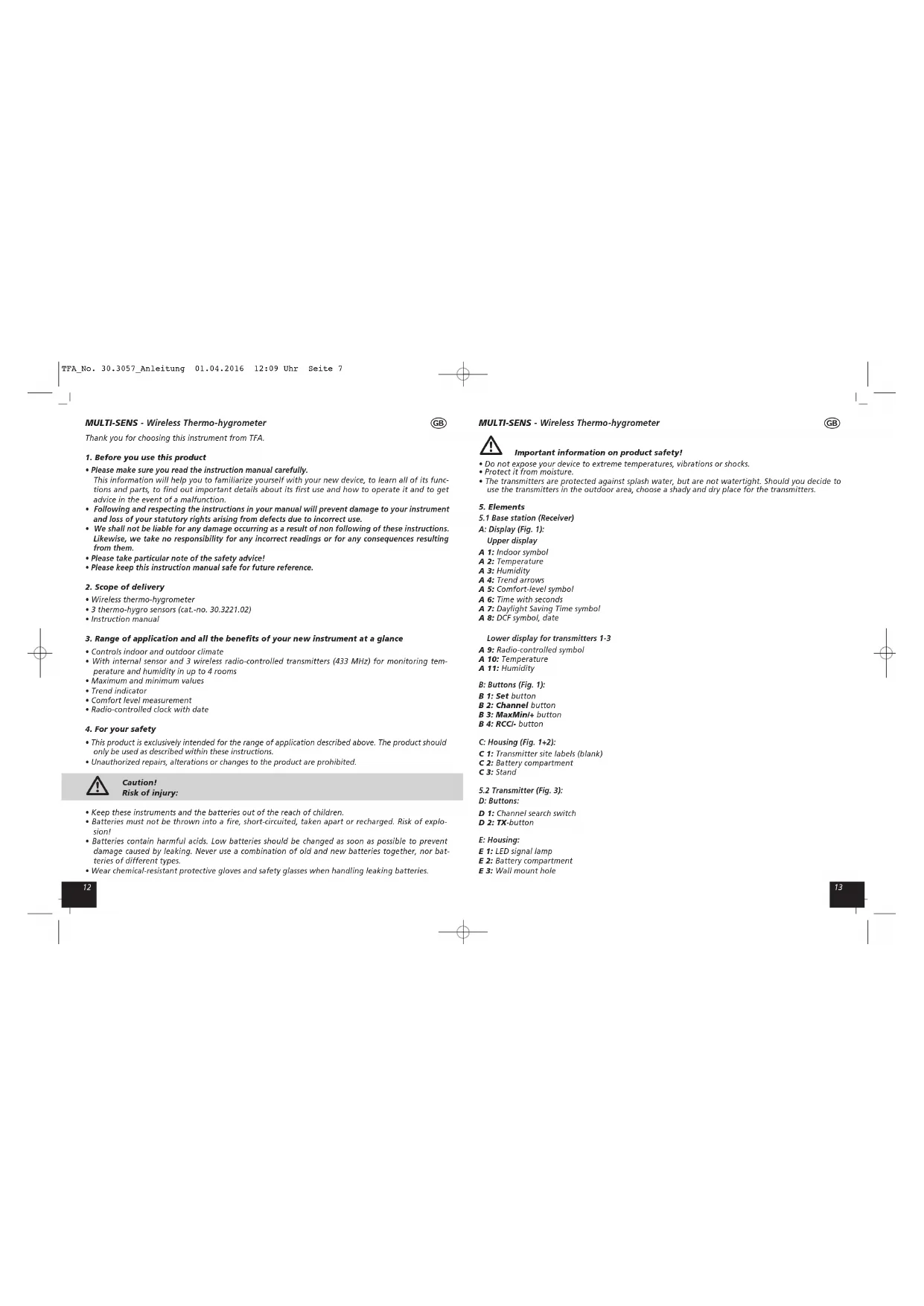

1. Before you use this product

• Please make sure you read the instruction manual carefully. This information will help you to familiarize yourself with your new device, to learn all of its func- tions and parts, to find out important details about its first use and how to operate it and to get advice in the event of a malfunction.

• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.

• We shall not be liable for any damage occurring as a result of non following of these instructions. Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them.

• Please take particular note of the safety advice!

• Please keep this instruction manual safe for future reference.

2. Scope of delivery

3. Range of application and all the benefits of your new instrument at a glance

• Controls indoor and outdoor climate

• With internal sensor and 3 wireless radio-controlled transmitters (433 MHz) for monitoring tem- perature and humidity in up to 4 rooms

• Comfort level measurement

• Radio-controlled clock with date

• This product is exclusively intended for the range of application described above. The product should only be used as described within these instructions.

• Unauthorized repairs, alterations or changes to the product are prohibited. Caution!

• Keep these instruments and the batteries out of the reach of children.

• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explo- sion!

• Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor bat- teries of different types.

7. Note on radio-controlled time

The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt Braunschweig. It has a time deviation of less than one second in one mil- lion years. The time is coded and transmitted from Mainflingen near Frankfurt via the frequency sig- nal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. The adjustment to Daylight Saving Time (summer/winter time) is automatic. In Daylight Saving Time the DST symbol is shown on the display. The reception quality depends mainly on geographic location. Normally there should be no reception problems within a 1,500 km radius around Frankfurt. Therefore, please note the following steps:

The recommended distance to any interfering sources like computer screens or TV sets is at least

Within concrete walls (reinforced with steel) such as basements, the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve reception.

During night-time, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second.

• Important: a button operation is not possible during the reception of the transmitters signal or of the radio-controlled time signal.

Press and hold the MaxMin/+ or RCC/- button in the respective setting mode for fast setting.

The device will automatically quit the setting mode if no button is pressed for 20 seconds.

Press and hold the Set button in normal mode.

dcF appears on the display and on (default) will be flashing.

Press the MaxMin/+ or RCC/- button to deactivate (OFF) or activate (on) the DCF time reception.

Once the DCF time reception is deactivated, the clock must be manually set.

Press the Set button to do the settings in the following sequence: Time zone (0 - default), the 12 or 24-hour system (24hr - default), the hours, the minutes, the year, the month, the day and the temperature display (°C - default), Press the MaxMin/+ or RCC/- button to adjust it.

Confirm with the Set button.

Once the DCF time signal is successfully received, the manually set time is overwritten, if the DCF reception is activated.

In the setting mode you can make the time zone correction (-12/+12).

The time zone correction is needed for countries where the DCF signal can be received but the time zone is different from the DCF time (e.g. +1=one hour plus).

8.1.2 12/24-hour display setting

• Press the MaxMin/+ or RCC/- button in the setting mode to choose between the 12 or 24-hour sys- tem.

In the 12-hour system AM or PM (after 12 o'clock) appears on the display as well as the American date format (month first, then the day).

Press the MaxMin/+ or RCC/- button in the setting mode to select the temperature display in °C (Celsius) or °F (Fahrenheit) as temperature unit.

• Place the instruments on a desk with a distance of approximately 1.5 meters. Avoid being close to possible sources of interference such as electronic devices and radio installations.

1. Open the battery compartment of the first transmitter.

2. Set the switch to the channel 1 position.

3. Insert two new AA 1,5 V batteries, polarity as illustrated.

4. Close the battery compartment carefully.

• Repeat steps 1-4 for the other two transmitters. Select different channels for each sensor with the switch.

• Open the battery compartment of the base station and insert two new AA 1.5V batteries, polarity as illustrated.

• All segments will be displayed briefly.

• Close the battery compartment again.

6.1.1 Transmitters' reception

• After the batteries are inserted the base station will automatically receive the measured values. The reception symbol will be flashing on the display.

• If the reception of the measured values fails, “- -” appears on the display. Check the batteries and try it again. Check if there is any source of interference.

• As soon as the base station receives the radio-controlled time, you can start the transmitters man- ual initialization. Choose the respective transmitter by pressing the Channel button. Press and hold the Channel button for four seconds. The base station tries to receive the measured values.

• For testing, or in case of transmitter signal loss, press the TX button to transmit the measured val- ues manually.

6.2 Radio-controlled time reception

• After the base station has completed searching for the transmitters, the device starts scanning the DCF signal and the DCF reception symbol will be flashing.

• When the time code is successfully received after 2-10 minutes, the radio-controlled time, the date, the DST (if applicable) and the DCF symbols will be shown steadily on the display.

• The DCF reception always takes place hourly between 1:00 and 5:00 o'clock in the morning. If the reception is not successfully received until 5:00 o'clock, the next DCF reception attempt will hap- pen at 1:00 o'clock in the following morning.

• There are three different reception symbols: flashing - reception is active solid - reception is very good No symbol - no reception / set the clock manually

• If the clock cannot detect the DCF-signal (e.g. due to interference, transmitting distance, etc.), the time can be set manually. The DCF reception symbol disappears and the clock will then work as a normal quartz clock (see: Manual settings). TFA_No. 30.3057_Anleitung 01.04.2016 12:09 Uhr Seite 81716 MULTI-SENS - Wireless Thermo-hygrometer

• Change the batteries of the base station, when the battery symbol appears on the display of the indoor values.

• Please note: When the batteries are changed, the contact between transmitter and base station must be restored – so always start a manual transmitter search or make a restart according to the manual.

Problems Solution No indication ➜ Ensure the batteries polarity are correct at the base station ➜ Change the batteries No DCF reception ➜ Activate DCF reception in the setting mode ➜ Wait for an attempt reception during the night ➜ Choose another place for the base station ➜ Set the clock manually ➜ Check if there is any source of interference. ➜ Restart the base station according to the manual No transmitter reception ➜ No transmitter installed Display “---” ➜ Check batteries of transmitter (do not use rechargeable batteries!) ➜ Restart the transmitter and the base station according to the manual ➜ Search the transmitter manually according to the instruction manual ➜ Choose another place for the transmitter and/or the base station ➜ Reduce the distance between the transmitter and the base station ➜ Check if there is any source of interference. Incorrect indication ➜ Change the batteries If your device fails to work despite these measures contact the retailer where you purchased the product

This product has been manufactured using high-grade materials and components which can be recy- cled and reused. Never dispose of empty batteries and rechargeable batteries with ordinary household waste. As a consumer, you are required by law to take them to your retail store or to an appro- priate collection site depending on national or local regulations in order to protect the environment. The symbols for the contained heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead This product is labelled in accordance with the EU Waste Electrical and Electronic Equip- ment Directive (WEEE). Please do not dispose of this product in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

The trend arrows indicate whether the temperature and humidity values are currently increasing or decreasing. If the arrows are steady, there is no change.

8.3 Maximum/Minimum function

• Press the MaxMin/+ button in normal mode.

• appears on the display.

• The maximum values measured since the last reset appear on the display.

• Press the MaxMin/+ button again.

• appears on the display.

• The minimum values measured since the last reset appear on the display.

• When the maximum or the minimum values are displayed, press and hold the MaxMin/+ button for four seconds to reset the corresponding values.

• Press the MaxMin/+ button again to return to normal mode.

When the temperature is between 19 °C and 25 °C and the humidity between 40% and 60% (com- fort level range) a smiling face appears on the display. If the values are outside this range, a sad face appears instead.

9. Positioning and mounting of the base station and the transmitters

• Place the base station at the final position. Avoid the vicinity of any source of interference such as computer screens, TV sets or solid metal objects.

• The transmitter can be wall mounted (mounting hole at the back). When placed outdoors, choose a shady and dry place for the transmitter. Direct sunlight may trigger incorrect measurement and continuous humidity strains the electronic components needlessly.

• Once the desired location is chosen, check if the transmission from transmitters to the base station is possible (transmission range of up to 80m in open areas), within solid walls, especially with metal parts, the transmission range can be considerably reduced.

• If necessary choose another position for the transmitter and/or base station.

10. Transmitter sites labelling

• You can name the three sites on the base station display once the transmitters 1-3 have been per- manently installed at the desired location. Please use a correctable pen (e.g.: Staedtler Lumocolor correctable pen).

11. Care and maintenance

• Clean the devices with a soft damp cloth. Do not use solvents or scouring agents.

• Remove the batteries if you do not use the devices for a long period of time.

• Keep the devices in a dry place.

11.1 Battery replacement

Measuring range Indoor temperature 0 °C… 50°C (+32 °F …+122 °F) Indoor humidity 1% to 99% rH Temperature (transmitter) -40 °C… 60 °C (-40 °F …140 °F) Accuracy temperature ±1°C @ 0..50°C Resolution temperature 0.1°C Humidity (transmitter) 1% to 99% rH Accuracy humidity ±5% rH (@ 30 … 80% rH) Resolution humidity 1% rH Indication: LL.L / HH.H Temperature is outside measuring range Range max. 80 m (open area) Transmission frequency 433 MHz Transmission time approx. every 50 seconds Power consumption: Base station: 2 x AA 1,5 V batteries (not included) 3 transmitters: 2 x AA 1,5 V batteries each (not included) Transmitter (dimension and weight) 40 x 21 x 130 mm, 47 g Base station (dimension and weight) 157 x 42 x 120 mm, 210 g (device only) TFA Dostmann GmbH & Co.KG, Zum Ottersberg 12, D-97877 Wertheim. No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are cor- rect at the time of going to print and may change without prior notice. The latest technical data and information about your product can be found by entering your product number on our homepage.

DECLARATION OF CONFORMITY
