Product type	Radio-controlled thermo-hygrometer
Brand	TFA
Model	30.3060.01
Base station dimensions	128 x 32 x 128 mm (L x H x D); total height with stand 58 mm
Base station weight	217 g (device only)
Transmitter dimensions	44 x 24 x 160 mm (L x H x D); with stand 76 x 56 x 165 mm
Transmitter weight	74 g (device only)
Base station power supply	3 x 1.5 V AA batteries (not included)
Transmitter power supply	2 x 1.5 V AA batteries per transmitter (not included)
Indoor temperature measurement range	-10 °C to +60 °C (14 °F to 140 °F)
Outdoor temperature measurement range	-40 °C to +60 °C (-40 °F to 140 °F)
Humidity measurement range	1% to 99%
Temperature accuracy	±1 °C
Humidity accuracy	±3% RH (between 35% and 75% RH)
Transmission frequency	868 MHz
Radio range	Approximately 100 m in open field
Main functions	Indoor temperature and humidity measurement + 3 outdoor channels; DCF radio-controlled clock; min/max values; comfort level; optional WeatherHub connection
Display	LCD with time, date, temperatures, humidities, DCF symbol and comfort level
Maintenance and cleaning	Clean with a soft, damp cloth. Do not use solvents or abrasive products.
Safety	Keep out of reach of children. Do not expose to extreme temperatures, shocks or excessive humidity. Observe battery polarity.
Spare parts and repairability	User-replaceable batteries. No other spare parts supplied. Do not disassemble or repair yourself.
Included accessories	3 transmitters (ref. 30.3180 IT), instruction manual, 2 site labels
General information	Compliant with R&TTE directive 1999/5/EC. Manufacturer: TFA Dostmann GmbH & Co. KG.

Frequently Asked Questions - 30.3060.01 TFA

How to install batteries in the base station and transmitters?

For the base station, open the battery compartment and insert 3 AA batteries observing polarity. For each transmitter, open the screw-in compartment and insert 2 AA batteries. Close carefully.

How to synchronize the radio-controlled time (DCF)?

After powering on, the base station automatically searches for the DCF signal. The reception symbol flashes during the search. If reception succeeds within 5-8 minutes, the exact time is displayed. Reception occurs automatically between 1:00 and 5:00 AM. You can manually activate reception by holding down the CH button.

What to do if the screen shows nothing?

Check that the batteries are inserted correctly (polarity + and -). If the problem persists, replace the batteries with new ones. If the display remains blank, contact the seller.

How to display the maximum and minimum values?

Press the + button to display the maximum values. Press the - button for the minimum values. To reset, hold down the button for 3 seconds. Press + or - again to return to normal mode.

How to change the temperature unit from °C to °F?

Hold down the SET button in normal mode. Use the + or - buttons to cycle through settings until the temperature display appears. Select °C or °F with the + or - buttons, then confirm with SET.

How to connect the base station to WeatherHub?

Make sure WeatherHub reception is enabled in settings (symbol displayed). Open the WeatherHub app, press Add New Sensor and scan the QR code on the back of the base station. For more details, see www.tfa-dostmann.de/weatherhub.

What is the maximum range of the transmitters?

The range is approximately 100 meters in open field. Thick walls, especially with metal parts, can reduce the range. Keep the transmitter and base station at least 1.5 m away from electronic devices.

What does the smiley face on the screen mean?

The smiley indicates the comfort level. A smiling face appears if the temperature is between 19°C and 25°C and humidity between 40% and 60%. Otherwise, a sad face is displayed.

How to clean the thermo-hygrometer?

Use a soft, damp cloth to clean the device. Never use solvents, abrasive products or chemical cleaners. Do not immerse the device in water.

What to do in case of failed reception of transmitters or DCF signal?

Check the batteries of the transmitters and the base station. Move the devices away from sources of interference (TVs, computers). Try moving the transmitter closer to the base station. For the DCF signal, place the base station near a window. You can also set the time manually by disabling radio reception in the settings.

USER MANUAL 30.3060.01 TFA

C2 AA Mignon uouSiM A A AA Mignon C3 C4

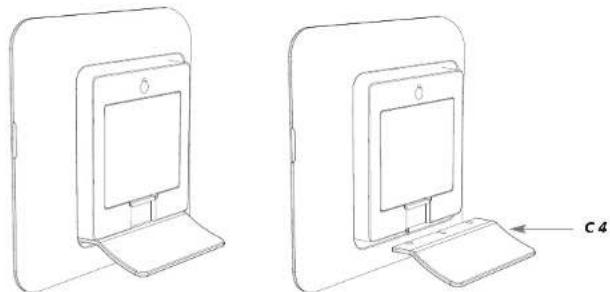

Two technical line drawings of a device with labeled component 'C4' (no text or symbols beyond label)

D 1 E 2 E 1 E 2 E 3

KLIMA@HOME - Funk-Thermo-Hygrometer

KLIMA@HOME - Wireless thermo-hygrometer

GB

Thank you for choosing this instrument from TFA.

1. Before you start using it

• Please make sure to read the instruction manual carefully.
• This information will help you to familiarise yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it and to get advice in the event of a malfunction.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
• We shall not be liable for any damage occurring as a result of non following of these instructions. Likewise, we take no responsibility for any incorrect readings and for any consequences which may result from them.
• Please take particular note of the safety advice!
• Please keep this instruction manual for future reference.

2. Scope of delivery

• Wireless Thermo-Hygrometer
• Three transmitters (Cat.-Nr. 30.3180.IT)
• Instruction manual
- Two strips for individual labeling of the transmitter sites

3. Field of operation and all the benefits of your new instrument at a glance

• For the control of indoor and outdoor climate
• With internal sensor and 3 wireless radio-controlled transmitters for monitoring temperature and humidity in up to 4 rooms
  • Maximum and minimum values
• Comfort level
  • Radio-controlled clock with date
• Individual labeling of the transmitter sites
• Connection with WEATHERHUB gateway possible

4. For your safety

• This product is exclusively intended for the field of application described above. It should only be used as described within these instructions.
• Unauthorized repairs, modifications or changes to the product are prohibited.

Caution! Risk of injury:

• Keep these instruments and the batteries out of the reach of children.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by leaking.
• Never use a combination of old and new batteries together, nor batteries of different types.
• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

KLIMA@HOME - Wireless thermo-hygrometer

Important information on product safety!

• Do not place your device near extreme temperatures, vibrations or shocks.
• Protect it from moisture.
• The transmitters are protected against splash water, but they are not watertight. Would you like to use the transmitters in the outdoor area, choose a shady and dry position for the transmitters.

5. Elements

5.1 Basic station (Receiver)

A: Display (Fig. 1):

Upper display

A 1: Symbol for indoors
A 2: Indoor temperature
A 3: Humidity
A 4: WeatherHub symbol
A 5: Comfort level symbol
A 6: Time with seconds
A 7: DCF symbol, date

Display below for transmitter 1-3

A 8: Transmitter reception symbol
A 9: Temperature and humidity

B: Buttons (Fig. 1):

B 1: SET button
B 2: + button
B 3: - button
B 4: CH button

C: Housing (Fig. 1+2):

C 1: Strip for labeling the transmitter sites
C 2: Wall hanging hole
C 3: Battery compartment
C 4: Stand (removable)

5.2 Transmitter (Fig. 3):

D: Display

D 1: Temperature and humidity in sequence

E: Housing:

E 1: Battery compartment (screwed)
E 2: Device for wall mounting or table standing

E 3: Serial number (printed on the back)

KLIMA@HOME - Wireless thermo-hygrometer

6. Getting started

6.1 Insert the batteries

- Place the instruments on a desk with a distance of approximately 1.5 meter. Avoid getting close to possible interference sources (Electronic devices and radio installations).

1. Open the screwed battery compartment of the first transmitter.
2. Insert two new batteries 1,5 V AA, polarity as illustrated.
3. On the display appear the measured temperature and humidity in sequence.
4. Close the battery compartment carefully.

- Repeat step 1-4 to install the other two transmitters.

• Open the battery compartment of the basic station and insert three new batteries 1.5 V AA, polarity
  as illustrated.
• All LCD segments will be displayed briefly.
• Close the battery compartment again.

6.1.1 Reception of the transmitters

• After the batteries are inserted the transmitters will automatically transmit the measured values. The radio controlled symbol will be flashing on the lower display.
- Each transmitter has its own serial number (four digits, alphanumeric), printed on the backside. The serial number appears briefly on the display after inserting the batteries. As soon as the basic station has received the transmitter, on the display of the basic station also appears briefly this serial number.
- If the reception of the measured values fails, “--” appears on the display. Check the batteries and try it again. Check if there is any source of interference.
- As soon as the basic station received the radio-controlled time, you can start the initialization manually. Choose the respective transmitter by pressing the CH button on the basic station Press and hold the CH button for three seconds. The basic station tries to receive the measured values.

6.2 Reception of the DCF frequency signal

• After the main device has searched for the transmitters, the device begins to search the DCF signal (radio controlled clock signal) and the DCF reception symbol will be flashing.
• When the time code is received successfully after 5-8 minutes, the radio-controlled time, the date and the DCF symbol are displayed steadily in the display.
• The DCF reception always takes place hourly between 1:00 and 5:00 o'clock in the morning. If the reception is not successfully received until 5:00 o'clock, the next receive operation is again at 1:00 o'clock in the morning.
  • There are three different reception symbols:

flashing - reception is active

stays - reception is very good

No symbol - no reception / manual time set

- If the clock cannot detect the DCF-signal (for example due to disturbances, transmitting distance, etc.), the time can be set manually. The DCF symbol disappears and the clock will then work as a normal quartz clock. (see: Manual settings).

KLIMA@HOME - Wireless thermo-hygrometer

GB

7. Note for radio-controlled time DCF

The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt Braunschweig. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio-controlled clock receives this signal and converts it to show the precise time. Changeover from summer time or winter time is automatic. The quality of the reception depends mainly on the geographic location. The quality of the reception depends mainly on the geographic location. Normally there should be no reception problems within a 1,500 km radius around Frankfurt.

Please take note of the following:

• The recommended distance to any interfering sources like computer monitors or TV sets is at least 1.5 - 2 meters.
• Inside ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve the reception.
• During night-time, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second.

8. Operation

• Important: During the reception of the transmitters or of the radio-controlled time a button operation is not possible.
• Press and hold the + or - button in the respective setting mode for fast running.
• The device will automatically quit the setting mode if no button is pressed for 30 seconds.

8.1 Manual settings

• Press and hold SET button in normal mode.
  • LCD appears on the display and 4 (default) will be flashing.
• Press the + or - button to adjust the display contrast (0-7).
• Press the SET button to make the settings in the following sequence: Time zone (0 - default), the reception of the radio signal rCC (On - default), the 12 or 24 hours system (24hr - default), the temperature display ("C - default"), the possibility of the connection with WEATHERHUB tr (On - default), the hours, the minutes, the year, the month and the day. Press the - or + button to adjust it.
• Confirm with the SET button.
• By a successful reception of the DCF signal and if the DCF reception is activated, the manually set time will be overwritten.

8.1.1 Setting of the time zone

• In the setting mode you can make the time zone correction (-9/+9).
• The time zone correction is needed for countries where the DCF signal can be received but the time zone is different from the German time (e.g. +1=one hour later).

8.1.2 Setting of the reception of the radio signal

- Press the + or - button in the setting mode to deactivate or activate the DCF reception. You have to set the time manually, if the reception is deactivated.

8.1.3 Setting of the 12 and 24 hours display

• Press the + or -button in the setting mode to choose the 12 HR or 24 HR system.
• In the 12 HR system AM or PM (after 12 o'clock) appears on the display.

KLIMA@HOME - Wireless thermo-hygrometer

GB

8.1.4 Setting of the temperature display

- Press the + or - button in the setting mode to select temperature display in °C (Celsius) or °F (Fahrenheit) as the temperature unit.

8.2 Setting of the WeatherHub connection (only usable with a WeatherHub system)

- In the setting mode you can deactivate or activate the signal for the gateway connection with the + or - button.

- If the reception is activated the WeatherHub symbol appears on the display.

- You can now connect the basic station with the gateway of the WeatherHub system.

- Your data will be transmitted wirelessly through the gateway and the Internet directly to a server. From there, you can monitor all the values measured at your home with your smartphone.

- Open the WeatherHub app and the overview will be displayed. Tap "Add New Sensor" and scan the QR code on the back of the basic station.

- For more information and a detailed description, go to www.tfa-dostmann.de/weatherhub

8.3 Maximum/Minimum function

• Press the + button in normal mode.
  • A appears on the display.
• On the display appear the maximum measured values since the last reset.
• Press and hold the + button for three seconds, the values are deleted and reset to the actual values.
• Press the - button in normal mode.
  • V appears on the display.
• On the display appear the minimum measured values since the last reset.
• Press and hold the - button for three seconds, the values are deleted and reset to the actual values.
• Press the + or - button again to return to normal mode.

8.4 Comfort level

• Smiley Temperature Humidity
- If the temperature is between 19°C and 25°C and the humidity is between 40% and 60%, a smiling face symbol will appear on the display. Otherwise a sad face appears on the display.

$$ ⓧ + 1 9 ^ {\circ} C \dots + 2 5 ^ {\circ} C 4 0 \% \dots 6 0 \% $$

9. Positioning and fixing of the basic station and the transmitter

• With the foldable leg at the back of the basic station it can be placed onto any flat surface or wall mounted at the respective location by the hanging hole at the back of the unit. Avoid the vicinity of any interfering field like computer monitors or TV sets and solid metal objects.
• With the foldable leg the transmitter can be placed onto any flat surface or the leg can be used to wall mount the transmitter. Placed outside, choose a shady and dry position for the transmitter. (Direct sunshine falsifies the measurement and continuous humidity strains the electronic components needlessly).
• Check the transmission of the signal from the transmitter to the basic station (transmission range of up to 100 m free field). Within ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened.
• If necessary choose another position for the transmitter and/or basic station.

KLIMA@HOME - Wireless thermo-hygrometer

10. Labeling the transmitter sites

• As soon as you have permanently installed the transmitters 1 to 3 at their desired location, you can name the three displays on the basic station. The delivery includes a selection of two strips.
• Pull the strip in the middle of the display out of the slot. Label the strip with a suitable pen. Of course it is also possible to make your own strip (e.g. made of laminated paper or cardstock). Insert the strip into the slot.

11. Care and maintenance

• Clean the devices with a soft damp cloth. Do not use solvents or scouring agents.
• Remove the batteries if you do not use the devices for a long period of time.
• Keep the devices in a dry place.

11.1 Battery replacement

• When the battery symbol appears in the display line of a channel, please change the batteries in the respective transmitter.
• When the battery symbol appears in the display line of indoor values, please change the batteries in the basic station.
• Please note:
  When the batteries are changed, the contact between transmitter and basic station must be restored – so always insert new batteries into both units or start a manual transmitter search.

12. Troubleshooting

Problems Solution

No indication at the basic station/transmitter	→ Ensure that the batteries polarity are correct→ Change the batteries
No DCF reception	→ In the setting mode activate the DCF reception→ Wait for attempted reception during the night→ Choose another place for your product→ Manual setting of the clock→ Check if there is any source of interference→ Restart the basic station according to the manual
No transmitter reception Display “---”	→ No transmitter installed→ Check batteries of transmitter (do not use rechargeable batteries!)→ Restart the transmitter and the basic station according to the manual→ Manual search for the transmitter according to the manual→ Choose another place for the transmitter and/or the basic station→ Reduce the distance between the transmitter and the basic station→ Check if there is any source of interference
Incorrect indication	Change the batteries

If your device fails to work despite these measures contact the supplier from whom you purchased it.

KLIMA@HOME - Wireless thermo-hygrometer

13. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries in household waste. As a consumer, you are legally required to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment. The symbols for the heavy metals contained are: Cd=cadmium, Hg = mercury, Pb=lead This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). Please do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

1. Specifications

Measuring rangeTemperature indoor -10 °C... +60°C (+14 °F ...+140 °F)Humidity indoor 1% to 99%

Measuring period every 16 seconds

Temperature transmitter -40 °C... +60 °C (-40 °F ...+140 °F)

Accuracy temperature ±1°C

Resolution temperature 0.1°C

Humidity transmitter 1% to 99%

Accuracy humidity ±3% rH (@ 35 ... 75% rH)

Resolution humidity 1 %

Display OFL Temperature is outside measuring range

Display OF Humidity is outside measuring range

Transmission range max. 100 m (free field)

Transmission frequency 868 MHz

Transmission time every 10 seconds

Power consumption Basic station: 3 x 1,5 V AA (batteries not included)3 transmitter: 2 x 1,5 V AA each (batteries not included)

Basic station

Dimensions 128 x 32 (58) x 128 mm

Weight 217 g (instrument only)

KLIMA@HOME - Wireless thermo-hygrometer

GB

Transmitter

Dimensions: 44 (76) x 24 (56) x 160 (165) mm

Weight: 74 g (instrument only)

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about your product can be found by entering your product number on our homepage.

DECLARATION OF CONFORMITY

Herewith we declare, that this wireless transmission device does comply with the essentials requirements of R&TTE Directive 1999/5/EC.

A copy of the signed and dated Declaration of Conformity is available on request via [e-mail].

www.tfa-dostmann.de 06/15

20

+19°C ... +25°C 40%...60%

C2 AA Mignon youB&W AA AA Mignon C3 C4

Line drawing of a flat-panel electronic device with a screen and base (no text or symbols)

Technical line drawing of a device with a labeled component 'C4' (no text or symbols beyond label)

Fig. 3

D 1 23.19 E 2

E1 E2

E 3
