Product type	Wireless weather station with indoor/outdoor thermometer
Brand	TFA
Model	WAVE 30.3016.54.IT
Base unit dimensions	70 x 29 x 115.2 mm
Outdoor transmitter dimensions	38.2 x 21.2 x 128.3 mm
Weight (base unit)	Approx. 200 g (estimated)
Weight (transmitter)	Approx. 80 g (estimated)
Power supply (base unit)	2 AA 1.5 V batteries (LR6)
Power supply (transmitter)	2 AA 1.5 V batteries (LR6)
Battery life	Approx. 24 months (alkaline batteries recommended)
Indoor temperature range	-9.9 °C to +59.9 °C (resolution 0.1 °C)
Outdoor temperature range	-39.9 °C to +59.9 °C (resolution 0.1 °C)
Transmission frequency	868 MHz
Transmission range	Up to 100 m in open field
Display	LCD with time (12/24 h), calendar, indoor/outdoor temperatures, min/max
Main functions	Radio-controlled DCF-77 time, MIN/MAX memory with date and time, reset, select °C/°F, time zone setting, activate/deactivate DCF reception
Installation	Tabletop (foldable stand) or wall mount (suspension notch)
Maintenance and cleaning	Clean with a soft, damp cloth; do not use solvents or abrasives; protect from moisture
Safety	Keep out of reach of children; do not open or modify; use only as described; batteries: do not throw into fire, observe polarity, do not mix different types
Spare parts and repairability	Not provided by manufacturer; in case of malfunction, replace batteries or reset device
General information	Compliant with directive 2014/53/EU; declaration of conformity available at www.tfa-dostmann.de

Frequently Asked Questions - WAVE 30.3016.54.IT TFA

How to set the time manually if DCF signal is not received?

Press the SET button for about 3 seconds to enter setup mode. The hour flashes, use the MIN/MAX/+ button to adjust, then press SET to move to minutes. Do the same. Continue settings (year, month, date, day, 12/24h format, time zone, DCF activation, °C/°F unit) by pressing SET after each step.

Why is the DCF icon not displayed?

Check that DCF reception is enabled (set to ON in settings). Move the station away from interference sources (screens, metal) at least 1.5 to 2 meters. Place it near a window facing Frankfurt. Reception is better at night. If signal is still absent, set the time manually.

How to view the minimum and maximum temperatures?

Press the MIN/MAX/+ button repeatedly to display successively: outdoor MIN, outdoor MAX, indoor MIN, indoor MAX. Each reading is accompanied by the time and date. An additional press returns to normal display.

How to reset the MIN/MAX readings?

Press the MIN/MAX/+ button once to display a MIN or MAX reading, then press the SET button to reset all MIN/MAX values (indoor and outdoor) to current temperatures.

What to do if the outdoor display shows '- - -'?

This means the station is not receiving the transmitter signal. Check transmitter batteries (replace if necessary) and its position. Reduce distance between the two devices (max range 100 m in open field). Move them away from interference sources (screens, metal). Reset both units by removing batteries and reinserting them in order: first transmitter, then station within 30 seconds.

How to change temperature unit from °C to °F?

Press the SET button for 3 seconds to enter setup mode. Scroll settings until '°C' flashes. Use the MIN/MAX/+ button to toggle between '°C' and '°F'. Press SET to confirm and exit.

What types of batteries to use and how to replace them?

Use alkaline type AA batteries (LR6, 1.5 V). Open the battery compartment on the back of the device, insert batteries respecting the indicated polarities (+/-). For the transmitter, the compartment is under the sliding cover. Replace batteries as soon as the low battery symbol appears on the screen. Avoid mixing old and new batteries.

How to mount the temperature station on the wall?

Use the suspension notch on the back of the station. Screw a screw (not included) into the wall leaving the head protruding 5 mm. Fold down the stand if necessary and hang the station. Before final fixing, check good reception of the transmitter.

Why is the displayed temperature incorrect?

First check the batteries: the low battery symbol may indicate insufficient voltage. Replace batteries if necessary. Make sure the transmitter is not exposed to direct sunlight or heat sources. Wait a few minutes after inserting batteries. If the problem persists, reset both devices.

What to do if the station screen remains blank?

Check that the batteries are correctly inserted (polarity) and that they are new. If the screen does not light up after 60 seconds, remove the batteries for 10 seconds, then reinsert them. If nothing happens, replace the batteries.

USER MANUAL WAVE 30.3016.54.IT TFA

Two vertical scientific apparatus diagrams: a cylindrical device with a spring and a vertical column with a rectangular chamber (no text or symbols)

Technical line drawing of a device internal structure with no visible text or symbols

Technical line drawings of mechanical components or assemblies (no text or symbols)

Thank you for choosing this wireless temperature station from TFA.

BEFORE YOU USE IT

Please be sure to read the instruction manual carefully.

This information will help you to familiarise yourself with your new device, learn all of its functions and parts, find out important details about its first use and how to operate it, and get advice in the event of faults.

Following the instruction manual for use will prevent damage to the device and loss of your statutory rights arising from defects due to incorrect use.

We shall not be liable for any damage occurring as a result of not following these instructions. Likewise, we are not responsible for any incorrect readings and any consequences that may result from such.

Please take particular note of the safety advice! Please look after this manual for future reference.

SCOPE OF SUPPLY:

• Temperature station (basic unit)
• Outdoor transmitter
- Instruction manual

FIELD OF OPERATION AND ALL OF THE BENEFITS OF YOUR NEW TEMPERATURE STATION AT A GLANCE:

• DCF-77 Radio Controlled time with manual settings
  • Time display (hour, minutes, seconds)
  • Time reception ON/OFF
  • 12/24 hour time format
  • Calendar display (month, date, weekday)
  • Time zone option ±12 hours
  • Temperature display in Celsius (°C) or Fahrenheit (°F) selectable
• Indoor and outdoor temperature display with MIN/MAX records
• All MIN/MAX recordings can be reset
  • Wireless transmission at 868 MHz
  • Signal reception intervals every 4 seconds
• Low battery indicator
  • Table standing or wall mountable

FOR YOUR SAFETY:

• The product is exclusively intended for the field of application described above. The product should only be used as described within these instructions.
• Unauthorised repairs, modifications or changes to the product are prohibited.

Caution!

Risk of injury:

• Keep this instrument and the batteries out of reach of children.
• Batteries must not be thrown into the fire, short-circuited, taken apart or recharged. Risk of explosion!
• Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by a leaking battery. Never use a combination of old and new

batteries together or batteries of different types. Wear chemical-resistant protective gloves and glasses when handling leaked batteries.

! Important information on product safety!

• Do not expose the instrument to extreme temperatures, vibration or shock.
• Protect from moisture.
• The outdoor transmitter is protected against splash water, but is not watertight. Choose a shady and dry position for the transmitter.

ELEMENTS

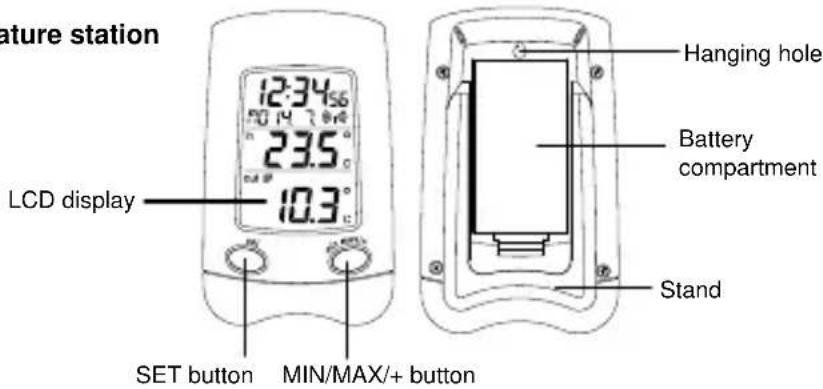

The temperature station

Feature station LCD display 12:34.56 23.5° 10.3° SET button MIN/MAX/+ button Hanging hole Battery compartment Stand

The temperature transmitter

Two scientific apparatus diagrams: a vertical spring scale and a horizontal bar with internal structure (no text or symbols)

• Remote transmission of outdoor temperature to temperature station by 868MHz
• Weather-resistant casing
  • Wall mounting case
• Mount in a sheltered place. Avoid direct rain and sunshine

INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE TRANSMITTER

The temperature transmitter uses 2 x AA, IEC LR6, 1.5V battery. To install and replace the batteries, please follow the steps below:

Simple line drawing of a battery with one external resistor and one internal battery (no text or symbols)

1. Remove the battery compartment cover at the back of the transmitter.
2. Insert the batteries, observing the correct polarity (see marking).
3. Replace the battery compartment cover on the unit.

INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE STATION

The temperature station uses 2 x AA, IEC LR6, 1.5V batteries. To install and replace the batteries, please follow the steps below:

Technical line drawing of a battery internal structure and its side view (no text or symbols)

1. Remove the cover at the back of the temperature station.
2. Insert batteries observing the correct polarity (see marking).
3. Replace compartment cover.

Battery replacement

• Replace the batteries when the battery symbol of the temperature station appears near the indoor temperature display.
• When the batteries of the transmitter are used up, the low battery icon appears near the outdoor temperature display.

Note:

In the event of changing batteries in any of the units, all units need to be reset by following the setting up procedures. This is because a random security code is assigned by the transmitter at start-up and this code must be received and stored by the temperature station in the first three minutes of power being supplied to it.

SETTING UP:

Note: This temperature station receives only one outdoor transmitter.

1. First, insert the batteries into the temperature transmitter. (see "Install and replace batteries in the temperature transmitter").

2. Immediately after and within 30 seconds, insert the batteries into temperature station (see "Install and replace batteries in the temperature station"). Once the batteries are in place, all segments of the LCD will light up briefly. Following the time as 0:00 will be displayed and indoor temperature. If these are not displayed after 60 seconds, remove the batteries and wait for at least 10 seconds before reinserting them.

3. After inserting the batteries, the temperature station will start receiving data from the transmitter. The outdoor temperature and the signal reception icon should then be displayed on the temperature station. If this does not happen after 3 minutes, the batteries will need to be removed from both units and reset from step 1.

4. In order to ensure sufficient 868 MHz transmission however, this should under good conditions be a distance no more than 100 meters between the final position of the temperature station and the transmitter (see notes on "Mounting" and "868 MHz Reception").
5. Once the remote temperature has been received and displayed on the temperature station, the DCF time (radio controlled time) code reception is automatically started. This takes typically between 3-5 minutes in good conditions. If after 10 minutes, the DCF time has not been received, press the SET button to manually enter a time initially.

Note:

In the event of changing batteries of the units, ensure the batteries do not spring free from the contacts. Always wait at least 1 minute after removing the batteries before reinserting, otherwise start up and transmission problems may occur.

DCF-77 RADIO CONTROLLED TIME

The time base for the radio-controlled time is a Cesium Atomic Clock operated by the Physikalisch Technische Bundesanstalt Braunschweig which has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio-controlled temperature station receives this signal and converts it to show the precise time in summer or wintertime. The quality of the reception depends greatly on the geographic location. In normal cases, there should be no reception problems within a 1500km radius of Frankfurt.

Once the outdoor temperature is displayed on the temperature station, the DCF tower icon in the clock display will start flashing in the upper left corner. This indicates that the clock has detected that there is a radio signal present and is trying to receive it. When the time code is received, the DCF tower becomes permanently lit and the time will be displayed.

DCF reception is done twice daily at 02:00 and 03:00 am. If the reception is not successful at 02:00 am, then the next reception takes place the next hour and so on until 06:00am, or until the reception is successful. If the reception is not successful at 06:00 am, then the next attempt will take place the next day at 02:00 am.

If the tower icon flashes, but does not set the time or the DCF tower does not appear at all, then please take note of the following:

- Recommended distance to any interfering sources like computer monitors or TV sets is a minimum of 1.5 - 2 meters.

- Within ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened. In extreme cases, please place the unit close to a window and/or point its front or back towards the Frankfurt transmitter.

- During nighttime, the atmospheric disturbances are usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation below 1 second.

FUNCTION BUTTONS:

Temperature station:

The temperature station has 2 easy to use function buttons:

SET button Min/MAX/+ button

SET button

• Press and hold the SET button for about 3 seconds to enter the Manual setting modes: manual time, year, date, month, weekday, 12/24 hour time format, time zone, time reception ON/OFF, and temperature settings.
• Press and hold the SET button to reset the indoor and outdoor MIN/MAX/+ temperature records.

MIN/MAX/+ button

• To make adjustments for various settings in manual setting modes
  • To toggle between the MIN/MAX readings of indoor/outdoor temperature

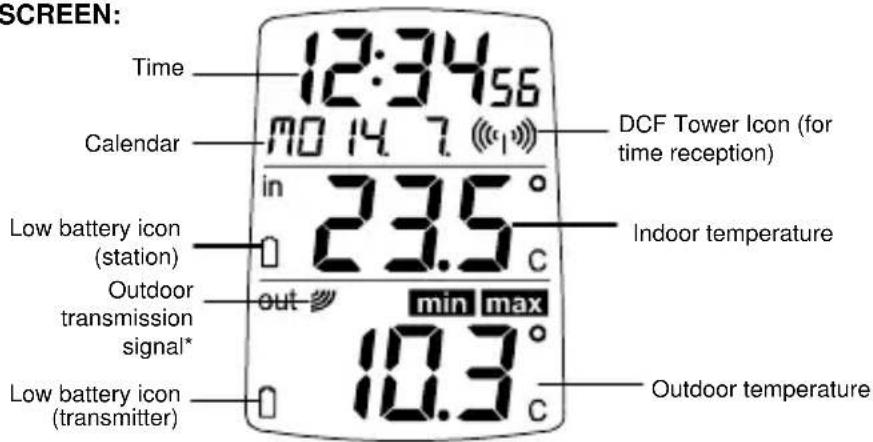

LCD SCREEN:

SCREEN: Time 12:34:56 Calendar no 14.7 (°C) in 23.5 °C Low battery icon (station) Outdoor transmission signal* out min max 10.3 °C Low battery icon (transmitter) DCF Tower Icon (for time reception) Indoor temperature Outdoor temperature

* When the signal is successfully received by the temperature station, the outdoor transmission icon will be switched on. (If not successful, the icon will not be shown on LCD). The user can then easily see whether the last reception was successful (icon on) or not (icon off). On the other hand, the short blinking of the icon shows that a reception is currently taking place.

MANUAL SETTING

The following manual settings can be done in the setting mode:

• Manual time
• Calendar
  • 12/24 hour time display
• Time zone
  • Time reception ON/OFF (DCF ON/OFF)
  • Temperature unit °C/°F setting

Press and hold the SET button for about 3 seconds to advance to the setting mode:

MANUAL TIME SETTING

In area where reception of the DCF-77 time is not possible, the time can be manually set. The clock will then be a normal Quartz clock. Once the DCF signal is detected, it will change the manually set time into the received time. Please precede the following setting steps at the first time before using the temperature station.

Hours (flashing) —— 1:23 —— Minutes (flashing) NO L L (")

1. The hour digit in the time section starts flashing. Use the MIN/MAX/+ button to set the hour.
2. Press the SET button to enter the minutes. The minute digits start flashing.
3. Use the MIN/MAX/+ button to set the minute.
4. Press again the SET button to confirm and enter the Calendar setting mode.

Note:

The unit will still try and receive the signal despite it being manually set. When it does receive the signal, it will change the manually set time into the received time.

CALENDAR SETTING

The date default of the temperature station is 1. 1. in the year 2008. Once the radio-controlled time signals are received, the date is automatically updated. However, if the signals are not received, the date can also be set manually:

1:23 1.08 (←) Year (flashing)

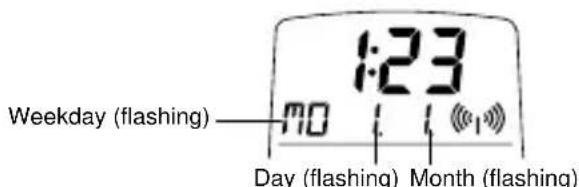

1:23 Weekday (flashing) Day (flashing) Month (flashing)

1. The year digits will start flashing. Use the MIN/MAX/+ button to set the year (2008 to 2029).
2. Press the SET button to enter the month (the month digit will be flashing). Use MIN/MAX/+ button to adjust the month.
3. Then press the SET button to enter the day. Use MIN/MAX/+ button to adjust the day.
4. Press the SET button to enter the weekday (the weekday digit will be flashing). Use MIN/MAX/+ button to adjust the weekday.
5. Press the SET button to confirm and enter the 12/24 hour time display mode.

12/24 HOUR TIME DISPLAY SETTING

To set the time format to 12h or 24h display mode (default 24h):

24 no 1 1 («1») Flashing

1. Use the MIN/MAX/+ button to select the "12h" or "24h" display mode.
2. Press the SET button to confirm and to enter the Time zone setting mode.

Note:

When 24h mode display is selected, the calendar format will be "Weekday. Day. Month" display. When 12h mode display is selected, the calendar format will be "Weekday. Month. Day" display.

TIME ZONE SETTING

The time zone can be set between ±12 hours (default 0 hour):

Time zone (flashing) 1:23 Oh

1. The time zone starts flashing.

2. Use the MIN/MAX/+ button to change the time zone. The range runs from 0, -1, -2...-12, 12, 11, 10... 2, 1, 0, in consecutive 1-hour intervals.

3. Press the SET button to confirm and enter the Time reception ON/OFF setting mode.

TIME RECEPTION ON/OFF SETTING

In area where reception of the radio-controlled time (DCF time) is not possible, the time reception function can be turned OFF. The clock will then work as a normal Quartz clock.

(Default setting is ON).

1:23 RC On (←) flashing

1. The "ON" digits will start flashing on the LCD.

2. Use the MIN/MAX/+ button to turn OFF the time reception function if necessary.

3. Confirm with the SET button and enter the °C/°F Temperature unit setting mode.

Note:

If the time reception function is turned OFF manually, the clock will not attempt any reception of the radio-controlled time (DCF time) as long as the time reception OFF function is activated. The time reception icon will not be displayed on the LCD.

°C/°F TEMPERATURE UNIT SETTING

The default temperature reading is set to °C (degree Celsius). To select °F (degree Fahrenheit):

OR m0. I I (1) flashing

1. The "°C" or "°F" will be flashing, use the MIN/MAX/+ button to toggle between "°C" and "°F".
2. Confirm with the SET button and exit the manual setting modes.

CHECKING THE MIN/ MAX TEMPERATURES

1. In normal mode display, press the MIN/MAX/+ button to display the outdoor MIN display and the time and date of record.
2. Press the MIN/MAX/+ button a second time to show the outdoor MAX display and the time and date of record.

Outdoor data reception indicator cut - min - 1.6 °C

out max MAX icon 48.9° C

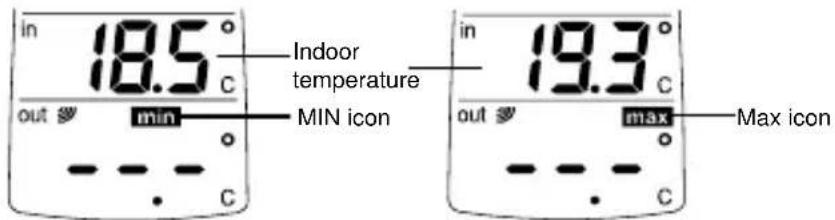

1. Press the MIN/MAX/+ button a third time to show the indoor MIN display and the time and date of record.
2. Press again the MIN/MAX/+ button once to display the indoor MAX display and the time and date of record.

in 18.5 ° Indoor temperature out min MIN icon in 19.3 ° out max Max icon C

1. Press the MIN/MAX/+ to return to current indoor and outdoor temperature display.

RESETTING THE MIN/ MAX TEMPERATURE

Note: All the indoor and outdoor MIN/MAX records will the reset at the same time.

1. Press the MIN/MAX/+ key once in normal mode.
2. Press the SET button. This will reset both the MIN/MAX indoor and outdoor temperature data to the current temperature data.

OUTDOOR TRANSMITTER

The range of the temperature transmitter may be affected by the temperature. At cold temperatures the transmitting distance may be decreased. Please bear this in mind when placing the transmitter.

868 MHz RECEPTION:

The temperature station should receive the temperature data within 2 minutes after set-up. If the temperature data is not received 2 minutes after setting up (the outdoor display shows

“---”), please check the following points:

1. The distance of the temperature station or transmitter should be at least 1.5 to 2 meters away from any interfering sources such as computer monitors or TV sets.
2. Avoid placing the receiver onto or in the immediate proximity of metal window frames.
3. Using other electrical products such as headphones or speakers operating on the same signal frequency (868MHz) may prevent correct signal transmission and reception.
4. Neighbors using electrical devices operating on the 868 MHz signal frequency can also cause interference.

Note:

When the 868MHz signal is received correctly, do not re-open the battery cover of either the transmitter or temperature station, as the batteries may spring free from the contacts and force a false reset. Should this happen accidentally then reset all units (see Setting up above) otherwise transmission problems may occur.

The transmission range is about 100 m from the transmitter to the temperature station (in open space). However, this depends on the surrounding environment and interference levels. If no

reception is possible despite the observation of these factors, all system units have to be reset (see Setting up).

POSITIONING THE TEMPERATURE STATION:

Pure technical diagram showing a vertical component and a diagonal hatched surface with an arrow indicating direction (no text or symbols)

Before wall mounting, please check that the outdoor temperature values can be received from the desired locations.

Wall mount

1. Fix a screw (not supplied) into the desired wall, leaving the head extended out the by about 5mm.
2. Hang the temperature station onto the screw. Remember to ensure that it locks into place before releasing.

Free standing

With the foldout stand, the temperature station can be placed onto any flat surface.

POSITIONING THE OUTDOOR TRANSMITTER:

The transmitter is supplied with a holder that may be attached to a wall with the two screws supplied. The transmitter can also be positioned on a flat surface by securing the stand to the bottom to the transmitter.

To wall mount:

1. Secure the bracket onto a desired wall using the screws and plastic anchors.
2. Clip the remote temperature sensor onto the bracket.

Note:

Before permanently fixing the transmitter wall base, place all units in the desired locations to check that the outdoor temperature reading is receivable. In event that the signal is not received, relocate the transmitter or move it slightly as this may help the signal reception.

CARE AND MAINTENANCE

• Clean the temperature station and the transmitter with a soft damp cloth. Do not use solvents or scouring agents.
• Remove the batteries if you do not use the product for a lengthy period.

TROUBLESHOOTING

Problems	Solution
No indication on the temperature station	Ensure batteries polarity are correctChange batteries
No transmitter reception Display "---"	Check batteries of external transmitter (do not use rechargeable batteries!)Restart the transmitter and temperature station as per the manualChoose another place for the transmitter and/or the temperature stationReduce the distance between the transmitter and the temperature stationCheck if there is any source of interference
No DCF reception	Time reception setting “ON”Choose another place for the temperature stationManual time settingWait for attempted reception during the night
Incorrect display	Change batteries

WASTE DISPOSAL

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never throw flat batteries and rechargeable batteries in household waste.

As a consumer, you are legally required to take them to your retail store or to appropriate collection sites according to national or local regulations in order to protect the environment.

The symbols for the heavy metals contained are: Cd=cadmium, Hg=mercury, Pb=lead

This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this product with other household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

SPECIFICATIONS:

Temperature measuring range:

Indoor : -9.9°C to +59.9°C with 0.1°C resolution

(14.1°F to +139.8°F with 0.2°F resolution)

("OF.L" displayed if outside this range)

Outdoor : -39.9°C to +59.9°C with 0.1°C resolution

(-39.8°F to +139.8°F with 0.2°F resolution)

("OF.L" displayed if outside this range)

Indoor Temperature checking interval : every 16 seconds

Outdoor Temperature reception : every 4 seconds

Transmission frequency : 868 Mhz

Maximum radio-frequency power : <25 mW

Power consumption:

Temperature station : 2 x AA, IEC LR6, 1.5V

Transmitter : 2 x AA, IEC LR6, 1.5V

Battery life cycle : approximately 24 months

(Alkaline batteries recommended)

Dimensions (L x W x H):

Temperature station : 70 x 29 x 115.2 mm

Transmitter : 38.2 x 21.2 x 128.3 mm

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about your product can be found by entering your product number on our homepage.

EU declaration of conformity

Hereby, TFA Dostmann declares that the radio equipment type 30.3016 is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.tfa-dostmann.de E-Mail: [e-mail]

TFA Dostmann GmbH & Co.KG, Zum Ottersberg 12, D-97877 Wertheim, Germany 07/16

STATION DE TEMPÉRATURE SANS FIL 868 MHz

Diagram of a vertical spring scale and a horizontal rack, both without any text or symbols

Technical line drawing of a battery internal structure with no visible text or symbols

Touche SET A01 MIN/MAX/A Touche MIN/MAX/+ key

-Minutes (clignotent)

Installation murale:

Two identical line-drawn icons of a waste bin with 'X' crossed out and a blank black rectangle below (no text or symbols)

Dimensions (L x P x H)

Diagram of a vertical spring scale and a horizontal server rack, both without any text or symbols.

Technical line drawing of a device casing with internal components and a separate view showing a battery (no text or symbols)

SET -toets (Instelling)

OR NO. I.I. Knippert

Technical diagram showing a cylindrical component with an arrow indicating direction, adjacent to a vertical surface (no text or symbols)

12:34 23.5° 10.3°

LA CONSEGNA INCLUDE:

Two simple scientific apparatus diagrams: a vertical spring scale and a horizontal bar with a submerged object (no text or symbols)

Technical line drawing of a device housing with internal components and a separate view (no text or symbols)

12:34s HD: 1.0-0 235° 10.3°

Da appoggio:

Technical line drawings of four mechanical components or assemblies (no text or symbols)

Two simple scientific apparatus diagrams: a vertical spring scale and a horizontal bar with a black block (no text or symbols)

Technical line drawing of a battery internal structure with no visible text or symbols

1:23 MO I I (01)

Minutos (lando)

Día (titilando) Mes (titilando)

OR titilando MO L L (<<1>

in 18.5 ° out min C Temperatura Interior Icono MIN in 19.3 ° out max C Icono MAX

EJIN9200T114 Printed in China
