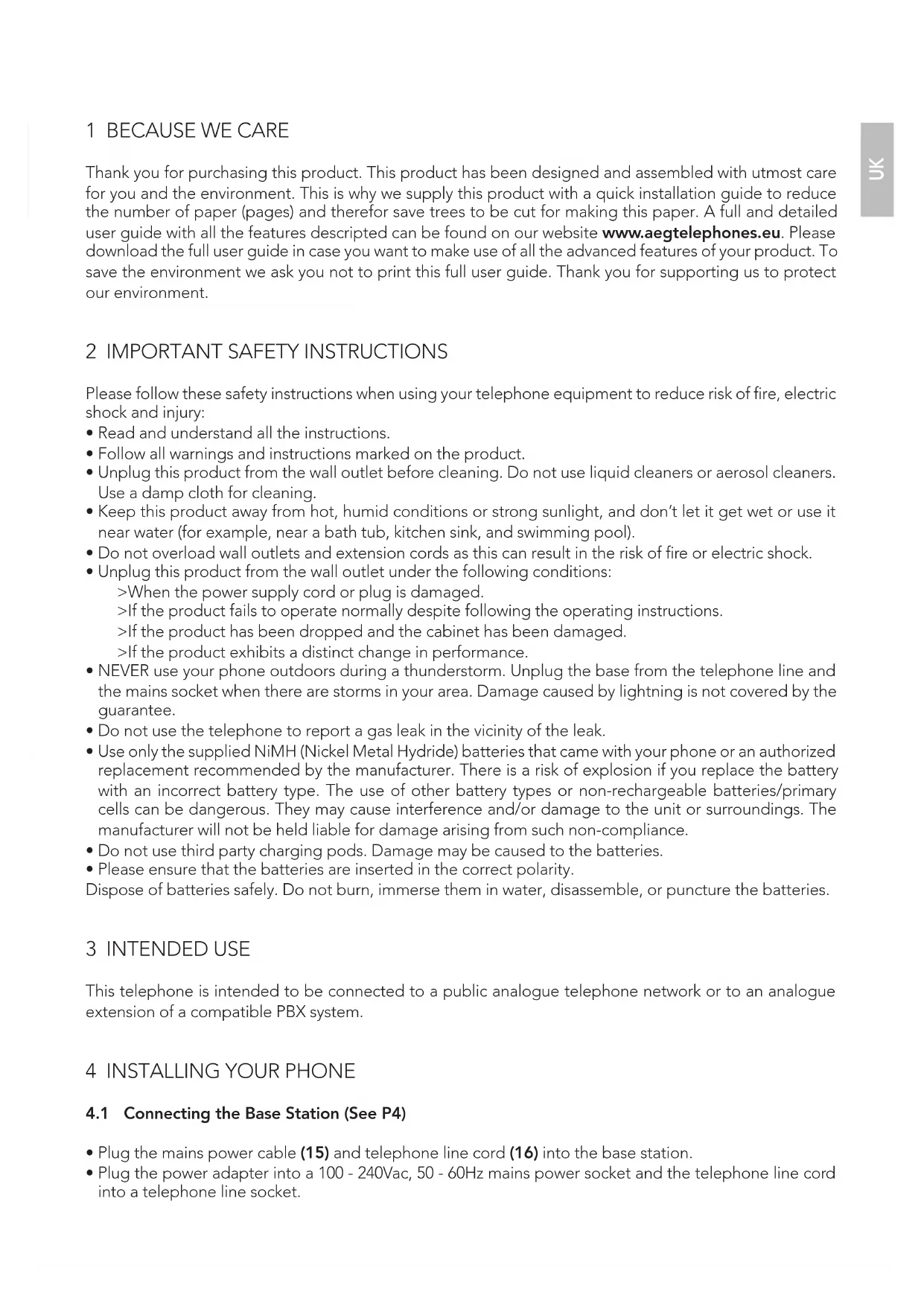

1 BECAUSE WE CARE

Thank you for purchasing this product. This product has been designed and assembled with utmost care for you and the environment. This is why we supply this product with a quick installation guide to reduce the number of paper (pages) and therefore save trees to be cut for making this paper. A full and detailed user guide with all the features described can be found on our website www.aegtelephones.eu. Please download the full user guide in case you want to make use of all the advanced features of your product. To save the environment we ask you not to print this full user guide. Thank you for supporting us to protect our environment.

2 IMPORTANT SAFETY INSTRUCTIONS

Please follow these safety instructions when using your telephone equipment to reduce risk of fire, electric shock and injury:

• Read and understand all the instructions.
• Follow all warnings and instructions marked on the product.
• Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
• Keep this product away from hot, humid conditions or strong sunlight, and don't let it get wet or use it near water (for example, near a bath tub, kitchen sink, and swimming pool).
• Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock.

- Unplug this product from the wall outlet under the following conditions:

When the power supply cord or plug is damaged.
If the product fails to operate normally despite following the operating instructions.
If the product has been dropped and the cabinet has been damaged.
If the product exhibits a distinct change in performance.

- NEVER use your phone outdoors during a thunderstorm. Unplug the base from the telephone line and the mains socket when there are storms in your area. Damage caused by lightning is not covered by the guarantee.

- Do not use the telephone to report a gas leak in the vicinity of the leak.

- Use only the supplied NiMH (Nickel Metal Hydride) batteries that came with your phone or an authorized replacement recommended by the manufacturer. There is a risk of explosion if you replace the battery with an incorrect battery type. The use of other battery types or non-rechargeable batteries/primary cells can be dangerous. They may cause interference and/or damage to the unit or surroundings. The manufacturer will not be held liable for damage arising from such non-compliance.

- Do not use third party charging pods. Damage may be caused to the batteries.

- Please ensure that the batteries are inserted in the correct polarity.

Dispose of batteries safely. Do not burn, immerse them in water, disassemble, or puncture the batteries.

3 INTENDED USE

This telephone is intended to be connected to a public analogue telephone network or to an analogue extension of a compatible PBX system.

4 INSTALLING YOUR PHONE

4.1 Connecting the Base Station (See P4)

• Plug the mains power cable (15) and telephone line cord (16) into the base station.
• Plug the power adapter into a 100 - 240Vac, 50 - 60Hz mains power socket and the telephone line cord into a telephone line socket.

Warning: Always use the cables provided in the box. Use only the supplied adaptor. Using other power adapter may damage the unit.

Note: Place the base unit within easy reach of the mains power socket. Never try to lengthen the mains power cable. The base station needs mains power for normal operation and the cordless handsets will not work without it.

4.2 Installing and Charging the Rechargeable Batteries

- Insert the 2 supplied batteries into the battery compartment, observing the correct polarity (see markings inside battery compartment).

Warning: Use only the supplied NiMH rechargeable batteries.

- Place the back cover over the back of the handset and press down until it clicks into place.

- Place the handset on the base and charge for 15 hours before using the handset for the first time.

The handset will give a double beep when it is properly placed on the base and the battery charging indicator on the base lights up to indicate charging.

Note: The handset may become warm when the batteries are being charged or during prolonged periods of use. This is normal and does not indicate a fault.

CAUTION

Risk of explosion if the battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

4.3 Removing the back cover (See P5)

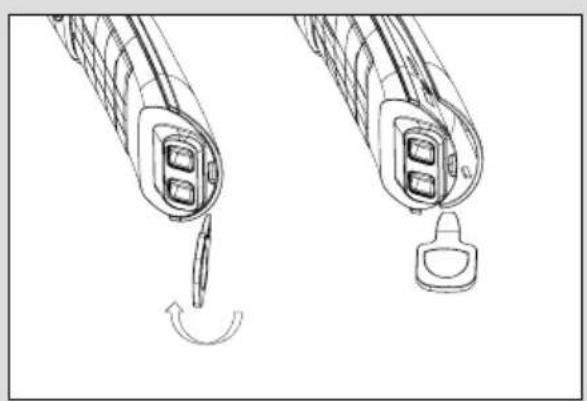

Insert the supplied key into the groove as indicated in the illustration and twist it clockwise to release the back cover.

4.4 Setting the Display Language

You can change the display language on your handset.

- From the home screen, press OK/目.

- Press / to reach "HANDSET OPTS" and then press OK/Select.

- Press / to reach "LANGUAGE" and then press OK/ ☐ to select.

- Press / to select your preferred language and then press OK/☐ to confirm. >An audible confirmation tone is emitted.

- Press Ⓞ to return to standby mode.

Note: Once the display language has been set, the handset display will switch to the selected language immediately.

5 GETTING TO KNOW YOUR PHONE

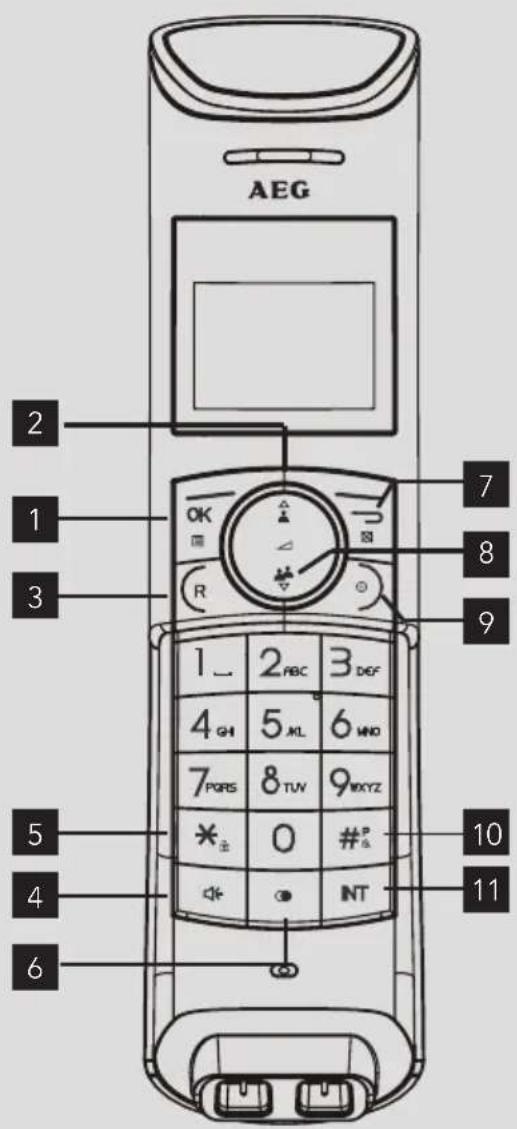

5.1 Overview of the Handset

# Icon Meaning
1	OK/目	In standby mode, press to enter the Main Menu list.Press to select an item, or to save an entry or setting.
2	△/▲	In menu mode, press to scroll up.During a call or message playback, press to increase the volume.In standby mode, press to access the call log (CID).
3		In standby mode, press to make or answer a call.During a call, press to send a Flash signal for network services.
4		In standby mode, press to make or answer a call in speakerphone mode.During a call, press to switch between speakerphone and earpiece.
5	*/	Press and hold to switch the key lock on or off
6		In standby mode, press to access the redial list.
7		Press to cancel an action.During pre-dialling, press to delete the last digit entered.During a call, press to mute the microphone and press again to resume conversation.
8		In menu mode, press to scroll down.During a call, or message playback, press to decrease the volume.In standby mode, press to access the phonebook list.
9		During a call, press to hang up.During programming, press to cancel and exit without making changes.In standby mode, press and hold to power the handset on/off.
10	#/∅/P	Press and hold to turn the handset ringer off.Press and hold to add a dialling pause when dialling or entering numbers into the phonebook.
11	NT	In standby mode or during a call, press to initiate an intercom call or transfer a call.

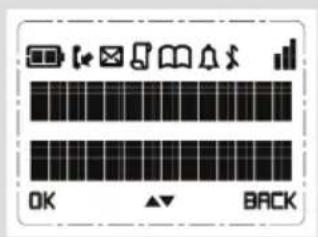

5.2 Display Icons and Symbols on the handset (See P2)

Icon Meaning
	Displays when the battery is fully charged. Internal segments cycle while charging.
	Displays when the line is in use. Flashes when there is an incoming call.
	Flashes when you have a new voicemail message. (This is a network service)
	Displays when you have new missed calls, or the call log is being viewed.*
	Displays when the phonebook is accessed.
	Displays when the alarm is set.
	Displays when handset ringer is turned off.
	Displays when the handset is registered and within range of the base station. Blinks when the handset is out of range or is searching for a base.
OK	Turns on when confirmation of selection or programming is available.
BACK	Turns on during phonebook editing mode to delete the last digit. Turns on during menu mode when you can return to the previous state or previous step.
	Turns on when the screen display is on.

*You must subscribe to Voicemail service or Caller ID from your network providers for this feature to work. You may need to pay a subscription fee.

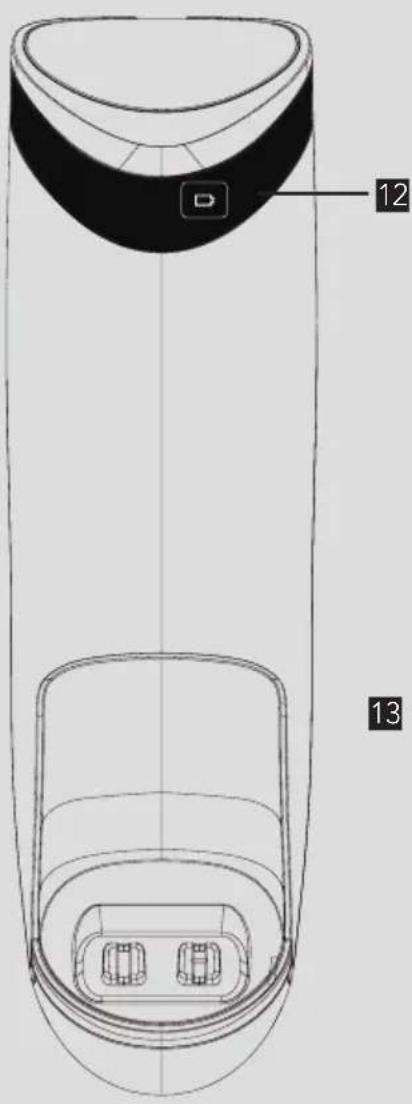

5.3 Base Unit (See P3)

# Icon Meaning

12

Lights up in Red when a handset is on the base to indicate it is charging.

13

Press to find/page all registered handsets. Press the button again, or any key on the handset to turn off the page signal. Press and hold to start registration process.

5.4 Text and Number Entry

You can select different characters by using repeated presses of the alphanumeric keypad. This will be helpful when storing a name in the phonebook or renaming your handset. The characters are printed on the keys.

For example, to enter the name Tom:

T Press 8 once

Press 6 three times

M Press 6 once

In editing mode, a cursor is displayed to indicate the current text entry position. It is positioned at the right of the last character entered.

Writing Tips:

• Once a character is selected, the cursor will move to the next position after a short pause.
• Press →/⊗ to delete the last letter or number.

6 USING YOUR PHONE

6.1 Make a Call

6.1.1 Pre-dialling

• Enter the phone number (maximum 24 digits). If you make a mistake, press ⬇/☒ to delete the last entered number.
• Press Ⓞ to dial the phone number.

6.1.2 Direct Dialling

• Press Ⓞ on your Handset.
• Dial the number.

6.1.3 Call from the Redial List

• Press 📄 standby mode.

  The last number dialled is displayed.

• Press / to select the desired entry in the redial list and then press R to dial out the selected redial number.

6.1.4 Call from the Call Log

• Press △/standby mode.
• Press / to select the desired entry in the call log and then press Ⓞto dial out the selected call log number.

Note: You need to subscribe to Caller Line Identification service to be able to see the caller's number or name in the call log.

6.1.5 Call from the Phonebook

- Press v/standby mode.

- Press / to select the desired entry in the phonebook and then press Ⓚ to dial out the selected phonebook number.

6.2 Answer and End a Call

• When the phone rings, press Ⓡ on your handset.
• To end a conversation, press Ⓞ on your handset.

Warning: When the handset is ringing, please do not hold it too close to your ear as the volume of the ringing tone may damage your hearing.

Note: You can simply place the handset back on its base station to end the call, provided you have not deactivated the Auto hang-up feature.

6.3 Handset Speakerphone

During a call, you can press 🔒 to alternate between hands-free speakerphone and handset earpiece.

6.4 Adjust Earpiece Volume

There are 5 levels of earpiece volume on your Handset.

• During a call, press / to select from "VOLUME 1" to "VOLUME 5".

  The current setting is shown.
  When you end the call, the setting will remain at the last selected level.

6.5 Adjust Speaker Volume

There are 5 levels of speaker volume.

• During a handsfree call, press / to select from "VOLUME 1" to "VOLUME 5".

  The current setting is shown.
  When you end the call, the setting will remain at the last selected level.

6.6 Mute/Unmute the Microphone

• When the microphone is muted, the handset displays "MUTE ON" and your caller cannot hear you.
• During a call, press to turn on/off the microphone.

6.7 Paging

The paging feature enables you to locate a missing handset if the handset is in range and contains charged batteries.

• Press the 🔊 key under the base unit.

  All the registered handsets that are in range will start to ring.
  You can stop the paging by pressing any key on a handset or the ⏻key under the base unit again.

6.8 Switching the Handset On/Off

Press and hold Ⓧ on your Handset for more than 2 seconds to switch the handset on or off in standby mode.

When first turned on, the display shows "SEARCHING..." until the handset finds the base.

Note: You can switch the handset off to save battery life, if the handset is not on the base.

IMPORTANT:

When the handset is "OFF", it cannot be used for making calls including emergency calls. It will not ring when there is an incoming call.

To answer a call, you will need to switch it back on and it may take some time for the handset to re-establish a radio link with the base unit.

6.9 To Lock/Unlock the Keypad

You can lock the to avoid making calls or pressing the keys accidentally.

- In standby mode, press and hold ✕or 2 seconds to lock the keypad.

The handset displays "KEYS LOCKED".

- To turn the keypad lock off, press and hold ✦ again.

Note: Incoming calls can still be answered even if the keypad is locked.

6.10 Initiating an Intercom Call

• In standby mode, press INT

The Intercom starts ringing immediately if there are only 2 registered handsets.

If there are more than 2 registered handsets, the handset numbers which are available for the intercom will be displayed.

- Press the handset number you wish to call or press ✱ to call all handsets.

- Press Ⓜ on the handset receiving the call to answer and start a conversation.

- To end the intercom call, press) on either handset.

Note:

- You can cancel the intercom call before it is answered by pressing INT, or Ⓞ on the handset making the call.

- If there is no answer from the receiving handset within one minute, the call is cancelled automatically.

- If no other handset is registered to the base unit, 4 beeps will be heard and the device will return to standby mode.

6.11 Transferring an External Call to another Handset

- During the call, press INT to put the external call on hold.

The Intercom starts ringing immediately if there are only 2 registered handsets.

If there are more than 2 registered handsets, the handset numbers available for the intercom will be displayed.

- Press the handset number you wish to call or press ✕ to call all handsets.

Note: If there is no answer from the handset you are calling, or you wish to cancel the intercom call before it is answered, press No return to the external call.

- Press (R) on the receiving handset to answer the call and start a conversation.

- Press ⓣ) on the handset making the call to transfer the external call to the receiving handset.

The external call is transferred.

7 PHONEBOOK

The unit can store up to 200 phonebook entries. Each phonebook entry can have a maximum of 24 digits for the phone number and 12 characters for the name.

7.1 Store a Contact in the Phonebook

• From the home screen, press OK/目
• Press / to "PHONEBOOK" and then press OK/ ☐ to select.
• Press OK/目 to select "NEW ENTRY".

The screen displays "ENTER NAME".

- Enter the name of the contact (maximum 12 characters) using the keypad.

- If you make a mistake, press to delete the last character entered.

- Press OK/目 to confirm the name entry.

The screen displays "ENTER NUMBER"

- Enter the number of the contact (maximum 24 digits) using the keypad.

- If you make a mistake, press to delete the last digit entered.

- Press OK/confirm.

A confirmation tone is played.

- Press Ⓞ to return to standby mode.

Note: You cannot store a new phonebook entry when the memory is full. In this case, you have to delete existing entries to make space for new ones.

7.2 Access the Phonebook

- From the home screen, press ▼/图标 to open the phonebook list.

- Alternatively, from the home screen, you can press OK/目, then △/▽ to "PHONEBOOK", then press OK/目 and △/VIEW ENTRIES", then press to open the phonebook list.

The phonebook entries are listed in alphabetical order.

- Press / to scroll through the list of entries.

- Press #/∅/P to view the details of the selected entry.

- Press to return to standby mode.

Note: Instead of pressing / to browse the phonebook entries, you can press the numeric key corresponding to the first letter of the entry you wish to locate.

For example, pressing 2 will show the first entry starting with A. Pressing 2 again will show the first entry starting with B, and so on..., and then press △/▽ to find the entry you want.

7.3 Modify a Phonebook Entry

- From the home screen, press to open the phonebook list.

- Press △ to select the entry you want to modify.

- Press OK/目 to open the phonebook menu options.

- Press / to "EDIT ENTRY" and then press OK/☐ to select.

The current name is displayed.

- Edit the name using the keypad, using ⬆/☒ to delete characters.

- Press OK/confirm.

- Edit the number and then press OK/目 to confirm.

A confirmation tone is played.

- Press ⚙ to return to standby mode.

8 CALLER DISPLAY (NETWORK DEPENDENT)

If you have subscribed to the Calling Line Identification (CLI) service with your network service provider, the phone number of your caller will appear on the handset display when there is an incoming call and then stored in your Call Log.

If the caller's number is stored in your phonebook along with a name, the name will appear on the handset display when the call is received and in the Call Log.

Note: If the call is from someone whose number is unavailable (e.g. an international call or from a private exchange), the handset will display "UNAVAILABLE" when you receive the call and in the Call Log afterwards. If the call is from someone whose number is withheld, the handset will display "WITHHELD" when you receive the call and in the Call Log afterwards.

If you have not subscribed to the Caller Line Identification service, the handset will display "UNKNOWN" when you receive the call and it will not be saved in the Call Log.

Information about incoming calls varies by country and network operators.

8.1 Call Log

The Call Log stores the last 20 external calls whether or not you have answered the call.

Only the most recent call is saved if there are repeat calls from the same number.

When the Call Log is full, the next new call will replace the oldest entry.

8.1.1 Access the Call Log

- From the home screen, press △/♠

- Press / to browse through the call list.

The calls are displayed in chronological order with the most recent call at the top of the list.

8.1.2 Deleting a call log entry

- From the home screen, press △/

- Press / to select an entry and then press OK/

- Press / to DELETE and then press to select.

CONFIRM? is displayed.

- Press again to confirm.

A confirmation tone is emitted.

- Press to return to standby mode.

9 REDIAL LIST

The redial list stores the last 10 numbers dialled. A maximum of 24 digits can be displayed for each entry.

9.1 Access the Redial List

• From the home screen, press

- Press △ on to browse the redial list.

The last dialled number will appear first in the redial list.

If the number has more than 14 digits press/∅/P to see other digits.

10 SETTINGS

10.1 Handset Registration

IMPORTANT: When you purchase your unit, all handsets are already registered to your base, so you do not need to register them.

Handset registration is only necessary when you buy extra handsets or if a handset has become faulty.

You can register up to four handsets to one base station, with each handset's number (1 to 4) shown on its display.

Note: Each handset can only be registered to one base.

You need to enter the Master PIN before you can register or deregister handsets. The default Master PIN is 0000.

10.2 Register Additional Handsets

• Press and hold the key under the base unit for approximately 5 seconds.

  The message indicator on the base will flash for up to 1 minute, while it is in registration mode.

• On the handset, press OK/目.
• Press / to "SETTINGS" and then press to select.
• Press / to "REGISTRATION" and then press OK/☐ to select.
• Enter the Master PIN and then press OK/confirm.

Note: After entering the Master PIN, >WAITING flashes on the screen

A confirmation tone is played to indicate successful registration, and the handset returns to standby mode, with its handset number displayed.
If no base is found with the entered PIN, error tones are played to indicate failed registration and "PLS REG H/S" is displayed on the screen. You will need to repeat from step 1 above.
During steps 2-5, if no key is pressed on the handset within 10 seconds, the registration procedure will be aborted. If this happens, repeat from step 1 above.

10.3 Reset the Unit

You can reset your phone to its default settings with this feature.

Note: Upon reset, all your personal settings, call log and redial list entries will be deleted and the phone will return to its default settings, including the Master PIN. However, your phonebook will remain unchanged after reset and any recorded messages will remain unchanged, while all other settings will be reset.

• From the home screen, press OK/目
- Press / to "SETTINGS" and then press OK/ ☐ to select.
- Press / to select "RESET" and then press OK/Select.
- Press OK/☐ to confirm.

A confirmation tone is played and the unit is reset to its default settings.

11 CLEANING AND CARE

Do not clean any part of your unit with benzene, thinners or other solvent chemicals as this may cause permanent damage which is not covered by the Guarantee.

When necessary, clean it with a damp cloth.

Keep your phone system away from hot, humid conditions or strong sunlight, and don't let it get wet.

12 GUARANTEE AND SERVICE

The unit is guaranteed for 24 months from the date of purchase shown on your sales receipt. This guarantee does not cover any faults or defects caused by accidents, misuse, fair wear and tear, neglect, faults on the telephone line, lightning, tampering with the equipment, or any attempt at adjustment or repair other than through approved agents.

Please keep your sales (till) receipt this is your proof of guarantee.

12.1 While the unit is under Guarantee

• Disconnect the base unit from the telephone line and the mains electricity supply.
• Pack up all parts of your device, using the original package.
• Return the unit to the shop where you bought it, making sure you take your sales receipt.
• Remember to include the mains adapter.

12.2 After the Guarantee has expired

If the unit is no longer under Guarantee, contact us via www.aegtelephones.eu

This product works with rechargeable batteries only. If you put nonrechargeable batteries in the handset and place it on the base, the handset will be damaged and this in NOT covered under the warranty conditions.

13 CE DECLARATION

This product is in compliance with the essential requirements and other relevant provisions of the R&TTE directive 1999/5/EC.

The Declaration of conformity can be found on: www.aegtelephones.eu

14 DISPOSAL OF THE DEVICE (ENVIRONMENT)

At the end of the product lifecycle, you should not throw this product into the normal household garbage but bring the product to a collection point for the recycling of electrical and electronic equipments. The symbol on the product, user guide and/or box indicate this. Some of the product materials can be re-used if you bring them to a recycling point. By reusing some parts or raw materials from used products you make an important contribution to the protection of the environment. Please contact your local authorities in case you need more information on the collection points in your area.

Batteries must be removed before disposing of the device. Dispose of the batteries in an environmental manner according to your country regulations.

15 TECHNICAL DETAILS

Standard DECT
Frequency range	1.88 to 1.9 GHz (bandwidth: 20 MHz)
Channel bandwidth	1.728 MHz
Operating range	Up to 300m outdoors; Up to 50m indoors
Operating time	Standby: 230 hours; Talking: 13 hoursBattery charge time: 15 hours
Temperature range	Operating: 0°C to 40°C; Storage: -20°C to 60°C
Electrical power	Base unit power adapter:Ten Pao: S003IB0600050 & S003IV0600050Input 100-240Vac 50-60Hz; Output 6VDC/500mA.Charger unit power adapter:Ten Pao: S003IB0600050 & S003IV0600050Input 100-240Vac 50-60Hz; Output 6VDC/500mA.Battery information:2 X 1.2V AAA size, 650mAh NiMH (Rechargeable)

12 GWARANCJA I SERWIS

© 2014 Binatone Electronics International Limited

All rights reserved

Subject to availability. Rights of modification reserved.

AEG is a registered trademark used under license from AB Electrolux (publ)

www.aegtelephones.eu

QR code image containing encoded data, no visible human-readable text
