his equipment is not waterproof. To prevent a fire or

shock hazard, do not place any container filled with

liquid near this equipment (such as a vase or flower

pot) or expose it to dripping, splashing, rain or

moisture. D3-4-2-1-3_A1_En

o prevent a fire hazard, do not place any naked flame

sources (such as a lighted candle) on the equipment. D3-4-2-1-7a_A1_En Operating Environment

Operating environment temperature and humidity:

+5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH

(cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in

locations exposed to high humidity or direct sunlight (or

strong artificial light) D3-4-2-1-7c*_A1_En This product is for general household purposes. Any

failure due to use for other than household purposes

(such as long-term use for business purposes in a

restaurant or use in a car or ship) and which requires

repair will be charged for even during the warranty

CAUTION This product is a class 1 laser product classified

under the Safety of laser products, IEC 60825-1:2007.

CLASS 1 LASER PRODUCT D58-5-2-2a_A1_En

VENTILATION CAUTION When installing this unit, make sure to leave space

around the unit for ventilation to improve heat radiation

(at least 25 cm at top, 15 cm at rear, and 5 cm at each

WARNING Slots and openings in the cabinet are provided for

ventilation to ensure reliable operation of the product,

and to protect it from overheating. To prevent fire

hazard, the openings should never be blocked or

covered with items (such as newspapers, table-cloths,

curtains) or by operating the equipment on thick carpet

or a bed. D3-4-2-1-7b*_A1_En

CAUTION T O PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.D3-4-2-1-1_B1_En

POWER-CORD CAUTION Handle the power cord by the plug. Do not pull out the

plug by tugging the cord and never touch the power

cord when your hands are wet as this could cause a

short circuit or electric shock. Do not place the unit, a

piece of furniture, etc., on the power cord, or pinch the

cord. Never make a knot in the cord or tie it with other

cords. The power cords should be routed such that they

are not likely to be stepped on. A damaged power cord

can cause a fire or give you an electrical shock. Check

the power cord once in a while. When you find it

damaged, ask your nearest PIONEER authorized

service center or your dealer for a replacement. S002*_A1_EnCAUTION The STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).D3-4-2-2-2a*_A1_En ;&0B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸲ᖺ㸱᭶㸰㸶᪥ࠉ㔠᭙᪥ࠉ༗๓㸯㸮󰪍㸳㸯ศInformation for users on collection and disposal of old equipment and used batteries These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.These symbols are only valid in the European Union.For countries outside the European Union:If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.K058a_A1_EnSymbol examples for batteriesSymbol for equipment Pb

Radio wave caution This unit uses a 2.4 GHz radio wave frequency, which is a band used by other wireless systems (Microwave ovens and Cordless phones, etc.). In this event noise appears in your television image, there is the possibility this unit (including products supported by this unit) is causing signal interference with the antenna input connector of your television, video, satellite tuner, etc. In this event, increase the distance between the antenna input connector and this unit (including products supported by this unit). • Pioneer is not responsible for any malfunction of the compatible Pioneer product due to communication error/malfunctions associated with your network connection and/or your connected equipment. Please contact your Internet service provider or network device manufacturer.• A separate contract with/payment to an Internet service provider is required to use the Internet.

WARNING Store small parts out of the reach of children and

infants. If accidentally swallowed, contact a doctor

;&0B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸲ᖺ㸱᭶㸰㸶᪥ࠉ㔠᭙᪥ࠉ༗๓㸯㸮󰪍㸳㸯ศ4

Thank you for buying this Pioneer product.

Please read through these operating instructions so that you will know how to operate your model properly. After you

have finished reading the instructions, put them in a safe place for future reference.

What’s in the box Please confirm that the following accessories are in the box when you open it.• Remote control• AAA batteries (R03) x 2•Power cord• Speaker wire x 2• Video cable (1.5 m)• FM wire antenna• Non-skid pads x 8• iPhone/iPad stand• Warranty card• Operating instructions (this document) Loading the batteries in the

remote control 1 Open the rear lid and load the batteries as illustrated below.2 Close the rear lid. CAUTION• Do not use any batteries other than the ones specified. Also, do not use a new battery together with an old one.• When inserting the batteries, make sure not to damage the springs on the battery’s terminals. This can cause batteries to leak or over heat.• When loading the batteries into the remote control, set them in the proper direction, as indicated by the polarity marks ( and ). • Do not heat batteries, disassemble them, or throw them into flames or water.• Batteries may have different voltages, even if they are the same size and shape. Do not use different types of batteries together.• To prevent leakage of battery fluid, remove the batteries if you do not plan to use the remote control for a long period of time (1 month or more). If the fluid should leak, wipe it carefully off the inside of the case, then insert new batteries. If a battery should leak and the fluid should get on your skin, flush it off with large quantities of water.• When disposing of used batteries, please comply with governmental regulations or environmental public institution’s rules that apply in your country/area. WARNING• Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries. Using the remote control The remote has a range of about 7 m at an angle of about 30º from the remote sensor.Keep in mind the following when using the remote control:• Make sure that there are no obstacles between the remote and the remote sensor on the unit.• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit’s remote sensor.• Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this unit.• Replace the batteries when you notice a fall off in the operating range of the remote.

O PTION A SPM P TY DI S PLA Y RDS STA ND BY

M E N U PR E S E T V OLUM E S H I F T

T IMER S LEE P E Q U A L IZE R A UDIO SUBT I T L EA N G L E P.BASS ZOO M M EM O R Y P R OG RA M B A S S

M O NO V I D E O M O D E A-B D ISPL A Y C LEA R R P T/RD M O P E N

Part names and functions

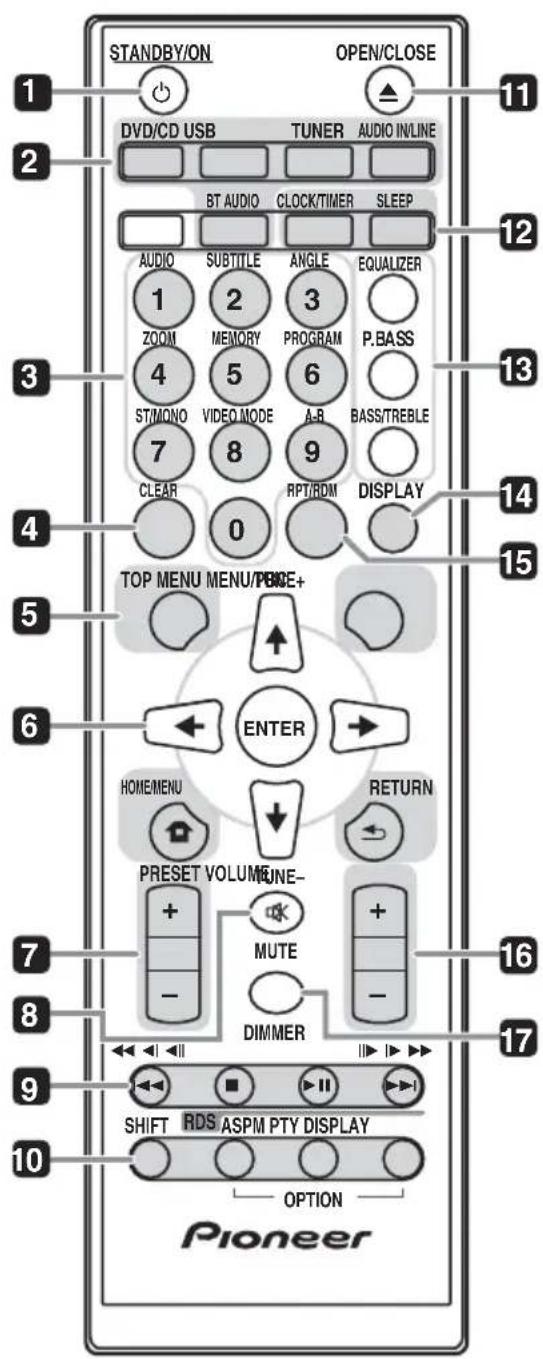

Remote control 1 1 STANDBY/ONSwitches the receiver between standby and on (page 20).2 Input function buttonsUse to select the input source to this receiver (page 20).BT AUDIOUse to set up or play the audio file using the Bluetooth network (page 32).3 Numeric buttons (0 to 9)Use to enter the number (page 21).AUDIO*For discs or files including multiple audio streams/ channels, the audio stream/channel can be switched during playback. For files stored in iPod/iPhone/iPad, this button is not available.SUBTITLE*On DVD-Video or DivX discs containing subtitles in multiple languages, the subtitle can be switched during playback. For files stored in iPod/iPhone/iPad, this button is not available.ANGLE*On DVD-Video discs containing multiple angles, the angle can be switched during playback.ZOOM*Zooming on the image. For images stored in iPod/iPhone/iPad, this button is not available.MEMORY*Use to memory the radio station (page 28).PROGRAM*Use to program the DVD-Video, MP3/WMA disc or USB mass storage device (page 23).ST/MONO*Use to switch the sound mode between stereo and monaural (page 28).VIDEO MODE*Use to change the output resolution (HDMI only) (page 36). A-B* The specified section within a single title or track is played repeatedly. 4 CLEARPress to clear the selected item.Use this for example if you use to clear the programmed play (page 23). OPTIONASPM PTY DISPLAY RDS

5 DVD Receiver control buttons

TOP MENU Press to display the top menu of the DVD-Video. MENU/PBC Use to access the DVD menu or VCD PBC menu. HOME/MENU Press to display the menu screen.Use this to change initial settings of the unit (page 35).• Audio Settings (page 35)• Video Adjust (page 35)• Play Mode The Play Mode function may not work for some discs or files. For files stored on iPod/iPhone/iPad, this function is not available.A-B Repeat (page 21)The specified section within a single title or track is played repeatedly.Repeat (page 22)Plays titles, chapters, tracks or files repeatedly.Random (page 22)Plays titles, chapters or tracks in random order.Program (page 23)Plays titles, chapters, tracks or files in the order in which you program them.Search Mode (page 24)Plays the specified number or time within the title, chapter, track or file.• Disc NavigatorSelect and plays title, chapter, track or file from the Disc Navigator.Ex.: DVD-Video Disc Navigator• Initial Settings (page 35) RETURN Press to return to the previous screen. Also, use to cancel the clock setting or the sound setting. 6

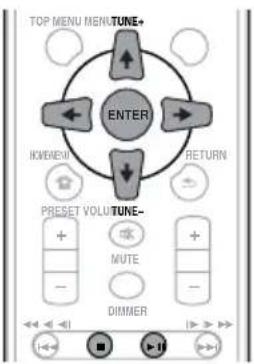

(TUNE +/–), ENTER Use to select/switch system settings and modes, and to confirm actions. Use

TUNE +/– can be used to find radio frequencies (page 28). 7

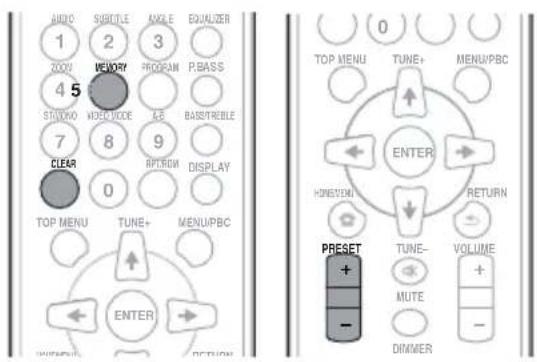

PRESET +/– Use to select preset radio stations (page 28). 8

MUTE Mutes/unmutes the sound (page 15). 9 Playback control buttons Use to control each function after you have selected it using the input function buttons (page 20). ! Press to start playback. # Press to stop playback.+)/-• Press to return to the beginning of the currently playing track or file. Press twice to move back to the beginning of the previous track or file.• Press and hold during playback to fast-reverse.• Press in the pause mode to move backward frame-by-frame. (DVD-Video only)• Press and hold in the pause mode for slow play in the reverse direction. (DVD-Video only),*0.• Press during playback to skip ahead to the beginning of the next track or file.• Press and hold during playback to fast-forward.• Press in the pause mode to move forward frame-by-frame. (DVD-Video, Video CD or DivX files only)• Press and hold in the pause mode for slow play in the forward direction. (DVD-Video, Video CD or DivX files only) Audio SettingsPlay ModeDisc NavigatorInitial SettingsVideo Adjust

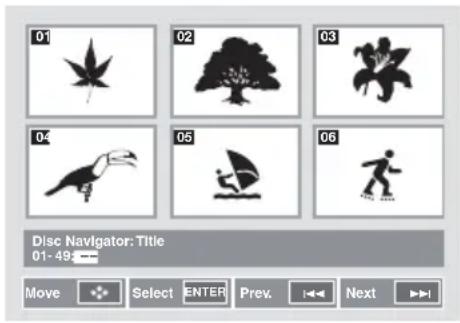

Disc Navigator: Title

SHIFT Press to access the ‘blue’ commands (above the buttons) on the remote. These buttons are marked with an asterisk (*) in this section. RDS ASPM Use to search for RDS Auto station program memory (page 29). RDS PTY Use to search for RDS program types (page 29). RDS DISPLAY Press to change the RDS display for information mode (page 30). 11 OPEN/CLOSE Use to open or close the disc tray (page 20). 12 DVD Receiver control buttons

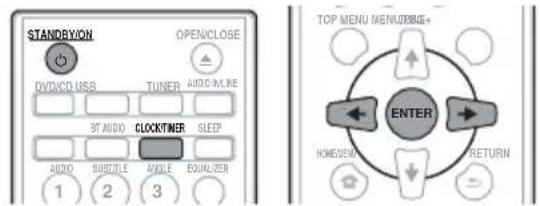

CLOCK/TIMER Use for setting the clock, as well as for setting and checking the timers (page 15).

SLEEP See Using the sleep timer on page 17.

DIMMER Dims or brightens the display. The brightness can be controlled in four steps (page 15). Note• This unit does not use the OPTION buttons. Speaker system

4 Speaker Terminals Important• Speaker grille can be removed.• Make sure nothing comes into contact with the speaker diaphragms when you remove the speaker grilles.• Both speakers can be used on either the right or the left side. Detatching and replacing the front

grille The front grille of this speaker system is removable. Proceed as follows: 1 Grab the bottom of the grille, and gently

pull it toward you to remove the bottom

2 Next, grab the top part of the grille and

gently pull it toward you to remove the top

portion. To install the grille, align the projections on the speaker with the receptacles on the top and at the base of the grille and push them into place.

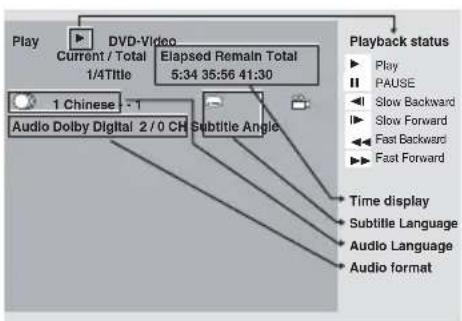

Play Playback statusTime displaySubtitle LanguageAudio LanguageAudio formatDVD-VideoCurrent / Total1 Chinese - - 1Audio Dolby Digital 2 / 0 CH Subtitle Angle1/4TitleElapsed Remain Total5:34 35:56 41:30 

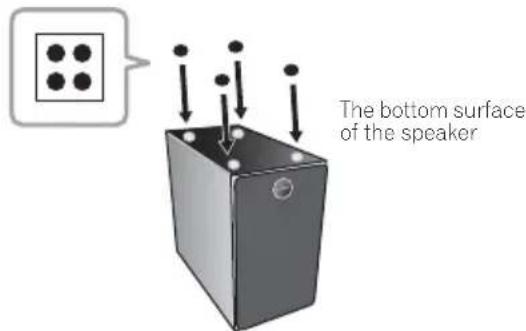

Attaching the Non-skid pads Apply the accessory non-skid pads to the bottom surfaces of the speakers. Important• Use the speaker is usually in an upright position. When placing speakers upright When placing the speakers vertically upright, attach the non-skid pads to the bottom surface of the speakers. When placing speakers horizontally When placing the speaker horizontally, attach the non-skid pads to what will be the bottom surface of the speakers. Rotating the Speaker Badge The grill frame speaker badge can be rotated. Operate as follows. 1 Grasp the speaker badge (1), pull forward

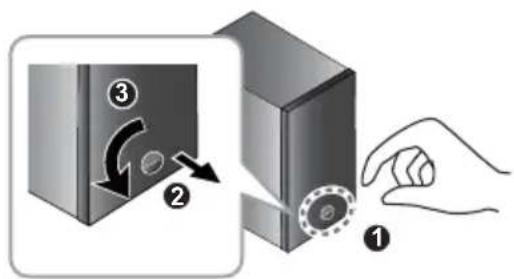

(2), and turn left (3). The speaker badge will rotate.If the speaker badge does not rotate doing the above step 1, try the following steps 2 to 3. 2 Detach the speaker grill.

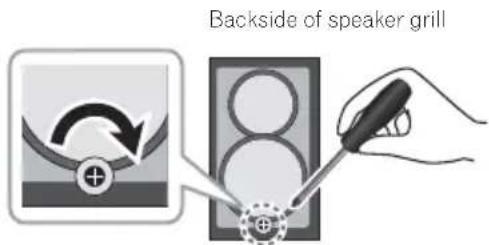

3 Rotate the screws on the backside of the grill

in a clockwise direction using a plus driver. Important• Do not rotate the screw in a counter-clockwise direction as it may cause the badge to fall off. The bottom surface of the speaker

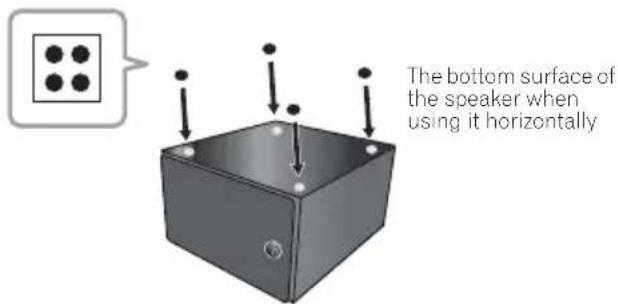

The bottom surface of the speaker when using it horizontally

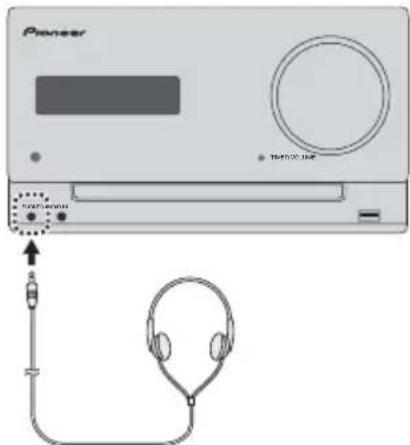

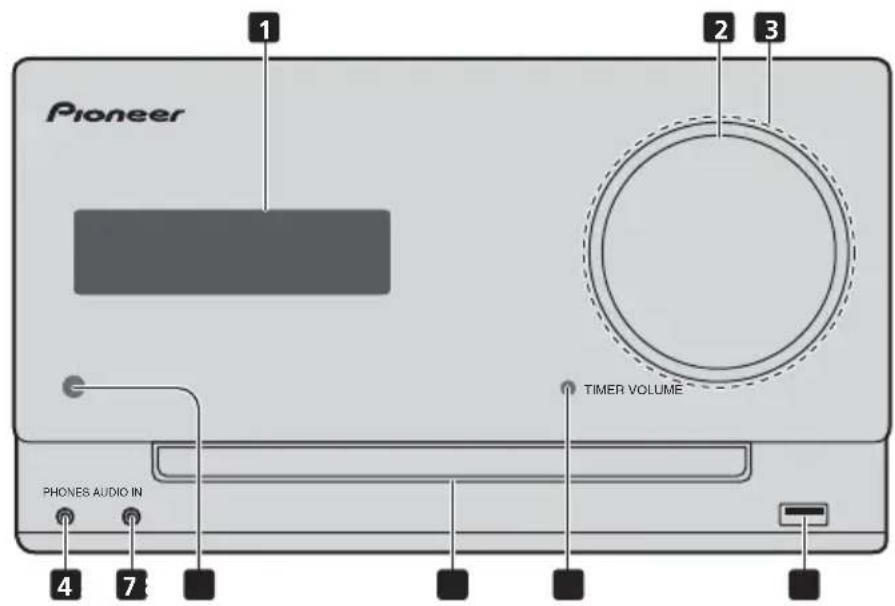

illumination Light when the power on. 4 Headphone socket Use to connect headphones. When the headphones are connected, there is no sound output from the speakers. 5 AUDIO IN socket Use to connect an auxiliary component using a stereo minijack cable (page 31). 6 Remote sensor Receives the signals from the remote control. 7 Disc tray Place the disc, label side up (page 20). 8

indicator Lights when the receiver is power off with timer setting. 9 USB terminal Use to connect your USB mass storage device or Apple iPod/iPhone/iPad as an audio source (page 26).TIMER VOLUMEPHONES AUDIO IN 4 5 6 7 8 9

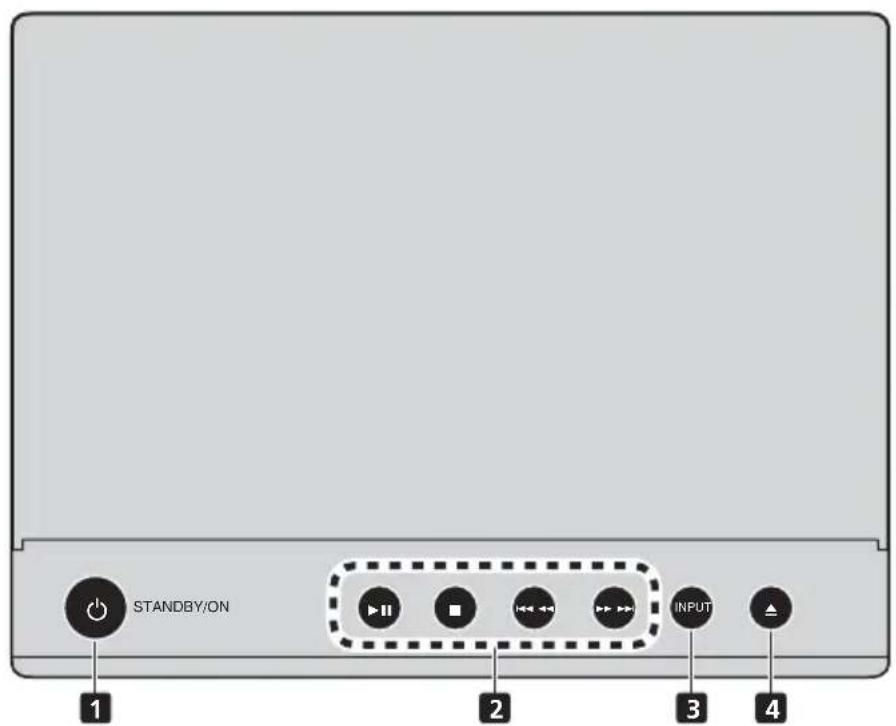

1 1 STANDBY/ON Switches the receiver between standby and on (page 20). 2 Playback control buttons Selects the desired track or file to be played back. Use to stop the playback. Stops playback or resumes playback from the pause point. 3 INPUT Selects the input source.Long press to change to BT STANDBY mode. 4 Disc tray open/close button Use to open or close the disc tray (page 20). STANDBY/ON 

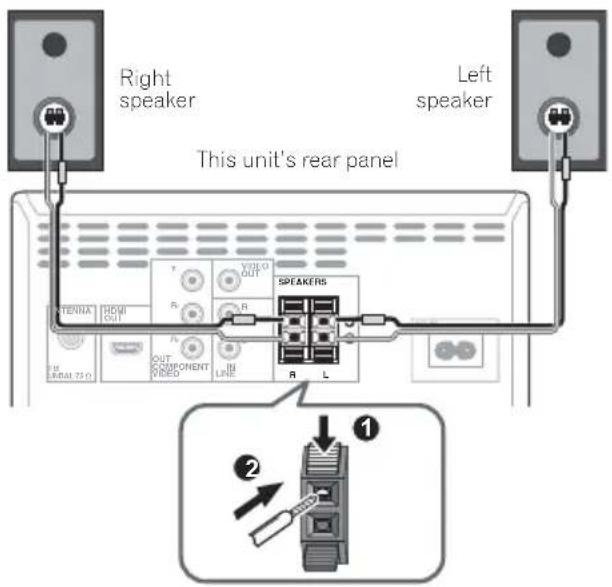

Connections CAUTION• Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections.• Connect the power cord after all the connections between devices have been completed. Speaker connection

• Push open the tabs and insert exposed wire.• The provided speaker wire with red tube is for the (+) terminal. Connect the wire with red tube the (+) terminal, and other wire to the (–) terminal.• Both speakers can be used on either the right or the left side. CAUTION• These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.• Do not connect any speakers other than those supplied to this system.• Do not connect the supplied speakers to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fire.• Do not attach these speakers to the wall or ceiling. They may fall off and cause injury.• These speakers are magnetically shielded. However, depending on the installation location, color distortion may occur if the speaker system is installed extremely close to the screen of a television set. If this happens, turn off the television set, and then turn it on after 15 to 30 minutes. If the problem persists, move the speaker system away from the television set.• Make sure that the speaker cable cores do not become exposed and make contact with other cable cores. This may cause malfunction of the product.• Do not allow the speaker cable core to come into contact with the receiver body.• If the speaker cable core comes into contact with any metal portion of the receiver’s body, it may damage the speakers and cause smoke and fire.Insert speaker cables securely into the terminals and check that the cable does not come out of easily. Note• There is no difference between L and R speakers.SPEAKERS R L ANTENNAVIDEO OUT OUT COMPONENTVIDEO OUT IN LINE P B P R Y L R FM UNBAL 75 Ω HDMI AC IN

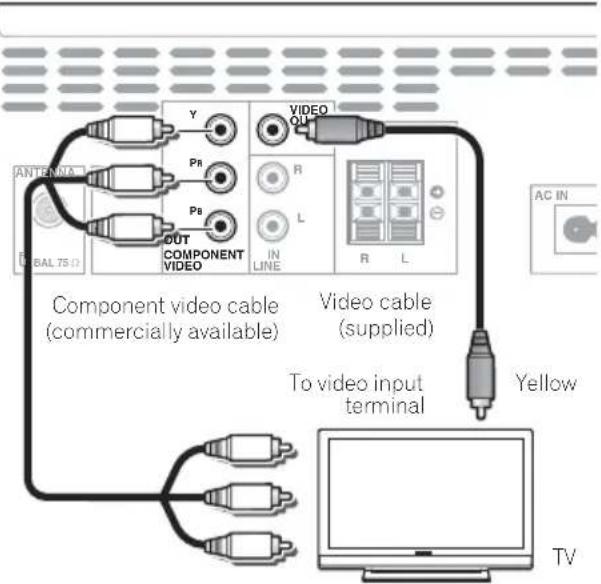

Connecting using an HDMI cable

By using an HDMI cable, digital signals can be transferred to

an HDMI-compatible TV on a single cable with no loss of

picture or sound quality. After connecting, make this unit's

resolution and HDMI color settings according to the HDMI-

compatible TV. Also refer to the operating instructions with

the HDMI-compatible TV.

• When playing a disc or USB storage device content, this

unit can transfer digital signals by the HDMI OUT

terminal. Use the video cable for playing other content.

• This unit’s interface is designed based on the High-

Definition Multimedia Interface specification.

• When an HDMI-compatible device is connected, the

resolution is displayed on the front panel display.

• The resolution of the video signals output from this unit’s

HDMI OUT terminal is changed manually. Change the

HDMI Resolution setting (page 36).

• This unit is designed for connection to HDMI-compatible

devices. It may not operate properly if connected to DVI

The term HDMI and High-Definition Multimedia Interface,

and the HDMI Logo are trademarks or registered trademarks

of HDMI Licensing, LLC in the United States and other

Audio signals that can be output from

this unit's HDMI OUT terminal

• 44.1 kHz to 96 kHz, 16-bit/ 20-bit/ 24-bit 2-channel linear

PCM audio (including 2-channel downmixing)

• Dolby Digital 5.1-channel audio

• Manufactured under license from Dolby Laboratories.

“Dolby” and the double-D symbol are trademarks of

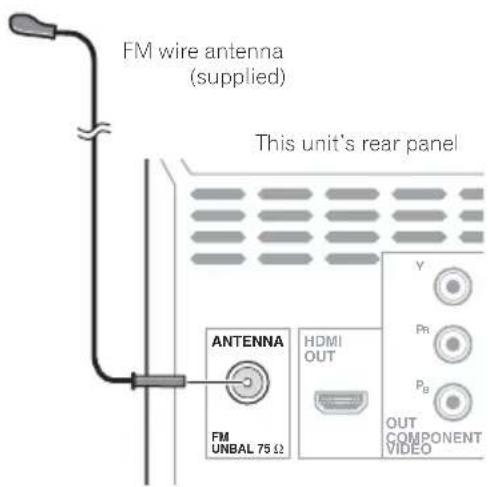

Connecting the FM antenna

Connect the FM antenna plug onto the center pin of the FM

• To ensure optimum reception, make sure the FM

antenna is fully extended and not coiled or hanging at

the rear of the unit.

Using external antennas

To improve FM reception

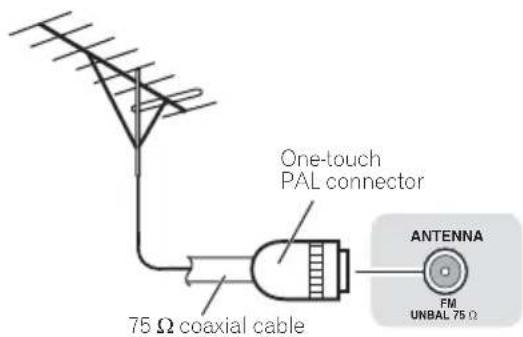

Use a PAL connector (not supplied) to connect an external FM

Before making or changing the connections, switch off the

power and disconnect the power cord from the AC outlet.

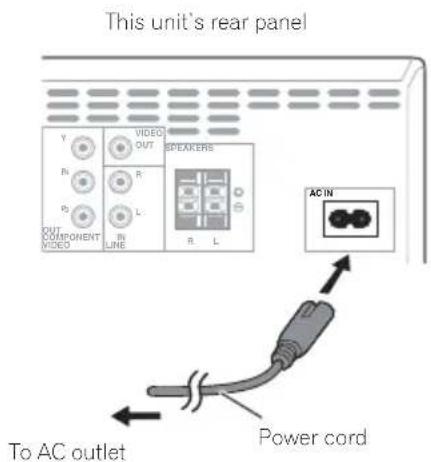

After you’ve finished making all connections, plug the unit

• Do not use any power cord other than the one supplied

• Do not use the supplied power cord for any purpose

other than that described above

ANTENNA OUT COMPONENTVIDEO OUT P B P R Y FM UNBAL 75 Ω HDMI This unit’s rear panelFM wire antenna(supplied)

To turn the power on

Press the 1 STANDBY/ON to turn the power on. After use: Press the 1 STANDBY/ON to enter the power stand-by mode. Note• In standby mode, if iPod/iPhone/iPad is connected, the unit turns charge mode. Setting the clock 1 Press 1 STANDBY/ON to turn the power on.2 Press CLOCK/TIMER on the remote control.“CLOCK” is shown on the main display.3 Press ENTER . 4 Press HI to set the day, then press ENTER.5 Press HI to set the hour, then press ENTER.6 Press HI to set the minute, then press ENTER to confirm.To confirm the time display:Press the CLOCK/TIMER. The time display will appear for about 10 seconds.To readjust the clock:Perform “Setting the clock” from step 1. Note• When power supply is restored after unit is plugged in again or after a power failure, reset the clock. General control

When the INPUT on main unit is pressed, the current function will change to different mode. Press the INPUT repeatedly to select desired function. Display brightness control

Press DIMMER to dims the display brightness. The brightness can be controlled in four steps. Volume auto set-in If you turn off and on the main unit with the volume set to 31 or higher, the volume starts at 30 and sets in to the last set level. Volume control

Turn the volume knob towards VOLUME (on main unit) or press VOLUME +/– (on remote control) to increase or decrease the volume. CAUTION• The sound level at a given volume setting depends on speaker efficiency, location, and various other factors. It is advisable to avoid exposure to high volume levels. Do not turn the volume on to full at switch on. Listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss. Muting

The volume is muted temporarily when pressing the MUTE on the remote control. Press again to restore the volume.STANDBY/ON 

When the EQUALIZER is pressed, the current mode setting will be displayed. To change to a different mode, press the EQUALIZER repeatedly until the desired sound mode appears. P.bass control When the power is first turned on, the unit will enter the P.bass mode which emphasises the bass frequencies. To cancel the P.bass mode, press the P.BASS on the remote control. Bass/treble control

Press the BASS/TREBLE, then press FGHI to adjust the bass or treble. Note•The EQUALIZER and P.BASS cannot operate simultaneously. The most recently selected of these two functions will be the one used. • BASS/TREBLE can operate alongside either the EQUALIZER or P.BASS. When one of the above two functions is

selected, the function that is not selected will

be displayed as follows.

1 When P.BASS setting (ON/OFF) is changed • EQUALIZER : FLAT 2 When EQUALIZER setting is changed • P.BASS : OFF Setting the wake-up timer Used to change the existing timer setting, or to set a new timer. 1Press

to turn the power on.

to select “ONCE“ or “DAILY“,

. ONCE – Once timer play works for one time only at a preset time.DAILY – Daily timer play works at the same preset time and days of week. 4Press

to select the timer playback

DVD/CD, FM, USB/IPOD, BT AUDIO, AUDIO IN and LINE can be selected as the playback source. 6Press

to select the timer day, then

to set the hour, then press

to set the minute, then press

. Set the time to finish as in steps 7 and 8 above. 9 Adjust the volume press VOLUME +/– , then

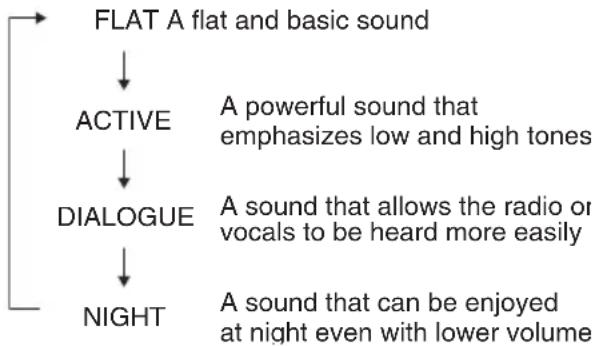

NIGHT FLAT A flat and basic sound

ACTIVE DIALOGUE A sound that can be enjoyed

at night even with lower volume

A powerful sound that

emphasizes low and high tones

A sound that allows the radio or

vocals to be heard more easily

;&0B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸲ᖺ㸱᭶㸰㸶᪥ࠉ㔠᭙᪥ࠉ༗๓㸯㸮󰪍㸳㸯ศGetting started 04

Calling the wake-up timer It can be used to re-use an existing timer setting. 1 As well as steps 1 through 3 in “Setting the

Cancelling the wake-up timer It can be used to turn off the timer setting. 1 As well as steps 1 through 3 in “Setting the

Using the wake-up timer

2 At the wake-up time, this unit will turn on

automatically and play the selected input

function. Note• If at the wake-up time iPod/iPhone/iPad is not connected to this unit or a disc is not inserted, this unit will be turned to on and not play back the track.• Some discs may not be played automatically at the wake-up time.• If you set the timer, take one minute or more between the start and end time. Using the sleep timer The sleep timer switches off the unit after a specified time so you can fall asleep without worrying about it. 1 Press

repeatedly to select a switch off

time. Choose between 10 min, 20 min, 30 min, 60 min, 90 min, 120 min, 150 min, 180 min or OFF. The newly set value displays for 5 seconds, and then the setting is completed. Note• The sleep timer can be set by pressing SLEEP while the remaining time is displayed. Using Headphones Connect to the jack plug of the headphones.When the headphones are connected, there is no sound output from the speakers.• Do not turn the volume on to full at switch on and listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss.• Before plugging in or unplugging the headphone, reduce the volume.• Be sure your headphone has a 3.5 mm diameter plug and impedance between 16 : and 50 :. The recommended impedance is 32 :.TIMER VOLUMEPHONES AUDIO IN ;&0B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸲ᖺ㸱᭶㸰㸶᪥ࠉ㔠᭙᪥ࠉ༗๓㸯㸮󰪍㸳㸯ศiPod/iPhone/iPad playback05

iPod/iPhone/iPad playback Merely by connecting your iPod/iPhone/iPad to this unit, you can enjoy high-quality sound from your iPod/iPhone/iPad. This unit can not transfer music, movies and images from an iPod/iPhone/iPad via the HDMI OUT and COMPONENT VIDEO terminal. Playback setting for iPod/iPhone/iPad music and images can be performed from this unit or the iPod/iPhone/iPad itself. Confirming what iPod/iPhone/iPad

models are supported The iPod/iPhone/iPad playable on this unit are shown below. Note• Pioneer does not guarantee that this unit plays iPod/iPhone/iPad models other than the ones specified.• Some functions may be restricted depending on the model or software version.• iPod/iPhone/iPad is licensed for reproduction of non-copyrighted materials or materials the user is legally permitted to reproduce.• Features such as the equalizer cannot be controlled using this system, and we recommend switching the equalizer off before connecting.• Pioneer cannot under any circumstances accept responsibility for any direct or indirect loss arising from any inconvenience or loss of recorded material resulting from iPod/iPhone/iPad failure.• For detailed instructions on using the iPod/iPhone/iPad, please refer to the manual supplied with the iPod/iPhone/iPad.• This system has been developed and tested for the software version of iPod/iPhone/iPad indicated on the website of Pioneer (http://pioneer.jp/homeav/support/ios/eu/).• Installing software versions other than indicated on the website of Pioneer to your iPod/iPhone/iPad may result in incompatibility with this system.• This unit cannot be used to record CD, tuner or other content on an iPod/iPhone/iPad. Connecting your iPod/iPhone/iPad CAUTION• When connecting iPod/iPhone/iPad devices, use the iPod/iPhone/iPad cable provided with iPod/iPhone/iPad devices, or a commercially available iPod/iPhone/iPad cable designed to support iPod/iPhone/iPad.• An iPod/iPhone/iPad cable is not supplied with this unit. Important• If you are mounting the protective cover of a commercially available iPod/iPhone/iPad, you may not be able to connect iPod/iPhone/iPad to this unit. Connecting iPod/iPhone/iPad using

1 Connect the unit to an iPod/iPhone/iPad

2 Set up to stand the iPod/iPhone/iPad.

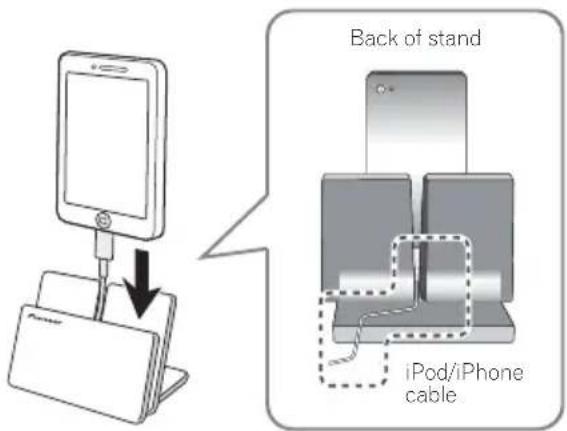

When using an iPod/iPhone Make sure the iPod/iPhone cable is aligned along the groove for it on the back of the stand that comes with the unit. When using iPad Make sure to place the iPad in a horizontal direction on the stand. Playing iPod/iPhone/iPad

1 Connect your iPod/iPhone/iPad. If an iPod/iPhone/iPad is connected when this unit is on, playback of the iPod/iPhone/iPad will not begin. 2 Press USB as the input source. “USB/IPOD” is shown on the main display. 3 When the recognition is completed, will

begin playing automatically. The available iPod/iPhone/iPad playback control by this unit is !, + ), *,. CAUTION• When your iPod/iPhone/iPad is placed on the stand and you wish to operate the iPod/iPhone/iPad directly, be sure to steady the iPod/iPhone/iPad with the other hand to prevent malfunctions due to faulty contacts. Note• For detailed instructions on using the iPod/iPhone/iPad, please refer to the manual supplied with the iPod/iPhone/iPad.• iPod/iPhone/iPad recharging occurs whenever an iPod/ iPhone/iPad is connected to this unit. (This function is supported in standby mode as well.)• When input is switched from USB/IPOD to another function, iPod/iPhone/iPad playback is temporarily stopped.• When iPod/iPhone/iPad is not playing and no operations have been performed for more than 20 minutes, the unit will automatically power off. In this case it is required that the Auto power off is switched to ON.• Auto power off can be switched to ON/OFF (page 44). Important• If this unit cannot play your iPod/iPhone/iPad, perform the following troubleshooting checks: - Check whether the iPod/iPhone/iPad is supported by this unit.- Reconnect the iPod/iPhone/iPad to the unit. If this doesn’t seem to work, try resetting your iPod/iPhone/iPad.- Check the iPod/iPhone/iPad software is supported by this unit.• If the iPod/iPhone/iPad cannot be operated, check the following items:- Is the iPod/iPhone/iPad connected correctly? Reconnect the iPod/iPhone/iPad to the unit.- Is the iPod/iPhone/iPad experiencing a hangup? Try resetting the iPod/iPhone/iPad, and reconnect it to the unit.Back of standiPod/iPhone cable ;&0B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸲ᖺ㸱᭶㸰㸶᪥ࠉ㔠᭙᪥ࠉ༗๓㸯㸮󰪍㸳㸯ศDisc playback06

to turn the power on. The selected input is displayed on the front panel display.• When playing discs or files, turn the TV on and switch TV input before starting.• You can change the screen display language of the unit (Display settings on page 36). 2 Press

on the remote control or

repeatedly on the main unit to select

input. Please wait until you see the “NO DISC“.When a disc is already on the disc tray, press $ OPEN/CLOSE to eject the disc. 3 Press

to open the disc tray.

4 Place the disc on the disc tray, label side up.

to close the disc tray.

to start playback. CAUTION• Do not place two discs in one disc tray.• Do not play discs of special shapes (heart, octagon, etc). It may cause malfunctions.• Do not push the disc tray whilst it is moving.• If the power fails whilst the tray is open, wait until the power is restored.• Be sure to place 8 cm disc in the middle of the disc tray. Note• Due to the structure of the disc information, it takes longer to read the disc has written by many files than a normal CD (approximately 20 to 90 seconds).• When the beginning of the first track is reached during fast reverse, the unit will enter the playback mode.• Rewritable multi-session discs with unfinished writing, can still be played.• If TV or radio interference occurs during DVD/CD operation, move the unit away from the TV or radio. Tip • When no operation has done in DVD/CD mode and the audio file is not played for more than 20 minutes, the power will automatically turn off. In this case it is required that the Auto power off is switched to ON. • Auto power off can be switched to On/OFF (page 44)

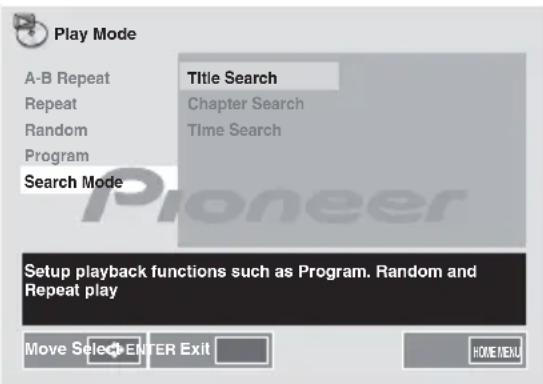

Direct track search By using the number buttons (0 to 9), you can specify and play the title, chapter, track or file you want to view/listen to.Use the numeric buttons on the remote control to select the desired title, chapter, track or file whilst playing the selected disc. Note• The title, chapter, track or file number higher than the number of titles, chapters, tracks or files on the disc cannot be selected.• During random play, direct track search is not possible. To stop playback: Press #. A-B Repeat play The specified section within a single title or track is played repeatedly. 1 Press

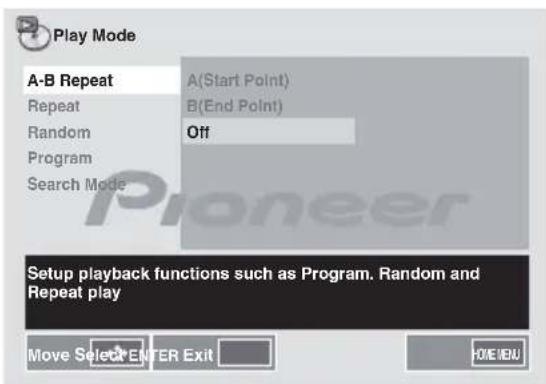

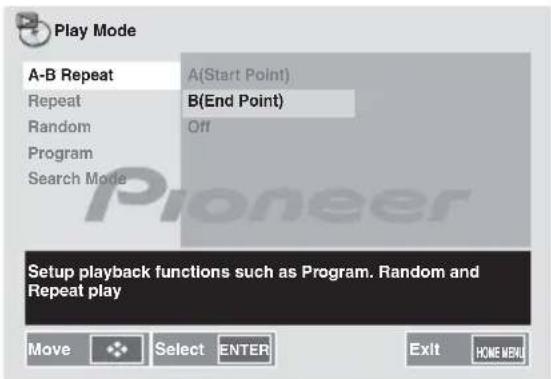

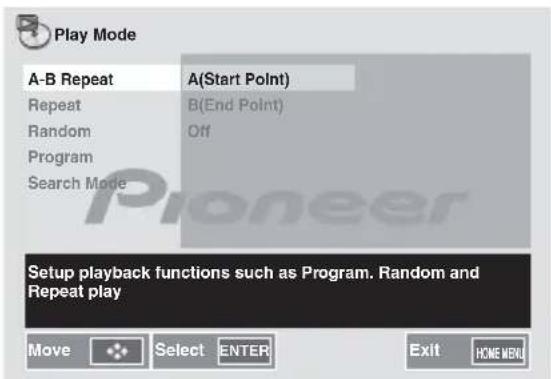

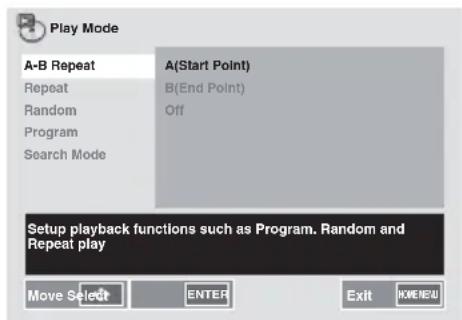

to select the A (Start Point).

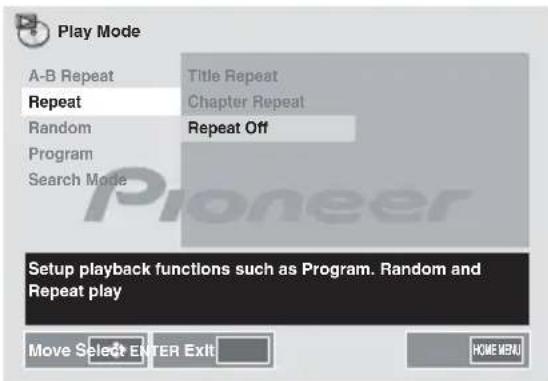

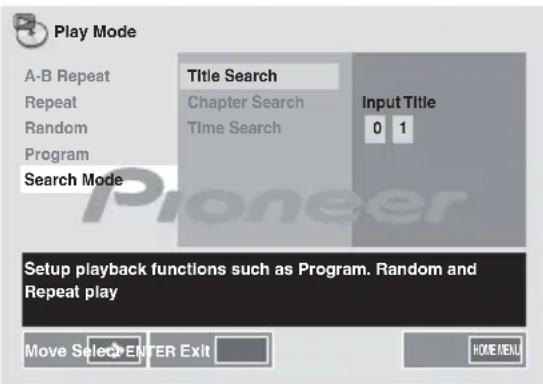

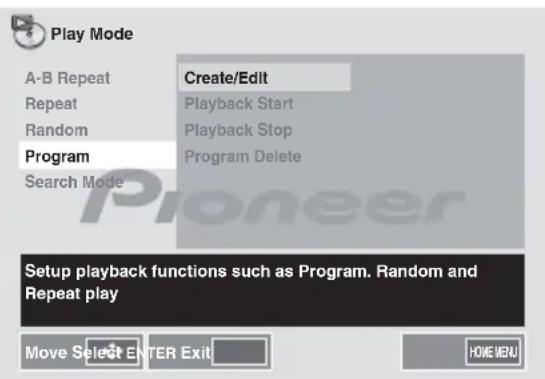

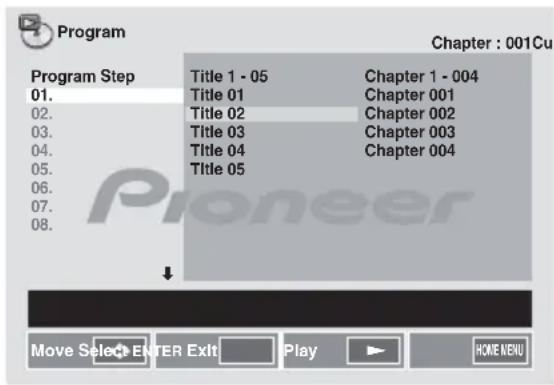

Setup playback functions such as Program. Random and

Setup playback functions such as Program. Random and

• When A-B repeat playback starts, “A-B repeat” will be

displayed on the screen.

• A-B repeat play is disabled on some discs.

• A-B repeat play for DVD is possible only within a title.

• A-B repeat play for CD is possible only within a track.

• Some scenes on DVD may not allow A-B repeat play.

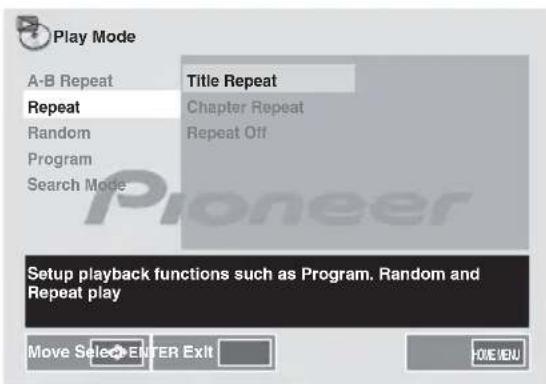

Plays titles, chapters, tracks or files repeatedly.

1 As well as steps 1 through 2 in “A-B Repeat

to select the title repeat.

“RPT TTL” is displayed on the main display.

• After performing repeat play, be sure to press #.

Otherwise, the disc will play continuously.

• During repeat play, random play is not possible.

To cancel repeat play:

“RPT OFF” is displayed on the main display.

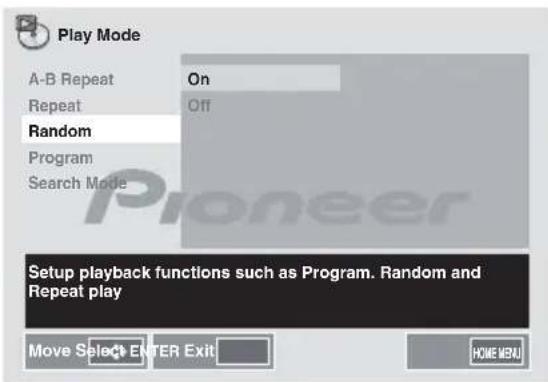

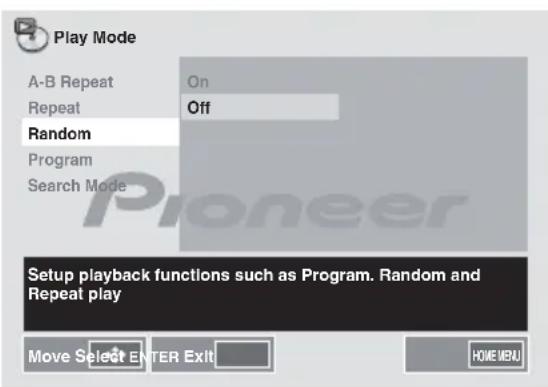

Plays titles, chapters or tracks in random order.

1 As well as steps 1 through 2 in “A-B Repeat

“RDM ON” is displayed on the main display.

• If you press the , during random play, you can move

to the track selected next by the random operation. On

the other hand, the + does not allow you to move to

the previous track. The beginning of the track being

played will be located.

• In random play, the unit will select and play tracks

automatically. (You cannot select the order of the

• During random play, repeat play is not possible.

Move Select ENTER ExitHOME MENUPlay ModeSetup playback functions such as Program. Random andRepeat playA(Start Point)B(End Point) Off A-B RepeatRepeatRandomProgramSearch Mode

Move Select ENTER ExitHOME MENUPlay ModeSetup playback functions such as Program. Random andRepeat playTitle RepeatChapter RepeatRepeat OffA-B RepeatRepeatRandomProgramSearch Mode Move Select ENTER ExitHOME MENUPlay ModeSetup playback functions such as Program. Random andRepeat playTitle RepeatChapter RepeatRepeat OffA-B RepeatRepeatRandomProgramSearch ModeMove Select ENTER ExitHOME MENUPlay ModeSetup playback functions such as Program. Random andRepeat play On

To cancel random play:

. “RDM OFF” is displayed on the main display. Programmed play You can choose up to 24 selections for playback in the order you like. 1 As well as steps 1 through 2 in “A-B Repeat

The Create/Edit screen differs according to the disc or file.

to select the title, chapter,

track or file, then press

. • To add to a program, first select the place in the program (the program step), next select the title, chapter or track, then press ENTER (files are added at the end of program).• Press RETURN to return to the previous screen. If you return to the previous screen when inputting it, the settings you have programmed are cleared.• To delete a step, highlight it and press CLEAR. 5 Press

Playback will start. Note• To play a program that has already been set, select Playback Start from the program screen, then press ENTER.• To resume normal playback, select Playback Stop from the program screen, then press ENTER. The program remains in memory.• To cancel the entire program, select Program Delete from the program screen, then press ENTER.• Programs can be played repeatedly. Select Program Repeat from Repeat on the Play Mode screen during programmed playback.• Programs cannot be played in random order (random play is not possible during programmed play).Move Select ENTER ExitHOME MENUPlay ModeSetup playback functions such as Program. Random andRepeat play On

Off A-B RepeatRepeatRandomProgramSearch ModeMove Select ENTER ExitHOME MENUPlay ModeSetup playback functions such as Program. Random andRepeat playCreate/EditPlayback StartPlayback StopProgram DeleteA-B RepeatRepeatRandomProgramSearch Mode Move Select ENTER ExitHOME MENUProgramTitle 1 - 05Title 01Title 02Title 03Title 04Title 05Chapter 1 - 004Chapter 001Chapter 002Chapter 003Chapter 004Chapter : 001Current Title : 01Program Step 01.

1 As well as steps 1 through 2 in “A-B Repeat

About downloading MP3/WMA There are many music sites on the internet that you can

download MP3/WMA music files. Follow the instructions

from the website on how to download the music files. You can

then play back these downloaded music files by burning them

• Your downloaded song/files are for personal use only.

Any other usage of the song without owner’s permission,

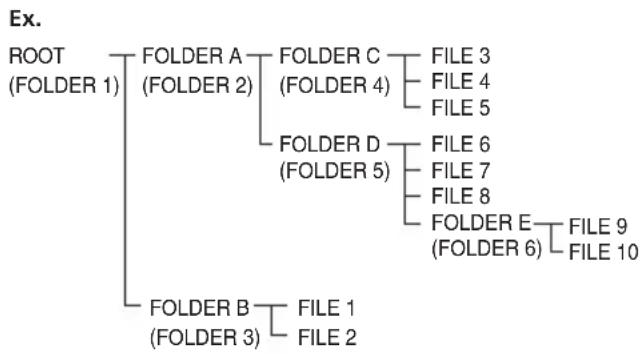

About playback order

Will be played in order from the file that is stored in the upper

The file will be played in order listed above.

Move Select ENTER ExitHOME MENUPlay ModeSetup playback functions such as Program. Random andRepeat playTitle Search Chapter SearchTime SearchA-B RepeatRepeatRandomProgramSearch Mode

Move Select ENTER ExitHOME MENUInput TitlePlay ModeSetup playback functions such as Program. Random andRepeat playTitle Search Chapter SearchTime SearchA-B RepeatRepeatRandomProgramSearch Mode 0

Procedure to playback DivX or MP3/

WMA/JPEG file To play by specifying a file. 1 Press

to select desired playback the

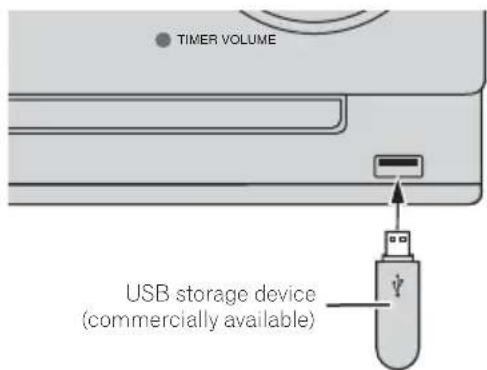

Playing USB storage devices It is possible to listen to two-channel audio using the USB interface on the front of this receiver.• Pioneer does not guarantee that any file recorded on a USB storage device will play or that power will be supplied to a USB storage device. Also note that Pioneer will accept no responsibility whatsoever for loss of files on USB storage devices caused by connection to this unit. 1 Press

as the input source. “USB/IPOD” is shown on the main display. 2 Connect the USB storage device. “GUI” appear on the main display automatically.• This receiver does not support a USB hub. 3 When the recognition is completed, press

to start playback. • When changing to a different input source, stop the USB memory playback first before changing. 4 Disconnect USB storage device from the USB

terminal. Turn the power off before removing the USB storage device. Note• This unit may not recognize a USB storage device, play files or supply power to a USB storage device. For details, see When a USB storage device is connected on page 38.• When a USB storage device is not playing and the unit has not been operated for 20 minutes or more, the power will automatically turn off. In this case it is required that the Auto power off is switched to ON (page 44).

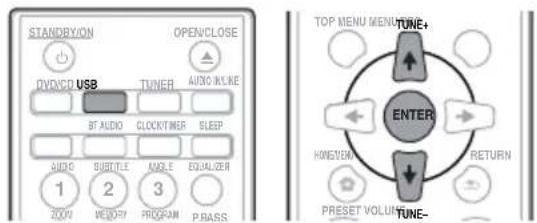

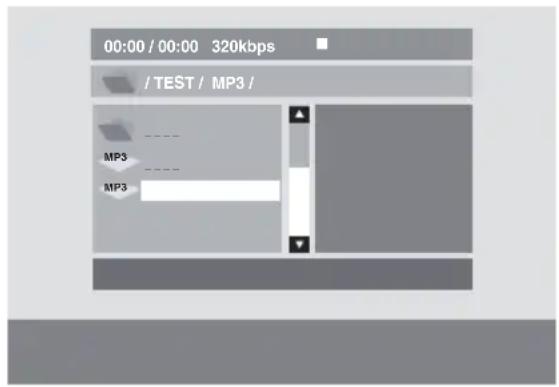

Procedure to playback DivX or MP3/

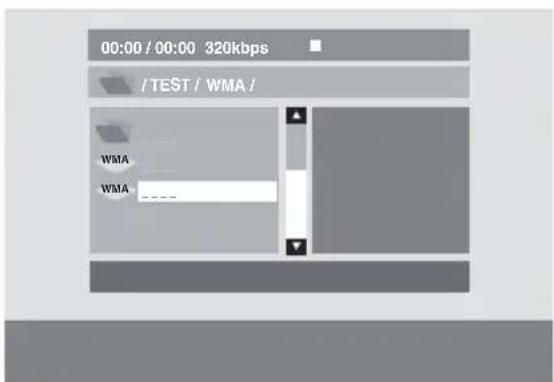

WMA/JPEG file To play by specifying a file 1Press

to select desired playback file.

4 Press ENTER. Playback will start. Playing in the desired order

(Programmed Play) • This unit can play repeatedly folders stored in the USB storage device.• From a USB storage device with MP3/WMA files up to 255 folders and 999 files (including non playable files) can be read. 00:00 / 00:00/ TEST / MP3 /  320kbps MP3

MP3 _ _ _ __ _ _ __ _ _ _

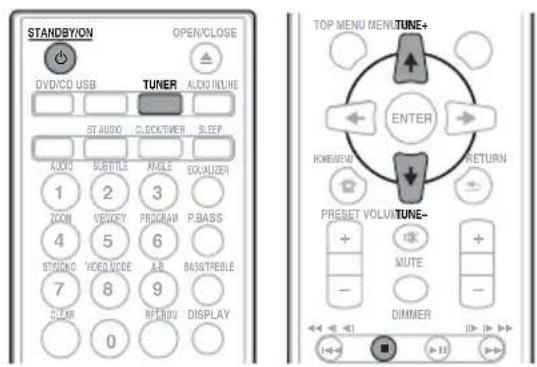

Listening to the radio broadcasts The following steps show you how to tune in to FM radio broadcasts using the automatic (search) and manual (step) tuning functions. Once you are tuned to a station you can memorize the frequency for recall later. See Saving station presets below for more on how to do this. Tuning

on the remote control to

tune in to the desired station.

Press and hold TUNE +/–, scanning will start automatically and the tuner will stop at the first receivable broadcast station. Manual tuning: Press the TUNE +/– repeatedly to tune in to the desired station. Note• When radio interference occurs, automatic tuning may stop automatically at that point.• Automatic tuning will skip weak signal stations.• To stop the automatic tuning, press #. To receive an FM stereo transmission: • Press ST/MONO to select stereo mode and “AUTO” will be displayed. Improving poor FM reception:

1 Press ST/MONO repeatedly to select MONO. This will change the tuner from stereo to mono and usually improve the reception. Saving station presets If you often listen to a particular radio station, it’s convenient to have the receiver store the frequency for easy recall whenever you want to listen to that station (Preset tuning). This saves the effort of manually tuning in each time. This unit can memorize up to 40 stations. 1 Tune to a station you want to memorize. See Tuning above for more on this. 2Press

. The preset number will flash. 3Press

to select the preset

to store that station in

memory. If the preset number has changed from flashing to lighting, before the station is memorised, repeat the operation from step 2.• Repeat steps 1 - 4 to set other stations, or to change a preset station. When a new station is stored in the memory, the station previously memorised for that preset channel number will be erased. Note• The backup function protects the memorised stations for a few hours should there be a power failure or the AC power cord become disconnected.STANDBY/ON 

To recall a memorised station

to select the desired

To scan the preset stations The stations saved in the memory can be scanned automatically. (Preset memory scan) 1 Press and hold

. The preset number will appear and the programmed stations will be tuned in sequentially, for 5 seconds each. 2 Press

again when the desired

To erase entire preset memory

on the remote control.

until “MEM CLR” appears. Note• All stations will be erased. Using the Radio Data System (RDS)

An introduction to RDS Radio Data System (RDS) is a system used by most FM radio stations to provide listeners with various kinds of information—the name of the station and the kind of show they’re broadcasting, for example.One feature of RDS is that you can search by type of program. For example, you can search for a station that’s broadcasting a show with the program type, JAZZ.You can search the following program types: Searching for RDS programs You can search a program type listed above. 1 Press

on the remote control. RDS is only possible in the FM.

on the remote control. “SELECT” will appear for about 6 seconds. 3 Press

to select the program type you

want to hear. Each time the button is pressed, the program type will appear. If the button is held down, the program type will appear continuously. 4 Whilst the selected program type is

displayed (within 6 seconds), Press RDS PTY

again. After the selected program type has been lit for 2 seconds, “SEARCH” will appear, and the search operation will start. Note• If the display has stopped flashing, start again from step 2. If the unit finds a desired program type, the corresponding channel number will lit for about 8 seconds, and then the station name will remain it.• If you want to listen to the same program type of another station, press the RDS PTY whilst the channel number or station name is flashing. The unit will look for the next station.NEWS – NewsAFFAIRS – Current AffairsINFO – General InformationSPORT – SportEDUCATE – EducationalDRAMA – Radio plays, etc.CULTURE – National or regional culture, theater, etc.SCIENCE – Science and technologyVARIED – Usually talk-based material, such as quiz shows or interviews.POP M – Pop musicROCK M – Rock musicEASY M – Easy listeningLIGHT M – ‘Light’ classical musicCLASSICS – ‘Serious’ classical musicOTHER M – Music not fitting above categoriesWEATHER – Weather reportsFINANCE – Stock market reports, commerce, trading, etc. CHILDREN – Programs for childrenSOCIAL – Social affairsRELIGION – Programs concerning religionPHONE IN – Public expressing their views by PhoneTRAVEL – Holiday-type travel rather than traffic announcementsLEISURE – Leisure interests and hobbiesJAZZ – JazzCOUNTRY – Country musicNATION M – Popular music in a language other than EnglishOLDIES – Popular music from the ‘50s and’ 60sFOLK M – Folk musicDOCUMENT – DocumentaryTEST – Broadcasting when testing emergency broadcast equipment or receivers.ALARM – Emergency announcement made under exceptional circumstances to give warning of events causing danger of a general nature. ;&0B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸲ᖺ㸱᭶㸰㸶᪥ࠉ㔠᭙᪥ࠉ༗๓㸯㸮󰪍㸳㸯ศUsing the tuner08

• If no station can be found, “NO FOUND” will appear for

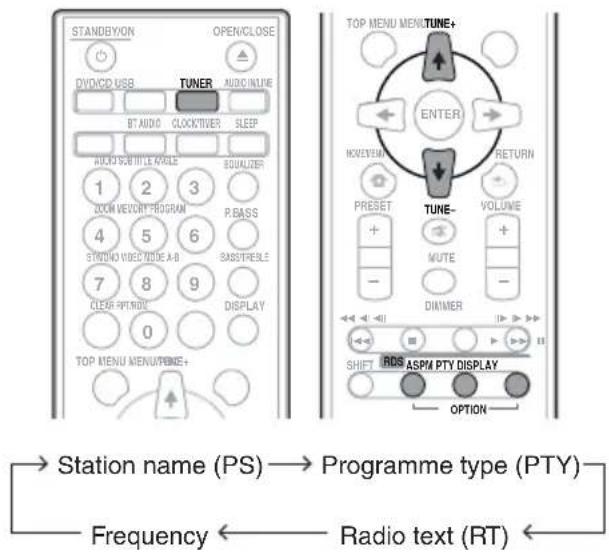

Information provided by RDS Each time the

RDS DISPLAY is pressed, the display will switch

When tuning in to a station other than an RDS station or to an

RDS station which sends weak signal, the display will change

in the following order:

Using the Auto Station program

Whilst in the ASPM operation mode, the tuner will

automatically search for new RDS stations. Up to 40 stations

If you have already stored some stations in memory, the

number of new stations you can store will be less.

on the remote control.

2 Press and hold down RDS ASPM on the

After “ASPM” has flashed for about 4 seconds, scanning will

start (87.5 - 108 MHz).

After scanning, the number of stations stored in memory will

be displayed for 4 seconds, and then “END” will appear for 4

To stop the ASPM operation before it is

Press # whilst it is scanning for stations. The stations which

are already stored in memory will be kept there.

• If the same station is broadcasting on different

frequencies, the strongest frequency will be stored in

• Any station which has the same frequency as the one

stored in memory will not be stored.

• If 40 stations have already been stored in memory, the

scan will be aborted. If you want to redo the ASPM

operation, erase the preset memory.

• If no station have been stored in memory, “NO FOUND”

will appear for about 4 seconds.

• If the RDS signals are very weak, station names may not

be stored in memory.

• The same station name can be stored in different

• In a certain area or during certain time periods, the

station names may temporarily be different.

Notes for RDS operation

If any of the following events occur, it does

not mean that the unit is faulty:

• “PS”, “No PS” and a station name appear alternately,

• If a particular station is not broadcasting properly or a

station is conducting tests, the RDS reception function

may not work properly.

• When you receive an RDS station whose signal is too

weak, information like the station name may not be

• “No PS”, “No PYT” or “No RT” will flash for about 5

seconds, and then the frequency will be displayed.

Notes for radio text:

• The first 8 characters of the radio text will appear and

then they will scroll across the display.

• If you tune in to an RDS station which is not

broadcasting any radio text, “No RT” will be displayed

when you switch to the radio text position.

• Whilst radio text data is received or when the text

contents change, “RT” will be displayed. STANDBY/ON 

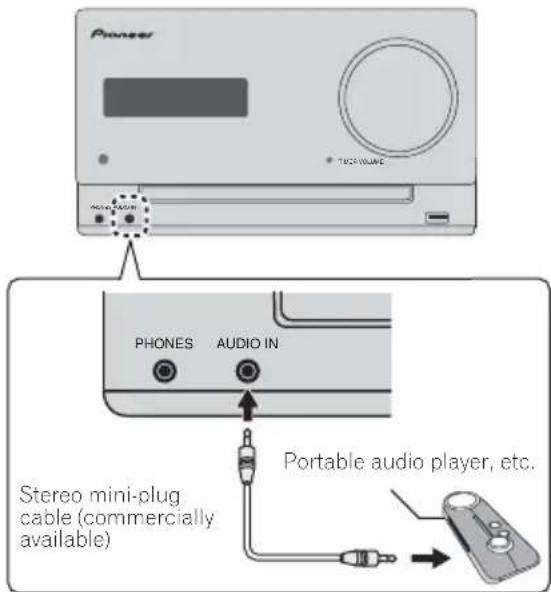

Other connections CAUTION• Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet. Connecting auxiliary components Connect the front panel AUDIO IN mini-plug jack to your auxiliary playback component.• This method can be used to play music on this unit from iPods/iPhones/iPads that do not support use of the USB terminal.1 Press AUDIO IN/LINE as the input source.When AUDIO IN is selected, “AUDIO IN” is displayed on the main display. Note •If the AUDIO IN mini-plug jack is connected to auxiliary phones jack, the volume of the unit will be adjusted by the volume on the playback component. If the sound is distorted after you lower the volume of the unit, try lowering the volume on the auxiliary playback component. Connect the rear panel LINE IN audio jacks to your auxiliary playback component.1 Press AUDIO IN /

twice as the input source.When LINE is selected, “LINE” is displayed on the main display.TIMER VOLUMEPHONES AUDIO IN PHONES AUDIO IN Portable audio player, etc.

(commercially available)

The unit is capable of playing back music stored on Bluetooth capable devices (cell phones, digital music players etc.) wirelessly. You can also use a Bluetooth audio transmitter (sold separately) to enjoy music from devices that do not have Bluetooth functionality. Please refer to the user’s manual for your Bluetooth capable device for more details. Note•The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PIONEER CORPORATION is under license. Other trademarks and trade names are those of their respective owners.•The Bluetooth wireless technology enabled device must support A2DP profiles.• Pioneer does not guarantee proper connection and operation of this unit with all Bluetooth wireless technology enabled devices. Remote control operation The remote control supplied with this unit allows you to play and stop media, and perform other operations. Note•The Bluetooth wireless technology enabled device must support AVRCP profiles.• Remote control operations cannot be guaranteed for all Bluetooth wireless technology enabled devices. Pairing with the unit (Initial registration)

In order for the unit to playback music stored on a Bluetooth capable device, pairing must first be performed. Pairing should be performed when first using the unit with the Bluetooth capable device, or when the pairing data on the device has been erased for any reason.Pairing is a step required to allow communication using Bluetooth wireless technology to be carried out.• Pairing is only performed the first time that you use the unit and the Bluetooth capable device together.• In order to allow communication using Bluetooth wireless technology to take place, pairing must be performed on both the unit and the Bluetooth capable device. • After pressing the BT AUDIO and switching to BT AUDIO input, perform the pairing procedure on the Bluetooth capable device. If pairing has been performed correctly, you will not need to perform the pairing procedures for the unit as shown below. Please refer to the user’s manual for your Bluetooth capable device for more details. 1 Press the 1STANDBY/ON and turn the power to the unit on.2 Press the BT AUDIO . The unit switches to BT AUDIO and “PAIRING” will be displayed.3 Turn on the power to the Bluetooth capable device that you wish to pair with, and perform pairing procedure on it.

TIMER VOLUME PHONES AUDIO IN STANDBY/ON

Bluetooth wireless technology

Digital music player

Device not equipped with Bluetooth

wireless technology:

Digital music player

(commercially available)

10 Note • This unit will be displayed as “X-CM52” on all Bluetooth capable devices that you have.Pairing will start.•Place the Bluetooth capable device close to the unit.• Please refer to the user’s manual for your Bluetooth capable device for details on when pairing can be performed and the procedures required for pairing.• When PIN code entry is requested, enter “0000.” (This unit does not accept any PIN code setting other than “0000.”) 4 Confirm on the Bluetooth capable device

that pairing has been completed. If pairing with the Bluetooth capable device has been completed correctly, the name of the Bluetooth capable device will be displayed on the front panel of the unit. (Only single-byte alphanumeric characters can be displayed. Any character that cannot be displayed will be indicated by a “*”.) Listen to music on the unit from a

. The unit will switch to BT AUDIO input. 2A Bluetooth connection will be created

between the Bluetooth capable device and the

unit. Procedures for connecting to the unit should be performed from the Bluetooth capable device.• Please refer to the user’s manual for your Bluetooth capable device for details of the connection procedures. 3 Playback music from the Bluetooth capable

device. Note • When Bluetooth capable devise is not connected and no operations have been performed for more than 20 minutes, the unit will automatically power off. In this case it is required that the Auto power off is switched to ON. • Auto power off can be switched to ON/OFF (page 44).

BT STANDBY • The following can be done when the unit is on standby with the BT STANDBY switched ON.

• By selecting a Bluetooth capable device that already has a connection history (pairing has already been conducted) with this unit, this unit will automatically turn on with the BT AUDIO function. BT STANDBY settings

•Switch ON/OFF by long pressing the INPUT button located on the top of the unit for 3 seconds.• When the power is ON, long press the INPUT button. This cannot be operated if the power is not on.• BT STANDBY gets to be enabled after once system is turned on, if AC POWER cable is removed. Note • When the BT STANDBY is ON, “BT STANDBY ON” is displayed on the main display. • When the BT STANDBY is OFF, “BT STANDBY OFF” is displayed on the main display.• If the power cable has been removed and inserted again, the function will become effective after the power is turned ON for the unit. Connection while in BT STANDBY mode with

Bluetooth capable device When connection history (pairing has already been conducted) with a Bluetooth capable device exists for the unit during BT STANDBY, the unit can receive a connection request directly from the connection history. The unit will start using the BT AUDIO function, and connect with a Bluetooth capable device.Even devices that have already been paired with this unit will not connect during BT STANDBY in the following cases.In such cases, delete pairing history from the Bluetooth wireless technology device and perform pairing again.• Up to 8 pairing history can be recorded with this unit. If connecting to a Bluetooth wireless technology device over 8 units, the oldest pairing history will be deleted.• If the settings are reset to the factory setting, all pairing history will be deleted. B%OXHWRRWKB;&0IP࣮࣌ࢪ㸰㸮㸯㸲ᖺ㸲᭶㸱㸮᪥ࠉỈ᭙᪥ࠉ༗๓㸯㸯󰪍㸴ศBluetooth

This unit uses a 2.4 GHz radio wave frequency, which is a

band used by other wireless systems (see list below). To

prevent noise or interrupted communication, do not use this

unit nearby such devices, or make sure these devices are

switched off during use.

• Wireless LAN devices (IEEE802.11b/g)

• Wireless AV equipment

• Wireless controllers for game systems

• Microwave-based health aids

• Some baby monitors

Other, less common, equipment that may operate on the

• Anti-theft systems

• Amateur radio stations (HAM)

• Warehouse logistic management systems

• Discrimination systems for train or emergency vehicles

• In the event noise appears in your television image, there

is the possibility that a Bluetooth wireless technology

enabled device or this unit (including products

supported by this unit) are causing signal interference

with the antenna input connector of your television,

video, satellite tuner, etc. In this event, increase the

distance between the antenna input connector and the

Bluetooth wireless technology enabled device or this

unit (including products supported by this unit).

• If there is something obstructing the path between this

unit (including devices supported by this unit) and the

device equipped with Bluetooth wireless technology

(such as a metal door, concrete wall, or insulation

containing tinfoil), you may need to change the location

of your system to prevent signal noise and interruptions.

Use of this unit is limited to home use. (Transmission

distances may be reduced depending on communication

In the following locations, poor condition or inability to receive

radio waves may cause the audio to be interrupted or stopped:

• In reinforced concrete buildings or steel framed or iron-

• Near large metallic furniture.

• In a crowd of people or near a building or obstacle.

• In a location exposed to the magnetic field, static

electricity or radio wave interference from radio

communication equipment using the same frequency

band (2.4 GHz) as this unit, such as a 2.4 GHz wireless

LAN device (IEEE802.11b/g) or microwave oven.

• If you live in a heavily populated residential area

(apartment, townhouse, etc.) and if your neighbor’s

microwave is placed near your system, you may

experience radio wave interference. If this occurs, move

your unit to a different place. When the microwave is not

in use, there will be no radio wave interference.

Radio wave reflections

The radio waves received by this unit include the radio wave

coming directly from the device equipped with Bluetooth

wireless technology (direct wave) and waves coming from

various directions due to reflections by walls, furniture and

building (reflected waves). The reflected waves (due to

obstacles and reflecting objects) further produce a variety of

reflected waves as well as variation in reception condition

depending on locations. If the audio cannot be received

properly due to this phenomenon, try moving the location of

the device equipped with Bluetooth wireless technology a

little. Also note that audio may be interrupted due to the

reflected waves when a person crosses or approaches the

space between this unit and the device equipped with

Bluetooth wireless technology.

Precautions regarding connections to

products supported by this unit

• Complete connections for all devices supported by this

unit, including all audio cords and power cables before

connecting them to this unit.

• After completing connections to this unit, check the

audio and power cables to confirm that they not twisted

• When disconnecting this unit, confirm that you have

sufficient working space in the surrounding area.

• When changing connections of audio or other cables for

products supported by this unit, confirm that you have

sufficient working space in the surrounding area.

;&0B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸲ᖺ㸱᭶㸰㸶᪥ࠉ㔠᭙᪥ࠉ༗๓㸯㸮󰪍㸳㸯ศChanging the settings 11

Changing the settings

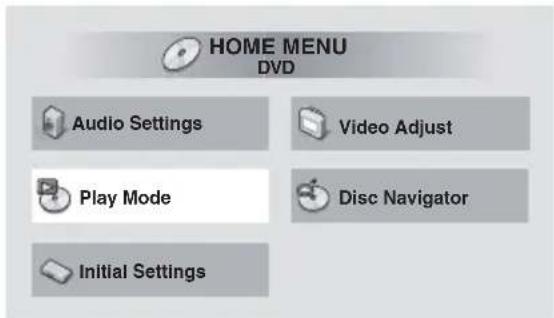

Settings for DVD/CD and USB playback 1 Press HOME MENU . HOME MENU screen appears.2Use FGHIto select the item, then press ENTER . 3Use FGHIto change the setting, then press ENTER . •Closing the HOME MENU screen.Press HOME MENU.The factory default settings are indicated in italic. Important • The following settings are available for a disc or USB storage device content. They are not available for iPod/iPhone/iPad,

tuner, external input (AUDIO IN/LINE) and BT AUDIO.

• In the USB mode, you can only change the Play Mode and Audio Settings on the HOME MENU screen.

Audio Settings parameters

Video Adjust parameters

Brightness, Contrast, Gamma, Hue and Chroma Level are set to 0 upon purchase.

Initial Settings parameters • Use these settings to make detailed unit settings.• Initial Settings cannot be selected during playback. Stop the disc first.Settings What it doesAudio DRC(High/Medium/Low/Off)• This makes loud sounds weaker and weak sounds louder. Change the setting for example when watching movies late at night.• This setting only affects Dolby Digital sound.• The effect depends on the volume of the connected TV, AV receiver or amplifier, speakers, etc. Try different settings, and choose the one providing the strongest effect.Settings What it doesSharpness(Fine/Standard /Soft)Adjusts the picture’s sharpness.Brightness(-20 to +20)Adjusts the picture’s brightness.Contrast(-16 to +16)Adjusts the ratio of the brightness of the brightest and darkest portions of the picture.Gamma(-3 to +3)Adjusts the look of the dark portions of the picture. Hue (green 9 to red 9)Adjusts the balance between green and red.Chroma Level(-9 to +9)Adjusts the density of the colors. This setting is effective for sources with many colors, such as cartoons. ;&0B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸲ᖺ㸱᭶㸰㸶᪥ࠉ㔠᭙᪥ࠉ༗๓㸯㸮󰪍㸳㸯ศChanging the settings11

Video Output settings

Language settings • If the above setting is used to select “ Other Language, ”

perform operations while referring to Language Code Table on page 40. Display settings

Setting the HDMI Resolution settings back to their defaults

VIDEO MODE. Settings What it doesHDMI OutSelect the audio signals to be output from the HDMI OUT terminal (LPCM (2CH)/Auto/Off )

according to the connected HDMI-compatible device.Settings What it doesTV ScreenChange the picture display format (4:3 (Letter Box)/4:3 (Pan & Scan)/16:9 (Wide)/16:9 (Compressed)), according to the connected TV.HDMI ResolutionChange the resolution of the video signals output from the HDMI OUT terminals (720x576i/720x576p /1280x720p/1920x1080i/1920x1080p). If the image does not appear correctly after changing the setting, return the setting to “720x576p.” Refer to Setting the HDMI Resolution settings back to their defaults on page 36.HDMI ColorChange the video signals output from the HDMI OUT terminal (Full range RGB/RGB/Component ). Settings What it doesAudio LanguageChange the language when listening to the sound of DVD-Video discs (English/French/German/Italian/Spanish/Dutch/Other Language ). Subtitle LanguageChange the language of the subtitles displayed for DVD-Video discs (English/French/German/Italian/Spanish/Dutch/Other Language ). DVD Menu Lang.Change the language used for the menu displays of DVD-Video discs ( w/ Subtitle Lang./English/French/German/Italian/Spanish/Dutch/Other Language ). Subtitle DisplaySelect whether to display subtitles ( On ) or not ( Off

). Settings What it doesOSD LanguageChange the language of the operation messages (Play, Stop, etc.) displayed on the TV screen (English/Français/Deutsch/Italiano/Español/Nederlands )

. Angle IndicatorSelect whether to display the angle mark on the TV screen ( On ) or not ( Off

). Settings What it doesParental LockRestrict DVD-Video viewing (Password/Level Change/Country Code). See Language Code Table on page 40 in order to set the “Country Code.”DivX(R) VODDisplay the registration code required for playing DivX(R) VOD files (Activate/Deactivate ).

Additional information

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work. • If the unit does not operate normally due to external effects such as static electricity disconnect the power plug from the outlet and insert again to return to normal operating conditions.General problemProblem Check RemedySettings you have made have been cleared.Was the power cord unplugged? When power cord is unplugged, the settings you have made is cleared. Please set the clock again. If you do not want to clear the settings, do not unplug the power cord.Difference in volume between DVDs, CDs, MP3, WMA, iPod/iPhone/iPad, Tuner, BT AUDIO, AUDIO IN and LINE.This is not a problem with this unit. The volume may sound differently depending on the input source and recording format.This unit cannot be operated with the remote control.Are you operating from far away? Operate within 7 m, 30º of the remote sensor on the front panel (page 5).Is the remote control sensor exposed to direct sunlight or strong artificial light from a fluorescent bulb, etc.?The remote control signals may not be received properly if the remote control sensor is exposed to direct sunlight or strong artificial light from a fluorescent bulb, etc.Are the batteries dead? Replace the batteries (page 5).Disc cannot be played or disc is ejected automatically.Is the disc scratched? Scratched discs may not play.Is the disc dirty? Wipe the dirt off the disc (page 44).Is this unit placed in a humid location?There could be condensation inside. Wait a while for the condensation to evaporate. Do not place this unit near an air-conditioner, etc. (page 43).DVD VR cannot be played. Is the disc supported CPRM? This unit does not supported CPRM. You can play only DVD VR of a non CPRM.Picture is stretched, or aspect ratio cannot be switched.Is the aspect ratio properly set on the connected TV?Refer to the TV’s operating instructions and set the TV’s aspect ratio properly. Is TV Screen properly set? Set TV Screen properly (page 36). This setting is available for a disc or USB storage device content. For movies and images stored in iPod/iPhone/iPad, operate your iPod/iPhone/iPad.During playback, picture is disturbed or dark.This is not a problem with this unit. This unit supports Rovi copy protection. With some TVs, the picture may not display properly when playing discs including copy prevention signals. This is not a malfunction.Are this unit and TV connected via a video deck?When this unit and TV are connected via a video deck, this unit’s analog copy protect function may cause the picture being played on the video deck not to display properly. Connect this unit and TV directly.Sound and video are intermittent during disc playback. Sound volume may be too high. Sound and video may be unsteady if sound volume is set too high; in this case, lower the sound volume. ;&0B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸲ᖺ㸱᭶㸰㸶᪥ࠉ㔠᭙᪥ࠉ༗๓㸯㸮󰪍㸳㸯ศAdditional information12

When a USB storage device is connected Folder or file names are not recognized.Have you exceeded the maximum number of folder or file names this unit can recognize?Up to 255 folders can be recognized on one disc. Up to 648 files can be recognized within one folder. Depending on the folder structure, however, this unit may not be able to recognize certain folders or files.Time is required to play JPEG files.Are you playing large files? Some time may be required to display large files.Black bars are displayed when playing JPEG files.Are you playing files with different aspect ratios?Black bars may be displayed along the top and bottom or sides when JPEG files with different aspect ratios are played.The unit turns off automatically.If no play back and no operation has done for 20 minutes or more, the unit turns off automatically. In this case it is required that the Auto power off is switched to ON (page 44). Problem Check Remedy

Problem Check Remedy USB storage device is not recognized.Is the USB storage device properly connected?Connect the device securely (all the way in).Is the USB storage device connected via a USB hub?This unit does not support USB hubs. Connect the USB storage device directly.Is the USB storage device supported by this unit?This unit only supports USB mass storage class devices.This unit supports portable flash memory and digital audio playback devices.Only the FAT16 and FAT32 file systems are supported. Other file systems (exFAT, NTFS, HFS etc.) are not supported.This device does not support the use of external hard disc drives.This is not a problem with this unit. Turn the power off then back on.Some USB storage devices may not be recognized properly.File cannot be played. Is the file copyright-protected (by DRM)?Copyright-protected files cannot be played.This is not a problem with this unit. Files stored on a computer cannot be played.It may not be possible to play some files.Folder or file names are not displayed or are not properly displayed.Do the folder of file names contain more than 30 characters?The maximum number of characters displayable for the folder and file names is 16.Folder or file names are not displayed in alphabetical order.This is not a problem with this unit. The order of the folder and file names displayed Disc Navigator

depends on the order in which the folders or files were recorded on the USB storage device.Much time is required to recognize the USB storage device.What is the USB storage devices capacity?Some time may be required to load the data when large capacity USB storage devices are connected (this could take several minutes).Power is not supplied to the USB storage device.Is “AUTH ERR” displayed on the front panel display? No power is supplied if the power consumption is too high.Turn the power off then back on.Turn the power off, then disconnect and reconnect the USB storage device.Press INPUT to switch to the other input, then switch again to the USB/IPOD input. ;&0B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸲ᖺ㸱᭶㸰㸶᪥ࠉ㔠᭙᪥ࠉ༗๓㸯㸮󰪍㸳㸯ศAdditional information 12

When connected to an HDMI-compatible device

When an iPod/iPhone/iPad is connected

wireless technology device is connected or operated

Problem Check Remedy Picture is not displayed. Is the resolution properly set? Set HDMI Resolution properly for the connected device (page 36).Restore HDMI Resolution to the default setting (720x576sp ) (page 36).Is the HDMI cable properly connected?Connect the cable securely (all the way in).With some cables, 1080p video signals will not be output.Sound is not produced or is distorted. Is HDMI Out properly set? Set HDMI Out to LPCM (2CH) or

Auto (page 36).Multichannel audio signals are not output. Is HDMI Out properly set? Set HDMI Out to

Auto (page 36).Colors are not properly displayed on TV screen. Is HDMI Color properly set? Change the HDMI Color setting (page 36). Problem Remedy

Can’t operate the iPod/iPhone/iPad by the remote control. Make sure the iPod/iPhone/iPad is connected correctly (refer to Connecting your iPod/iPhone/iPad on page 18).Can’t operate the iPod/iPhone/iPad. Make sure the iPod/iPhone/iPad is connected correctly (refer to Connecting your iPod/iPhone/iPad on page 18).If the iPod/iPhone/iPad is experiencing a hangup, try resetting the iPod/iPhone/iPad, and reconnect it to the unit. Problem Remedy

The Bluetooth wireless technology device cannot be connected or operated.Sound from the Bluetooth wireless technology device is not emitted or the sound is interrupted.Check that no object that emits electromagnetic waves in the 2.4 GHz band (microwave oven, wireless LAN device or Bluetooth

wireless technology apparatus) is near the unit. If such an object is near the unit, set the unit far from it. Or, stop using the object emitting the electromagnetic waves.Check that the Bluetooth wireless technology device is not too far from the unit and that obstructions are not set between the Bluetooth wireless technology device and the unit. Set the Bluetooth

wireless technology device and the unit so that the distance between them is less than about 10 m* and no obstructions exist between them.* The distance given is to be used as a rough guide. The actual allowable distance between devices may vary depending on conditions in the surrounding environment. The Bluetooth wireless technology device may not be set to the communication mode supporting the Bluetooth wireless technology. Check the setting of the Bluetooth wireless technology device. ;&0B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸲ᖺ㸱᭶㸰㸶᪥ࠉ㔠᭙᪥ࠉ༗๓㸯㸮󰪍㸳㸯ศAdditional information12

Playable discs and formats • Only the discs that have been finalized can be played.• Discs recorded in packet write mode (UDF format) are not compatible with this unit.• Only discs recorded in ISO9660 Level 1, Level 2 and Joliet can be played.• is a trademark of DVD Format/ Logo Licensing Corporation.• Corporation and product names mentioned herein are trademarks or registered trademarks of the respective corporations. Note• This unit does not support multisession discs or multiborder recording.• Multisession/multiborder recording is a method in which data is recorded on a single disc in two or more sessions/borders. A “session” or “border” is one recording unit, consisting of a complete set of data from lead-in to lead-out. Discs that cannot be played • Blu-ray discs• HD DVDs•AVCHD• AVCREC• DVD-Audio discs• DVD-RAM discs•SACDs•CD-G About region numbers DVD player and DVD-Video discs are assigned region numbers according to the region in which they are sold. This player’s region number(s) is (are) as shown below.• DVD-Video: 2Discs not including these numbers cannot be played. Discs playable on this player are as shown below.• DVDs: 2 (including 2) and ALL Regarding copy protected CDs This unit is designed to conform to the specifications of the audio CD format. This unit does not support the playback or function of discs that do not conform to these specifications.• Files other than the ones below (WMV, MPEG4-AAC, etc.) are not guaranteed to play. About playing DualDiscs A DualDisc is a new two-sided disc, one side of which contains DVD content - video, audio, etc. - while the other side contains non-DVD content such as digital audio material.• The DVD side of a DualDisc can be played on this unit (excluding any DVD-Audio content).• The non-DVD, audio side of the disc is not compatible with this unit.• It is possible that when loading or ejecting a DualDisc, the opposite side to that being played will be scratched. Scratched discs may not be playable.• For more detailed information on DualDisc specifications, please refer to the disc manufacturer or disc retailer.DVD-Video• Commercially available DVD-Video discs• DVD-R/ -RW/ -R DL and DVD+R/ +RW/ +R DL discs recorded in the Video modeSuper Video CDSuper Video CDsVideo CDVideo CDsAudio CD• Commercially available audio CDs• CD-R/ -RW/ -ROM discs containing music recorded in the CD-DA format JPEG JPEG Files recorded on DVD-R/ -RW/ -R DL discs, CD-R/ -RW/ -ROM discs or USB storage devices DivX

Playing discs created on computers or

BD/DVD recorders • It may not be possible to play discs recorded using a computer due to the application settings or computer’s environment settings. Record discs in a format playable on this unit. For details, contact the dealer.• It may not be possible to play discs recorded using a computer or a BD/DVD recorder, if burn quality is not good due to characteristics of the disc, scratches, dirt on the disc, dirt on the recorder’s lens, etc. Playable files • Files protected by DRM (Digital Rights Management) cannot be played.• Files other than the ones below (WMV, MPEG4-AAC, etc.) are not guaranteed to play. Supported video file formats

DivX • DivX is a media technology created by DivX, Inc. DivX media files contain image data.• DivX files may also include such advanced playback functions as menu screens and selection of multiple subtitle languages/ audio tracks.• DivX Certified ® to play DivX ® video, including premium content.•DivX ® , DivX Certified ® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.• This item incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.File extensions: .avi and .divx (these must be used for this unit to recognize DivX video files). Note that all files with the .avi extension are recognized as MPEG4, but not all of these are necessarily DivX video files and therefore may not be playable on this unit.• Files not containing DivX video signals cannot be played, even if they have the extension “.avi”. ABOUT DIVX VIDEO: DivX

® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified ® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified ®

device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. Displaying external subtitle files • The font sets listed below are available for external subtitle files. You can see the proper font set on-screen by setting the Subtitle Language on page 36 to match the subtitle file.• This unit supports the following language groups:• Some external subtitle files may be displayed incorrectly or not at all.• For external subtitle files the following subtitle format filename extensions are supported (please note that these files are not shown within the disc navigation menu): .srt, .sub, .ssa, .smi• The filename of the movie file has to be repeated at the beginning of the filename for the external subtitle file.• The number of external subtitle files which can be switched for the same movie file is limited to a maximum of 10. Supported image file formats

JPEG Resolution: Up to 3072 x 2048 pixelsFile extensions: .jpg and .JPG (must be used for this unit to recognize JPEG files - do not use for other file types)• This unit supports baseline JPEG.• This unit supports Exif Ver.2.2.• This unit does not support progressive JPEG. Supported audio file formats • This unit does not support lossless encoding. MP3: MP3 is a form of compression. It is an acronym which stands for MPEG Audio Layer 3. MP3 is a type of audio code which is processed by significant compression from the original audio source with very little loss in sound quality.• This system supports MPEG-1/2 Audio Layer 3 (Sampling rates: 8 kHz to 48 kHz; Bit rates: 32 kbps to 320 kbps).• During VBR file playback, time counter in the display may differ from its actual playback time.Group 1Afrikaans (af), Basque (eu), Catalan (ca), Danish (da), Dutch (nl), English (en), Faroese (fo), Finnish (fi), French (fr), German (de), Icelandic (is), Irish (ga), Italian (it), Norwegian (no), Portuguese (pt), Rhaeto-Romanic (rm), Scottish (gd), Spanish (es), Swedish (sv)Group 2Albanian (sq), Croatian (hr), Czech (cs), Hungarian (hu), Polish (pl), Romanian (ro), Slovak (sk), Slovenian (sl)Group 3Bulgarian (bg), Byelorussian (be), Macedonian (mk), Russian (ru), Serbian (sr), Ukrainian (uk)Group 4Hebrew (iw), Yiddish (ji)Group 5Turkish (tr) BDGGLWLRQDOBLQIRB;&0IP࣮࣌ࢪ㸰㸮㸯㸲ᖺ㸲᭶㸯㸯᪥ࠉ㔠᭙᪥ࠉ༗ᚋ㸯㸰󰪍㸰㸵ศAdditional information 12

WMA: WMA files are Advanced System Format files that include audio files which are compressed with Windows Media Audio codec. WMA is developed by Microsoft as an audio format file for Windows Media Player.• This system supports WMA (Sampling rates: 32 kHz/44.1 kHz/48 kHz; Bit rates: 64 kbps to 320 kbps).• During VBR file playback, time counter in the display may differ from its actual playback time. Cautions on use

When moving this unit When moving this unit, be sure to first check that there is no disc loaded and disconnect the iPod/iPhone/iPad. Then press 1 STANDBY/ON, wait for “STANDBY” disappears on main display to turn off, then unplug the power cord. Damage may occur if the unit is transported or moved with a disc inserted, or when another device is connected to the iPod/iPhone/iPad connector port, USB terminal, or AUDIO IN mini-plug jack. Place of installation • Choose a stable place near the TV or stereo system being used with this unit.• Do not place this unit on top of a TV or color monitor. Also install it away from cassette decks and other devices easily affected by magnetic forces. Avoid the following locations: • Places exposed to direct sunlight• Humid or poorly ventilated places• Extremely hot places• Places exposed to vibrations• Places in which there is much dust or cigarette smoke• Places exposed to soot, steam or heat (kitchens, etc.) Do not place objects on this unit Do not place any objects on top of this unit. Do not obstruct the ventilation holes. Do not use this unit on shaggy rugs, beds, sofas, etc., or wrapped in cloth, etc. Doing so will prevent the heat from dispersing, leading to damage. Do not expose to heat. Do not place this unit on top of an amplifier or other component that generates heat. When rack mounting it, to avoid the heat given off by the amplifier or other audio component, place it on a shelf below the amplifier.• Turn off the unit’s power when not using it.• Depending on signal conditions, striped patterns may appear on a TV screen and noise may enter the sound of radio broadcasts when the unit’s power is on. If this happens, turn the unit’s power off. About condensation If this unit is moved suddenly from a cold place into a warm room (in winter, for example) or if the temperature in the room in which this unit is installed rises suddenly due to heater operation, etc., water droplets (condensation) may form inside (on operating parts and the lens). When condensation is present, this unit will not operate properly and playback is not possible. Let this unit stand at room temperature for 1 or 2 hours with the power turned on (the time depends on the extent of condensation). The water droplets will dissipate and playback will become possible. Condensation can also occur in the summer if this unit is directly exposed to the air flow from an air-conditioner. If this happens, move this unit to a different place. Cleaning the product • Unplug the power cord from the power outlet when cleaning this unit.• Clean this unit using a soft cloth. For tough dirt, apply some neutral detergent diluted in 5 to 6 parts water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe again with a soft, dry cloth.• Alcohol, thinner, benzene, insecticides, etc., could cause the print or paint to peel off. Also, leaving rubber or vinyl products in contact with this unit for long periods of time could mar the cabinet.• When using chemical-impregnated wipes, etc., read the cautions included with the wipes carefully. Cleaning the lens • This unit’s lens should not become dirty in normal use, but if for some reason it should malfunction due to dust or dirt, consult your nearest Pioneer authorized service center. Although lens cleaners for players are commercially available, we advise against using them since some may damage the lens. ;&0B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸲ᖺ㸱᭶㸰㸶᪥ࠉ㔠᭙᪥ࠉ༗๓㸯㸮󰪍㸳㸯ศAdditional information12

Storing • Always place discs in their cases and store them vertically, avoiding hot, humid places, places exposed to direct sunlight and extremely cold places.• Be sure to read the cautions included with the disc. Cleaning discs • Discs may not play if there are fingerprints or dust on them. In this case, use a cleaning cloth, etc., to gently wipe the disc from the inside towards the outside. Do not use dirty cleaning cloths.• Do not use benzene, thinner or other volatile chemicals. Also do not use record spray or antistatic agents.• For tough dirt, apply some water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe off the moisture with a dry cloth.• Do not use damaged (cracked or warped) discs.• Do not let the signal surface of discs get scratched or dirty.• Do not attach pieces of paper or stickers to discs. Doing so could warp discs, making it impossible to play them. Also note that rental discs often have labels attached to them, and the label’s glue may have oozed out. Check that there is no glue around the edges of such labels before using rented discs. About specially shaped discs Specially shaped discs (heart-shaped, hexagonal, etc.) cannot be played on this unit. Do not attempt to play such discs, as they could damage this unit. About iPod/iPhone/iPad “Made for iPod” and “Made for iPhone” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance.iPad, iPhone, iPod, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. Auto power off setting

Long press the # on the unit for 3 seconds to switch auto

power off setting ON/OFF. • The operation can be conducted using only the # on the unit.• No need to set this using the remote control.• Initial setting is set to ON

. Note• When the auto power off is set to ON , “APD ON” will be displayed on the main display.• When the auto power off is set to OFF , “APD OFF” will be displayed on the main display. Restoring all the settings to the

defaults Use the steps below to restore the all settings to their defaults. 1Press

to turn the power on.

on the remote control or

on the main unit repeatedly to select

to open the disc tray.

STANDBY/ON on the unit for 3

seconds while pressing

. • “DEFAULT” is displayed while the settings are being restored. Power is turned off.• No need to set this using the remote control. ;&0B<;(B(QERRN࣮࣌ࢪ㸰㸮㸯㸲ᖺ㸱᭶㸰㸶᪥ࠉ㔠᭙᪥ࠉ༗๓㸯㸮󰪍㸳㸯ศAdditional information 12

O P T I ON A S P MP T Y D I SPLAY R D S STA N DB Y

/M E NU PRE S E T V OLUME S HIF T

Disc Navigator: Title

Setup playback functions such as Program. Random and

Off A-B RepeatRepeatRandomProgramSearch ModeMove Select ENTER ExitHOME MENUPlay ModeSetup playback functions such as Program. Random andRepeat play On

Move Select ENTER ExitHOME MENUPlay ModeSetup playback functions such as Program. Random andRepeat playTitle Search Chapter SearchTime SearchA-B RepeatRepeatRandomProgramSearch Mode Move Select ENTER ExitHOME MENUInput TitlePlay ModeSetup playback functions such as Program. Random andRepeat playTitle Search Chapter SearchTime SearchA-B RepeatRepeatRandomProgramSearch Mode 0

Spanish (es), 0519 Gujarati (gu), 0721

Dutch (nl), 1412 Hindi (hi), 0809

Portuguese (pt), 1620 Croatian (hr), 0818

Swedish (sv), 1922 Hungarian (hu), 0821

Russian (ru), 1821 Armenian (hy), 0825

Korean (ko), 1115 Interlingua (ia), 0901 Greek (el), 0512 Interlingue (ie), 0905 Afar (aa), 0101 Inupiak (ik), 0911

Corsican (co), 0315 Lithuanian (lt), 1220 Czech (cs), 0319 Latvian (lv), 1222 Welsh (cy), 0325 Malagasy (mg), 1307

Rhaeto-Romance (rm), 1813 Tagalog (tl), 2012

Serbo-Croatian (sh), 1908 Ukrainian (uk), 2111

O PT I O N A S PM PTY D I S P LA Y RDS S TAN D B Y/ON

T I ME R SLEEP EQUALI Z E R AU D I OS UB T I T L E A NG L E P.

Disc Navigator: Title

Setup playback functions such as Program. Random and

Setup playback functions such as Program. Random and

Move Select ENTER ExitHOME MENUPlay ModeSetup playback functions such as Program. Random andRepeat playTitle RepeatChapter RepeatRepeat OffA-B RepeatRepeatRandomProgramSearch Mode Move Select ENTER ExitHOME MENUPlay ModeSetup playback functions such as Program. Random andRepeat playTitle RepeatChapter RepeatRepeat OffA-B RepeatRepeatRandomProgramSearch ModeMove Select ENTER ExitHOME MENUPlay ModeSetup playback functions such as Program. Random andRepeat play On

Move Select ENTER ExitHOME MENUPlay ModeSetup playback functions such as Program. Random andRepeat playTitle Search Chapter SearchTime SearchA-B RepeatRepeatRandomProgramSearch Mode

O P T I ON A SPM P T Y D IS PLA Y RD S STA N D BY/O N

C D U S B AUD I O I N

M EN U P R E S ET V OL UM E S H I F T

B A S S ZOO M M E MO R Y PR OGR AM BAS S

Disc Navigator: Title

Setup playback functions such as Program. Random and

Off A-B RepeatRepeatRandomProgramSearch Mode Move Select ENTER ExitHOME MENUPlay ModeSetup playback functions such as Program. Random andRepeat play On

Move Select ENTER ExitHOME MENUPlay ModeSetup playback functions such as Program. Random andRepeat playTitle Search Chapter SearchTime SearchA-B RepeatRepeatRandomProgramSearch Mode Move Select ENTER ExitHOME MENUInput TitlePlay ModeSetup playback functions such as Program. Random andRepeat playTitle Search Chapter SearchTime SearchA-B RepeatRepeatRandomProgramSearch Mode 0

Ceco (cs), 0319 Latvian (lv), 1222

Rhaeto-Romance (rm), 1813 Tagalog (tl), 2012

O PT I O N A S P MP T YD I SPLA Y R D S STA ND BY

B T AU D I O CL O CK

T I M E R S L EE P E Q U AL I Z ER A UD IO S U B TI T LE A N G L E P

B DISPLA Y C L E AR RPT/R D M O PEN/C L O SE EN TE R

Disc Navigator: Title

Setup playback functions such as Program. Random and

Off A-B RepeatRepeatRandomProgramSearch ModeMove Select ENTER ExitHOME MENUPlay ModeSetup playback functions such as Program. Random andRepeat play On

Move Select ENTER ExitHOME MENUPlay ModeSetup playback functions such as Program. Random andRepeat playTitle Search Chapter SearchTime SearchA-B RepeatRepeatRandomProgramSearch Mode Move Select ENTER ExitHOME MENUInput TitlePlay ModeSetup playback functions such as Program. Random andRepeat playTitle Search Chapter SearchTime SearchA-B RepeatRepeatRandomProgramSearch Mode 0

Swedish (sv), 1922 Hungarian (hu), 0821

Rhaeto-Romance (rm), 1813 Tagalog (tl), 2012

Serbo-Croatian (sh), 1908 Ukrainian (uk), 2111

O P T I ON A SP MPT Y DI S P L AY RDS S TANDB Y

T I ME R S L E E P E Q U A LIZ E R A U D IO SU B T IT LE A N G L E P.

B ASS ZOO M M E M O R Y P R OG R A M B A S S

Disc Navigator: Title

Setup playback functions such as Program. Random and

Off A-B RepeatRepeatRandomProgramSearch Mode Move Select ENTER ExitHOME MENUPlay ModeSetup playback functions such as Program. Random andRepeat play On

Move Select ENTER ExitHOME MENUPlay ModeSetup playback functions such as Program. Random andRepeat playTitle Search Chapter SearchTime SearchA-B RepeatRepeatRandomProgramSearch Mode Move Select ENTER ExitHOME MENUInput TitlePlay ModeSetup playback functions such as Program. Random andRepeat playTitle Search Chapter SearchTime SearchA-B RepeatRepeatRandomProgramSearch Mode 0

Swedish (sv), 1922 Hungarian (hu), 0821

Rhaeto-Romance (rm), 1813 Tagalog (tl), 2012

Serbo-Croatian (sh), 1908 Ukrainian (uk), 2111

Hereby, Pioneer, declares that this [*] is

in compliance with the essential

requirements and other relevant

provisions of Directive 1999/5/EC.

[*] in overeenstemming is met de
