USER MANUAL LIION 182ST+ Güde

• Cordless screwdriver

• 2 lithium-ion battery

• 6 1-6 mm drills for metal

• 6 bit extensions including fixture

• Operating Instructions Please contact your dealer if any parts are missing or are damaged. Appliance description (pic. B+C+D+E+F) Lithium-ion cordless screwdriver with soft grip. Lithium-ion technology for fast, flexible and easy work. Pic. B:

5. Charger (battery main station)

6. Lithium-ion battery

9. Torque adjustment

Technical specifications

Torque levels: 23+1 Max. torque: 22 Nm Chuck clamping range: 0.8 – 10 mm Charging time: 1 hours Weight: 1.3 kg Dimensions LxWxH: 220 x 70 x 225 mm General safety instructions Read this user guide thoroughly. Make sure you know the controls and correct use of the appliance. Store the user guide safely for future reference. Safe work Keep your workplace tidy! Disorder on workplace may result in injuries. Consider surrounding conditions! Do not expose to rain. Do not use in moist or wet environment. Provide good lighting. Do not use close to flammable liquids or gases Store your device properly! The device, if not used, should be stored in a dry and closed space, out of reach of children. Do not overload your device! Operate the appliance within specified working capacity. Use correct device! Do not use the device for purposes other than intended. Use the right appliance! Do not use the appliance for purposes for which it has not been designed. Take care of your appliance! Observe maintenance directions and instructions. Check appliance cable regularly and ask an authorized specialist to replace the same if damaged. Be careful! Be aware of what you are doing. Approach your work with sound mind. Do not use the device if you are tired. WARNING! Use of non-compliant accessories may result in an injury. Have your device repaired by an electrician only! This device complies to applicable safety provisions. Repairs may be performed by an electrician with the use of genuine spare parts, otherwise the user may be exposed to injury hazard. Safety instructions specific for this device Switch the appliance off before working on it. Wear protective glasses. Risk from rotating drill. Pay attention to prevent injury of persons standing nearby and their hitting by thrown-off items. Wait until all parts of the appliance stop before touching any part of it. Never expose the appliance to rain or moisture. To be kept in a dry place only. Children, persons not acquainted with the appliance and persons with limited psychical, sensory or mental abilities must not use this appliance. Original accessories to be used only. Check whether the screwdriver bit is fitted properly before putting the appliance into operation. Do not try to change the engine speed setting. Contact a professional in case of problems. Before drilling holes to a wall, make sure you are not going to strike electric current, gas or water using a current seeker if necessary. Application according to intended use Suitable for screwing and loosening of screws and drilling to wood, metals and plastic materials. Any other use contradicts to the intended use. Manufacturer is not responsible for subsequent damage and injuries. Please note the appliance is intended for domestic use only. 7Before putting into operation The accumulator is supplied partially charged. It must be charged to full extent before it is put into operation for the first time. CAUTION:

• Charge the accumulator only using a charged included in the supply.

• Use only sharp drills and screw bits that are in a perfect and appropriate condition.

• When drilling and screwing to walls, check whether there are no electric lines or water piping or gas lines in the wall. Operation Battery charging:

1. The battery will be released from the appliance by

pressing the lock-in buttons (pic. G/12) and putting it out.

3. Plug the charger and connect the charging cable to

the charging connection.

4. "Red" LED is on when the battery is being charged

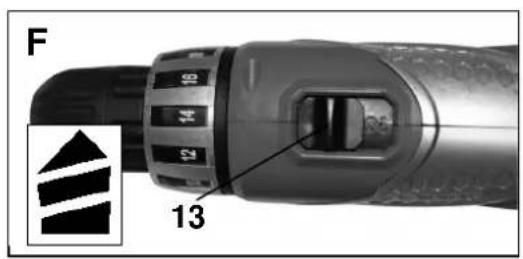

5. "Green" LED is on when charging is completed (pic.

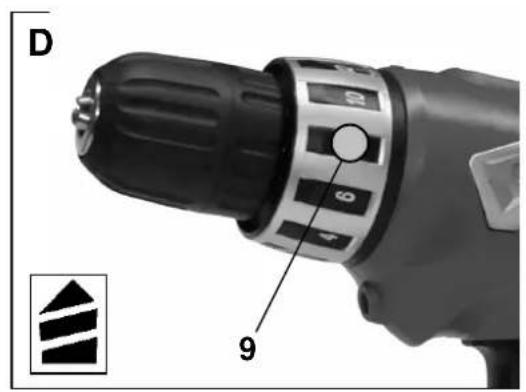

H/13). To ensure long service life of the accumulator, timely charging should be provided at all times. If the accumulator is shortly before being discharged, it switches off. In any case, do not use the cordless screwdriver any more. Doing so could dramatically reduce the service life of the accumulator. Torque adjustment: Torque can be adjusted depending on the size of screws on the torque adjustment device (pic. D/9). Torques depends on a number of factors:

• Type and hardness of material you are working with.

• Type and length of the screws that are used.

• Requirements imposed on the screwed joints. Adjust the torque only when the cordless screwdriver is idle. Drilling: To drill, adjust the torque (pic. D) to the final “drilling“ level. Mode selector: Selector to be controlled only when the cordless screwdriver is idle.

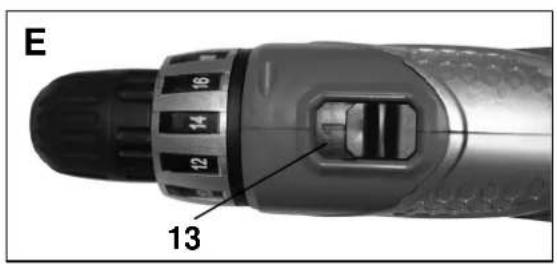

• Screwing mode Lower speed, higher torque.

• Drilling mode Higher speed, lower torque. Rotation direction switching: The rotation direction may be adjusted by the shift switch (pic. C/8). You can choose between the right and left rotation. To prevent damage of the gearing, the rotation direction may only be changed when the appliance is idle. If the switch is in the central position, On/Off is blocked. On/Off: The more this switch (pic. C/7) is pressed, the higher the cordless screwdriver speed. Tool clamping/change: When working on the cordless screwdriver, adjust the rotation direction switch (pic. B/7) to the central position.

1. Screw the chuck (pic. B/10) out to remove the tool.

2. Now choose the appropriate tool and insert it as deep

in the hole as possible.

3. Screw the chuck tightly again and check whether the

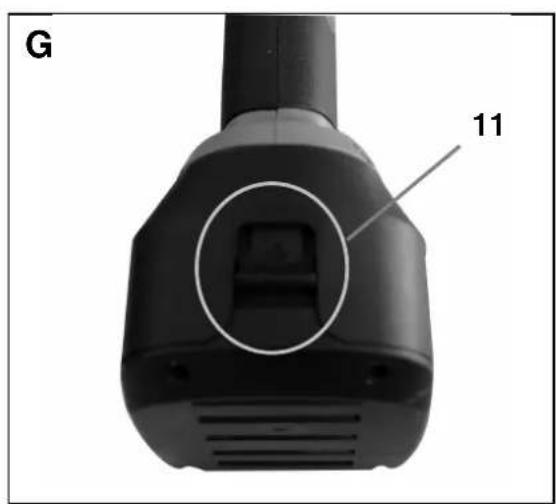

tool is fitted tightly. LED light: LED light (pic. B/11) enables additional lighting of the screwing or drilling space. LED light is immediately switched on after pressing On/Off Marking Product safety: Product corresponds to applicable EU standards Commands: Please read the Operating Instructions before using the appliance Environment protection: Any defective and/or disposed electric or electronic devices must be delivered to respective collection centres. Package: Protect against moisture This side up Technical specifications: Chuck clamping range Revolutions Weight Right/left running Nm = max. torque Battery voltage/capacity Battery charging time Torque levels 8Other instructions: Storage temperature Protect the battery against moisture. Store the battery fully charged only Max. temperature details Do not plunge the battery to liquids. To be kept out of reach of flames and fire

EU DECLARATION ON CONFORMITY

The company Güde GmbH & Co. KG Birkichstrasse 6 D-74549 Wolpertshausen Germany hereby declares that the design and structure of the devices listed below and in designs marketed conforms to applicable basic requirements of the EU directives on safety and hygiene. This declaration on conformity becomes void in case of a change to the device not consulted with us. Identification of the devices:

Information about signer: the executive Mr Arnold Technical documentation: J. Bürkle FBL; QS Warranty The warranty applies exclusively on material or production defects. For warranty claims, please submit an original proof of purchase with date of purchase indicated. The warranty does not cover unprofessional use, such as overloading, violent use, damage caused by third party or a thing. The warranty also does not cover failure to comply with the operation manual and normal wear and tear. Emergency procedures Administer first aid according to injury and call for qualified medical assistance. Protect injured person against other injuries and keep him/her in rest. For reasons of potential injury, a first aid box according to DIN 13164 must be available on workplace. Replenish immediately material used from the first aid box. If you require medical assistance, give the following information:

1. Place of accident

3. Number of injured persons

Disposal Disposal instructions are illustrated in the form of pictograms on the device or packaging. Description of the pictograms is given in "Identification" chapter. Disposal of transport packaging Packaging protects the device against damage during transport. Packaging materials are usually selected according to their effect on environment and disposal methods and can therefore be recycled. Returning of the packaging back to circulation saves resources and costs for packaging disposal. Parts of the packaging (e.g. foil, styropor) may be dangerous for children. Risk of suffocation! Keep these parts of the packaging out of reach of children and dispose as soon as possible. Operator requirements The operators must thoroughly read operation manual before use. Qualification Except for thorough training by an expert for use of the device, no special qualification is required. Minimum age The device may be operated by persons over 16 years of age. An exception is use by younger person if the use takes place under supervision of an adult trainer in the course of education. Training Use of the device requires corresponding guidance by an expert or operation manual only. No special training is required. Cleaning Keep the air holes and appliance body clean and with no dust. Use soft cloth and fine soap solution for cleaning. Avoid direct contact of the appliance with aggresive cleaning agents. Do not use aggresive, volatile or caustic products. Protect the appliance against moisture and dust. If not used for a longer period of time, store covered on dry, safe place not accessible to children. Service Any technical questions? Complaint? Do you need spare parts or operation manual? Go to our website www.guede.com and the section Service will help you quickly and without bureaucracy. Please, help us to help you. In order to identify your device in case of complaint, please indicate serial number, order number and year of manufacture. All information is available on the product label. To have all information always at hand, put them down. Serial number: Order number: Year of manufacture: Phone: +49 (0) 79 04 / 700-360 Fax: +49 (0) 79 04 / 700-51999 E-Mail: support@ts.guede.com 9Introduction Afin de pouvoir profiter le plus longtemps possible de votre nouveau Tournevis á accu , veuillez lire attentivement le mode d’emploi et les consignes de sécurité jointes. Nous vous recommandons également de conserver le mode d’emploi pour une consultation ultérieure éventuelle. Dans le cadre du développement continu de nos produits, nous nous réservons le droit aux modifications techniques. Ce document est un mode d’emploi original. Contenu du colis Sortez l’appareil de l’emballage de transport et contrôlez l’intégrité et l’existance des pièces suivantes :
