USER MANUAL Diva2 S 900 Murale ROBLIN

INDEX RECOMMENDATIONS AND SUGGESTIONS 11

RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accord-

ingly, you may find descriptions of individual features that do not apply to

your specific appliance.

• The manufacturer will not be held liable for any damages resulting from in-

correct or improper installation.

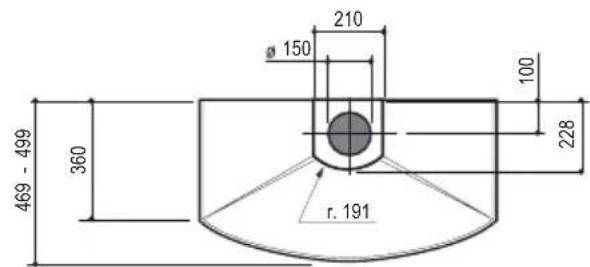

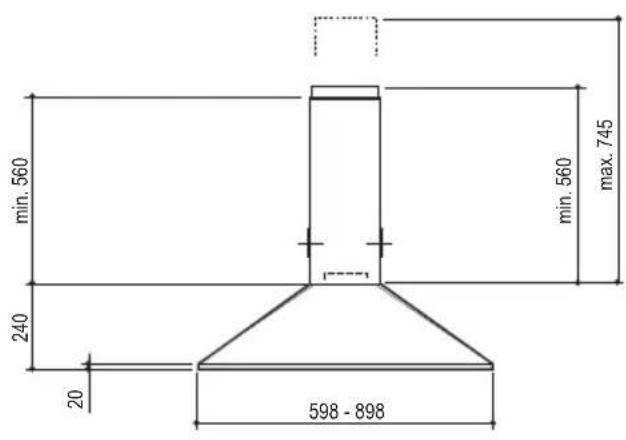

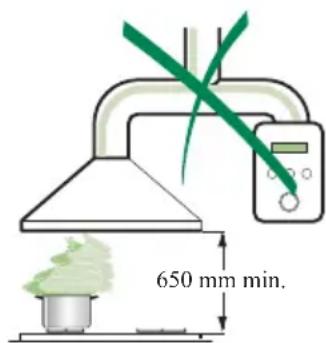

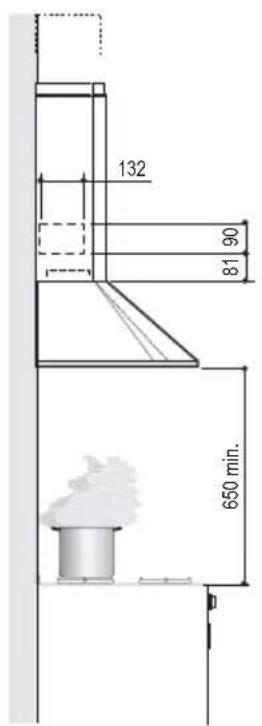

• The minimum safety distance between the cooker top and the extractor

hood is 650 mm (some models can be installed at a lower height, please re-

fer to the paragraphs on working dimensions and installation).

• Check that the mains voltage corresponds to that indicated on the rating

plate fixed to the inside of the hood.

• For Class I appliances, check that the domestic power supply guarantees

Connect the extractor to the exhaust flue through a pipe of minimum diame-

ter 120 mm. The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion

fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non-electrical appliances (e.g. gas

burning appliances), a sufficient degree of aeration must be guaranteed in

the room in order to prevent the backflow of exhaust gas. The kitchen must

have an opening communicating directly with the open air in order to

guarantee the entry of clean air.

• The extractor hood has been designed exclusively for domestic use to elimi-

nate kitchen smells.

• Never use the hood for purposes other than for which it has been designed.

• Never leave high naked flames under the hood when it is in operation.

• Adjust the flame intensity to direct it onto the bottom of the pan only, making

sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use: overheated oil

can burst into flames.

• Do not flambè under the range hood; risk of fire

• This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concern-

ing use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appli-

• Switch off or unplug the appliance from the mains supply before carrying out

any maintenance work.

• Clean and/or replace the Filters after the specified time period (Fire hazard).

• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

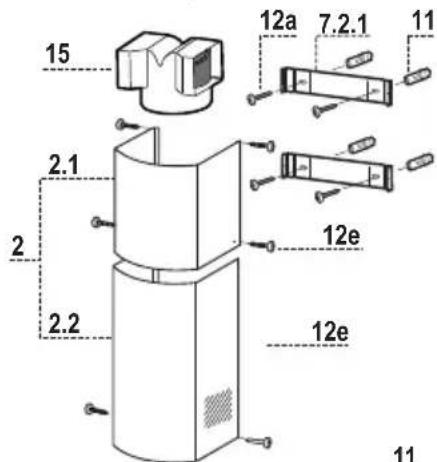

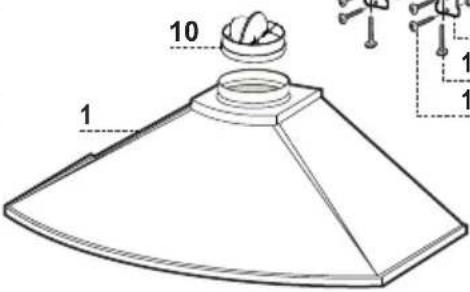

Ref. Q.ty Product Components

1 1 Hood Body, complete with: Controls, Light, Blower,

2 1 Telescopic Chimney comprising:

Ref. Q.ty Installation Components

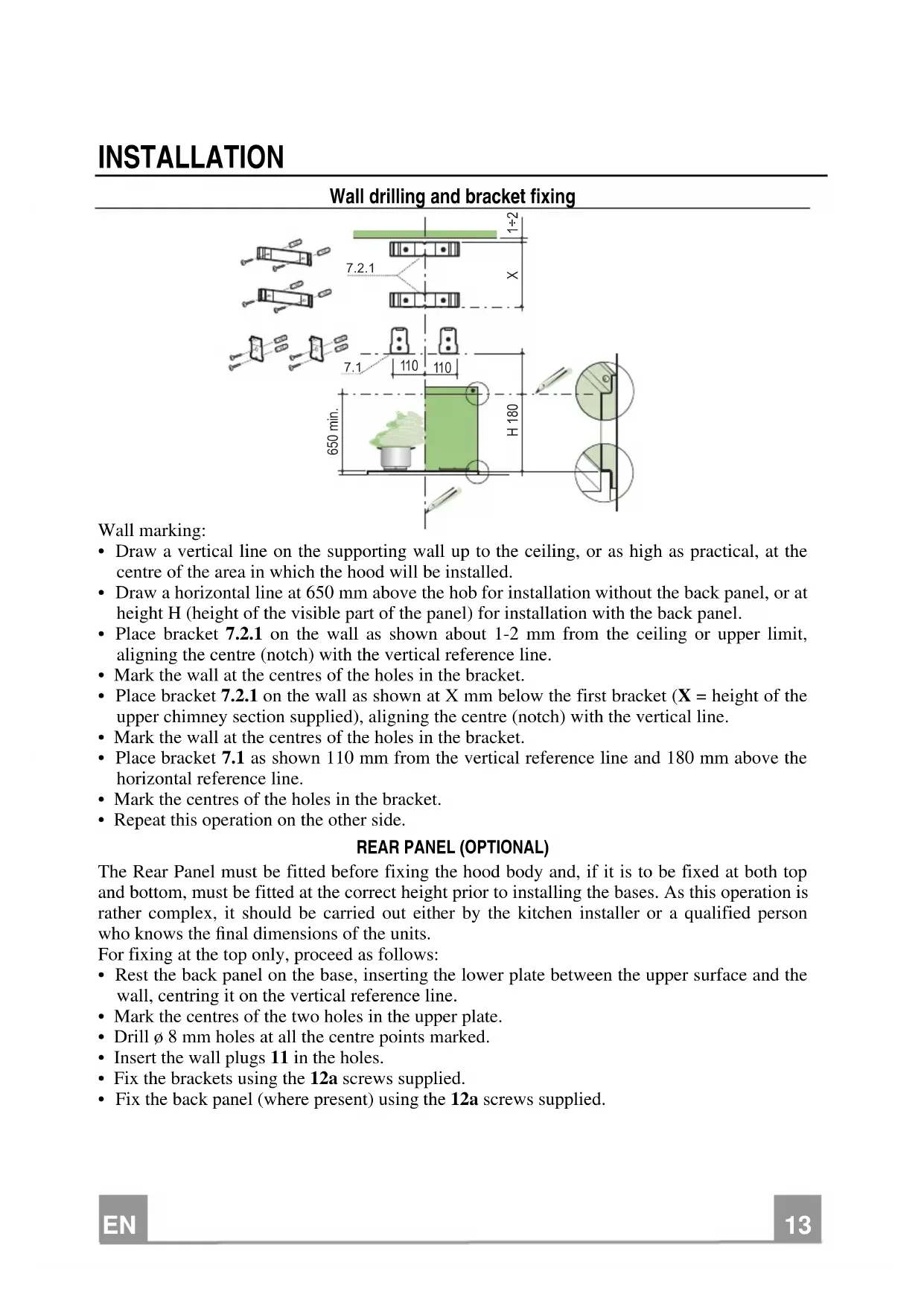

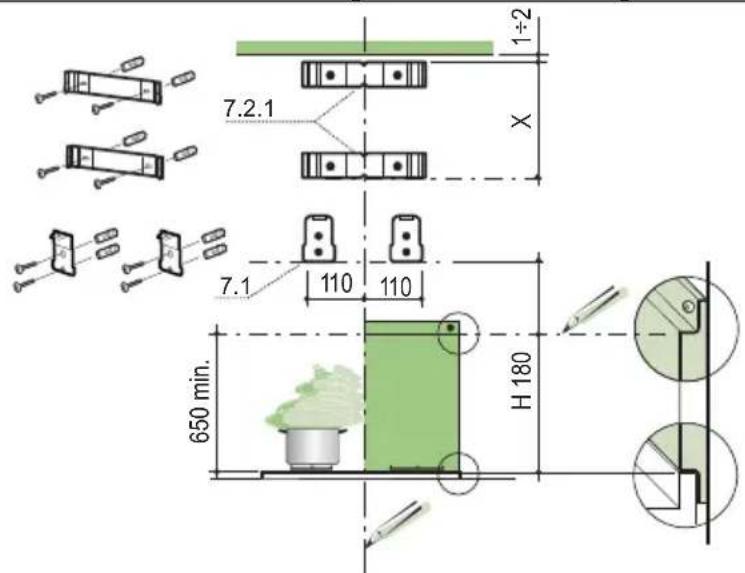

INSTALLATION Wall drilling and bracket fixing

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the

centre of the area in which the hood will be installed.

• Draw a horizontal line at 650 mm above the hob for installation without the back panel, or at

height H (height of the visible part of the panel) for installation with the back panel.

• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit,

aligning the centre (notch) with the vertical reference line.

• Mark the wall at the centres of the holes in the bracket.

• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the

upper chimney section supplied), aligning the centre (notch) with the vertical line.

• Mark the wall at the centres of the holes in the bracket.

• Place bracket 7.1 as shown 110 mm from the vertical reference line and 180 mm above the

horizontal reference line.

• Mark the centres of the holes in the bracket.

• Repeat this operation on the other side.

REAR PANEL (OPTIONAL)

The Rear Panel must be fitted before fixing the hood body and, if it is to be fixed at both top

and bottom, must be fitted at the correct height prior to installing the bases. As this operation is

rather complex, it should be carried out either by the kitchen installer or a qualified person

who knows the final dimensions of the units.

For fixing at the top only, proceed as follows:

• Rest the back panel on the base, inserting the lower plate between the upper surface and the

wall, centring it on the vertical reference line.

• Mark the centres of the two holes in the upper plate.

• Drill ø 8 mm holes at all the centre points marked.

• Insert the wall plugs 11 in the holes.

• Fix the brackets using the 12a screws supplied.

• Fix the back panel (where present) using the 12a screws supplied.EN

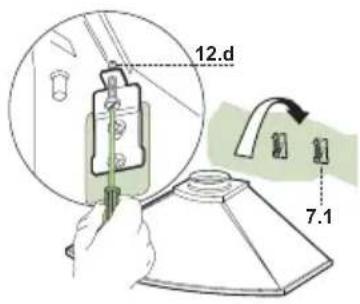

Mounting the hood body

• Screw the two screws 12d supplied onto the brackets 7.1.

• Hook the hood body onto the bracket 7.1, centring it around

• Use the adjusting screws 12d underneath the hood to level the

DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the

chimney using either a flexible or rigid pipe the choice of which

is left to the installer.

• Remove any activated charcoal filters.

• Push fit the air outlet fitting 15 onto the air outlet of the hood

• Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch hav-

ing a contact gap of at least 3 mm.

• Remove the grease filters (see paragraph Maintenance) being

sure that the connector of the feeding cable is correctly inserted

in the socket placed on the side of the fan.

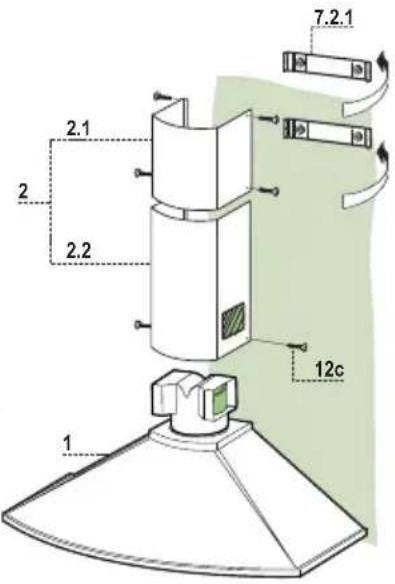

Upper exhaust Chimney

• Slightly widen the two sides of the upper chimney and hook

them behind the brackets 7.2.1, making sure that they are well

• Secure the sides to the brackets using the 4 screws 12c (2,9 x

Lower exhaust Chimney

• Slightly widen the two sides of the chimney and hook them

between the upper chimney and the wall, making sure that they

• Fix the lower part laterally to the hood body using the 2 screws

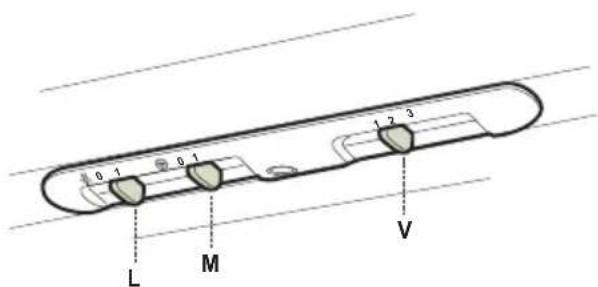

S L Light Switches the lighting system

M Motor Switches the extractor motor

V Speed Sets the operating speed of

1. Low speed, used for a

continuous and silent air

change in the presence of

light cooking vapour.

2. Medium speed, suitable

for most operating condi-

tions given the optimum

treated air flow/noise

3. Maximum speed, used for

eliminating the highest

cooking vapour emission,

including long periods.

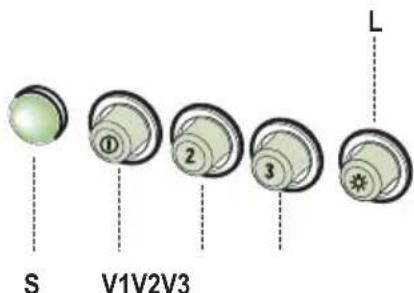

L Light Switches the lighting system

S Led Motor running led.

V1 Motor Switches the extractor motor

on and off at low speed.

Used to provide a continuous

and silent air change in the

presence of light cooking

V2 Speed Medium speed, suitable for

most operating conditions

given the optimum treated

air flow/noise level ratio.

V3 Speed Maximum speed, used for

eliminating the highest cook-

ing vapour emission, includ-

MAINTENANCE Grease filters CLEANING METAL SELF- SUPPORTING GREASE FILTERS • The filters must be cleaned every 2 months of operation, or

more frequently for particularly heavy usage, and can be

washed in a dishwasher.

• Remove the filters one at a time by pushing them towards the

back of the group and pulling down at the same time.

• Wash the filters, taking care not to bend them. Allow them to

dry before refitting.

• When refitting the filters, make sure that the handle is visible

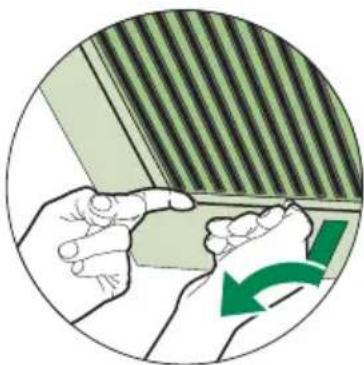

CLEANING METAL GREASE FILTERS The filters are washable at least every 2 months of operation, or

more frequently for particularly heavy usage.

• Remove the filters one at a time by supporting them with one

hand and turning the safety knobs (pull and turn).

• Wash the filters, taking care not to bend them. Allow them to

dry before refitting.

• Refit them and fix them using the safety knobs provided (pull

Activated charcoal filter (Recirculation version)

These filters are not washable and cannot be regenerated, and

must be replaced approximately every 4 months of operation, or

more frequently with heavy usage.

REPLACING THE ACTIVATED CHARCOAL FILTER

• Remove the metal grease filters

• Remove the saturated activated charcoal filter as shown (A).

• Fit the new filters (B).

40 W incandescent light.

• Remove the metal grease filters.

• Unscrew the bulbs and replace them with new ones having the

same characteristics.

• Replace the metal grease filters.

• Remove the snap-on lamp cover by levering it from under the

metal ring, supporting it with one hand.

• Remove the halogen lamp from the lamp holder by pulling

• Replace the lamp with a new one of the same type, making

sure that you insert the two pins properly into the housings on
