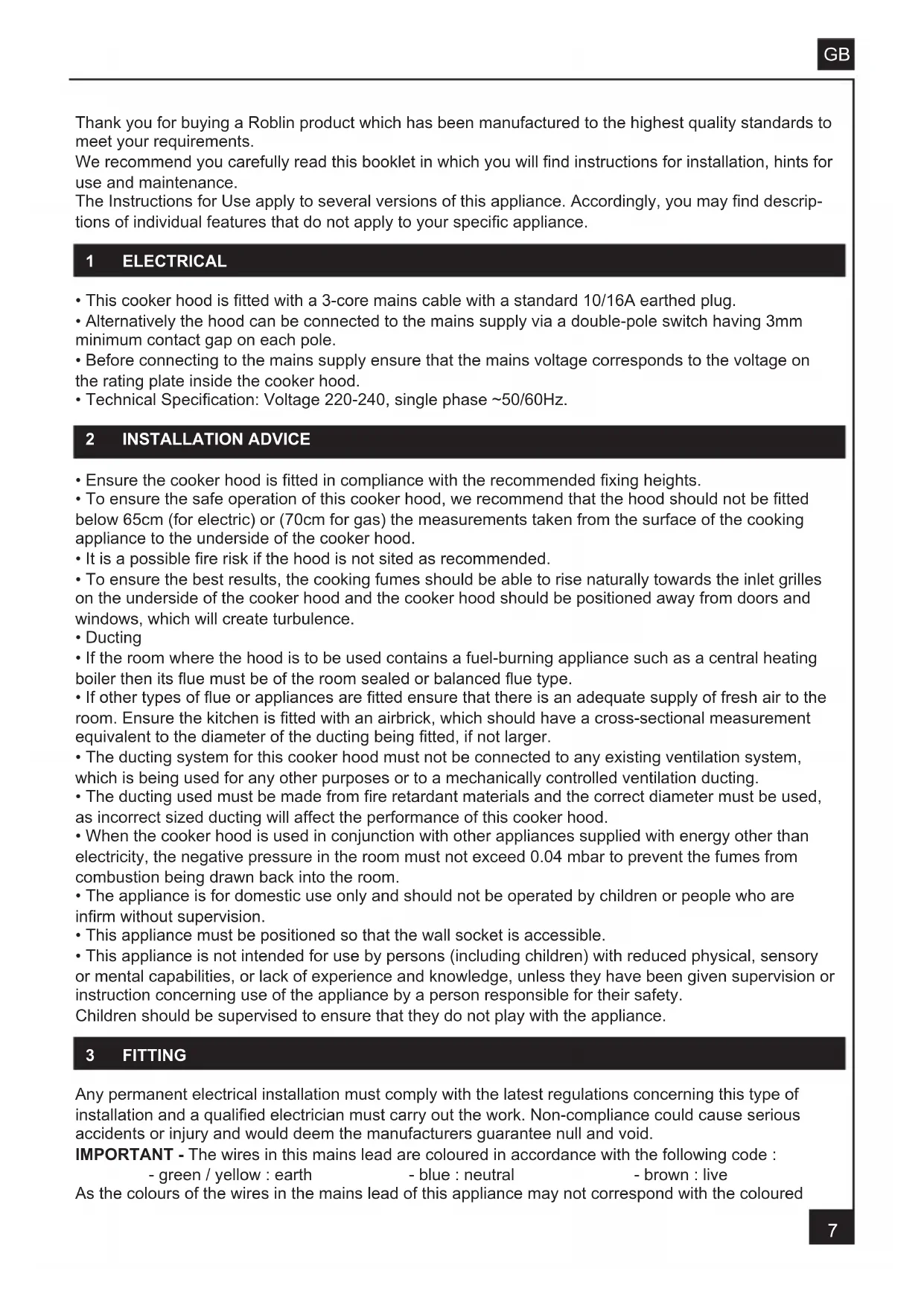

Thank you for buying a Roblin product which has been manufactured to the highest quality standards to meet your requirements.

We recommend you carefully read this booklet in which you will find instructions for installation, hints for use and maintenance.

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

1 ELECTRICAL

• This cooker hood is fitted with a 3-core mains cable with a standard 10/16A earthed plug.
  • Alternatively the hood can be connected to the mains supply via a double-pole switch having 3mm minimum contact gap on each pole.
• Before connecting to the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood.
• Technical Specification: Voltage 220-240, single phase \~50/60Hz.

2 INSTALLATION ADVICE

• Ensure the cooker hood is fitted in compliance with the recommended fixing heights.
• To ensure the safe operation of this cooker hood, we recommend that the hood should not be fitted below 65cm (for electric) or (70cm for gas) the measurements taken from the surface of the cooking appliance to the underside of the cooker hood.
• It is a possible fire risk if the hood is not sited as recommended.
• To ensure the best results, the cooking fumes should be able to rise naturally towards the inlet grilles on the underside of the cooker hood and the cooker hood should be positioned away from doors and windows, which will create turbulence.
• Ducting
• If the room where the hood is to be used contains a fuel-burning appliance such as a central heating boiler then its flue must be of the room sealed or balanced flue type.
• If other types of flue or appliances are fitted ensure that there is an adequate supply of fresh air to the room. Ensure the kitchen is fitted with an airbrick, which should have a cross-sectional measurement equivalent to the diameter of the ducting being fitted, if not larger.
• The ducting system for this cooker hood must not be connected to any existing ventilation system, which is being used for any other purposes or to a mechanically controlled ventilation ducting.
• The ducting used must be made from fire retardant materials and the correct diameter must be used, as incorrect sized ducting will affect the performance of this cooker hood.
• When the cooker hood is used in conjunction with other appliances supplied with energy other than electricity, the negative pressure in the room must not exceed 0.04 mbar to prevent the fumes from combustion being drawn back into the room.
• The appliance is for domestic use only and should not be operated by children or people who are infirm without supervision.
• This appliance must be positioned so that the wall socket is accessible.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

3 FITTING

Any permanent electrical installation must comply with the latest regulations concerning this type of installation and a qualified electrician must carry out the work. Non-compliance could cause serious accidents or injury and would deem the manufacturers guarantee null and void.

IMPORTANT - The wires in this mains lead are coloured in accordance with the following code :

- green / yellow : earth

- blue : neutral

- brown : live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured

markings identifying the terminals in your plug, proceed as follows.

• The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol or coloured green or green and yellow.
• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

ATTENTION: Do not forget to use adequate plugs to the support brackets. Enquire after the manufacturers. Do an embedding if necessary. The manufacturer accepts no responsibility in case of a faulty hanging due to the drilling and the setting up of plugs.

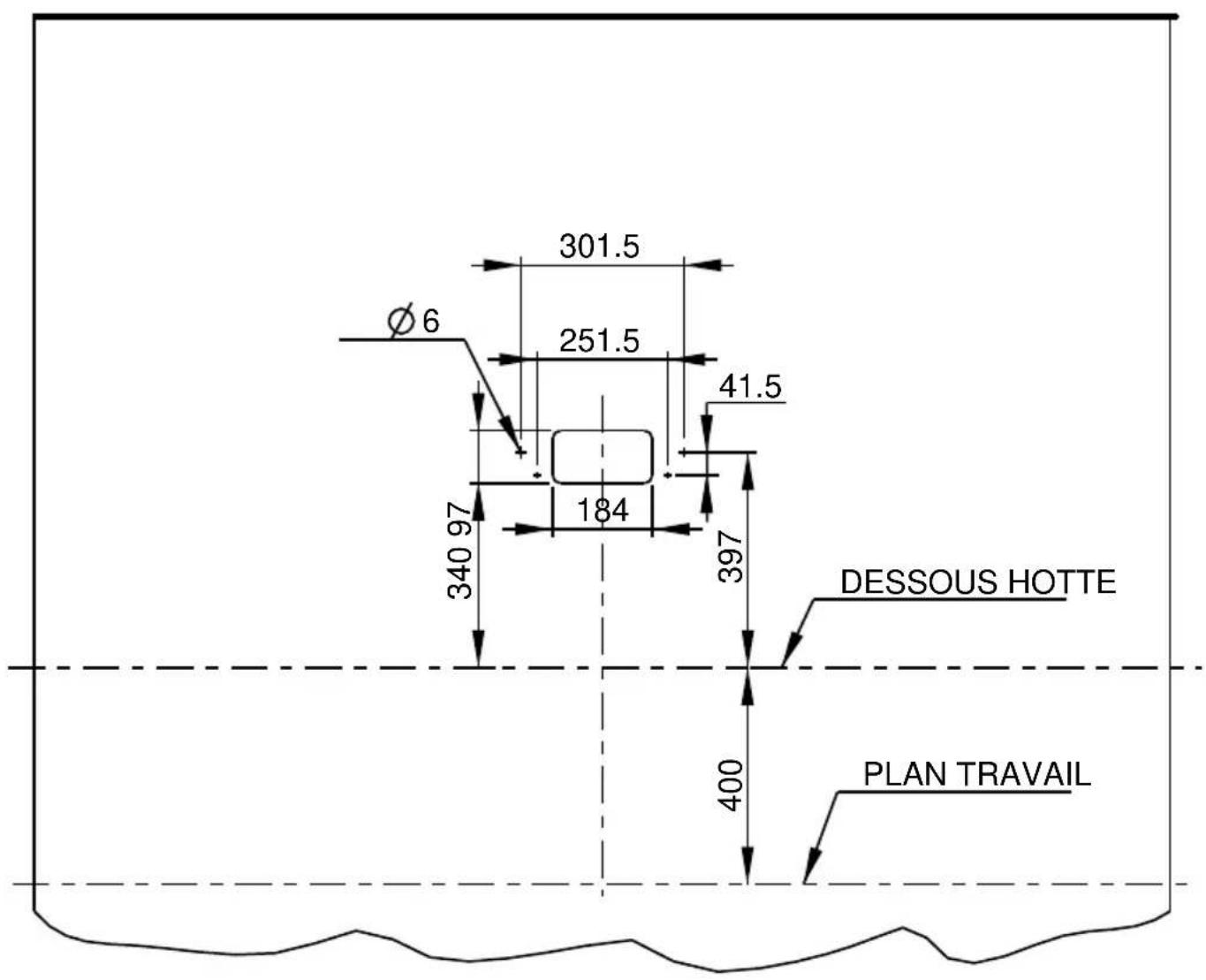

1) Draw a vertical line onto the wall from the centre of the cooking appliance up to the ceiling, using a spirit level and a marker pen as illustrated in Fig. 1 - item 1. This is to ensure the correct alignment of the chimney hood.
2) Place the brackets item 2 on the wall about 1 or 2 mm from the ceiling or from the upper limit, aligning its centre on the vertical line. Mark the two eyelet holes of the bracket onto the wall. Drill the holes for the fixing bracket using an 8 mm masonry bit. Fix the chimney bracket item 2 using the 4.5 x 50 mm screws and rawl plugs supplied.
3) Mark a point on the vertical line at a distance from the cooking appliances of:

$$ d = 1 0 7 0 \mathrm{mm} (\text { Measurement without splashback }). $$

$$ d = \text { height of the splashback } (4 0 0 \mathrm{mm}) + 6 7 0 \mathrm{mm} (\text { Measurement with splashback }). $$

The distance H is the minimum height in mm from the cooking appliances to the bottom edge item 3 of the front panel of the hood. Draw a horizontal line through the vertical as illustrated in Fig. 1.

Splashback (optional): When a splashback is to be fitted, the distance between the hood and the cooking appliances will be determined by the height of the splashback item B and whether or not there is a raised back on the worktop. The splashback is to be installed before installing the canopy. If the splashback is to be fixed to the wall using both the top and bottom fixing holes, Care must be taken to ensure that the splashback is fitted at the correct height before fixing the base units or at least the worktop covering them. As this is a complex operation, it should only be undertaken by the technician installing the kitchen units or by a competent person who knows the final dimensions of the units.

Mark the hole centres for the canopy fixing brackets item 4 at item B mm as illustrated in Fig. 3. Drill the 4 holes for the fixing brackets using an 8 mm masonry bit. Fix the wall brackets item 4 using the 4.5 x 45 mm screws and rawl plugs supplied.

4) Hook the canopy item 5 onto the wall brackets item 4 as illustrated in Fig. 3. To ensure the cooker hood is aligned correctly adjust the screws on the top of the canopy as illustrated in Fig. 3. When the hood is aligned correctly mark the hole centre on the wall for the security fixing screw item8, which is located in the right hand bracket on the top of the canopy. Unhook the canopy from the wall and drill the hole for the security fixing screw. Hook the canopy onto the wall and fix the No 4,5 x 50mm headed screw and rawl plug to secure the canopy to the wall.
5) Ducting:

The hood is more effective when used in the extraction mode (ducted to the outside). When the cooker hood is ducted to the outside, charcoal filters are not required. The ducting used must be 150 mm (6 INS), rigid circular pipe and must be manufactured from fire retardant material, produced to BS.476 or DIN 4102-B1. Wherever possible use rigid circular pipe which has a smooth interior, rather than the expanding concertina type ducting.

Maximum length of ducting run:

- 4 metres with 1 x 90° bend.

- 3 metres with 2 x 90° bends.

- 2 metres with 3 × 90^ bends.

The above assumes our 150 mm (6 INS) ducting is being installed. Please note ducting components and ducting kits are optional accessories and have to be ordered, they are not automatically sup-

plied with the chimney hood.

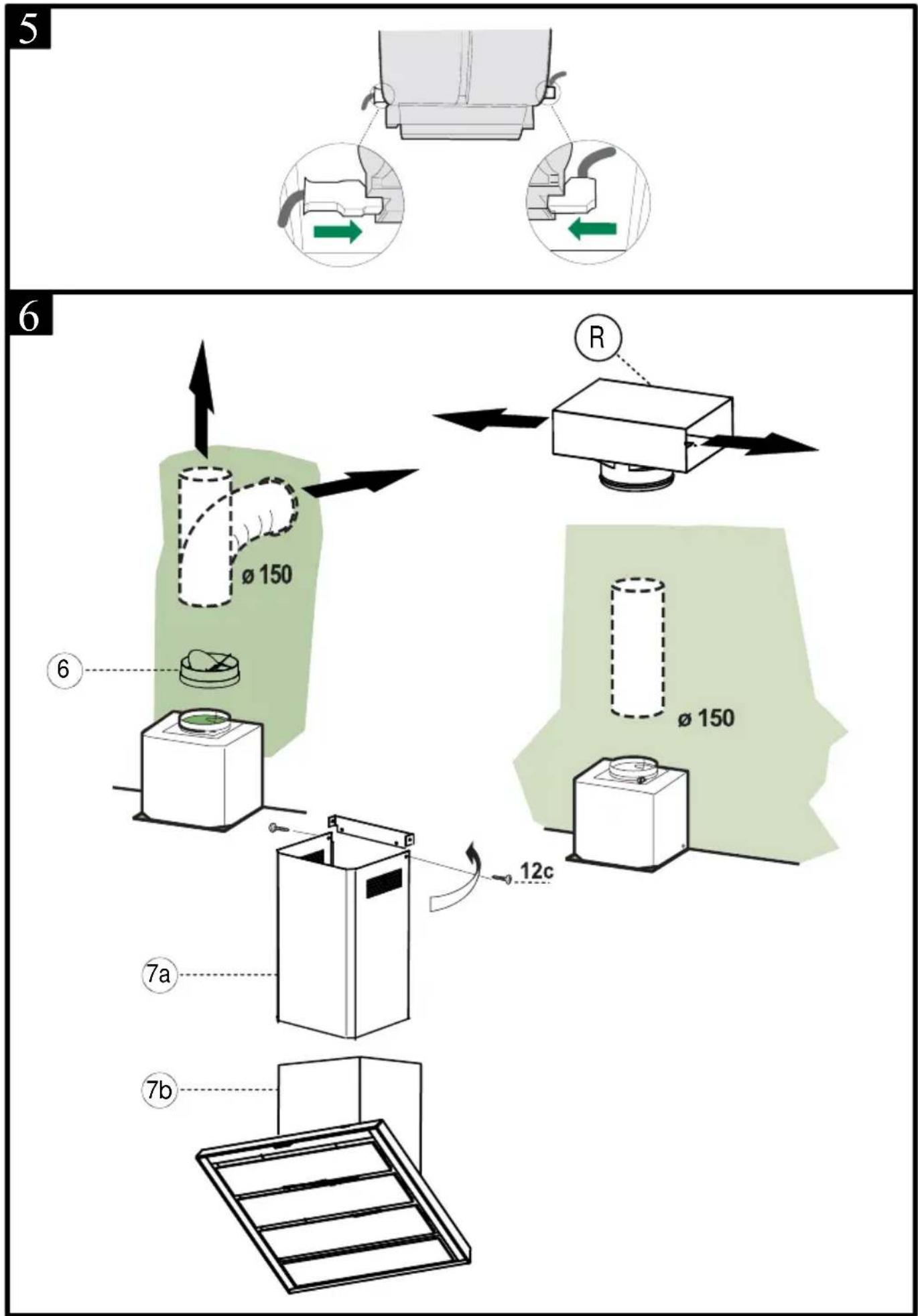

IN THE EXTRACTION MODE:

a. Place the anti-backflow flats item 8 over the round outlet item 6, the telescopic duct and connect the ducting 150mm (6 INS) over the round outlet on top of the canopy and secure the connections with appropriate clamping rings or adhesive tape (Fig. 6).
b. Remove the grease filters (see paragraph Maintenance) Fig. 5 being sure that the connector of the mains cable is correctly inserted in the socket placed on the sides of the fan. Before fitting the chimney to the canopy make the electrical connection as described in the section titled ELECTRICAL. When the electrical connection has been made, test the lights and the fan motor.
c. Each chimney stack consists of two sections. Fit the upper sections (Fig. 1 - item 7a & b) first by expanding the chimneys slightly to allow them to clamp around the bracket item 2 and secure the chimney stacks to the brackets using the two M4 screws item 12c provided. Fit the lower chimney sections by expanding the chimneys slightly to allow them from the top of the canopy to clamp around the upper chimney sections.

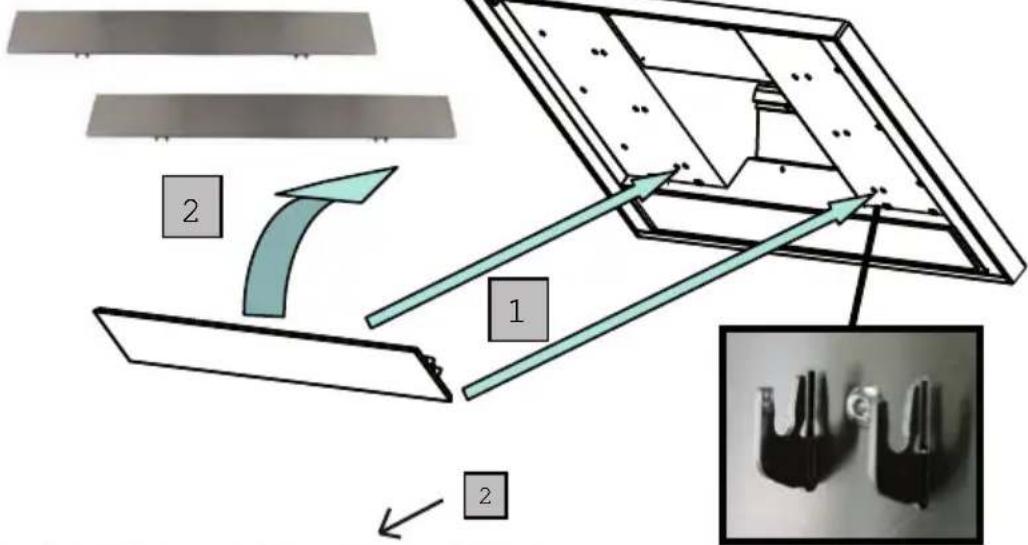

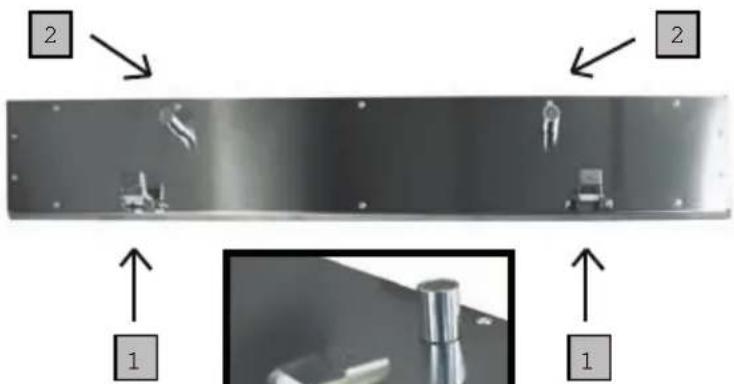

d. Fit the 3 deflectors Item 9.

IN THE RECIRCULATION MODE:

a. Fit the recirculation spigot R onto the upper chimney wall bracket using the same fixing screws (Fig. 2 item 2).
b. Connect the ducting 150mm (6 INS) not provided between motors item 6 and the recirculation spigot and secure the connections with appropriate clamping rings or adhesive tape.
c. Remove the grease filters (see paragraph Maintenance) Fig. 5 being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan. Before fitting the chimney to the canopy make the electrical connection as described in the section titled ELECTRICAL. When the electrical connection has been made, test the lights and the fan motor.

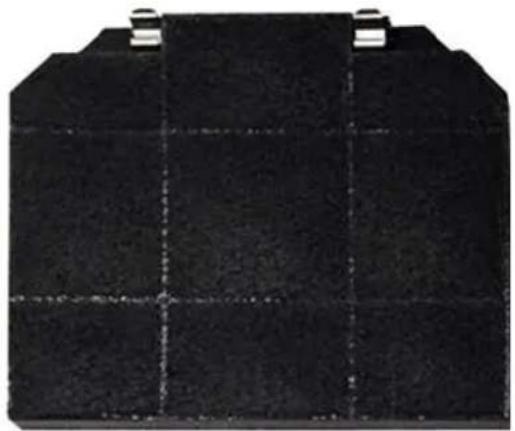

d. Insert the charcoal filter into the base of the motor housing and secure the filter with two metal securing straps item A as illustrated in Fig. 4.
e. Each chimney stack consists of two sections. Fit the upper sections (Fig. 1 - item 7a & b) first by expanding the chimneys slightly to allow them to clamp around the bracket item 2 and secure the chimney stacks to the brackets using the two M4 screws item 12c provided. Fit the lower chimney sections by expanding the chimneys slightly to allow them from the top of the canopy to clamp around the upper chimney sections.

f. Fit the 3 deflectors Item 9.

IN THE REMOTE MOTOR MODE AND WITHOUT CHIMNEY:

Note: The Fig. 7 & 8 correspond to the versions without Motor and without chimney (SMC or WMC). For this version it is necessary to install on the remote motor as indicated pages 54 to 57, a kit Filter Item 10 provided with the hood.

4 OPERATION

0 - + ⓘ 88 24 F ⏻

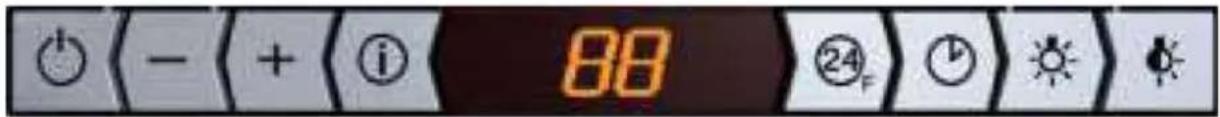

Control board

Key : Or

Switches the extractor motor on and off at the latest selected speed.

Key

Indicates the selected speed.

: Speed control

Decreases the suction speed.

Key

: Speed control

Increases the suction speed.

Key : Intensive speed

By pressing this key it is possible to activate the intensive speed from any previously selected speed. The intensive speed can be acti-vated even when the motor is OFF. This speed has been timed at 10 minutes. After that time the system activates automatically the latest selected speed. This function is suitable for cooking conditions when vapours and smells are of the utmost emission.

HI appears. The spot down on the right side flashes once a second.

Key

: Air Renewing

By pressing this key it is possible to set up the motor to a suction speed at 100 m3/h lasting 10 minutes every hour. After this the motor switches off automatically.

Indicates the 24-function. The spot down on the right side flashes and the motor is on. When the filter saturation is going on it is possible to reset the alarm by pressing this key 3 seconds. The indication is visible only when the motor is off.

Once the process is finished the previous indi-cation disappears:

FF Indicates that the metal grease filters saturation alarm has been triggered, and the filters need to be washed. The alarm is triggered after 100 working hours.

EF Indicates that the charcoal filter satura-tion alarm has been triggered, and the fil-ter has to be replaced; the metal grease filters must also be washed. The charcoal filter is triggered after 200 working hours.

Key: Stop delay 30 minutes

By pressing this key it is possible to set the delayed shutdown of the appliance to 30 min-utes. This function is suitable for a complete elimination of the residual smells. It can be activated at any position, and it is deactivated by pressing the key again or by switching off the motor.

Indicates alternately the selected speed of the hood and the time left before the hood shutdown. The spot down on the right side flashes.

Key

: Lighting

Turns light on and off.

Key

: Lighting

Turns the second light unit on and off (ambient lighting).

5 USEFUL HINTS

• To obtain the best performance it is advisable to switch 'ON' the cooker hood a few minutes (in the boost setting) before you start cooking and you should leave it running for approximately 15 minutes after finishing.
  • IMPORTANT: NEVER DO FLAMBÉ COOKING UNDER THIS COOKER HOOD
• Do not leave frying pans unattended during use as over-heated fat and oil might catch fire.
• Do not leave naked flames under this cooker hood.
• Switch 'OFF' the electric and gas before removing pots and pans.
• Ensure heating areas on your hotplate are covered with pots and pans when using the hotplate and cooker hood simultaneously.

6 MAINTENANCE

Before carrying out any maintenance or cleaning isolate the cooker hood from the mains supply. The cooker hood must be kept clean; a build up of fat or grease can be a fire hazard.

Casing

• Wipe the cooker hood frequently with a clean cloth, which has been immersed in warm water containing a mild detergent and wrung out.
• Never use excessive amounts of water when cleaning particularly around the control panel.
• Never use scouring pads or abrasive cleaners.
  • Always wear protective gloves when cleaning the cooker hood.

Metal Grease Filters

The metal grease filters absorb grease and dust during cooking to help keep the cooker hood clean inside. The grease filters should be cleaned once a month or more frequently if the hood is used for more than 3 hours per day.

To remove and replace the metal grease filters

• Remove the metal grease filters one at a time by releasing the catches on the filters; the filters can now be removed.
• The metal grease filters should be washed, by hand, in mild soapy water or in a dishwasher.
• Allow to dry before replacing.

Active Charcoal Filter

The charcoal filter cannot be cleaned. The filter should be replaced at least every three months or more frequently if the hood is used for more than three hours per day.

To remove and replace the filter

• Remove the metal grease filters.
• Press against the two retaining clips, which hold the charcoal filter in place and this will allow the filter to drop down and be removed.
• Clean the surrounding area and metal grease filters as directed above.
• Insert the replacement filter and ensure the two retaining clips are correctly located.
• Replace the metal grease filters.

Extraction tube.

Check every 6 months that the dirty air is being extracted correctly. Comply with local rules and regulations with regard to the extraction of ventilated air.

Lighting.

If the lamp fails to function check to ensure it is fitted correctly into the holder. If lamp failure has occurred then it should be replaced with identical replacement.

Do not replace with any other type of lamp and do not fit a lamp with a higher rating.

7 GUARANTEE AND AFTER SALES SERVICE

- In the event of any malfunction or anomaly, notify your fitter who will have to check the appliance and its connection.

• In the event of damage to the mains supply cable, this can only be replaced by at approved repair centre appointed by the manufacturer who have the necessary tools and equipment to carry out any repairs properly. Repairs carried out by other persons will invalidate the guarantee.
• Use only genuine spare parts. Should these warnings fail to be observed it could affect the safety of your cooker hood.
• When ordering spare parts quote the model number and serial number written on the rating plate, which is found on the casing behind the grease filters inside the hood.
  • Proof of purchase will be required when requesting service. Therefore, please have your receipt available when requesting service as this constitutes the date from which your guarantee commenced. This Guarantee does not cover :
• Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or filters or removable parts of glass or plastic.
  These items are considered to be consumable under the terms of this guarantee.

8 REMARKS

This appliance complies with European regulations on low voltages Directive 2006/95/CE on electrical safety, and with the following European regulations: Directive 2004/108/CE on electromagnetic compatibility and Directive 93/68 on EC marking.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European directive 2002/96/EC. Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic product. Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

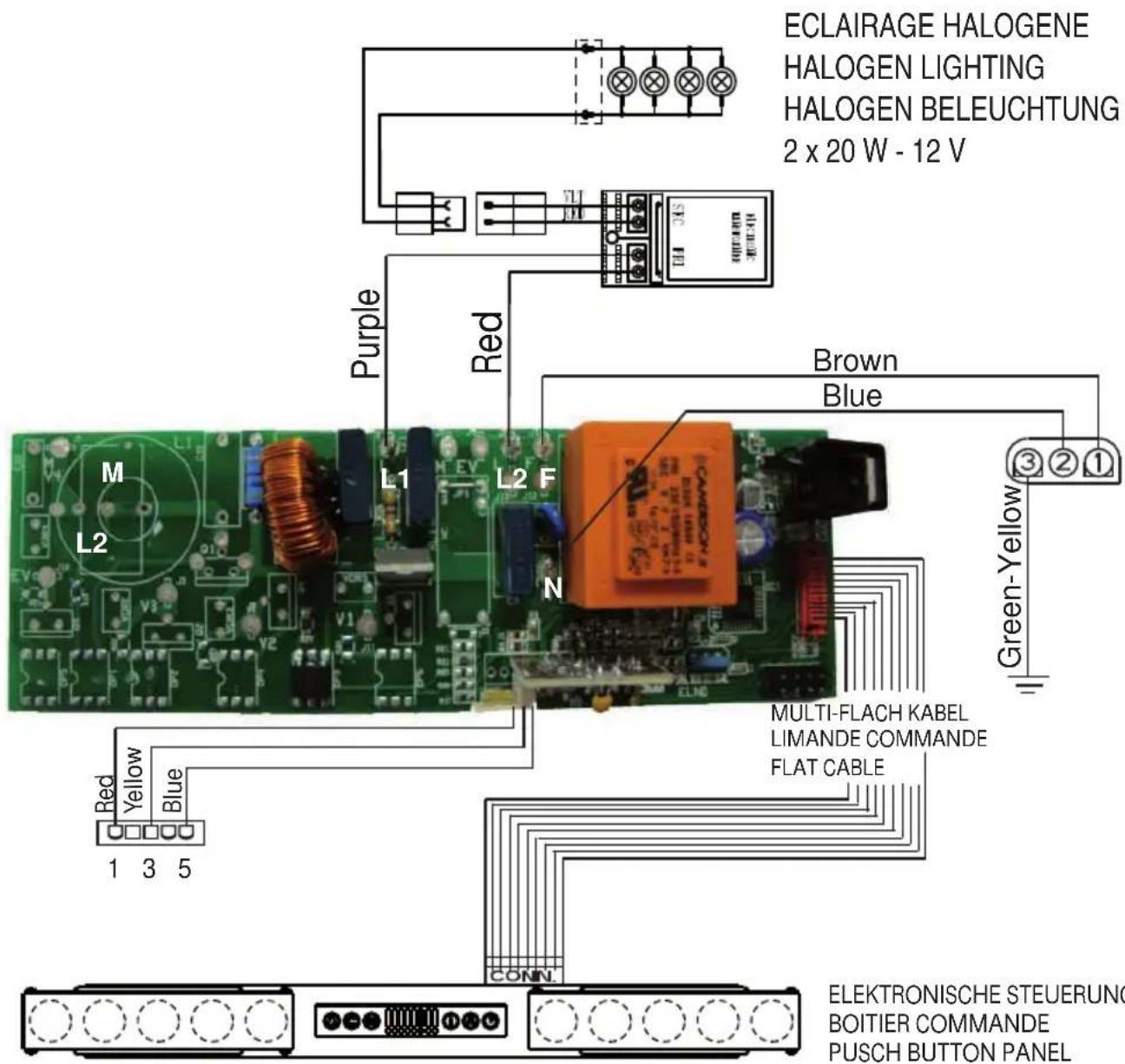

ECLAIRAGE HALOGENE HALOGEN LIGHTING HALOGEN BELEUCHTUNG 2 x 20 W - 12 V M L2 Red Purple Red Brown Blue Multi-FLACH KABEL LIMANDE COMMANDE FLAT CABLE Green-Yellow 3 2 1 RED YELLOW Blue 1 3 5 CONN. ELEKTRONISCHE STEUERUNG BOITIER COMMANDE PUSCH BUTTON PANEL

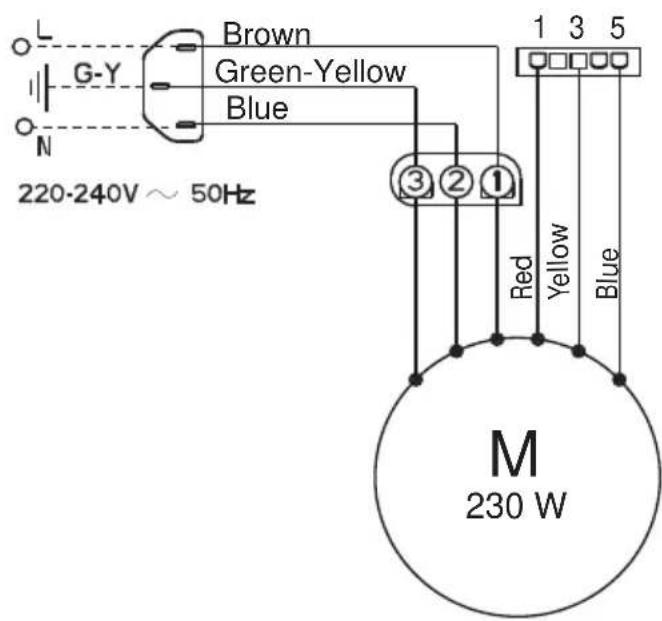

L G-Y N 220-240V ~ 50Hz Brown Green-Yellow Blue ③ ② ① Red Yellow Blue 1 3 5 M 230 W

A - AZUR - AZUR - AZUR BLAU

BK - BLACK - NOIR- SCHWARZ

B - BLUE - BLEU - BLAU

Br - BROWN - BRUN - BRAUN

G-Y - GREEN YELLOW - VERT JAUNE - GRÜN GELB

Gr - GREY - GRIS - GRAU

L B - LIGHT BLUE - BLEU CLAIR - HELL BLAU

P - PINK - ROSE - ROSA

V - PURPLE - MAUVE - MALVER FARBIG

R - RED - ROUGE - ROT

W - WHITE - BLANC - WEISS

W-P - WHITE PINK - BLANC ROSE - WEISS ROSA

Y - YELLOW - JAUNE - GELB

Maj (Update)	Désignation
120309 Vizio/	2 Murale Verre FX depuis: Mars 2012(from)
Page
1/1	3S_Vizio_2_M_Verre_FX_V2012-03

UK ELECTRICAL CONNECTION ELECTRICAL REQUIREMENTS

Any permanent electrical installation must comply with the latest I.E.E. Regulations and local Electricity Board regulations. For your own safety this should be undertaken by a qualified electrician e.g. your local Electricity Board, or a contractor who is on the roll of the National Inspection Council for Electrical Installation Contracting (NICEIC).

ELECTRICAL CONNECTION

Before connecting to the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood.

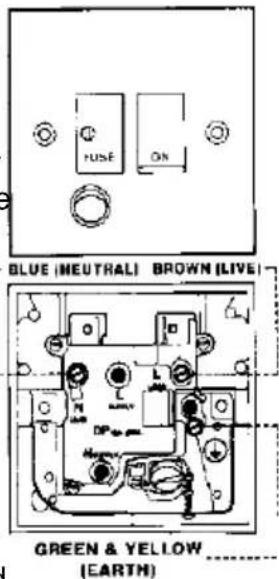

FUSE ON BLUE (NEUTRAL) BROWN (LIVE) GREEN & YELLOW (EARTH)

The wires in this mains lead are coloured in accordance with the following code: Green & Yellow Earth Blue Neutral Brown Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your connection unit, proceed as follows:-

This appliance is fitted with a 2 core mains cable and must be permanently connected to the electricity supply. The wire which is coloured blue must be connected via a double-pole switch having 3mm minimum contact gap on each pole. A Switched Fuse Connection Unit (EARTH) proceed as follows:

to BS.1363 Part 4, fitted with a 3 Amp fuse, is a The wire which is coloured brown must be connected recommended mains supply connection accessory to the terminal which is marked with the letter 'L' or ensure compliance with the Safety Requirements coloured red. applicable toiked wiring instructions.

CH

Technical diagram showing a device with labeled components and a hand interacting with a green circular component, including a magnified view of the component.

VIZIO 2 SMC

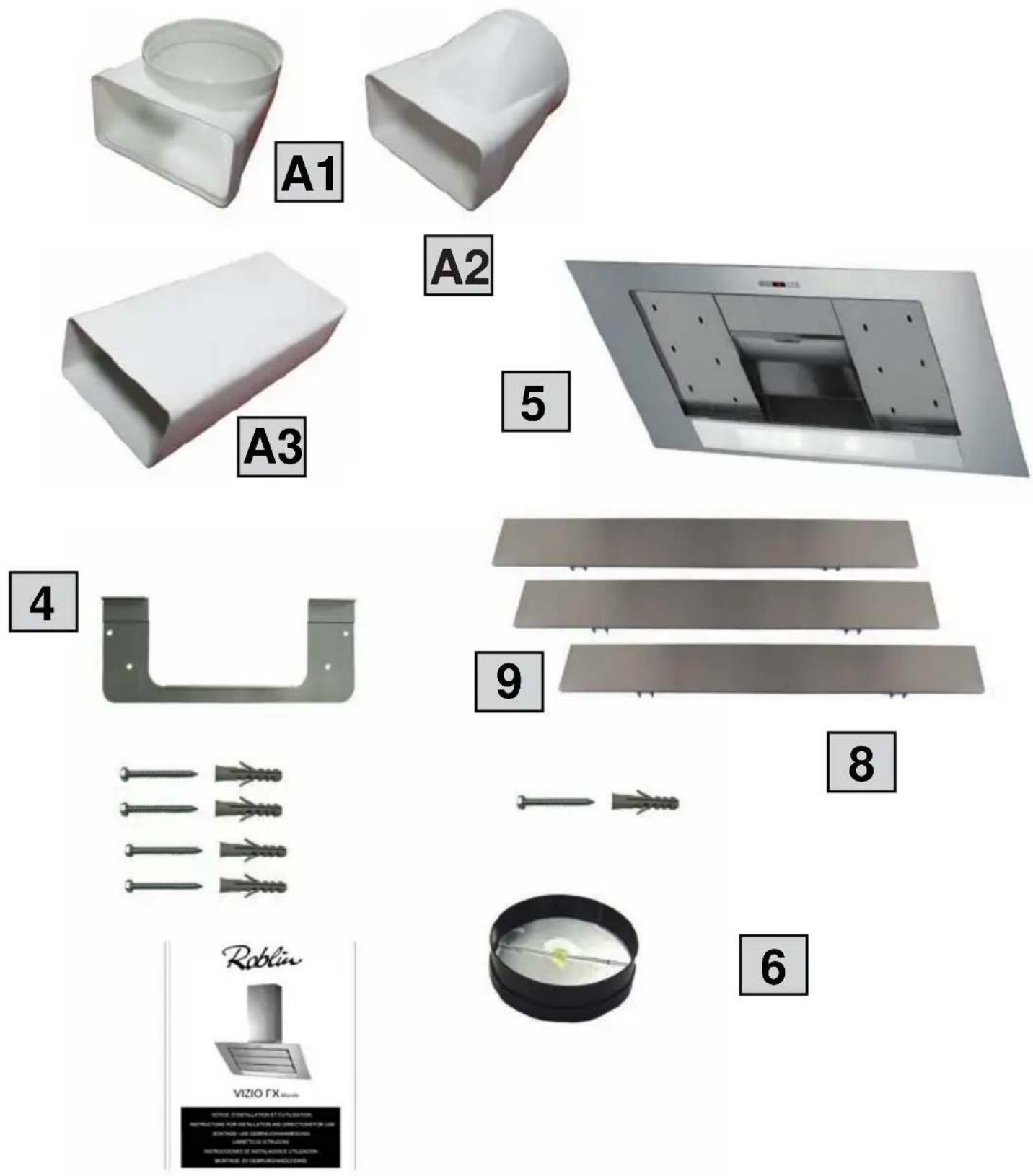

Composants

Componenti

Components

Componentes

Bauelemente

Onderdelen

Pure geometric shape outline with no text, numbers, or symbols

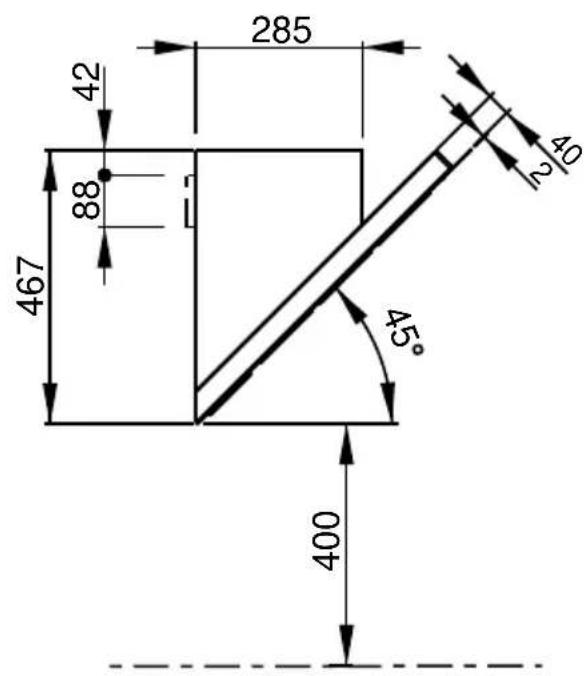

Ø6 301.5 251.5 41.5 340 97 184 397 DESSOUS HOTTE 400 PLAN TRAVAIL

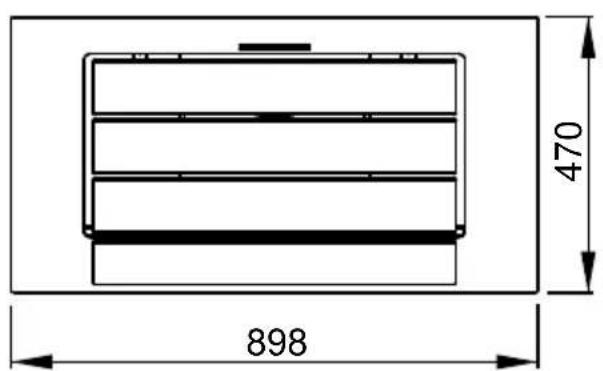

898 470

359 175 438 472

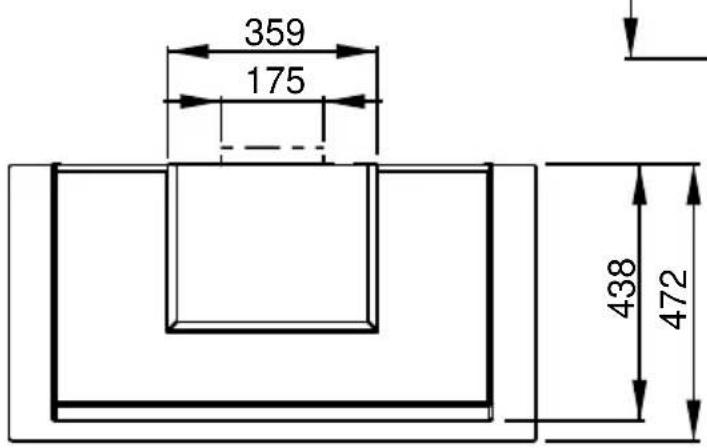

285 40 45° 467 438 472 400

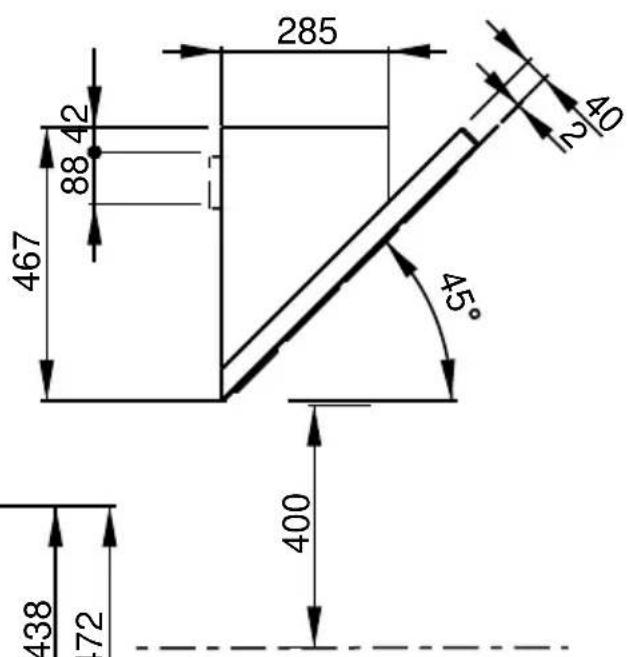

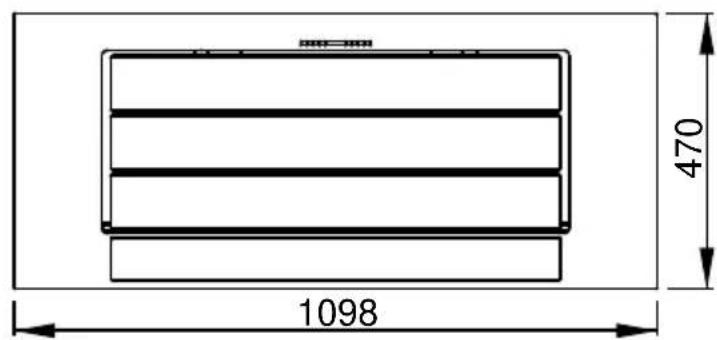

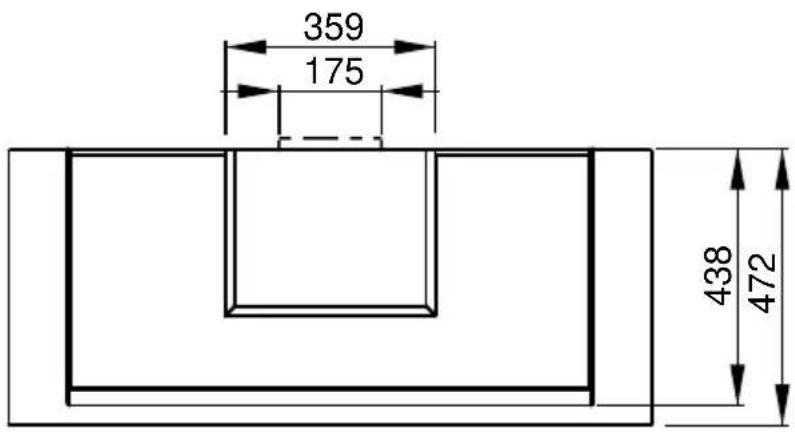

VIZIO 2 FX 900 SMC

1098 470

285 42 88 467 45° 40 400

359 175 438 472

VIZIO 2 FX 1100 SMC

7

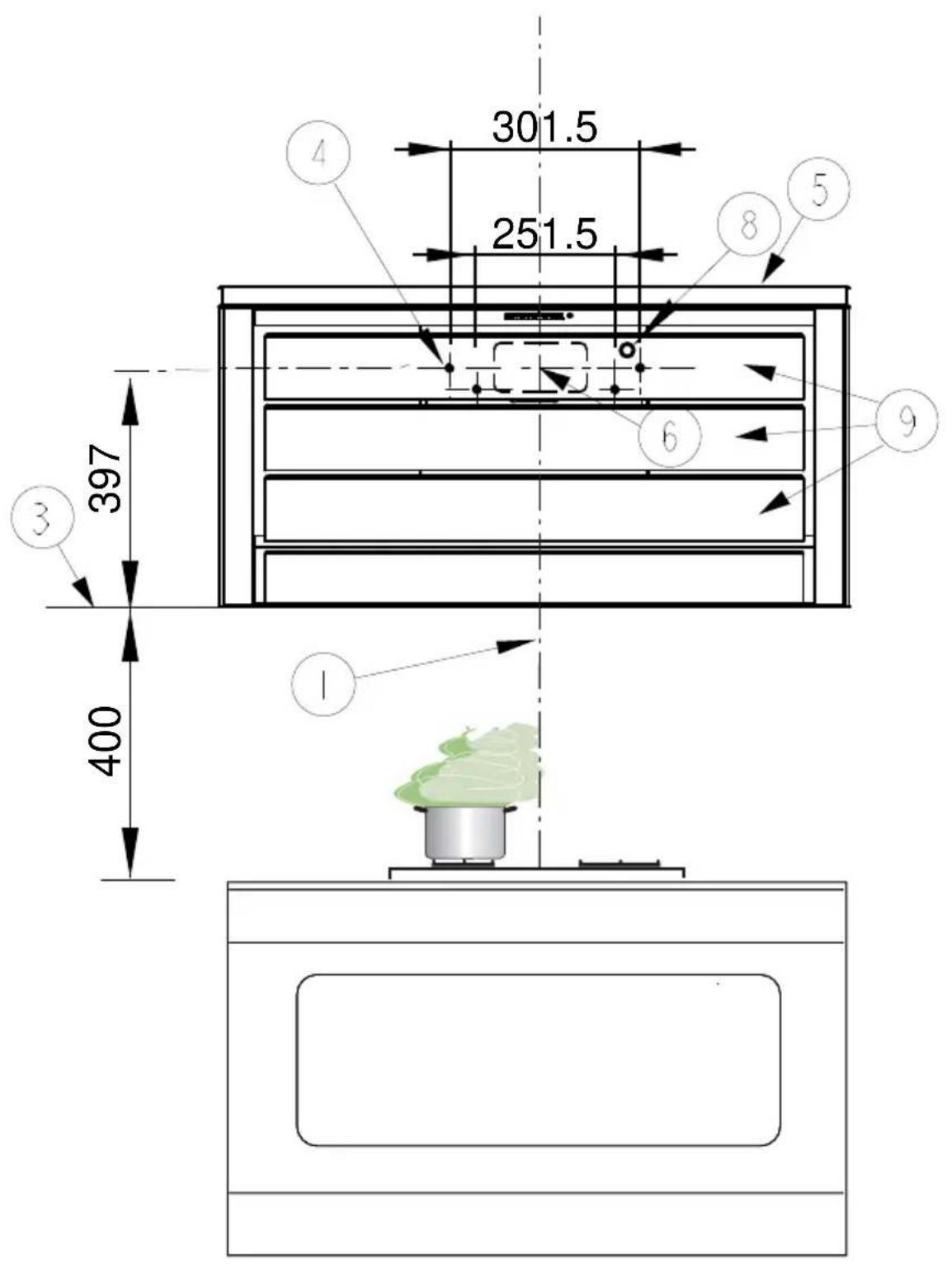

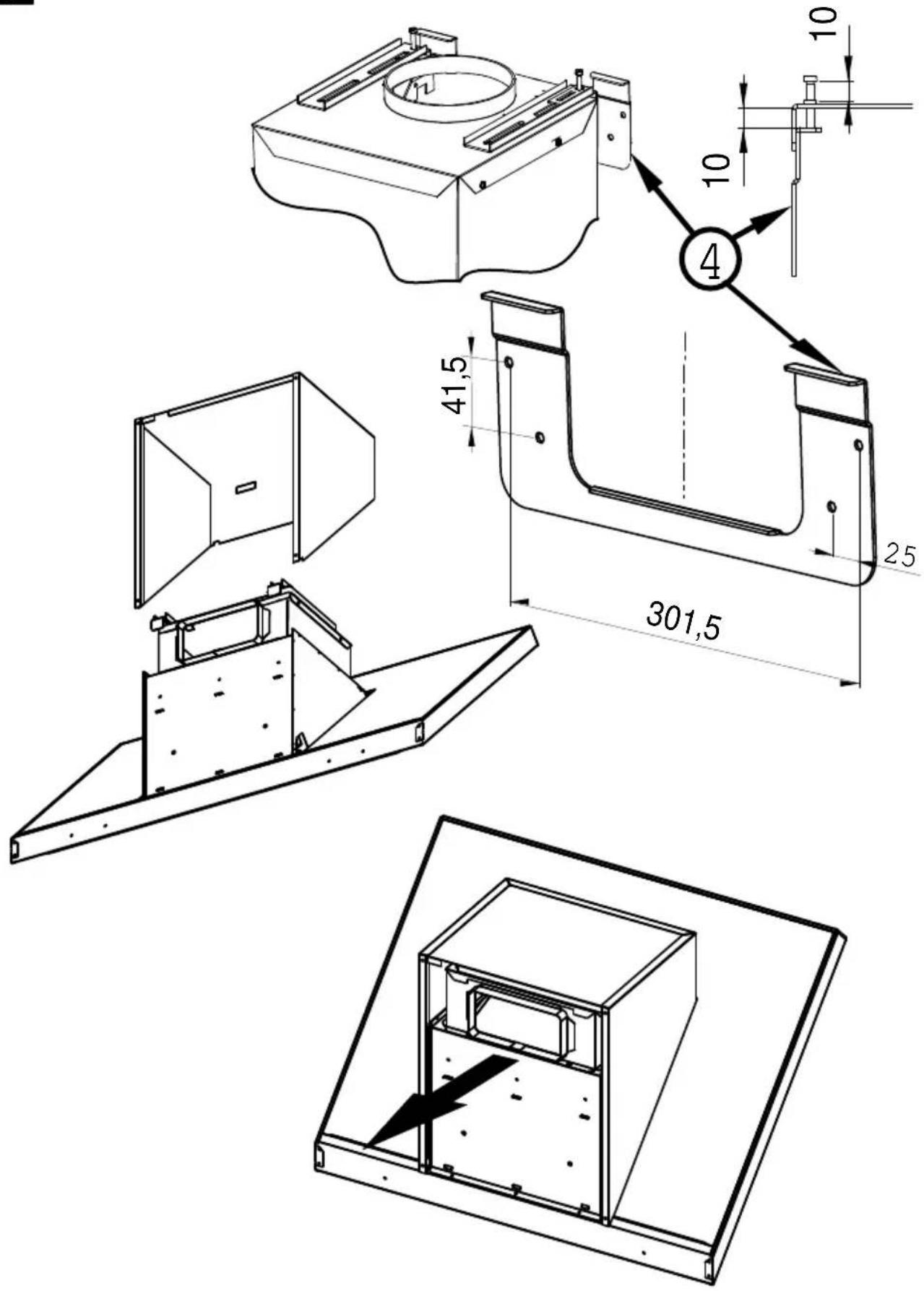

301.5 251.5 397 400 4 ① ③ ④ ⑤ ⑥ ⑧ ⑨

8

Technical drawing of a mechanical assembly with dimension annotations and component labels

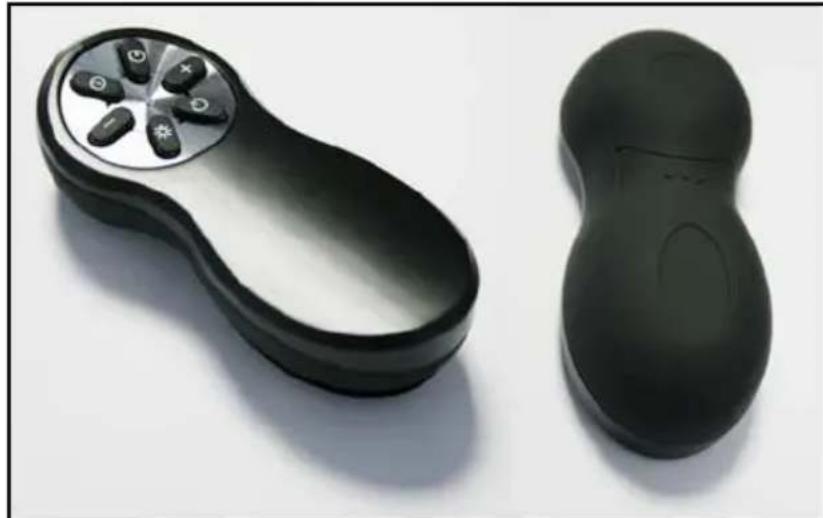

Two black ergonomic devices: a remote control with circular buttons and a smooth, rounded device (no text or symbols visible)

LITERIE OF SPINCH THEorem 2.10

Cross-sectional diagram of a mechanical device showing internal components (no text or symbols)

LR03 / AAA / 1,5V

Close-up of a black cylindrical battery with internal circuitry and color bands (no visible text or symbols)

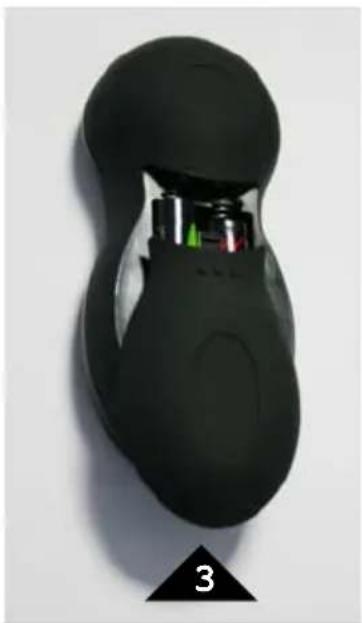

Top-down view of a black ergonomic device with visible internal components and a numbered label '3' at the bottom (no text or symbols on the device itself)

ACCESSOIRES

ACCESSORIES

ZUBEHÖRE

ACCESSORI

ACCESORIA

ACCESSOIRES

Black rectangular object with grid pattern and two metallic clips at top (no text or symbols)

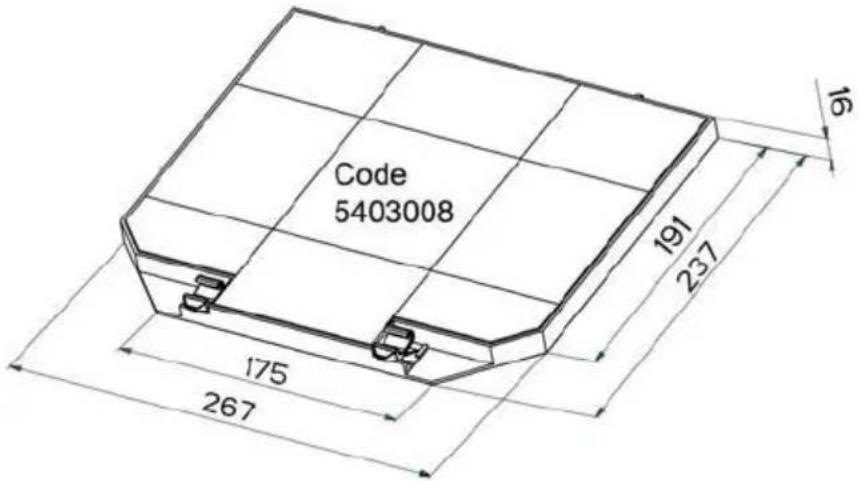

Code 5403008 191 237 175 267 16

G4 12V 20W

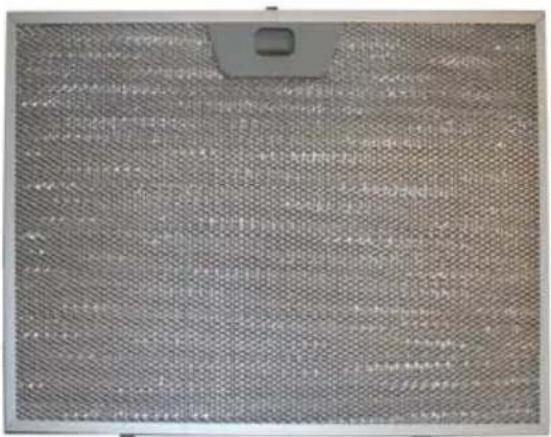

Close-up of a metallic mesh filter panel with no visible text or symbols on the surface

13MC070

323 × 262 × 8 mm

Rating plate of the cookerhood

Close-up of a white plastic electrical outlet with a beige cylindrical component mounted on a flat surface (no text or symbols visible)

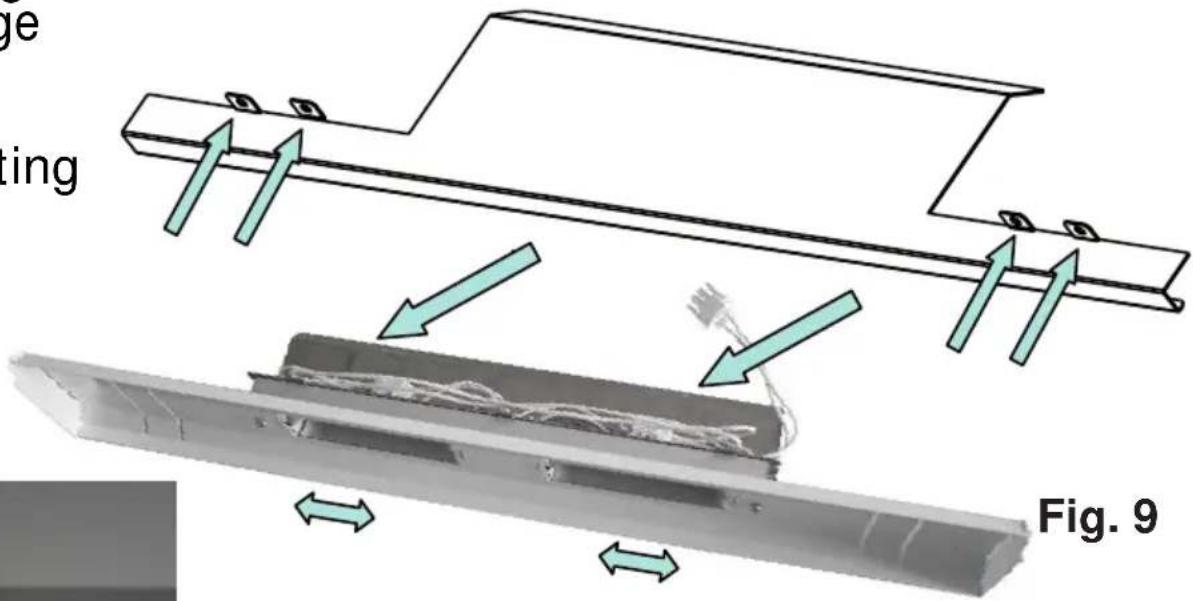

ge ing Fig. 9
