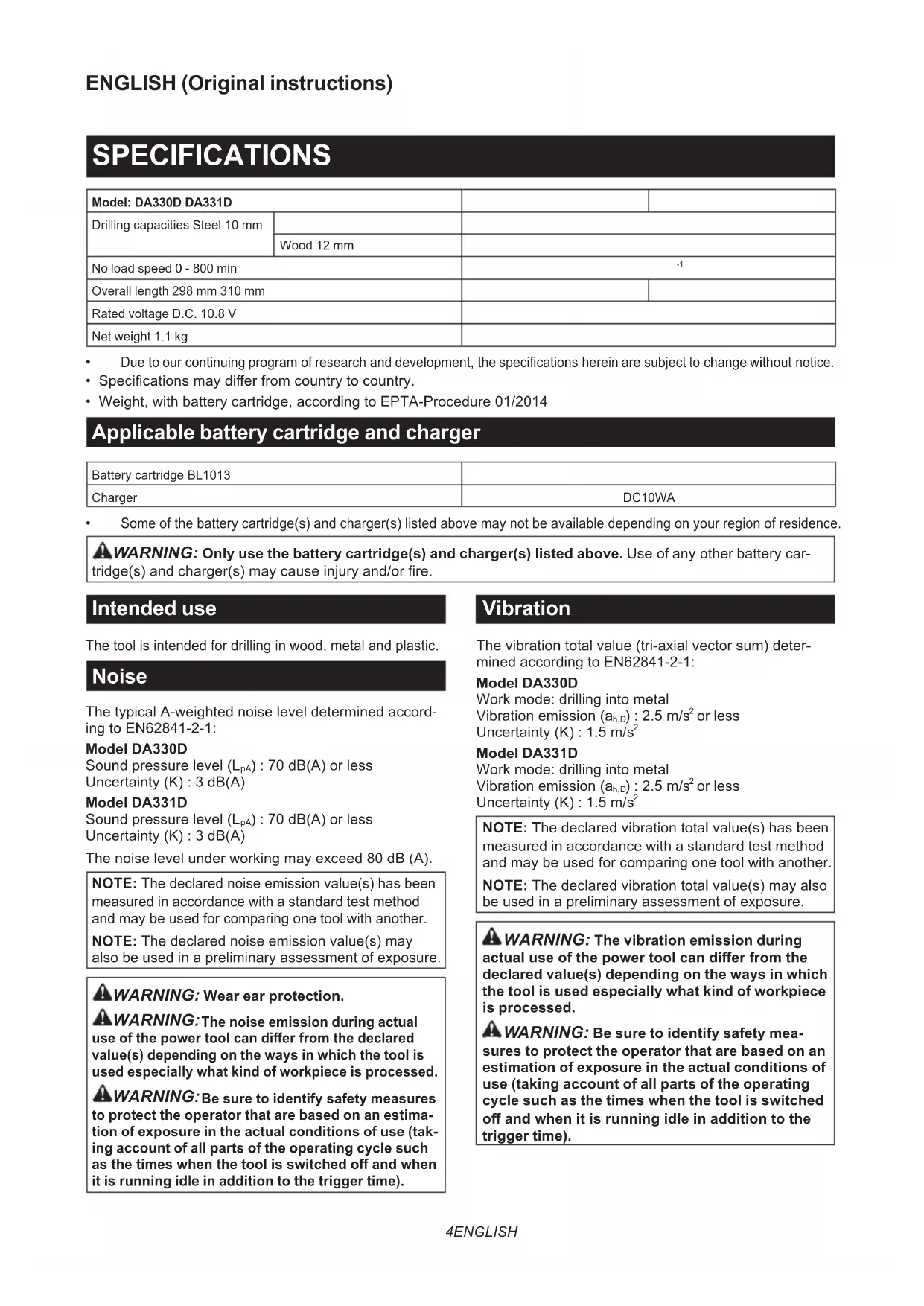

34 ENGLISH ENGLISH (Original instructions)

Rated voltage D.C. 10.8 V Net weight 1.1 kg

Due to our continuing program of research and development, the specications herein are subject to change without notice.

• Specications may di󰀨er from country to country.

• Weight, with battery cartridge, according to EPTA-Procedure 01/2014

Applicable battery cartridge and charger

Battery cartridge BL1013

Some of the battery cartridge(s) and charger(s) listed above may not be available depending on your region of residence.

WARNING: Only use the battery cartridge(s) and charger(s) listed above. Use of any other battery car-

tridge(s) and charger(s) may cause injury and/or re.

The tool is intended for drilling in wood, metal and plastic.

The typical A-weighted noise level determined accord-

Model DA330D Sound pressure level (L

) : 70 dB(A) or less

Model DA331D Sound pressure level (L

) : 70 dB(A) or less

The noise level under working may exceed 80 dB (A).

The declared noise emission value(s) has been

measured in accordance with a standard test method

and may be used for comparing one tool with another.

The declared noise emission value(s) may

also be used in a preliminary assessment of exposure.

WARNING: Wear ear protection.

The noise emission during actual

use of the power tool can di󰀨er from the declared

value(s) depending on the ways in which the tool is

used especially what kind of workpiece is processed.

Be sure to identify safety measures

to protect the operator that are based on an estima-

tion of exposure in the actual conditions of use (tak-

ing account of all parts of the operating cycle such

as the times when the tool is switched o󰀨 and when

it is running idle in addition to the trigger time).

The vibration total value (tri-axial vector sum) deter-

mined according to EN62841-2-1:

Model DA330D Work mode: drilling into metal

Vibration emission (a

Model DA331D Work mode: drilling into metal

Vibration emission (a

NOTE: The declared vibration total value(s) has been

measured in accordance with a standard test method

and may be used for comparing one tool with another.

NOTE: The declared vibration total value(s) may also

be used in a preliminary assessment of exposure.

WARNING: The vibration emission during

actual use of the power tool can di󰀨er from the

declared value(s) depending on the ways in which

the tool is used especially what kind of workpiece

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an

estimation of exposure in the actual conditions of

use (taking account of all parts of the operating

cycle such as the times when the tool is switched

o󰀨 and when it is running idle in addition to the

trigger time).5 ENGLISH EC Declaration of Conformity

For European countries only

The EC declaration of conformity is included as Annex A

to this instruction manual.

SAFETY WARNINGS General power tool safety warnings

WARNING: Read all safety warnings, instruc-

tions, illustrations and specications provided

with this power tool. Failure to follow all instructions

listed below may result in electric shock, re and/or

Save all warnings and instruc-

tions for future reference.

The term "power tool" in the warnings refers to your

mains-operated (corded) power tool or battery-operated

(cordless) power tool.

Cordless drill safety warnings

Safety instructions for all operations

Hold the power tool by insulated gripping sur-

faces, when performing an operation where the

cutting accessory may contact hidden wiring.

Cutting accessory contacting a "live" wire may

make exposed metal parts of the power tool "live"

and could give the operator an electric shock.

Always be sure you have a rm footing. Be sure no

one is below when using the tool in high locations.

3. Hold the tool rmly.

4. Keep hands away from rotating parts.

5. Do not leave the tool running. Operate the tool

only when hand-held.

6. Do not touch the drill bit or the workpiece

immediately after operation; they may be

extremely hot and could burn your skin.

Some material contains chemicals which may be

toxic. Take caution to prevent dust inhalation and

skin contact. Follow material supplier safety data.

If the drill bit cannot be loosened even you open the

jaws, use pliers to pull it out. In such a case, pulling out

the drill bit by hand may result in injury by its sharp edge.

Safety instructions when using long drill bits

Never operate at higher speed than the maximum

speed rating of the drill bit. At higher speeds, the

bit is likely to bend if allowed to rotate freely without

contacting the workpiece, resulting in personal injury.

Always start drilling at low speed and with the bit

tip in contact with the workpiece. At higher speeds,

the bit is likely to bend if allowed to rotate freely without

contacting the workpiece, resulting in personal injury.

Apply pressure only in direct line with the bit and do

not apply excessive pressure. Bits can bend causing

breakage or loss of control, resulting in personal injury.

SAVE THESE INSTRUCTIONS.

WARNING: DO NOT let comfort or familiarity

with product (gained from repeated use) replace

strict adherence to safety rules for the subject

product. MISUSE or failure to follow the safety

rules stated in this instruction manual may cause

serious personal injury.

Important safety instructions for

Before using battery cartridge, read all instruc-

tions and cautionary markings on (1) battery char-

ger, (2) battery, and (3) product using battery.

2. Do not disassemble battery cartridge.

3. If operating time has become excessively

shorter, stop operating immediately. It may

result in a risk of overheating, possible burns

and even an explosion.

If electrolyte gets into your eyes, rinse them out

with clear water and seek medical attention right

away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any con-

(2) Avoid storing battery cartridge in a con-

tainer with other metal objects such as

(3) Do not expose battery cartridge to water

A battery short can cause a large current

ow, overheating, possible burns and even a

6. Do not store the tool and battery cartridge in

locations where the temperature may reach or

exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if

it is severely damaged or is completely worn

out. The battery cartridge can explode in a re.

8. Be careful not to drop or strike battery.

9. Do not use a damaged battery.

The contained lithium-ion batteries are subject to

the Dangerous Goods Legislation requirements.

For commercial transports e.g. by third parties,

forwarding agents, special requirement on pack-

aging and labeling must be observed.

For preparation of the item being shipped, consult-

ing an expert for hazardous material is required.

Please also observe possibly more detailed

national regulations.

Tape or mask o󰀨 open contacts and pack up the

battery in such a manner that it cannot move

around in the packaging.

11. When disposing the battery cartridge, remove

it from the tool and dispose of it in a safe

place. Follow your local regulations relating to

disposal of battery.

12. Use the batteries only with the products

specied by Makita. Installing the batteries to

non-compliant products may result in a re, exces-

sive heat, explosion, or leak of electrolyte.

13. If the tool is not used for a long period of time,

the battery must be removed from the tool.

SAVE THESE INSTRUCTIONS.6 ENGLISH CAUTION:

Only use genuine Makita batteries.

Use of non-genuine Makita batteries, or batteries that

have been altered, may result in the battery bursting

causing res, personal injury and damage. It will also

void the Makita warranty for the Makita tool and charger.

Tips for maintaining maximum

Charge the battery cartridge before completely dis-

charged. Always stop tool operation and charge the

battery cartridge when you notice less tool power.

Never recharge a fully charged battery cartridge.

Overcharging shortens the battery service life.

Charge the battery cartridge with room tempera-

ture at 10 °C - 40 °C (50 °F - 104 °F). Let a hot

battery cartridge cool down before charging it.

FUNCTIONAL DESCRIPTION CAUTION: Always be sure that the tool is

switched o󰀨 and the battery cartridge is removed

before adjusting or checking function on the tool.

Installing or removing battery cartridge

CAUTION: Always switch o󰀨 the tool before

installing or removing of the battery cartridge.

CAUTION: Hold the tool and the battery car-

tridge rmly when installing or removing battery

cartridge. Failure to hold the tool and the battery

cartridge rmly may cause them to slip o󰀨 your hands

and result in damage to the tool and battery cartridge

and a personal injury.

► Fig.1: 1. Button 2. Battery cartridge

To remove the battery cartridge, withdraw it from the

tool while pressing the buttons on both sides of the

To install the battery cartridge, hold it so that the battery

cartridge front shape ts to that of the battery install-

ment opening and slip it into place. Insert it all the way

until it locks in place with a little click.

CAUTION: Always insert the battery cartridge

all the way until it locks in place. If not, it may

accidentally fall out of the tool, causing injury to you

or someone around you.

CAUTION: Do not install the battery cartridge

forcibly. If the cartridge does not slide in easily, it is

not being inserted correctly.

Battery protection system

The tool is equipped with a battery protection system.

This system automatically cuts o󰀨 power to the motor to

extend battery life.

The tool will automatically stop during operation if the

tool and/or battery are placed under one of the following

The tool is operated in a manner that causes it to draw

an abnormally high current.

In this situation, release the switch trigger on the tool

and stop the application that caused the tool to become

overloaded. Then pull the switch trigger again to restart.

Low battery voltage:

The remaining battery capacity is too low and the tool will not

operate. If you pull the switch trigger, the motor runs again but

stops soon. In this situation, remove and recharge the battery.

CAUTION: Before installing the battery car-

tridge into the tool, always check to see that the

switch lever actuates properly and returns to the

"OFF" position when released.

CAUTION: Be sure to hold the tool rmly

before the tool is switched o󰀨.

► Fig.2: 1. Switch lever

To start the tool, simply pull the switch lever. Tool speed

is increased by increasing pressure on the switch lever.

Release the switch lever to stop.

Lighting up the front lamp

CAUTION: Do not look in the light or see the

source of light directly.

Pull the switch lever to light up the lamp. The lamp

keeps on lighting while the switch lever is being

pulled. The lamp goes out just after the switch lever is

NOTE: Use a dry cloth to wipe the dirt o󰀨 the lens of

the lamp. Be careful not to scratch the lens of lamp, or

it may lower the illumination.

Reversing switch action

► Fig.5: 1. Reversing switch lever

CAUTION: Always check the direction of

rotation before operation.

CAUTION: Use the reversing switch only after

the tool comes to a complete stop. Changing the

direction of rotation before the tool stops may dam-

CAUTION: When not operating the tool,

always set the reversing switch lever to the neu-

This tool has a reversing switch to change the direction of rota-

tion. Depress the reversing switch lever from the A side for clock-

wise rotation or from the B side for counterclockwise rotation.

When the reversing switch lever is in the neutral posi-

tion, the switch lever cannot be pulled.7 ENGLISH ASSEMBLY CAUTION: Always be sure that the tool is

switched o󰀨 and the battery cartridge is removed

before carrying out any work on the tool.

Installing or removing drill bit

► Fig.6: 1. Chuck key

To install the drill bit, place it in the chuck as far as it will go. Tighten

the chuck by hand. Place the chuck key in each of the three holes

and tighten clockwise. Be sure to tighten all three chuck holes evenly.

To remove the drill bit, turn the chuck key counterclock-

wise in just one hole, then loosen the chuck by hand.

After use, return the chuck key to the storage cavity on the tool.

Hold the tool rmly and turn the sleeve counterclockwise to open

the chuck jaws. Place the drill bit in the chuck as far as it will go.

Hold the tool rmly turn the sleeve clockwise to tighten the chuck.

To remove the drill bit, hold the tool rmly turn the

sleeve counterclockwise.

1. Chuck key holder 2. Hook portion 3. Slot 4. Rail

To install the chuck key holder, point the hook portion of it toward

the housing. Then insert the rails of the chuck key holder to the

slots of the tool housing until it locks in place with a little click.

To remove, hold the chuck key holder and then take it out.

Always insert the battery cartridge all

the way until it locks in place. If not, it may accidentally fall

out of the tool, causing injury to you or someone around you.

CAUTION: When the speed comes down

extremely, reduce the load or stop the tool to

avoid the tool damage.

Hold the tool rmly with one hand on

the gripping part of the tool when operating the tool.

When drilling in wood, the best results are obtained

with wood drills equipped with a guide screw. The guide

screw makes drilling easier by pulling the drill bit into

To prevent the drill bit from slipping when starting a hole, make an

indentation with a center-punch and hammer at the point to be drilled.

Place the point of the drill bit in the indentation and start drilling.

Use a cutting lubricant when drilling metals. The excep-

tions are iron and brass which should be drilled dry.

Pressing excessively on the tool will

not speed up the drilling. In fact, this excessive pressure

will only serve to damage the tip of your drill bit, decrease

the tool performance and shorten the service life of the tool.

CAUTION: Hold the tool rmly and exert care

when the drill bit begins to break through the

workpiece. There is a tremendous force exerted on

the tool/drill bit at the time of hole break through.

CAUTION: A stuck drill bit can be removed

simply by setting the reversing switch to reverse

rotation in order to back out. However, the tool

may back out abruptly if you do not hold it rmly.

CAUTION: Always secure workpieces in a

vise or similar hold-down device.

If the tool is operated continuously until

the battery cartridge has discharged, allow the tool to rest

for 15 minutes before proceeding with a fresh battery.

MAINTENANCE CAUTION:

Always be sure that the tool is

switched o󰀨 and the battery cartridge is removed before

attempting to perform inspection or maintenance.

Never use gasoline, benzine, thinner, alcohol

or the like. Discoloration, deformation or cracks may result.

To maintain product SAFETY and RELIABILITY,

repairs, any other maintenance or adjustment should

be performed by Makita Authorized or Factory Service

Centers, always using Makita replacement parts.

OPTIONAL ACCESSORIES CAUTION:

These accessories or attachments

are recommended for use with your Makita tool spec-

ied in this manual. The use of any other accessories

or attachments might present a risk of injury to persons.

Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding

these accessories, ask your local Makita Service Center.

• Plastic carrying case

• Makita genuine battery and charger

NOTE: Some items in the list may be included in the

tool package as standard accessories. They may

di󰀨er from country to country.8 FRANÇAIS FRANÇAIS (Instructions originales)

): 70 dB (A) of lager

Model DA331D Geluidsdrukniveau (L

): 70 dB (A) of lager

Vibrationsemission (a

Vibrationsemission (a

Sikkerhedsadvarsler for akku
