USER MANUAL MXPIP2195 Mx Onda

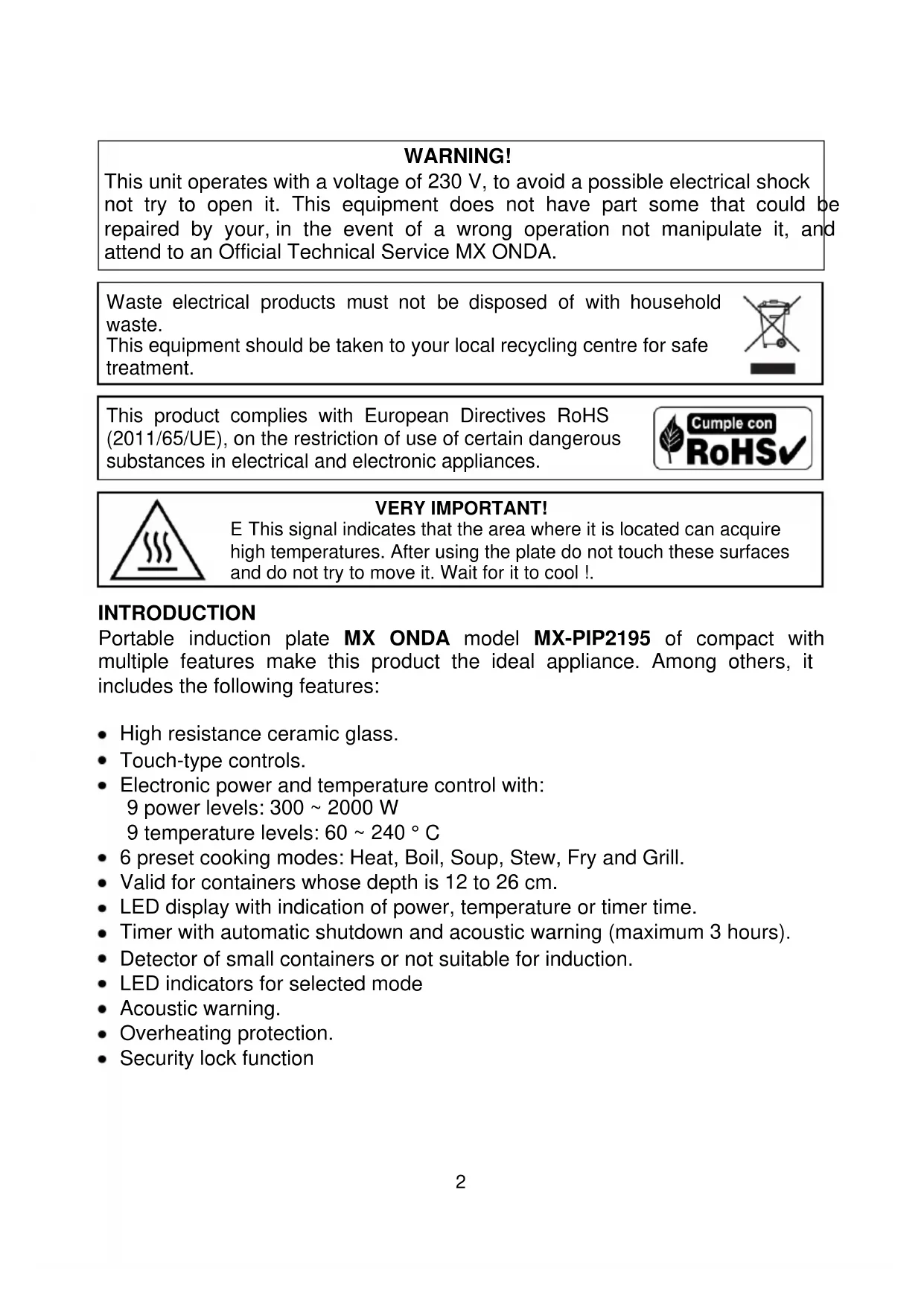

WARNING! This unit operates with a voltage of 230 V, to avoid a possible electrical shock not try to open it. This equipment does not have part some that could be repaired by your, in the event of a wrong operation not manipulate it, and attend to an Official Technical Service MX ONDA.

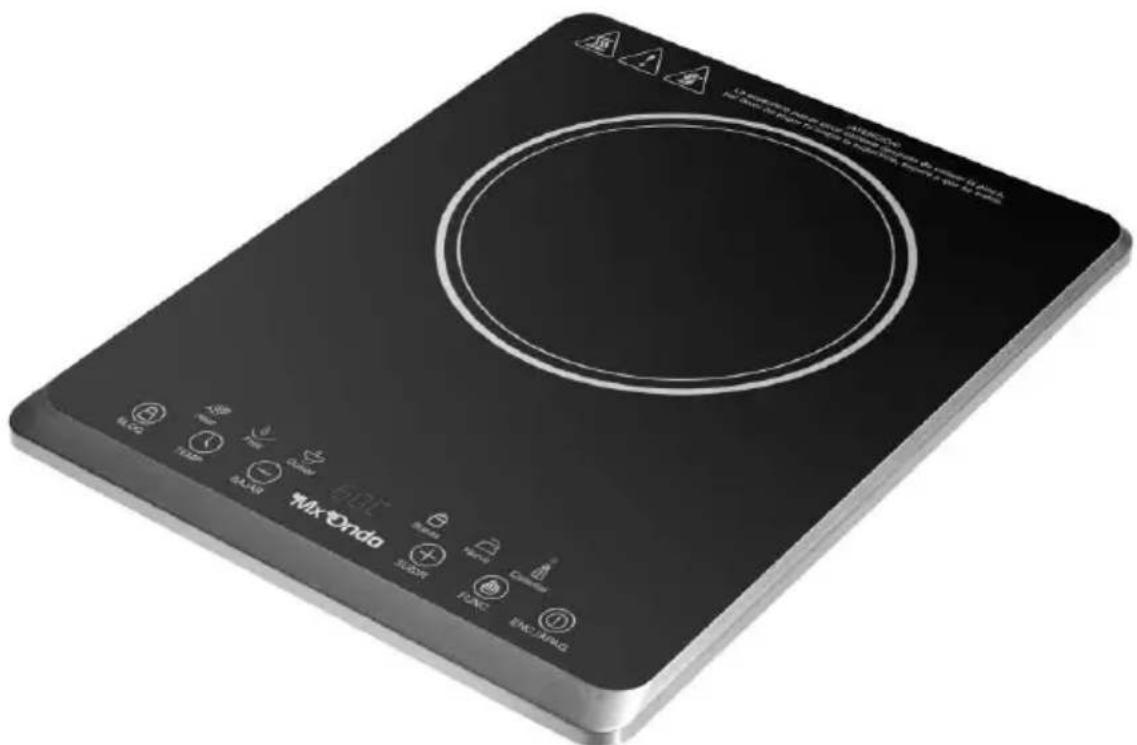

VERY IMPORTANT! E This signal indicates that the area where it is located can acquire high temperatures. After using the plate do not touch these surfaces and do not try to move it. Wait for it to cool !. INTRODUCTION Portable induction plate MX ONDA model MX-PIP2195 of compact with multiple features make this product the ideal appliance. Among others, it includes the following features: High resistance ceramic glass. Touch-type controls. Electronic power and temperature control with: 9 power levels: 300 ~ 2000 W 9 temperature levels: 60 ~ 240 ° C 6 preset cooking modes: Heat, Boil, Soup, Stew, Fry and Grill. Valid for containers whose depth is 12 to 26 cm. LED display with indication of power, temperature or timer time. Timer with automatic shutdown and acoustic warning (maximum 3 hours). Detector of small containers or not suitable for induction. LED indicators for selected mode Acoustic warning. Overheating protection. Security lock function

Waste electrical products must not be disposed of with household waste. This equipment should be taken to your local recycling centre for safe treatment. This product complies with European Directives RoHS (2011/65/UE), on the restriction of use of certain dangerous substances in electrical and electronic appliances.3

BEFORE CONNECTING THE APPLIANCE

Read these instructions and save them for later use carefully. Check that the voltage of your outlet is 230V. The power cord is relatively short, to prevent accidents caused by tripping or entanglement. If you need to use an extension cord, use only an extension cord that is in good condition and is suitable for the power of the appliance. Do not leave the power cord below the plate, which comes into contact with hot surfaces as you risk damaging the insulating sheath of the cable network. To protect against risk of electric shock and personal injury, do not insert the cable, plug or plate in water or any other liquid. After removing the packaging, check that the appliance is not damaged. If in doubt do not use it and contact the technical support staff. Keep out of reach of children packaging materials (bags, polystyrene parts, etc.), as they are a potential source of danger. Place the plate at least 30 cm from the walls of other appliances, furniture or anything that could be damaged by heat. The manufacturer declines any liability for damages resulting from improper, incorrect or careless use of the appliance. SECURITY MEASURES Children should not play with this device. Cleaning and maintenance by the user can not be done by children unless they are older than 8 years and are supervised. Failure to follow these safety warnings could result as a result burns or serious injury. This device can not be used by children (under the age of 8 years) or persons with or without experience and knowledge reduced physical, sensory or mental capabilities, unless they4 have received appropriate on using the appliance instructions and be supervised by an adult or person responsible. This appliance is designed only for domestic use, not professional. MX ONDA not accept any responsibility and the guarantee will not apply in case of misuse or failure to follow instructions. Do not use this device near flammable materials (curtains, net curtains, etc) To reduce the risk of fire, electric shock or personal injury, do not block or insert objects into the ventilation slots. This plate is designed for indoor use not use outdoors. Avoid exposure to rain, moisture or other atmospheric phenomena. This device operates at high temperatures, so during handling DO NOT touch the glass surface. Before cleaning or moving the plate wait for it to cool. If necessary, use gloves or oven mitts. Keep out of reach of children, the surface of the plate and containers, can reach high temperatures. Unplug the plate when not in use for a long period of time, when a power outage occurs, or "skip" a fuse or circuit or during the cleaning process. Make sure the outlet where the device is connected is easily accessible. To disconnect the board from mains pull the plug from the socket. you do never pull on the cable. Do not place the plate above cookers, microwave ovens or other plates. Never move the plate during use, remove the plate and let it cool before moving it. While the unit is connected and the plate is still hot, do not neglect their vigilance and keep it out of reach of children. The use of accessories not recommended by the appliance manufacturer may cause fire, electric shock or injury. Use only containers suitable for induction, whose background is from 12 to 26 cm and is completely flat. The containers with slightly curved bottom or dished not be used.5 Avoid accumulation of grease or food scraps on the surface of the plate, as it decreases performance and can cause odors and even fire the remains of grease or food. Do not attempt to cook on the surface of the plate. Do not attempt to cut foods that are inside the container while the plate is in operation. Do not leave containers with oil or grease unattended in case of overheating can inflame. In case of fire, never try to extinguish the flames with water. Close the lid and smother the flames with a damp cloth. In case of liquid between the container base and plate vapor pressure may occur, so the container could jump. Always keep the surface of the plate clean and dry. Do not place metal objects on the surface of the plate, as these can be heated quickly. People with implanted pacemakers should refrain from approaching manipulate the induction cooktop. Although this product meets all current safety regulations and electromagnetic compatibility, it is possible that some device not meet 100% and produce interference to these devices. In case of failure, anomalies, if the glass plate is cracked, cracks, etc., the plug or other parts have impaired, or the cord is damaged, unplug the appliance and do not attempt to repair it yourself. Contact our Customer Service nearest MX ONDA. INDUCTION COOKING Advantages of induction cooking Induction cooking involves a radical change in the traditional way to cook food, heat is generated directly in the container so that the heat loss between the various elements (container, glass ceramic plates, etc.) is removed the advantages are: Decreased time to cook: the container is heated faster. Energy savings: by reducing the time for cooking and / or frying. When the container of the cooking area is removed, automatically stops supplying heat if within 30 seconds it repositions the container will supply heat and with the same level previously set. easy cleaning; not being so hot surface spilling food do not burn so quickly.6 Appropriate containers for induction Ferromagnetic containers Suitable for induction cooking, containers are those made of ferromagnetic material. They can be enamelled steel, cast iron or special dishes for induction stainless steel. To find out if a container is suitable for induction cooking, check that they are attracted by a magnet. Special containers Other types of containers whose base is not entirely ferromagnetic. Before use check the diameter of the base and that these containers are detected by the induction plate. Containers not suitable for induction Never use normal stainless steel containers, glass, clay, copper, or aluminum. Features of the container base The base of a container can influence heat distribution and consequently the result of cooking. Choosing a container with a higher quality base (eg sandwich) will save us time and energy cooking. Pay special attention to the shape of the base, since it must be completely flat. If you have a small curvature or bulge, heat losses and therefore produce more cooking time and a considerable increase in energy expenditure. Empty containers or very thin base Never place an empty container on the plate and turn it, as it can cause overheating of the container (excess heat) and damage the ceramic glass or the plate itself. If the container base is very thin it can also overheat, do not use this type of containers. Detection of the container The plate has a minimum detection limit of the cooking zone and is 12 cm. For this reason, you should refrain from using containers whose base is less than 12 cm in diameter. If you turn the plate without any container with a container whose base is less than 12 cm or unfit for induction container, the plate will not work in the display " E0 " will appear, notify acoustically and after 50 seconds will turn off automatically. Fan In the base plate there is a fan which aims to maintain a stable temperature inside the induction plate. Each time the board goes on and the power or temperature setting, the fan will also be put into operation. When the plate is off, the fan will remain in operation and will shut down automatically after 1 minute.7 At the base of the plate should NEVER put tea towels, dishcloths or other objects that may obstruct the holes in the fan, thus preventing proper ventilation and cause overheating of the circuits, so act security protections. Note: Remember that the fan remains in operation for 1 minute after turning off the plate. This is normal and does not indicate a malfunction.

1. Place the plate on a stable, level surface, away from hot areas with high

humidity or near flammable materials (oil, curtains, cloths, etc.).

2. To ensure adequate ventilation allow at least 30 cm on each side of the

plate. DO NOT obstruct the ventilation slots on both sides and in the back of the plate and how the holes in the fan (located at the base of the plate).

3. Fully unroll the cord and plug the appliance plug into the mains. The buzzer

will "beep" to warn that the board has been plugged into the power outlet.

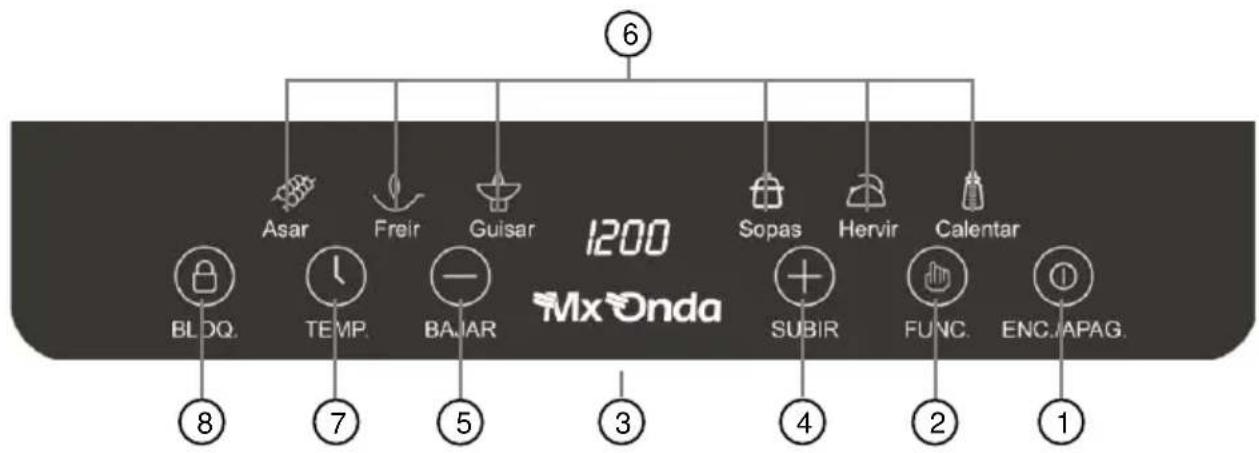

8. Control panel lock

The controls are responsive to touch, so there is no need to apply any pressure. Use the entire part of the fingertip, not the tip. You will hear a beep every time a touch is detected. Make sure the controls are always clean, dry and that there are no objects (for example, a utensil or cloth) covering them. Even a thin layer of water can make the controls difficult to operate.

The induction hob incorporates 6 preset cooking modes (heating, boiling, soups, stewing, frying and roasting), in this way you can immediately access a power level or ideal temperature for the type of food you want to cook. You must take into account that the power and / or temperature are preset based on an average quantity and temperature of the food, that is, it may be necessary to change the power or temperature of the selected mode, and this is due to the following causes: a. Amount of food; It is not the same to cook for 2 people as for four, the amount varies. b. Food temperature; if the food is cold (just taken from the refrigerator) or if it is at room temperature. In any selected mode you can modify the power or the temperature and thus adapt it to the quantity or type of food using the increase 4 ( ) or decrease 5 ( ) buttons.

INDUCTION HOB ON AND OFF

1. Place the pan on the cooking zone, remember that it must be suitable for

induction and its base must be between 12 and 26 cm.

2. To turn on the hob, touch button 1 ( ) with your fingertip, the display will

show the indication “ON” and the buzzer will emit a “beep”.

3. Using the function selector 2 ( ) select one of the 6 preset cooking

modes, see the next section.

4. To turn off the hob, touch button 1 ( ) again with your fingertip, the

screen will turn off and the buzzer will emit a “beep”.9

Note: If you turn on the hob and do not select any function, it will automatically turn off after approximately 30 seconds. FUNCTION SELECTOR Using the function selector 2 ( ) you can choose one of the following preset cooking modes. Calentar: Ideal for heating milk, coffee, etc., default temperature 60 °C. Hervir: Suitable for water and infusions, etc., default power 300W Sopas: Suitable for making soups, default temperature 120 °C Guisar: Suitable for stews, default power 1200 W Freír: Suitable for fried, default power 1800 W Asar: Suitable for roasts, default temperature 160 °C As mentioned above, these powers and default temperatures are indicative, since they can vary depending on the type, quantity and temperature of the food. To modify the power or temperature and thus adapt it to the amount or type of food, use the increase 4 ( ) or decrease 5 ( ) buttons. Power operation mode In the preselected cooking modes hervir, guisar and freír, you can modify the operating power, it has 9 power levels 300, 500, 800, 1000, 1200, 1400, 1600, 1800 and 2000 W. Touch the 4 ( ) or 5 ( ) button with your fingertip to increase or decrease the power respectively. Screen 3 will show the selected power. Note: At any time during cooking you can increase or decrease the power or adjust the timer. Temperature operating mode In the pre-selected cooking modes calentar, sopas and asar, you can modify the operating temperature, it has 9 temperature levels 60, 90, 120, 140, 160, 180, 200, 220 and 240 °C. Touch the 4 ( ) or 5 ( ) button with your fingertip to increase or decrease the temperature respectively. Screen 3 will show the selected temperature. Note: At any time during cooking you can increase or decrease the temperature or adjust the timer.10 TIMER The timer will allow you to set a time for automatic shutdown, this time can vary between 1 minute and 3 hours. To set the timer, you must first select a cooking mode. To set the timer, follow the steps below:

1. With the hob on and a pan on the cooking zone, choose a cooking mode (if

necessary change the power level or temperature).

2. Momentarily touch button 7 ( ) with your fingertip and the display 3 will

show “0:00” flashing.

3. Touch with your fingertip the touch button 4 ( ) or 5 ( ) to increase or

decrease the time in jumps of 1 minute respectively, if you touch and maintain the contact with the fingertip on these buttons, the jumps will be of 10 minutes. Screen 3 will show the time in minutes.

4. Once the time has been selected, screen 3 will alternately show the

selected power or temperature and the remaining time for automatic shutdown.

5. During cooking you can increase or decrease the power or the

temperature, using buttons 4 ( ) or 5 ( ).

6. To cancel the timer, touch the 7 ( ) button with your fingertip or choose

another cooking mode. Note: If when activating the timer, when the display shows flashing the indication “0:00” if 5 seconds elapse without selecting the time for the switch-off, the timer mode will automatically be deactivated.

The induction hob incorporates a locking device, which deactivates the operation of the function selection button 2 ( ), the increase 4 ( ) and decrease 5 ( ) buttons and the timer 7 ( ). The control panel lock prevents the induction hob from turning on by mistake or by mistake (if the hob is off), or from varying the power or the chosen temperature (if the hob is operating). To lock the control panel, touch the 8 ( ) button with your fingertip and the display 3 will show “ Loc

To unlock the control panel, touch and hold the 8 ( ) button with your fingertip for 2 seconds, when the control panel is unlocked the “ Loc ” indication will disappear from the screen.11 PROBLEM SOLVING If there is an anomaly or a problem in the operation of the induction hob, screen 3 will show the detected error. Error messages appear on the screen with the letter " E " followed by a number, refer to the following table to identify the error and the solution.

There is no pot, the pot is not suitable for induction or the diameter of its base is less than 12 cm Place a container on the cooking zone or replace the invalid container. E1, E2 Low voltage or over voltage protection If the voltage at the mains outlet is lower or higher than specified, consult a qualified electrician.

IGBT sensor is faulty Contact the closest MX ONDA Official Technical Service.

The ceramic glass base or plate has overheated (> 280 ° C) Unplug the induction hob and wait for it to cool down.

The IGBT sensor has a temperature higher than 105 ° C and the overheating protection has tripped Ventilation system failure, check that the fan is not obstructed and that it is working properly.

Antes de proceder a la limpieza desconecte la unidad de la red eléctrica. Y asegúrese que la placa está totalmente fría. No utilice alcohol ni productos abrasivos y no permita que el aparato entre en contacto con agentes volátiles como gasolina, disolventes, insecticidas, etc. Cleaning the hob After each use, you should clean the hob, in this way you will prevent the adhering remains from burning. Do not clean the hob until it is cool enough. Use only specific products for cleaning induction hobs, otherwise it could damage the cooking surface. Do not use scourers that can scratch the surface, nor should you use abrasive products such as stain remover sprays for ovens. Cleaning the casing Clean the plastic surface with a damp cloth, followed by a dry one. Avoid getting water through the ventilation holes. If you notice that a lot of dirt has accumulated in the fan holes, remove it with the help of a brush.12 TECHNICAL CHARACTERISTICS Supply voltage 220 - 240 V ~ 50 Hz Maximum consumption 2000 W Cooking surface High resistance ceramic glass Cooking diameter from 12 to 26 cm Power levels 9 levels Temperature levels 9 levels Power range from 300 W to 2000 W Temperature range from 60 ° C to 240 ° C Timer up to 3 hours Dimensions 290 x 370 x 54 mm (l, w, h) Weight 2.2 Kg

Specifications subject to change without notice. This product complies with the European Directives 2014/30 / EC (EMC) on Electromagnetic Compatibility and 2014/35 / EC (LVD) on low voltage safety. “MX, MX ONDA” and its logos are trademarks of MX ONDA, S.A. Telephone of information and Technical Service: [phone] MX ONDA, S.A. C / Matabueyes, 7 nave 1A 19171 - Cabanillas del Campo (Guadalajara - Spain)
