USER MANUAL MX-VC2640 Mx Onda

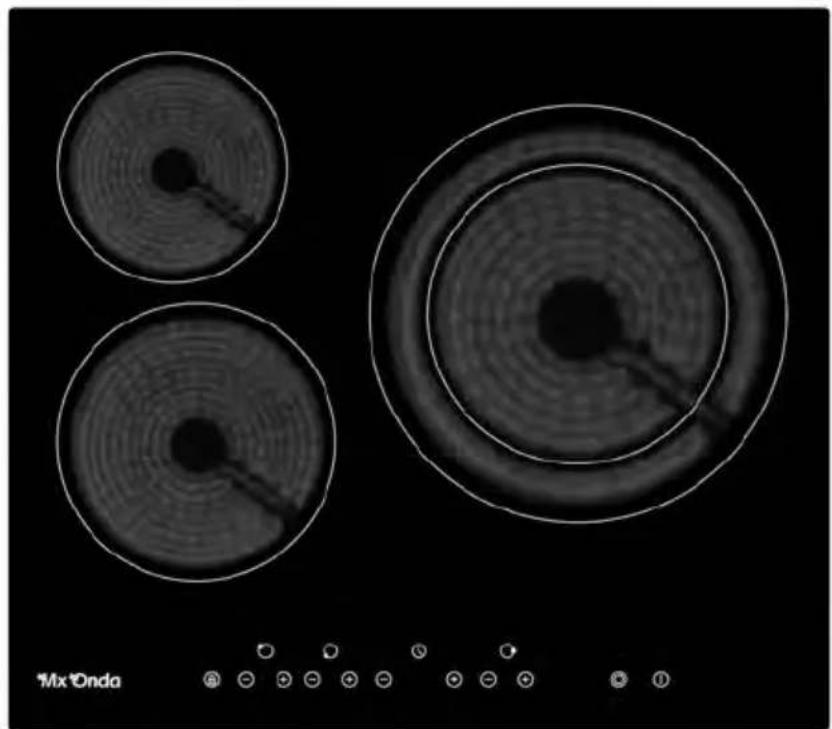

Three circular patterned screens on a black background, no text or symbols visible

CE

ANTES DE SU USO LEA ATENTAMENTE ESTE MANUAL

¡ATENCIÓN!

Simple line drawing of a cooking pot with crossed-out X marks (no text or symbols)

Simple line drawing of a cooking pot with crossed X marks, no text or symbols present

Symbolic illustration of a cooking pot with crossed arrows indicating pressure or heat (no text or labels)

Diagram showing two hand positions with checkmark and cross symbols, likely indicating correct and incorrect states.

USO DE LA PLACA VITROCERÁMICA

Simple line drawing of a hand with a circular mark on the index finger (no text or symbols)

Line drawing of a cooking pot on a stand (no text or symbols)

Simple line drawing of a hand pointing upward with a circular end (no text or symbols)

- + +

Diagram showing a hand gesture pointing to an atom with a minus sign, followed by a circle and letter H.

L W H D' X B X A X Junta

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
590	520	52	48	560	490	50 min.

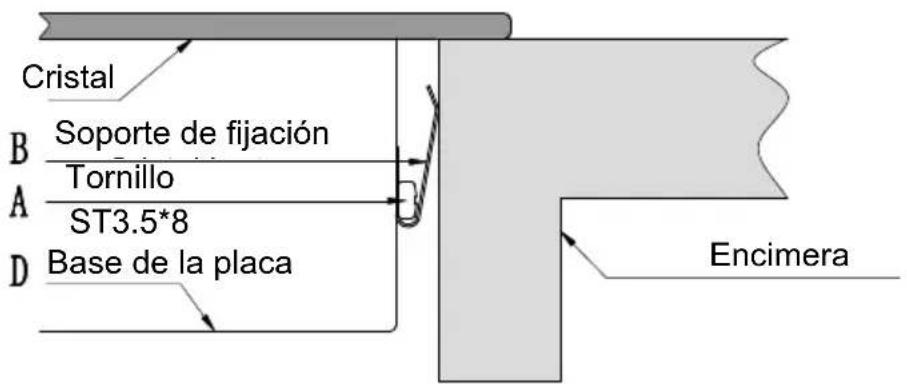

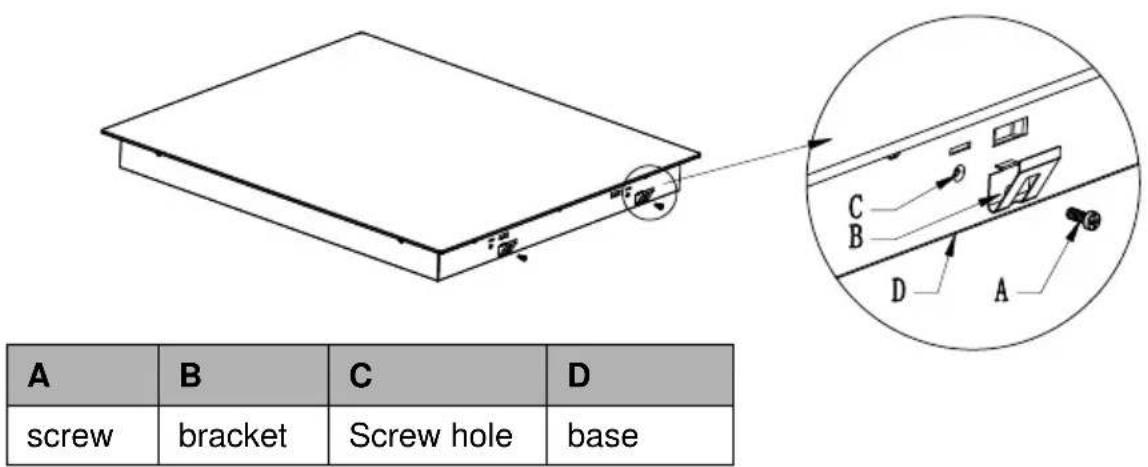

Technical diagram showing a device with labeled components A, B, C, D and an inset view of the internal structure.

A	B	C	D
Tornillo	Soporte	Orificio del tornillo	Base

Icon of a person reading a book inside a circle (no text or symbols)

QR code image containing encoded data, no visible human-readable text

E-MAIL: [e-mail] http://www.mxonda.es

Three circular patterned screens on a black background, no text or symbols visible

CE

ANTES DE SEU USO LEIA ATENTAMENTE ESTE MANUAL

ATENÇÃO!

Three identical cooking pots with crossed X marks on their bases, no text or symbols present

Two cooking pots with crossed arrows indicating heating or cooling conditions (no text or symbols)

Diagram showing two hand-drawn checkmark and cross symbols on a line, likely indicating correct and incorrect states.

USO DA COZINHA INDUTIVA

Simple line drawing of a hand pointing upward with a circular icon on the index finger (no text or symbols)

Line drawing of a cooking pot on a stand (no text or symbols)

Simple line drawing of a hand pointing upward with a circular end (no text or symbols)

Diagram showing hand gesture pointing to a circle with minus sign and letter H, illustrating a transformation or labeling process.

⊖6.⊕ → ⊖① ⊕ → ⊖① ⊖ 00 ⊕ → ⊖① ⊕

L W H D' X B X A X SEAL Junta

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
590	520	52	48	560	490	50 min.

Technical diagram showing three steps of a mechanical or structural modification with checkmark indicators and X marks.

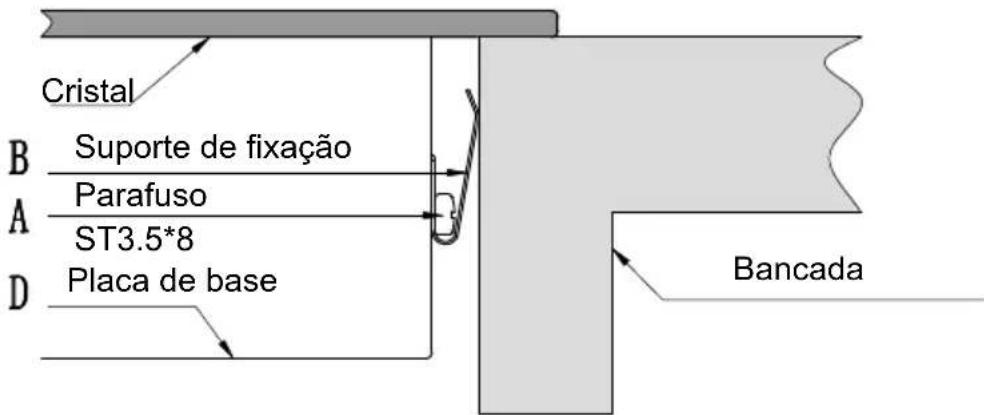

Technical diagram showing a device with labeled components A, B, C, D and an inset view of the internal structure.

A	B	C	D
Parafuso	Suporte	Buraco do parafuso	Base

Three circular patterned screens on a black background, no text or symbols visible

CE

PRIMA DI UTILIZZARE IL MANUALE DI LEGGERE ATTENTAMENTE

ATTENZIONE

Three identical cooking pots with crossed X marks on their bases, no text or symbols present

Two cooking pots with crossed arrows indicating heating or cooling (no text or symbols)

Diagram showing two hand positions with checkmark and cross symbols, likely indicating correct and incorrect states.

USO DELLA CUCINA A VETROCERAMICA

Simple line drawing of a hand pointing upward with a circular mark on the index finger (no text or symbols)

Diagram showing a hand pointing to a minus sign and then to an hourglass with a dot, indicating a directional change.

L W H O' X B X A X Bordo SEAL

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
590	520	52	48	560	490	50 min.

Technical diagram of a device with labeled components A, B, C, D and an inset view showing internal components.

Three circular patterned screens on a black background, no text or symbols visible

CE

AVANT D'UTILISER CE MANUEL DE LIRE ATTENTIVEMENT

ATTENTION

Three identical cooking pots with crossed X marks on their bases, no text or symbols present

Two cooking pots with crossed arrows indicating heating or cooling conditions (no text or symbols)

Diagram showing two hand-drawn symbols: a checkmark and an X, likely indicating correct or incorrect conditions.

UTILISATION DE LA CUISINE À VITROCÉRAMIQUE

Simple line drawing of a hand pointing upward with a circular mark on the index finger (no text or symbols)

Line drawing of a cooking pot on a stand (no text or symbols)

Simple line drawing of a hand pointing upward with a circular end (no text or symbols)

Quand tu as fini de cuisiner

Diagram showing a hand gesture transforming into a simple circle with a letter H, likely illustrating a motion or transformation concept.

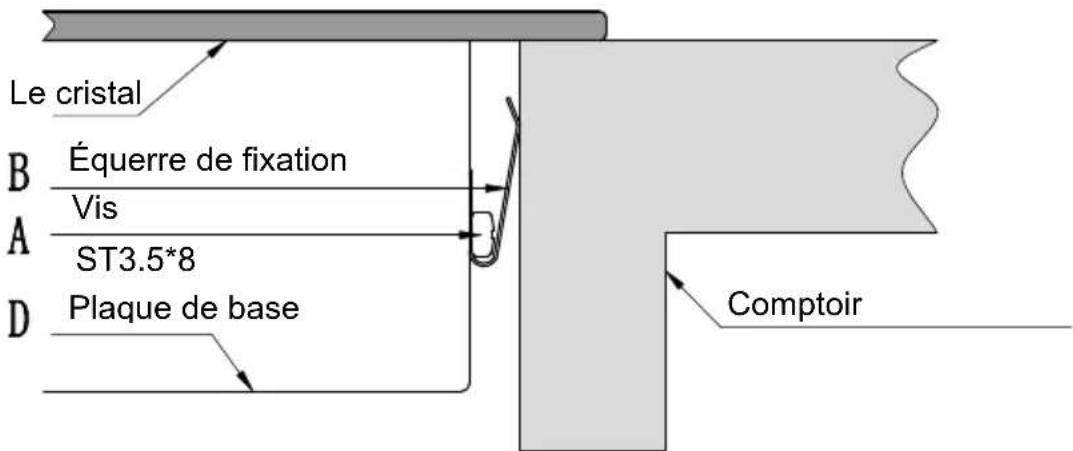

L W H D' X B X A X SEAL Joint

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
590	520	52	48	560	490	50 min.

Technical diagram showing a device with labeled components A, B, C, D and an inset view of the internal component.

A	B	C	D
Vis	Soutien	Trou de vis	Base

Three circular patterned screens on a black background, no text or symbols visible

CE

VOR GEBRAUCH SORGFÄLTIG LESEN SIE DIESE

ACHTUNG

Simple line drawing of a cooking pot with crossed arrows indicating pressure or resistance (no text or symbols)

Simple line drawing of a hand pointing upward with a circular mark on the index finger (no text or symbols)

Line drawing of a cooking pot on a stand (no text or symbols)

Simple line drawing of a hand pointing upward with a circular end (no text or symbols)

Diagram showing a hand gesture transforming into a circle with a letter H, likely illustrating a motion or transformation concept.

- 3.⊕ ⊖ 6.⊕

vermeiden. L W H D X B X A X

Vorstand

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
590	520	52	48	560	490	50 min.

Three-panel diagram illustrating a mechanical or structural modification process with checkmark and cross symbols indicating alignment or failure.

Technical diagram showing a device with labeled components A, B, C, D and an inset view of the component with a magnified view.

USER AND INSTALLATION MANUAL

Mx Onda

CERAMIC HOB

MODEL: MX-VC2640

Three circular patterned screens on a black background, no text or symbols visible

CE

Safety Warnings

Your safety is important to us. Please read this information before using your cooktop.

Installation

Electrical Shock Hazard

• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory.
• Alterations to the domestic wiring system must only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.

Cut Hazard

• Take care - panel edges are sharp.
- Failure to use caution could result in injury or cuts.

Important safety instructions

• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any time.
• Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according to these instructions for

installation.

• This appliance is to be properly installed and earthed only by a suitably qualified person.
• This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.
• Failure to install the appliance correctly could invalidate any warranty or liability claims.

Operation and maintenance Electrical Shock Hazard

• Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.

Health Hazard

- This appliance complies with electromagnetic safety standards.

Hot Surface Hazard

• During use, accessible parts of this appliance will become hot enough to cause burns.

• Do not let your body, clothing or any item other than suitable cookware contact the Induction glass until the surface is cool.

• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot

• Keep children away.
• Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children.
• Failure to follow this advice could result in burns and scalds.

Cut Hazard

• The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children.
• Failure to use caution could result in injury or cuts.

Important safety instructions

• Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Never use your appliance for warming or heating the room.

• After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls).

• Do not allow children to play with the appliance or sit, stand, or climb on it.

• Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.
• Do not leave children alone or unattended in the area where the appliance is in use.
• Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings.
• Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician.
• Do not use a steam cleaner to clean your cooktop.
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across the Induction glass surface as this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the Induction glass.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a

hazard.

- This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.

- WARNING: The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching heating elements.

Children less than 8 years of age shall be kept away unless continuously supervised.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

• WARNING: Danger of fire: do not store items on the cooking surfaces.
• Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts
• A steam cleaner is not to be used.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Congratulations on the purchase of your new Ceramic Hob.

We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it.

For installation, please read the installation section.

Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference.

Product Overview

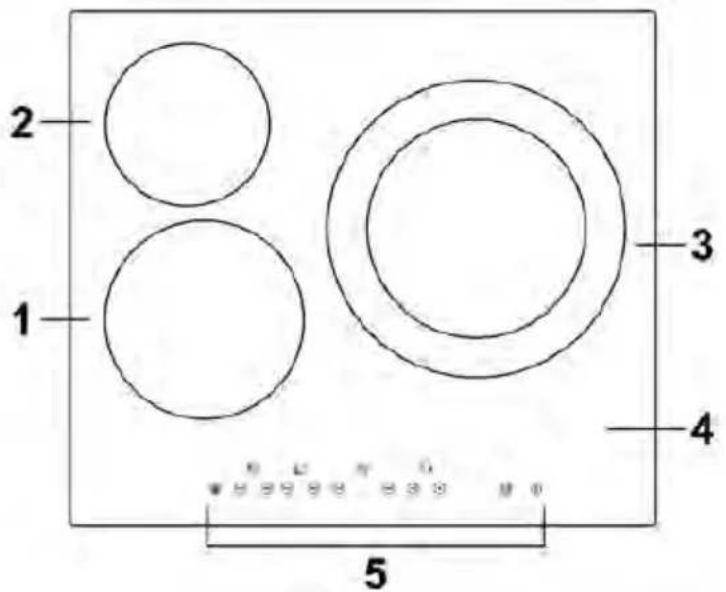

Top View

2 1 3 4 5

1. max. 1800 W zone
2. max. 1200 W zone
3. max. 2400/1500 W zone
4. Glass plate
5. Control panel

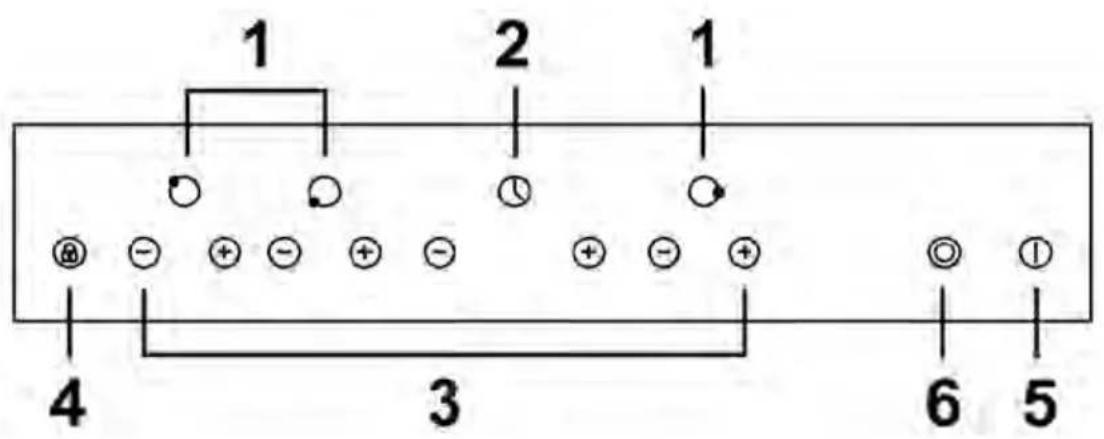

Control Panel

1 2 1 4 3 6 5

1. Heating zone selection indicator
2. Timer indicator
3. Power / Timer regulating controls
4. keylock control
5. ON/OFF control
6. Dual zone control

Product Information

The microcomputer ceramic cooker hob can meet different kinds of cuisine demands because of resistance wire heating, micro-computerized control and multi-power selection, really the optimal choice for modern families.

The ceramic cooker hob centers on customers and adopts personalized design. The hob has safe and reliable performances, making your life comfortable and enabling to fully enjoy the pleasure from life.

Before using your New Ceramic Hob

• Read this guide, taking special note of the 'Safety Warnings' section.
• Remove any protective film that may still be on your ceramic hob.

Using the Touch Controls

• The controls respond to touch, so you don't need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

Diagram showing two hand positions with checkmark and cross symbols, likely illustrating correct and incorrect hand positioning.

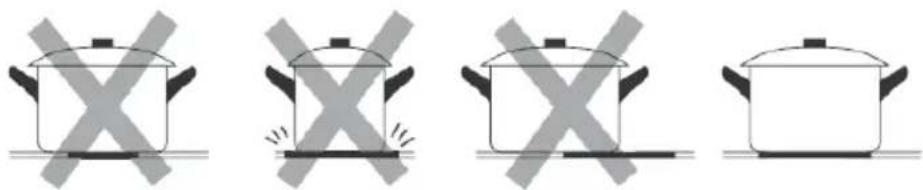

Choosing the right Cookware

Do not use cookware with jagged edges or a curved base.

Three identical cooking pots with crossed-out X symbols, no text or labels present

Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone.

Four identical cooking pots with crossed-out X marks, arranged horizontally (no text or symbols)

Always lift pans off the ceramic hob - do not slide, or they may scratch the glass.

Two cooking pots with crossed arrows indicating opposing pressure, one with a cross symbol and the other with bidirectional arrows (no text or labels)

Using your Ceramic Hob

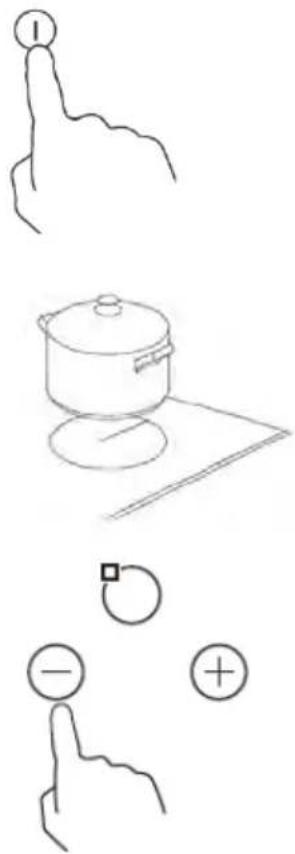

To start cooking

- After power on, the buzzer beeps once, all the indicators light up for 1 second then go out, indicating that the ceramic hob has entered the state of standby mode.

1. Touch the ON/OFF ① control. all the indicators show "-" or "-" -", indicating that the ceramic hob has entered the state of standby mode.

2. Place a suitable pan on the cooking zone that you wish to use.

- Make sure the bottom of the pan and the surface Of the cooking zone are clean and dry.

1. Select a heat setting by touching the "-" or "+" Control of the cook zone.

- If you don't choose a heat setting within 1 minute, the Induction hob will automatically switch off. You will need to start again at step 1.

- You can modify the heat setting at any time during cooking.

Simple line drawings of a cooking pot, a tray, and directional indicators (no text or symbols)

1. When zone 3 is working, activate double zone by pressing Ⓞ.

When double zone is working, turning off it by pressing ☐.

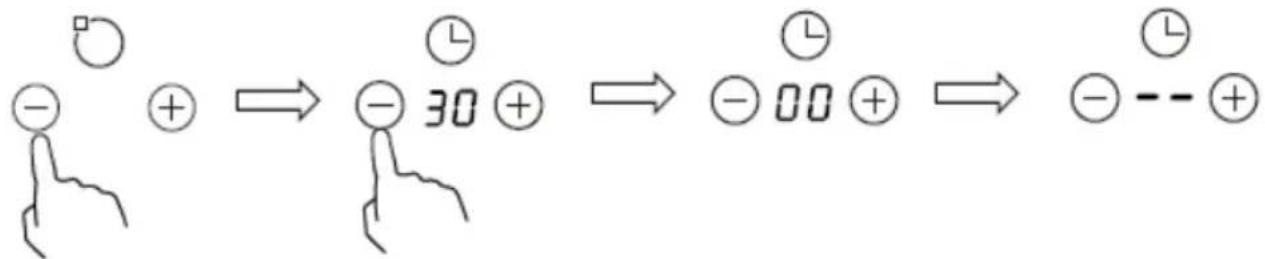

When you have finished cooking

1. Touching the "-" or "+" control that you wish to switch off

2. Turn the cooking zone off by touching the "-" and scrolling down to "0".

3. Turn the whole cooktop off by touching the "ON/OFF" control.

4. Beware of hot surfaces

"H" will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

Hand-drawn diagram showing a finger pointing at a minus sign, with an open circle and a plus sign nearby, possibly indicating a basic logic or logic operation.

Simple line drawing of a hand pointing upward with a circular mark on the index finger (no text or symbols)

Locking the Controls

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the ON/OFF control are disabled.

To lock the controls

Touch the keylock

control. The timer indicator will show "Lo".

To unlock the controls

1. Make sure the ceramic hob is turned on.
2. Touch and hold the keylock control ⏻ for a while.
3. You can now start using your ceramic hob.

When the hob is in the lock mode, all the controls are disable except the ON/OFF ①, you can always turn the ceramic hob off with the ON/OFF ① control in an emergency, but you shall unlock the hob first in the next operation

Over-Temperature Protection

A temperature sensor equipped can monitor the temperature inside the ceramic hob. When an excessive temperature is monitored, the ceramic hob will stop operation automatically.

Residual Heat Warning

When the hob has been operating for some time, there will be some residual heat. The letter "H" appears to warn you to keep away from it.

Auto Shutdown

Another safety feature of the hob is auto shut down. This occurs whenever you forget to switch off a cooking zone. The default shutdown times are shown in the table below:

Power level	1	2	3	4	5	6	7	8	9
Default working timer (hour)	8	8	8	4	4	4	2	2	2

Using the Timer

You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.
• You can set it to turn one cooking zone off or more than one after the set time is up.
• You can set the timer for up to 99 minutes.

Using the Timer as a Minute Minder If you are not selecting any cooking zone

1. Make sure the cooktop is turned on.

Note: you can use the minute minder even if you're not selecting any cooking zones.

1. Touch the "-" or "+" controls of the timer, the minder indicator will start flashing and "00" will show in the timer display.

2. Adjust the timer setting by touch the "-" or "+" controls. The minute minder indicator will start flashing and will show in the timer display.

Hint: Touch the "-" or "+" control of the timer once to decrease or increase by 1 minute.

- 00 + - +

Touch and hold the "-" or "+" control of the timer to decrease or increase by 10 minutes.

If the setting time exceeds 99 minutes, the timer will automatically return to 0 minute.

1. To cancel the timer, touch the "-" or "+" controls of the timer, and scrolling down to "0", the timer is cancelled, the "00" will show in the minute display, then and then "--".

- 30 + → - 00 + → - -- +

1. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds.

1. Buzzer will beep for 30 seconds and the timer indicator shows "-" when the set time finished.

Setting the timer to turn one cooking zone off

1. Touch the "-" or "+" control of the heating zone that you want to set the timer for.

2. Touch the "-" or "+" control of the timer, the minder indicator will start flashing and "00" will show in the timer display.

3. Set the time by touching the control of the timer

Hint: Touch the "-" or "+" control of the timer once will decrease or increase by 1 minute.

Touch and hold the "-" or "+" control of the timer will decrease or increase by 10 minutes.

- + - +

- + +

If the setting time exceeds 99 minutes, the timer will automatically return to 0 minute.

1. Touching the “-” or “+” of heating zone, then touch the “-” or “+” controls of the timer, and scrolling down to “0”, the timer is cancelled, “00” will show in the minute display, then and then “--”.

1. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator flash for 5 seconds.

NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected.

1. When cooking timer expires, the corresponding cooking zone will be automatically switch off and show "H".

Setting the timer to turn more than one cooking zone off

1. If more than one heating zone use this function, the timer indicator will show the shortest time.

(e.g. zone 2# setting time of 3 minutes, zone 1# setting time of 6 minutes, the timer indicator shows "3".)

NOTE: The flashing red dot next to power level indicator means the timer indicator is showing time of the heating zone.

If you want to check the set time of other heating zone, touch the heating zone selection control. The timer will indicate its set time.

(set to 6 minutes) - 3. + (set to 3 minutes) - 6. +

1. When cooking timer expires, the corresponding cooking

zone will be switch off automatically and show "H".

NOTE: If you want to change the time after the timer is set, you have to start from step 1.

Cooking Guidelines

Cooking Tips

- When food comes to the boil, reduce the power setting.

- Using a lid will reduce cooking times and save energy by retaining the heat.

- Minimise the amount of liquid or fat to reduce cooking times.

- Start cooking on a high setting and reduce the setting when the food has heated through.

Simmering, cooking rice

• Simmering occurs below boiling point, at around 85^ C, when bubbles are just rising occasionally to the surface of the cooking liquid. It is the key to delicious soups and tender stews because the flavours develop without overcooking the food. You should also cook egg-based and fourththickened sauces below boiling point.
• Some tasks, including cooking rice by the absorption method, may require a setting higher than the lowest setting to ensure the food is cooked properly in the time recommended.

Searing steak

To cook juicy flavoursome steaks:

1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the steak and how cooked you want it. Times may vary from about 2 – 8 minutes per side. Press the steak to gauge how cooked it is – the firmer it feels the more 'well done' it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender before serving.

For stir-frying

1. Choose an ceramic compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat first, put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower setting, return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.

Heat Settings

Heat setting	Suitability
1 - 2	·delicate warming for small amounts of food·melting chocolate, butter, and foods that burn quickly·gentle simmering·slow warming
3 - 4	·reheating·rapid simmering·cooking rice
5 - 6	·pancakes
7 - 8	·sauteing·cooking pasta
9	·stir-frying·searing·bringing soup to the boil·boiling water

Care and Cleaning

What?	How?	Important!
Everyday soiling on glass (fingerprints, marks, stains left by food or non-sugary spillovers on the glass)	1. Switch the power to the cooktop off.2. Apply a cooktop cleaner while the glass is still warm (but not hot!)3. Rinse and wipe dry with a clean cloth or paper towel.4. Switch the power to the cooktop back on.	·When the power to the cooktop is switched off, there will be no 'hot surface' indication but the cooking zone may still be hot!Take extreme care.·Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch the glass. Always read the label to check if your cleaner or scourer is suitable.·Never leave cleaning residue on the cooktop: the glass may become stained.
Boilovers, melts, and hot sugary spills on the glass	Remove these immediately with a fish slice, palette knife or razor blade scraper suitable for ceramic glass cooktops, but beware of hot cooking zone surfaces:1. Switch the power to the cooktop off at the wall.2. Hold the blade or utensil at a 30° angle and scrape the soiling or spill to a cool area of the cooktop.3. Clean the soiling or spill up with a dish cloth or paper towel.4. Follow steps 2 to 4 for 'Everyday soiling on glass' above.	· Remove stains left by melts and sugary food or spillovers as soon as possible. If left to cool on the glass, they may be difficult to remove or even permanently damage the glass surface.· Cut hazard: when the safety cover is retracted, the blade in a scraper is razor-sharp. Use with extreme care and always store safely and out of reach of children.
Spillovers on the touch controls	1. Switch the power to the cooktop off.2. Soak up the spill3. Wipe the touch control area with a clean damp sponge or cloth.4. Wipe the area completely dry with a paper towel.5. Switch the power to the cooktop back on.	· The cooktop may beep and turn itself off, and the touch controls may not function while there is liquid on them. Make sure you wipe the touch control area dry before turning the cooktop back on.

Hints and Tips

Problem	Possible causes	What to do
The cooktop cannot Be turned on.	No power.	Make sure the cooktop is connected to the power supply and that it is switched on.Check whether there is a power outage in your home or area. If you’ve checked everything and the problem persists, call a qualified technician.
The touch controls are unresponsive.	The controls are locked.	Unlock the controls. See section ‘Using your ceramic cooktop’ for instructions.
The touch controls are difficult to operate.	There may be a slight film of water over the controls or you may be using the tip of your finger when touching the controls.	Make sure the touch control area is dry and use the ball of your finger when touching the controls.
The glass is being scratched.	Rough-edged cookware.Unsuitable, abrasive scourer or cleaning products being used.	Use cookware with flat and smooth bases. See ‘Choosing the right cookware’.See ‘Care and cleaning’.
Some pans make crackling or clicking noises.	This may be caused by the construction of your cookware (layers of different metals vibrating differently).	This is normal for cookware and does not indicate a fault.

Installation

Selection of installation equipment

Cut out the work surface according to the sizes shown in the drawing.

For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole.

Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:

L W H D X B X A X SEAL

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
590	520	52	48	560	490	50 mini

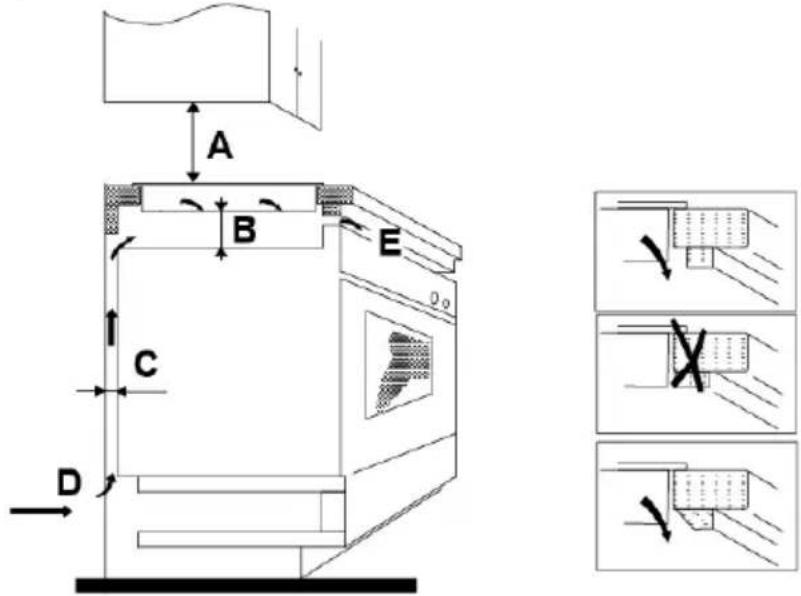

Under any circumstances, make sure the ceramic cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the ceramic cooker hob is in good work state. As shown below

Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.

A B E C D 0°

Before you install the hob, make sure that

• the work surface is square and level, and no structural members interfere with space requirements
• the work surface is made of a heat-resistant material
• if the hob is installed above an oven, the oven has a built-in cooling fan
• the installation will comply with all clearance requirements and applicable standards and regulations
• a suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations.

The isolating switch must be of an approved type and provide a 3 mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements)

• the isolating switch will be easily accessible to the customer with the hob installed
• you consult local building authorities and by-laws if in doubt regarding installation
• you use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surrounding the hob.

When you have installed the hob, make sure that

• the power supply cable is not accessible through cupboard doors or drawers
• there is adequate flow of fresh air from outside the cabinetry to the base of the hob
• if the hob is installed above a drawer or cupboard space, a thermal protection barrier is installed below the base of the hob
• the isolating switch is easily accessible by the customer

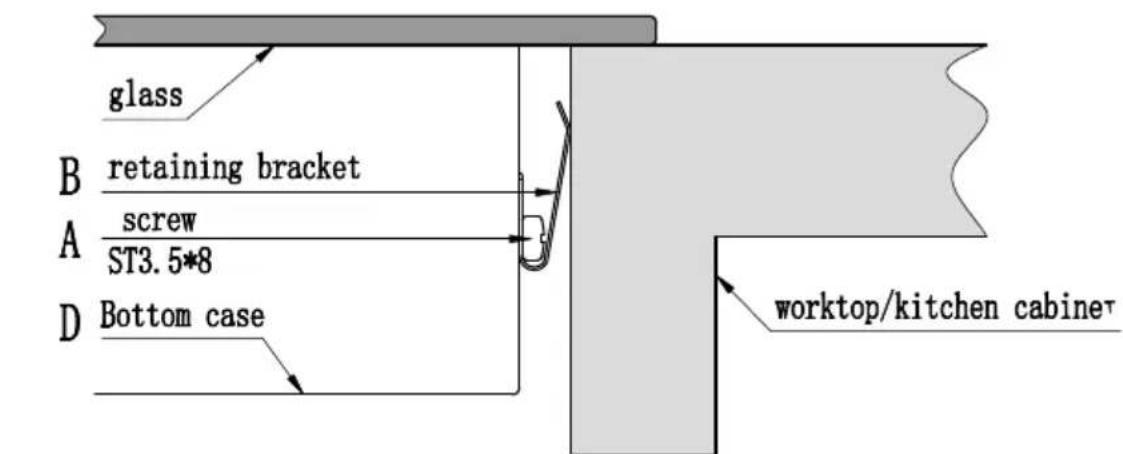

Before locating the fixing brackets

The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

Fix the hob on the work surface by screw 4 brackets on the bottom case of hob (see picture) after installation.

A B C D screw bracket Screw hole base

glass B retaining bracket A screw ST3.5*8 D Bottom case worktop/kitchen cabinet

Cautions

1. The ceramic cooker hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.

2. The ceramic cooker hob shall not be mounted to cooling equipment, dishwashers and rotary dryers.

3. The ceramic cooker hob shall be installed such that better heat radiation can be ensured to enhance its reliability.

4. The wall and induced heating zone above the work surface shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.
6. A steam cleaner is not to be used.
7. This ceramic can be connected only to a supply with system impedance no more than 0.427 ohm. In case necessary, please consult your supply authority for system impedance information.

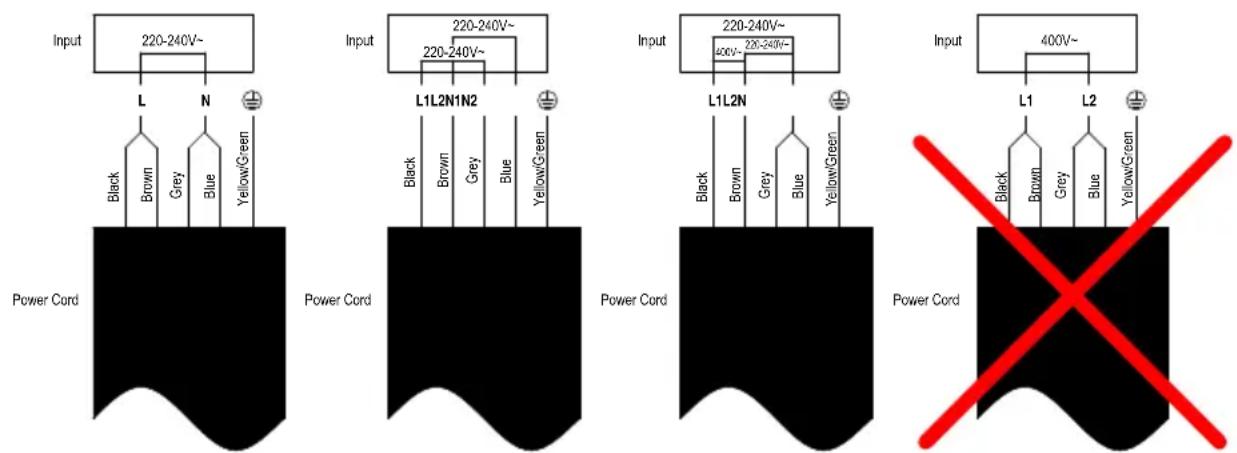

Connecting the hob to the mains power supply

The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. The method of connection is shown below.

Input 220-240V~ L N Black Brown Grey Blue Yellow/Green Power Cord Input 220-240V~ 220-240V~ L1L2N1N2 Black Brown Grey Blue Yellow/Green Power Cord Input 220-240V~ 400V~ 220-240V~ L1L2N Black Brown Grey Blue Yellow/Green Power Cord Input 400V~ L1 L2 Black Brown Grey Blue Yellow/Green Power Cord

1. If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents.
2. If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3mm between the contacts.
3. The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations.
4. The cable must not be bent or compressed.
5. The cable must be checked regularly and only replaced by a properly qualified person.

TECHNICAL SPECIFICATIONS

Supply voltage 220 - 240 V \~ 50-60 Hz

Consumption 4941 - 5580 W

Cooking surface High strength ceramic glass

Large cooking area

Maximum power 1500 / 2400 W

Cooking diameter 215 / 300 mm ∅

Medium cooking zone

Maximum power 1800 W

Cooking diameter 200 mm ∅

Small cooking area

Maximum power 1200 W

Cooking diameter 165 mm ∅

Controls Touch type

Power levels 9 levels

Timer Up to 99 minutes

Dimensions 590 x 520 x 52 mm (l, a, height)

Dimensions hollow to fit 560 x 490 mm (l, a)

Weight 9.8 Kg

Specifications subject to change without notice.

This product complies with the European Directives 2014/30/EC (EMC – Electromagnetic

Compatibility) and the 2014/35/EC (LVD – Low Voltage Directive) relative to Low Tension Security.

"MX, MX ONDA" and its logos are trademarks of MX ONDA, S.A.

Telephone of information and Technical Service: [phone]

MX ONDA, S.A.

Isla de Java, 37

28034 - MADRID (SPAIN)

E-MAIL: [e-mail]

http://www.mxonda.es
