General Power Tool Safety Warnings

Read all safety warnings and all in-

structions. Failure to follow the warnings

and instructions may result in electric shock, fire and/or seri-

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-

operated (corded) power tool or battery-operated (cordless)

 Keep work area clean and well lit. Cluttered or dark areas

 Do not operate power tools in explosive atmospheres,

such as in the presence of flammable liquids, gases or

dust. Power tools create sparks which may ignite the dust

 Keep children and bystanders away while operating a

power tool. Distractions can cause you to lose control.

 Power tool plugs must match the outlet. Never modify

the plug in any way. Do not use any adapter plugs with

earthed (grounded) power tools. Unmodified plugs and

matching outlets will reduce risk of electric shock.

 Avoid body contact with earthed or grounded surfaces,

such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is

earthed or grounded.

 Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric

 Do not abuse the cord. Never use the cord for carrying,

pulling or unplugging the power tool. Keep cord away

from heat, oil, sharp edges and moving parts. Damaged

or entangled cords increase the risk of electric shock.

 When operating a power tool outdoors, use an exten-

sion cord suitable for outdoor use. Use of a cord suitable

for outdoor use reduces the risk of electric shock.

 If operating a power tool in a damp location is unavoid-

able, use a residual current device (RCD) protected

supply. Use of an RCD reduces the risk of electric shock.

 Stay alert, watch what you are doing and use common

sense when operating a power tool. Do not use a power

tool while you are tired or under the influence of drugs,

alcohol or medication. A moment of inattention while op-

erating power tools may result in serious personal injury.

 Use personal protective equipment. Always wear eye

protection. Protective equipment such as dust mask,

non-skid safety shoes, hard hat, or hearing protection

used for appropriate conditions will reduce personal inju-

 Prevent unintentional starting. Ensure the switch is in

the off-position before connecting to power source

and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or en-

ergising power tools that have the switch on invites acci-

 Remove any adjusting key or wrench before turning

the power tool on. A wrench or a key left attached to a ro-

tating part of the power tool may result in personal injury.

WARNING OBJ_BUCH-1916-001.book Page 8 Wednesday, July 10, 2013 9:01 AMEnglish | 9

Bosch Power Tools 2 609 140 988 | (10.7.13)

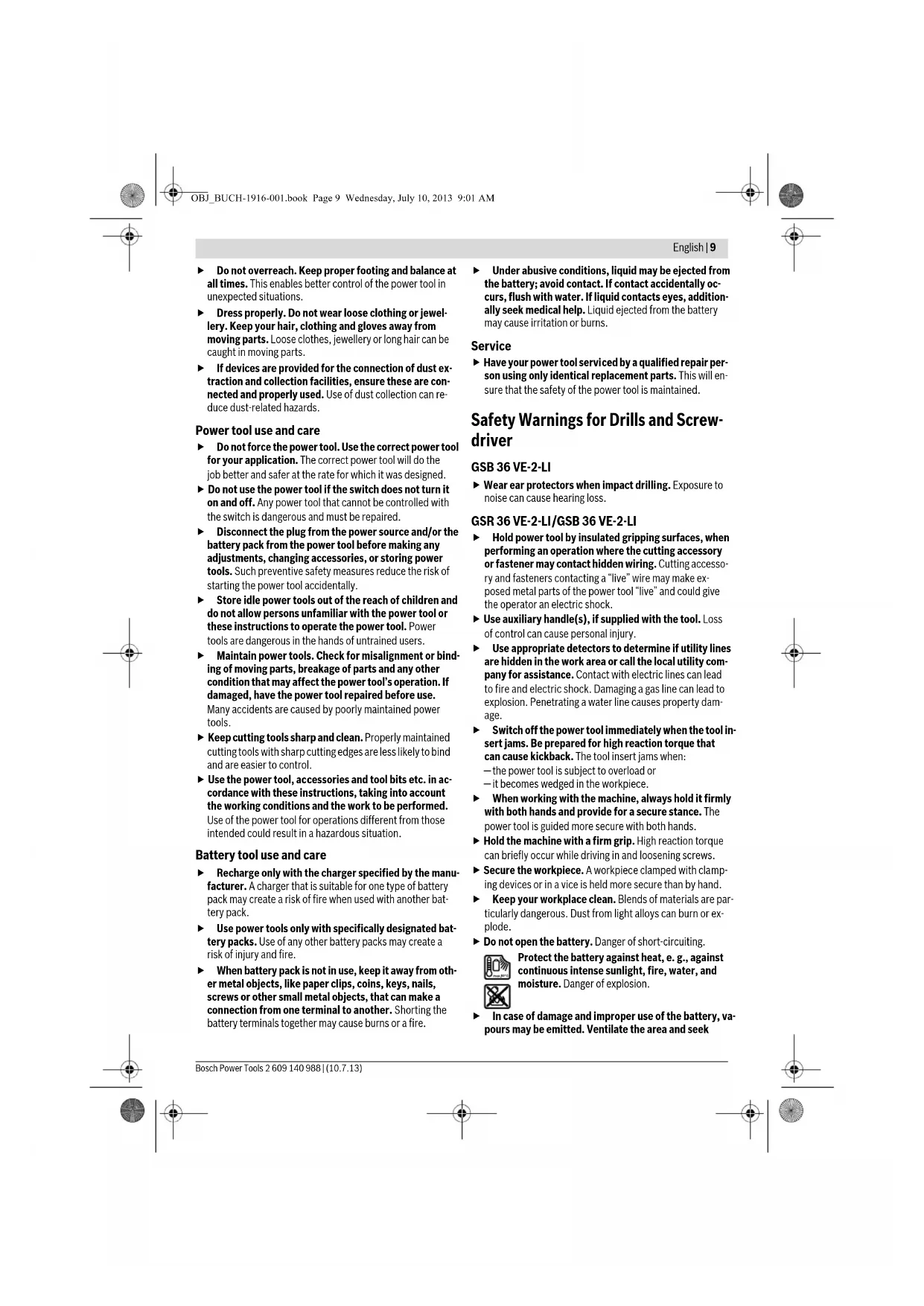

 Do not overreach. Keep proper footing and balance at

all times. This enables better control of the power tool in

unexpected situations.

 Dress properly. Do not wear loose clothing or jewel-

lery. Keep your hair, clothing and gloves away from

moving parts. Loose clothes, jewellery or long hair can be

caught in moving parts.

 If devices are provided for the connection of dust ex-

traction and collection facilities, ensure these are con-

nected and properly used. Use of dust collection can re-

duce dust-related hazards.

Power tool use and care

 Do not force the power tool. Use the correct power tool

for your application. The correct power tool will do the

job better and safer at the rate for which it was designed.

 Do not use the power tool if the switch does not turn it

on and off. Any power tool that cannot be controlled with

the switch is dangerous and must be repaired.

 Disconnect the plug from the power source and/or the

battery pack from the power tool before making any

adjustments, changing accessories, or storing power

tools. Such preventive safety measures reduce the risk of

starting the power tool accidentally.

 Store idle power tools out of the reach of children and

do not allow persons unfamiliar with the power tool or

these instructions to operate the power tool. Power

tools are dangerous in the hands of untrained users.

 Maintain power tools. Check for misalignment or bind-

ing of moving parts, breakage of parts and any other

condition that may affect the power tool’s operation. If

damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power

 Keep cutting tools sharp and clean. Properly maintained

cutting tools with sharp cutting edges are less likely to bind

and are easier to control.

 Use the power tool, accessories and tool bits etc. in ac-

cordance with these instructions, taking into account

the working conditions and the work to be performed.

Use of the power tool for operations different from those

intended could result in a hazardous situation.

Battery tool use and care

 Recharge only with the charger specified by the manu-

facturer. A charger that is suitable for one type of battery

pack may create a risk of fire when used with another bat-

 Use power tools only with specifically designated bat-

tery packs. Use of any other battery packs may create a

risk of injury and fire.

 When battery pack is not in use, keep it away from oth-

er metal objects, like paper clips, coins, keys, nails,

screws or other small metal objects, that can make a

connection from one terminal to another. Shorting the

battery terminals together may cause burns or a fire.

 Under abusive conditions, liquid may be ejected from

the battery; avoid contact. If contact accidentally oc-

curs, flush with water. If liquid contacts eyes, addition-

ally seek medical help. Liquid ejected from the battery

may cause irritation or burns.

 Have your power tool serviced by a qualified repair per-

son using only identical replacement parts. This will en-

sure that the safety of the power tool is maintained.

Safety Warnings for Drills and Screw-

 Wear ear protectors when impact drilling. Exposure to

noise can cause hearing loss.

GSR 36 VE-2-LI/GSB 36 VE-2-LI

 Hold power tool by insulated gripping surfaces, when

performing an operation where the cutting accessory

or fastener may contact hidden wiring. Cutting accesso-

ry and fasteners contacting a “live” wire may make ex-

posed metal parts of the power tool “live” and could give

the operator an electric shock.

 Use auxiliary handle(s), if supplied with the tool. Loss

of control can cause personal injury.

 Use appropriate detectors to determine if utility lines

are hidden in the work area or call the local utility com-

pany for assistance. Contact with electric lines can lead

to fire and electric shock. Damaging a gas line can lead to

explosion. Penetrating a water line causes property dam-

 Switch off the power tool immediately when the tool in-

sert jams. Be prepared for high reaction torque that

can cause kickback. The tool insert jams when:

— the power tool is subject to overload or

— it becomes wedged in the workpiece.

 When working with the machine, always hold it firmly

with both hands and provide for a secure stance. The

power tool is guided more secure with both hands.

 Hold the machine with a firm grip. High reaction torque

can briefly occur while driving in and loosening screws.

 Secure the workpiece. A workpiece clamped with clamp-

ing devices or in a vice is held more secure than by hand.

 Keep your workplace clean. Blends of materials are par-

ticularly dangerous. Dust from light alloys can burn or ex-

 Do not open the battery. Danger of short-circuiting.

Protect the battery against heat, e. g., against

continuous intense sunlight, fire, water, and

moisture. Danger of explosion.

 In case of damage and improper use of the battery, va-

pours may be emitted. Ventilate the area and seek

OBJ_BUCH-1916-001.book Page 9 Wednesday, July 10, 2013 9:01 AM10 | English

2 609 140 988 | (10.7.13) Bosch Power Tools

medical help in case of complaints. The vapours can irri-

tate the respiratory system.

 Use the battery only in conjunction with your Bosch

power tool. This measure alone protects the battery

against dangerous overload.

 Use only original Bosch batteries with the voltage list-

ed on the nameplate of your power tool. When using oth-

er batteries, e.g. imitations, reconditioned batteries or

other brands, there is danger of injury as well as property

damage through exploding batteries.

 Insert the battery pack completely. When doing this,

the battery pack can be heard to engage twice.

Additional Safety and Working In-

 Dusts from materials such as lead-containing coatings,

some wood types, minerals and metal can be harmful to

one’s health and cause allergic reactions, lead to res-

piratory infections and/or cancer. Materials containing

asbestos may only be worked by specialists.

– Provide for good ventilation of the working place.

– It is recommended to wear a P2 filter-class respirator.

Observe the relevant regulations in your country for the

materials to be worked.

 Before any work on the machine (e. g., maintenance,

tool change, etc.) as well as during transport and stor-

age, set the rotational direction switch to the centre

position. Unintentional actuation of the On/Off switch can

 The battery is supplied partially charged. To ensure full

battery capacity, completely charge the battery in the

battery charger before using for the first time.

 The battery is equipped with a NTC temperature con-

trol which allows charging only within a temperature

range of between 0 °C and 45 °C. A long battery ser-

vice life is achieved in this manner.

 Read the operating instructions of the battery charger.

 Apply the power tool to the screw only when it is

switched off. Rotating tool inserts can slip off.

 Adjust the gear switch only when the machine is at a

 Always push the gear selector and turn the operating

mode selector switch through to the stop. Otherwise,

the machine can become damaged.

 In case of excessive loading, e. g., prolonged blocking

of the application tool, the electronics switch off the

power tool. After switching on again, the power tool

can be used again as intended for. In case of continued

overload, the power tool will switch off again in order

to prevent damage to the motor.

 To save energy, only switch the power tool on when using

 Before performing any work, make sure that the auxil-

iary handle is firmly tightened. Loss of control can lead

 The rapid shut-off feature enables better control of the pow-

er tool. The power tool shuts off in case of sudden and unex-

pected rotation of the power tool around the drilling axis.

 The rapid shut-off feature is indicated by a flashing LED on

 To restart the machine, release the On/Off switch and

 The rapid shut-off feature can only actuate, when the

machine can turn freely around the drilling axis. Select

a suitable working position for this. Otherwise, the rapid

shut-off feature is not ensured.

The following symbols are important for reading and under-

standing the operating instructions. Please take note of the

symbols and their meaning. The correct interpretation of the

symbols will help you to use the machine in a better and safer

less screwdriver/Combination cordless

Grey-marked area: Handle (insulated

Read all safety warnings and all instruc-

Before any work on the machine itself,

Always wear ear protection.

Drilling and screwdriving

OBJ_BUCH-1916-001.book Page 10 Wednesday, July 10, 2013 9:01 AMEnglish | 11

Bosch Power Tools 2 609 140 988 | (10.7.13)

Cordless screwdriver with auxiliary handle/Combination

cordless drill with auxiliary handle.

Battery, application tools and other accessories shown or de-

scribed are not part of the standard delivery scope.

A complete overview of accessories can be found in our ac-

The machine is intended for driving in and loosening screws

as well as for drilling in wood, metal, ceramics and plastic.

GSB machines are additionally intended for impact drilling in

bricks, brickwork and masonry.

The light of this power tool is intended to illuminate the power

tool’s direct area of working operation and is not suitable for

household room illumination.

The technical data of the machine are listed in the table on

Please observe the article number on the type plate of your

machine. The trade names of the individual machines may

Declaration of Conformity

We declare under our sole responsibility that the product de-

scribed under “Technical Data” is in conformity with the fol-

lowing standards or standardisation documents: EN 60745

according to the provisions of the directives 2009/125/EC

(Regulation 1194/2012), 2011/65/EU, 2004/108/EC,

The measured values of the machine are listed in the table on

Noise and vibrational values (vector sum of three directions)

determined according to EN 60745.

The vibration emission level given in this information sheet

has been measured in accordance with a standardised test

given in EN 60745 and may be used to compare one tool with

another. It may be used for a preliminary assessment of expo-

The declared vibration emission level represents the main ap-

plications of the tool. However if the tool is used for different

applications, with different accessories or poorly maintained,

the vibration emission may differ. This may significantly in-

crease the exposure level over the total working period.

An estimation of the level of exposure to vibration should also

take into account the times when the tool is switched off or

when it is running but not actually doing the job. This may sig-

nificantly reduce the exposure level over the total working pe-

Identify additional safety measures to protect the operator

from the effects of vibration such as: maintain the tool and the

accessories, keep hands warm, organise work patterns.

M Maximum torque according to ISO 5393

Weight according to EPTA-Procedure

* dependent of the battery pack being

Executive Vice President

Head of Product Certification

OBJ_BUCH-1916-001.book Page 11 Wednesday, July 10, 2013 9:01 AM12 | English

2 609 140 988 | (10.7.13) Bosch Power Tools

Mounting and Operation

Maintenance and Cleaning

 For safe and proper working, always keep the machine

and ventilation slots clean.

Clean the application tool, the tool holder, the power tool’s

ventilations slots, and the battery’s ventilation slots each time

After-sales Service and Application

Our after-sales service responds to your questions concern-

ing maintenance and repair of your product as well as spare

parts. Exploded views and information on spare parts can al-

Bosch’s application service team will gladly answer questions

concerning our products and their accessories.

In all correspondence and spare parts order, please always in-

clude the 10-digit article number given on the type plate of

Robert Bosch Ltd. (B.S.C.)

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Customer Contact Center

Republic of South Africa

Hotline: (011) 6519600

35 Roper Street, New Centre

Removing the battery 1 166

Inserting the battery 2 166

Checking the battery charge condition 3 166

Assembling/Dismantling auxiliary handle 4 167

Changing the position of the auxiliary handle 5 167

Mounting application tools 6 167

Adjusting the drilling depth X7168

Reversing the rotational direction 8 169

Setting the torque 9 169

Selecting the drilling position 10 170

Setting the operating mode 11 170

Gear selection, mechanical 12 170

Switching On and Off 13 171

Selecting Accessories – 172

OBJ_BUCH-1916-001.book Page 12 Wednesday, July 10, 2013 9:01 AMFrançais | 13 Bosch Power Tools 2 609 140 988 | (10.7.13) KZN – BSC Service Centre

Unit E, Almar Centre

E-Mail: bsc.dur@za.bosch.com

Western Cape – BSC Service Centre

Democracy Way, Prosperity Park

The contained lithium ion batteries are subject to the Danger-

ous Goods Legislation requirements. The user can transport

the batteries by road without further requirements.

When being transported by third parties (e.g.: air transport or

forwarding agency), special requirements on packaging and

labelling must be observed. For preparation of the item being

shipped, consulting an expert for hazardous material is re-

Dispatch batteries only when the housing is undamaged.

Tape or mask off open contacts and pack up the battery in

such a manner that it cannot move around in the packaging.

Please also observe possibly more detailed national regula-

The machine, rechargeable batteries, accessories

and packaging should be sorted for environmental-

Do not dispose of power tools and batteries/rechargeable

batteries into household waste!

Only for EC countries:

According to the European Guideline

2012/19/EU for Waste Electrical and Elec-

tronic Equipment and its implementation

into national right, power tools that are no

longer usable must be collected separately

and disposed of in an environmentally cor-

Only for EC countries:

Defective or dead out battery packs/batteries must be recy-

cled according the guideline 2006/66/EC.

Batteries no longer suitable for use can be directly returned

Robert Bosch Ltd. (B.S.C.)

AVERTISSEMENT OBJ_BUCH-1916-001.book Page 13 Wednesday, July 10, 2013 9:01 AM14 | Français

OBJ_BUCH-1916-001.book Page 14 Wednesday, July 10, 2013 9:01 AMFrançais | 15

OBJ_BUCH-1916-001.book Page 15 Wednesday, July 10, 2013 9:01 AM16 | Français

OBJ_BUCH-1916-001.book Page 16 Wednesday, July 10, 2013 9:01 AMFrançais | 17

fourniture standard.

2004/108/CE, 2006/42/CE.

Executive Vice President

Head of Product Certification

OBJ_BUCH-1916-001.book Page 17 Wednesday, July 10, 2013 9:01 AM18 | Français

OBJ_BUCH-1916-001.book Page 20 Wednesday, July 10, 2013 9:01 AMEspañol | 21

OBJ_BUCH-1916-001.book Page 21 Wednesday, July 10, 2013 9:01 AM22 | Español

Executive Vice President

Head of Product Certification

OBJ_BUCH-1916-001.book Page 22 Wednesday, July 10, 2013 9:01 AMEspañol | 23

OBJ_BUCH-1916-001.book Page 23 Wednesday, July 10, 2013 9:01 AM24 | Português 2 609 140 988 | (10.7.13) Bosch Power Tools Chile

ATENÇÃO OBJ_BUCH-1916-001.book Page 24 Wednesday, July 10, 2013 9:01 AMPortuguês | 25

OBJ_BUCH-1916-001.book Page 25 Wednesday, July 10, 2013 9:01 AM26 | Português

OBJ_BUCH-1916-001.book Page 26 Wednesday, July 10, 2013 9:01 AMPortuguês | 27

OBJ_BUCH-1916-001.book Page 27 Wednesday, July 10, 2013 9:01 AM28 | Português

2004/108/CE, 2006/42/CE.

Executive Vice President

Head of Product Certification

AVVERTENZA OBJ_BUCH-1916-001.book Page 29 Wednesday, July 10, 2013 9:01 AM30 | Italiano

OBJ_BUCH-1916-001.book Page 30 Wednesday, July 10, 2013 9:01 AMItaliano | 31

OBJ_BUCH-1916-001.book Page 31 Wednesday, July 10, 2013 9:01 AM32 | Italiano

OBJ_BUCH-1916-001.book Page 32 Wednesday, July 10, 2013 9:01 AMItaliano | 33

Executive Vice President

Head of Product Certification

OBJ_BUCH-1916-001.book Page 33 Wednesday, July 10, 2013 9:01 AM34 | Italiano

WAARSCHUWING OBJ_BUCH-1916-001.book Page 35 Wednesday, July 10, 2013 9:01 AM36 | Nederlands

OBJ_BUCH-1916-001.book Page 36 Wednesday, July 10, 2013 9:01 AMNederlands | 37

OBJ_BUCH-1916-001.book Page 38 Wednesday, July 10, 2013 9:01 AMNederlands | 39

Executive Vice President

Head of Product Certification

ADVARSEL OBJ_BUCH-1916-001.book Page 40 Wednesday, July 10, 2013 9:01 AMDansk | 41

OBJ_BUCH-1916-001.book Page 41 Wednesday, July 10, 2013 9:01 AM42 | Dansk

OBJ_BUCH-1916-001.book Page 42 Wednesday, July 10, 2013 9:01 AMDansk | 43

Executive Vice President

Head of Product Certification

OBJ_BUCH-1916-001.book Page 43 Wednesday, July 10, 2013 9:01 AM44 | Dansk

Bosch Service Center

VARNING OBJ_BUCH-1916-001.book Page 45 Wednesday, July 10, 2013 9:01 AM46 | Svenska

OBJ_BUCH-1916-001.book Page 46 Wednesday, July 10, 2013 9:01 AMSvenska | 47

OBJ_BUCH-1916-001.book Page 47 Wednesday, July 10, 2013 9:01 AM48 | Svenska

Executive Vice President

Head of Product Certification

Bosch Service Center

ADVARSEL OBJ_BUCH-1916-001.book Page 49 Wednesday, July 10, 2013 9:01 AM50 | Norsk

OBJ_BUCH-1916-001.book Page 50 Wednesday, July 10, 2013 9:01 AMNorsk | 51

OBJ_BUCH-1916-001.book Page 51 Wednesday, July 10, 2013 9:01 AM52 | Norsk

OBJ_BUCH-1916-001.book Page 52 Wednesday, July 10, 2013 9:01 AMNorsk | 53

Executive Vice President

Head of Product Certification

VAROITUS OBJ_BUCH-1916-001.book Page 54 Wednesday, July 10, 2013 9:01 AMSuomi | 55

OBJ_BUCH-1916-001.book Page 55 Wednesday, July 10, 2013 9:01 AM56 | Suomi

OBJ_BUCH-1916-001.book Page 56 Wednesday, July 10, 2013 9:01 AMSuomi | 57

Executive Vice President

Head of Product Certification

OBJ_BUCH-1916-001.book Page 57 Wednesday, July 10, 2013 9:01 AM58 | Suomi

OBJ_BUCH-1916-001.book Page 59 Wednesday, July 10, 2013 9:01 AM60 | Eλληνικά

OBJ_BUCH-1916-001.book Page 60 Wednesday, July 10, 2013 9:01 AMEλληνικά | 61

OBJ_BUCH-1916-001.book Page 61 Wednesday, July 10, 2013 9:01 AM62 | Eλληνικά

OBJ_BUCH-1916-001.book Page 62 Wednesday, July 10, 2013 9:01 AMEλληνικά | 63

Executive Vice President

Head of Product Certification

UYARI OBJ_BUCH-1916-001.book Page 64 Wednesday, July 10, 2013 9:01 AMTürkçe | 65

OBJ_BUCH-1916-001.book Page 65 Wednesday, July 10, 2013 9:01 AM66 | Türkçe

OBJ_BUCH-1916-001.book Page 66 Wednesday, July 10, 2013 9:01 AMTürkçe | 67

OBJ_BUCH-1916-001.book Page 67 Wednesday, July 10, 2013 9:01 AM68 | Türkçe

Executive Vice President

Head of Product Certification

OBJ_BUCH-1916-001.book Page 68 Wednesday, July 10, 2013 9:01 AMTürkçe | 69

OBJ_BUCH-1916-001.book Page 71 Wednesday, July 10, 2013 9:01 AM72 | Polski

OBJ_BUCH-1916-001.book Page 72 Wednesday, July 10, 2013 9:01 AMPolski | 73

OBJ_BUCH-1916-001.book Page 73 Wednesday, July 10, 2013 9:01 AM74 | Polski

2004/108/WE, 2006/42/WE.

Executive Vice President

Head of Product Certification

Robert Bosch Sp. z o.o.

VAROVÁNÍ OBJ_BUCH-1916-001.book Page 75 Wednesday, July 10, 2013 9:01 AM76 | Česky

OBJ_BUCH-1916-001.book Page 76 Wednesday, July 10, 2013 9:01 AMČesky | 77

OBJ_BUCH-1916-001.book Page 77 Wednesday, July 10, 2013 9:01 AM78 | Česky

OBJ_BUCH-1916-001.book Page 78 Wednesday, July 10, 2013 9:01 AMČesky | 79

Executive Vice President

Head of Product Certification

POZOR OBJ_BUCH-1916-001.book Page 80 Wednesday, July 10, 2013 9:01 AMSlovensky | 81

OBJ_BUCH-1916-001.book Page 81 Wednesday, July 10, 2013 9:01 AM82 | Slovensky

OBJ_BUCH-1916-001.book Page 82 Wednesday, July 10, 2013 9:01 AMSlovensky | 83

OBJ_BUCH-1916-001.book Page 83 Wednesday, July 10, 2013 9:01 AM84 | Slovensky

2011/65/EÚ, 2004/108/ES, 2006/42/ES.

Executive Vice President

Head of Product Certification

FIGYELMEZTETÉS OBJ_BUCH-1916-001.book Page 85 Wednesday, July 10, 2013 9:01 AM86 | Magyar

OBJ_BUCH-1916-001.book Page 86 Wednesday, July 10, 2013 9:01 AMMagyar | 87

OBJ_BUCH-1916-001.book Page 87 Wednesday, July 10, 2013 9:01 AM88 | Magyar

OBJ_BUCH-1916-001.book Page 88 Wednesday, July 10, 2013 9:01 AMMagyar | 89

Executive Vice President

Head of Product Certification

No. RU C-DE.ME77.B.00435

OBJ_BUCH-1916-001.book Page 90 Wednesday, July 10, 2013 9:01 AMРусский | 91

OBJ_BUCH-1916-001.book Page 91 Wednesday, July 10, 2013 9:01 AM92 | Русский

OBJ_BUCH-1916-001.book Page 92 Wednesday, July 10, 2013 9:01 AMРусский | 93

OBJ_BUCH-1916-001.book Page 93 Wednesday, July 10, 2013 9:01 AM94 | Русский

OBJ_BUCH-1916-001.book Page 94 Wednesday, July 10, 2013 9:01 AMРусский | 95

Executive Vice President

Head of Product Certification

Executive Vice President

Head of Product Certification

OBJ_BUCH-1916-001.book Page 102 Wednesday, July 10, 2013 9:01 AMҚазақша | 103

OBJ_BUCH-1916-001.book Page 103 Wednesday, July 10, 2013 9:01 AM104 | Қазақша

OBJ_BUCH-1916-001.book Page 104 Wednesday, July 10, 2013 9:01 AMҚазақша | 105

OBJ_BUCH-1916-001.book Page 105 Wednesday, July 10, 2013 9:01 AM106 | Қазақша

Executive Vice President

Head of Product Certification

AVERTISMENT OBJ_BUCH-1916-001.book Page 107 Wednesday, July 10, 2013 9:01 AM108 | Română

OBJ_BUCH-1916-001.book Page 108 Wednesday, July 10, 2013 9:01 AMRomână | 109

OBJ_BUCH-1916-001.book Page 109 Wednesday, July 10, 2013 9:01 AM110 | Română

OBJ_BUCH-1916-001.book Page 110 Wednesday, July 10, 2013 9:01 AMRomână | 111

2011/65/UE, 2004/108/CE, 2006/42/CE.

Executive Vice President

Head of Product Certification

OBJ_BUCH-1916-001.book Page 112 Wednesday, July 10, 2013 9:01 AMБългарски | 113

OBJ_BUCH-1916-001.book Page 113 Wednesday, July 10, 2013 9:01 AM114 | Български

OBJ_BUCH-1916-001.book Page 114 Wednesday, July 10, 2013 9:01 AMБългарски | 115

OBJ_BUCH-1916-001.book Page 115 Wednesday, July 10, 2013 9:01 AM116 | Български

OBJ_BUCH-1916-001.book Page 116 Wednesday, July 10, 2013 9:01 AMБългарски | 117

Executive Vice President

Head of Product Certification

OBJ_BUCH-1916-001.book Page 120 Wednesday, July 10, 2013 9:01 AMМакедонски | 121

Executive Vice President

Head of Product Certification

OBJ_BUCH-1916-001.book Page 122 Wednesday, July 10, 2013 9:01 AMМакедонски | 123

OBJ_BUCH-1916-001.book Page 123 Wednesday, July 10, 2013 9:01 AM124 | Srpski 2 609 140 988 | (10.7.13) Bosch Power Tools Srpski

UPOZORENJE OBJ_BUCH-1916-001.book Page 124 Wednesday, July 10, 2013 9:01 AMSrpski | 125

OBJ_BUCH-1916-001.book Page 125 Wednesday, July 10, 2013 9:01 AM126 | Srpski

OBJ_BUCH-1916-001.book Page 126 Wednesday, July 10, 2013 9:01 AMSrpski | 127

Executive Vice President

Head of Product Certification

OPOZORILO OBJ_BUCH-1916-001.book Page 128 Wednesday, July 10, 2013 9:01 AMSlovensko | 129

OBJ_BUCH-1916-001.book Page 129 Wednesday, July 10, 2013 9:01 AM130 | Slovensko

OBJ_BUCH-1916-001.book Page 130 Wednesday, July 10, 2013 9:01 AMSlovensko | 131

OBJ_BUCH-1916-001.book Page 131 Wednesday, July 10, 2013 9:01 AM132 | Slovensko

2004/108/ES, 2006/42/ES.

Executive Vice President

Head of Product Certification

UPOZORENJE OBJ_BUCH-1916-001.book Page 133 Wednesday, July 10, 2013 9:01 AM134 | Hrvatski

OBJ_BUCH-1916-001.book Page 134 Wednesday, July 10, 2013 9:01 AMHrvatski | 135

OBJ_BUCH-1916-001.book Page 135 Wednesday, July 10, 2013 9:01 AM136 | Hrvatski

OBJ_BUCH-1916-001.book Page 136 Wednesday, July 10, 2013 9:01 AMHrvatski | 137

Executive Vice President

Head of Product Certification

OBJ_BUCH-1916-001.book Page 139 Wednesday, July 10, 2013 9:01 AM140 | Eesti

OBJ_BUCH-1916-001.book Page 140 Wednesday, July 10, 2013 9:01 AMEesti | 141

Executive Vice President

Head of Product Certification

OBJ_BUCH-1916-001.book Page 141 Wednesday, July 10, 2013 9:01 AM142 | Eesti

Executive Vice President

Head of Product Certification

OBJ_BUCH-1916-001.book Page 148 Wednesday, July 10, 2013 9:01 AMLietuviškai | 149

OBJ_BUCH-1916-001.book Page 149 Wednesday, July 10, 2013 9:01 AM150 | Lietuviškai

OBJ_BUCH-1916-001.book Page 150 Wednesday, July 10, 2013 9:01 AMLietuviškai | 151

OBJ_BUCH-1916-001.book Page 151 Wednesday, July 10, 2013 9:01 AM152 | Lietuviškai

Executive Vice President

Head of Product Certification

OBJ_BUCH-1916-001.book Page 152 Wednesday, July 10, 2013 9:01 AMLietuviškai | 153

OBJ_BUCH-1916-001.book Page 153 Wednesday, July 10, 2013 9:01 AM154 | 

2006/42/EC2004/108/EC

Head of Product Certification

Executive Vice President

Head of Product Certification

Executive Vice President

OBJ_BUCH-1916-001.book Page 165 Wednesday, July 10, 2013 9:01 AM2 609 140 988 | (10.7.13) Bosch Power Tools 166 |

OBJ_BUCH-1916-001.book Page 167 Wednesday, July 10, 2013 9:01 AM2 609 140 988 | (10.7.13) Bosch Power Tools 168 |

OBJ_BUCH-1916-001.book Page 168 Wednesday, July 10, 2013 9:01 AM| 169

OBJ_BUCH-1916-001.book Page 169 Wednesday, July 10, 2013 9:01 AM2 609 140 988 | (10.7.13) Bosch Power Tools

GSB 36 VE-2-LI OBJ_BUCH-1916-001.book Page 170 Wednesday, July 10, 2013 9:01 AM| 171

Bosch Power Tools 2 609 140 988 | (10.7.13)

OBJ_BUCH-1916-001.book Page 171 Wednesday, July 10, 2013 9:01 AM2 609 140 988 | (10.7.13) Bosch Power Tools

OBJ_BUCH-1916-001.book Page 172 Wednesday, July 10, 2013 9:01 AM
