USER MANUAL Unlimited 7.2 TAURUS

Hand-held vacuum-cleaner

professional o industrial.

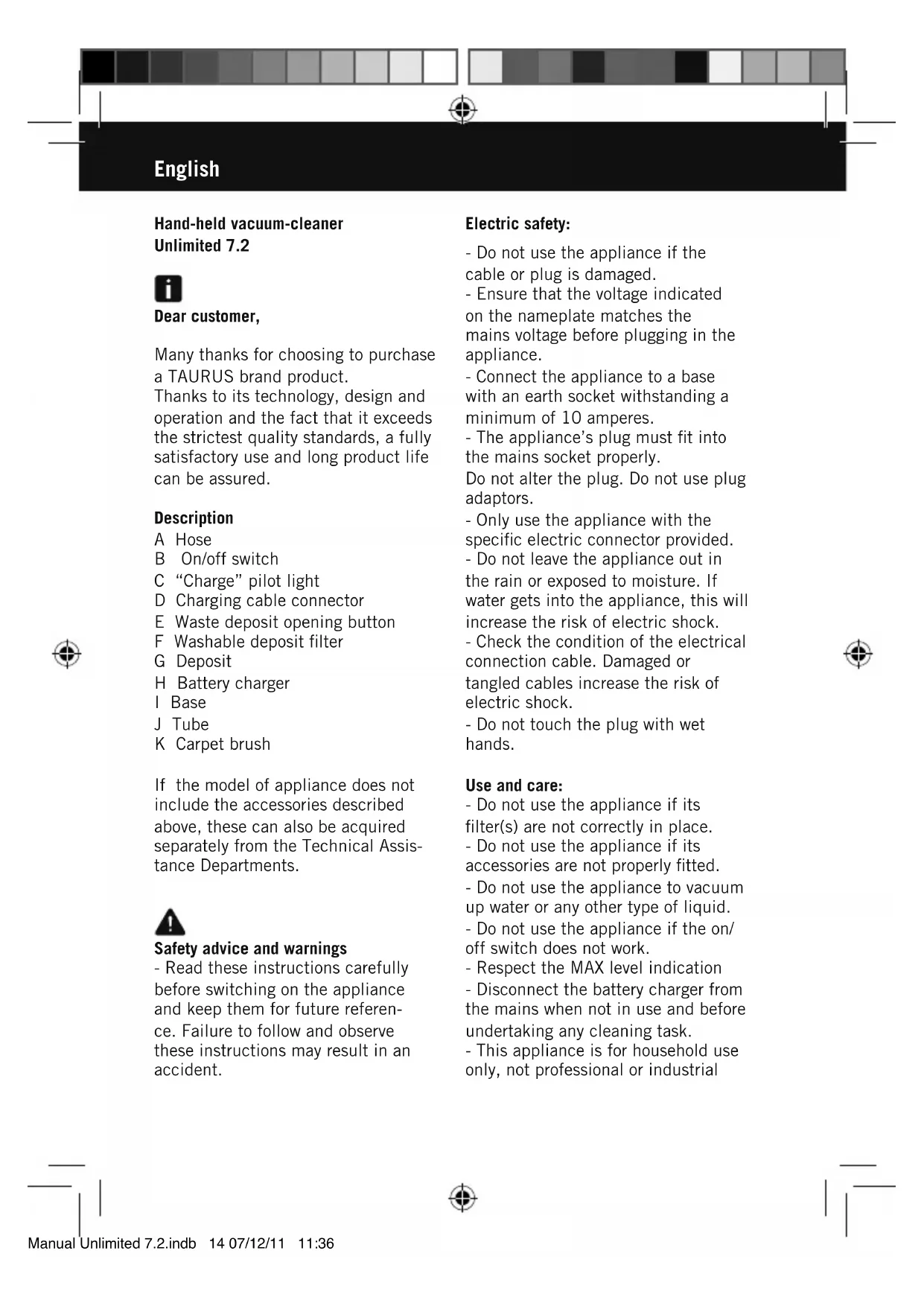

Hand-held vacuum-cleaner

Many thanks for choosing to purchase

a TAURUS brand product.

Thanks to its technology, design and

operation and the fact that it exceeds

the strictest quality standards, a fully

satisfactory use and long product life

C “Charge” pilot light

D Charging cable connector

E Waste deposit opening button

If the model of appliance does not

include the accessories described

above, these can also be acquired

separately from the Technical Assis-

Safety advice and warnings

- Read these instructions carefully

before switching on the appliance

and keep them for future referen-

ce. Failure to follow and observe

these instructions may result in an

- Do not use the appliance if the

cable or plug is damaged.

- Ensure that the voltage indicated

on the nameplate matches the

mains voltage before plugging in the

- Connect the appliance to a base

with an earth socket withstanding a

minimum of 10 amperes.

- The appliance’s plug must fit into

the mains socket properly.

Do not alter the plug. Do not use plug

- Only use the appliance with the

specific electric connector provided.

- Do not leave the appliance out in

the rain or exposed to moisture. If

water gets into the appliance, this will

increase the risk of electric shock.

- Check the condition of the electrical

connection cable. Damaged or

tangled cables increase the risk of

- Do not touch the plug with wet

- Do not use the appliance if its

filter(s) are not correctly in place.

- Do not use the appliance if its

accessories are not properly fitted.

- Do not use the appliance to vacuum

up water or any other type of liquid.

- Do not use the appliance if the on/

off switch does not work.

- Respect the MAX level indication

- Disconnect the battery charger from

the mains when not in use and before

undertaking any cleaning task.

- This appliance is for household use

only, not professional or industrial

Manual Unlimited 7.2.indb 14 07/12/11 11:36use.

- This appliance is not a toy. Children

should be supervised to ensure that

they do not play with the appliance.

- This appliance is intended for adult

use. Ensure that this product is not

used by the disabled, children or

people unused to its handling.

- This appliance should be stored

out of reach of children and/or the

- Do not expose to extreme tempera-

tures or strong magnetism.

- Use this appliance, its accessories

and tools in accordance with these

instructions, bearing in mind the wor-

king conditions involved and the work

to be completed. Using the appliance

for operations other than those for

which it is designed could give rise to

a dangerous situation.

- Make sure that dust, dirt or other

foreign objects do not block the fan

grill on the appliance.

- Never vacuum hot or sharp objects

(cigarette butts, ash, nails, etc.).

- Do not open the battery/ies under

any circumstances whatsoever.

- Do not short-circuit the battery

terminals as this may cause an explo-

- The battery/ies should be stored

at a temperature of below 40ºC.and

- Use the appliance only for opera-

tions in dry conditions.

- Never rest the appliance into a

surface while in use.

- Do not use the appliance with pets

- Recharge the battery/ies only with

the charger supplied by the manu-

A charger that is suitable for one

type of battery may cause explosion

or fire hazard when used with other

- Use the appliance only with the

battery/batteries for which it has been

specifically designed. The use of any

other batteries could cause danger or

give rise to an explosión or a fire.

- Any misuse or failure to follow

the instructions for use renders the

guarantee and the manufacturer’s

liability null and void.

- Be sure to remove all packaging

material from inside the appliance.

- The appliance must be attached to

- Attachment to the wall (Fig. 1):

Mark on the wall the position of the

attachment tacks intended for this

purpose. Once the tacks have been

attached to the wall, insert at least

two of the screws so that the applian-

ce can be immediately supported.

Ensure that the appliance is in the

vertical position and finally attach

the appliance permanently to the

wall, with the aid of the other screws

provided. To prevent damage to the

appliance, you are recommended to

use only the openings provided by the

Charging the battery

The new battery does not come com-

pletely charged and must be charged

up to the maximum before using the

appliance for the first time.

Manual Unlimited 7.2.indb 15 07/12/11 11:36- Charge the battery at room tempera-

ture between 4 and 40ºC.

- Plug the charger into the mains.

- The time needed to charge comple-

tely is from 7 to 8 hours approxi-

mately. Never try to overcharge the

batteries (although it is recommended

that the batteries are charged for 8

hours for the first time).

- While the battery is charging, the pi-

lot light will come on indicating that

the charger is charging the battery.

- When the battery is charged dis-

connect the charger from the mains

Note: Do not use the appliance while

it is connected to the charger.

Instructions for use

- Remove the appliance’s protective

- Make sure that all the product’s

packaging has been removed.

- Before using this product for the

first time, it is important to make a

full charge of batteries.

- Place the appliance on its base,

- Ensure that the electrical connector

is duly connected to the appliance.

- Connect the appliance to the mains.

- Turn the appliance on using the on/

Once you have finished using the

- Turn the appliance off, using the on/

- Clean the appliance

- Replace the appliance on its char-

Disconnect the appliance from the

mains and let it cool before underta-

king any cleaning task.

- Clean the equipment with a damp

cloth with a few drops of washing-up

liquid and then dry.

- Do not use solvents, or products

with an acid or base pH such as blea-

ch, or abrasive products, for cleaning

- Do not submerge the appliance in

water or any other liquid, or place it

under a running tap.

Emptying the dust box:

- Empty the vacuum deposit when

dust is visible though the transparent

walls, when it is full, or when the

vacuum cleaner does not work to its

- Uncouple the handheld vacuum

- Press the deposit opening control.

- Remove the cloth filter and its

- Empty the contents into a suitable

- Check the condition of the filters

before replacing them.

Changing the filters:

- Deposit filter machine-washable, but

we recommend changing annually.

Manual Unlimited 7.2.indb 16 07/12/11 11:36- To remove filters:

- Uncouple the handheld vacuum

- Press the deposit opening control.

- Remove the cloth filter and its

- To reassemble the filter, proceed

with the above instructions, in reverse

- Supplies can be acquired from

distributors and authorised establish-

ments (such as filters, etc. ) for your

- Always use original supplies, desig-

ned specifically for your appliance

Anomalies and repair

- Take the appliance to an authorised

technical support service if problems

arise. Do not try to dismantle or repair

without assistance, as this may be

- If the connection to the mains has

been damaged, it must be replaced

and you should proceed as you would

in the case of damage.

For EU product versions and/or in

case that it is requested in your

Ecology and recyclability of the product

- The materials of which the packa-

ging of this appliance consists are

included in a collection, classification

and recycling system. Should you

wish to dispose of them, use the

appropriate public recycling bins for

each type of material.

The product does not contain

concentrations of substances that

could be considered harmful to the

This symbol means that in

case you wish to dispose of

the product once its working

life has ended, take it to an

authorised waste agent for

the selective collection of

waste electrical and electronic

This symbol means that

the product may include a

battery or batteries; the

user must remove them

before disposing of the product.

Remember that batteries must be

disposed of in duly authorised

containers. Do not dispose of them in

How to remove the batteries from the

interior of the device:

It is important that the batteries are

fully discharged prior to its with-

drawal from the apparatus.

To remove the batteries, once the life of

the appliance, proceed as follows:

- Open the top shell of the apparatus,

removing previously with the help of a

screwdriver fixing screws (Fig 5)

- Identify the battery and cut its

cables (Red and Black). To avoid

Manual Unlimited 7.2.indb 17 07/12/11 11:36risks of a short circuit with a possible

residual battery load, first cut the Red

wire and protect it by using insulating

tape, then proceed to cut the Black

wire proceeding in the same way.

- Safely remove the battery from its

This appliance complies with Direc-

tive 2006/95/EC on Low Voltage and

Directive 2004/108/EC on Electro-

magnetic Compatibility.
