Product Type	Cordless stick vacuum
Brand	Taurus
Model	Homeland Unique
Battery	Rechargeable lithium-ion, charge 4-5 hours (first charge 6 hours)
Charger	Included, 100-240 V ~ 50/60 Hz
Filter	EPA filter (high efficiency) – clean/replace every 50 hours
Included accessories	Crevice tool and upholstery brush, extra-long crevice tool, water tank and mop, Fuzzy motorized brush, wall mount with charging base
Functions	Variable speed, battery level indicator, flexible folding tube, handheld use
Dust tank capacity	Approx. 0.5 L (estimate)
Weight	Approx. 2.5 kg
Maintenance	Regular emptying of dust tank, filter cleaning, brush cleaning
Safety	Do not vacuum liquids, do not immerse, do not use on people/animals, max temperature 40°C
Warranty	According to current legislation, authorized technical service
Repairability	Battery, filter, brush and accessories replaceable

Frequently Asked Questions - Homeland Unique TAURUS

How to charge the battery for the first time?

A new battery is not fully charged. Charge it for 6 hours before first use. Plug the charger into the mains (100-240 V) and insert it into the vacuum. The light turns on during charging. After full charge (about 4-5 hours for subsequent charges), unplug the charger.

How to empty the dust tank?

Pull the ring (M) located inside the handle to open the bottom cover of the tank. Empty the content into a suitable bin. Close the cover until it clicks.

How to clean or replace the filter?

Remove the dust tank by turning it to the left. Remove the filter by turning it to the left. Clean or replace it every 50 hours of use or if suction drops. Reassemble by turning to the right.

What to do if suction decreases?

First check if the dust tank is full and empty it if necessary. Then clean or replace the filter (every 50 hours). Also check that the motorized brush is not obstructed by hair or fibers.

Can I use the vacuum to pick up liquids?

No, this vacuum is designed only for dry vacuuming. Never vacuum water or any other liquid, as this could damage the appliance and create an electrical hazard.

How to insert accessories on the handheld vacuum?

The handheld vacuum accepts accessories directly on its tip or on the tube. You can use the brush nozzle or crevice nozzle. Insert the accessory by firmly pushing it in until it stops.

How to fold the tube to reach difficult areas?

Press the button (B1) on the flexible extension tube to fold it. This allows reaching difficult places like under furniture or in corners.

How to remove batteries at end of life?

Batteries must be fully discharged before removal. Unplug the appliance. Remove the top housing by prying to release the latches. Cut the 4 cables connected to the battery and insulate the ends with electrical tape. Remove the battery safely.

Where can I buy spare accessories and filters?

Contact authorized distributors and establishments. Always use genuine accessories specific to your Taurus Homeland Unique model. You can also contact technical service via taurus-home.com.

How to install the wall mount?

Attach the wall mount (K) to the wall using dowels, screws, or adhesives suitable for your wall. Ensure it can support at least twice the weight of the vacuum. Then clip the vacuum into the mount. The mount also serves as a charging base.

USER MANUAL Homeland Unique TAURUS

Stick vacuum cleaner

Aspirateur balai

Bodenstaubsauger

Scopa elettrica

Aspirador vertical

Aspirador vertical

Steelstofzuiger

Szczotka odkurzacz

Ηλεκτρική σκούπα

Technical line drawing of a vertical cylindrical device with mounting base (no text or symbols)

Fig.01

Technical line drawings of a mechanical assembly showing four sequential steps with no visible text or symbols

Fig.02

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

Fig.03 Fig.04

Technical line drawing of a mechanical device with internal components and directional arrow (no text or symbols)

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Fig.05

Technical illustration of a mechanical component with exploded views showing assembly steps (no text or symbols)

Fig.06

Fig.07 Fig.08

Line drawing of a hand inserting a component into a device (no text or symbols)

Hand holding a circuit board with wires and connectors, no visible text or symbols

Español

Aspirador escoba HOMELAND UNIQUE

DESCRIPCIÓN

A Accesorios:

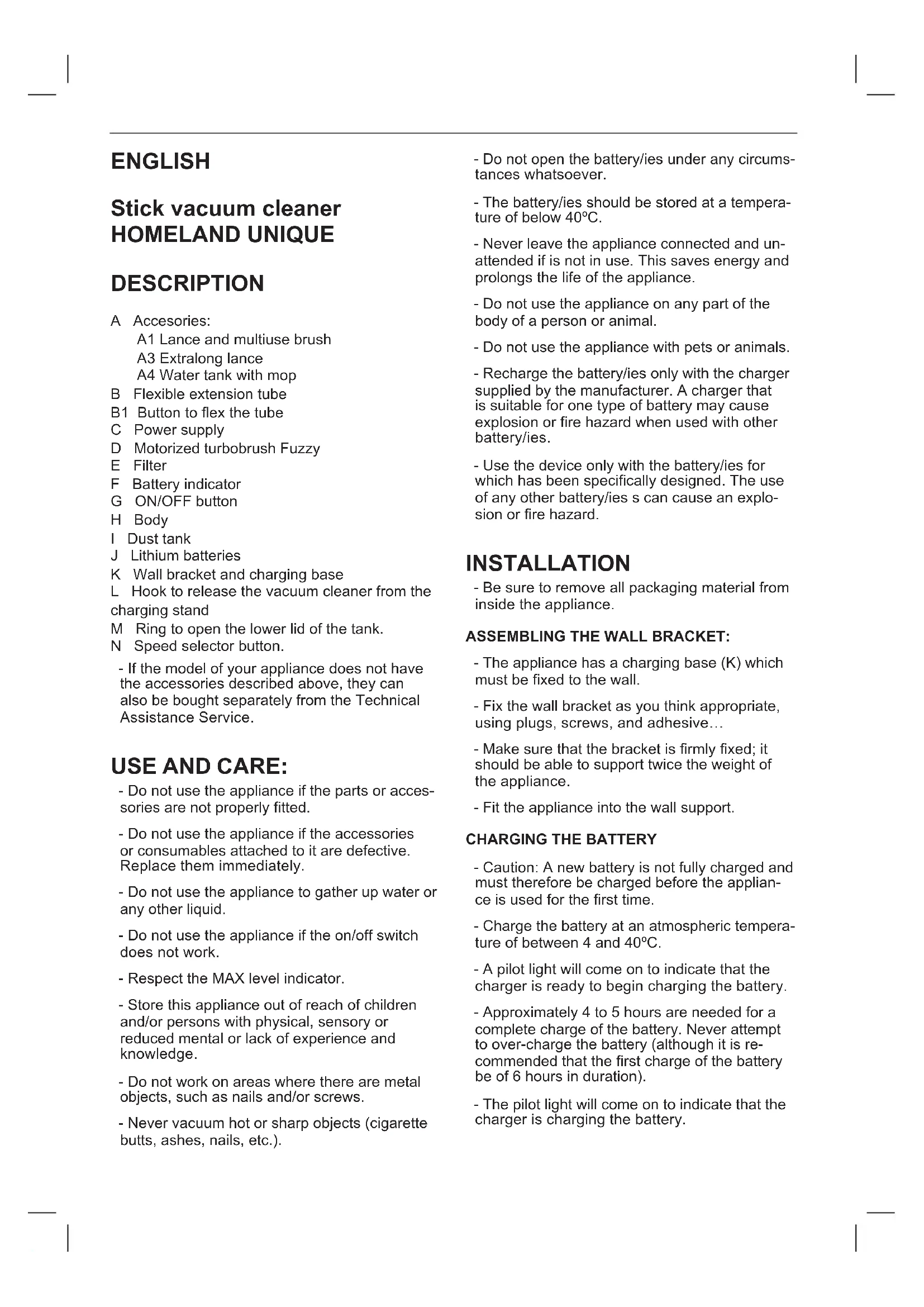

Stick vacuum cleaner HOMELAND UNIQUE

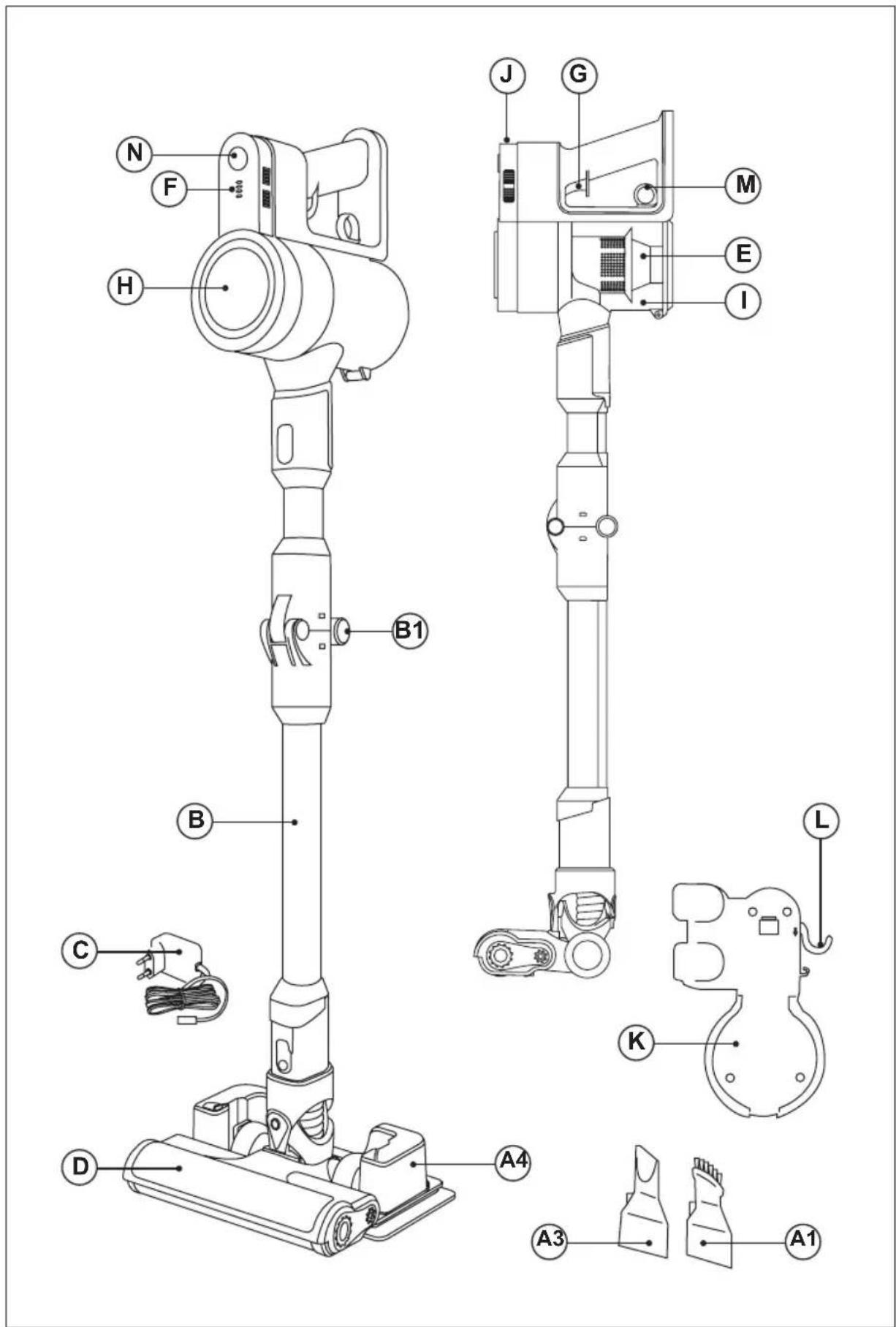

DESCRIPTION

A Accesories:

A1 Lance and multiuse brush

A3 Extralong lance

A4 Water tank with mop

B Flexible extension tube

B1 Button to flex the tube

C Power supply

D Motorized turbobrush Fuzzy

E Filter

F Battery indicator

G ON/OFF button

H Body

I Dust tank

J Lithium batteries

K Wall bracket and charging base

L Hook to release the vacuum cleaner from the charging stand

M Ring to open the lower lid of the tank.

N Speed selector button.

- If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

USE AND CARE:

- Do not use the appliance if the parts or accessories are not properly fitted.

- Do not use the appliance if the accessories or consumables attached to it are defective. Replace them immediately.

- Do not use the appliance to gather up water or any other liquid.

- Do not use the appliance if the on/off switch does not work.

- Respect the MAX level indicator.

- Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

- Do not work on areas where there are metal objects, such as nails and/or screws.

- Never vacuum hot or sharp objects (cigarette butts, ashes, nails, etc.).

- Do not open the battery/ies under any circumstances whatsoever.

- The battery/ies should be stored at a temperature of below 40^ C.

- Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

- Do not use the appliance on any part of the body of a person or animal.

- Do not use the appliance with pets or animals.

- Recharge the battery/ies only with the charger supplied by the manufacturer. A charger that is suitable for one type of battery may cause explosion or fire hazard when used with other battery/ies.

- Use the device only with the battery/ies for which has been specifically designed. The use of any other battery/ies can cause an explosion or fire hazard.

INSTALLATION

- Be sure to remove all packaging material from inside the appliance.

ASSEMBLING THE WALL BRACKET:

- The appliance has a charging base (K) which must be fixed to the wall.

- Fix the wall bracket as you think appropriate, using plugs, screws, and adhesive...

- Make sure that the bracket is firmly fixed; it should be able to support twice the weight of the appliance.

- Fit the appliance into the wall support.

CHARGING THE BATTERY

- Caution: A new battery is not fully charged and must therefore be charged before the appliance is used for the first time.

- Charge the battery at an atmospheric temperature of between 4 and 40°C.

- A pilot light will come on to indicate that the charger is ready to begin charging the battery.

- Approximately 4 to 5 hours are needed for a complete charge of the battery. Never attempt to over-charge the battery (although it is recommended that the first charge of the battery be of 6 hours in duration).

- The pilot light will come on to indicate that the charger is charging the battery.

• When the battery is charged disconnect the charger from the mains supply.
• NB: Do not use the appliance while it is connected to the charger.

HOW TO CHECK THE BATTERY'S CHARGE LEVEL:

• Press the ON/OFF button (G), the pilot lights that indicate if it is charged will light up.
• If all four pilot lights come on this means that the appliance is fully charged.
• If no pilot light lights up, this means that the battery is completely flat.
• NB: For a long battery life, it is advisable to charge the battery, only, when it has run out completely.

INSTRUCTIONS FOR USE

BEFORE USE:

• Make sure that product's packaging has been removed.
• Before using this product for the first time, it is important to make a full charge of batteries.
• Prepare the appliance according to the function you wish to use:

USE:

• Turn the appliance on, by using the on/off button.
• Select the desired speed with the speed selector. (N) This function is very useful, as it makes it possible to adapt the speed of the appliance to the type of work that needs to be done.

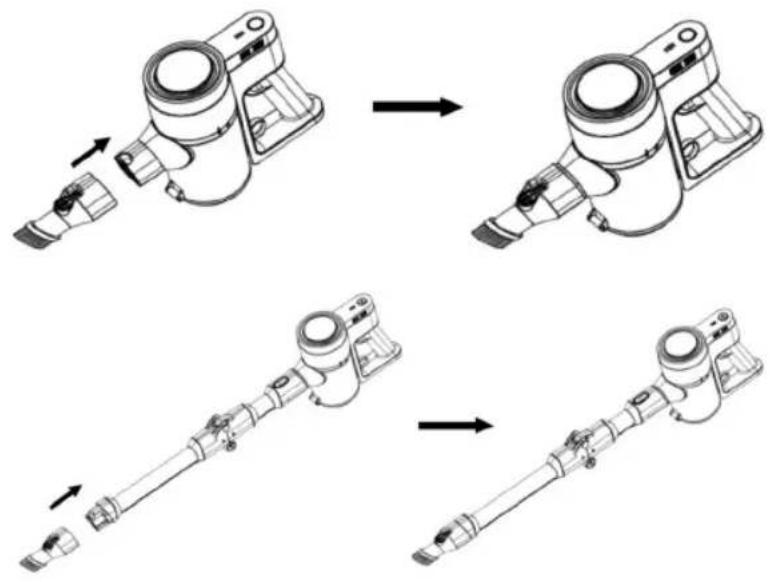

FITTING AN ACCESSORY TO THE HAND VACUUM:

• The hand vacuum is designed in such a way that it allows the following accessories to be fitted: (use the combination that best meets your requirements). (Fig.1).
• Furniture brush: Equipped with a brush at the end, which brushes the surface as it is used.
• Crevice nozzle: Specially designed for getting into cracks and difficult corners.
• We can insert the accessories into the tube.

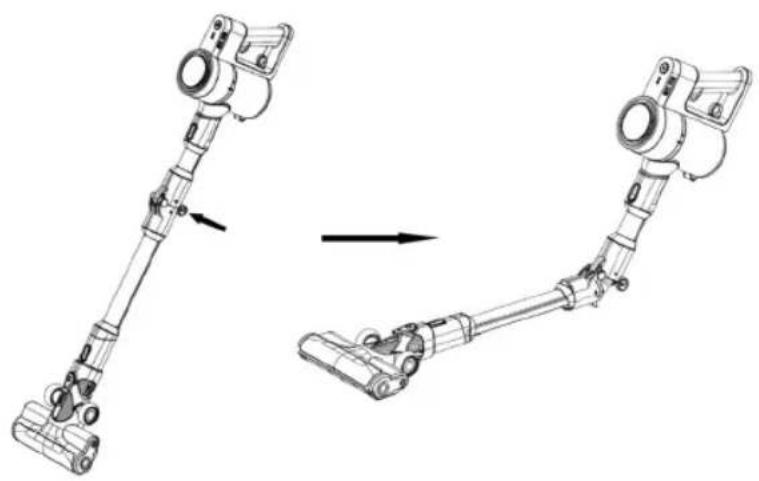

• Press the button to bend the flexible tube and access hard-to-reach areas. (Fig.2)

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Turn the appliance off using the on/off button.
• Clean the appliance.

CLEANING

• Disconnect the battery charger from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.

• Empty the dust box when it is full (observation facilitated by transparent windows), or when vacuuming power is notably reduced.

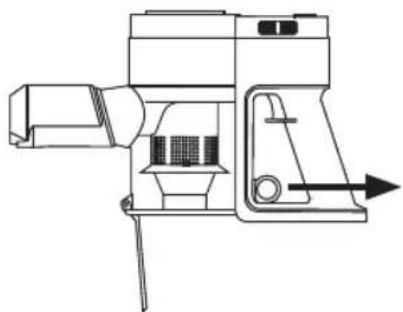

• Open the lid of the dust box pulling the ring to open the lower tank cover (M) located on the inside of the handle and empty the contents into the appropriate waste disposal receptacle. (Fig.3)
• Check the condition of the dust box filter.

CHANGING THE FILTERS:

- Dust tank EPA filter (high efficiency air filter that efficiently retains spores, ash, sawdust, pollen...), it is advisable to change it a least once a year or after every 50 hours of use, or if its potency diminishes remarkably.

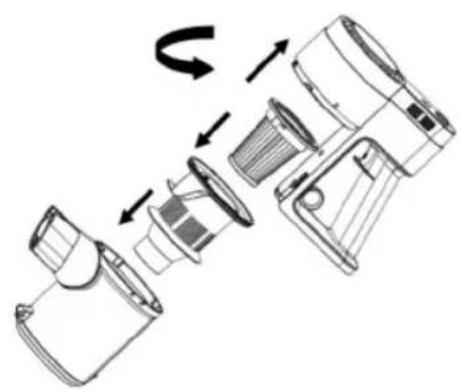

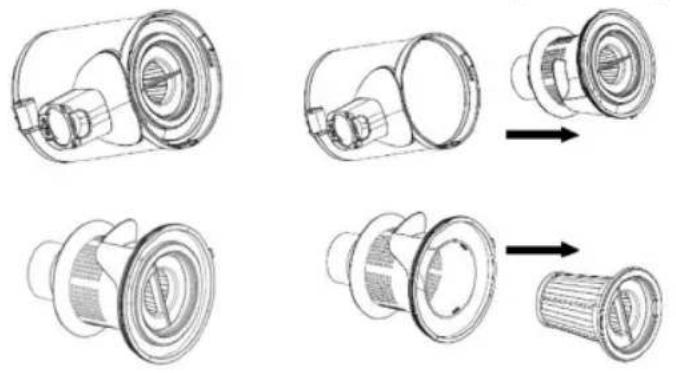

TO REMOVE THE FILTERS:

• Remove the dust bin by turning to the left, as indicated by the arrow and the padlocks on the side of the bin. (Fig.4).
• Remove the filter from its mounting by turning the filter to the left, as indicated by the arrow and the padlocks. (Fig.5).
• To reassemble the filter, proceed with the above instructions, in reverse order.

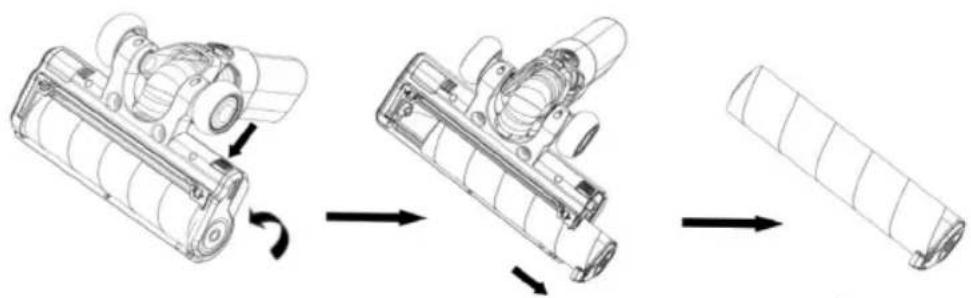

CLEANING THE ROTARY BRUSH:

• To remove the brush:
• At the bottom of the brush, press the button located at the rear to unhook the side part that fixes the brush and pull it out. (Fig.6).
• Remove the brush and clean.
• To reassemble, follow the above instructions but in reverse.

SUPPLIES

• Supplies can be acquired from distributors and authorised establishments (such as filters, etc...) for your appliance model.
• Always use original supplies, designed specifically for your appliance model.
• These supplies are available in specialist shops.

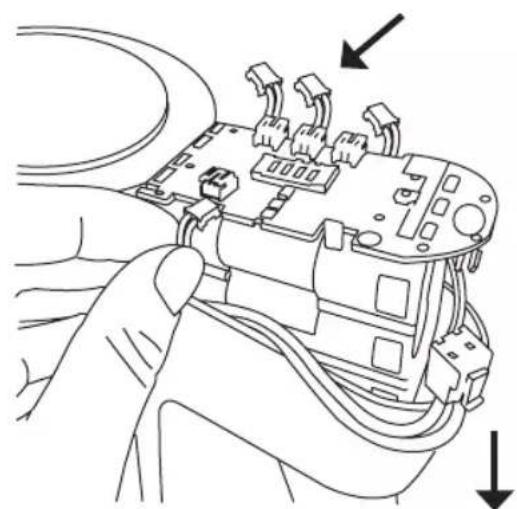

HOW TO REMOVE THE BATTERIES FROM THE INTERIOR OF THE DEVICE:

• CAUTION: It is important that the batteries are fully discharged prior to its withdrawal from the apparatus.
• CAUTION: the appliance must be disconnected from the supply mains when removing the batteries.

TO REMOVE THE BATTERIES, ONCE THE LIFE OF THE APPLIANCE, PROCEED AS FOLLOWS:

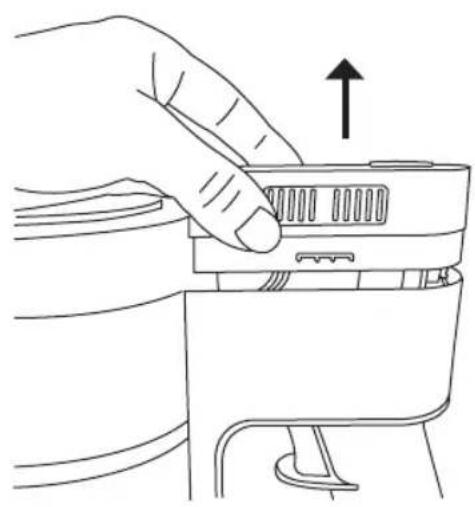

• Remove the upper casing of the appliance, the part located above the handle. To remove the casing, it is necessary to lever the lower part to release the tabs that fix it. (Fig.7).
• Identify the battery and cut the 4 cables connected to the battery. In order to avoid short-circuit risks, protect its conductive part with insulating tape. (Fig.8).
• Safely remove the battery from its housing.
