Product Type	Cylinder Vacuum Cleaner
Model	Exeo 2500
Brand	Taurus
Power Consumption	2500 W
Suction Power	400 Air Watts (approx.)
Dust Container Capacity	2.0 L (bagless)
Filtration System	HEPA 13 washable filter
Cord Length	8 m
Automatic Cord Rewind	Yes
Weight	5.0 kg
Dimensions (L x W x H)	42 x 28 x 32 cm
Operating Radius	10 m (cord + hose)
Noise Level	78 dB (A)
Color	Black/Red
Included Accessories	Crevice nozzle, upholstery brush, combination brush, floor nozzle
Variable Power Control	Yes, on handle
Dustbin Full Indicator	Yes
Filter Cleaning	Washable HEPA filter
Tube Material	Metal telescopic
Hose Length	1.5 m
Parking/Storage	Horizontal parking position
Warranty	2 years

Frequently Asked Questions - Exeo 2500 TAURUS

How to empty the dust bin?

Press the release button on the dust container and remove it. Hold over a trash bin, press the bottom flap to open and empty contents. Do not use water on the motor protection filter.

How to clean the HEPA filter?

Remove the filter from the vacuum. Tap it gently to remove dust. If heavily soiled, wash it under cold running water. Dry completely for 24 hours before reinserting.

How often should the filter be replaced?

The HEPA filter should be replaced every 6-12 months depending on usage. A dirty filter reduces suction and motor life.

What accessories can I use for hard floors?

Use the provided combination brush with the bristles extended to avoid scratches. Alternatively, use the dedicated hard floor nozzle if available.

Why is my vacuum losing suction?

Check for blockages in the hose, tube, or floor nozzle. Also, ensure the dust bin is not full and the filter is clean. Clogged filters are the most common cause.

How do I rewind the power cord?

Hold the plug and press the cord rewind button on the vacuum. Guide the cord evenly to avoid tangling. Do not release the plug while rewinding.

Can the vacuum be used on carpets?

Yes, it is suitable for low to medium pile carpets. Set the floor nozzle to the appropriate height or use the carpet setting if available.

How to store the vacuum cleaner?

Park the floor nozzle in the designated horizontal parking position on the back of the vacuum. Wrap the cord around the hooks and store in a dry place.

What does the dustbin full indicator mean?

When the indicator turns red, the dust bin is full or airflow is restricted. Empty the bin and clean the filter to restore performance.

How to clean the hose if blocked?

Disconnect the hose from the vacuum and tube. Use a long object like a broom handle to gently push out the blockage. Do not use sharp objects.

USER MANUAL Exeo 2500 TAURUS

Line drawing of a vacuum cleaner with mesh insulation and circular housing (no text or symbols)

Line drawing of a hand inserting a component into a device, with arrows indicating direction (no text or symbols)

Fig.2Fig.1 / 3

Line drawing of a hand holding a device with an arrow indicating rotation (no text or symbols)

Fig.4 Fig.5

Bagless Vacuum cleaner Exeo 2500

i

Dear customer,

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Description

A Vacuum cleaner base
B Extendable tube
C Hose set
D Manual air regulator
E Hose head
F Automatic cord rewind
G On/off switch
H Transportation handle
I Deposit
J Extraction button for deposit
K Opening button for deposit
L Wheels
M Plug housing
N Lance + Multi-use brush
O Grill outlet filter
P Outlet filter
Q Motor filter

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

!

Safety advice and warnings

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions may result in an accident.

Electric safety:

• Do not use the appliance if the cable or plug is damaged.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Connect the appliance to a base

with an earth socket withstanding a minimum of 10 amperes.

• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not use or store the appliance outdoors.
• Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• CAUTION: Maintain the appliance dry.
• Do not force the electrical wire. Never use the electric wire to lift up, carry or unplug the appliance.
• Ensure that the electric cable does not get trapped or tangled.
• Do not allow the connection cable to come into contact with the appliance's hot surfaces.
• Do not allow the connection cable to hang or to come into contact with the appliance's hot

surfaces.

• Check the condition of the electrical connection cable. Damaged or tangled cables increase the risk of electric shock.
• Do not touch the plug with wet hands.

Use and care:

- Do not use the appliance if its filter(s) are not correctly in place.

- Do not use the appliance if its accessories are not properly fitted.

- Do not use the appliance if the accessories attached to it are defective. Replace them immediately.

- Do not use the appliance to vacuum up water or any other type of liquid.

- Do not use the appliance if the on/off switch does not work.

- Use the appliance handle/s, to catch it or move it.

- Do not use the appliance if it is tipped up and do not turn it over.

- Do not force the appliance's work capacity.

- Respect the MAX level mark.

- Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.

- Unplug the appliance from the mains before replacing any accessory.

- This appliance is for household

use only, not professional or industrial use.

- This appliance can be used by people unused to its handling, disabled people or children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Cleaning and user maintenance shall not be made by children unless they are supervised

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- This appliance should be stored out of reach of children and/or the disabled.

- Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.

- Use the appliance, its accessories and tools in accordance with these instructions. Take working conditions and job to be carried out into consideration. Using the appliance for anything other than its intended use can create hazards.

- Do not operate on areas which contain metal objects such as nails and/or screws.

- Never vacuum hot or sharp objects (cigarette butts, ash, nails,

etc.).

• Use the appliance only for dry working tasks.
• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
• Do not use the appliance on any part of the body of a person or animal.

Service:

• WARNING: There is a risk of fire if the appliance is not cleaned following these instructions.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

Instructions for use

Before use:

• Remove the appliance's protective film.
• Make sure that all the product's packaging has been removed.
• Prepare the appliance according to the function you wish to use.

Vacuuming function:

• Fit the hose unit to the vacuum cleaner's air intake.
• To disconnect the hose unit from the vacuum cleaner, press the two buttons on the hose joint at the same time and pull outwards (Fig. 1).

Insertion of accessories into the appliance's grip:

• The appliance's grip is designed in such a way that it allows the insertion of the following accessories: (use the combination that best meets your requirements)
• Extendable extension tube: Designed to provide access to surfaces which are out of reach and make floor cleaning comfortable, its length can be adjusted by using the adjustment control.

- Lid: Specially designed for cleaning floors (both rugs, carpets and hard floors), its base has a retractable brush that can be adjusted to two heights for greater efficiency on these floors.

- Lance: Specially designed for getting into cracks and difficult corners.

- Upholstery brush: Especially suitable for cleaning textile surfaces.

Use:

• Take the length of cable required out of the housing.
• Connect the appliance to the mains.
• Turn the appliance on using the on/off switch.

Once you have finished using the appliance:

- Turn the appliance off, using the on/off switch.

- Unplug the appliance to the mains.

- Retract the cable by pressing the roller cable button and guide the cable into the appliance.

- Clean the appliance

Cord housing

- This appliance has a cable compartment situated on its posterior.

Carry handle/s:

- The device has a handle on the upper part so it can be transported easily and comfortably.

Parking position:

• This appliance has one parking position for comfortable and straightforward storage.
• To use the horizontal parking position, fix the break pad hook to the hook situated on the rear side of the appliance (Fig. 2)

Safety thermal protector:

- The appliance has a safety device, which protects the appliance from overheating.

- If the appliance turns itself off and does not switch itself on again, disconnect it from the mains supply, and wait for approximately 45 minutes before reconnecting.

If the machine does not start again seek authorised technical assistance.

Cleaning

• Disconnect the appliance from the mains and let it cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.

Emptying the dust box:

• Empty the vacuum deposit when dust is visible though the transparent walls, when it is full, or when the vacuum cleaner does not work to its full potential.
• In all cases, empty the deposit when the deposit full indicator shows completely red.
• Disconnect the hose from the vacuum cleaner's air intake. (Fig 3)
• Disconnect the dust box from the appliance. (Fig. 4)
• Open the lid of the dust box and empty the contents into the appropriate waste disposal receptacle.
• Close the lid of the dust box.
• Attach the dust box to the appliance.
• Connect the hose to the vacuum cleaner's air intake.

Changing the filters:

• Motor filter, it is advisable to be changed at least once a year or every 100 hours of the appliance's use.
• HEPA air vent filter (High efficiency air filter that efficiently retains spores, ash, sawdust, pollen...), it is advisable to change it a least once a year or after every 100 hours of use.
• To remove filters:

Motor filter:

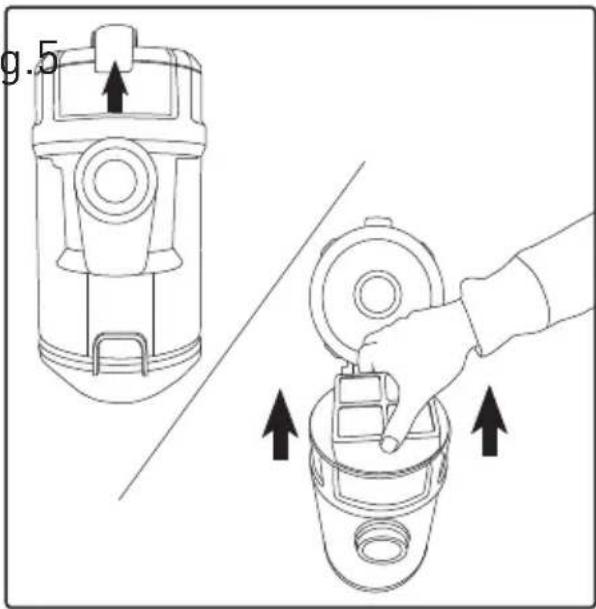

• Disconnect the dust box from the appliance. (Fig. 4)
• The filter motor can be found in the motor's turbine air entrance. (Fig 5).

Outlet filter:

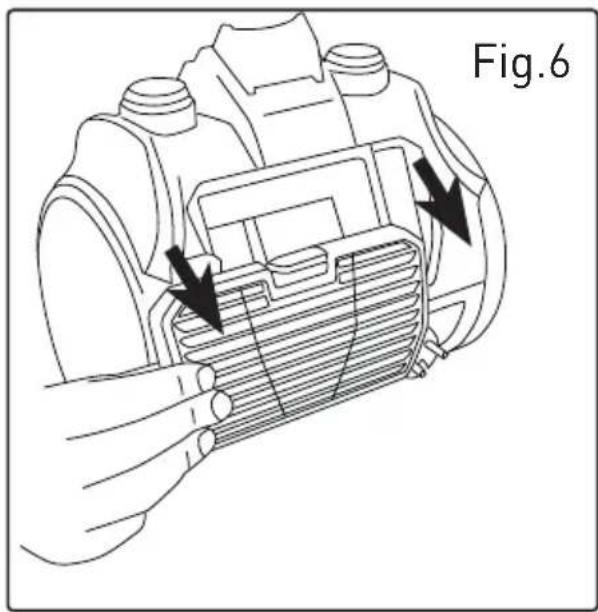

• The outlet filter is located at the back of the vacuum cleaner. Remove the part which fixes the filter. (Fig.6)
• Remove the filter from its housing.
• To reassemble the filter, proceed with the above instructions, in reverse order.

Supplies

• Supplies can be acquired from distributors and authorised establishments (such as filters, etc.) for your appliance model.
• Always use original supplies, designed specifically for your appliance model.

Anomalies and repair

• Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.
• If the connection to the mains has been damaged, it must be replaced and you should proceed as you would in the case of damage.

For EU product versions and/or in case that it is requested in your country:

Ecology and recyclability of the product

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.

The product does not contain concentrations of substances that could be considered harmful to the environment

- This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

This appliance complies with Directive 2006/95/EC on Low Voltage and Directive 2004/108/EC on Electromagnetic Compatibility.

- The following information concerns the energy labelling and the ecological design:

Fact sheet
Trademark	TAURUS
Model	EXEO 2500
Energy efficiency class	A
Annual energy consumptionTarget annual energy consumption (kWh per year) calculated based on 50 cleaning sessions The real annual energy consumption will depend on how the appliance is used	23,7 kWh/year
Class of rugs and carpets cleaning power	E
Class of hard floors cleaning power	A
Class of (re-)emission of dust	A
Sound power level	88 dB
Nominal input power	80 0 W

To determine the compliance with the requirements of ecological design and to calculate the energy labelling parameters, the appliance is considered as a general use vacuum cleaner and European Regulation EN 60312-1 is taken as reference.
