Ideal Lithium Cross ID All-Over - Vacuum Cleaner TAURUS - Free user manual and instructions

Product Type	Cordless Stick Vacuum Cleaner
Brand	Taurus
Model	Ideal Lithium Cross ID All-Over
Power Supply	Rechargeable lithium battery
Charging Time	3 to 4 hours (first charge: 5 hours recommended)
Filters	HEPA filter + metal filter
Dust container capacity	Approximately 0.5 L (estimate)
Speeds	2 speeds
Included accessories	2-in-1 brush (furniture brush and crevice tool), long nozzle, telescopic tube, wall mount
Weight	Approximately 2.5 kg (estimate)
Dimensions (L x W x H)	Approximately 25 x 15 x 110 cm (estimate)
Use	Dry vacuuming only
Filter maintenance	Clean regularly, replace HEPA filter every 50 hours of use
Cleaning	Damp cloth, do not immerse
Safety	Do not vacuum liquids, incandescent or sharp objects
Warranty	In accordance with current legislation, Taurus approved technical service
Repairability	Spare parts available from authorized services

Frequently Asked Questions - Ideal Lithium Cross ID All-Over TAURUS

How to charge the battery for the first time?

Before first use, fully charge the battery for about 5 hours. Plug the charger into the appliance and into the mains. The indicator lights up during charging.

What is the battery life of the vacuum cleaner?

Battery life is not specified in the manual. To optimize battery lifespan, it is recommended to charge it only when fully discharged.

How to attach the wall mount?

Attach the wall mount (C) to the wall using the provided screws and wall plugs or strong adhesives. Make sure it supports at least twice the weight of the vacuum cleaner. For use without the mount, unscrew the rear cover (D) and plug the charger directly into the appliance.

How to empty the dust container?

Press the container release button (T) and turn the container in the direction of the arrows to remove it. Open the lid and empty the contents into a trash bin.

How to clean or replace the HEPA filter?

Remove the dust container, then the cyclone. Gently turn the HEPA filter to the right to release it. Remove the protector. Clean or replace the filter. Reassemble in reverse order. Replace the filter every 50 hours of use.

How to remove the rotating brush?

On the lower part of the base, turn the knob to the left until the brush detaches. Clean it and reassemble by turning to the right.

Can I use the vacuum cleaner to vacuum liquids?

No, the appliance is designed only for dry vacuuming. Never vacuum water or liquids.

How to remove the battery at the end of its life?

Make sure the battery is fully discharged and the appliance is unplugged. Pull the battery upward to remove it from its compartment (Fig. 11). Follow local recycling instructions.

What to do if suction power decreases?

Check that the dust container is not full and that the filters are clean. Clean or replace the HEPA filter if necessary. Empty the container and remove any blockages in the tube or brush.

Where can I find accessories or spare parts?

Contact authorized Taurus distributors or visit the website taurus-home.com to find the nearest technical service. Always use original accessories.

USER MANUAL Ideal Lithium Cross ID All-Over TAURUS

Stick vacuum cleaner

Aspirateur balai

Bodenstaubsauger

Scopa elettrica

Aspirador vertical

Aspirador escombra

Steelstofzuiger

Szczotka odkurzacz

Ηλεκτρική σκούπα

Line drawing of a vacuum cleaner with handle and base mount (no text or symbols)

Fig.2Fig.1

Fig.3

Fig.4

Line drawing of a hand holding a device with a black arrow indicating rotation (no text or symbols)

Illustration of hands performing a mechanical manipulation or dissection (no text or symbols)

Line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Español

Aspirador escoba Ideal Lithium Cross Id All-Over

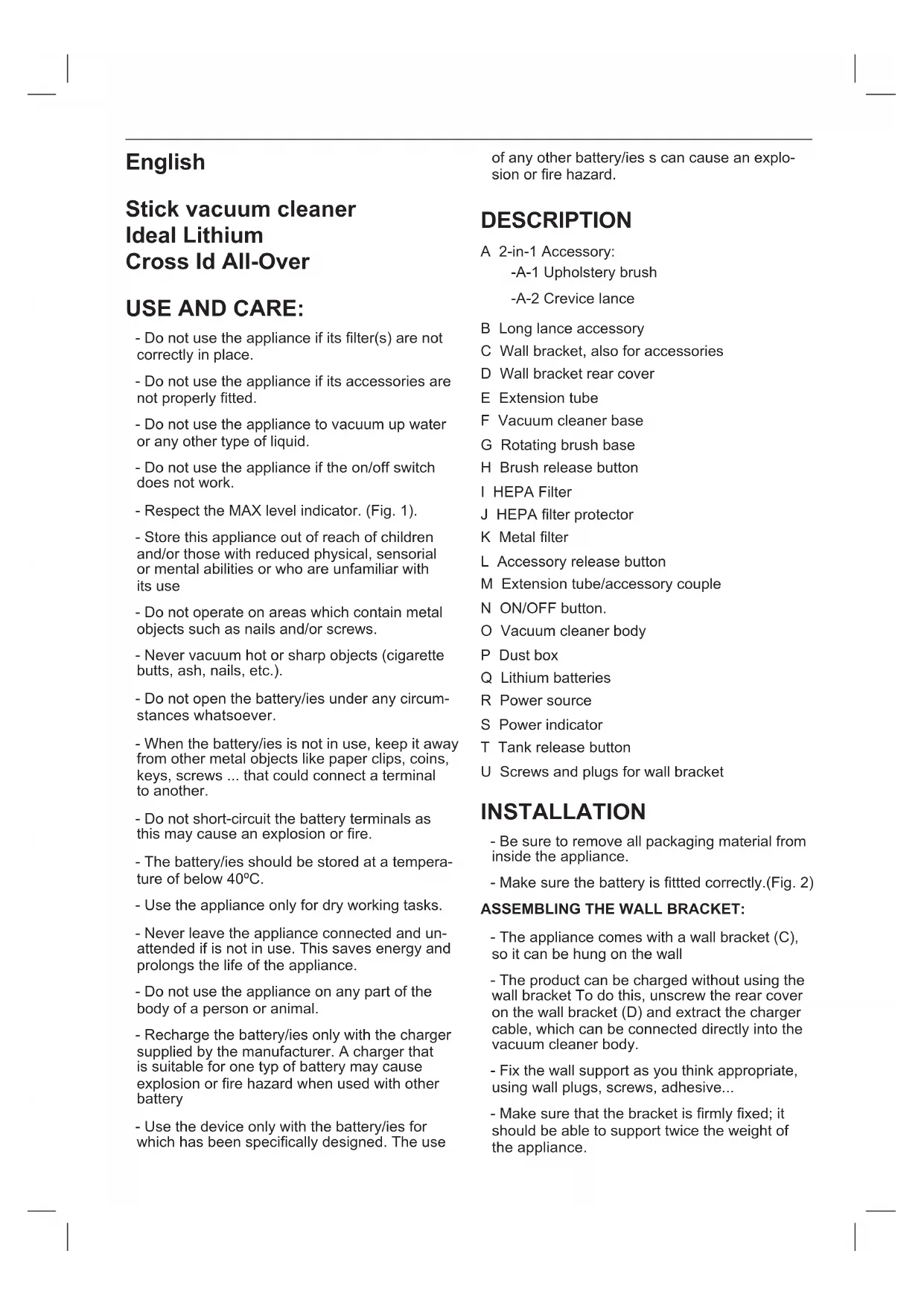

Stick vacuum cleaner Ideal Lithium Cross Id All-Over

USE AND CARE:

- Do not use the appliance if its filter(s) are not correctly in place.

- Do not use the appliance if its accessories are not properly fitted.

- Do not use the appliance to vacuum up water or any other type of liquid.

- Do not use the appliance if the on/off switch does not work.

- Respect the MAX level indicator. (Fig. 1).

- Store this appliance out of reach of children and/or those with reduced physical, sensorial or mental abilities or who are unfamiliar with its use

- Do not operate on areas which contain metal objects such as nails and/or screws.

- Never vacuum hot or sharp objects (cigarette butts, ash, nails, etc.).

- Do not open the battery/ies under any circumstances whatsoever.

- When the battery/ies is not in use, keep it away from other metal objects like paper clips, coins, keys, screws ... that could connect a terminal to another.

- Do not short-circuit the battery terminals as this may cause an explosion or fire.

- The battery/ies should be stored at a temperature of below 40^ C.

- Use the appliance only for dry working tasks.

- Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

- Do not use the appliance on any part of the body of a person or animal.

- Recharge the battery/ies only with the charger supplied by the manufacturer. A charger that is suitable for one typ of battery may cause explosion or fire hazard when used with other battery

- Use the device only with the battery/ies for which has been specifically designed. The use

of any other battery/ies s can cause an explosion or fire hazard.

DESCRIPTION

A 2-in-1 Accessory:

-A-1 Upholstery brush

-A-2 Crevice lance

B Long lance accessory

C Wall bracket, also for accessories

D Wall bracket rear cover

E Extension tube

F Vacuum cleaner base

G Rotating brush base

H Brush release button

I HEPA Filter

J HEPA filter protector

K Metal filter

L Accessory release button

M Extension tube/accessory couple

N ON/OFF button.

O Vacuum cleaner body

P Dust box

Q Lithium batteries

R Power source

S Power indicator

T Tank release button

U Screws and plugs for wall bracket

INSTALLATION

- Be sure to remove all packaging material from inside the appliance.

- Make sure the battery is fitted correctly.(Fig. 2)

ASSEMBLING THE WALL BRACKET:

- The appliance comes with a wall bracket (C), so it can be hung on the wall

- The product can be charged without using the wall bracket To do this, unscrew the rear cover on the wall bracket (D) and extract the charger cable, which can be connected directly into the vacuum cleaner body.

- Fix the wall support as you think appropriate, using wall plugs, screws, adhesive...

- Make sure that the bracket is firmly fixed; it should be able to support twice the weight of the appliance.

- Fit the appliance into the wall support.

CHARGING THE BATTERY

• Caution: The new battery does not come completely charged and must be charged up to the maximum before using the appliance for the first time.
• Charge the battery at room temperature between 4 and 40°C.
• Plug the charger(R) into the mains.
  -- Approximately 3-4 hours are needed for a complete charge of the battery. Never attempt to over charge the battery (although it is recommended that the first charge of the battery be of 5 hours in duration).
• Connect the charger to the jack using the socket on the appliance. The socket is located at the lower/back part of the appliance.
• While the battery is charging, the pilot light will come on indicating that the charger is charging the battery.
• After the specified time, remove the battery from the charger.
• When the battery is charged disconnect the charger from the mains supply.
• Note: Do not use the appliance while it is connected to the charger.
• Note: For a long battery life, it is advisable to charge the battery, only, when it has run out completely.

INSTRUCTIONS FOR USE

BEFORE USE:

• Before using this product for the first time, it is important to make a full charge of batteries.
• Prepare the appliance according to the function you wish to use.

VACUUMING FUNCTION:

• Attach the vacuum's air intake tube and the brush base to the end of the extension tube(E).
• To uncouple the extension tube from the vacuum, press the accessory release button (L) and pull outward. (Fig. 3).

USE:

• Turn the appliance on using the on/off button. (N)
• The "on" light on the brush base and the battery indicator will both light.

- Select the desired speed (1 / 2) by pressing the on/off button once or twice. Pressing the button 3 times switches the appliance off.

FITTING AN ACCESSORY TO THE HAND-HELD VACUUM CLEANER OR EXTENSION TUBE:

• The hand-held vacuum cleaner and the extension tube are designed in such a way to allow the following accessories to be fitted: (use the combination that best meets your requirements). (Fig. 4).
• 2-in-1 Accessory:

-A-1 Upholstery brush

-A-2 Crevice lance

- Long lance

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Turn the appliance off, using the on/off switch.
• Remove the batteries from the appliance if you are not going to use it for some time.
• Clean the appliance

CLEANING

• Disconnect the charger from the mains and let it cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, to clean the appliance.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.

• Empty the vacuum deposit when dust is visible though the transparent walls, when it is full, or when the vacuum cleaner does not work to its full potential.
• Disconnect the accessories from the vacuum cleaner's air intake. (Fig. 5).
• Open the lid of the dust box and empty the contents into the appropriate waste disposal receptacle. (Fig. 6).

CHANGING THE FILTERS:

- HEPA type dust box filter (High efficiency air filter that efficiently retains spores, ash, sawdust, pollen...), it is advisable to periodically check the condition of the filter and change it after every 50 hours of use.

TO REMOVE THE FILTERS:

• Uncouple the appliance's dust box by pressing the dust box release button (T) and turning the box in the direction shown by the arrows. (Fig. 7).
• Remove the cyclone from its housing. (Fig. 8).
• To remove the HEPA filter, turn it slightly to the right to free it from the cyclone. (Fig. 9)
• Remove the HEPA filter protector
• To reassemble the filter, proceed with the above instructions, in reverse order.
• Be sure to put the protector back on the HEPA filter

TO REMOVE THE BRUSH:

• Move the button at the bottom of the brush base outward to release the brush. (Fig. 10).
• Remove the brush and clean.
• To reassemble, follow the above instructions but in reverse.

SUPPLIES

• Supplies can be acquired from distributors and authorized establishments (such as filters, etc.) for your appliance model.
• Always use original supplies, designed specifically for your appliance model.

HOW TO REMOVE THE BATTERIES FROM THE INTERIOR OF THE DEVICE:

• Caution: It is important that the batteries are fully discharged prior to its withdrawal from the apparatus.
• Caution: the appliance must be disconnected from the mains when removing the batteries.

TO REMOVE THE BATTERIES, ONCE THE LIFE OF THE APPLIANCE, PROCEED AS FOLLOWS:

- Pull the battery upward to remove it from its housing. (Fig. 11).

Français

Aspirateur balai

Ideal Lithium Cross Id All-Over

Ideal Lithium Cross Id All-Over

GEBRUIK EN ONDERHOUD:

J Bescherming HEPA filter

K Metaalfilter

Q Akumulatory litowe

R Zasilacz

Aspirator vertical Ideal Lithium Cross Id All-Over

UTILIZARE ŞI İNGRIJIRE:

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/

Français

GARANTIE ET ASSISTANCE TECHNIQUE

COUNTRY ADDRESS PHONE

Algeria Zone d'Activite, N° 62, Constantine 213770777756
Argentina Av. del Libertador 1298,(B1638BEY), Vicente López (Pcia. Buenos Aires)		541153685223
Belgium Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Benin 359 Av. Steinmetz, 1930, Cotonou 0299-21313798
Bulgaria	265,Okolovrasten Pat, Mladost 4, 1766, Sofia	35929211120 / 35929211193
Burkina Faso Avenue Bassawarga, 01 BP915, Ouagadougou 226 25301038
Congo (Republic of) 98 Blvd General Charles de Gaulle, Pointe Noire 242066776656
Cyprus	20, Bethlehem Str. / P.O.Box 20430, 2033, Strovolos	35722711300
Czech Republic	Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Democratic Republic of the Congo	AV. Pont Canale N° 3440, Kinshasa	00243-991223232
Equatorial Guinea	SN Av Patricio Lumumba y C/ Jesus B, Bata	00240 333 082958 / 00240 333 082453
Equatorial Guinea	Calle de las Naciones Unidas, PO box 762, Malabo	240333082958 / 240333082453
España Avda Barcelona, S/N, 25790 Oliana (Lleida) [e-mail]		902 118 050
Ethiopia Lideta Sub City Kebele 10 H.NO 124, Addis Ababa		[phone]
France	Za les bas musats 18, 89100, Malay-le-Grand	03 86 83 90 90
Gabon	BP 574, Port-Gentil Centre-ville	24101552689 / 24101560698
Ghana	Ederick Place, Accra-Ghana	302682448 / 302682404
Gibraltar 11 Horse Barrack Lane, 54000, Gibraltar 00350 200 75397 / 00350 200
		41023
Greece Sapfous 7-9, 10553, Athens [phone]
Guinea BP 206, GN, Conakry (224) 622204545
Hong Kong Unit H,13/F., World Tech Centre, Hong kong (852) 2448 0116 / 9197 3519
Hungary Késmárk utca 11-13, 1158, Budapest [phone]
India C-175, Sector-63, Noida, Gautam Budh Nagar - 201301, Delhi		([phone]
Ivory Coast 01 Rue Des Carrossiers-Zone 3, B.P 3747, Abidjan 01 (RCI)		22521251820 / 225 21 353494
Jordan 28 Basman St Down town, Amman [phone]
Kuwait	P.O. BOX 3379 hawally, 32034, Hawally	[phone]
Lebanon Damascus Highway; Sciale Building, Jamhour	9615922963
Luxembourg	Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Mali	BP E2900, Dravela Bolibana	223227216 / 223227259
Marruecos	Big distribution society 4 Rue 13 Lot. Smara Oulfa, Casablanca	([phone]
Mauritania	134 Avenue Gamal Abdener Ilot D, Nouakchott	2225254469 / 2225251258
Mexico Rosas Moreno N° 4-203 Colonia de San Rafael C.P. 06470 – Delegación Cuauhtémoc, Ciudad de México		([phone]
Montenegro	Rastovac bb, 81400, Niksic	[phone]
Netherlands	Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Nigeria 8, Isaac; John Str,G.R.A Ikeja Lagos	23408023360099
Paraguay	Denis Roa 155 c/ Guido Spano, Asunción	21665100
Peru	Calle los Negocios 428, Surquillo, Lima	[phone]
Portugal Avenida Rainha D. Amélia, n°12-B, 1600-677, Lisboa		[phone]
Romania	Dudesti Pantelimon 23, 410554, Bucharest	031.805.49.58
Serbia	Rastovac bb, 81400, Niksic	[phone]
Slovakia Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Southafrica	Unit 25 & 26, San Croy Office Park, Die Agora Road, Croydon, Kempton Park, 1619, Johannesburg	([phone]
Tunisia	2, Rue de Turquie, Tunis	21671333066
Ukraine	Block 6, Ap Housing Estate Topol-2, B, 49000, Dnepropetrovsk	380563704161 / 380563704161
United Arab Emirates	P.O.BOX 8543, Dubai	14506246200
Uruguay	Luis Alberto de Herrera 3468, 11600, Montevideo	598 2209 28 00
Vietnam Lot 7 Ind. Zone for, Ha Noi		84437658111 / 84437658110

_

| _

一

1
