USER MANUAL Black Xtreme Artica NGS

for Tablets & Phones

NGS

Tablets & phones

XTREME ARTICA

USER'S MANUAL

ENGLISH | FRANÇAIS | ESPÁNOL | DEUTSCH | ITALIANO | PORTUGUES | POLSKI

WWW.NGS.EU

USER'S MANUAL

NGS.

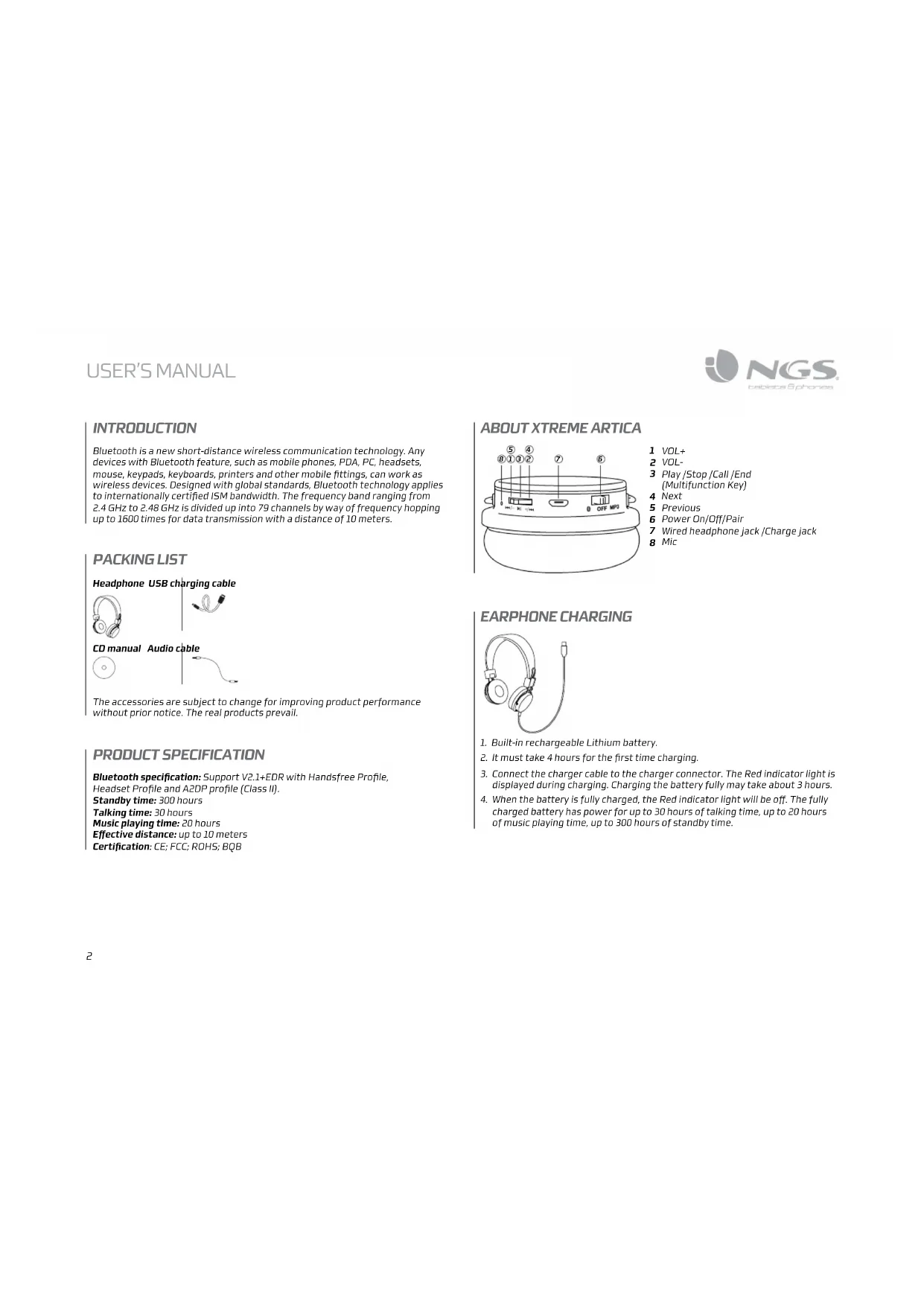

INTRODUCTION

Bluetooth is a new short-distance wireless communication technology. Any devices with Bluetooth feature, such as mobile phones, PDA, PC, headsets, mouse, keypads, keyboards, printers and other mobile fittings, can work as wireless devices. Designed with global standards, Bluetooth technology applies to internationally certified ISM bandwidth. The frequency band ranging from 2.4 GHz to 2.48 GHz is divided up into 79 channels by way of frequency hopping up to 1800 times for data transmission with a distance of 10 meters.

PACKING LIST

Headphone USB charging cable

nual Audio cable

The accessories are subject to change for improving product performance without prior notice. The real products prevail.

PRODUCT SPECIFICATION

Bluetooth specification: Support V2.1+EDR with Handsfree Profile, Headset Profile and A2DP profile (Class II).

Standby time: 300 hours

Talking time: 30 hours

Music playing time: 20 hours

Effective distance: up to 10 meters

Certification: CE; FCC; ROHS; BQB

ABOUT XTREME ARTICA

1 VOL+
2 VOL-
3 Play/Stop/Call/End (Multifunction Key)
4 Next
5 Previous
5 Power On/Off/Pair
7 Wired headphone jack/Charge jack
8 Mic

EARPHONE CHARGING

1. Built-in rechargeable Lithium battery.
2. It must take 4 hours for the first time charging.
3. Connect the charger cable to the charger connector. The Red indicator light is displayed during charging. Charging the battery fully may take about 3 hours.
4. When the battery is fully charged, the Red indicator light will be off. The fully charged battery has power for up to 30 hours of talking time, up to 20 hours of music playing time, up to 300 hours of standby time.

WEARING

1. Move the ON/OFF switch to the Bluetooth position.
2. InOFF position the Bluetooth function will be off, but you can work with the headset with cable.

PAIR THE HEADSET

If your phone supports the A2DP Bluetooth profile and has a music player feature, you can use the phone to make and receive calls, and to play music with the headset.

1. Ensure that your phone or music device is on and the headset is off.
2. Put the switch in "Bluetooth" mark side and when solid blue flash, push multifunction button. Red/Blue lights will flash simultaneously.
3. Activate the Bluetooth feature on your phone or music player, and set it to search for Bluetooth devices.
4. Select the headset Xtreme Artica from the list of founded devices on your phone or music player.
5. Enter the passcode 0000 to pair and connect the headset to your device. If your device does not have a keypad, it may use this passcode by default.
6. When the headset is connected to your device and is ready for use, the Blue indicator light will flash every 2 seconds.

Short press the Multifunction key to receive an incoming call.

Ending a call

Short press the Multifunction key to end a call

Making a call

When you make a call via the mobile phone, the call will be transferred to your headset automatically, depending on the phone setup. If your phone does not support this function, short press the Multifunction key to receive an incoming call.

Voice call activation

If your phone supports this feature with the headset, when no call is in progress, press and hold the multifunction key for about 2 seconds. Proceed as described in the phone user guide...

Redialing the last number

To redial the number you last called(if your phone supports this feature with the headset), when no call is in progress, press the multifunction key twice.

Rejecting a call*

Press the multifunction key twice to reject a call.

Volume control

Press and hold volume "+" or "-" key during a call or when you listen to music to adjust the volume.

Note:

The functions with * mark must be supported by your mobile phone. For more information, refer to the User Manual of your mobile phone.

LISTEN TO MUSIC

To listen to music, pair and connect the headset to a device that supports the A2DP Bluetooth profile. (See "Pair the headset"). To play music, use the playback controls on the connected device. If you answer or make a call while listening to the music, the music will pause until you end the call.

Function

Description

Play or Pause Press the multifunction key

Music volume Press and hold the "+" key volume increase

Press and hold the "-" key volume decrease

Previous Press the

Next Press the

WIRED HEADPHONE

When connecting with audio cable, Xtreme Artica can be used as a normal.
headphone, it can be connected with earphone audio output facilities such as MP3, MP4.

The built-in microphone doesn't work at this time.
The ON/OFF switch has to be in off position to work like a wired headphone.

TROUBLESHOOTING

Continuous cracking noise

To obtain perfect sound quality, please don't take earphone away too much from mobilephone.

Unable to hear any sound

• Press the Volume+button on the headset to increase the volume.
• Ensure your headset is properly paired with the mobile phone.
• Ensure the headset is connected to the mobile phone. If the headset is not connected to the phone via the Bluetooth option, please follow the pairing process to connect them. For details, refer to the part "Pairing the Headset" in this manual.

Unable to connect

The pairing settings between your headset and mobile phone may be deleted. Follow the part "Pairing the Headset" in this manual to pair them again.

Can this device apply to other Bluetooth devices?

• Xtreme Artica Bluetooth headset is designed to pair Bluetooth mobile phones. In addition, it is compatible with Bluetooth Version 1.1, Version 1.2 or 2.0 and supports operations upon other Bluetooth devices.
• Some functions, such as "Rejecting a call", "Redialing", or "Voice dialing", are only available while supported by your mobile phone. Please check the phone manual for further information.

MAINTAIN YOUR EARPHONE

• Store the device after it is power off. Keep it away from extreme temperature (45^ / 113^ above, including direct sunlight or 10^ / 14^ below) for storage. Otherwise it may shorten the service life of the battery and harm the operation.
• High temperature may also damage the product performance. If the device contacts water or other liquids, wipe away the water stains on the device.

PROTECT YOUR HEARING

The headset is able to provide extreme high volume and sharp tone. Exposure to such a sound may cause permanent hearing impairment. The volume level may differ due to your phone settings, the answering and volume settings, and the environmental factors. Before using this device, please read the safety guide below.

Safety guide

Perform the following steps before use:

• Minimize the volume before wearing the headset. Then, adjust the volume to a proper level slowly after you wear it.
• During operation, keep the volume as low as possible. Avoid using the device in noisy surroundings, as you may have to increase the volume. If you have to increase the volume, control the speed for volume adjusting.

Others

If you feel uncomfortable or a drumming in your ears, stop using the headset and seek medical assistance immediately.
Continuous exposure to high volume may have you adapted to the volume level. This may result in permanent hearing loss without causing discomfort

Note:

• It is dangerous and illegal (in some jurisdictions) to use the headset when you are driving a car, a motorcycle, ship, or a bike. Acquaint yourself with the local laws and regulations. If you have to use the headset while working on activities that require attention to be focused on, be careful. In this case, take off the headset or turn it off to avoid distraction, and thus the occurrence of accidents or hurts.
• Keeping the device out of the reach of small children:

The packing products and the plastic bags for the accessories are not toys. The bag itself and those small fittings inside may cause suffocation. Do not attempt to disassemble the device. No parts embedded can be replaced or repaired by users. Only authorized dealers or maintenance centers can disassemble this product Forchanges of any parts due to any reasons, including normal wear, break, or damages, contact your dealer.

• Keep the product away from raindrops or other liquids.
  Do not use your headset at areas with flammable gases. This may cause a fire.

WARRANTY

Limited warranty. NGS warrants that any hardware products accompanying this documentation shall be free from significant defects in material and workmanship (or a period of two (2) years, three (3) years or five (5) years from the date of purchase. NGS's limited warranty is non-transferable and is limited to the original purchaser. This warranty gives you specific legal rights, and you may also have other rights, which vary under local laws.
Remedies. NGS's entire liability and the user's exclusive remedy for any breach of warranty shall be, at NGS's option, to: (a) repair or replace the hardware, or (b) refund the price paid, provided that the hardware is returned to the point of purchase or such other place as NGS may direct, with a copy of the sales receipt. Any replacement hardware will be warranted for the remainder of the original warranty period. These remedies are void if failure of the hardware has resulted from accident, abuse, misapplication, or any unauthorized repair, modification or disassembly. Besides, as it regards wireless devices, such remedies are void if the batteries used are different from those recommended by NGS. On request of NGS, the user shall provide a dated proof of original purchase or a dated summary invoice.
Disclaimer of warranty. The warranties expressly set forth in this agreement replace all other warranties. NGS and its suppliers expressly disclaim all other warranties, including, but not limited to, the implied warranties of merchantability and fitness (or a particular purpose and noninfringement of third-party rights with respect to the hardware, software, documentation and any other materials provided by NGS or its suppliers, and any warranties of non-interference or accuracy of informational content. No NGS dealer, agent, or employee is authorized to make any modification, extension, or addition to this warranty. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Limitation of liability. In no event will NGS or its suppliers be liable for any costs of procurement of substitute products or services, lost profits, loss of information or data, or any other special, indirect, consequential, or incidental damages arising in any way out of the sale of, use of, or inability to use any NGS product or service, even if NGS has been advised of the possibility of such damages. In no case shall NGS and its suppliers' total liability exceed the actual money paid for the NGS producer or service giving rise to the liability. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. The above limitations will not apply in case of personal injury where and to the extent that applicable law requires such liability.
Returns Procedure. Any item to be returned or exchanged, other than those that are processed through the seller or dealer for services, please directly contact NGS. You will find NGS disclaimer's address and phone numbers on the provided documentation, and on NGS website www.ngs.eu.

If at any time in the future you should need to dispose of this product please note that:

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.

Check with your Local Authority or retailer for recycling advice.

(Waste Electrical and Electronic Equipment Directive)
