Product type	Bluetooth over-ear headset
Brand	NGS
Model	Artica Greed
Color	Available in multiple colors (not specified)
Connectivity	Bluetooth 5.0
Bluetooth range	Up to 10 meters
Battery	Rechargeable lithium-ion 200 mAh / 3.7 V
Charging time	2 hours
Battery life (playback)	Up to 12 hours at 50% volume, 10 hours at 70%, 7 hours at 100%
Operating frequency	2402-2480 MHz
Max RF power	2.29 dBm
Microphone	Built-in
Charging port	USB Type-C (assumed)
Jack connector	3.5 mm
Controls	Multifunction buttons: volume, track, play/pause, call management
Compatibility	Smartphones, tablets, PC
Included accessories	USB cable, 3.5 mm audio cable, user manual
Warranty	2 years (product), 1 year (battery)
Standards	CE, RoHS, WEEE
Weight	Approximately 180 g (estimated)

Frequently Asked Questions - Artica Greed NGS

How to turn the headset on and off?

To turn on, press the multifunction button (2) for about 2 seconds until the LED flashes. To turn off, press again for 2 seconds. The LED turns off.

How to pair the headset with my phone?

Make sure the headset is off, then press the multifunction button for about 5 seconds until the LED alternates between blue and red. Enable Bluetooth on your phone and select 'NGS Artica Greed' from the device list.

How to charge the battery?

Connect the provided USB cable to the charging port (4) of the headset and to a USB power source. The LED turns solid red during charging and turns off when the battery is fully charged. Charging time is about 2 hours.

What is the battery life of the headset?

Battery life depends on listening volume: up to 12 hours at 50% volume, 10 hours at 70%, and 7 hours at 100% volume.

What to do if the headset does not turn on?

First check that the battery is charged. Plug the headset into the charger for a few minutes. If the LED does not turn on, try another USB cable or power source. If the problem persists, contact customer service.

How to adjust the volume?

Use the + and - buttons: press the next track button (6) to increase volume, and the previous track button (8) to decrease volume. You can also adjust the volume from your phone.

Can I use the headset with a cable?

Yes, the headset has a 3.5 mm jack connector (5). Plug in the provided audio cable for wired use, even if the battery is depleted.

How to clean the headset?

Use a soft, slightly damp cloth to clean the surfaces. Do not use solvents or abrasive products. Do not immerse the device in water.

Is the headset water-resistant?

No, the headset is not designed to be water-resistant. Avoid any exposure to moisture, rain, or splashes to prevent damage.

How to reset the headset?

To reset, make sure the headset is off, then simultaneously press and hold the next track (6) and previous track (8) buttons for about 5 seconds until the LED flashes quickly. The headset will restart and can be re-paired.

USER MANUAL Artica Greed NGS

STEREO HEADPHONE COMPATIBLE WITH BLUETOOTH

ENGLISH I FRANÇAIS I ESPAÑOL I DEUTSCH I ITALIANO I PORTUGUÊS

POLSKI I NEDERLANDS I ČEŠTINA I SLOVENČINA I EΛΛΗΝΙΚΑ I MAGYAR

SLOVENŠČINA I NORSK I SUOMI I SVENSKA I DANSK I LIETUVIŲ

www.ngs.eu

USER'S MANUAL

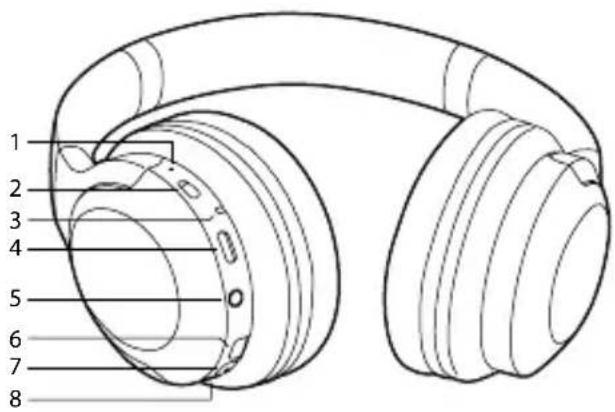

OVERVIEW

ARTICA GREED STEREO HEADPHONE COMPATIBLE WITH BLUETOOTH

Welcome to use these Bluetooth headphone, Artica Greed. Please read this user's manual carefully before using it.

1 2 3 4 5 6 7 8

1 Microphone
2 On / Off
3 LED indicator
4 USB charging port
5 3.5mm jack
6 Next track / Volume up
7 Play/pause, answer/end calls Double click: Re-dial last dialed phone number Press & hold (1-2 sec): Reject incoming call
8 Previous track / Volume down

CHARGE STATUS

First time charging

Before you use these Bluetooth headphone, please charge the battery fully.

Charging indicator light

Charging – LED for charging is a fixed red light Charged – LED off

Simple line drawing of a device connected to a laptop (no text or symbols)

Warning:

1. The battery is recyclable.
2. Do not dispose of the battery in fire, as it may cause explosion.

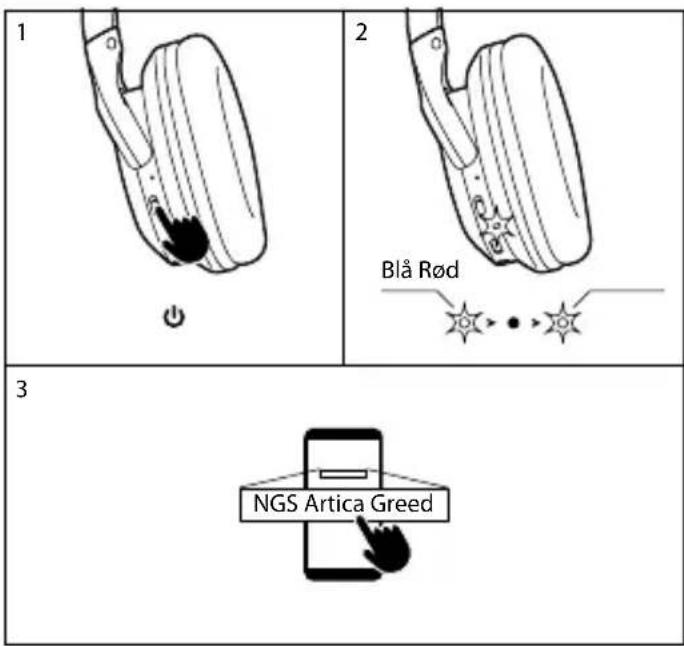

PAIRING HEADPHONE WITH BLUETOOTH DEVICES

1 2 Blue Red 3 NGS Artica Greed

USER'S MANUAL

MULTIFUNCTION BUTTON CONTROLS

	x1
	2s		2s
	x1		2s
	x1		x1

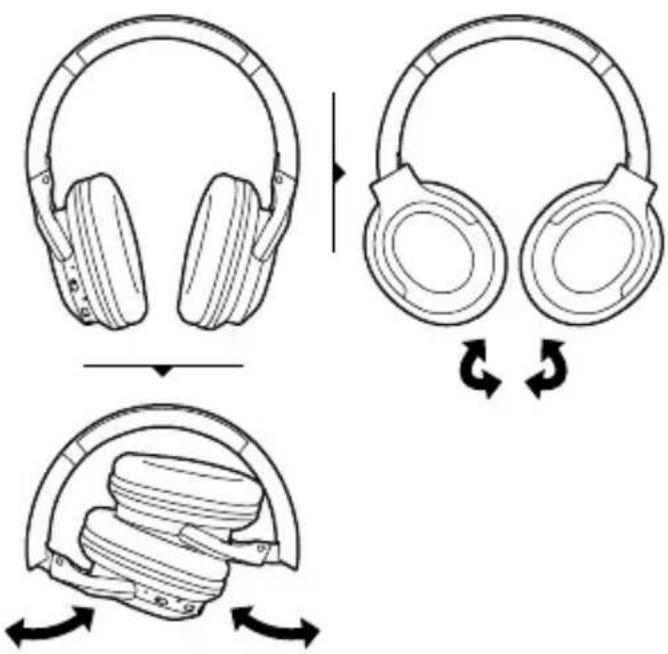

HOW TO USE

Diagram illustrating the three-step installation of a multi-band耳机 headset, showing head, front, and side views with rotation arrows.

ENGLISH

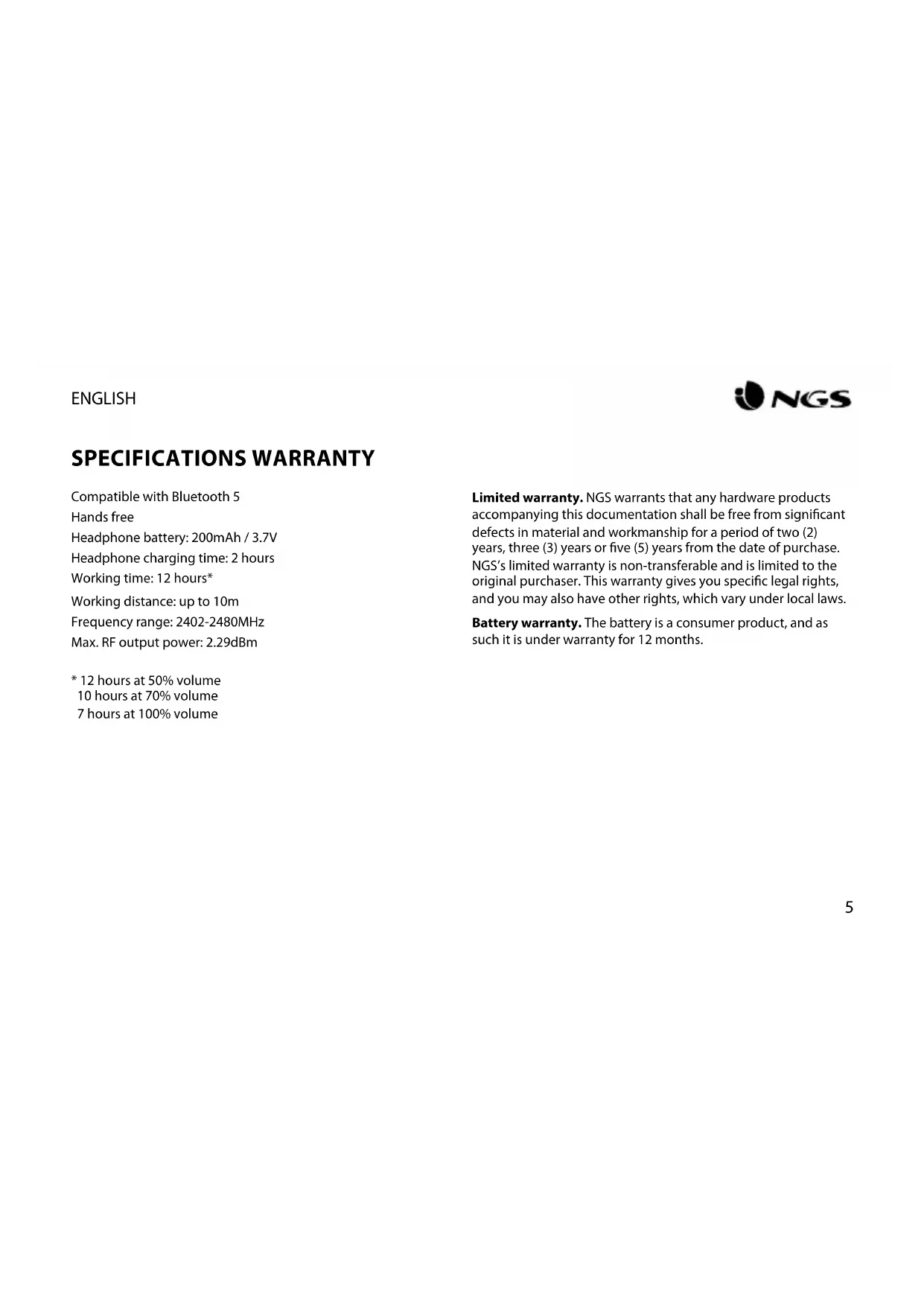

SPECIFICATIONS WARRANTY

Compatible with Bluetooth 5

Hands free

Headphone battery: 200mAh / 3.7V

Headphone charging time: 2 hours

Working time: 12 hours*

Working distance: up to 10m

Frequency range: 2402-2480MHz

Max. RF output power: 2.29dBm

* 12 hours at 50% volume

10 hours at 70% volume

7 hours at 100% volume

Limited warranty. NGS warrants that any hardware products accompanying this documentation shall be free from significant defects in material and workmanship for a period of two (2) years, three (3) years or five (5) years from the date of purchase. NGS's limited warranty is non-transferable and is limited to the original purchaser. This warranty gives you specific legal rights, and you may also have other rights, which vary under local laws.

Battery warranty. The battery is a consumer product, and as such it is under warranty for 12 months.

USER'S MANUAL

SECURITY

IMPORTANT SAFETY INSTRUCTIONS

For all products:

1. Read and follow the instructions.
2. Keep the instructions in a safe place.
3. Observe the warnings.
4. Do not block the ventilation openings. Install according to the instructions.
5. Do not install near any heat sources such as radiators, heating vents, stoves, or other appliances (including amplifiers) that generate heat.
6. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
7. Avoid stepping on or pinching the power cord, especially at plugs, outlets, and the point where it exits the product.
8. Use only the accessories and auxiliary products specified in the product.
9. Take care when transporting the product to prevent damage.
10. Unplug the device during thunderstorms or when not in use for an extended period.
11. To completely disconnect the device from the power supply, unplug the power cord plug from the AC receptacle.
12. The mains plug of the power cord should remain readily accessible.

13. Do not expose batteries to excessive heat such as direct sunlight or fire, as well as moisture in the area where you intend to use and/or store it.

14. This device is intended for use only with the power supply and/or charging cable provided by the manufacturer.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN

The symbol refers to "dangerous voltage" inside the product's cabinet that, when misused and disassembled, may result in electric shock to people.

The symbol refers to "Important instructions" for operation and maintenance (repairs).

WARNING: To reduce the risk of fire or electric shock, do not expose this device to rain or moisture.

FOR ALL EUROPEAN UNION COUNTRIES:

For products including audio output

Hearing loss prevention

Caution: Hearing loss may occur if headphones or earphones are used at high volume for extended periods. The products have been tested to verify compliance with the sound pressure level requirements established in the applicable standards NF EN 50332-1:2013 and/or EN 50332-2:2013 required by French Article L.5232-1.

Important: To prevent potential hearing damage, do not listen at high volume for extended periods.

This device complies with the European Union requirements (1999/5/EC) related to the limitation of the general public's exposure to electromagnetic fields concerning health protection.

The limits are part of broad recommendations for the protection of the general public. These recommendations have been developed and verified by independent scientific organizations through frequent and thorough assessments of scientific studies. The measurement unit for the European Council's recommended limit for mobile devices is the "Specific Absorption Rate" (SAR), and the average SAR limit is 20 W/kg over 10 grams of body tissue.

Lurbe Grup S.A. complies with the requirements of the International Commission on Non-Ionizing Radiation Protection (ICNIRP).

In the case of body-worn use, this product has been tested and complies with the ICNIRP exposure guidelines and the European standard EN 62479 and EN 50663. The SAR value has been measured with the device positioned 1.0 cm away from the body while transmitting at the highest certified output power level across all frequency bands of the mobile device.

WEEE Notice: The Waste Electrical and Electronic Equipment (WEEE) Directive, which came into force as European law on 14/02/2014, addresses the treatment of electronic equipment at the end of its life cycle. Priority is given to reuse, recycling, and other forms of recovery of such waste to minimize disposal. The WEEE logo is the one found in this section.

This product should not be disposed of with household waste. It is your responsibility to properly dispose of all waste from your electrical equipment, and for this purpose, you must take them to the designated collection point for the recycling of such hazardous waste. The separate collection and proper recovery of waste from your electrical and electronic equipment at the time of disposal allows us to help preserve natural resources and ensure the safety of human health and the environment. For more information on disposal, recovery, and collection points for electrical and electronic equipment waste, please contact your local city center, domestic waste disposal service, the store where you purchased the equipment, or the equipment manufacturer.

USER'S MANUAL

Compliance with RoHS requirements.

This product complies with Directive 2011/65/EU and its amendment (EU) 2015/863 of the European Parliament and the Council of June 4, 2015, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

For products that include batteries.

EU Directive 2013/56/EU on batteries.

The new Directive 2013/56/EU on batteries and accumulators, which replaces the previous directive, came into force on 01/07/2015. The directive applies to all types of batteries and accumulators (AA, AAA, button cells, lead-acid, rechargeable), including those incorporated into appliances, except for military, medical, and power tool applications. The directive sets standards for the collection, treatment, recycling, and disposal of batteries and aims to prohibit certain hazardous substances and improve the environmental performance of batteries and all operators in the supply chain.

User instructions for extraction, recycling, and disposal of used batteries.

To remove the batteries from the equipment or remote control, reverse the battery insertion process described in the owner's manual.

In the case of products with built-in batteries that last for the entire product's lifespan, it is not possible for the user to remove the batteries. In these cases, recycling or recovery centers handle the dismantling of the product and the extraction of the batteries. If, for any reason, it is necessary to replace one of these batteries, the procedure must be carried out at authorized service centers.

In the European Union and other locations, it is prohibited to dispose of batteries with household waste. All batteries must be disposed of in an environmentally friendly manner. Please contact local waste management officials for information on safe collection, recycling, and disposal of used batteries.

WARNING: Risk of explosion if the battery is replaced incorrectly. To reduce the risk of fire or burns, do not disassemble, crush, puncture, short-circuit external contacts, expose to temperatures above 60°C (140°F), or dispose of in fire or water. Replace only with specified batteries.

The symbol for separate collection of all batteries and accumulators is shown in this section.

Batteries, accumulators, and button cells containing more than 0.0005% mercury, more than 0.002% cadmium, or more than 0.004% lead will be marked with the relevant chemical symbol: Hg, Cd, or Pb, respectively. Refer to the symbol shown below:

Hg Cd Pb

ENGLISH

MANUEL DE L'UTILISATEUR

APERÇU GENERAL

ARTICA GREED STEREO HEADPHONE COMPATIBLE WITH BLUETOOTH

Simple line drawing of a device connected to a laptop (no text or symbols)

Attention :

Diagram illustrating the three-step installation of a multi-band耳机 headset, showing head, front, and side views with rotation arrows.

FRANÇAIS

CARACTÉRISTIQUES GARANTIE

Compatible Bluetooth 5

Mains libres

ARTICA GREED STEREO HEADPHONE COMPATIBLE WITH BLUETOOTH

Simple line drawing of a device connected to a laptop (no text or symbols)

Precaución:

Diagram illustrating the three-step installation of a multi-band耳机 headset, showing head, front, and side views with rotation arrows.

ESPAÑOL

ESPECIFICACIONES GARANTÍA

ARTICA GREED STEREO HEADPHONE COMPATIBLE WITH BLUETOOTH

Simple line drawing of a device connected to a laptop (no text or symbols)

Warnung:

Diagram illustrating the three-step installation of a multi-band耳机 headset, showing head, front, and side views with rotation arrows.

DEUTSCH

SPEZIFIZIERUNG GARANTIE

ARTICA GREED STEREO HEADPHONE COMPATIBLE WITH BLUETOOTH

Simple line drawing of a device connected to a laptop (no text or symbols)

Attenzione:

Diagram illustrating the three-step installation of a multi-band耳机 headset, showing head, front, and side views with rotation arrows.

ITALIANO

CARATTERISTICHE GARANZIA

Compatibile con Bluetooth 5

ARTICA GREED STEREO HEADPHONE COMPATIBLE WITH BLUETOOTH

Simple line drawing of a device connected to a laptop (no text or symbols)

Aviso:

Diagram illustrating the three-step installation of a multi-band耳机 headset, showing head, front, and side views with rotation arrows.

PORTUGUÊS

ARTICA GREED STEREO HEADPHONE COMPATIBLE WITH BLUETOOTH

Diagram illustrating the three-step installation of a multi-band耳机 headset, showing head, front, and side views with rotation arrows.

SPECYFIKACJA GWARANCJA

ARTICA GREED STEREO HEADPHONE COMPATIBLE WITH BLUETOOTH

Simple line drawing of a device connected to a laptop (no text or symbols)

Noteer:

Diagram illustrating the ear transition from front-to-back and back to rear-to-ear, showing head states and ear movement with rotational arrows.

NEDERLANDS

SPECIFICATIES GARANTIE

Bluetooth 5 gereed

Hands-free

ARTICA GREED STEREO HEADPHONE COMPATIBLE WITH BLUETOOTH

Simple line drawing of a device connected to a laptop (no text or symbols)

Varování:

Diagram illustrating the three-step installation of a multi-band耳机 headset, showing head, front, and side views with rotational arrows.

ČEŠTINA

SPECIFIKACE ZÁRUKA

ARTICA GREED STEREO HEADPHONE COMPATIBLE WITH BLUETOOTH

Simple line drawing of a device connected to a laptop (no text or symbols)

Varovanie:

Diagram illustrating the three-step installation of a multi-band耳机 headset, showing head, front, and side views with rotational arrows.

SLOVENČINA

ŠPECIFIKÁCIE ZÁRUKA

Kompatibilné s Bluetooth 5

Hands-free

Batéria slúchadiel: 200 mAh / 3,7 V

ARTICA GREED STEREO HEADPHONE COMPATIBLE WITH BLUETOOTH

Diagram illustrating the ear transition from front-to-back and back to rear-to-ear, showing head states and ear movement with rotational arrows.

ΕΛΛΗΝΙΚΑ

ARTICA GREED STEREO HEADPHONE COMPATIBLE WITH BLUETOOTH

Simple line drawing of a device connected to a laptop (no text or symbols)

Figyelem:

Diagram illustrating the three-step installation of a multi-band耳机 headset, showing head, front, and side views with rotational arrows.

MAGYAR

SPECIFIKÁCIÓK GARANCIA

Kompatibilis a Bluetooth 5-el

Érintésmentes

ARTICA GREED STEREO HEADPHONE COMPATIBLE WITH BLUETOOTH

Simple line drawing of a device connected to a laptop (no text or symbols)

Opozorilo:

Diagram illustrating the three-step installation of a multi-band耳机 head with rotation arrows indicating clockwise motion.

SLOVENŠČINA

SPECIFIKACIJE GARANCIJA

ARTICA GREED STEREO HEADPHONE COMPATIBLE WITH BLUETOOTH

Simple line drawing of a device connected to a laptop (no text or symbols)

Advarsel:

1. Batteriet er resirkulerbart.
2. Ikke kast batteriet i brann da det kan forårsake eksplosjon.

SAMMENKOBLING AV ∅RETELEFONER MED BLUETOOTH-ENHETER

1 2 Blå Rød 3 NGS Artica Greed

BRUKERVEILEDNING

MULTIFUNKSJONELL KNAPPEKONTROLL

	x1
	2s		2s
	x1		2s
	x1		x1

SLIK BRUKES DEN

Diagram illustrating the three-step installation of a multi-band耳机 headset, showing head, front, and side views with rotational arrows.

NORSK

SPESIFIKASJONER GARANTI

Kompatibel med Bluetooth 5

Håndfri

∅retelefonbatteri: 200mAh / 3,7V

Ladetid for øretelefoner: 2 timer

Arbeidstid: 12 timer*

ARTICA GREED STEREO HEADPHONE COMPATIBLE WITH BLUETOOTH

Simple line drawing of a device connected to a laptop (no text or symbols)

Varoitus:

MONITOIMINPAINIKKEEN TOIMINNOT

	x1
	2s		2s
	x1		2s
	x1		x1

KUINKA KÄYTETÄÄN

Diagram illustrating the three-step installation of a multi-band耳机 headset, showing head, front, and side views with rotational arrows.

SUOMI

TIEDOT TAKUU

ARTICA GREED STEREO HEADPHONE COMPATIBLE WITH BLUETOOTH

Simple line drawing of a device connected to a laptop (no text or symbols)

Varning:

Diagram illustrating the ear transition from front-to-back and back to rear-to-ear, showing head states and ear movement with rotational arrows.

SVENSKA

SPECIFICATIONER

Kompatibel med Bluetooth 5

Handsfree

ARTICA GREED STEREO HEADPHONE COMPATIBLE WITH BLUETOOTH

Simple line drawing of a device connected to a laptop (no text or symbols)

Advarsel:

Diagram illustrating the use of a device to create a compact ear, showing head, front, and back views with rotation arrows.

DANSK

SPECIFICATIONER

Kompatibel med bluetooth 5

Håndfri

Høretelefonbatteri: 200mAh / 3,7V

Ladetid for øretelefoner: 2 timer

ARTICA GREED STEREO HEADPHONE COMPATIBLE WITH BLUETOOTH

Simple line drawing of a device connected to a laptop (no text or symbols)

Ispéjimas:

Diagram illustrating the three-step installation of a multi-band耳机 headset, showing head, front, and side views with rotational arrows.

LIETUVIŲ

SPECIFIKACIJOS

Suderinamas su "Bluetooth" 5

Laisvų rankų įranga

Earphone baterija: 200mAh/3.7V

EU DECLARATION OF CONFORMITY

DECLARACIÓN UE DE CONFORMIDAD DECLARATION "UE" DE CONFORMITÉ DECLARAÇÃO DE CONFORMIDADE DA UE DICHIARAZIONE DI CONFORMITÀ DELL'UE EU-KONFORMITÄTSERKLÄRUNG

The undersigned, on behalf of the manufacturer:

NGS

LURBE GRUP, S.A.

Calle Portuetxe, 27

20018 - San Sebastián, Guipúzcoa (Spain)

Declares that the design and construction of the PRODUCT/

This declaration of conformity is issued the sole responsibility of the manufacturer.

Complies with the relevant Union harmonisation legislation / Cumple con la legislación de armonización de la Unión pertinente / Conforme à la législation d'harmonisation de l'Union applicable / Atende à legislação de harmonização da União pertinente / É conforme alla legislazione di armonizzazione dell'Unione pertinente / Entspricht der einschlägigen Unionsharmonisierungsgesetzgebung /

RADIO EQUIPMENT DIRECTIVE 2014/53/EU

ROHS DIRECTIVE 2011/65/EU & (EU) 2015/863

References to the relevant harmonised standards used or references to the other technical specifications / Referencias a las normas armonizadas pertinentes utilizadas o referencias a otras especificaciones técnicas / References aux normes harmonisées pertinentes utilisées ou références aux autres spécifications techniques / Referências às normas harmonizadas relevantes utilizadas ou referências a outras especificações técnicas / Riferimenti alle norme armonizzate pertinenti utilizzate o riferimenti ad altre specifiche tecniche / Verweise auf die relevanten harmonisierten Normen oder Verweise auf andere technische Spezifikationen /

ETSI EN 301 489-1 V 2.1.1 (2017-02)	IEC 62321-4:2013
ETSI EN 301 489-17 V 3.1.1 (2017-02)	IEC 62321-5:2013
ETSI EN 300 328 V 2.1.1 (2016-11)	IEC 62321-7-1:2015
ETSI EN 303 345 V 1.1.7 (2017-03)	IEC 62321-7-2:2017
EN 62479: 2010	IEC 62321-6:2015
EN 60065:2014

Date of issue of this declaration of conformity: 18/06/2022

SIGNATURE

RAÜL MARTÍN

PRODUCT MANAGER

Paul J. Martin

NGS

technical support: www.ngs.eu/support

www.ngs.eu

FR
